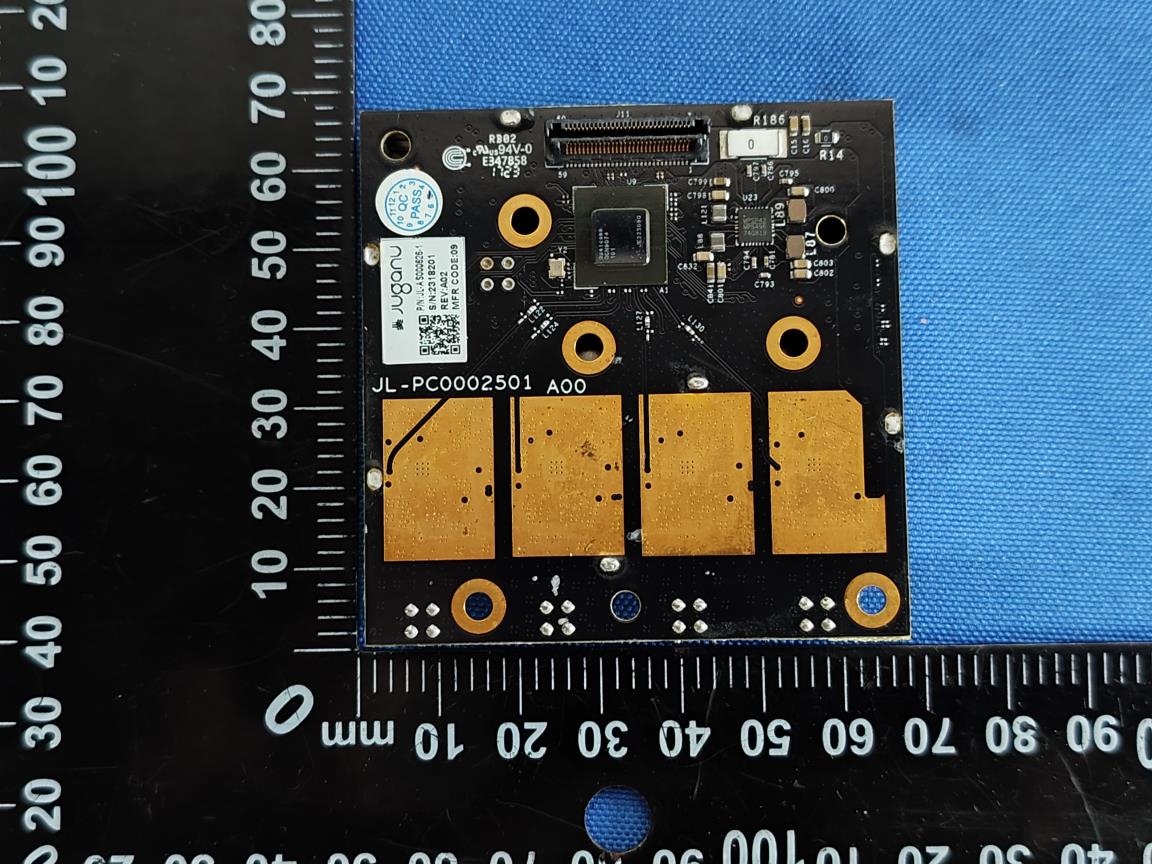

2ATPH-JS-WI-6RF PCBAs

JUGANU Ltd.
RF PCBAs - FCC ID 2ATPH-JS-WI-6 - JUGANU Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Mar 09, 2026
Application Purpose
Original Equipment
Equipment Note
RF PCBAs
Frequency Range
5180.00000000 - 5240.00000000
Company
JUGANU Ltd.
Country
Israel

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—
β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 PRODUCT SPECIFICATION J S-WI-6 Wi-Fi IE EE 802.11 a/n/ac/ax Modules 2 JS-WI-6 Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JS-WI-2.4/6 Rev 1.0 Revision History Version Date Contents of Revision Change Preparde Checked Approved V1.0 2024/7/1 New version Asaf David Yossi 3 JS-WI-6 Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JS-WI-2.4/6 Rev 1.0 1. General Description 1.1 Introduction The JS-WI-6 is a multi-radio MCU module. The radio provides support for Wi-Fi 802.11ax in the 5-7GHz band communications. The interface of the radios is PCI express. The device are restricted to outdoor operation only. 1.2 Description Model Name JS-WI-6 Product Description Support Wi-Fi/ functionalities Host Interface See below tables Operating temperature -40Β°C to 85Β°C Storage temperature -40Β°C to 95Β°C 4 JS-WI-6 Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JS-WI-2.4/6 Rev 1.0 2.Block Diagram JS-WI-6 block diagram 5 JS-WI-6 Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JS-WI-2.4/6 Rev 1.0 4.General Specification 4.1 5GHz RF Specification JS-WI-6 HW WLAN Standard IEEE 802.11 a/n/ac/ax Wi-Fi compliant Frequency Range (Central freq@BW=20MHz) 5.18 GHz ~ 7.115GHz WIFI Features 802.11ax WIFI6, WIFI6E ready , MIMO 4x4, BW: 20,40,80,160MHz Test Items Typical Value EVM Output Power 802.11ax /20MHz: MCS11 20dBm Β± 1 dB EVM ≀ -30dB Receive Sensitivity SISO (11ax,20MHz) @10% PER = -64dBm (11ax,40MHz) @10% PER = -60dBm (11ax,80MHz) @10% PER = -57dBm (11ax,160MHz) @10% PER = -54dBm Maximum input level 802.11ax: -20 dBm Operating Temperature -40Β°C to 85Β°C VCC 5V Host Interface PCIE,GPIOs 6 JS-WI-6 Data Sheet The Information provided herein is subject to change without prior notice by Juganu. Please verify all details with Juganu. Any information included in this document is and shall remain, at all times, the exclusive property of Juganu Ltd. and/or its licensors. Neither the furnishing, receipt or possession of any information thereof shall constitute the granting or transferring of any right or license to copy, use or reproduce such information or any physical article or device, or any part thereof, nor to derive any benefit therefrom, in any way, unless approved otherwise in writing by Juganu Ltd. Juganu HQ 1 Yahadut Canada St., Or-Yehuda, Israel Tel.: + 972-3-5310031 [email protected] JS-WI-2.4/6 Rev 1.0 5.Module pictures JS-WI-6 Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 Conditions on using JUGANU Ltd. regulatory approvals: A. Customer must ensure that its product (The ” RF module”) is electrically identical to JUGANU Ltd. reference designs. Customer acknowledges that any modifications to JUGANU Ltd. reference designs may invalidate regulatory approvals in relation to the CUSTOMER Product, or may necessitate notifications to the relevant regulatory authorities. B. Customer is responsible for ensuring that antennas used with the product are of the same type, with same or lower gains as approved and providing antenna reports to JUGANU Ltd. C. Customer is responsible for regression testing to accommodate changes to JUGANU Ltd. reference designs, new antennas, and portable RF exposure safety testing/approvals. D. Appropriate labels must be affixed to the CUSTOMER Product that comply with applicable regulations in all respects. E. A user’s manual or instruction manual must be included w…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 52 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant3 98.09 0.08 NVNT a 5200 Ant3 98.39 0.07 NVNT a 5240 Ant3 98.95 0.05 NVNT ac20 5180 Ant3 99.10 0.04 NVNT ac20 5200 Ant3 98.22 0.08 NVNT ac20 5240 Ant3 99.37 0.03 NVNT ac40 5190 Ant3 99.00 0.04 NVNT ac40 5230 Ant3 98.04 0.09 NVNT ac80 5210 Ant3 99.13 0.04 NVNT ax20 5180 Ant3 99.90 0.00 NVNT ax20 5200 Ant3 98.66 0.06 NVNT ax20 5240 Ant3 99.41 0.03 NVNT ax40 5190 Ant3 98.54 0.06 NVNT ax40 5230 Ant3 98.84 0.05 NVNT ax80 5210 Ant3 99.04 0.04 NVNT n20 5180 Ant3 99.24 0.03 NVNT n20 5200 Ant3 98.53 0.06 NVNT n20 5240 Ant3 99.75 0.01 NVNT n40 5190 Ant3 98.84 0.05 NVNT n40 5230 Ant3 98.47 0.07 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant3 18.93 0.5 Pass NVNT a 5200 Ant3 19.02 0.5 Pass NVNT a 5240 Ant3 19.17 0.5 Pass NVNT ac20 5180 Ant3 20.55 0.5 Pass NVNT ac20 5200 Ant3 20.19 0.5 Pass NVNT ac20 5240 Ant3 20.04 0.5 Pass NVNT ac40 5190 Ant3 38.82 0.5 Pass NVNT ac40 5230 Ant3 38.82 0.5 Pass NVNT ac80 5210 Ant3 82.08 0.5 Pass NVNT ax20 5180 Ant3 20.76 0.5 Pass NVNT ax20 5200 Ant3 20.64 0.5 Pass NVNT ax20 5240 Ant3 20.61 0.5 Pass NVNT ax40 5190 Ant3 39.78 0.5 Pass NVNT ax40 5230 Ant3 39.72 0.5 Pass NVLT ax80 5210 Ant3 80.76 0.5 Pass NVNT n20 5180 Ant3 20.04 0.5 Pass NVNT n20 5200 Ant3 19.95 0.5 Pass NVNT n20 5240 Ant3 19.98 0.5 Pass Page 2 of 52 NVNT n40 5190 Ant3 38.82 0.5 Pass NVNT n40 5230 Ant3 39.12 0.5 Pass -26dB Bandwidth NVNT a 5180MHz Ant3 -26dB Bandwidth NVNT a 5200MHz Ant3 -26dB Bandwidth NVNT a 5240MHz Ant3 Page 3 of 52 -26dB Bandwidth NVNT ac20 5180MHz Ant3 -26dB Bandwidth NVNT ac20 5200MHz Ant3 Page 4 of 52 -26dB Bandwidth NVNT ac20 5240MHz Ant3 -26dB Bandwidth NVNT ac40 5190MHz Ant3 Page 5 of 52 -26dB Bandwidth NVNT ac40 5230MHz Ant3 -26dB Bandwidth NVNT ac80 5210MHz Ant3 Page 6 of 52 -26dB Bandwidth NVNT ax20 5180MHz Ant3 -26dB Bandwidth NVNT ax20 5200MHz Ant3 Page 7 of 52 -26dB Bandwidth NVNT ax20 5240MHz Ant3 -26dB Bandwidth NVNT ax40 5190MHz Ant3 Page 8 of 52 -26dB Bandwidth NVNT ax40 5230MHz Ant3 -26dB Bandwidth NVNT ax80 5210MHz Ant3 Page 9 of 52 -26dB Bandwidth NVNT n20 5180MHz Ant3 -26dB Bandwidth NVNT n20 5200MHz Ant3 Page 10 of 52 -26dB Bandwidth NVNT n20 5240MHz Ant3 -26dB Bandwidth NVNT n40 5190MHz Ant3 Page 11 of 52 -26dB Bandwidth NVNT n40 5230MHz Ant3 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant3 16.304 NVNT a 5200 Ant3 16.334 NVNT a 5240 Ant3 16.334 NVNT ac20 5180 Ant3 17.562 NVNT ac20 5200 Ant3 17.562 Page 12 of 52 NVNT ac20 5240 Ant3 17.562 NVNT ac40 5190 Ant3 36.024 NVNT ac40 5230 Ant3 36.024 NVNT ac80 5210 Ant3 75.285 NVNT ax20 5180 Ant3 18.851 NVNT ax20 5200 Ant3 18.851 NVNT ax20 5240 Ant3 18.881 NVNT ax40 5190 Ant3 37.642 NVNT ax40 5230 Ant3 37.642 NVNT ax80 5210 Ant3 76.963 NVNT n20 5180 Ant3 17.562 NVNT n20 5200 Ant3 17.532 NVNT n20 5240 Ant3 17.532 NVNT n40 5190 Ant3 35.964 NVNT n40 5230 Ant3 35.904 OBW NVNT a 5180MHz Ant3 OBW NVNT a 5200MHz Ant3 Page 13 of 52 OBW NVNT a 5240MHz Ant3 OBW NVNT ac20 5180MHz Ant3 Page 14 of 52 OBW NVNT ac20 5200MHz Ant3 OBW NVNT ac20 5240MHz Ant3 Page 15 of 52 OBW NVNT ac40 5190MHz Ant3 OBW NVNT ac40 5230MHz Ant3 Page 16 of 52 OBW NVNT ac80 5210MHz Ant3 OBW NVNT ax20 5180MHz Ant3 Page 17 of 52 OBW NVNT ax20 5200MHz Ant3 OBW NVNT ax20 5240MHz Ant3 Page 18 of 52 OBW NVNT ax40 5190MHz Ant3 OBW NVNT ax40 5230MHz Ant3 Page 19 of 52 OBW NVNT ax80 5210MHz Ant3 OBW NVNT n20 5180MHz Ant3 Page 20 of 52 OBW NVNT n20 5200MHz Ant3 OBW NVNT n20 5240MHz Ant3 Page 21 of 52 OBW NVNT n40 5190MHz Ant3 OBW NVNT n40 5230MHz Ant3 Page 22 of 52 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conduct PSD (dBm) Limit (dBm) Verdict NVNT a 5180 Ant3 1.924 11 Pass NVNT a 5200 Ant3 2.668 11 Pass NVNT a 5240 Ant3 1.889 11 Pass NVNT ac20 5180 Ant3 -0.907 11 Pass NVNT ac20 5200 Ant3 -0.453 11 Pass NVNT ac20 5240 Ant3 -0.754 11 Pass NVNT ac40 5190 Ant3 -2.399 11 Pass NVNT ac40 5230 Ant3 -1.859 11 Pass NVNT ac80 5210 Ant3 -5.835 11 Pass NVNT ax20 5180 Ant3 0.195 11 Pass NVNT ax20 5200 Ant3 0.621 11 Pass NVNT ax20 5240 Ant3 0.614 11 Pass NVNT ax40 5190 Ant3 -3.018 11 Pass NVNT ax40 5230 Ant3 -3.015 11 Pass NVNT ax80 5210 Ant3 -6.017 11 Pass NVNT n20 5180 Ant3 -0.743 11 Pass NVNT n20 5200 Ant3 -0.732 11 Pass NVNT n20 5240 Ant3 -0.27 11 Pass NVNT n40 5190 Ant3 -1.733 11 Pass NVNT n40 5230 Ant3 -2.24 11 Pass PSD NVNT a 5180MHz Ant3 Page 23 of 52 PSD NVNT a 5200MHz Ant3 PSD NVNT a 5240MHz Ant3 Page 24 of 52 PSD NVNT ac20 5180MHz Ant3 PSD NVNT ac20 5200MHz Ant3 Page 25 of 52 PSD NVNT ac20 5240MHz Ant3 PSD NVNT ac40 5190MHz Ant3 Page 26 of 52 PSD NVNT ac40 5230MHz Ant3 PSD NVNT ac80 5210MHz Ant3 Page 27 of 52 PSD NVNT ax20 5180MHz Ant3 PSD NVNT ax20 5200MHz Ant3 Page 28 of 52 PSD NVNT ax20 5240MHz Ant3 PSD NVNT ax40 5190MHz Ant3 Page 29 of 52 PSD NVNT ax40 5230MHz Ant3 PSD NVNT ax80 5210MHz Ant3 Page 30 of 52 PSD NVNT n20 5180MHz Ant3 PSD NVNT n20 5200MHz Ant3 Page 31 of 52 PSD NVNT n20 5240MHz Ant3 PSD NVNT n40 5190MHz Ant3 Page 32 of 52 PSD NVNT n40 5230MHz Ant3 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant3 -30.34 -27 Pass NVNT a 5240 Ant3 -30.76 -27 Pass NVNT ac20 5180 Ant3 -30.72 -27 Pass NVNT ac20 5240 Ant3 -30.74 -27 Pass NVNT ac40 5190 Ant3 -31.15 -27 Pass Page 33 of 52 NVNT ac40 5230 Ant3 -30.4 -27 Pass NVNT ac80 5210 Ant3 -30.84 -27 Pass NVNT ac80 5210 Ant3 -31.06 -27 Pass NVNT ax20 5180 Ant3 -31.09 -27 Pass NVNT ax20 5240 Ant3 -30.6 -27 Pass NVNT ax40 5190 Ant3 -31.02 -27 Pass NVNT ax40 5230 Ant3 -40.85 -27 Pass NVNT ax80 5210 Ant3 -29.64 -27 Pass NVNT ax80 5210 Ant3 -31.7 -27 Pass NVNT n20 5180 Ant3 -31.01 -27 Pass NVNT n20 5240 Ant3 -31.34 -27 Pass NVNT n40 5190 Ant3 -29.91 -27 Pass NVNT n40 5230 Ant3 -30.85 -27 Pass Band Edge NVNT a 5180MHz Low Ant3 Band Edge NVNT a 5240MHz High Ant3 Page 34 of 52 Band Edge NVNT ac20 5180MHz Low A…

Text truncated - open the document above for the full version.

Test Setup Photos

FCCID: 2ATPH-JS-WI-6 Radiated Emission

Test Report

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/certificate FCC TEST REPORT FCC ID: 2ATPH-JS-WI-6 On Behalf of JUGANU Ltd. RF PCBAs Model No.: JS-WI-6 Prepared for : JUGANU Ltd. Address : 1 Yahadut Canada St. Or Yehuda, 6037501 Israel Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2403279-C01-R05 Date of Receipt : March 29, 2024 Date of Test : March 29, 2024 – March 2, 2026 Date of Report : March 2, 2026 Version Number : V0 Test Result : Pass Page 2 of 70 Report No.: A2403279-C01-R05 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ..................................................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY............................................................................................................. 5 2 GENERAL INFORMATION ...................................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 6 2.2 TEST MODE ........................................................................................................................................ 7 2.3 TEST FACILITY .................................................................................................................................... 8 2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 8 2.5 DEVIATION FROM STANDARDS ............................................................................................................. 9 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................... 9 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 9 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 9 3 TEST INSTRUMENTS LIST ................................................................................................................... 10 4 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 13 4.1 ANTENNA REQUIREMENT: .................................................................................................................. 13 4.2 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................................................... 14 4.3 DUTY CYCLE .................................................................................................................................... 15 4.4 MAXIMUM CONDUCTED OUTPUT POWER ............................................................................................ 16 4.5 POWER SPECTRAL DENSITY .............................................................................................................. 18 4.6 RADIATED BAND EDGE ...................................................................................................................... 24 4.7 CONDUCTED BAND EDGE .................................................................................................................. 44 4.8 RADIATED EMISSION ......................................................................................................................... 45 4.9 CONDUCTED SPURIOUS EMISSION ..................................................................................................... 70 Page 3 of 70 Report No.: A2403279-C01-R05 TEST REPORT DECLARATION Applicant : JUGANU Ltd. Address : 1 Yahadut Canada St. Or Yehuda, 6037501 Israel Manufacturer : JUGANU Ltd. Address : 1 Yahadut Canada St. Or Yehuda, 6037501 Israel EUT Description : RF PCBAs (A) Model No. : JS-WI-6 (B) Trademark : Juganu Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart E, ANSI C63.10-2020 KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart E limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Yannis Wen Project Engineer Approved by (name + signature).......: Jack Xu Project Manager Date of issue................................: March 2, 2026 Page 4 of 70 Report No.: A2403279-C01-R05 Revision History Revision Issue Date Revisions Revised By V0 March 2, 2026 Initial released Issue Yannis Wen Page 5 of 70 Report No.: A2403279-C01-R05 1 Test Summary Test Item Section in CFR 47 Result Antenna requirement Section 15.203 PASS AC Power Line Conducted Emission Section 15.207(a) N/A Maximum Conducted Output Power Section 15.407(a) PASS Power Spectral Density Section 15.407(a) PASS 26dB/6dB&99% Bandwidth Section 15.407 PASS Undesirable Emission Section 15.407(b) PASS Conducted Spurious Emission Section 15.407(b) PASS Radiated Emission 15.205&15.209 (a) PASS Conducted Band Edge Section 15.407(b) PASS Radiated Band …

Text truncated - open the document above for the full version.

Test Report

Page 43 of 52 Tx. Spurious NVNT a 5785MHz Ant4 Emission Tx. Spurious NVNT a 5825MHz Ant4 Emission Page 44 of 52 Tx. Spurious NVNT ac20 5745MHz Ant4 Emission Tx. Spurious NVNT ac20 5785MHz Ant4 Emission Page 45 of 52 Tx. Spurious NVNT ac20 5825MHz Ant4 Emission Tx. Spurious NVNT ac40 5755MHz Ant4 Emission Page 46 of 52 Tx. Spurious NVNT ac40 5795MHz Ant4 Emission Tx. Spurious NVNT ac80 5775MHz Ant4 Emission Page 47 of 52 Tx. Spurious NVNT ax20 5745MHz Ant4 Emission Tx. Spurious NVNT ax20 5785MHz Ant4 Emission Page 48 of 52 Tx. Spurious NVNT ax20 5825MHz Ant4 Emission Tx. Spurious NVNT ax40 5755MHz Ant4 Emission Page 49 of 52 Tx. Spurious NVNT ax40 5795MHz Ant4 Emission Tx. Spurious NVNT ax80 5775MHz Ant4 Emission Page 50 of 52 Tx. Spurious NVNT n20 5745MHz Ant4 Emission Tx. Spurious NVNT n20 5785MHz Ant4 Emission Page 51 of 52 Tx. Spurious NVNT n20 5825MHz Ant4 Emission Tx. Spurious NVNT n40 5755MHz Ant4 Emission Page 52 of 52 Tx. Spurious NVNT n40 5795MHz Ant4 Emission

Test Report

Page 1 of 52 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant4 98.38 0.07 NVNT a 5785 Ant4 99.65 0.02 NVNT a 5825 Ant4 98.01 0.09 NVNT ac20 5745 Ant4 99.35 0.03 NVNT ac20 5785 Ant4 99.84 0.01 NVNT ac20 5825 Ant4 98.33 0.07 NVNT ac40 5755 Ant4 99.66 0.01 NVNT ac40 5795 Ant4 98.43 0.07 NVNT ac80 5775 Ant4 98.02 0.09 NVNT ax20 5745 Ant4 99.66 0.01 NVNT ax20 5785 Ant4 98.71 0.06 NVNT ax20 5825 Ant4 98.20 0.08 NVNT ax40 5755 Ant4 98.76 0.05 NVNT ax40 5795 Ant4 99.11 0.04 NVNT ax80 5775 Ant4 99.31 0.03 NVNT n20 5745 Ant4 98.71 0.06 NVNT n20 5785 Ant4 99.46 0.02 NVNT n20 5825 Ant4 99.75 0.01 NVNT n40 5755 Ant4 99.59 0.02 NVNT n40 5795 Ant4 98.75 0.05 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant4 16.32 0.5 Pass NVNT a 5785 Ant4 16.32 0.5 Pass NVNT a 5825 Ant4 15.78 0.5 Pass NVNT ac20 5745 Ant4 17.13 0.5 Pass NVNT ac20 5785 Ant4 16.59 0.5 Pass NVNT ac20 5825 Ant4 17.13 0.5 Pass NVNT ac40 5755 Ant4 36.48 0.5 Pass NVNT ac40 5795 Ant4 36.48 0.5 Pass NVNT ac80 5775 Ant4 73.56 0.5 Pass NVNT ax20 5745 Ant4 18.33 0.5 Pass NVNT ax20 5785 Ant4 18 0.5 Pass NVNT ax20 5825 Ant4 18.9 0.5 Pass NVNT ax40 5755 Ant4 37.74 0.5 Pass NVNT ax40 5795 Ant4 37.92 0.5 Pass NVNT ax80 5775 Ant4 77.52 0.5 Pass NVNT n20 5745 Ant4 16.68 0.5 Pass NVNT n20 5785 Ant4 17.19 0.5 Pass NVNT n20 5825 Ant4 17.13 0.5 Pass Page 2 of 52 NVNT n40 5755 Ant4 34.86 0.5 Pass NVNT n40 5795 Ant4 35.04 0.5 Pass -6dB Bandwidth NVNT a 5745MHz Ant4 -6dB Bandwidth NVNT a 5785MHz Ant4 -6dB Bandwidth NVNT a 5825MHz Ant4 Page 3 of 52 -6dB Bandwidth NVNT ac20 5745MHz Ant4 -6dB Bandwidth NVNT ac20 5785MHz Ant4 Page 4 of 52 -6dB Bandwidth NVNT ac20 5825MHz Ant4 -6dB Bandwidth NVNT ac40 5755MHz Ant4 Page 5 of 52 -6dB Bandwidth NVNT ac40 5795MHz Ant4 -6dB Bandwidth NVNT ac80 5775MHz Ant4 Page 6 of 52 -6dB Bandwidth NVNT ax20 5745MHz Ant4 -6dB Bandwidth NVNT ax20 5785MHz Ant4 Page 7 of 52 -6dB Bandwidth NVNT ax20 5825MHz Ant4 -6dB Bandwidth NVNT ax40 5755MHz Ant4 Page 8 of 52 -6dB Bandwidth NVNT ax40 5795MHz Ant4 -6dB Bandwidth NVNT ax80 5775MHz Ant4 Page 9 of 52 -6dB Bandwidth NVNT n20 5745MHz Ant4 -6dB Bandwidth NVNT n20 5785MHz Ant4 Page 10 of 52 -6dB Bandwidth NVNT n20 5825MHz Ant4 -6dB Bandwidth NVNT n40 5755MHz Ant4 Page 11 of 52 -6dB Bandwidth NVNT n40 5795MHz Ant4 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant4 16.334 NVNT a 5785 Ant4 16.334 NVNT a 5825 Ant4 16.334 NVNT ac20 5745 Ant4 17.562 NVNT ac20 5785 Ant4 17.562 Page 12 of 52 NVNT ac20 5825 Ant4 17.562 NVNT ac40 5755 Ant4 36.084 NVNT ac40 5795 Ant4 36.084 NVNT ac80 5775 Ant4 75.524 NVNT ax20 5745 Ant4 18.881 NVNT ax20 5785 Ant4 18.851 NVNT ax20 5825 Ant4 18.881 NVNT ax40 5755 Ant4 37.642 NVNT ax40 5795 Ant4 37.642 NVNT ax80 5775 Ant4 77.323 NVNT n20 5745 Ant4 17.562 NVNT n20 5785 Ant4 17.562 NVNT n20 5825 Ant4 17.562 NVNT n40 5755 Ant4 36.024 NVNT n40 5795 Ant4 35.964 OBW NVNT a 5745MHz Ant4 OBW NVNT a 5785MHz Ant4 Page 13 of 52 OBW NVNT a 5825MHz Ant4 OBW NVNT ac20 5745MHz Ant4 Page 14 of 52 OBW NVNT ac20 5785MHz Ant4 OBW NVNT ac20 5825MHz Ant4 Page 15 of 52 OBW NVNT ac40 5755MHz Ant4 OBW NVNT ac40 5795MHz Ant4 Page 16 of 52 OBW NVNT ac80 5775MHz Ant4 OBW NVNT ax20 5745MHz Ant4 Page 17 of 52 OBW NVNT ax20 5785MHz Ant4 OBW NVNT ax20 5825MHz Ant4 Page 18 of 52 OBW NVNT ax40 5755MHz Ant4 OBW NVNT ax40 5795MHz Ant4 Page 19 of 52 OBW NVNT ax80 5775MHz Ant4 OBW NVNT n20 5745MHz Ant4 Page 20 of 52 OBW NVNT n20 5785MHz Ant4 OBW NVNT n20 5825MHz Ant4 Page 21 of 52 OBW NVNT n40 5755MHz Ant4 OBW NVNT n40 5795MHz Ant4 Page 22 of 52 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conduct PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant4 1.759 30 Pass NVNT a 5785 Ant4 2.062 30 Pass NVNT a 5825 Ant4 2.759 30 Pass NVNT ac20 5745 Ant4 -1.734 30 Pass NVNT ac20 5785 Ant4 -2.131 30 Pass NVNT ac20 5825 Ant4 -0.676 30 Pass NVNT ac40 5755 Ant4 -3.739 30 Pass NVNT ac40 5795 Ant4 -1.856 30 Pass NVNT ac80 5775 Ant4 -5.339 30 Pass NVNT ax20 5745 Ant4 -0.526 30 Pass NVNT ax20 5785 Ant4 -0.359 30 Pass NVNT ax20 5825 Ant4 -0.654 30 Pass NVNT ax40 5755 Ant4 -2.761 30 Pass NVNT ax40 5795 Ant4 -2.223 30 Pass NVNT ax80 5775 Ant4 -3.765 30 Pass NVNT n20 5745 Ant4 -2.226 30 Pass NVNT n20 5785 Ant4 -1.62 30 Pass NVNT n20 5825 Ant4 -1.302 30 Pass NVNT n40 5755 Ant4 -2.177 30 Pass NVNT n40 5795 Ant4 -5.33 30 Pass PSD NVNT a 5745MHz Ant4 Page 23 of 52 PSD NVNT a 5785MHz Ant4 PSD NVNT a 5825MHz Ant4 Page 24 of 52 PSD NVNT ac20 5745MHz Ant4 PSD NVNT ac20 5785MHz Ant4 Page 25 of 52 PSD NVNT ac20 5825MHz Ant4 PSD NVNT ac40 5755MHz Ant4 Page 26 of 52 PSD NVNT ac40 5795MHz Ant4 PSD NVNT ac80 5775MHz Ant4 Page 27 of 52 PSD NVNT ax20 5745MHz Ant4 PSD NVNT ax20 5785MHz Ant4 Page 28 of 52 PSD NVNT ax20 5825MHz Ant4 PSD NVNT ax40 5755MHz Ant4 Page 29 of 52 PSD NVNT ax40 5795MHz Ant4 PSD NVNT ax80 5775MHz Ant4 Page 30 of 52 PSD NVNT n20 5745MHz Ant4 PSD NVNT n20 5785MHz Ant4 Page 31 of 52 PSD NVNT n20 5825MHz Ant4 PSD NVNT n40 5755MHz Ant4 Page 32 of 52 PSD NVNT n40 5795MHz Ant4 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Limit (dBm) Verdict NVNT a 5745 Ant4 -36.8 -27 Pass NVNT a 5825 Ant4 -30.14 -27 Pass NVNT ac20 5745 Ant4 -30.42 -27 Pass NVNT ac20 5825 Ant4 -29.55 -27 Pass NVNT ac40 5755 Ant4 -30.74 -27 Pass Page 33 of 52 NVNT ac40 5795 Ant4 -30.73 -27 Pass NVNT ac80 5775 Ant4 -31.07 -27 Pass NVNT ac80 5775 Ant4 -30.09 -27 Pass NVNT ax20 5745 Ant4 -30.9 -27 Pass NVNT ax20 5825 Ant4 -30.25 -27 Pass NVNT ax40 5755 Ant4 -30.73 -27 Pass NVNT ax40 5795 Ant4 -30.13 -27 Pass NVNT ax80 5775 Ant4 -31.5 -27 Pass NVNT ax80 5775 Ant4 -29.15 -27 Pass NVNT n20 5745 Ant4 -30.68 -27 Pass NVNT n20 5825 Ant4 -30.46 -27 Pass NVNT n40 5755 Ant4 -30.99 -27 Pass NVNT n40 5795 Ant4 -30.84 -27 Pass Band Edge NVNT a 5745MHz Low Ant4 Band Edge NVNT a 5825MHz High Ant4 Page 34 of 52 Band Edge NVNT ac20 5745MHz Low Ant4 Band Edge NVNT ac20 …

Text truncated - open the document above for the full version.

Test Report

Page 43 of 52 Tx. Spurious NVNT a 5785MHz Ant3 Emission Tx. Spurious NVNT a 5825MHz Ant3 Emission Page 44 of 52 Tx. Spurious NVNT ac20 5745MHz Ant3 Emission Tx. Spurious NVNT ac20 5785MHz Ant3 Emission Page 45 of 52 Tx. Spurious NVNT ac20 5825MHz Ant3 Emission Tx. Spurious NVNT ac40 5755MHz Ant3 Emission Page 46 of 52 Tx. Spurious NVNT ac40 5795MHz Ant3 Emission Tx. Spurious NVNT ac80 5775MHz Ant3 Emission Page 47 of 52 Tx. Spurious NVNT ax20 5745MHz Ant3 Emission Tx. Spurious NVNT ax20 5785MHz Ant3 Emission Page 48 of 52 Tx. Spurious NVNT ax20 5825MHz Ant3 Emission Tx. Spurious NVNT ax40 5755MHz Ant3 Emission Page 49 of 52 Tx. Spurious NVNT ax40 5795MHz Ant3 Emission Tx. Spurious NVNT ax80 5775MHz Ant3 Emission Page 50 of 52 Tx. Spurious NVNT n20 5745MHz Ant3 Emission Tx. Spurious NVNT n20 5785MHz Ant3 Emission Page 51 of 52 Tx. Spurious NVNT n20 5825MHz Ant3 Emission Tx. Spurious NVNT n40 5755MHz Ant3 Emission Page 52 of 52 Tx. Spurious NVNT n40 5795MHz Ant3 Emission

Test Report

Page 1 of 52 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant3 98.68 0.06 NVNT a 5785 Ant3 99.37 0.03 NVNT a 5825 Ant3 98.02 0.09 NVNT ac20 5745 Ant3 99.90 0.00 NVNT ac20 5785 Ant3 99.95 0.00 NVNT ac20 5825 Ant3 99.36 0.03 NVNT ac40 5755 Ant3 99.09 0.04 NVNT ac40 5795 Ant3 99.61 0.02 NVNT ac80 5775 Ant3 99.05 0.04 NVNT ax20 5745 Ant3 98.49 0.07 NVNT ax20 5785 Ant3 98.97 0.04 NVNT ax20 5825 Ant3 99.03 0.04 NVNT ax40 5755 Ant3 99.51 0.02 NVNT ax40 5795 Ant3 98.39 0.07 NVNT ax80 5775 Ant3 99.72 0.01 NVNT n20 5745 Ant3 99.41 0.03 NVNT n20 5785 Ant3 99.18 0.04 NVNT n20 5825 Ant3 98.63 0.06 NVNT n40 5755 Ant3 98.45 0.07 NVNT n40 5795 Ant3 98.40 0.07 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant3 16.29 0.5 Pass NVNT a 5785 Ant3 16.05 0.5 Pass NVNT a 5825 Ant3 16.29 0.5 Pass NVNT ac20 5745 Ant3 17.04 0.5 Pass NVNT ac20 5785 Ant3 17.1 0.5 Pass NVNT ac20 5825 Ant3 17.55 0.5 Pass NVNT ac40 5755 Ant3 35.7 0.5 Pass NVNT ac40 5795 Ant3 35.94 0.5 Pass NVNT ac80 5775 Ant3 73.2 0.5 Pass NVNT ax20 5745 Ant3 17.85 0.5 Pass NVNT ax20 5785 Ant3 18.36 0.5 Pass NVNT ax20 5825 Ant3 19.05 0.5 Pass NVNT ax40 5755 Ant3 38.04 0.5 Pass NVNT ax40 5795 Ant3 35.52 0.5 Pass NVNT ax80 5775 Ant3 72.6 0.5 Pass NVNT n20 5745 Ant3 17.01 0.5 Pass NVNT n20 5785 Ant3 17.1 0.5 Pass NVNT n20 5825 Ant3 16.29 0.5 Pass Page 2 of 52 NVNT n40 5755 Ant3 36.3 0.5 Pass NVNT n40 5795 Ant3 36 0.5 Pass -6dB Bandwidth NVNT a 5745MHz Ant3 -6dB Bandwidth NVNT a 5785MHz Ant3 -6dB Bandwidth NVNT a 5825MHz Ant3 Page 3 of 52 -6dB Bandwidth NVNT ac20 5745MHz Ant3 -6dB Bandwidth NVNT ac20 5785MHz Ant3 Page 4 of 52 -6dB Bandwidth NVNT ac20 5825MHz Ant3 -6dB Bandwidth NVNT ac40 5755MHz Ant3 Page 5 of 52 -6dB Bandwidth NVNT ac40 5795MHz Ant3 -6dB Bandwidth NVNT ac80 5775MHz Ant3 Page 6 of 52 -6dB Bandwidth NVNT ax20 5745MHz Ant3 -6dB Bandwidth NVNT ax20 5785MHz Ant3 Page 7 of 52 -6dB Bandwidth NVNT ax20 5825MHz Ant3 -6dB Bandwidth NVNT ax40 5755MHz Ant3 Page 8 of 52 -6dB Bandwidth NVNT ax40 5795MHz Ant3 -6dB Bandwidth NVNT ax80 5775MHz Ant3 Page 9 of 52 -6dB Bandwidth NVNT n20 5745MHz Ant3 -6dB Bandwidth NVNT n20 5785MHz Ant3 Page 10 of 52 -6dB Bandwidth NVNT n20 5825MHz Ant3 -6dB Bandwidth NVNT n40 5755MHz Ant3 Page 11 of 52 -6dB Bandwidth NVNT n40 5795MHz Ant3 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant3 16.334 NVNT a 5785 Ant3 16.364 NVNT a 5825 Ant3 16.334 NVNT ac20 5745 Ant3 17.562 NVNT ac20 5785 Ant3 17.562 Page 12 of 52 NVNT ac20 5825 Ant3 17.562 NVNT ac40 5755 Ant3 36.024 NVNT ac40 5795 Ant3 36.024 NVNT ac80 5775 Ant3 75.405 NVNT ax20 5745 Ant3 18.881 NVNT ax20 5785 Ant3 18.911 NVNT ax20 5825 Ant3 18.881 NVNT ax40 5755 Ant3 37.822 NVNT ax40 5795 Ant3 37.702 NVNT ax80 5775 Ant3 77.203 NVNT n20 5745 Ant3 17.562 NVNT n20 5785 Ant3 17.562 NVNT n20 5825 Ant3 17.532 NVNT n40 5755 Ant3 36.084 NVNT n40 5795 Ant3 36.024 OBW NVNT a 5745MHz Ant3 OBW NVNT a 5785MHz Ant3 Page 13 of 52 OBW NVNT a 5825MHz Ant3 OBW NVNT ac20 5745MHz Ant3 Page 14 of 52 OBW NVNT ac20 5785MHz Ant3 OBW NVNT ac20 5825MHz Ant3 Page 15 of 52 OBW NVNT ac40 5755MHz Ant3 OBW NVNT ac40 5795MHz Ant3 Page 16 of 52 OBW NVNT ac80 5775MHz Ant3 OBW NVNT ax20 5745MHz Ant3 Page 17 of 52 OBW NVNT ax20 5785MHz Ant3 OBW NVNT ax20 5825MHz Ant3 Page 18 of 52 OBW NVNT ax40 5755MHz Ant3 OBW NVNT ax40 5795MHz Ant3 Page 19 of 52 OBW NVNT ax80 5775MHz Ant3 OBW NVNT n20 5745MHz Ant3 Page 20 of 52 OBW NVNT n20 5785MHz Ant3 OBW NVNT n20 5825MHz Ant3 Page 21 of 52 OBW NVNT n40 5755MHz Ant3 OBW NVNT n40 5795MHz Ant3 Page 22 of 52 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conduct PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant3 2.05 30 Pass NVNT a 5785 Ant3 2.09 30 Pass NVNT a 5825 Ant3 2.789 30 Pass NVNT ac20 5745 Ant3 -1.334 30 Pass NVNT ac20 5785 Ant3 -1.678 30 Pass NVNT ac20 5825 Ant3 -0.687 30 Pass NVNT ac40 5755 Ant3 -2.647…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Davidov(HW Manager)
[email protected]Fax: +972-3-531-0113

Technical Contact

FCC US Agent, LLCTim Payne
[email protected]

3722 Illinois Avenue, Saint Charles, IL Β· Saint Charles, Illinois, 60174 Β· United States

Test Firm

Shenzhen Alpha Product Testing Co., LTD.Real Yak
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115E5.18 GHz - 5.24 GHz108.14 mW
215E5.75 GHz - 5.83 GHz429.83 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is conducted. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369.
