MWC711 User Manual Miliwave 1 / 5 MWC711 User Manual 60GHz RF/BB Module with USB3.0 interface Rev. 1.1 2020-03-24 MWC711 User Manual Miliwave 2 / 5  Revision History Date Written by Rev. Description 20.03.16 Ken. Jung 1.0 MWC711 User manual .1.0 Release 20.03.24 Ken. Jung 1.1 MWC711 User manual .1.1 Release Address: 423 R&DB Center, 105 YoungTong-Gu, SuWon-Si, GyeongGi-Do, 16229 Korea http://www.miliwave.co.kr/ Tel. 070-8825-0630 Fax. Email: [email protected] Copyright © Miliwave Inc. 2020. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Miliwave Co., Ltd. All specification supplied herein are subject to change without notice at any time. MWC711 User Manual Miliwave 3 / 5 1.Introduction 1.1 Overview Miliwave’s MWC711 module operates in the 60GHz unlicensed frequency band, IEEE802.11ad compliant, and is designed for Point to Multi-Pont (PTMP) or Point to Point (PTP) bridge wireless communication, primarily for Line-of Sight (LOS) operation.The MWC711 module connects to a Linux based Host Communication Processor board via an available USB 3.0 port . All required drivers and firmware is pre-installed on the MWC711 module as a self-contained device . However, the MC711 module would not be operational unless it is connected to the Linux-based Host Communication Processor board for PTP or PTMP bridge wireless communication. For more information, please contact your Miliwave ([email protected]) 1.2 Abbreviations and Acronym Definitions AcronymDefinition GbpsGiga bits per second GHzGiga Hertz IEEEInstitute of Electrical and Electronics Engineers LEDLight Emitting Diode LoSline-of-sight MbpsMega bits per second MCSModulation and Coding Scheme MHzMega Hertz PTMPPoint-to-multipoint Communication QAMQuadrature amplitude modulation <Figure 1. MWC711 Module> MWC711 User Manual Miliwave 4 / 5 1.3 MWC711 Module Description The Miliwave's MWC711 module in conjunction with the Host Communication Processor board can function as a PTP or PTMP bridge communication . Main chracteristics of the MWC711 module include: - Adaptive Modulation and Link Adaptation: Up to 16QAM and MCS1-12 support - Integrated Phased Array Planar Antena: EIRP 31dBm, 120 degree beam sweep range - Advanced Security: AES-128 - Compact Form Factor: 35 x 45 x 20mm - Connectivity: USB 3.0 type B, 60GHz wireless 2. Technical Specifications - Aggregate capacity: 2.8 Gbps bi-directional - Latency : less than 1 millisecond round-trip - Security: AES-128 - I/O interface: USB 3.0(Type Micro-B) - Other Interface: LEDs indicators for connection status 3.0 Radio Specifications - Access Technology: Single Carrier beam-forming physical layer - Time Division Duplex - Frequencies: 59.40 ~ 65.88GHz - Channel Bandwidth: 2.16 GHz - Antenna:4x8 Phased Array Planar Antena beamforming with 120 degree horizontal and 32 degree vertical - EIRP: 31 dBm 4.0 Mechanical, Power and Environmental Specification - Dimension: 35 x 45 x 20mm - Weight: 39g - Power Consumption: 4W(Max) - Operating Temperature: -40ºC ~ +85ºC - Humidity: 5%~95% 5.0 Module Throughput - MCS Index : 1-12, - Modulation: BPSK,QPSK,16QAM - Data Rate : Max PHY rate 4620 Mbit/s 6.0 Installation The MWC711 could only be installed with Host Communication Processor board at the factory level. There is no user serviceable parts in the MWC711 module MWC711 User Manual Miliwave 5 / 5 7.0 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. 8.0 OEM Responsibilities to comply with FCC ‐ The OEM integrator is responsible for ensuring that the end‐user has no manual instructions to remove or install module. ‐ The module is limited to installation in mobile or fixed applications. ‐ The transmitter module must not be co‐located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi‐transmitter product procedures. -Separate approval will be required for all other operating configurations, including portable configurations with respect to Part 2.1093 and different antenna configurations other than supplied antennas. As long as the condition above is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end‐product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Also, the OEM integrator is responsible to provide to the host manufacturer for compliance with the Part 15B requirements. 9.0 Host User Manual The host manual shall include the following regulatory statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. 10.0 Host Product labeling The module is labeled with its own FCC. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the modu…

Text truncated - open the document above for the full version.

Miliwave Co., Ltd. 423, 105, Gwanggyo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, South Korea Date: Mar 11, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AVCWMWC711 including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Miliwave Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Sean Rha VP of Business Development

Miliwave Co., Ltd. 423, 105, Gwanggyo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, South Korea Date: Mar.11 . 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: 2AVCWMWC711 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Miliwave Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Miliwave Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Sean Rha VP of Business Development

Miliwave Co., Ltd. Room423, GwangGyo-Ro, YeongTong-Gu, Suwon-Si FCC ID: 2AVCWMWC711 MODULAR APPROVAL LETTER Modular Approval Requirement Answers (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes (iii) The modular transmitter must have its own power supply regulation. Yes (iv) The modular transmitter must comply with the antenna and transmission system requirements of § § 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes (v) The module must demonstrate compliance in a stand-alone configuration. Yes (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes Sincerely, Sean Rha VP of Business Development

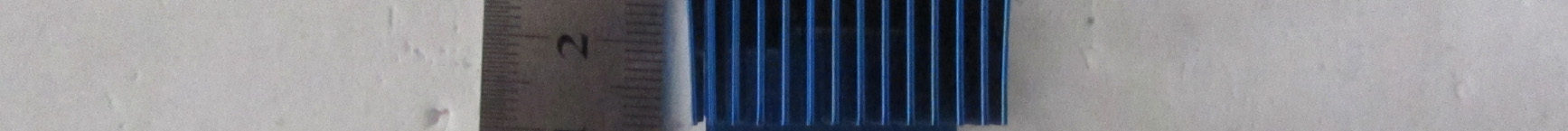

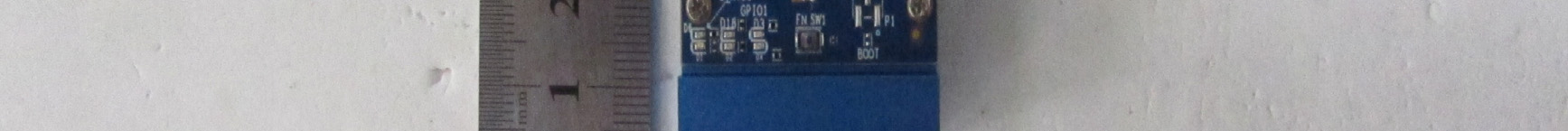

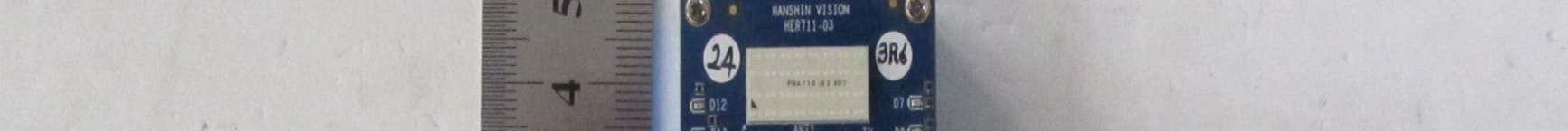

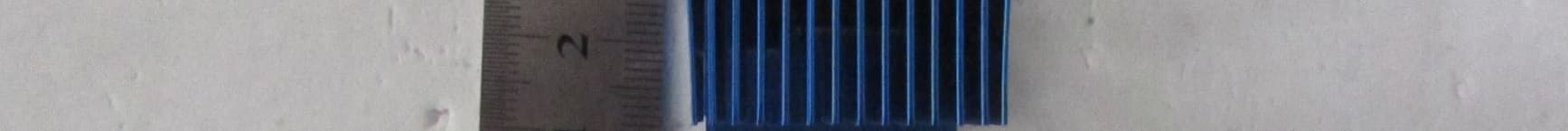

FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 3

FCC ID: 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

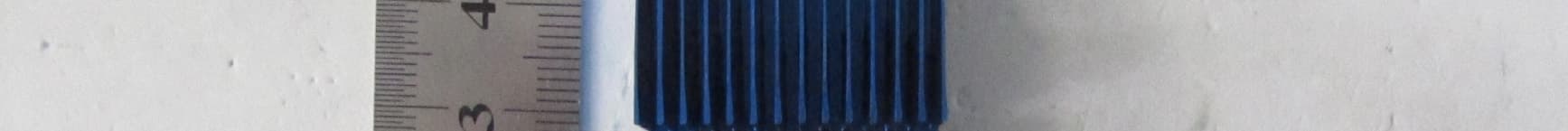

FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID : 2AVCWMWC711 Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 <Antenna>

FCC ID: RF function or Mode Max. tune-up EIRP (dBm) Note1 Max. tune-up EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) 802.11ad60480~6480034.002511.88650.49981.000 ~ ~ ~ ~ ~ ~ ~ ~ ▪ S =- Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3~1.346141.63*10030 1.34~30824/f2.19 / f *180 / f 2 30 30~30027.50.0730.230 300~1,500f / 150030 1,500~100,0001.030 Conclusion : The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 2511.8865 S= Maximum power density(mW/cm 2 ) 0.4998 EIRP= Equivalent Isotropic Radiated Power(mW) f = frequency in MHz * = Plane-wave equivalent power density ▪ Limits for General Population/Uncontrolled Exposure Frequency range (MHz) R= Distance to the center of the radiation of the antenna(20cm) 2AVCWMWC711 Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. Note1: Please refer to the Operational Description for Max tune-up EIRP. MPE Calculation

Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 28 Test Report Version Test Report No. Date Description Revised By Reviewed By DRTFCC2003-0068 Mar. 11, 2020 Initial issue Inhee bae Geunki Son Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 28 Table of Contents 1. EUT DESCRIPTION ................................................................................... 4 2. INFORMATION ABOUT TESTING ............................................................. 5 2.1 Transmitting configuration of EUT .................................................................................... 5 2.2 Auxiliary equipment ............................................................................................................ 5 2.3 Tested environment ............................................................................................................ 6 2.4 EMI suppression Device(s) / Modifications ....................................................................... 6 2.5 Measurement Uncertainty .................................................................................................. 6 3 SUMMARY OF TEST RESULTS ................................................................. 7 4. TEST METHODOLOGY ............................................................................. 8 4.1 EUT configuration ............................................................................................................... 8 4.2 EUT exercise ....................................................................................................................... 8 4.3 General test procedures ..................................................................................................... 8 4.4 Description of test modes .................................................................................................. 8 5. INSTRUMENT CALIBRATION ................................................................... 9 6. FACILITIES AND ACCREDITATIONS........................................................ 9 6.1 Facilities .............................................................................................................................. 9 6.2 Equipment ........................................................................................................................... 9 7. ANTENNA REQUIREMENTS .................................................................... 9 8 TEST RESULTS ........................................................................................ 10 8.1 20dB Bandwidth ................................................................................................................ 10 8.2 Equivalent Isotropic Radiated Power .............................................................................. 13 8.3 Radiated spurious emissions .......................................................................................... 15 8.4 Frequency stability ........................................................................................................... 22 8.5 AC line conducted emissions .......................................................................................... 24 9 LIST OF TEST EQUIPMENT .................................................................... 27 APPENDIX I ................................................................................................. 28 Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 28 1. EUT DESCRIPTION FCC Equipment Class DXX – Part 15 Low Power communication Device Transmitter Product IEEE802.11ad 60GHz Module Model Name MWC711 Add Model Name - Power Supply DC 5 V Frequency Range 802.11ad: 60.48 ~ 64.80 GHz Max. RF Output Power (EIRP) 802.11ad : 30.95 dBm Modulation Type Spread spectrum, PHY modulation Data Rate MCS 0 ~ 12 (up to 4620 Mbps) Antenna Specification Antenna type: Broad band array Antenna gain(Max): 18.2 dBi Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 5 / 28 2. INFORMATION ABOUT TESTING 2.1 Transmitting configuration of EUT Test Mode Worst case data rate Test Frequency(GHz) 802.11ad MCS 4 (1155 Mbps) 60.48 GHz (ch.2) 62.64 GHz (ch.3) 64.80 GHz (ch.4) Note 1: The worst case data is determined as above test mode according to the power measurements. Operation test setup for EUT - Software: Tera term 2.2 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 6 / 28 2.3 Tested environment Temperature : 21 o C ~ 25 o C Relative humidity content : 40 % ~ 44 % Details of power supply : DC 5.0 V 2.4 EMI suppression Device(s) / Modifications EMI suppression device(s) added and/or modifications made during testing → None 2.5 Measurement Uncertainty The measurement uncertainties shown below were calculated in accordance with requirements of ANSI C 63.4- 2014 and ANSI C 63.10-2013. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. Test items Measurement uncertainty AC conducted emission 2.4 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (1 GHz Below) 5.1 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (1 GHz ~ 18 GHz) 5.4 dB (The confidence level is about 95 %, k = 2) Radiated spurious emission (18 GHz Above) 5.3 dB (The confidence level is about 95 %, k = 2) Report No.: DRTFCC2003-0068 FCC ID: 2AVCWMWC711 TRF-RF-245(00)200113 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 7 / 28 3…
