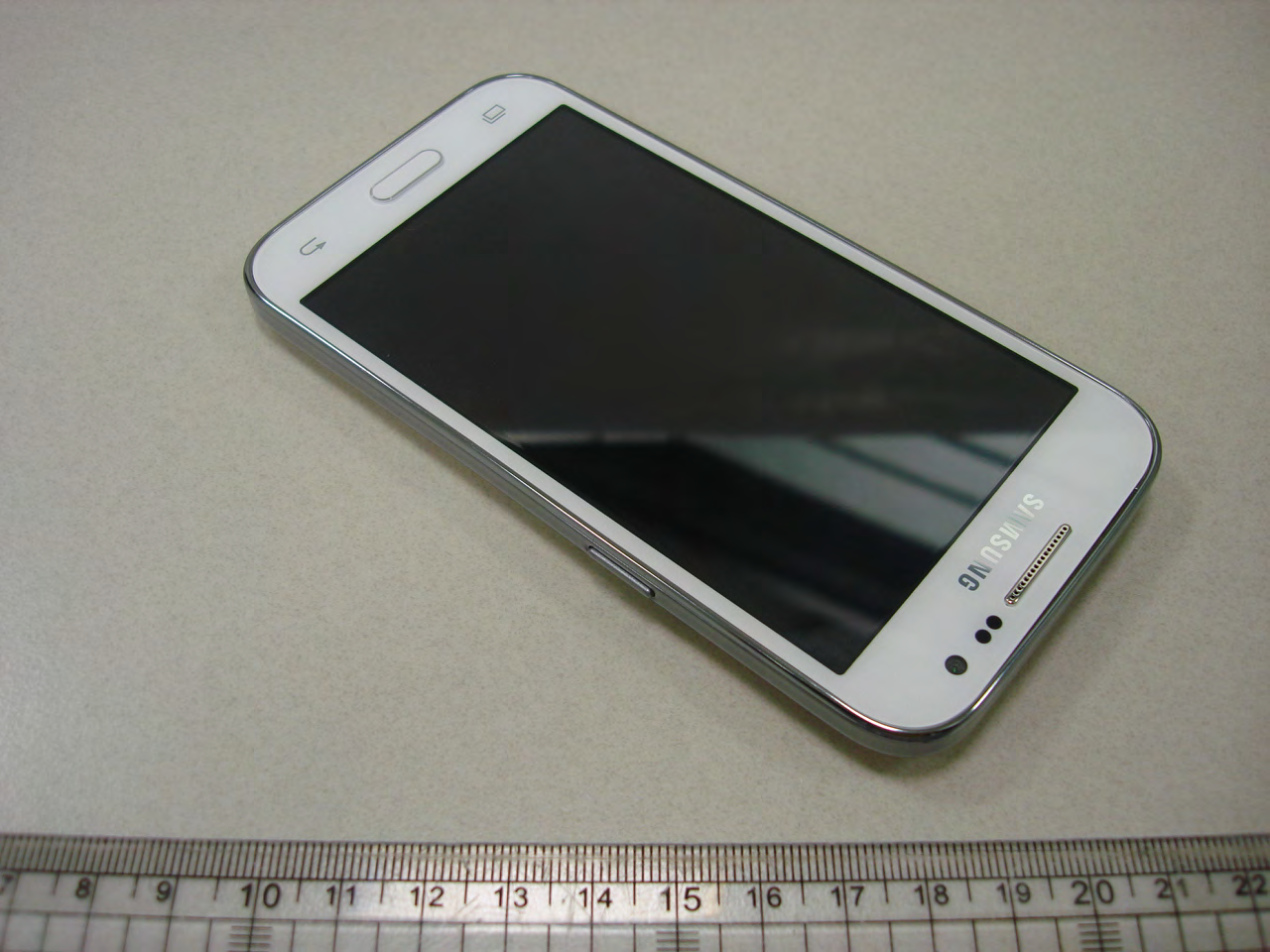

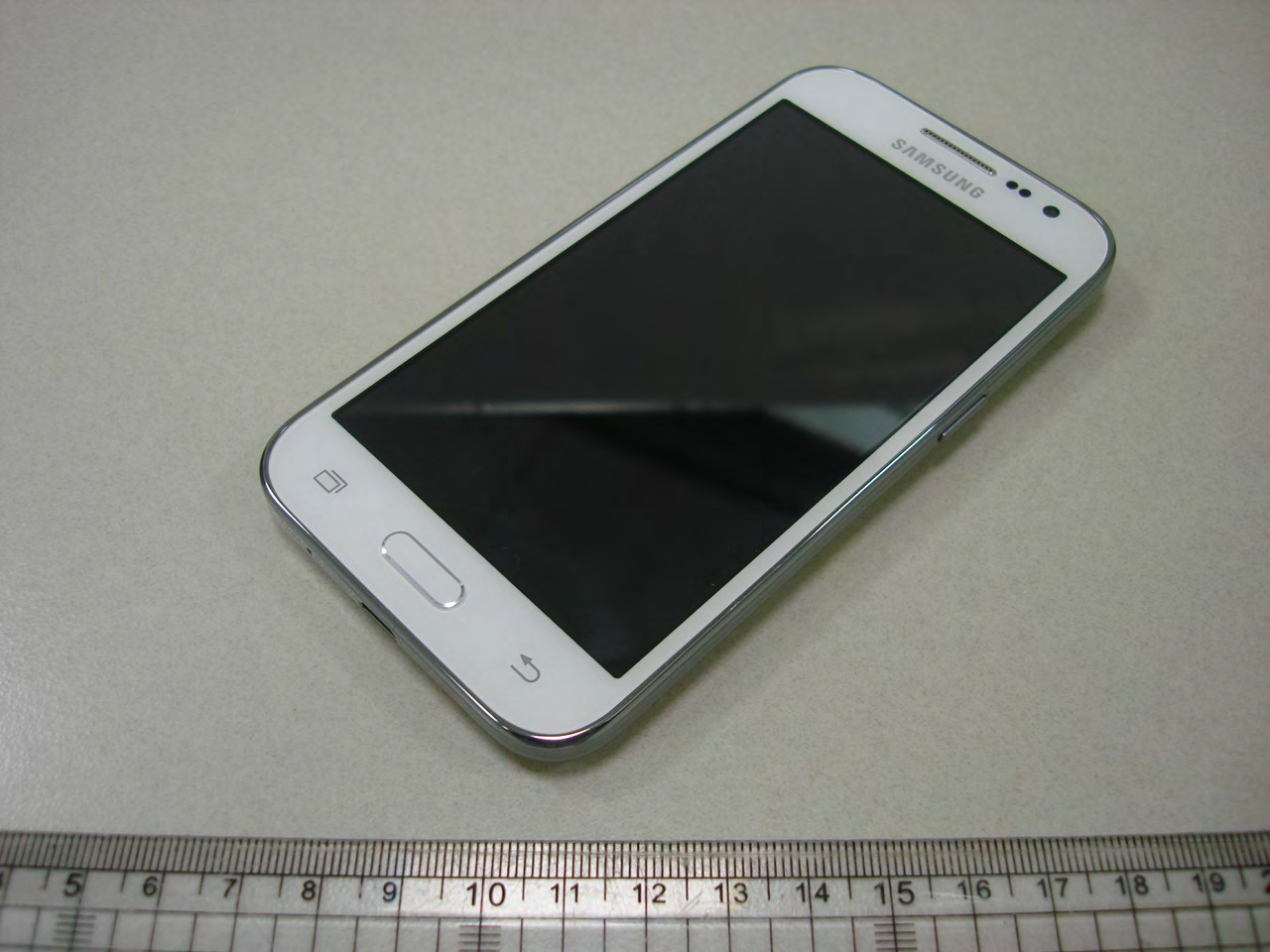

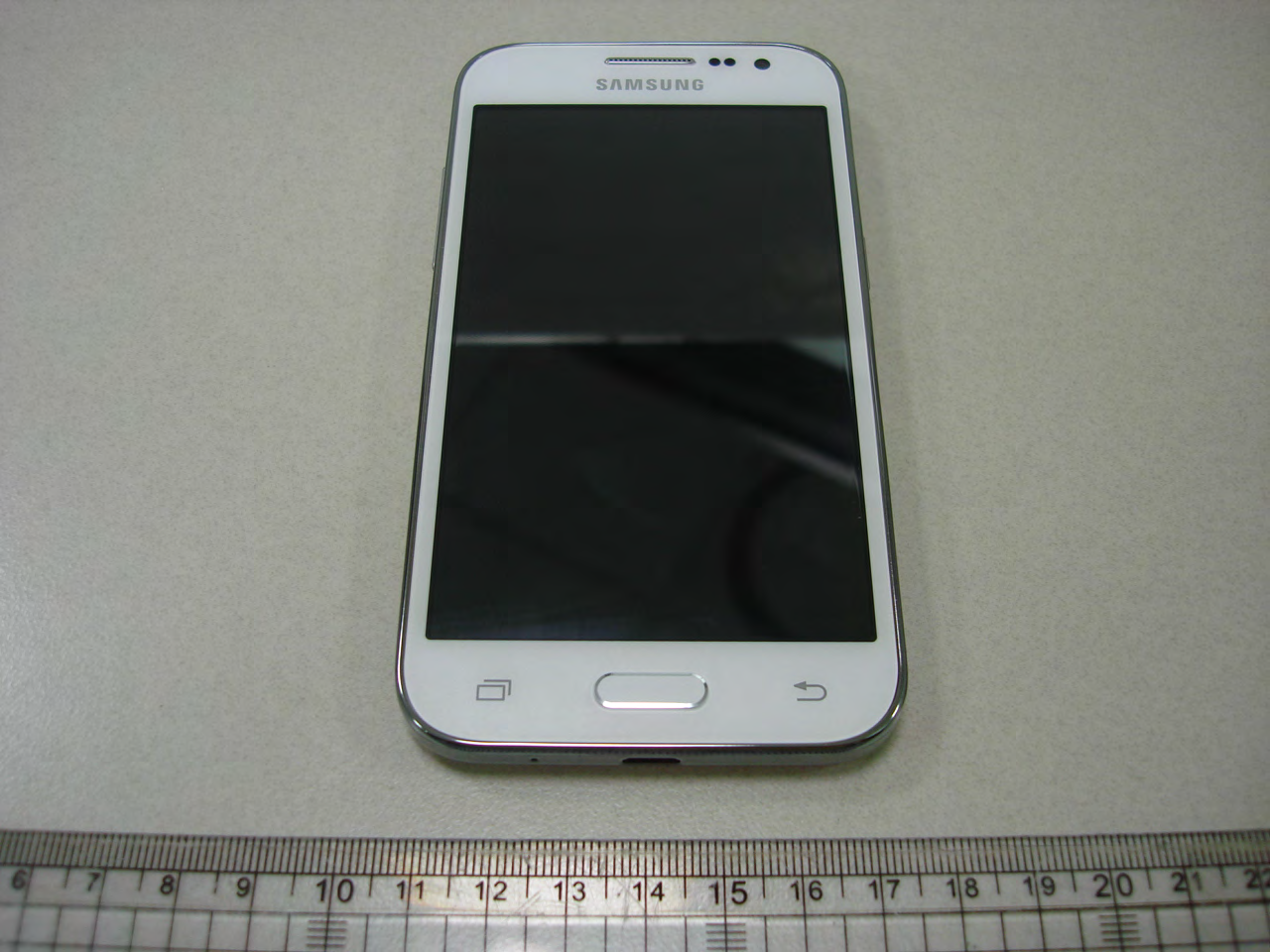

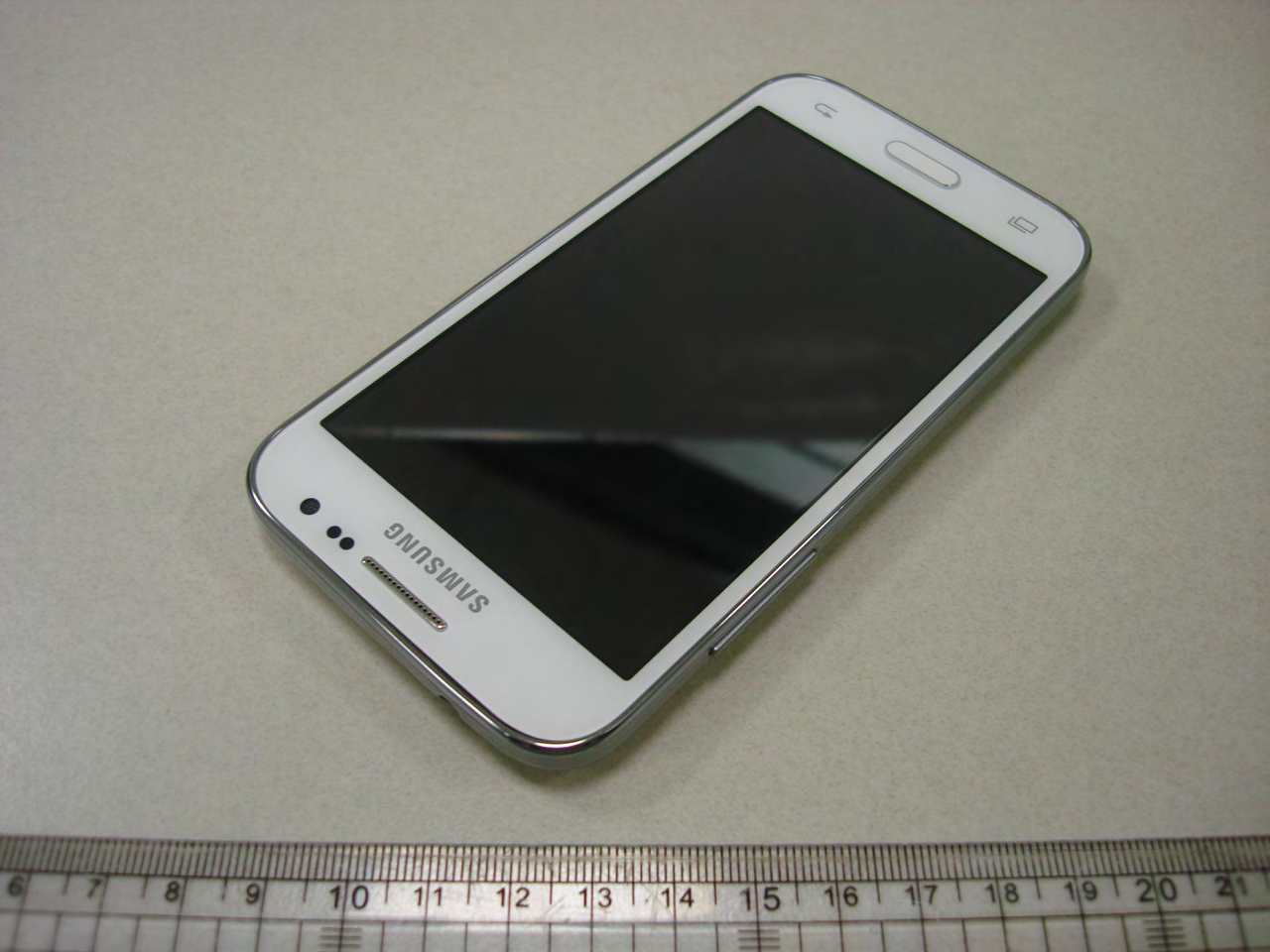

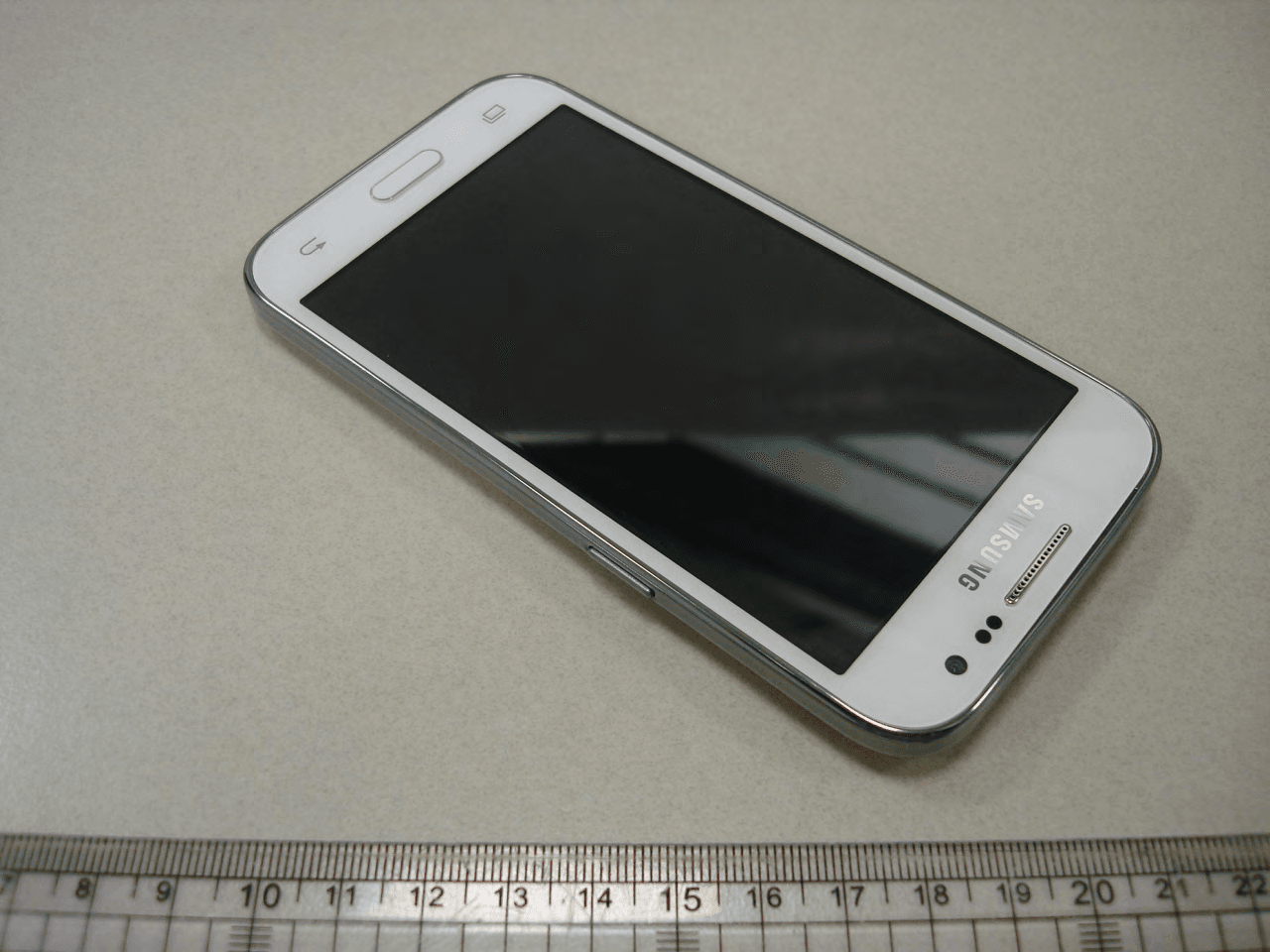

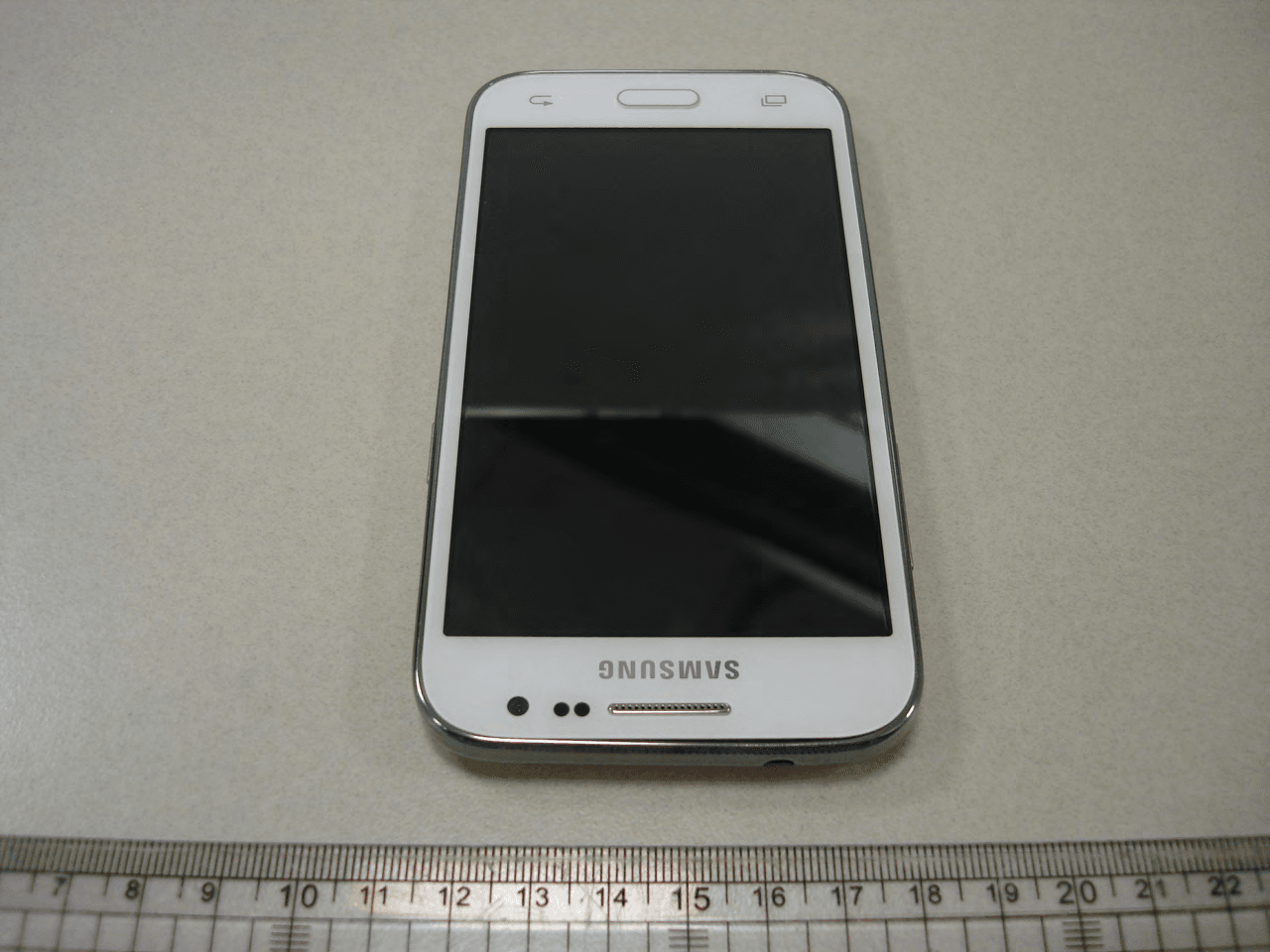

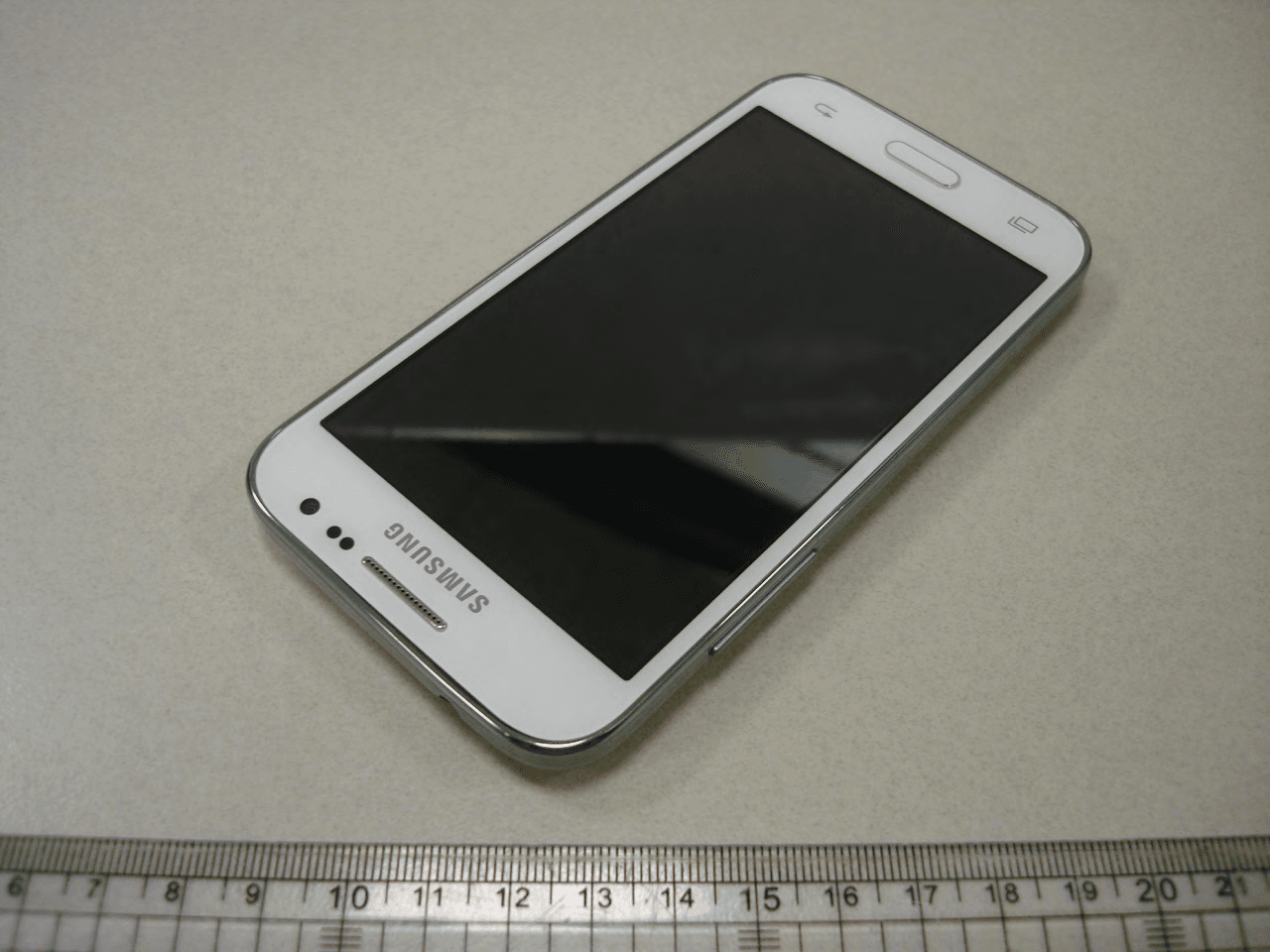

A3LSMG360PMulti-band CDMA/EvDO/LTE Phone with WLAN and Bluetooth

Confidential FCCApprovalDocument for SM-G360P SAMSUNG ELECTRONICS CO, LTD SM-SM- G360P FCC ID : A3LSMG360P 09. User Manual Get Started All you need to know to get going. 2 Welcome! Thanks for choosing Sprint. This booklet introduces you to the basics of getting started with Sprint Prepaid and your Samsung Galaxy Core Prime™. For ongoing support and resources, visit sprint.com/prepaidsupport. There, you’ll find guides, tutorials, and more to help you get the most out of your phone. Note: Available applications and services are subject to change at any time. Using This Guide 3 This Get Started guide is designed to help you set up and use your new Galaxy Core Prime. It’s divided into four sections to help you find the information you need quickly and easily. Using This Guide Get Ready − page 5 − Find out what you need to do before you use your phone the first time, including charge battery and activating Sprint Prepaid service on your phone. Android Basics − page 8 − Learn some basics about how to move around on your phone, use the home screen, and enter text. If you’re familiar with Android™ phones, you can probably skip these pages (although a refresher course never hurt anyone). Use Your Phone − page 11 − Take advantage of your phone’s features and Sprint services, from the basics (Making Calls) to the more advanced (using Google Play™, Wi-Fi®, and more). Tools & Resources − page 22 − Find useful tips for your phone and discover resources and other helpful Sprint information. For additional information including the full User Guide, videos, tutorials, and community forums, visit sprint.com/prepaidsupport. 4 Infrared LED Power/Lock Key Speaker Charger/ Accessory Port Flash Heart Rate Sensor 3.5mm Headset Jack Volume Buttons Camera Proximity/Light/ Gesture sensor Earpiece Touchscreen Recent Apps Key Back Key Self Camera Lens Home Key Microphone Status Light Your Samsung Galaxy Core Prime Get Ready visit sprint.com/prepaidsupport for guides, tutorials and more 5 Register Your Phone on Sprint Prepaid 1. From your computer’s browser, visit sprint.com/prepaidactivate. 2. Choose an activation option and click Next, and then enter your ZIP code and click Next. 3. When prompted, enter the serial number (MEID) printed on the label on your phone’s packaging. 4. Follow the instructions to select a plan and payment method. • If you’re swapping phones or bringing your number over from a different carrier, follow the prompts to sign in or provide additional information. Install the Battery 1. Use the slot above the power button to remove the battery cover. 2. Align the battery’s contacts with those inside the battery compartment and gently press down until the battery is seated. 3. Replace the back cover. Get Your Phone Ready 6 Charge the Battery 1. Insert the USB cable into the charger/accessory port. 2. Insert the other end of the cable into the charging head, and then plug the charging head into a standard AC power outlet. Note: Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Turn the Phone On or Off • Press and hold the Power/Lock Key . Turn the Screen On and Off • To turn the display screen on or off, press the Power/Lock Key . Swipe the screen to unlock it. Activate Your Phone • Press and hold the Power/Lock Key to turn on your new phone. • Your phone is designed to activate automatically. When you turn the phone on for the first time, you should see a Hands Free Activation screen, which may be followed by a PRL Update screen and a Firmware Update screen. Follow the onscreen instructions to continue. If your phone is still not activated, visit sprint.com/prepaidsupport for assistance. If you do not have access to the Internet, call Sprint Customer Service at 1-855-639-4644 from another phone. Get Your Phone Ready Activate Your Phone Get Ready visit sprint.com/prepaidsupport for guides, tutorials and more 7 Set Up Your Phone Once activated, your phone guides you through various setup options, including setting up your Google™ Account.* Complete the Setup Screens Note: At some point during setup, you will see a prompt to install Sprint Default Configuration. Follow the prompts to install the package and then continue with the setup screens. 1. When you see the Welcome screen, select a language and tap Start to begin. 2. You’ll see a Wi-Fi setup screen. Follow the prompts to set your Wi-Fi options. 3. Follow the prompts on the next few screens to get your phone set up. • Got Google? - Create or sign in to a Google Account, and set preferences including Google Location options. • Samsung account - Create or sign in to your Samsung user account. • Dropbox - Create or sign in to a Dropbox cloud storage account. 4. Enter a name for your device and then tap Finish. * You do not need to sign up for a Google Account to use your phone; however, to download content from the Google Play™ Store app, you must link your phone to a Google Account. 8 Your Home Screen Viewing Your Home Screen Your phone’s Home screen extends horizontally up to five full screens. • To display the main (center) Home screen, press from any screen. • To view extended screens, swipe the screen left or right. Customize Your Home Screen • To add app shortcuts, tap Apps , touch and hold an icon, and drag it to the home screen. • To change wallpaper or add widgets, touch and hold an empty area on a home screen and tap Wallpapers or Widgets. Notifications Panel You can expand the notification area to see more about your notifications. 1. Drag the notifications panel down. 2. Tap a notification to open its app. Status Bar The status bar at the top of the Home screen lets you quickly see both your phone status (connections, signal strength, battery, GPS) and any current notifications. visit sprint.com/prepaidsupport for guides, tutorials and more 9 Android Basics Keys and App Icons Open Apps The bottom front of your phone contains three keys: Recent Apps, Hom…

Text truncated - open the document above for the full version.

MOBILEPHONE Health and Safety and Warranty Guide Please read this manual before operating your device and keep it for future reference. CONFIDENTIAL Important information about your phone/device/tablet can be accessed in writing on the mobile device or on samsung.com. Read this information before using your mobile device. The complete Health and Safety and Warranty document can be found on www.samsung.com. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty. Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Legal Information ➔ Samsung legal or at samsung.com. Location of Legal Information on device: Health and Safety Information •Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety Warranty •Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, EULA •Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. SAFE™ (Samsung For Enterprise) SAFE™: "SAFE™" (Samsung For Enterprise) is a mark for a Samsung device which has been tested against Samsung's own internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as described by the third party security solution providers. The testing, for example, includes field testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more information about Samsung's SAFE™ program, please refer to www.samsung.com/us/safe. Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Nov. 19, 2014 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. FCC ID: A3LSMG360P Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Bluetooth profiles. Should you have any questions or comments concerning the above, please contact the undersigned. Bluetooth profiles. Date: Nov. 21, 2014 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSMG360P Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to require ment in the KDB 285076 D01. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. This device features a HAC mode software setting which activates audio gains and shaping during HAC operation to improve audio performance for users with hearing loss. Held- to-ear modes do not include WIFI or FCC ID: A3LSMG360P Model(s): SM-G360P Air Interfaces: CDMA 850/1900 Radio Services: EVDO Rev A Key Features GPS NFC SMS,MMS Bluetooth WIFI ANT+ Special Voice Interfaces: VoLTE: No VoWIFI: No Sincerely, Engineer Samsung Electronics

Date: Oct. 10, 2014 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSMG360P To Whom it May Concern We attest the following regarding FCC ID: A3LSMG360P 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ruixia Niu Engineer Samsung Electronics CO. LTD TEL: +86-20-3212-5253 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea N ov 12, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group. A3LSMG360P

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Nov. 19, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG360P To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

FCC Approval Document for SM-G360P SAMSUNGELECTRONICS CO, LTD SM-SM- G360P FCCID : A3LSMG360P 02&03.FCC ID and Location Diagram Samsung Tablet Model: Label and Location FCC ID: Label SM-G360P A3LSMG360P G360P FCC ID : A3LSMG360P For Information call 1-888-266-7848 UD MADE IN CHINA DEC 256 691 517 709 598 213 14.10 HEX 990 004 --- --- -- WHITE Location Top Bottom Tablet : FCC ID is printed on the battery compartment

FCC ID: A3LSMG360P SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 50 0Y1410141998.A3L 10/16/14 - 11/19/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/16/14 - 11/19/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1410141998.A3L FCC ID: A3LSMG360P APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G360P 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCECDMA/EVDO BC0 (§22H) 824.70 - 848.31 MHz0.530.790.75 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz1.060.800.83 PCECDMA/EVDO BC10 (§90S)817.90 - 823.10 MHz0.450.840.83 PCELTE Band 25 (PCS)1850.7 - 1914.3 MHz1.100.76 0.95 PCELTE Band 26814.7 - 848.3 MHz0.28 0.490.49 PCELTE Band 41 2498.5 - 2687.5 MHz0.580.420.42 DTS2.4 GHz WLAN 2412 - 2462 MHz0.14< 0.1< 0.1 DSS/DTSBluetooth 2402 - 2480 MHz 1.171.180.96 N/A SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected] PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMG360P SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 50 0Y1410141998.A3L 10/16/14 - 11/19/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 33 11 SAR DATA SUMMARY ................................................................................................................. 35 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 42 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 45 14 EQUIPMENT LIST ......................................................................................................................... 46 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 47 16 CONCLUSION ............................................................................................................................... 48 17 REFERENCES .............................................................................................................................. 49 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMG360P SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 50 0Y1410141998.A3L 10/16/14 - 11/19/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview CDMA/EVDO BC0 (§22H)Voice/Data824.70 - 848.31 MHz PCS CDMA/EVDOVoice/Data1851.25 - 1908.75 MHz CDMA/EVDO BC10 (§90S)Voice/Data817.90 - 823.10 MHz LTE Band 25 (PCS)Data1850.7 - 1914.3 MHz LTE Band 26Data814.7 - 848.3 MHz LTE Band 41Data2498.5 - 2687.5 MHz 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nomi…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG360P FCC Pt. 22 & 24 CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 39 0Y1410141999.A3L 10/12-10/23/2014; 10/29-10/30/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.24 10/02/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/12-10/23/2014, 10/29-10/30/2014 129, Samsung-ro, Maeton dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab., Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1410141999.A3L FCC ID: A3LSMG360P APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification Model(s): SM-G360P EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r02 Test Device Serial No.: identical prototype [S/N: 14OCT-08, 14OCT-02] CDMA850824.70 - 848.311M28F9W0.15121.80 CDMA1900 1851.25 - 1908.75 1M28F9W0.27724.42 ERP/EIRP Max. Power (W ) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LSMG360P FCC Pt. 22 & 24 CDMA/EvDO MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 39 0Y1410141999.A3L 10/12-10/23/2014; 10/29-10/30/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 1.24 10/02/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 13 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 20 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 25 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 27 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 29 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 34 7.0 CONCLUSION ................................................................................................................................ 39 FCC ID: A3LSMG360P FCC Pt. 22 & 24 CDMA/EvDO M…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG360P FCC Pt. 22, 24, & 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 91 0Y1410142000.…
