A3LSMP901ACellular/PCS GSM/EDGE/WCDMA Tablet with WLAN, Bluetooth and ANT+

Printed in Korea GH68-?? English (CA). 09/2013. Rev. 1.0 Some content may dier from your device depending on the region, service provider, or software version, and is subject to change without prior notice. About the Samsung Kies Samsung Kies is a computer application that manages media contents and personal information with Samsung devices. Download the latest Samsung Kies from the Samsung website (www.samsung.com/kies) and install it on your computer. www.samsung.com SM-P901 You can access the full user manual for more information. To learn to access the user manual, see “Viewing the user manual” in this quick start guide. Quick Start Guide 2 This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. • Content may dier fro m the nal product, or fro m software provided by service providers or carriers, and is subject to change without prior notice. • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Y ou can pur chase additional accessories fr om your local Samsung re tailer. Make sure they ar e compatible with the device before purchase. • Other accessories may not be compatible with your device. 3 • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modied operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. Instructional icons Warning: situations that could cause in jury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information 4 Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or tr ansmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Tr ademarks • SAMSUNG and the SAMSUNG logo ar e registered tr ademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered tr ademark of Bluetooth SIG, Inc. worldwide. 5 • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. IC Notice This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 6 Getting started Device layout Back button Home button Speaker Light sensor Menu button Multipurpose jack Touch screen Front camera Power button Volume button Microphone Rear camera Memory card slot Speaker Headset jack S Pen slot Fl ash 7 Getting started Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. Charging the battery Before using the device for the rst time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. 8 Getting started Connect the USB cable to the USB power adapter and then plug the end of the USB cable into the multipurpose jack. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. 9 Getting started After fully charging, disconnect the device fr om the charger. Fi rst unplug the charger fr om the device, and then unplug it from the electric socket. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. 10 Getting started Checking the battery charge status When you charge the battery while the device is o, the fo llowing icons will show the current battery charge status: ChargingFully charged Turning the device on and o When turning on the device for the rst time, follow the on-screen instructions to set up your device. 11 Getting started Press and hold the Power button for a few seconds to turn the device on and o. Viewing the user manual The user manual provides complete information about operating your device. You may incur additional charges for accessing the Internet or downloading media les. For details, contact your service provider. 12 Getting started From your device 1 Open the Internet application. 2 Tap t o open the bookmarks list. 3 Select the bookmark for the user manual. To access the user manual more easily, place a shortcut or widget for the user manual on the Home screen. The user manual may not be available from the bookmarks list depending on the web browser or service provider. From your computer Access www.samsung.com and then search for the user manual by the model name of your device. 13 Safety information This safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings and regulations can cause serious injury or death Do not use damaged power cords o…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7th, 2014 FCC ID: A3LSMP901A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Signature Sang Kyung (Peter), Ra General Manager Samsung Electronics America, Inc

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMP901A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

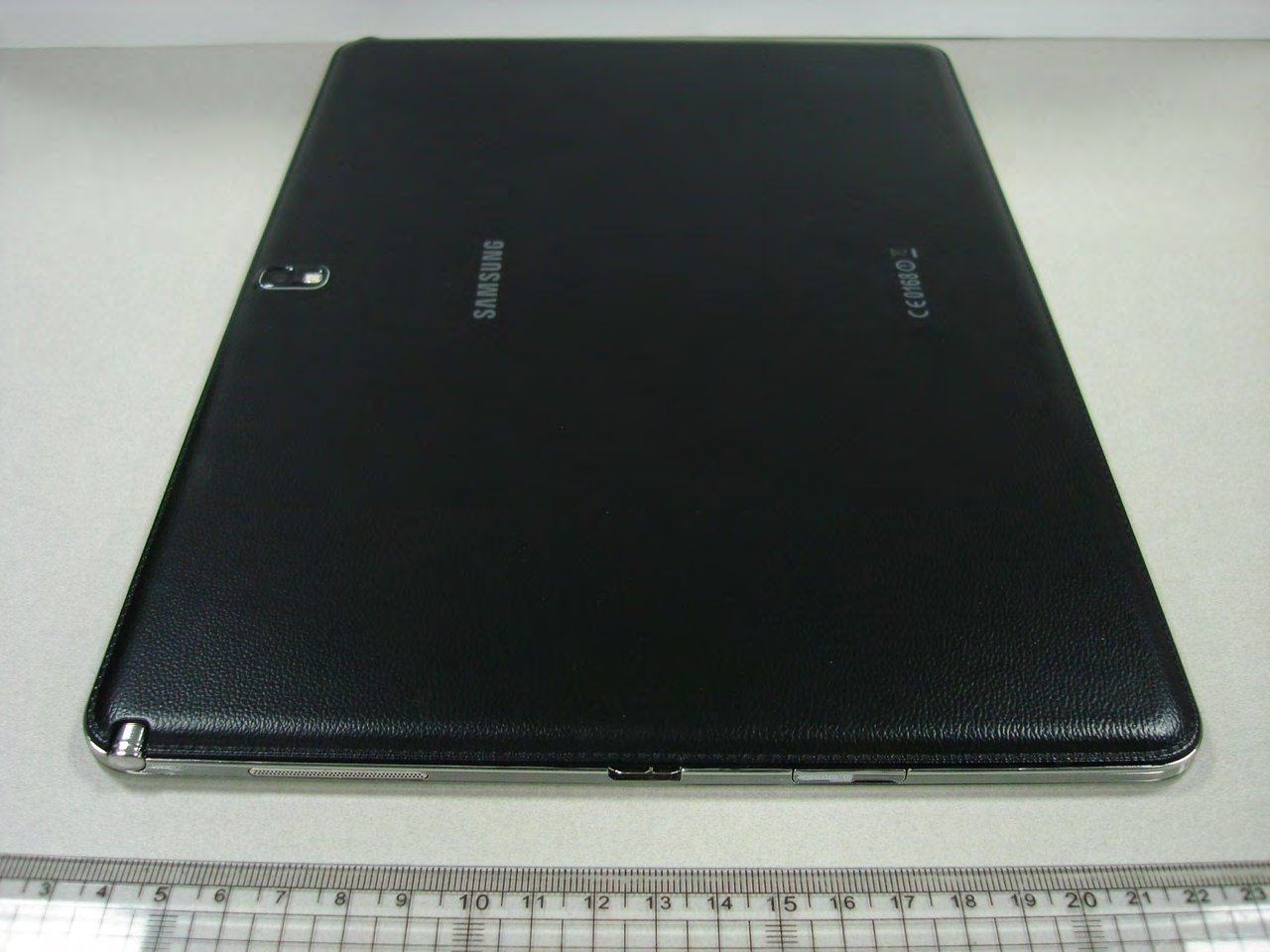

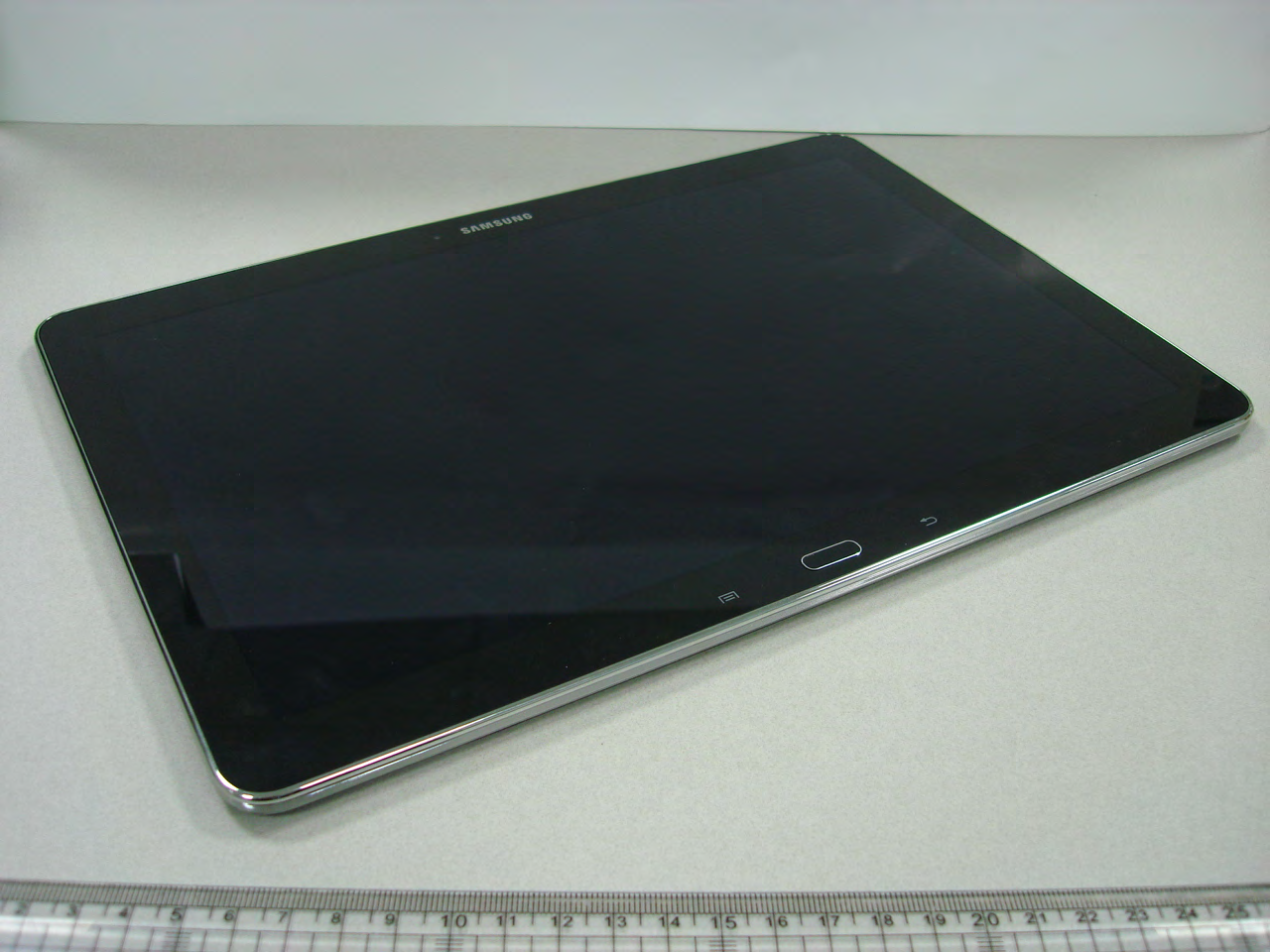

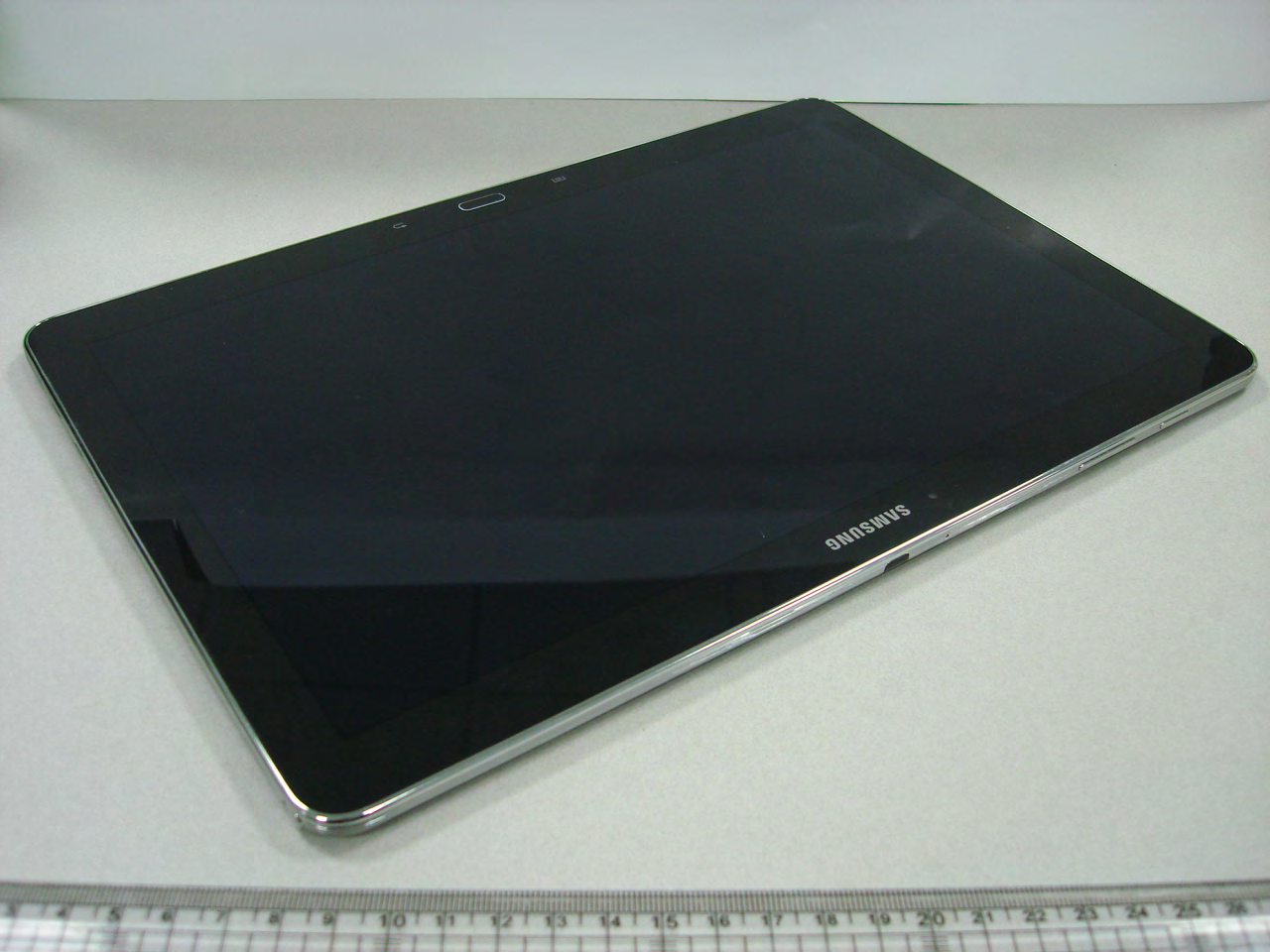

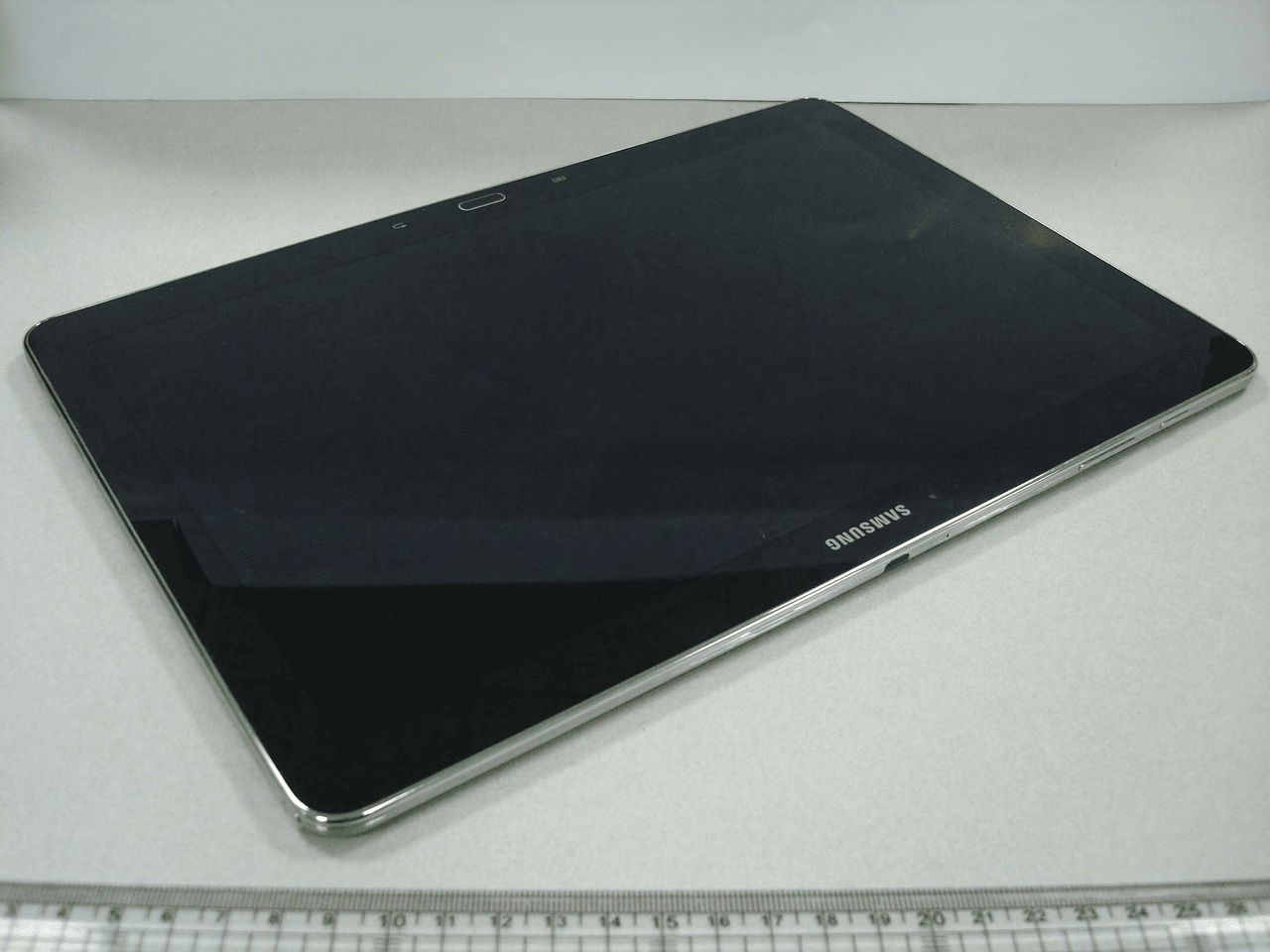

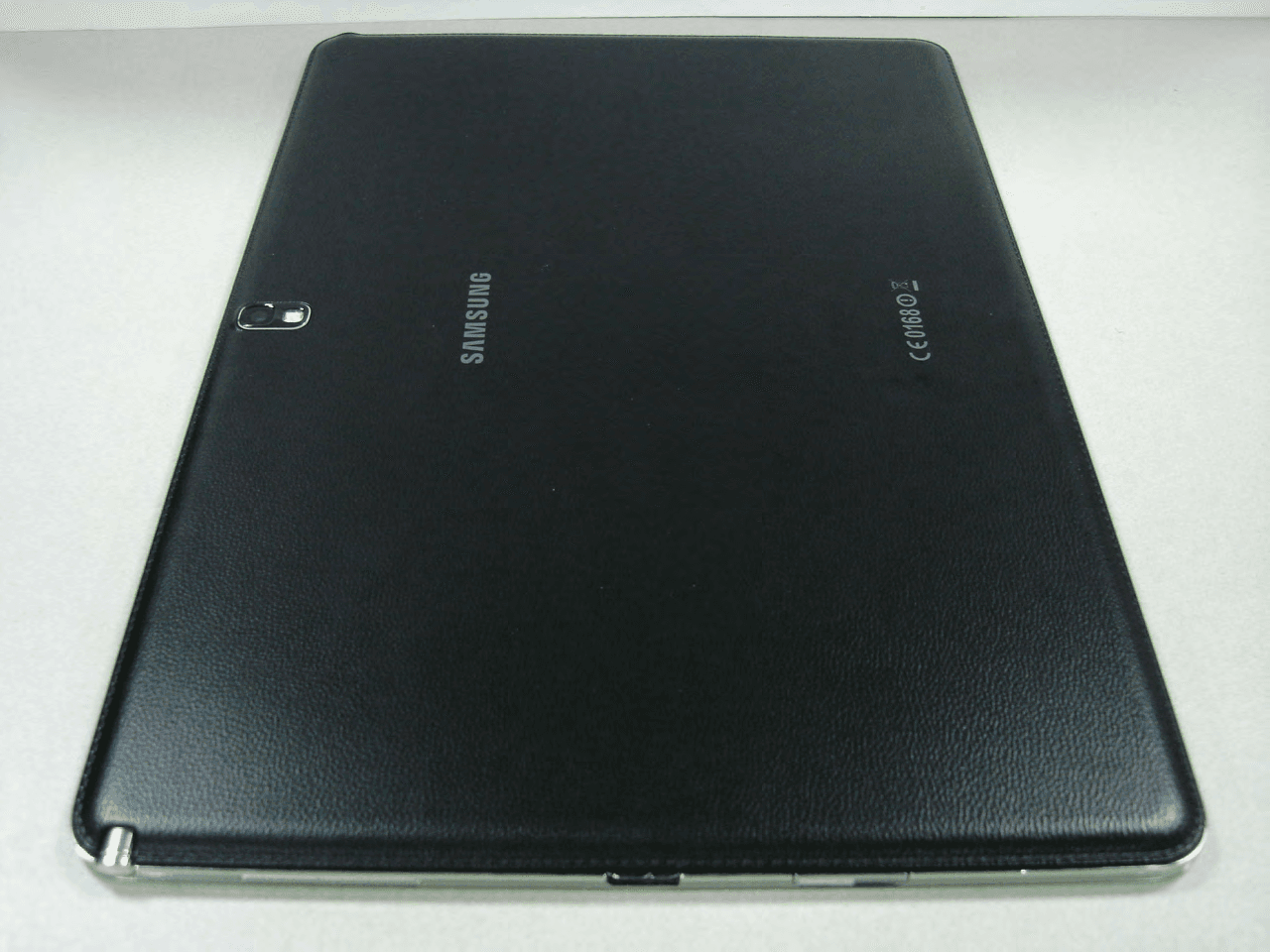

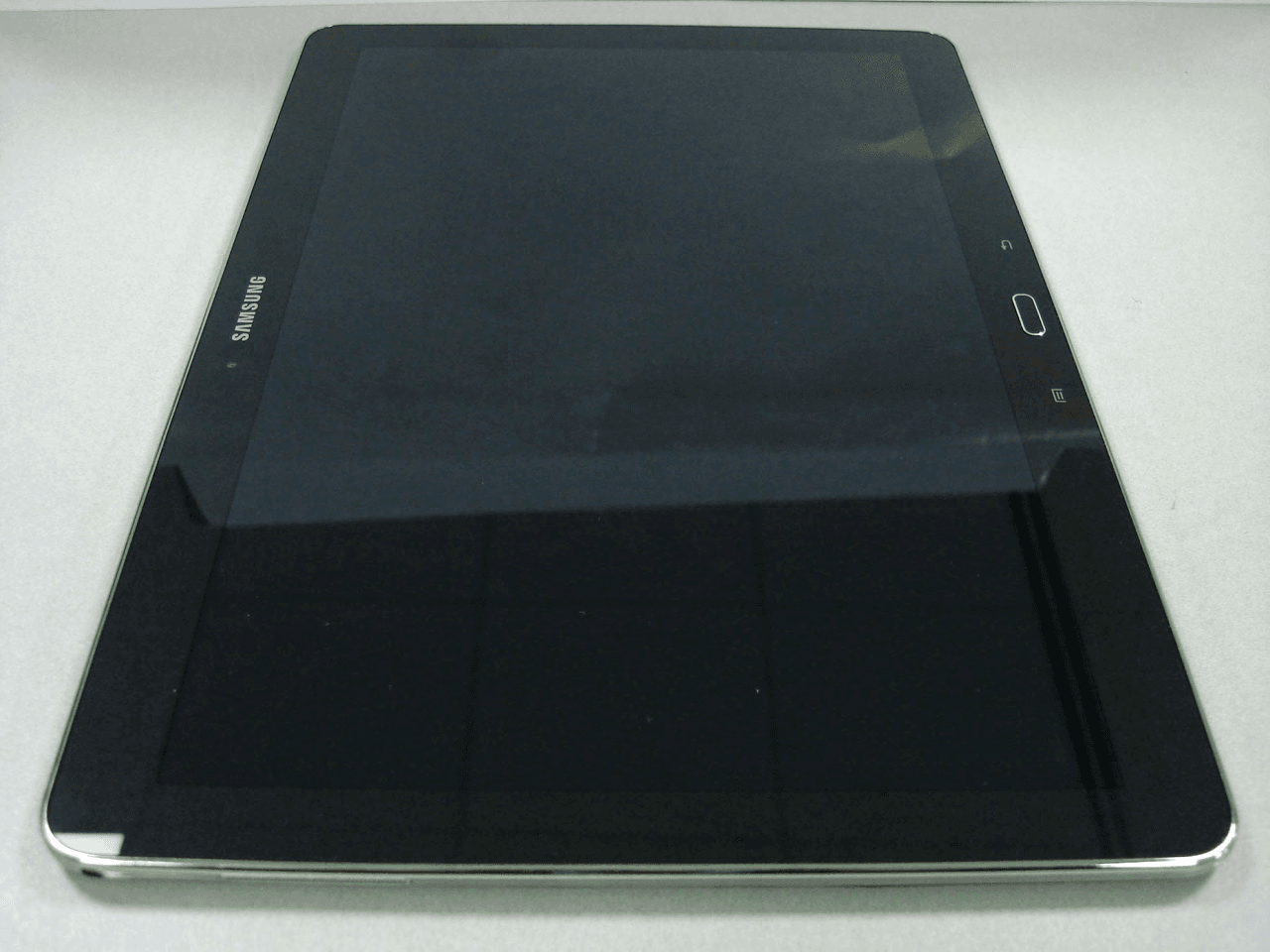

Label and Location Samsung EUT Model: SM-P901 FCC ID:A3LSMP901A Label Locat ion Top Back of EUT Bottom FCC ID is printed on bottom of the EUT

FCC ID: A3LSMP901A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 64 0Y1311272260.A3L 10/03/13 - 10/08/13; 12/12/13-12/16/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/03/13 -10/08/13; 12/12/13-12/16/13 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1311272260.A3L FCC ID: A3LSMP901A APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-P901 1 gm Body (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz28.940.94 PCBUMTS 850826.40 - 846.60 MHz22.180.69 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz25.620.75 PCBUMTS 19001852.4 - 1907.6 MHz22.540.91 DTS2.4 GHz WLAN2412 - 2462 MHz13.261.02 DTS5.8 GHz WLAN5745 - 5825 MHz10.320.26 NII5.2 GHz WLAN5180 - 5240 MHz10.230.57 NII5.3 GHz WLAN5260 - 5320 MHz10.340.67 NII5.5 GHz WLAN5500 - 5700 MHz10.390.61 DSS/DTSBluetooth2402 - 2480 MHz7.49 1.59 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMP901A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 64 0Y1311272260.A3L 10/03/13 - 10/08/13; 12/12/13-12/16/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 8 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 9 4 SAR TESTING PROCEDURES .................................................................................................... 10 5 RF EXPOSURE LIMITS ................................................................................................................ 11 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 7 RF CONDUCTED POWERS ......................................................................................................... 15 8 SYSTEM VERIFICATION .............................................................................................................. 28 9 SAR DATA SUMMARY ................................................................................................................. 30 10 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 36 11 SAR MEASUREMENT VARIABILITY ........................................................................................... 57 12 EQUIPMENT LIST ......................................................................................................................... 58 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 60 14 CONCLUSION ............................................................................................................................... 62 15 REFERENCES .............................................................................................................................. 63 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSMP901A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 64 0Y1311272260.A3L 10/03/13 - 10/08/13; 12/12/13-12/16/13 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 12.5 M 05/20/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Ant +Data2402 - 2480 MHz Band & Mode Tx Frequency Operating Modes 1.2 Power Reduction for SAR This device uses a proximity sensor for SAR compliance. The capacitive proximity sensor is activated when used in close proximity to the user’s body. The capacitive proximity sensor triggers power reduction for data and voice modes and is only applicable for tablet operations. Since the device is a full size tablet, the Body SAR was evaluated per FCC KDB Public…

Text truncated - open the document above for the full version.

FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/2-12/17/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1311272263.A3L FCC ID: A3LSMP901A APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-P901 EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r01, KDB 662911 v02r01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 1205180 - 52409.2269.6510.54410.23-- 2A205260 - 532010.56810.2410.61710.26-- 2C205500 - 570011.16910.4810.37510.16-- 1205180 - 52409.3769.7210.39910.1710.94010.39 2A205260 - 532010.83910.3510.20910.0910.44710.19 2C205500 - 570011.19410.4910.56810.2411.14310.47 1405190 - 52309.7279.8811.06610.4410.23310.10 2A405270 - 531010.06910.039.8869.9510.11610.05 2C405510 - 567010.78910.3311.06610.449.3549.71 180 52109.2909.689.6839.8610.76510.32 2A80 529010.91410.388.8319.4610.20910.09 2C80 5530 9.4849.779.0579.579.2269.65 802.11ac Conducted Power ANT 1ANT 2 ModeUNII Band Channel Bandwidth (MHz) Tx Frequency (MHz) Conducted Power 802.11a Conducted Power MIMOTx ANT 802.11n 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03, KDB 644545 v01r01 and KDB 662911 v02r01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407/ IC RSS-210 802.11a/n/ac (UNII) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N .................................................................................... 12 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 47 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 51 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 83 6.6 FREQUENCY STABILITY: ANTENNA-1 ..…

Text truncated - open the document above for the full version.

FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 83 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 6.5 Peak Excursion Ratio – 802.11a/n/ac §15.407(a)(6) Test Overview and Limit The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum duty cycle (>98%), at its maximum power control level, as defined in KDB 789033 v01r03, and at the appropriate frequencies. Method SA-1, as defined in KDB 789033 v01r03, was used to capture the average trace used to make the peak excursion measurement. The largest permissible difference between the modulation envelope (measured using a peak hold function) and the maximum power spectral density is 13 dBm/MHz. Test Procedure Used KDB 789033 v01r03 – Section G Test Settings 1. Analyzer was set to the center frequency of the UNII channel under investigation 2. Span was set to encompass the entire emission bandwidth of the signal 3. RBW = 1MHz 4. VBW = 3MHz 5. Detector = peak 6. Trace mode = max hold 7. Trace was allowed to stabilize 8. The peak search function of the spectrum analyzer was used to find the peak of the spectrum. This level was compared to the peak power density level found from the previous section to determine the peak excursion. Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-4. Test Instrument & Measurement Setup Test Notes The peak excursion was investigated for all signal types, modulation types, channel bandwidths, and variations in signal parameters and the worst case data is shown below. Only the worst case modulation mode on a single channel among all bands is reported since that is sufficient to demonstrate compliance to the peak excursion requirement per KDB 789033 v01r03. FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 84 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 5580116 a 67.5413.0-5.46 5500100 n (20MHz)6.5/7.2 (MCS0) 8.6413.0-4.37 5670134 n (40MHz)13.5/15 (MCS0) 7.6613.0-5.34 529058 ac (80MHz)29.3/32.5 (MCS0) 8.1013.0-4.90 Margin [dB] 802.11 Mode Max Permissible Peak Excursion Ratio [dBm/MHz] Frequency [MHz] Channel No. Data Rate [Mbps] Measured Peak Excursion Ratio [dBm] Table 6-14. Antenna-1 Conducted Peak Excursion Ratio Measurements Plot 6-121. Peak Excursion Ratio Plot (802.11a) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 85 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Plot 6-122. Peak Excursion Ratio Plot (20MHz BW 802.11n) Plot 6-123. Peak Excursion Ratio Plot (40MHz BW 802.11n) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 86 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Plot 6-124. Peak Excursion Ratio Plot (80MHz BW 802.11ac) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 87 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 520040 a 67.6813.0-5.32 5700140 n (20MHz)6.5/7.2 (MCS0) 8.4413.0-4.56 5500110 n (40MHz)13.5/15 (MCS0) 8.4213.0-4.58 529058 ac (80MHz)29.3/32.5 (MCS0) 8.0813.0-4.92 Margin [dB] 802.11 Mode Max Permissible Peak Excursion Ratio [dBm/MHz] Frequency [MHz] Channel No. Data Rate [Mbps] Measured Peak Excursion Ratio [dBm] Table 6-15. Antenna-2 Conducted Peak Excursion Ratio Measurements Plot 6-125. Peak Excursion Ratio Plot (802.11a) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 88 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Plot 6-126. Peak Excursion Ratio Plot (20MHz BW 802.11n) Plot 6-127. Peak Excursion Ratio Plot (40MHz BW 802.11n) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 89 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 Plot 6-128. Peak Excursion Ratio Plot (80MHz BW 802.11ac) FCC ID: A3LSMP901A 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 90 of 175 0Y1311272263.A3L 12/2-12/17/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 2.2 01/10/13 6.6 Frequency Stability: Antenna-1 §15.407(g) The EUT was placed inside of an environmental chamber as the temperature in the chamber was varied between -30 o C and +50 o C. The temperature was incremented by 10 o intervals and the unit was allowed to stabilize at each temperature before each measurement. The center frequency of the transmitting channel was evaluated at each temperature and the frequency deviation from the channel’s center frequency was recorded. Data for the worst case channel is shown below. OPERATING FREQUENCY: 5,180,000,000Hz CHANNEL: 36 REFERENCE VOLTAGE: VDC VOLTAGE (%) POWER (VDC) TEMP ( o C) FREQUENCY (Hz) Freq. Dev. (Hz) Deviation (%) 100 %3.80 + 20 (Ref)5,180,000,018180.00000035 100 %- 305,180,000,00440.00000008 100 %- 205,179,999,984-16-0.00000031 100 %- 105,180,000,00660.00000012 100 % 05,179,999,987-13-0.00000025 100 %+ 105,179,999,993-7-0.00000014 100 %+ 205,180,000,020200.00000039 100 % + 305,179,999,990-10-0.00000019 100 %+ 405,179,999,997-3-0.00000006 100 %+ 505,179,999,995-5-0.00000010 115 %4.37+ 205,…

Text truncated - open the document above for the full version.

FCC ID: A3LSMP901A FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 20 0Y1311272264.A3L 12/4/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/4/2013 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1311272264.A3L FCC ID: A3LSMP901A COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-P901 EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 10.914 mW (10.38 dBm) Conducted (802.11ac UNII Band 2A) 11.194 mW (10.49 dBm) Conducted (802.11n UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 DFS FCC ID: A3LSMP901A FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 20 0Y1311272264.A3L 12/4/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. v2.0 6/17/2013 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES .................................................................................................................…
