AS5BBTRX-11LTE TRDU2X60-AWS

AWS TRDU List10 Installation Guide Issue: 1.0.0 1/13 PMC CONFIDENTIAL AWS TRDU List10 Installation Guide Product Name : AWS (Band Class 4) TRDU, KS-24841 List 10 Model Number : 849172416 Issue: 1.0.0 Date; February 14, 2013 AWS TRDU List10 Installation Guide Issue: 1.0.0 2/13 PMC CONFIDENTIAL Revison History Issue No. Description Date 1.0.0 First edition February 14, 2013 AWS TRDU List10 Installation Guide Issue: 1.0.0 3/13 PMC CONFIDENTIAL Table of Contents Revison History ..................................................................................................................................... 2 Table of Contents ................................................................................................................................... 3 1 INTRODUCTION ............................................................................................................................. 4 1.1 System Overview ...................................................................................................................... 4 1.2 Equipment Outline .................................................................................................................... 5 1.3 Structural Outline ...................................................................................................................... 6 1.4 Specification ............................................................................................................................. 7 1.4.1 System Specification .......................................................................................................... 7 1.4.2 Optical Module Specification .............................................................................................. 8 1.4.3 AWS TRDU Specification ................................................................................................... 9 2 Installing the TRDU ....................................................................................................................... 10 2.1 Appearance ............................................................................................................................ 10 2.2 User Interface ......................................................................................................................... 11 2.3 Status LED ............................................................................................................................. 12 3 FCC WARING ............................................................................................................................... 13 AWS TRDU List10 Installation Guide Issue: 1.0.0 4/13 PMC CONFIDENTIAL 1 INTRODUCTION 1.1 System Overview AWS TRDU List10 connect with BBU which made by Alcatel-Lucent. AWS TRDU is transiver system which is support LTE fuction in AWS frequency band range. AWS TRDU is connected by optical cable. CPRI Interface of one AWS TRDU List10 connect to BBU (LTE) Figure 1-1 System Overview LT E BBU AWS-TRDU CPRI AWS-TRDU AWS-TRDU TRDU shelf CPRI CPRI AWS TRDU List10 Installation Guide Issue: 1.0.0 5/13 PMC CONFIDENTIAL 1.2 Equipment Outline Figure 1-2 Equipment Outline ① Execute transmit and receive BBU and UL/DL Digital Signal by optical interface ② Enable to maintain TRDU with OCI (On site Configuration Interface) and Personal Computer. ③ Enable to use Alarm-interface detect function ④ AISG supply and control power function which is connected to tower-top equipment from TRDU. ⑤ This system support DC -48V power input ⑥ Execute several functions (Status-Control/Tranciver-Control/Mesurement/Failure -Control...) based on control message of BBU. ⑦ Enable to download Software (Control Software, DSP Firmware、FPGA Data) as remotely AWS-TRDU BBU Tower-top Equipment Monitor OCI Ether net CPRI AISG I2C DC-48V OCI Serial(telnet) AWS TRDU List10 Installation Guide Issue: 1.0.0 6/13 PMC CONFIDENTIAL 1.3 Structural Outline 【Structure Outline】 ① Thermal method is air‐cooled engine(TRDU has no cooling fan) ② Enable to load next cable (Power Cable/Optical Cable/AISG Cable/ Antenna Cable /AUX Cable) from Front side of the TRDU. ③ There are LED in front side of the TRDU which can monitoring system status. AWS TRDU List10 Installation Guide Issue: 1.0.0 7/13 PMC CONFIDENTIAL 1.4 Specification 1.4.1 System Specification No Item Content Remark 1 Input Power -48V (-37V～-57V) 2 Power Consumption Less than 650W 3 Weight Less than 15kg 4 Te m perature range -40～+60°C 5 Humidity range 5～95% 6 Dimension Width 110 mm Height 355 mm（ not include guide rail ） Depth 360 mm 7 Thermal Type naturally air cooled engine 8 Setting Location Inside AWS TRDU List10 Installation Guide Issue: 1.0.0 8/13 PMC CONFIDENTIAL 1.4.2 Optical Module Specification No Item Condition/etc Remark 1 Optical Center Length ＜Primary port＞ DL：1550 nm、UL：1310 nm ＜Secondary port＞ Mix mode：1550 nm/1310 nm 2 Bit Rate ＜Primary port＞ 1.2288 Gbps～6.1440 Gbps ＜Secondary port＞ 2.4576 Gbps～6.144 Gbps 3 Transmission Distance ＜Primary port＞ Maximum 20 km ＜Secondary port＞ Maximum 50m AWS TRDU List10 Installation Guide Issue: 1.0.0 9/13 PMC CONFIDENTIAL 1.4.3 AWS TRDU Specification No Item Type Remark 1 Support Technologies LTE 2 RF Output Power 67W/Branch×2 134W/Branch×1 3 Downlink RF Frequency 2110 MHz –2155 MHz 4 Uplink RF Frequency 1710 MHz –1755 MHz 5 Number of Carrier LTE ：4Carriers×2 AWS TRDU List10 Installation Guide Issue: 1.0.0 10/13 PMC CONFIDENTIAL 2 Installing the TRDU 2.1 Appearance Figure 2-1 Appearance of the TRDU with connector covers 4-φ5.5 holes for Equipment mounting and Ground Lugs (There are 2-φ5.5 holes on opposite side) AWS TRDU List10 Installation Guide Issue: 1.0.0 11/13 PMC CONFIDENTIAL 2.2 User Interface Figure 2-2 User Interface Table 2-1 Connectors, LED, Reset button etc. No. Connector Name Connector Type and Comment 1 TX/RX 1 7/16 DIN F 2 TX/RX 2 7/16 DIN F 3 TX1 Mon DIN 1.0/2.3 F 4 TX2 Mon DIN 1.0/2.3 F 5 AUX RX1 DIN 1.0/2.3 F 6 AUX RX2 DIN 1.0/2.3 F 7 CPRI PRI SFP Connector Tyco Electronics…

Text truncated - open the document above for the full version.

APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 QUALIFICATIONS AND CERTIFICATIONS SECTION 2.911(d) APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 September 30, 2011 SECTION 2.911(d) QUALIFICATION OF ENGINEER (who performed or supervised the Tests). Dheena D. Moongilan is a Distinguished Member of Technical Staff, Alcatel-Lucent. He received his BSEE, and MSEE from Madras University, India and another MSEE from Illinois Institute of Technology, Chicago, Illinois. He was trained in FCC testing procedures by his former Supervisor, Donald N. Heirman. He has 27 years of EMC testing experience. He is a NARTE certified EMC Engineer, certificate #EMC-00/1022-NE. SECTION 2.911(d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory MH 5A-115, Alcatel-Lucent 600, Mountain Avenue Murray Hill, NJ 07974-0636 Tel: 908 582 5539 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 MANUFACTURERS ─ IDENTIFIER SECTION 2.1033 (c) 1 and 2 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 MANUFACTURERS IDENTIFIER SECTION 2.1033(c) 1 The full name and mailing address of the manufacturer of the device and the applicant for certification: RESPONSE: APPLICATION: Alcatel-Lucent 600-700 Mountain Avenue Murray Hill, NJ 07974 Attention: Rudolf J Pillmeier SECTION 2.1033(c) 2 FCC Identifier: RESPONSE: LTE AWS Transceiver Duplexer Unit “LTE TRDU2x60 is AWS Commercial Broadband” to be operated under Part 27 and OET Rules 662911 D01 and D02 of the FCC Rules. FCC Identifier: AS5 FCC ID: AS5BBTRX-11 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033 (c) (4), (5), (6) and (7) APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033(c) (4) Type or types of emission: RESPONSE: The “AWS Transceiver Duplexer Unit (LTE TRDU2x60-AWS Commercial Broadband)” capable of amplifying transmission involving the following types of emissions: Measured Emission type: 9M48F9W for 10 MHz Bandwidth and 18M85F9W for 20 MHz Bands. SECTION 2.1033(c) (5) Frequency Range RESPONSE: FCC 27.5 h (1 ) and (2) Block Transmit Frequency Range MHz Bandwidth MHz A 2110-2120 10 B 2120-2130 10 C 2130-2135 5 D 2135-2140 5 E 2140-2145 5 F 2145-2155 10 SECTION 2.1033(c) (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. RESPONSE: The “LTE TRDU2x60-AWS Commercial Broadband,” is capable of operating from 0.002 to 60 watts/port 2X2MIMO mode. The output power is measured at the External Antenna Connection (EAC) output connector of the 9712 cabinet in which “LTE TRDU2x60-AWS C ommercial Broadband” is mounted. The power is under continuous software control. The short term peak power due to channel activity fluctuations is 60W +0.3/-1dB. SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part(s) of the rules. APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 Alcatel-Lucent’s 9712 cabinet RESPONSE: The maximum average power output of the “LTE TRDU2x60-AWS Commercial Broadband” at 9712 cabinet EAC port is 2x60 watts (MIMO). The radio transmitter is operated under 47 CFR 27 and OET Rules 662911 D01 and D02. There were 12 External antenna port (EAC) ports and the ports were randomly selected and configured for all antenna port conducted tests.

Global Product Compliance Laboratory MH 5A-115, Alcatel-Lucent 600, Mountain Avenue Murray Hill, NJ 07974-0636 Tel: 908 582 5539 March 15, 2013 Subject: Confidential Treatment for Schematics - FCC ID: AS5BBTRX-11 Dear Examiner: Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, we request that the following documents be kept confidential and be withheld from public inspection. The information contain in these documents which is submitted to the FCC are considered a trade secret and not routinely available to the public. The reason that the material should be withheld from public inspection is that the exhibits listed contain Schematics and parts lists of “LTE TRDU2x60-AWS” FCC ID: AS5BBTRX-11 that are proprietary. This information is not publicly available. Therefore, I would like to request you to treat the following as confidential. (1) Schematics and Parts list (2) Block diagrams and Operational description Thank you for your attention in this matter . Sincerely, Dheena Moongilan Distinguished Member of Technical Staff

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Global Product Compliance Laboratory Office of Engineering and Technology MH 5A-115, Alcatel-Lucent Equipment Authorization Division 600, Mountain Avenue Application Processing Branch Murray Hill, NJ 07974-0636 7435 Oakland Mills Road Columbia, MD 21046 March 16, 2013 Dear Examiner: In accordance with Parts 2, 27 and OET Rules 662911 D01 and D02 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Alcatel-Lucent “ LTE AWS Transceiver Duplexer Unit 2X2”, henceforth ‘LTE TRDU2X60-AWS’, FCC ID: AS5BBTRX-11. The LTE TRDU2X60- AWS is used in Alcatel-Lucent 9712 cabinet systems using the 3GPP standards Long Term Evolution (LTE) technology, for use in Domestic Miscellaneous Wireless Communication Services (WCS). This application for the LTE TRDU2X60-AWS under FCC ID: AS5BBTRX-11 is for operation in the domestic WCS band with a LTE signal. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. Manufacturer Alcatel-Lucent Equipment Identification AS5BBTRX-11 Rules Part Number 27.53 (h) and 27.50(d)(5) and OET Rules 662911 D01 and D02 Frequency Range 2110-2155 MHz (A, B, C, D, E and F Blocks) Output Power +3dBm (.002W) to +47.8dBm (60W) Varied by Software Frequency Tolerance +/- 0.001 ppm Emission Designator 9M48F9W for 10MHz Bands and 18M85F9W for 20MHz Bands The LTE TRDU2X60-AWS, under FCC ID: AS5BBTRX-11 is designed to be operated and marketed in Alcatel-Lucent 9712 cabinet systems. Each of the TRDU2X60-AWS contains two identical Transceiver paths and ports. Each transceiver ports outputs 60W maximum at the External antenna connector (EAC) port. The LTE TRDU2X60-AWS will be typically operated in Multiple input and Multiple output (MIMO) mode using multiple antennas. Each Transceiver path is supported by its own RF filter. The LTE TRDU2X60-AWS was evaluated in a 9712 cabinet with six TRDUs with a total of 12 transceiver ports. During all antenna port conducted emissions, the transceiver ports were randomly selected for each of the APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 2 tests. The TRDU will be marketed in indoor/outdoor cabinets. The integrated cabinet shall continue to be compliant with FCC emissions requirements. The LTE TRDU2X60-AWS is designed to operate a large number of sub-carriers which are modulated with QPSK, 16QAM, and 64QAM formats. The LTE TRDU2X60-AWS was evaluated and data is provided for all three modulation formats. (a) QPSK (b) 16QAM (c) 64QAM The actual power level delivered by the LTE TRDU2X60-AWS to transmit antenna is under the software control of the Switching and Control Center. The LTE TRDU2X60-AWS/AS5BBTRX-11 is produced by Manufacturer -1 for incorporation into Alcatel- Lucent products. List of exhibits attached with this submission is indicated in the following page of this cover letter. The attached exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Alcatel-Lucent will comply with any request for additional information should the need arise. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory Phone: (908) 582 5539 Email: [email protected] APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 3 List of Exhibits COVER LETTER Cover Letter Product Configuration – Explained in test reports Letter for Confidential Treatment of Exhibits ATTESTATION STATEMENT Section 2.911 (d) Qualifications and Certifications Section 2.1033 (c) (1,2) Manufacturers, FCC Identification Section 2.1033 (c) (4-7) Emissions, Frequency Range, Power Level USERS MANUAL Section 2.1033 (c) (3) Users Manual Section 2.1033 (c) (9) PARTS LIST/TUNE-UP PROCEDURE Section 2.1033 (c) (13) OPERATIONAL DESCRIPTION Description of Modulation System and Block diagrams Section 2.1033 (c) (10) SCHEMATICS Schematic Section 2.1033 (c) (11) and 2.925 (a) (1) ID LABEL/LOCATION INFORMATION Section 2.1033 (c) (12) EXTERNAL PHOTOS INTERNAL PHOTOS Section 2.1033 (c) (12) Internal Photos Section 2.1033 (c) (8) TEST REPORT Measurement of DC Power Section 2.1033 (c) (14) Listing of Required Measurements Section 2.1046 Measurement of Radio Frequency Power Output Section 2.1047 and 27.50(d)(5) Measurement of Modulation Characteristics Section 2.1049, Section 27.53(h) and OET Rules 662911 D01 and D02 Measurement of Occupied Bandwidth 27.53 (h) and OET Rules 662911 D01 and D02 Measurement of Spurious Emissions at Antenna Section 2.1053 and OET Rules 662911 D01 and D02 Field Strength of Spurious Radiation Section 2.1055 Measurement of Frequency Stability Section 2.1057 Frequency Spectrum to be Investigated Test Instruments Used for Test – See Test Reports RF Exposure Information Section 24.51 (c) Human Exposure – Not performed

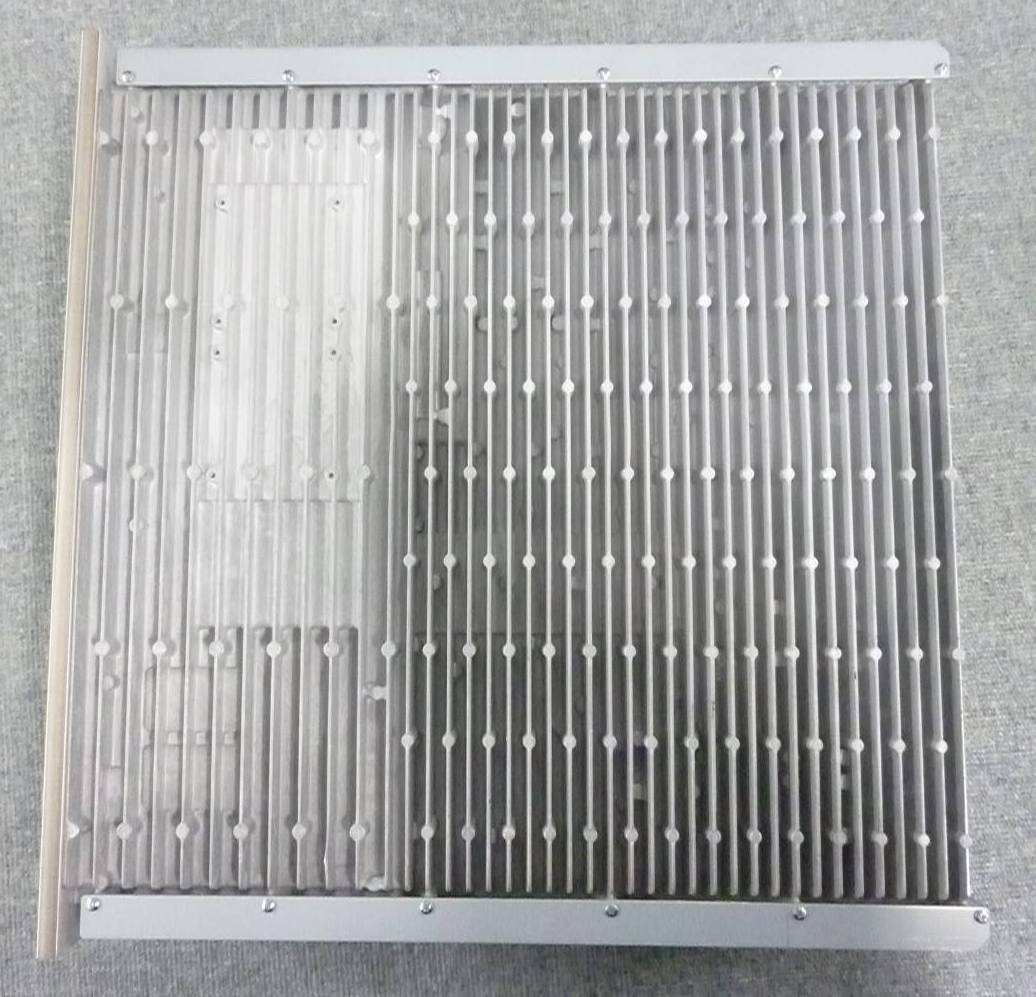

FCC ID: AS5BBTRX-11 External Photographs FCC ID: AS5BBTRX-11 Photograph of Front side FCC ID: AS5BBTRX-11 Photograph of Top side Photograph of Bottom side FCC ID: AS5BBTRX-11 Photograph of Right side FCC ID: AS5BBTRX-11 Photograph of Left side

APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 FCC ID Label APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-11 Photograph of FCC ID Label Affixed COMCODE: 849179395 ISSUE#: 1 WORK#: 1 MAR-TEK INDUSTRIES: ISO 9001:2008 REGISTERED Title: 849179395 TRDU FCC LABEL Designer: P.ENGLERT Drawn: SRJ Checked: Date: 03-15-2013 Date: 03-15-2013 Date: Approved: Date: Client: Alcatel-Lucent - P.Englert Material Specifications: Font Info: Comcode No.: 849179395 Artmaster Issue#: 1w1 10 mil velvet/matte polycarbonate 8B35V (VTM-2) or equivalent with 3M 467 permanent adhesive Subsurface print Black and Cool Gray 1 as per OS20000 Drawing Issue#: Mar-Tek Industries • 3545-G South Platte River Drive • Englewood, CO 80110 • tele: 973-293-0165 • fax: 973-293-0164 • email: [email protected] Text prints 9 & 7pt HelveticaNeue Med. Cond Die Strike: .02” AM ISSUE DESCRIPTIONDATEDRAWN 1w1Initial Release.03-15-2013S. JENSEN Certifications: ALL INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF ALCATEL-LUCENT All units are in millimeters • Tolerance is: 2 places .25mm • Symbology agrees with: ISO 1101 and ISO 1302 Labels are RoHS compliant and conform to Alcatel-Lucent banned substance and environmental hazardous substance requirements in QPS 20.248 & IAA 00266 0035 ASZZA. Artmaster Must Be Obtained By: Label shall meet UL and CSA requirements where applicable. Vendor must be UL and/or CSA approved. Documentation verifying the vendorʼs certifications for the material shall be provided by the vendor with each package/container. SPEC DRAWING - FOR REFERENCE ONLY - (DO NOT USE FOR REPRODUCTION) ORIGINAL ARTWORK - USE FOR REPRODUCTION - COMPOSITE 0.00 26.00 0.00 67.00 R 1.5 TYP AS5BBTRX-11FCC ID: 849179395 AS5BBTRX-11FCC ID: 849179395

FCC ID: AS5BBTRX-11 Internal Photographs FCC ID: AS5BBTRX-11 Photograph of TRX FCC ID: AS5BBTRX-11 Photograph of Duplexer FCC ID: AS5BBTRX-11 Photograph of PA and PS

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 1 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions MEASUREMENT OF DC POWER OF FINAL STAGE AMPLIFIER SECTION 2.1033(c) (8) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 2 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TEST REPORT MEASUREMENT OF DC POWER OF FINAL STAGE AMPLIFIER SECTION 2.1033(c) (8) The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. RESPONSE: The TRDU2X60-AWS nominally uses the following maximum voltage and maximum currents. The nominal input to TRDU2x60-AWS is -48VVDC. The -48V is achieved using DC/DC converter: Stage Voltage Current Final stage -48V DC 13.5A DC

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 TEST REPORT APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 MEASUREMENT PER SECTION 2.1033 (C) (14) OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The following pages include the data required for the AS5BBTRX-11, measured in accordance with the procedures set out in Section 2. 1033(c)(14) of the Rules. Each required measurement and its corresponding exhibit number are: Measurement: 1Section 2.1046RF Power Output - See Measurement 3 Measurement: 2Section 2.1047 Section 27.50(d)(5) Modulation Characteristics Peak-to-Average ratio (PAR) Measurement: 3Section 2.1049(a) Emissions Bandwidth (b) Occupied Bandwidth/Band Edge spurious Emissions Measurement: 4Section 2.1051Spurious Emissions at Antenna Terminals Measurement: 5Section 2.1053Field Strength of Spurious Radiation Measurement: 6Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Measurement 1 FCC Section 2.1046 RF Power output Refer to Measurement 3Occupied Bandwidth Measurement during that measurement RF Output was continuously monitored. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Measurement 2 FCC Section 2.1047 Modulation Characteristics & Section 27.50(d)(5) Measurement of Peak-to-Average ratio (PAR) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Section 2.1047 Modulation Characteristics The modulation techniques used are explained in the submission as part section 2.1033 (c) (13). The RF signal at the antenna port was demodulated and verified for correctness of modulation signal used before each test was performed. The attached plots of graphs show the modulation components: In phase (I) and Quadrature (Q) components. (1) Quadrature Phase Shift Keying (QPSK) modulation scheme uses 2 bits are transmitted simultaneously (one per channel) and a symbol can be represented by 2 bits. Therefore there are 2 2 = 4 states (Binary 00 to 11). The theoretical bandwidth is 2bits/second/Hz. (2) 16 Quadrature amplitude modulation (QAM): In 16QAM, there 16-states. There are four I values and four Q values, therefore 4 bits are available for represent a symbol. Therefore there are 2 4 = 16 states (Binary 0000 to 1111). The theoretical bandwidth is 4bits/second/Hz. (3) 64 Quadrature amplitude modulation (QAM): In 64QAM: The 64QAM is similar to 16QAM and there will be 64 states and 6 bits are available to represent a symbol. Section 27.50(d)(5) Measurement of Peak-to-Average ratio (PAR) The peak-to-average (PAR) is plotted along with demodulated constellation plots. The plots show that average and peak values in dBm. The difference of peak-to-averages ratio does not exceed 13 dB as required in section 27.50(d) (5). APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 QPSK 2115MHz (10 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average QPSK 2115MHz (10 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 16QAM 2115MHz (10 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average 16QAM 2115MHz (10 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 64QAM 2115MHz (10 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average 64QAM 2115MHz (10 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 QPSK 2120MHz (20 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A+B; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average QPSK 2120MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 16 QAM 2120MHz (20 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A+B; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average 16 QAM 2120MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 64 QAM 2120MHz (20 MHz BW) LTE AWS TRDU (M1) 2X60W in Light Radio Cabinet FCC Part 27.53 Block A+B; PWR: 60 (2x60W MIMO) FCCID: AS5BBTRX-11 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Peak to Average 64 QAM 2120MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Measurement 3 FCC Section 2.1049 (a) Emissions Bandwidth Measurement (b) Occupied Bandwidth Measurement showing spurious Emissions 1MHz close to Block edges. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 Spectrum Bandwidth Measurement For Emissions Type FCC approved measurement method for Spectrum Bandwidth. (A)26 dB Band width. This method was used to measure the bandwidth at modulations and highest is recorded. The modulations used are: 1. QPSK 2. 16 QAM 3. 64 QAM Highest Bandwidth is used for Emissions type designation: 9.48 MHz for 10 MHz Bandwidth, and 18.85MHz for 20 MHz Bandwidth. Therefore: Measured Emission type:9M48F9Wfor 10 MHz Bandwidth. Measured Emission type: 18M85F9Wfor 20 MHz Bandwidth. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 MEASUREMENT OF EMISSIONS BANDWIDTH 26 dB POWER BANDWIDTH APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-11 (b) MEASUREMENT OF SPECTRUM BANDWIDTH For Emissions Type The occupied bandwidth of the Long Term Evolution (LTE) is measured using a Rohde & Schwarz ESI Spectrum Analyzer/Receiver and an HP Model 520 DeskJet Printer. The emissions bandwidth is described in section 27.53 (h) (3) is used. Accordingly “The emissions bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of wh…
