AS5BBTRX-149763 MCI B25 PCS LTE 2x250mW

APPLICANT: Alcatel-Lucent EXHIBIT 3 FCC ID: AS5BBTRX-14 Page 1 of 1 EXHIBIT 3 Section 2.1033 (c)(3) INSTALLATION AND OPERATING INSTRUCTIONS A copy of the installation and operating instructions to be furnished to the user. A draft copy of the instructions may be submitted if the actual document is not available. The actual document shall be furnished to the FCC when it becomes available. Response A copy of Alcatel-Lucent 9763 MCI B25 PCS LTE 2x250mW, AC Hardware Installation manual is attached to this exhibit. Titlepage Alcatel-Lucent9763 MetroCellIndoorB25LTE2x250mW OperationandInstallation 3MN-MCI-IMOP Issue1 | December2013 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements Usepursuanttoapplicableagreements Legalnotice Legalnotice Alcatel,Lucent,Alcatel-LucentandtheAlcatel-LucentlogoaretrademarksofAlcatel-Lucent.Allothertrademarksarethepropertyoftheirrespective owners. Theinformationpresentedissubjecttochangewithoutnotice.Alcatel-Lucentassumesnoresponsibilityforinaccuraciescontainedherein. Copyright©2013Alcatel-Lucent.Allrightsreserved. Containsproprietary/tradesecretinformationwhichisthepropertyofAlcatel-Lucentandmustnotbemadeavailableto,orcopiedorusedbyanyoneoutside Alcatel-Lucentwithoutitswrittenauthorization. Nottobeusedordisclosedexceptinaccordancewithapplicableagreements. Usepursuanttoapplicableagreements Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements Contents Aboutthisdocument Purpose .............................................................................................................................................................................................xixi Reasonforreissue ........................................................................................................................................................................xixi Supportedsystems ........................................................................................................................................................................xixi Howtousethisdocument .........................................................................................................................................................xixi Safetyinformation ........................................................................................................................................................................xixi Prerequisites ..................................................................................................................................................................................xiixii Conventionsused ........................................................................................................................................................................xiixii Documentsupport ......................................................................................................................................................................xivxiv Technicalsupport .......................................................................................................................................................................xivxiv Howtoorder ................................................................................................................................................................................xivxiv Howtocomment ........................................................................................................................................................................xivxiv 1Safetystatements Overview ......................................................................................................................................................................................1-11-1 Structureofsafetystatements ...............................................................................................................................................1-21-2 Safety ...........................................................................................................................................................................................1-41-4 Safety-specifichazards .........................................................................................................................................................1-51-5 Productsafety .............................................................................................................................................................................1-91-9 2Hardwarearchitectureandfunctionality Overview ......................................................................................................................................................................................2-12-1 Functionaldescription .............................................................................................................................................................2-22-2 Physicaldescription .................................................................................................................................................................2-32-3 Supportedinstallationoptions ..............................................................................................................................................2-82-8 .................................................................................................................................................................................................................................... Alcatel-Lucent9763MCI 3MN-MCI-IMOP Issue1 December2013 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements iii Hardwareandancillaryitems............................................................................................................................................2-102-10 39763MCIinstallation Overview ......................................................................................................................................................…

Text truncated - open the document above for the full version.

- 1 - Alcatel-Lucent USA Rm. 28-114H 600-700 Mountain Ave. PO Box 636 Murray Hill, NJ 07974 November 20, 2013 Timco Engineering Inc. Telecommunication Certification Bodies 849 NW State Road 45 Newberry, Florida 32669 Subject: Application for Original Equipment Certification under FCC ID: AS5BBTRX-14 for MCI 2x250mW Base Station, Operating in the Personal Communications Services, 1930-1995MHz, with LTE Technology Dear Examiner: In accordance with Parts 2 and 24 of the Commission’s Rules and Regulations, we are submitting herewith statements and supporting data to show compliance with the requirements of the Commission for the certification of the Alcatel-Lucent 9763 LightRadio™ Multiple Input Multiple Output (MIMO) Metro Cell Indoor (MCI) 2x250mW, henceforth MCI PCS 2x250mW, under FCC ID AS5BBTRX-14, for operation in the domestic PCS A, D, B, E, F, C and G bands (1930-1995 MHz), i.e., E-UTRAN band 25, with Long Term Evolution (LTE) technology. . The Metro Cell is a small cell, designed to be deployed as an overlay in an existing macro coverage area to provide increased throughput and coverage in the public open areas. The MCI 2x250mW supports MIMO with 2 transmit and 2 receive streams. The MCI PCS has two antenna ports. The maximum output power of each port is 24dBm or 250mW, i.e., 0.5W (27dBm) in total. The MCI PCS 2x250mW was powered by a AC power supply with 120 VAC and 60 Hz. The Metro 2x250mW consists of a Digital/RF Analog board (DA), Power Amplifier Board (PA), Power Module and RF Filter. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. Manufacturer Alcatel-Lucent, Inc. Equipment Identification AS5BBTRX-14 Rules Part Number Part 24 Frequency Range Transmit: 1930-1995MHz, Receive: 1850-1915 MHz. Output Power 0-250mW per LTE carrier, 0-250mW per Tx Port, 0-0.5W per Unit Frequency Tolerance  0.05 ppm Emission Designator 4M48F9W Enclosed in this application package are the FCC Application Form 731, letter of Request for Confidentiality, Table of Contents, and the required exhibits. These exhibits contain the technical data and the required statements and documents for equipment certification. The technical contact at Alcatel-Lucent will comply with any request for additional information should the need arise. The fees are submitted as required for radio equipment certification filing.

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 TABLE OF CONTENTS Exhibit 1 Section 2.911 (d) Attestation Statement Exhibit 2 Section2.1033 (c) (1, 2, 4-7) Manufacturer, Applicant, Identifier, Emission Types, Frequency Range, Operating Power Range and Adjustment and Maximum Power Rating Exhibit 3 Section 2.1033 (c) (3) Installation and Operating Instructions Exhibit 4 Section 2.1033 (c) (8, 9, 10) DC Voltages and Currents; Tune-up Procedure; Circuitry and Devices for Suppression of Spurious Radiation Exhibit 5 Section 2.1033 (c) (10) Circuit Schematic Diagrams -> Confidential Exhibit 6 Section 2.1033 (c) (10, 13) Description of Circuitry and Devices for Determining and Stabilizing Frequency and for Limiting Modulation and Power and Description of the Digital Modulation System -> Confidential Exhibit 7 Section 2.1033 (c) (11) Equipment Identification Label Exhibit 8 Section 2.1033 (c) (12) Photograph of the Equipment Exhibit 9 Setup Photos Exhibit 10 TEST REPORT Sub-exhibit 10.1 Section 2.1033 (c) (14) Required Measurement Data Sub-exhibit 10.2 Section 2.1046 Measurements Required: RF Power Output Sub-exhibit 10.3 Section 2.1047 Measurements of Modulation Characteristics Sub-exhibit 10.4 Section 2.1049, 24.238 Measurements Required: Occupied Bandwidth and Out- of- Band Emissions Sub-exhibit 10.5 Section 2.1051, 24.238 Measurements Required: Spurious Emissions at Antenna Terminal Sub-exhibit 10.6 Section 2.1053, 24.238 Measurements Required: Field Strength of Spurious Radiation Sub-exhibit 10.7 Section 2.1055 Measurement of Frequency Stability Sub-exhibit 10.8 Section 2.947 (d) Test Instruments Used for Test – See Test Report Page 1 of 1

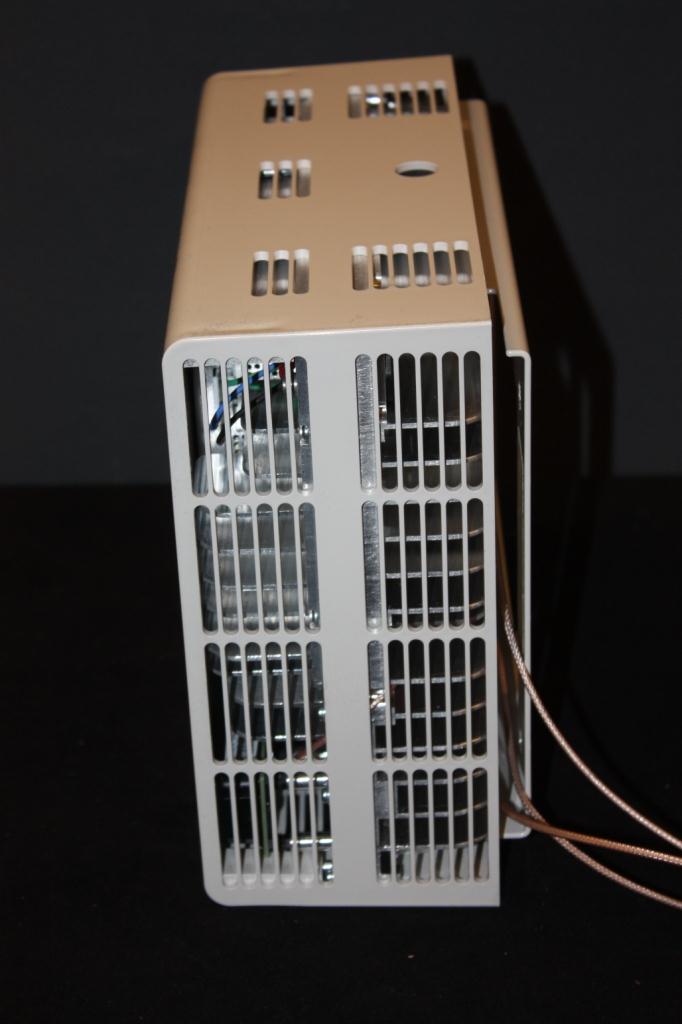

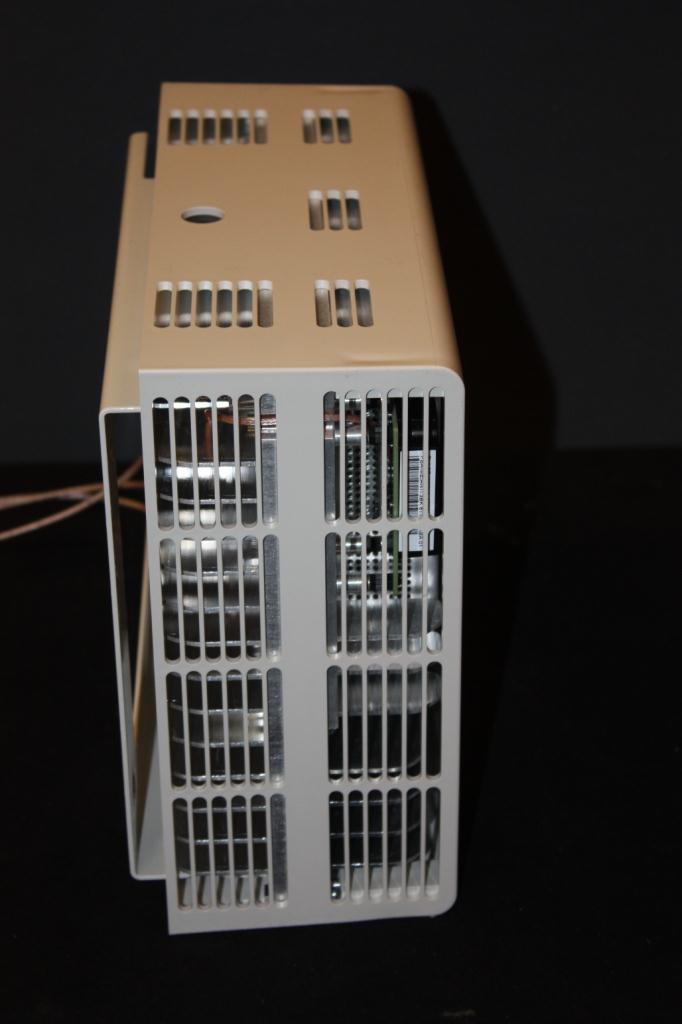

APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 1 of 4 EXHIBIT 8 Section 2.1033 (c) (12) PHOTOGRAPHS OF THE EQUIPMENT Photographs (8 x 10) of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. Response The following pages contain the required external photographs of the AS5BBTRX-14 MCI, subject of this application. Six photos in total were submitted, which include: 1) External Front and Back Views of the MCI 2) External Top and Bottom Views of the MCI 3) External Two Sides Views of the MCI APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 2 of 4 External Front and Back Views of the MCI APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 3 of 4 External Top and Bottom Views of the MCI APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 4 of 4 External Two Sides Views of the MCI

APPLICANT: Alcatel-Lucent, USA EXHIBIT 7 FCCID: AS5BBTRX-14 Page 1 of 1 EXHIBIT 7 Section 2.1033 (c) (11) FCC IDENTIFICATION LABEL

APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 1 of 5 EXHIBIT 8 Section 2.1033 (c) (12) PHOTOGRAPHS OF THE EQUIPMENT Photographs (8 x 10) of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing.. Response The RF path of the MCI 2x.25W wireless base station is comprised of two critical RF active components: DAPA19L board and the Modem board. The following pages contain the required photographs of the AS5BBTRX-14 MCI, subject of this application, showing the internal views of the MCI critical RF components. 4 photos in total are submitted, which include: 1) Top View of MCI with Radome Removed 2) Top View of DAPA19L and Modem Boards with Shield Removed 3) Bottom View of DAPA19L Board with Shield Removed 4) Bottom view of Modem Board APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 2 of 5 Top View of MCI with Radome Removed APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 3 of 5 Top View of DAPA19L and Modem Boards with Shield Removed APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 4 of 5 Bottom View of DAPA19L Board with Shield Removed APPLICANT: Alcatel-Lucent, USA FCCID: AS5BBTRX-14 Page 5 of 5 Bottom view of Modem Board

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 4 Section 2.1033 (c)(8) DC VOLTAGES AND CURRENTS The dc voltage applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Response The single phase, three wire AC voltage power source of 120 VAC and 60 Hz was applied to the 9763 MCI B25 PCS LTE 2x250mW, AC transceiver system. The final radio frequency amplifying device needs 750mA from the 5.0V supply. Due to the two transmitters, we have two of these final radio frequency amplifying devices in one MCI. Section 2.1033 (c)(9) TUNE-UP PROCEDURE Turn-up procedure over the power range, or at specific operating power levels. Response The Alcatel-Lucent 9763 MCI B25 PCS LTE 2x250mW, AC, subject of this application, cannot be “tuned- up” by the user. There are no user tune-up features. All tuning is performed by the manufacturer during, and as part of, the manufacturing process. Section 2.1033 (c)(10) CIRCUITRY AND DEVICES FOR SUPPRESSION OF SPURIOUS RADIATION A description of all circuitry and devices provided for suppression of spurious radiation. Response The 9763 MCI B25 PCS LTE 2x250mW, AC, subject of this application, was designed in adherence to the proper Electromagnetic Compatibility (EMC) guidelines extending from the circuit board level to the shelf and system levels to significantly suppress inter-modulation products, carrier induced harmonics and other spurious signals as well as the emissions radiated from them. The suppression of spurious radiation was achieved mainly by implementing the following two techniques: 1. Effective filtering in the RF path of the transceiver unit and band-pass transmit filters (external to the transceiver). 2. Proper grounding and RF shielding of the circuitry, circuit boards, cables, shelves and the frame.

APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-14 EXHIBIT 2 MANUFACTURERS ─ IDENTIFIER SECTION 2.1033 (c) 1 and 2 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-14 MANUFACTURERS IDENTIFIER SECTION 2.1033(c) 1 The full name and mailing address of the manufacturer and the applicant of the device for certification: RESPONSE: MANUFACTURER & APPLICANT Alcatel-Lucent 600-700 Mountain Avenue Murray Hill, NJ 07974 Attention: Rudolf J Pillmeier SECTION 2.1033(c) 2 FCC Identifier: RESPONSE: FCC Identifier: AS5BBTRX-14 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-14 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033 (c) (4), (5), (6) and (7) APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-14 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033(c) (4) Type or types of emission: RESPONSE: The “9763 MCI B25 PCS LTE 2x250mW, AC” is capable of amplifying transmission involving the following types of emissions: Measured Emission type: BW (MHz) Emissions Designation 5 4M48F9W . SECTION 2.1033(c) (5) Frequency Range RESPONSE: PCS Band PCS Blocks Tx Frequency (MHz) Rx Frequency (MHz) Bandwidth (MHz) A - G 1930 - 1995 1850 - 1915 65 SECTION 2.1033(c) (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. RESPONSE: The “9763 MCI B25 PCS LTE 2x250mW, AC”, is capable of operating from 0.002 to .25 watts/port, 2x2 MIMO mode. The Tx output power is controlled by the RF Digital Step Attenuator (DSA) via software over 14 dB range from +10dBm to +24dBm, respectively. The gain of the Tx path is adjusted by the DSA to account for gain variations in the Tx chain over operating temperature and frequency ranges. In addition to that, the FPGA provides fine output power control with a high resolution. The Tx chain parameters are carefully characterized during manufacturing process and provide high accuracy of setting the Tx output power and maintaining it over operating frequency and temperature ranges. APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-14 SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part(s) of the rules. RESPONSE: The maximum average power output of the “9763 MCI B25 PCS LTE 2x250mW, AC EAC port is 2x0.25 watts (MIMO) mode. The radio transmitter is operated under 47 CFR 24 and OET Rules 662911 D01 and D02. There were 2 External antenna port (EAC) ports and the ports were randomly selected for all antenna port conducted tests.

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 10 TEST REPORT FCC Parts 2 & 24 APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 SUB-EXHIBIT 10.1 MEASUREMENT PER SECTION 2.1033 (C) (14) OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The following pages include the data required for the AS5BBTRX-14, measured in accordance with the procedures set out in Section 2.1033 (c) (14) of the Rules. Each required measurement and its corresponding exhibit number are: Sub-exhibit 10.2 Section 2.1046 RF Power Output - See Measurement 3 Sub-exhibit 10.3 Section 2.1047 Modulation Characteristics Sub-exhibit 10.4 Section 2.1049, 24.238 (a) Emissions Bandwidth (b) Occupied Bandwidth Sub-exhibit 10.5 Section 2.1051, 24.238 Spurious Emissions at Antenna Terminals Sub-exhibit 10.6 Section 2.1053, 24.238 Field Strength of Spurious Radiation Sub-exhibit 10.7 Section 2.1055, 24.235 Measurement of Frequency Stability Sub-exhibit 10.8 Section 2.947 (d) Test Instrumentation APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 SUB-EXHIBIT 10.2 FCC Section 2.1046 RF Power output Refer to Measurement 3 Occupied Bandwidth Measurement during that measurement RF Output was continuously monitored. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 SUB-EXHIBIT 10.3 FCC Section 2.1047 Modulation Characteristics APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 The modulation techniques used are explained in the submission as part section 2.1033 (c) (13). The RF signal at the antenna port was demodulated and verified for correctness of modulation signal used before each test was performed. The attached plot of graphs shows the modulation components: In phase (I) and Quadrature (Q) components. (1) Quadrature Phase Shift Keying (QPSK) modulation scheme uses 2 bits transmitted simultaneously (one per channel) and a symbol can be represented by 2 bits. Therefore there are 2 2 = 4 states (Binary 00 to 11). The theoretical bandwidth is 2bits/second/Hz. (2) 16 Quadrature amplitude modulation (QAM): In 16QAM, there are 16-states. There are four I values and four Q values. Therefore, 4 bits are available to represent a symbol. Therefore there are 2 4 = 16 states (Binary 0000 to 1111). The theoretical bandwidth is 4bits/second/Hz. (3) 64 Quadrature amplitude modulation (QAM): In 64QAM: The 64QAM is similar to 16QAM and there will be 64 states and 6 bits are available to represent a symbol. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 QPSK MODULATION APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 9763 MCI B25 PCS LTE 2x250mW, AC FCC Part 24 Block G; QPSK Modulation; PWR: 250mW (2x250mW MIMO) FCCID: AS5BBTRX-14 TEST ENGINEER: SEG APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 16QAM MODULATION APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 9763 MCI B25 PCS LTE 2x250mW, AC FCC Part 24 Block G; 16QAM Modulation; PWR: 250mW (2x250mW MIMO) FCCID: AS5BBTRX-14 TEST ENGINEER: SEG APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 64QAM MODULATION APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 9763 MCI B25 PCS LTE 2x250mW, AC FCC Part 24 Block G; 64QAM Modulation; PWR: 250mW (2x250mW MIMO) FCCID: AS5BBTRX-14 TEST ENGINEER: SEG APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 SUB-EXHIBIT 10.4 FCC Section 2.1049 (a) Emissions Bandwidth Measurement (b) Occupied Bandwidth Measurement showing spurious Emissions 1 MHz close to Block edges. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 Spectrum Bandwidth Measurement For Emissions Type FCC approved measurement method for Spectrum Bandwidth. (A) 99% Bandwidth The modulations used are: 1. QPSK 2. 16 QAM 3. 64 QAM The Highest Bandwidth is used for Emissions type designation: 4.48 MHz for 5 MHz Bandwidth. Therefore: Measured Emission type: 4M48F9W for 5 MHz Bandwidth. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 MEASUREMENT OF OCCUPIED BANDWIDTH (A) 99% POWER BANDWIDTH Reviewed By: SEG/QY Date: 11/20/2013 APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 MEASUREMENT OF OCCUPIED BANDWIDTH For Emissions Type The occupied bandwidth and out-of-band emissions measurements were made at the antenna transmitting terminal (J4) at the lowest and highest available channels in each of the PCS A, B and C frequency bands and one carrier (5MHz) in each D, E, F and G bands of the 9763 MCI B25 PCS LTE 2x250mW, AC. Measurements were performed using the Rohde & Schwarz ESI Spectrum analyzer/Receiver designed to measure 99% power bandwidth. The measurements were made on blocks A, B, C, D, E, F, and G of the 9763 MCI B25 PCS LTE 2x250mW, AC with 5 MHz bandwidth. The measurements were made on a “9763 MCI B25 PCS LTE 2x250mW, AC” in the following modulation configurations: 1. QPSK 2. 16 QAM 3. 64 QAM This measurement also determines emission type. Results: The plots are provided for QPSK, 16QAM and 64QAM modulations of the 5 MHz band for the 9763 MCI B25 PCS LTE 2x250mW, AC. The Measured 99% power bandwidth is 4.48 MHz for the 5 MHz band. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 (5 MHz - 99% Power Bandwidth Plots) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 A 1RM UnitdBm RF Att 10 dBRBW 50 kHz SWT 10 ms VBW 500 kHz 1RM IN1 32.7 dB Offset Ref Lvl 24 dBm Ref Lvl 24 dBm 1 MHz/Center1.9925 GHzSpan10 MHz 1AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 -76 24 1 T1 T2 Marker 1 [T1] 4.42 dBm 1.99373246 GHz 1 [T1] 4.42 dBm 1.99373246 GHz OPB 4.48897796 MHz T1 [T1] 3.23 dBm 1.99026553 GHz T2 [T1] 2.18 dBm 1.99475451 GHz Title: 99% POWER BANDWIDTH; TEST ENGINEER: SEG Comment A: 9763 MCI P1 LTE FDD B25 (PCS Block G) 2x250mW, AC; 5MHz BW TX:1992.5 MHz;PWR:250mW; QPSK; FCC PRT 24; FCCID:AS5BBTRX-14 Date: 6.NOV.2013 14:13:38 APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 A 1RM UnitdBm RF Att 10 dBRBW 50 kHz SWT 10 ms VBW 500 kHz 1RM IN1 32.7 dB Offset Ref Lvl 24 dBm Ref Lvl 24 dBm 1 MHz/Center1.9925 GHzSpan10 MHz 1AVG -70 -60 -50 -40 -30 -20 -10 0 10 20 -76 24 1 T1 T2 Marker 1 [T1] 5.04 dBm 1.99373246 GHz 1 [T1] 5.04 dBm 1.99373246 GHz OPB …

Text truncated - open the document above for the full version.

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 9 PHOTOGRAPH(S) OF EUT ARRANGEMENT DURING OCCUPIED BANDWIDTH TESTING APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 9 PHOTOGRAPH(S) OF EUT ARRANGEMENT DURING CONDUCTED SPURIOUS EMISSIONS TESTING APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 9 PHOTOGRAPH(S) OF EUT ARRANGEMENT DURING SPURIOUS RADIATED EMISSIONS TESTING APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-14 EXHIBIT 9 PHOTOGRAPH(S) OF EUT ARRANGEMENT DURING SPURIOUS RADIATED EMISSIONS TESTING
