AS5BBTRX-15LTE TD-RRH8X20-25

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Alcatel-Lucent Use pursuant to Company Instructions USERS MANUAL Section 2.1033(C)(3) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Alcatel-Lucent Use pursuant to Company Instructions USERS MANUAL SECTION 2.1033(c) (3) A copy of the installation and operating instructions to be furnished the user. A draft copy of the instructions may be submitted if the actual document is not available. The actual document shall be furnished to FCC when it becomes available. RESPONSE: A copy of TD-RRH8X20-25User Manual is attached Alcatel-Lucent TD-RRH8X20-25 User Manual _________________________________________________________________________________________ Document Number:TDD-LTE Document Issue:01.00/ EN Document Status:Standard Date of Issue:06/Dec/2013 _________________________________________________________________________________________ TD-RRH8X20-25 PRODUCT DESCRIPTION DEC2013 Document Issue: V01/ EN | Document Status: Released Alcatel-Lucent – Proprietary See Notice on Page 2 2/ 20 Copyright © 2010 by Alcatel-Lucent Technologies. All Rights Reserved. About Alcatel-Lucent Alcatel-Lucent (Euronext Paris and NYSE: ALU) provides solutions that enable service providers, enterprises and governments worldwide, to deliver voice, data and video communication services to end-users. As a leader in fixed, mobile and converged broadband networking, IP technologies, applications, and services, Alcatel-Lucent offers the end-to-end solutions that enable compelling communications services for people at home, at work and on the move. For more information, visit Alcatel-Lucent on the Internet: www.alcatel-lucent.com Notice The information contained in this document is subject to change without notice. At the time of publication, it reflects the latest information on Alcatel-Lucent’s offer, however, our policy of continuing development may result in improvement or change to the specifications described. Trademarks The following trademarks are used throughout this document: Alcatel-Lucent, Alcatel, Lucent Technologies and their respective logos are trademarks and service marks of Alcatel-Lucent, Alcatel and Lucent Technologies. TD-RRH8X20-25 PRODUCT DESCRIPTION DEC2013 Document Issue: V01/ EN | Document Status: Released Alcatel-Lucent – Proprietary See Notice on Page 2 3/ 20 CONTENTS 1 INTRODUCTION.................................................................................................. 5 1.1 OVERVIEW.......................................................................................................5 1.2 SCOPE OF THIS DOCUMENT.......................................................................................5 2 TD-RRH8X20-25 SOLUTION OVERVIEW ..................................................................... 6 2.1 OVERVIEW.......................................................................................................6 3 TD-RRH8X20-25 PRODUCT DESCRIPTION .................................................................. 8 3.1 OVERVIEW.......................................................................................................8 3.2 MAIN CHARACTERISTICS AND TECHNICAL DATA....................................................................9 3.2.1 Connectivity and Interfaces ........................................................................9 3.3 MECHANICAL CHARACTERISTICS................................................................................ 10 3.3.1 Mechanical mounting solutions .................................................................. 10 3.3.2 Solar shield ......................................................................................... 11 4 ENVIRONMENTAL AND REGULATORY COMPLIANCE .....................................................13 4.1 ENVIRONMENTAL COMPLIANCE.................................................................................. 13 4.1.1 Operation Temperature and Humidity ......................................................... 13 4.1.2 Storage .............................................................................................. 13 4.1.3 Transportation ..................................................................................... 13 4.2 REGULATORY COMPLIANCE..................................................................................... 13 4.2.1 Safety ................................................................................................ 13 4.2.2 EMC................................................................................................... 14 4.2.3 Eco-environmental compliancy .................................................................. 17 5 APPENDICES ....................................................................................................18 5.1 APPENDIX A: PUBLICATION HISTORY........................................................................... 18 5.2 APPENDIX C: GLOSSARY &ACRONYMS.......................................................................... 18 5.2.1 Glossary ............................................................................................. 18 5.2.2 Acronyms ............................................................................................ 18 TD-RRH8X20-25 PRODUCT DESCRIPTION DEC2013 Document Issue: V01/ EN | Document Status: Released Alcatel-Lucent – Proprietary See Notice on Page 2 4/ 20 LIST OF FIGURES Figure 1 – Alcatel-Lucent TD-RRH8X20-25 Product........................................................................... 6 Figure 2 – TD-RRH8X20-25 System Overview (Star Configuration Supported From BBU) .............................. 7 Figure 3 - TD-RRH8X20-25 Functional Architecture.......................................................................... 8 Figure 4 -TD-RRH8X20-25 mounted on a pole................................................................................10 Figure 5 -TD-RRH8X20-25 with solar shield ......................................................................…

Text truncated - open the document above for the full version.

Global Product Compliance Laboratory MH 5A-115, Alcatel-Lucent 600, Mountain Avenue Murray Hill, NJ 07974-0636 Tel: 908 582 5539 December 11, 2013 Subject: Confidential Treatment for Schematics - FCC ID: AS5BBTRX-15 Dear Examiner: Pursuant to 47 CFR 0.457(d) and 47 CFR 0.459 of the FCC Rules, we request that the following documents be kept confidential and be withheld from public inspection. The information contain in these documents which is submitted to the FCC are considered a trade secret and not routinely available to the public. The reason that the material should be withheld from public inspection is that the exhibits listed contain Schematics and parts lists of “TD-RRH8X20-25” FCC ID: AS5BBTRX-15 that are proprietary. This information is not publicly available. Therefore, I would like to request you to treat the following as confidential. (1) Schematics and Parts list (2) Operational description Thank you for your attention in this matter . Sincerely, Dheena Moongilan Distinguished Member of Technical Staff

APPLICANT: Alcatel-Lucent -1 - FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Global Product Compliance Laboratory Office of Engineering and Technology MH 5A-115, Alcatel-Lucent Equipment Authorization Division 600, Mountain Avenue Application Processing Branch Murray Hill, NJ 07974-0636 7435 Oakland Mills Road Columbia, MD 21046 December 11, 2013 Dear Examiner: In accordance with Parts 2, and 27 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Alcatel-Lucent “LTE TD-RRH8X20-25”, henceforth ‘RRH’, FCC ID: AS5BBTRX-15. The RRH is radio, amplifier and filter combination cabinet systems uses the 3GPP standards Long time Evolution (LTE) technology, for use in Domestic Broadband Radio Service (BRS) and the Educational Broadband Service (EBS) bands. This application for the RRH under FCC ID: AS5BBTRX-15, is for operation in the domestic Broadband Radio Service (BRS) and the Educational Broadband Service (EBS) bands with a LTE signal. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. Manufacturer Alcatel-Lucent Equipment Identification AS5BBTRX-15 Rules Part Number 27.5 (h) (1) (i) and 27.53(m) Frequency Range 2496 -2690MHz Output Power +3 dBm (.002W) to 40dBm (10W) for 20MHz BW or +43dBm ( 20W) for 40MHz BW Varied by Software Frequency Tolerance +/- 0.05 ppm Emission Designator 18M5F9W for 20 MHz Bands and 38M7F9W for 40 MHz Bands The RRH, under FCC ID: AS5BBTRX-15 is designed to be operated and marketed as RF cabinet system. Each of the RRH contains eight identical Transceiver paths and ports. Each transceiver ports outputs 20W maximum of at the External antenna connector (EAC) port. The RRH will be typically operated in Multiple and input and Multiple output (MIMO) mode using multiple antennas. Each Transceiver path is supported by its own RF path filter. The RRH were evaluated total of eight transceiver ports. During all antenna port conducted emissions, the transceiver ports were randomly selected for each of the tests. The RRH will be marketed as indoor/outdoor cabinets. APPLICANT: Alcatel-Lucent -2 - FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 2 The RRH is designed operate at large number of sub-carriers which are modulated with QPSK, 16QAM, and 64QAM formats. The RRH was evaluated and data is provided for all three modulation formats. (a) QPSK (b) 16QAM (c) 64QAM The actual power level delivered by the RRH to transmit antenna is under the software control of remotely located radio equipment control (REC) through its Common Public Radio Interface (CPRI). The RRH /AS5BBTRX-15 is designed and manufactured by Alcatel-Lucent. List of exhibits attached with this submission is indicated in the following page of this cover letter. The attached exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Alcatel-Lucent will comply with any request for additional information should the need arise. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory phone: (908) 582 5539 email: [email protected] APPLICANT: Alcatel-Lucent -3 - FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. 3 List of Exhibits COVER LETTER Cover Letter Product Configuration – Explained in test reports Letter for Confidential Treatment of Exhibits ATTESTATION STATEMENT Section 2.911 (d) Qualifications and Certifications Section 2.1033 (c) (1,2) Manufacturers, FCC Identification Section 2.1033 (c) (4-7) Emissions, Frequency Range, Power Level USERS MANUAL Section 2.1033 (c) (3) Users Manual Section 2.1033 (c) (9) PARTS LIST/TUNE-UP PROCEDURE Tune-Up Procedure Section 2.1033 (c) (13) OPERATIONAL DESCRIPTION Description of Modulation System Section 2.1033 (c) (10) SCHEMATICS Schematic Section 2.1043 (b) (2) Block Diagrams Section 2.1033 (c) (11) and 2.925 (a) (1) ID LABEL/LOCATION INFORMATION Section 2.1033 (c) (12) EXTERNAL PHOTOS INTERNAL PHOTOS Section 2.1033 (c) (12) Internal Photos Section 2.1033 (c) (8) TEST REPORT Measurement of DC Power Section 2.1033 (c) (14) Listing of Required Measurements Section 2.1046 Measurement of Radio Frequency Power Output Section 2.1047 Measurement of Modulation Characteristics Section 2.1049 and Section 24.238 (b) and 27.58 (g) Measurement of Occupied Bandwidth Section 2.1051 Measurement of Spurious Emissions at Antenna Section 2.1053 Field Strength of Spurious Radiation Section 2.1055 Measurement of Frequency Stability Section 2.1057 Frequency Spectrum to be Investigated Test Instruments Used for Test – See Test Reports RF Exposure Information Section 24.51 (c) Human Exposure – Not performed

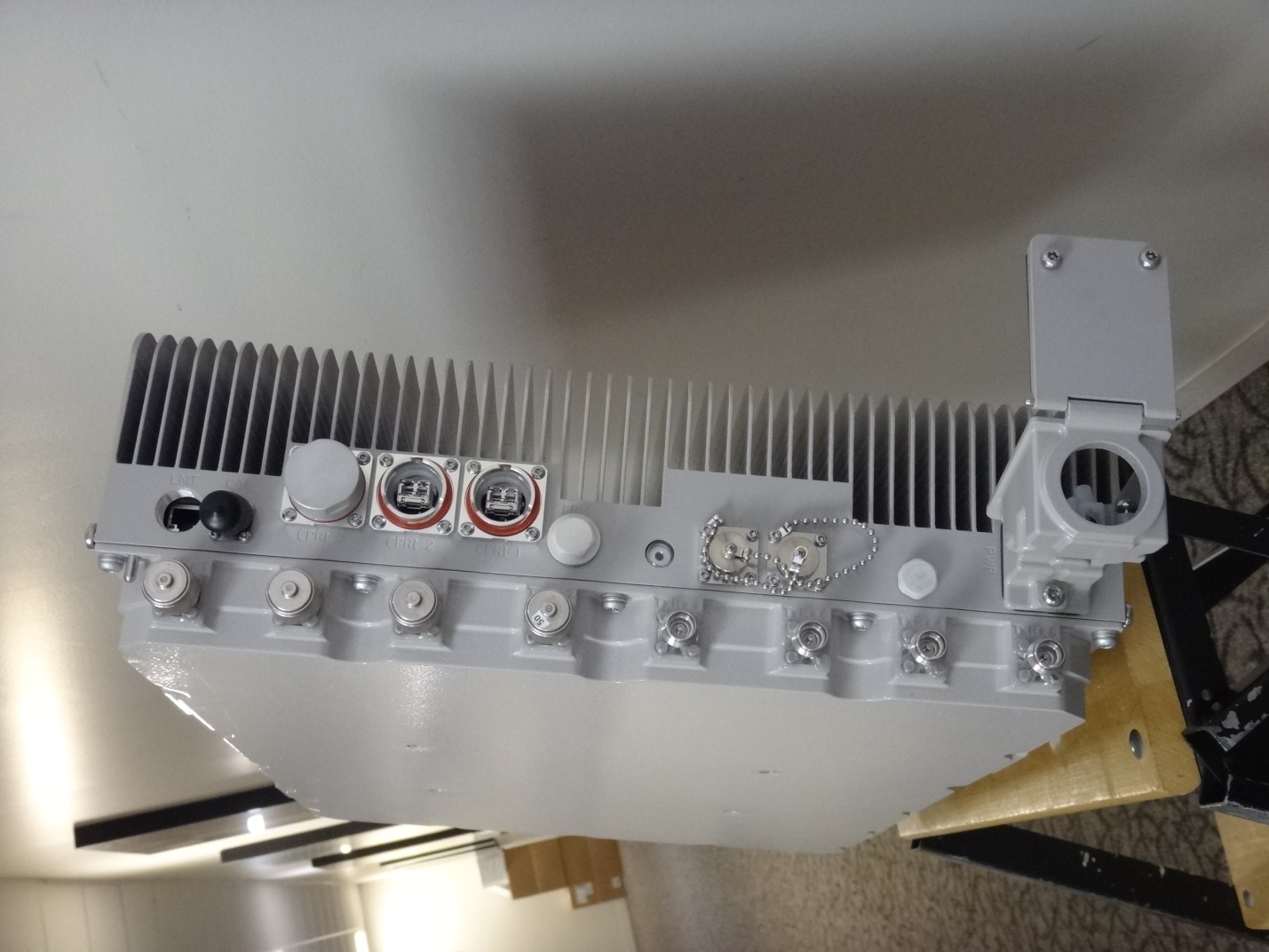

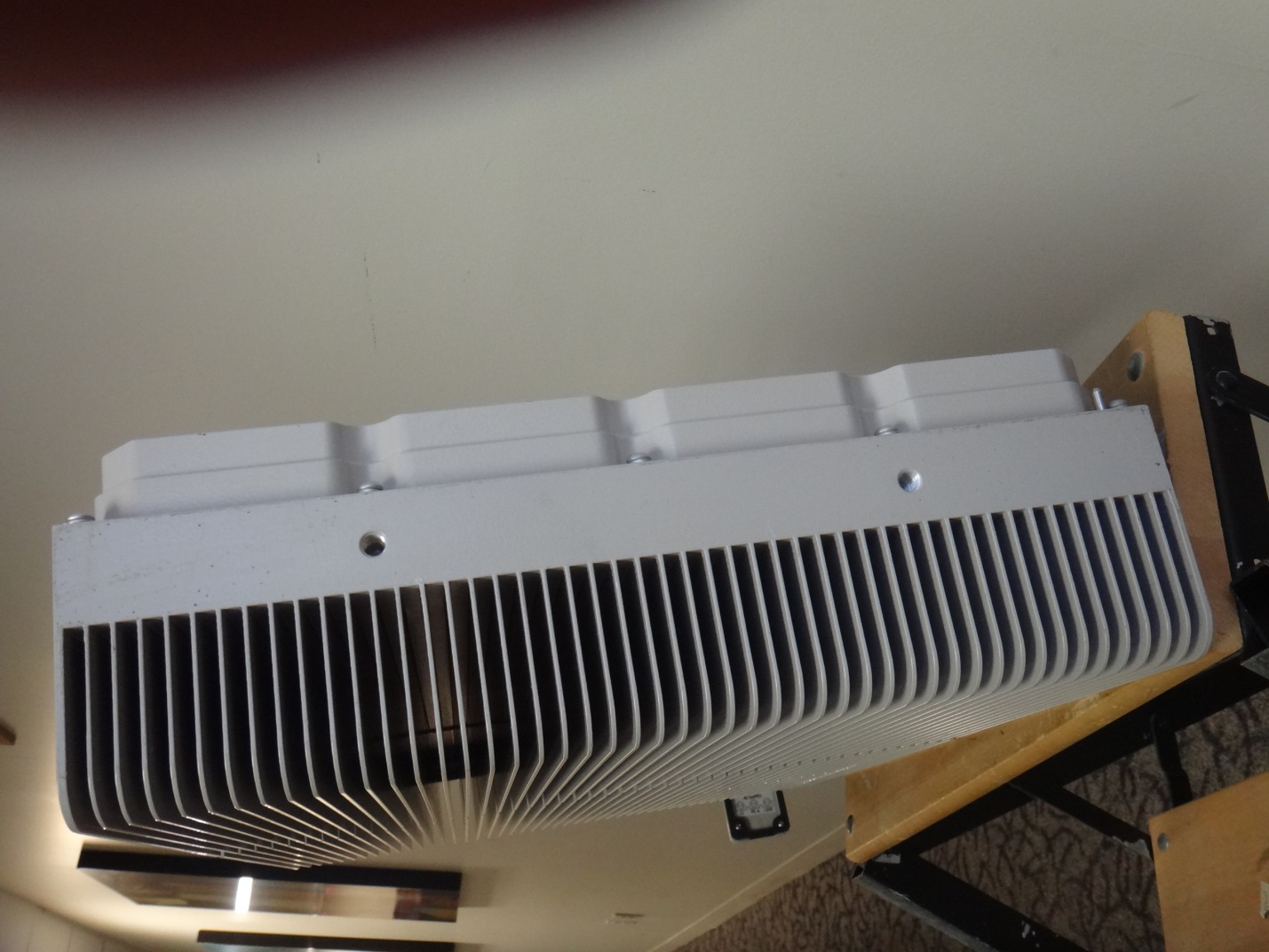

APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. External Photographs SECTION 2.1033 (c ) 12 APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Front of TD-RRH APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Rear Side APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Left & Rear Side APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Right Side with FCC ID Label APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Partial Right side showing FCC ID APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Bottom side APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Alcatel-Lucent - Proprietary Use pursuant to Company Instructions. Top

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 FCC ID Label APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Photograph of FCC ID Label Affixed APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 FCC ID Label Drawing COMCODE : 3JR41113AAAA (IJREV: 1) IDEAL JACOBS (XM): ISO 9001:2008, 14001:2004 REGISTERED SPEC DRAWING FOR REFERENCE ONLY (DO NOT USE FOR REPRODUCTION) ORIGINAL ARTWORK USE FOR REPRODUCTION COMPOSITE 4X R1.50 Cust. Rev#: Title: Engineer: --- Job#:Dwg. Date: ---P1306030017-1 Client: ASB Materials: Inks: Text: P/N(Comcode):3JR41113AAAA --- 10mil velvet/matte polycarbonate 8B35V (VTM-2) with 3M 467. Subsurface print Black, China RoHS Orange and Cool Gray 1 as per OS20000. 10pt Frutiger Roman; 8/7/6.5/5pt HelveticaNeue Med. Cond; 6pt Helvetica Bold Die Strike: .02” TD-RRH8X20-25 Label All units are in millimeters • Tolerance is: 2 places .25mm • Symbology agrees with: ISO 1101 and ISO 1302 Certifications: Labels shall meet UL and CSA requirements where applicable. Vendor must be UL and/or CSA approved. Documentation verifying the vendor’s certifications for the material shall be provided by the vendor with each package/container. Labels are RoHS compliant. Ideal Jacobs Corporation • 515 Valley Street • Maplewood, NJ 07040 • 973-275-5100 • FAX: 973-275-5161 • email: [email protected] Ideal Jacobs (Xiamen) Corporation • 319 East Hubin Road • Xiamen, Fujian 361012 • 0592-506-4000 • FAX: 0592-507-4000 • email: [email protected] 0.00 0.00 35.00 85.00 IJREVDESCRIPTIONDATECHECKEDDRAWNDATEAPPROVED 1Initial release. ---CCJX09-17-13--- FCC ID NUMBER IS 7PT HELVETICA MED CONDENSED FONT For Operating Temperature Ratings Reference The Site Preparation Document -48V 20A SELV Source Type 4 Enclosure This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Manufactured in China for Alcatel-Lucent FCC ID: AS5BBTRX-15 SD 2R747-01 TD-RRH8X20-25 3JR41113AAAA For Operating Temperature Ratings Reference The Site Preparation Document -48V 20A SELV Source Type 4 Enclosure This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Manufactured in China for Alcatel-Lucent FCC ID: AS5BBTRX-15 SD 2R747-01 TD-RRH8X20-25 3JR41113AAAA

APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 INTERNAL PHOTOGRAPHS Section 2.1033 (c) (12) APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Photograph of Open RRH APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Photograph of Transceiver Board APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Photograph of PA Board APPLICANT: Alcatel-Lucent. FCC ID: AS5BBTRX-15 Photograph Of RRH Cover plate

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 TEST REPORT APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 MEASUREMENT PER SECTION 2.1033 (C) (14) OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The following pages include the data required for the AS5BBTRX-15, measured in accordance with the procedures set out in Section 2. 1033(c)(14) of the Rules. Each required measurement and its corresponding exhibit number are: Measurement: 1 Section 2.1046 RF Power Output - See Measurement 3 Measurement: 2 Section 2.1047 Section 27.50(d)(5) Modulation Characteristics Peak-to-Average ratio (PAR) Measurement: 3 Section 2.1049 (a) Emissions Bandwidth (b) Occupied Bandwidth/Band Edge spurious Emissions Measurement: 4 Section 2.1051 Spurious Emissions at Antenna Terminals Measurement: 5 Section 2.1053 Field Strength of Spurious Radiation Measurement: 6 Section 2.1055 Measurement of Frequency Stability Section 2.1057 Frequency Spectrum to be Investigated APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Measurement 1 FCC Section 2.1046 RF Power output Refer to Measurement 3 Occupied Bandwidth Measurement during that measurement RF Output was continuously monitored. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Measurement 2 FCC Section 2.1047 Modulation Characteristics & Section 27.50(d)(5) Measurement of Peak-to-Average ratio (PAR) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Section 2.1047 Modulation Characteristics The modulation techniques used are explained in the submission as part section 2.1033 (c) (13). The RF signal at the antenna port was demodulated and verified for correctness of modulation signal used before each test was performed. The attached plots of graphs show the modulation components: In phase (I) and Quadrature (Q) components. (1) Quadrature Phase Shift Keying (QPSK) modulation scheme uses 2 bits are transmitted simultaneously (one per channel) and a symbol can be represented by 2 bits. Therefore there are 2 2 = 4 states (Binary 00 to 11). The theoretical bandwidth is 2bits/second/Hz. (2) 16 Quadrature amplitude modulation (QAM): In 16QAM, there 16-states. There are four I values and four Q values, therefore 4 bits are available for represent a symbol. Therefore there are 2 4 = 16 states (Binary 0000 to 1111). The theoretical bandwidth is 4bits/second/Hz. (3) 64 Quadrature amplitude modulation (QAM): In 64QAM: The 64QAM is similar to 16QAM and there will be 64 states and 6 bits are available to represent a symbol. Time domain LTE (TD-LTE) Modulation is similar to Frequency domain LTE. However TD-LTE uses a single carrier frequency for both uplink and downlink. The TD-RRH transceiver divides the communication time into transmission and reception periods depending on user needs. Therefore gating technique is used for measuring transmit power and occupied BW. Reference signal derived from GPS and frame trigger from the RRH were input into analyzer. This enables analyzer to measure power and occupied BW only during the transmit cycle. Occupied Bandwidth Measurement: Spectrum Analyzer was used for Gated spectrum measurements. In addition to RF input from TD-RRH, this analyzer uses following additional inputs: (1) A 10MHz signal from GPS receiver as reference input signal (Plot 1) (2) A 100Hz 50% duty cycle square wave (frame trigger) from the TD-RRH as trigger input (Plot 2) (3) Using signals (1) and (2) Spectrum Analyzer produces a trigger pulse having 10ms period and 66.98% duty cycle square wave (Plot 3). Spectrum Analyzer uses this trigger pulse for performing gated measurement. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Plot 1 Plot 2 APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Plot 3 Gated Power Measurements: Similarly Signals provided in plot 1&2 were used as inputs to power meters for measuring RF power accurately. APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Section 27.50(d)(5) Measurement of Peak-to-Average ratio (PAR) The peak-to-a verage (PAR) is plotted along with demodulated constellation plots. The plots show that average and peak values in dBm. The difference of peak-to-averages ratio does not exceed 13 dB as required in section 27.50(d) (5). The list of blocks and bands, tested for QPSK, 16QAM and 64QAM are listed below: Blocks Bandwidth (MHz) Frequency (MHz) Power (Watts) Lower 20 2496-2516 10 Middle 20 2568-2588 10 Higher 20 2670-2690 10 Lower 20+20 2496-2536 20 Middle 20+20 2568-2608 20 Higher 20+20 2650-2690 20 QPSK 2506 MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 TD-RRH8X20 (BC41) 2.5GHz FCC Part 27.53; PWR: 10 (8x10W MIMO) FCCID: AS5BBTRX-15 TEST ENGINEER: JY Peak to Average QPSK 2506MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 16QAM 2506MHz (20 MHz BW) TD-RRH8X20 (BC41) 2.5GHz FCC Part 27.53; PWR: 10 (8x10W MIMO) FCCID: AS5BBTRX-15 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Peak to Average 16QAM 2506MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 64QAM 2506MHz (20 MHz BW) TD-RRH8X20 (BC41) 2.5GHz FCC Part 27.53; PWR: 10 (8x10W MIMO) FCCID: AS5BBTRX-15 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Peak to Average 64QAM 2506MHz (20 MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 QPSK 2506, 2526 MHz (20 MHz + 20MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 TD-RRH8X20 (BC41) 2.5GHz FCC Part 27.53; PWR: 20 (8x20W MIMO) FCCID: AS5BBTRX-15 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Peak to Average QPSK 2506, 2526 MHz (20 MHz + 20MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 16QAM 2506, 2526 MHz (20 MHz + 20MHz BW) APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 TD-RRH8X20 (BC41) 2.5GHz FCC Part 27.53; PWR: 20 (8x20W MIMO) FCCID: AS5BBTRX-15 TEST ENGINEER: JY APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-15 Peak to Average 16QAM 2506, 2526MHz (20 MHz + 20MHz BW) APPLICANT:…
