AS5CMP-24Cellular Baseband Combiner and Radio

APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 2 SECTION 2.1033(c) Applications for equipment....shall be accompanied by a technical report containing the following information: The following affirmations are required by the identified sections. SECTION 2.1033(c) (1) The full name and mailing address of the manufacturer of the device and the applicant for certification. RESPONSE: Manufacturer and ApplicantLucent Technologies 600 Mountain Avenue Murray Hill, NJ 07974 The manufacturer of this product Lucent Technologies, Inc. The AS5CMP-24 will only be marketed under the Lucent Technologies Inc. trademark. Applicant Personnel The following personnel are associated with this filing as identified below: Primary contact for administrative questions and technical requests should be placed with Ms. Jane Zakutansky who is listed on the 731 Form and below. FCC Contact Coordinator/ Compliance Manager Jane Zakutansky Mandatory Compliance Manager Phone 908- 582-5029 Email: [email protected] FCC Compliance Laboratory Manager Rudy J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] Filing Engineer W. Steve Majkowski Phone 973-386-3812 Email: [email protected] APPLICANT: Lucent Technologies Inc. -19 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 19 Exhibit 2 continued SECTION 2.1033(c) (2) Identification of equipment for which Product Certification is sought. RESPONSE: The Cellular CDMA Baseband Combiner and Radio, henceforth BCR, internally identified as Lucent Technologies Inc. Apparatus Code 44WR1, is to be operated under Part 22 H of the FCC Rules as FCC ID: AS5CMP-24. SECTION 2.1033(c) (3) The Frequency Range of operation. RESPONSE: The BCR, FCC ID: AS5CMP-24, is to be operated in the Cellular Bands over the frequency range of 869 - 894 MHz SECTION 2.1033(c) (6) The range of operating power values or specific operating power levels and the description of any means provided for variation of operating power. RESPONSE: The BCR is operated over the power range of -30 to 0.0 dBm (+2 /-4 dB) when measured at its output connector. The BCR, at its output, is typically operated over the power range of of -30 to 0.0 dBm. The maximum power is limited to 0.0 dBm ( 1.0 milliwatt) at the output connector and is the level for this application. The actual power levels delivered by the BCR is under the software control of the Mobile Switching Center of the local Cellular system. The software control only allows for adjustment in power up to the 0.0 dBm maximum. SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part(s) of the rules RESPONSE: 0.0 dBm ( 0.001 Watts) at the output connector for a single channel +2 /-4 dB.

APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 3 SECTION 2.1033(c) Applications for equipment....shall be accompanied by a technical report containing the following information: SECTION 2.1033(c) (5) Frequency Range. RESPONSE:869 – 894 MHz : Cellular Downlink Band SECTION 2.1033(c) (13) For equipment employing digital modulation techniques, a detailed description of .....”Modulation system,....response characteristics of filters (frequency, phase and amplitude),....description of modulating wavetrain shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE: The BCR, FCC ID: AS5CMP-24, is capable of providing and decoding the following type of emissions amplifying transmissions involving the following types of emissions: 1M23G9W (CDMA) The AS5CMP-24 provides the modulation of the transmitted signal. The modulation system is fully described in Exhibits 4, 5 and 10 of this filing. Filters which are internal to the BCR are detailed in Exhibits 4, 5 and 10. This product is designed to be used with all of Lucent Technologies Corp. CDMA Series II cellular and PCS transmitters The performance of post amplification filters for these transmitters, were consistently detailed in each specific transmitter application.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 1 September 30, 1999 SECTION 2.911 (d) QUALIFICATION OF ENGINEERS Walter Steven Majkowski is a Member of Technical Staff at Lucent Technologies Bell Laboratories. He holds a BSEE from New Jersey Institute of Technology and was trained in the FCC testing procedures by Mr. Thomas T. Aikin. Mr. Majkowski is a NARTE certified EMC engineer, Certificate number EMC-001859-NE, and has at least twenty years of EMC design and testing experience. R.J. Pillmeier Technical Manager Certification Test Group APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 1 continued SECTION 2.911 (d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Walter Steven Majkowski NCE Member Technical Staff Whippany Compliance Laboratory

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division, Application Processing Branch Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 October 15, 1999 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Examiner: In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corp. Cellular Baseband Combiner and Radio, henceforth BCR, FCC ID: AS5CMP-24. This BCR is used in Lucent Technologies AUTOPLEX  Land Station Cellular system using Code Division Multiple Access (CDMA) technology, for use in domestic cellular services. This application for the BCR, under FCC ID: AS5CMP-24, is for operation in the domestic cellular bands A and B. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies, Inc. Equipment Identification AS5CMP-24 Rules Part Number22 (H) Frequency Range869 -894 MHz Cellular Bands Output Power-30 to 0.0 dBm Varied By Software Frequency Tolerance+/- 0.5 ppm Emission Designator1M23G9W The BCR under FCC ID: AS5CMP-24 is a direct replacement for the previous BCR granted under FCC ID: AS5CMP-21. The two designs are electrically and topologically similar but the new BCR uses surface mount components and has revised circuitry with multiple vendors for frequency generation and up/down-conversion components. This application is submitted in order to comply with the 2.1043a requirement for refiling whenever changes are made to the frequency generating and stabilizing circuits. The BCR is designed to be operated and marketed with other Lucent Technologies Corp. Series II CDMA transmit equipment which was either Type Accepted or Product Certified. The BCR is a CDMA cellular base station transceiver and will be used in both Cellular and PCS operations. APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 It shall be used with a FCC Product Certified power amplifier (with spurious filters) when in normal cellular base station operation. PCS applications shall not require modification to this transceiver. As with the previously granted AS5CMP-21, the output of this unit will be applied to a FCC Product Certified CDMA Transmit Unit (CTU, Upbander-Amplifier such as the AS5CMP-23). The CTU shall convert the signal from the cellular frequency produced by the BCR to a PCS frequency. It will then be amplified and filtered for use in the domestic PCS service. The BCR will undergo formal evaluation with every cellular amplifier and Upbander-Amplifier with which it is marketed. The overall performance of the integrated equipment shall continue to be compliant with FCC requirements. FCC Class I permissive change evaluations will be processed for all of the integrated products. As per prior agreement with the FCC, degradations in performance shall be reported. The BCR, at its output, is typically operated over the power range of –30 dBm to 0.0 dBm. The output of this unit is always subjected to additional signal amplification and post amplification filtering for spurious control prior to connection to the (J4) antenna connector. The total power is limited to the latter value and is the level for this application. The actual power level delivered by the BCR is under the software control of the Mobile Switching Center of the local Cellular system. The software control only allows for adjustment in power necessary to provide the rated maximum of the co-configured transmitter The evaluation of the "Spurious emissions at antenna terminals" (Sec. 2.1051) were made with a CTU/AS5CMP-23 and its associated filters. This CTU was also used for the "Field strength of spurious radiated" (Sec. 2.1053) measurements. Wherever possible the test procedures defined in CFR 47 Part's 2(J) and 22(H) were followed. Because of the "state of the art" nature of this equipment some of the characteristics cannot be tested using the requirements in CFR 47, so for those characteristics EIA/TIA publication IS-97 or ANSI J- STD-008 was used to define the tests and evaluation criteria used in this application. The BCR/ AS5CMP-24 is produced by Lucent Technologies Inc. solely for incorporation into Lucent Technologies Inc. products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] cc/FCC Coordinator APPLICANT: Lucent Technologies Inc. -3 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 3 FCC Coordinator Primary contact for adminstrative and technical requests Jane Zakutansky Compliance Manager Phone 908- 582-5029 Email: [email protected] Filing Engineer W. Steve Majkowski Phone 973-386-3812 email: [email protected] APPLICANT: Lucent Technologies Inc. -4 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 4 TABLE OF CONTENTS Exhibit 1Section 2.911 (d)Qualifications and Certifications Exhibit 2Section 2.1033(a) (b)Manufactures, Identification, Production Exhibit 3Secti…

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for Confidentiality for FCC ID: AS5CMP-24 Dear Examiner: On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5CMP-24 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4Section 2.1033(b)(4)Description of Circuit functions 2. Exhibit 5Section 2.1033(c)(10)Active Devices Drive Levels & Circuit Diagrams 3. Exhibit 6Section 2.1033(c)(3) Instruction Book 4. Exhibit 7Section 2.1033(c)(9)Tune-Up procedure 5. Exhibit 8Section 2.1033(c)(10)Circuitry for determining frequency 6. Exhibit 9Section 2.1033(c)(10)Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected]

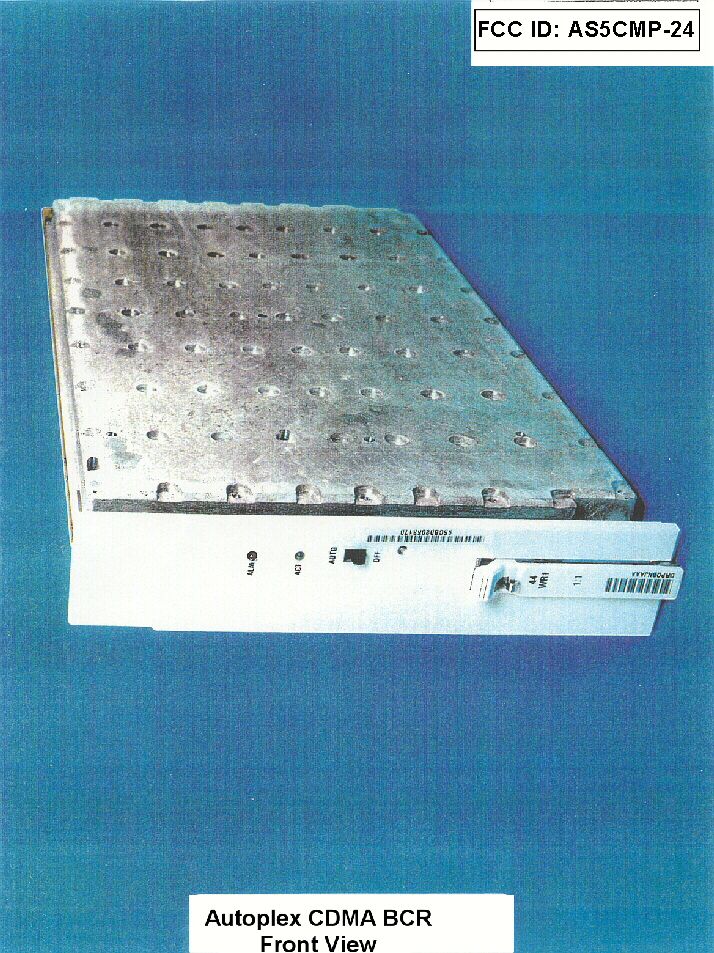

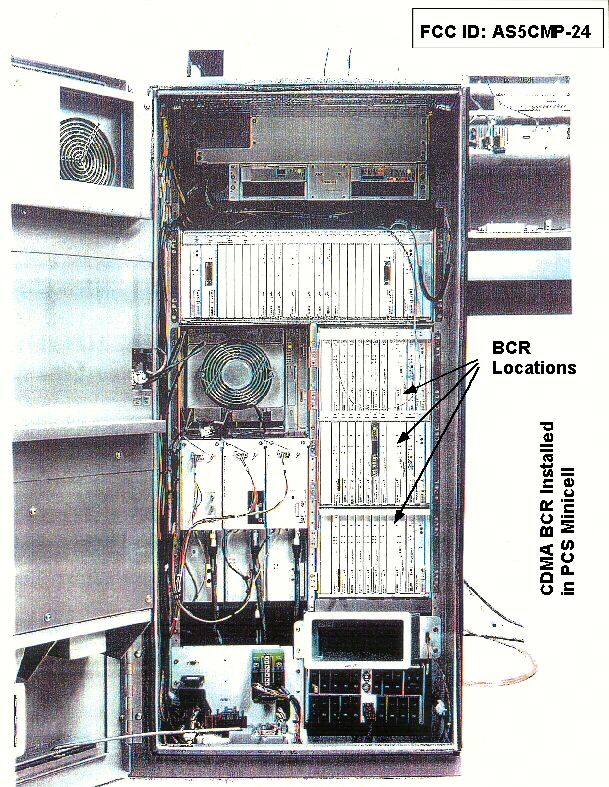

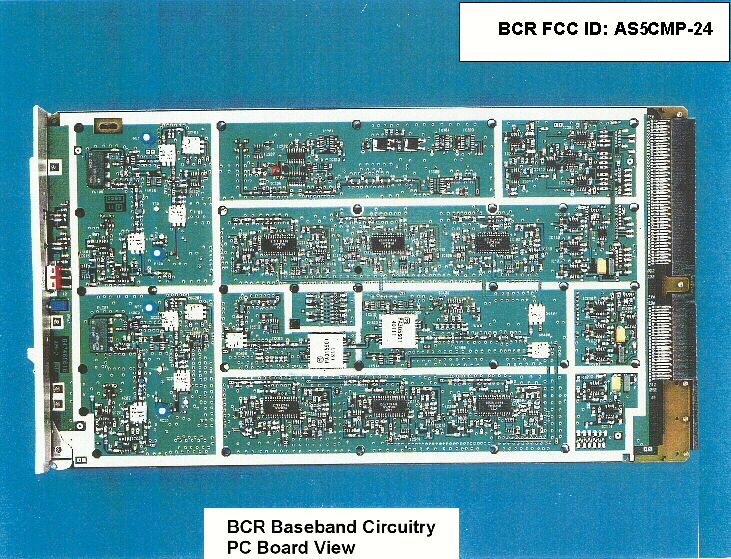

APPLICANT: Lucent Technologies Inc. -55 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 55 Exhibit 19 SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the type acceptance request, additional photographs are necessary only to complete the required showing. RESPONSE: Photographs of the BCR /FCC ID: AS5CMP-24 showing the construction and layout are attached.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 18 SECTION 2.1033(f) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label information for the BCR / FCC ID: AS5CMP-24 is attached. APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 18 FCC ID Label Drawing for AS5CMP-24

Applicant: Lucent Technologies Inc.FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Location of FCC ID: Label Exhibit 18-3 FCC ID Label Location

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 18 revised SECTION 2.1033(f) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label for the BCR / FCC ID: AS5CMP-24 was revised per FCC direction and is attached. APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 18 FCC ID Label Drawing for AS5CMP-24

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 11 SECTION 2.1033(c)(14) The data required by Section 2.1046, 2.1047, 2.1049, 2.1051, 2.1053 and 2.1055 measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The following pages include the data required for the Product Certification authorization of the Cellular BCR / FCC ID: AS5CMP-24, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12: Section 2.1046RF Power Output Exhibit 13:Section 2.1047Modulation Characteristics Exhibit 14:Section 2.1049Occupied Bandwidth Exhibit 15:Section 2.1051Spurious Emissions at Antenna Terminals Exhibit 16:Section 2.1053Field Strength of Spurious Radiation Exhibit 17Section 2.1055Measurement of Frequency Stability

APPLICANT: Lucent Technologies Inc. Exhibit 12 -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 12 SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the BCR / AS5CMP-24 is on the following page. Measurements were made respectively at each frequency where Occupied Bandwidth measurements were performed. The use of the BCR requires that the J4 power level be calibrated for each specific channel of use. The test configuration, Figure 12a, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. The BCR has a maximum power output at its terminals of 0.001 Watts (0.0 dBm) +2 / -4 dB for a single Carrier. It also has a minimum power output at its output terminals of –30 dBm ( +2 / -4 dB, across the Cellular down-link Band (869.00-894.00 MHz). The output signal parameters for these tests is defined in Table 12.1. The power was reset to 0.001 Watts at each measurement frequency to verify the spectral performance at that power level at each specific frequency of interest. The attenuation range was also verified. The specific Frequencies, channels and set power level was documented on each "Occupied Bandwidth" data sheet. The applied signal met the recommended characteristics per IS-97 (and when upconverted to PCS frequencies per ANSI J-STD-008 section 3.1.4) as defined below. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot 1 0.1490-8.3Walsh 0 Sync 1 0.015/p-18.3 Walsh 32, always 1/8 rate Paging 1 0.054 -12.7 Walsh 1, full rate only Traffic 6 0.13 each -8.8 each Variable Walsh Assignments, full rate only TABLE 12.1 Base Station Test Model, Nominal RESULTS: The BCR / AS5CMP-24 was configured in the test setup shown in Figure 12A. For each of the Cellular channels tested the BCR/ AS5CMP-24 delivered a minimum of 0.001 Watts +2/-0 dB when measured at its output connection. This data is recorded on the Occupied Bandwidth Data Sheets for all of the Cellular Channels tested and these include the “Left edge”, and “Right Edge” channels for each frequency Band. APPLICANT: Lucent Technologies Inc. Exhibit 12 -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 12 Equipment used in Figure 12 For Measurement of RF Power EquipmentDescription PCS Mini Cell:Fully Populated PCS Mini Cell RFTGu :Reference Frequency Timing Generator RFTGu or RFTGm BCR:CDMA Baseband Radio (FCC ID: AS5CMP-24) Transmit Filter:Cellular Transmit Filter appropriate for the investigated Band Directional Coupler:HP 778D and 772D Dual Directional Coupler Power Meter:HP E4419A Power Meter with EPC-E18A Power Head Test Cables:W.L. Gore; Low loss test cables custom mfg. for Lucent FCC Laboratory Plotter:HP Model 7470A Plotter Printer:HP Model 4500DN Printer Attenuator, VariableHP 8494B and 8495B DC-18 GHz digital attenuators Attenuator, FixedWeinschel Corp DC-18 GHz, various values Band Pass Filters:Trialithic, 0.8-20 GHz, Custom manufactured for Lucent FCC Laboratory Spectrum Analyzer: Rohde & Schwarz ESMI EMI Test Receiver Computer Controller:EG Technology, Custom Mfg for FCC Laboratory Intel Pentium II& III, 450 and 550 MHz controllers with TILE  software APPLICANT: Lucent Technologies Inc. Exhibit 12 -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 12 Figure 12A RF Power Test Configuration Figure 12A / 14A/ Test Configuration For Occupied Bandwidth and Power Rohde & Schwartz ESMI EMI Test Receiver/ Spectrum Analyzer Peak Input Level = -10 dBm Typically -30 dB from J4 Connection Power Sensor HP-8481A Calibrated to Input Connection 45.7 dBm Power Meter Series II Cell Occ BW Figure WSM 10/17/99 Output Port J4 Lucent Series II Compact 850 or PCS CDMA Minicell BCR-AS5CMP-24 Input Cellular Amp or PCS Upconverter Amp (CTU) Transmit Filter RFTGu GPS Antenna Outside Test Chamber ACU CCC ECU Signal Path for J4 Antenna Terminal Measurement at Cellular or PCS Frequencies Directional Coupler Incident Reflected Signal Path for BCR Output Measurement

APPLICANT: Lucent Technologies Inc. -32 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 32 Exhibit 13 SECTION 2.1047 MEASUREMENT OF MODULATION CHARACTERISTICS RESULTS: The BCR / AS5CMP-24 was configured in the test setup shown in Figure 13A. The BCR was configured with its pilot channel and the modulation quality measured with a Hewlett Packard -E4406A VSA Series Transmitter Tester. Measurements were performed at Cellular Channels 1019, 283 and 777. For each of the Cellular channels tested, the BCR/ AS5CMP-24 modulation quality factor, rho, was measured to be > 0.96. APPLICANT: Lucent Technologies Inc. -32 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 32 Exhibit 13 Figure 13A Output Port J4 +0.8 dBm Lucent Series II Compact 850 or PCS CDMA Minicell BCR-AS5CMP-24 Input Cellular Amp or PCS Upconverter Amp (CTU) Transmit Filter RFTGu Variable Voltage AC Power Source GPS Antenna 15.00000000000 MHz HP 58503 GPS Frequency Reference Receiver Thermal Test Chamber HP 438A Power Meter GPS 10 MHz Reference 15 MHz Reference Frequency HP Frequency Counter 53131A Advantest Modulation Analyzer R3465, or HP E4406A VSA Figure 13A. Test Configuration For Frequency Stability, Modulation Quality and Power Output BCR Frequency Stability Test Figure 17A WSM 9/20/99 ACU CCC ECU

APPLICANT: Lucent Technologies Inc. Exhibit 14 -1 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 14 SECTION 2.1049MEASUREMENT OF OCCUPIED BANDWIDTH The occupied bandwidth of the BCR/ FCC ID: AS5CMP-24 was measured using a Rohde & Schwarz ESMI EMI Test Receiver and the results recorded on a HP Model 7470A Plotter. The RF power level was measured and adjusted via the test setup in Figure 14A. The calibrated RF output from the transmitter was reduced (to an amplitude usable by the spectrum analyzer) by using a calibrated attenuator. This attenuation was offset on the display. The power of the signal was referenced to the top of the Limit mask by setting the resolution bandwidth to be > 1.23 MHz (typically 1.3 MHz) and verifying that the signal peak was at the mask limit. The resolution bandwidth was then reduced to 30 kHz and the signal verified to be at the -16.12 dBc level which corresponds to the corrected RF power level for a 30 kHz resolution bandwidth. This power calibration method was performed for each carrier at the specific channel of interest. RF Power was simultaneously measured using a HP- RF Power Meter operated with a sufficient offset to ensure lineararity for CDMA signals. The top of the mask therefore accurately corresponds to the specified power of 0.001 watts / 0.0 dBm for the CBR output. Results: The attached plots document the BCR’s compliance with FCC regulations. The frequencies and channels used are tabulated on the bottom of each plot. BCR output signals are plotted at each frequency/ channel. Plots are provided for Left Edge, Center and Right Edge of each Cellular band evaluated. These frequencies were chosen to show the occupied bandwidth in the channels in each of the Cellular Bands in which this radio can be operated, in compliance with Section 22.917 of the Commission code PN-3383 Section4.5.1.3.1. There are no SAT or Wide band data signals associated with CDMA. The signal used to show the occupied bandwidth is defined in table 14.1. This is the signal recommended in IS-97. The power output level was adjusted to provide the documented power levels at the bottom of each chart. The applied signal met the recommended characteristics per PN-3383 Section4.5.1.3.1 as defined below. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot 1 0.1490-8.3Walsh 0 Sync 1 0.015/p-18.3 Walsh 32, always 1/8 rate Paging 1 0.054 -12.7 Walsh 1, full rate only Traffic 6 0.13 each -8.8 each Variable Walsh Assignments, full rate only TABLE 14.1 Base Station Test Model, Nominal APPLICANT: Lucent Technologies Inc. Exhibit 14 -2 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 14 continued Derivation of Requirements The minimum standard presented in PN-3383 Section4.5.1.3.1 was followed. “Suppression Inside the Licensee’s Frequency Block(s)” For all frequencies within the base station transmit band of 869 – 894 MHz that are within the specific block(s) allocated to the operator's system, the total conducted spurious emissions in any 30kHz band greater than 750 kHz for the CDMA channel center frequency shall not exceed a level of -45 dBc.... Measurement at a Resolution Bandwidth of 30 kHz is based on our experience with Section 22.917 of The Code and lacking other guidance. The spectrum analysis output plot Figure 14B shows the peak of the CDMA channel signal 16.12 dB below the Mask reference / “zero dBc line” of the spectrum analyzer for the following reason: For the CDMA system there is no carrier without modulation. The following relationship was used to provide the correct level for an unmodulated carrier vs. the modulated signal. 10*log (Resolution Bandwidth/ Transmit Bandwidth) = Signal Offset (1) For the peak of the CDMA signal measured with a resolution bandwidth of 30 kHz the signal offset is: Signal Offset = 10*log (30 kHz /1.23 MHz ) = -16.12 dB Measurement All of the tolerance lines for the output are referenced to the top of the Occupied Bandwidth mask, which is defined as 0.0 dBm/ zero dBc. For all measurements of the BCR's Occupied Bandwidth, the output power was measured / adjusted individually to the 0.001 W/ 0.0 dBm level for each carrier and this is the 0.0 dBm value at the 0 dBc reference line. In order to depict the tolerance lines that are required by Sec 22.917 of the FCC Rules IS-97, all measurements were made with a resolution bandwidth of 30 kHz and the limits were adjusted using equation (1). An average detector was employed using minimum of 25 sweeps per trace. Mask Description The Mask limits are identical for the left and right side of the Cellular Band and are as follows. Figure 14-B shows the Mask limit for Cellular channels 1019 which is the left most CDMA Channel operated at the “Left” Band edge for A Band. The Spectrum Analyzer reference level is set above the Signal Reference to allow for the necessary dynamic range of a three CDMA carrier presentation. The top of a typical 0.0 dBm single carrier CDMA signal viewed at a resolution bandwidth of 30 kHz is shown at the -16.12 dBm/ -16.12 dBc line. This line is based on equation 1, and the ratio of the nominal 1.23 MHz bandwidth and the 30 kHz resolution bandwidth of the spectrum analyzer. The vertical line from a to b (i.e. a-b) is at 750 kHz from the center of channel 1019 (i.e. Fc), per IS-97. The horizontal line b-c is 45 dB below the 0.0 dBm/ 0 dBc reference level. For measurements 1 MHz or greater outside the Cellular band the limit is –13.0 dBm as measured with a 1 MHz resolution bandwidth. The adjusted level would be (–13 dBm –16.12 dB) = -26.12 dBm/dBc since this level is higher than the –45 dBm it is not shown. The same logic was used in determining the other block and band edge tolerances. APPLICANT: Lucent Technologies Inc. Exhibit 14 -3 - FCC ID: AS5CMP-24 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 3 Exhibit 14 …

Text truncated - open the document above for the full version.

Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 14a FCC Occupied Bandwidth Data Plots of Lucent Technologies Inc. Cellular CDMA Baseband Combiner and Radio, BCR, for FCC Product Certification Filing Under FCC ID: AS5CMP-24 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A” Band Channel 1019 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 201 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 283 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 384 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 548 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 630 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 691 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: New Lineup BCR w/ Panasonic Agile Synthesizer, Output Chart: Cellular A Band Channel 777 Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions

Applicant: Lucent Technologies FCC ID: AS5CMP-24 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 14b FCC Occupied Bandwidth Data Plots of Lucent Technologies Inc. Cellular CDMA Baseband Combiner and Radio, BCR, for FCC Product Certification Filing Under FCC ID: AS5CMP-24 Applicant: …
