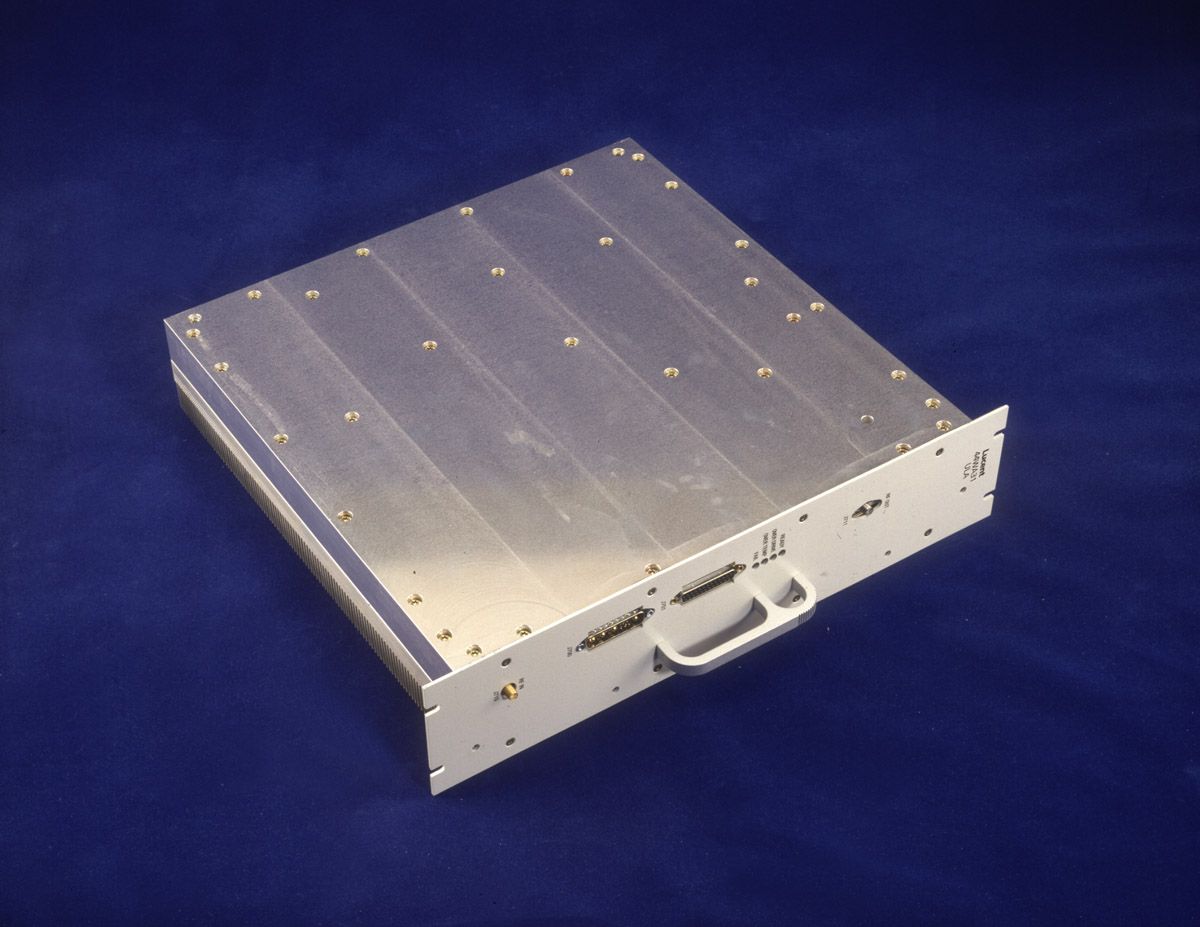

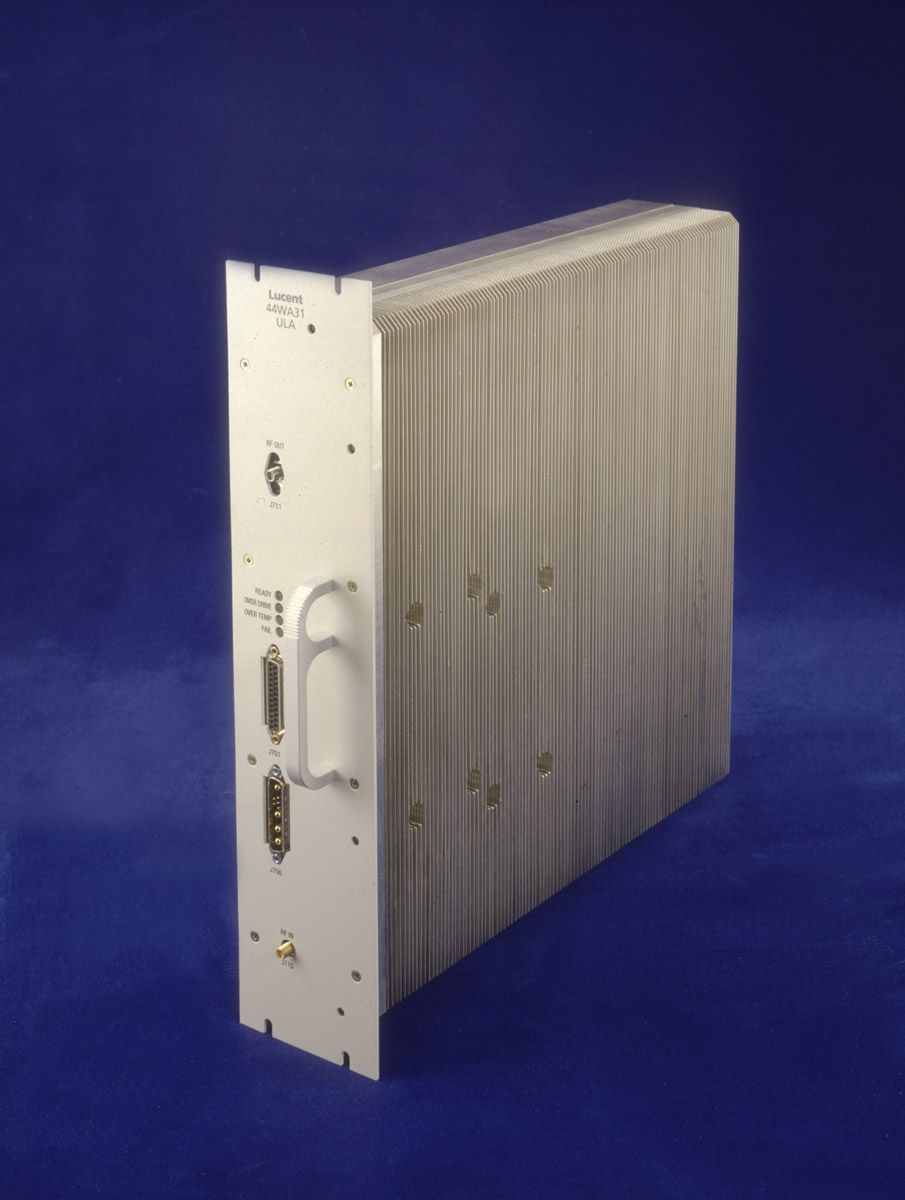

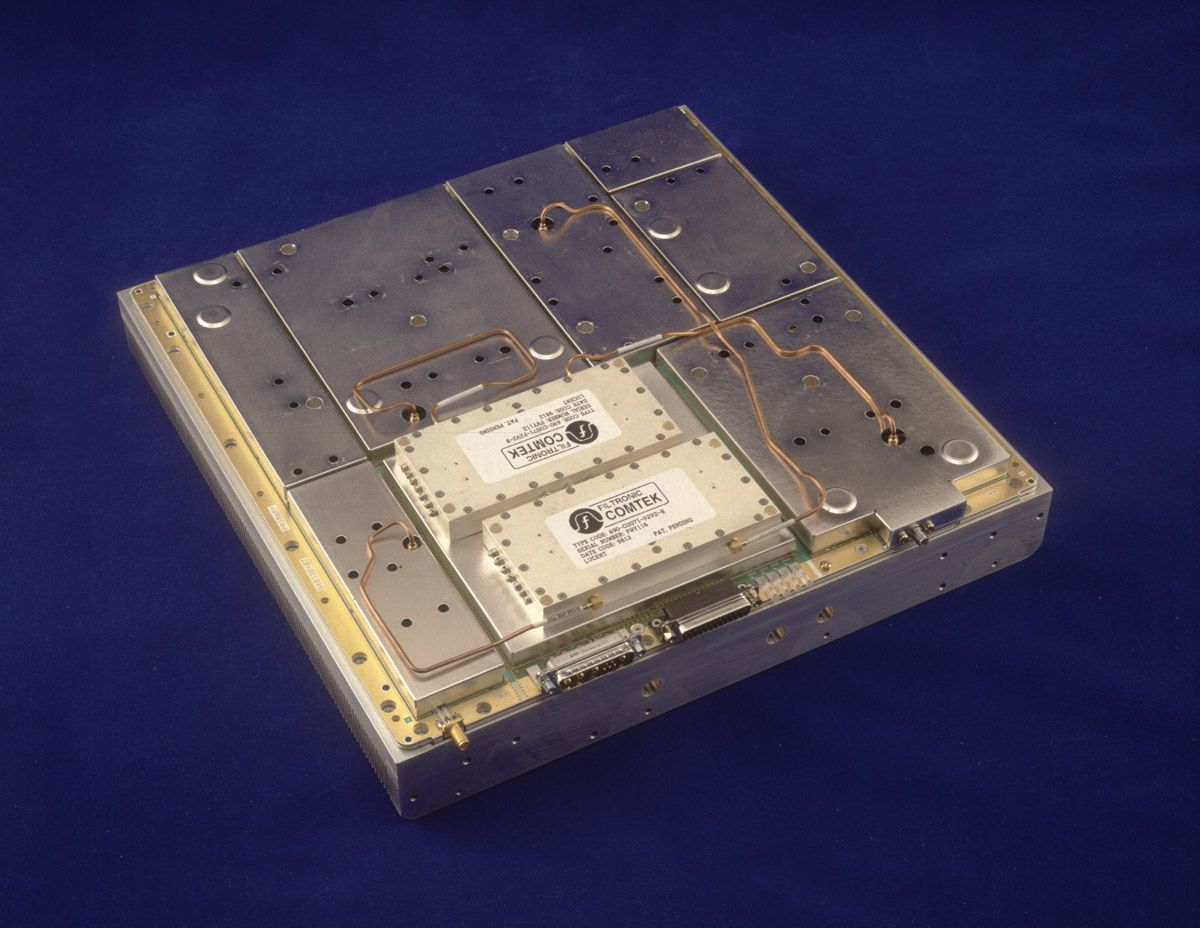

AS5CMP-35Cellular Ultra Linear Amplifier Module/ Multi Carrier

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 1 September 30, 1999 SECTION 2.911 (d) QUALIFICATION OF ENGINEERS Walter Steven Majkowski is a Member of Technical Staff at Lucent Technologies Bell Laboratories. He holds a BSEE from New Jersey Institute of Technology and was trained in the FCC testing procedures by Mr. Thomas T. Aikin. Mr. Majkowski is a NARTE certified EMC engineer, Certificate number EMC-001859-NE, and has at least twenty years of EMC design and testing experience. R.J. Pillmeier Member Technical Staff Cell Test and Field Support APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 1 continued SECTION 2.911 (d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Walter Steven Majkowski NCE Member Technical Staff Whippany Compliance Laboratory

APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 2 SECTION 2.1033(c) Applications for equipment....shall be accompanied by a technical report containing the following information: The following affirmations are required by the identified sections. SECTION 2.1033(c) (1) The full name and mailing address of the manufacturer of the device and the applicant for certification. RESPONSE: Manufacturer and ApplicantLucent Technologies 600 Mountain Avenue Murray Hill, NJ 07974 The manufacturer of this product Lucent Technologies, Inc. The AS5CMP-35 will only be marketed under the Lucent Technologies Inc. trademark. Applicant Personnel The following personnel are associated with this filing as identified below: Primary contact for administrative questions and technical requests should be placed with Ms. Jane Zakutansky who is listed on the 731 Form and below. FCC Contact Coordinator/ Compliance Manager Jane Zakutansky Mandatory Compliance Manager Phone 908- 582-5029 Email: [email protected] FCC Compliance Laboratory Manager Rudy J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] Filing Engineer W. Steve Majkowski Phone 973-386-3812 Email: [email protected] APPLICANT: Lucent Technologies Inc. -19 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 19 Exhibit 2 continued SECTION 2.1033(c) (2) Identification of equipment for which Product Certification is sought. RESPONSE: The Cellular CDMA Ultra Linear Amplifier Module/ Multi Carrier Amplifier (ULAM / MCA), internally identified as Lucent Technologies Inc. Apparatus Code 44WA31, is to be operated under Part 22 H of the FCC Rules as FCC ID: AS5CMP-35. SECTION 2.1033(c) (3) The Frequency Range of operation. RESPONSE: The Cellular ULAM, FCC ID: AS5CMP-35, is to be operated in the Cellular Bands over the frequency range of 869 - 894 MHz SECTION 2.1033(c) (6) The range of operating power values or specific operating power levels and the description of any means provided for variation of operating power. RESPONSE: The ULAM is operated over the power range of 0.20 to 30.0 watts/carrier (+2 /-4 dB) for up to 3 carriers (90 Watts total +2 /-4 dB) when measured at the (J4) antenna connector. The ULAM, at its output, is typically operated over the power range of 0.20 to 60.0 watts/carrier. Losses internal to the Modular Cell cabinet, software control, and the passive components of the Multi Carrier Amplifier configuration will limit the output power to 30.0 watts/ carrier for one to three carriers when measured at the (J4) antenna connector. The total power is limited to 30.0 watts/ carrier (90 Watts total) at the (J4) antenna connector and is the level for this application. The actual power levels delivered by the ULAM/ MCA are under the software control of the Mobile Switching Center of the local Cellular system. The software control only allows for adjustment in power up to the 30.0 Watt maximum. SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part(s) of the rules RESPONSE: 30 W per channel for up to three channels +2 /-4 dB ( 90 Watts total +2 /-4 dB). The ULAM is configurable as a single amplifier or as a dual or three amplifier “Multi Carrier Amplifier” (MCA) with external passive signal combiners and splitters. In these configurations, the ULAM/ MCA, provides up to 30 watts per carrier in each of the MCA configurations (single, dual or three amplifier) with a total J4 antenna port RF power of 30, 60 or 90 watts for each of the respective configurations. Under the dynamic conditions of CDMA service a maximum of 30 watts per carrier/ 90 Watts total will be available at the antenna port (J4) of the three ULAM / MCA and this is the value to be used for this filing.

APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 3 SECTION 2.1033(c) Applications for equipment....shall be accompanied by a technical report containing the following information: SECTION 2.1033(c) (5) Frequency Range. RESPONSE:869 – 894 MHz : Cellular Downlink Band SECTION 2.1033(c) (13) For equipment employing digital modulation techniques, a detailed description of .....”Modulation system,....response characteristics of filters (frequency, phase and amplitude),....description of modulating wavetrain shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE: The AS5CMP-35 does not provide any modulation of the transmitted signal. Only amplification and post amplification filtering for spurious control is performed. The performance of the post amplification filters are described in Exhibit 9 of this filing. The ULAM, FCC ID: AS5CMP-35, is capable of amplifying transmissions involving the following types of emissions: 1M23G9W (CDMA) The Modulating Signal is provided by the CBR-850, FCC ID: AS5CMP-28 Granted 20 April 1999. The description of the modulating system was detailed and fully identified the FCC Product Certification Filing for FCC ID: AS5CMP-28.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 26 Exhibit 10 SECTION 2.1033(c) (13) For equipment employing digital modulation techniques, a detailed description of the modulation system to be use, including response characteristics of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE: These functions are controlled by the CDMA Baseband Radio (CBR-850), FCC ID: AS5CMP-28. The CBR was “Granted” 19 April 1999. The CBR-850 / AS5CMP-28 supplies the signals to be amplified. This information was included with the original filing documents for the CBR-850 / AS5CMP-28. This information is unchanged from that original filing.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for Confidentiality for FCC ID: AS5CMP-35 Dear Examiner: On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5CMP-35 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4Section 2.1033(b)(4)Description of Circuit functions 2. Exhibit 5Section 2.1033(c)(10)Active Devices Drive Levels & Circuit Diagrams 3. Exhibit 6Section 2.1033(c)(3) Instruction Book 4. Exhibit 7Section 2.1033(c)(9)Tune-Up procedure 5. Exhibit 8Section 2.1033(c)(10)Circuitry for determining frequency 6. Exhibit 9Section 2.1033(c)(10)Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. The information in the Exhibit 6 instruction book, as all information in Exhibits 4 through 9 of the AS5CMP-35 application, might be used by competitors to obtain insight into operational constraints and/or system architecture. Within Lucent Technologies, these documents are controlled access information and Lucent Technologies executes non-disclosure agreements with its customers in order to protect this information. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected]

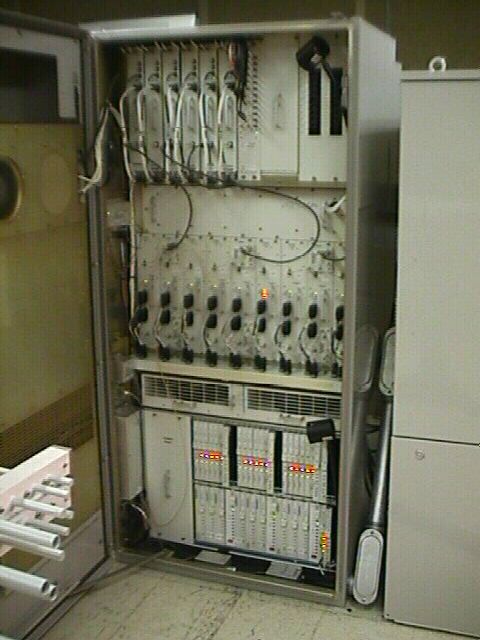

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division, Application Processing Branch Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 September 30, 1999 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Examiner: In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corp. Cellular CDMA Ultra Linear Amplifier / Multi Carrier Amplifier, henceforth ULAM, FCC ID: AS5CMP-35. This ULAM is used in Lucent Technologies Corp FLEXENT  Land Station Cellular System using Code Division Multiple Access (CDMA) technology, for use in Domestic Cellular Services. This application for the ULAM, under FCC ID: AS5CMP-35, is for operation in the Standard Cellular Bands A and B. The ULAM is a nominally 40 Watt Class AB CW amplifier designed to provide 20 watts of long term average at the antenna connection port. During actual operation under the dynamic conditions of CDMA service this amplifier will provide 30 watts per carrier at the antenna connection port (J4) and this is the value used for this filing. The ULAM is configurable in a single, dual or three amplifier “Multi Carrier Amplifier” (MCA) with external passive signal combiners and splitters. In these configurations, the ULAM/ MCA, provides up to 30 watts per carrier in each of the MCA configurations (single, dual or three amplifier) with a total J4 antenna port RF power of 30, 60 or 90 watts for each of the respective configurations. Under the dynamic conditions of CDMA service a maximum of 30 watts per carrier/ 90 Watts total will be available at the antenna port (J4) of the three ULAM / MCA and this is the value to be used for this filing. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 ManufacturerLucent Technologies, Inc. Equipment Identification AS5CMP-35 Rules Part Number22 (H) Frequency Range869 -894 MHz Cellular Bands Output Power0.2 to 30.0 Watts/carrier–up to 90 watts total (3 carrier): Varied By Software Frequency Tolerance+/- 0.5 ppm Emission Designator1M23G9W The unit is called the Cellular Ultra Linear Amplifier Module/ Multi Carrier Amplifier. It is designed to the limitations specified in Part 22 subpart H. Whenever possible, the test procedures defined in CFR 47 Parts 2 and 22(H) were followed. Because of the “state of the art” nature of this equipment, some of the characteristics cannot be tested using the requirements in CFR 47. For those characteristics ANSI J-STD-008 were used to define the tests and evaluation criteria used in this application. The ULAM, at its output, is typically operated over the power range of 0.20 to 60.0 watts/carrier. Losses internal to the Modular Cell cabinet, software control, and the passive components of the Multi Carrier Amplifier configuration will limit the output power to 30.0 watts/ carrier when measured at the (J4) antenna connector. The total power is limited to the latter value and is the level for this application. The actual power levels delivered by the ULAM/ MCA are under the software control of the Mobile Switching Center of the local Cellular system. The software control only allows for adjustment in power up to the 30.0 Watt maximum. This filing to operate the ULAM/ AS5CMP-35 is based upon signals supplied to the ULAM by a Lucent Technologies Inc. CDMA Baseband Radio 850 (CBR-850 henceforth CBR), FCC ID: AS5CMP-28, granted 20 April 1999 for the Cellular Band. This application for AS5CMP-35, is for the expanded Cellular Spectrum. Since this application encompasses the single, dual and three carrier configurations it presents the required test data for each of those ULAM/ MCA operational configurations. The ULAM/ AS5CMP-35 is produced by Lucent Technologies Inc. solely for incorporation into Lucent Technologies Inc. products. The CBR/ AS5CMP-28 is a Lucent Technologies Inc. designed and manufactured products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. APPLICANT: Lucent Technologies Inc. -3 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 3 Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] Att FCC Form 731 w/ Attachments Technical Contact W. Steve Majkowski Phone 973-386-3812 email: [email protected] Adminstrative Contact/ FCC Coordinator Jane Zakutansky Compliance Manager Phone 908- 582-5029 Email: [email protected] APPLICANT: Lucent Technologies Inc. -4 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 4 TABLE OF CONTENTS Exhibit 1Section 2.911 (d)Qualifications and Certifications Exhibit 2Section 2.1033(a) (b)Manufactures, Identification, Production Exhibit 3Section 2.1033(b) (1-7)Emission, Freq. Range, Power Level Exhibit 4Section 2.1033(b) (4)Description of Circuit functions Exhibit 5Section 2.1033(c) (8,10) Active Devices Drive Levels & Circuit Diagrams Exhibit 6Section 2.1033(c) (3) Instruction Book Exhibit 7Section …

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for Confidentiality for FCC ID: AS5CMP-35 Dear Examiner: On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5CMP-35 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4Section 2.1033(b)(4)Description of Circuit functions 2. Exhibit 5Section 2.1033(c)(10)Active Devices Drive Levels & Circuit Diagrams 3. Exhibit 6Section 2.1033(c)(3) Instruction Book 4. Exhibit 7Section 2.1033(c)(9)Tune-Up procedure 5. Exhibit 8Section 2.1033(c)(10)Circuitry for determining frequency 6. Exhibit 9Section 2.1033(c)(10)Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected]

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for Confidentiality for FCC ID: AS5CMP-35 Dear Examiner: On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5CMP-35 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4Section 2.1033(b)(4)Description of Circuit functions 2. Exhibit 5Section 2.1033(c)(10)Active Devices Drive Levels & Circuit Diagrams 3. Exhibit 6Section 2.1033(c)(3) Instruction Book 4. Exhibit 7Section 2.1033(c)(9)Tune-Up procedure 5. Exhibit 8Section 2.1033(c)(10)Circuitry for determining frequency 6. Exhibit 9Section 2.1033(c)(10)Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. The information in the Exhibit 6 instruction book, as all information in Exhibits 4 through 9 of the AS5CMP-35 application, might be used by competitors to obtain insight into operational constraints and/or system architecture. Within Lucent Technologies, these documents are controlled access information and Lucent Technologies executes non-disclosure agreements with its customers in order to protect this information. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected]

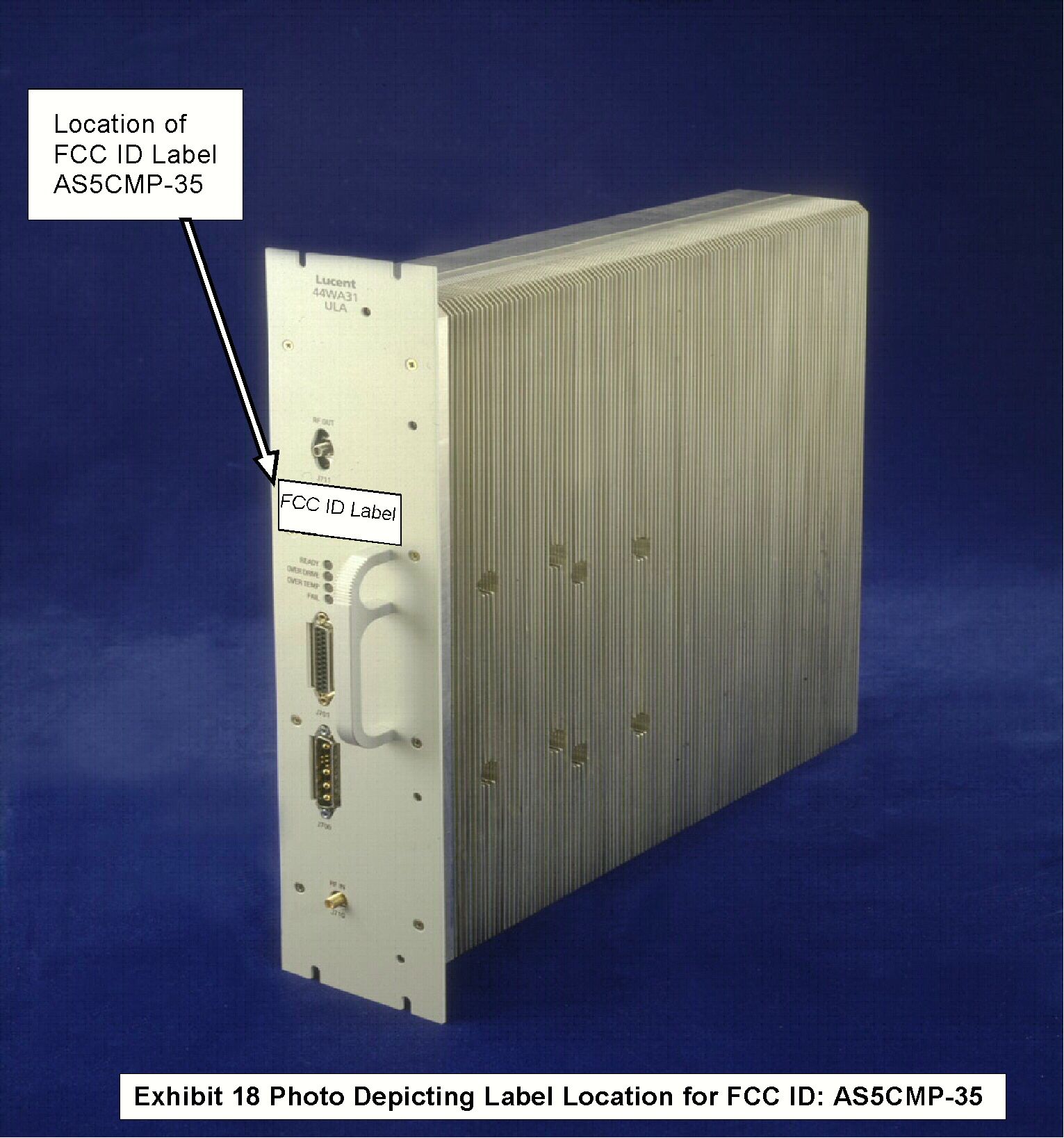

Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18 SECTION 2.1033(c)(11) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label information for the ULAM/MCA / FCC ID: AS5CMP-35 is attached. A JPEG photograph showing the location of the label is enclosed with the filing package. Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18 FCC ID Label

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 11 SECTION 2.1033(c)(14) The data required by Section 2.1046, 2.1047, 2.1049, 2.1051, 2.1053 and 2.1055 measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The following pages include the data required for the Product Certification authorization of the Cellular ULAM / FCC ID: AS5CMP-35, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12: Section 2.1046RF Power Output Exhibit 13:Section 2.1047Modulation Characteristics Exhibit 14:Section 2.1049Occupied Bandwidth Exhibit 15:Section 2.1051Spurious Emissions at Antenna Terminals Exhibit 16:Section 2.1053Field Strength of Spurious Radiation Exhibit 17Section 2.1055Measurement of Frequency Stability

APPLICANT: Lucent Technologies Inc. Exhibit 12 -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 12 SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the ULAM / AS5CMP-35 Ultra Linear Amplifier Module is on the following page. Measurements were made respectively at each frequency where Occupied Bandwidth measurements were performed. The use of the ULAM requires that the J4 power level be calibrated for each specific channel of use. The test configuration, Figure 12a, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the “Left” and “Right” Edge of Band/ Sub-Block and at a center channel for each Sub-Block. The ULAM system has a maximum power output at the antenna terminals of 30.0 Watts (44.8 dBm) +2 / -4 dB per Carrier or 90 Watts total for a three carrier MCA. It also has a minimum power output at the antenna terminals of 0.2 Watts ( +2 / -4 dB, across the Cellular down-link Band (869.00-894.00 MHz). The signal applied to the ULAM is defined in Table 12.1. The power was reset to 30.0 Watts/carrier at each measurement frequency to verify the spectral performance at that power level at each specific frequency of interest. The attenuation range was also verified. The specific Frequencies, channels and set power level was documented on each "Occupied Bandwidth" data sheet. These were performed for single dual and three carrier configurations. The applied signal met the recommended characteristics per IS-97 and ANSI J-STD-008 section 3.1.4 as defined below. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot 1 0.1490-8.3Walsh 0 Sync 1 0.015/p-18.3 Walsh 32, always 1/8 rate Paging 1 0.054 -12.7 Walsh 1, full rate only Traffic 6 0.13 each -8.8 each Variable Walsh Assignments, full rate only TABLE 12.1 Base Station Test Model, Nominal APPLICANT: Lucent Technologies Inc. Exhibit 12 -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 12 RF Power Test Configuration Figure 12A/14A/15A Test Configuration For RF Power, Occupied Bandwidth and Conducted Spurious Peak Input Level = -10 dBm Rohde & Schwartz ESMI EMI Test Receiver/ Spectrum Analyzer Typically -30 dB from J4 Connection Power Sensor HP-8481A Calibrated to J4 Connection 49.5 dBm Power Meter HP-772D Directional Coupler Incident Reflected Cellular Modular Cell ULAM Test Figure WSM 9/28/99 Transmit Filter Reference Frequency Timing Unit (TFU AND OSC) CBR AS5CMP-28 ULAM AS5CMP-35 Output Input 3:1:3 Combiner/ Splitter Output Output CBR AS5CMP-28 CBR AS5CMP-28 ULAM AS5CMP-35 ULAM AS5CMP-35 3:1 Combiner Output Port J4 Lucent FLEXENT  Cellular CDMA MODULAR CELL 1 SECTOR SHOWN Carrier Reject High Pass Filter For Conducted Spurious Measurements above 1.3 GHz GPIB Test Controller APPLICANT: Lucent Technologies Inc. Exhibit 12 -1 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Exhibit 12 Equipment used in Figure 12 For Measurement of RF Power Cellular Modular Cell:Fully Populated Cellular Modular Cell OM 1&2 :Oscillator Module, 15 MHz Rubidium and Crystal types CBR-850: 1-9:CDMA Baseband Radio (FCC ID: AS5CMP-28) ULAM: 1-9:Ultra Linear Amplifier Module (FCC ID: AS5CMP-35) Transmit Filter:PCS Block Transmit Filter appropriate for the investigated Block Directional Coupler:HP 778D and 772D Dual Directional Coupler Power Meter:HP E4419A Power Meter with EPC-E18A Power Head Test Cables:W.L. Gore; Low loss test cables custom mfg. for Lucent FCC Laboratory Plotter:HP Model 7470A Plotter Printer:HP Model 4500DN Printer Attenuators, VariableHP 8494B and 8495B DC-18 GHz digital attenuators Attenuators, FixedWeinschel Corp DC-18 GHz, various values Spectrum Analyzer: Rohde & Schwarz ESMI EMI Test Receiver Band Pass Filters:Trialithic, 0.800-10 GHz, Custom manufactured for Lucent FCC Laboratory Computer Controller:EG Technology, Custom Mfg for FCC Laboratory Intel Pentium II& III, 450 and 550 MHz controllers with TILE  software APPLICANT: Lucent Technologies Inc. Exhibit 12 -2 - FCC ID: AS5CMP-35 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Exhibit 12 RESULTS: The ULAM/ AS5CMP-35 was configured in the test setup shown in Figure 12A. For each of the PCS channels tested the ULAM/ AS5CMP-35 delivered a minimum of 30.0 Watts per carrier +2/-0 dB when measured at the J4 output connection. This data is recorded on the Occupied Bandwidth Data Sheets for “Left edge”, and “Right Edge” channels for each frequency Band/ Sub-Block. For Cellular Band A , the Sub-Block filter A2 is for the “Left Edge of Block” and is designed for as many as three carriers. Likewise the Sub-Block filter A1 is for the “Right Edge of Band” and will accommodate three carrier. Band B is partitioned similarly but B1 is the Left edge. When operated in the multi-carrier MCA configuration the A1/ A2 or B1/B2 Occupied Bandwidth plots present three center channel performance charts. Data is presented for Cellular Bands “A”, and “B” . Note: The ULAM/ AS5CMP-35 can be operated as a single carrier or as a Multiple Carrier CDMA amplifier. The maximum power level are verified at each cell site during setup of the Cellular CDMA Modular Cell and installation of the CBR, FCC ID: AS5CMP-28.

Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth Data Scans of Lucent Technologies Inc. Cellular Ultra Linear Amplifier Module /Multi Carrier Amplifier (ULAM/ MCA) Bands A and B Single, Dual and Three Carrier MCA Configurations Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A1, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A1, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A1, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A1, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A1, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A1, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A2, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A2, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A2, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A2, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular A Band, Sub-Block A2, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular A Band, Sub-Block A2, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular B Band, Sub-Block B1, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular B Band, Sub-Block B1, Single Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular B Band, Sub-Block B1, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular B Band, Sub-Block B1, Two Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Input Chart – Cellular B Band, Sub-Block B1, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions FCC Occupied Bandwidth: Output Chart – Cellular B Band, Sub-Block B1, Three Carrier Configuration ULAM/MCA Applicant: Lucent Technologies FCC ID: AS5CMP-35 Lucent Technologies Inc - Proprietary Use pursuant to Company Instruct…
