AS5CMP-41Predistortion CDMA Baseband Radio (1900)

APPLICANT: Lucent Tec hnologies Inc. FCC ID: AS5CMP-41 QUALIFICATIONS AND CERTIFICATIONS SECTION 2.911(d) APPLICANT: Lucent Tec hnologies Inc. FCC ID: AS5CMP-41 February 5, 2001 SECTION 2.911(d) QUALIFICATION OF ENGINEER (who performed or supervised the Tests). Dheena D. Moongilan is a Distinguished Member of Technical Staff, Lucent Technologies, Bell Laboratories. He received his BSEE, MSEE from Madras University, India and another MSEE from Illinois Institute of Technology, Chicago, Illinois. He was trained in FCC test procedures by his former Supervisor, Donald N. Heirman. He has 21 years of EMC testing experience. He is a NARTE certified EMC Engineer, certificate #EMC-00/1022-NE. SECTION 2.911 (d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Dheena D. Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory Lucent Technologies Bell Laboratories Holmdel, NJ 07733-3030 APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions MANUFACTURERS ─ IDENTIFIER SECTION 2.1033 (c) (1,2) APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1033 (c) 1 The full name and mailing address of the manufacturer of the device and applicant for certification: RESPONSE : APPLICANT : Lucent Technologies Inc. 600 Mountain Avenue Murray Hill, NJ 07974 Attention: Jane Zakutansky SECTION 2.1033 (c) 2 FCC Identifier RESPONSE : Predistortion CDMA Baseband Radio (PCBR 1900) designated as “Predistortion CDMA Baseband Radio (1900) ” to be operated under Part 24 (E) of the FCC Rules. FCC ID: AS5CMP-41 APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033 (c) (4), (5), (6) and (7) APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1033 (c) (4) Type or types of emission. RESPONSE: The AS5CMP-41 is capable of amplifying transmissions involving the following types of emissions: 1M23G9W SECTION 2.1033 (c) (5) Frequency range. RESPONSE :1930 – 1990 MHz SECTION 2.1033 (c) (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. RESPONSE : The AS5CMP-41 Predistortion CDMA Baseband Radio (PCBR) is capable of delivering output signal from –8 dBm to 14 dBm (0.0002 to 0.25 watts) at PCBR output. The output power that is delivered to the output connector is variable under software control. The output power level can be changed over the entire 22 dB range in 0.1 dB steps. SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part of the rules. RESPONSE : The maximum average power output of the AS5CMP-41 PCBR output connector is 14 dBm.

1 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions Federal Communications Commission Lucent Technologies Inc. Office of Engineering and Technology 101 Crawfords Corner Road Equipment Authorization Division Holmdel, NJ 07733-3030 Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 February 5, 2001 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Examiner: In accordance with Parts 2 and 24 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Certification of the Lucent Technologies Inc. Predistortion CDMA Baseband Radio (1900), henceforth PCBR as FCC ID: AS5CMP-41. This PCBR shall be used in Lucent Technologies Inc. FLEXENT  Land Station Personal Communication Service (PCS) system using Code Division Multiple Access (CDMA) technology, for use in Domestic Public PCS Telecommunication Service. The present PCS system will use single PCBR installed in a Radio Frequency Unit (RFU) cabinet. Each PCBR is designed to provide 0.025 Watts at the amplifier port connection. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies Inc. ProductPredistortion CDMA Baseband Radio (1900) Equipment IdentificationAS5CMP-41 Rules Part Number24(E) Frequency Range1930 – 1990 MHz Output Power.0002 to 0.025 Watts (-8 dBm to 14 dBm) Varied by Software Frequency Tolerance + ++ +/ // / - 0.05 ppm Emission Designator1M23G9W 2 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent TechnologiesFCC ID: AS5CMP-41 The FLEXENT PCS Radio Frequency Unit (RFU) Cabinet uses PCBR 1900. The PCBR is designed to the limitations specified in Part 24 subpart E. Whenever possible, the test procedures defined in CFR 47 Parts 2 and 24(E) were followed. Some of the characteristics cannot be tested using the requirements in CFR 47, for those characteristics, TIA/EIA-97-C was used as evaluation criteria in this application. The PCBR has a maximum RF power output of 14 dBm and the power level for this application also is 14 dBm. In FLEXENT PCS Radio Frequency Unit (RFU) Cabinet the PCBR output signal is amplified by the Power Amplifier an Individual Carrier Linear Amplifier (ICLA) FCC ID: AS5CMP-42 and filtered by a transmit filter for specific PCS bands. The Power Amplifier is being co-filed with the PCBR. The typical output level necessary for the PCBR for maximum output from the Power Amplifier is 8.5 dBm. The actual power level delivered from the PCBR to Power Amplifier is under software control. The software control allows not only for adjustment in power up to 14 dBm (maximum) but also provides a typical calibration of output level to within ± 0.1 dB across the PCS band. The operation of AS5CMP-41 (PCBR) is based on the time and frequency reference signals supplied to PCBR by Time and Frequency Unit (TFU). The FCC is required performance of the TFU over temperature and line voltage is contained in this application as well. Filed herewith is FCC Form 731 (Application for Equipment Authorization – Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for equipment certification. The Global Product Compliance Laboratory, of Lucent Technologies Inc., Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory phone: (732) 332-6003 email: [email protected] FCC ID: AS5CMP-41 February 5, 2001 Lucent Technologies Inc. Use pursuant to Company Instructions TABLE OF CONTENTS COVER LETTER Cover Letter Table of Content Letter for Confidential Treatment of Exhibits ATTESTATION STATEMENT Section 2.911 (d)Qualifications and Certifications Section 2.1033 (c) (1,2)Manufacturers, Identification Section 2.1033 (c) (4-7)Emissions, Frequency Range, Power Level USERS MANUAL Section 2.1033 (c) (3)Users Manual Section 2.1033 (c) (9)PARTS LIST/TUNE-UP PROCEDURE Tune-Up Procedure Section 2.1033 (c) (13)OPERATIONAL DESCRIPTION Description of Modulation System Section 2.1033 (c) (10)SCHEMATICS Schematic Section 2.1043 (b) (2)Block Diagrams Section 2.1033 (c) (11) and 2.925 (a) (1) ID LABEL/LOCATION INFORMATION Drawing of FCC ID Section 2.1033 (c) (12)EXTERNAL PHOTOS External Photos INTERNAL PHOTOS Section 2.1033 (c) (12)Internal Photos Section 2.1033 (c) (8) TEST REPORT Measurement of DC Power Section 2.1033 (c) (14)Listing of Required Measurements Section 2.1046Measurement of Radio Frequency Power Output Section 2.1047Measurement of Modulation Characteristics Section 2.1049 Measurement of Occupied Bandwidth Section 2.1051Measurement of Spurious Emissions at Antenna Section 2.1053Field Strength of Spurious Radiation Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated Test Instruments Used for Test APPLICANT: Lucent Technologies - 4 - FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions Global Product Compliance Laboratory 101 Crawfords Corner Road Holmdel, NJ 07733-3030 February 5, 2001 Subject:Confidential Treatment for User’s Manual, Internal Photos and Schematic - FCC ID: AS5CMP-41 Dear Examiner: The ‘Flexent PCS Radio Frequency Unit (RFU) Cabinet containing FCC ID AS5CMP-41, and FCC ID AS5CMP-42 will not be sold to the gen eral public, but restricted to net work operators. The ‘User’s Manual’ is provided to the network operators under a non-disclosure agreement. The Lucent Technologies holds the proprietary rights of equipment construction. The general public does not have access to either User’s Manual, or Internal Construction of Flexent R…

Text truncated - open the document above for the full version.

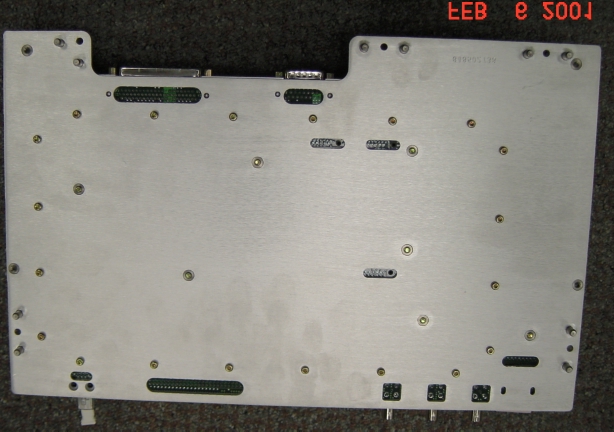

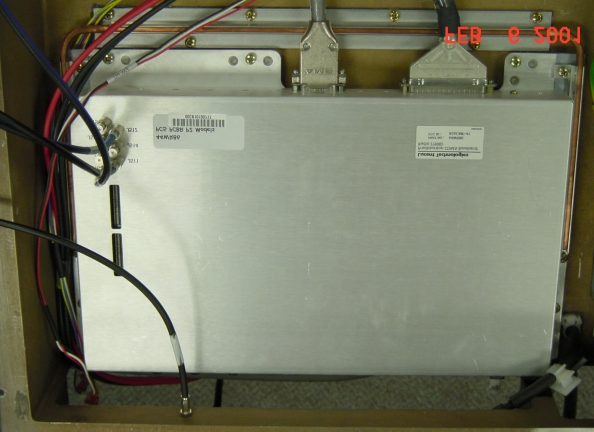

APPLICANT: Lucent Technologies - 1 - FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions PHOTOGRAPH OF CONSTRUCTION SECTION 2.1033 (c) (12) APPLICANT: Lucent Technologies - 2 - FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1033 (c) (12) Photographs (8” x 10”) of the equipment of sufficient clarity to reveal equipment construction, and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. RESPONSE : Equipment construction, layout, including meters, and labels for control are indicated in Installation and Operational Manual. Following additional photographs are included: 1. Photograph of PCBR Installed in RFU 2. Photographs of PCBR Outside (Front and Rear). APPLICANT: Lucent Technologies Inc. FCCID: AS5CMP-41 Photograph 1: PCBR Installed in RFU Cabinet APPLICANT: Lucent Technologies Inc. FCCID: AS5CMP-41 Photograph 2A: PCBR Showing FCC ID: AS5CMP-41 (Front) APPLICANT: Lucent Technologies Inc. FCCID: AS5CMP-41 Photograph 2B: Rear Side of PCBR

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE : 1. Computer drawing of the FCC ID: AS5CMP-41 is included. 2. External Photograph of PCBR showing FCCID: AS5CMP-41 is included. 3. Due to the construction of the equipment FCCID label may not be visible as the equipment cabinet is opened, therefore addition label is provided inside cabinet as to where the FCCID can be located. SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 634028 Baseband Label Hydra MicroMinicell Comcode No.: 848634028 Issue No.:1 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: .06 Radius Typical Text is 8 pt Helvetica Med. Text is 7 pt Helvetica Med. Text is 9 pt Frutiger Roman ORIGINAL ART: USE FOR REPRODUCTION Hydra MicroMinicell/Gordon Roberts 848634028 1 2 9523 10-19-00 11-16-00 11-16-00 634028 Baseband Label Cho mm Cho Regular White smudgeproof Kimdura with permanent p.s. adhesive Graphics print Black Logo is 10 pt. 2.00 1.00 848634028 1.5 pt. Rule FCC ID : AS5CMP-41 PART NO : 44WR86 Predistortion CDMA Baseband Radio (1900) 848634028 FCC ID : AS5CMP-41 PART NO : 44WR86 Predistortion CDMA Baseband Radio (1900) Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Product Marking Group
973-386-7093
APPLICANT: Lucent Technologies Inc. FCCID: AS5CMP-41 Photograph 2A: PCBR Showing FCC ID: AS5CMP-41 (Front) 848634622 FCC ID : AS5CMP-42 Label for PCS Amplifier Affixed on PCS Amplifier FCC ID : AS5CMP-41 Label for PCS Radio Affixed on PCS Radio 848634622 FCC ID : AS5CMP-42 Label for PCS Amplifier Affixed on PCS Amplifier FCC ID : AS5CMP-41 Label for PCS Radio Affixed on PCS Radio SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: Monti Dellapi 11-2-00 .06 Radius Typical Text is 8 pt Helvetica Med. ORIGINAL ART: USE FOR REPRODUCTION Hydra RFU-Monti Dellapi 848634622 1 2 910099031 10-19-00 11-2-00 11-2-00 634622 FCC Label Cho mm/sj Cho .010 Polycarbonate, matte over clear, with 3M 468 adhesive or equivalent Graphics rear print Black, on Lucent OS11148 Central Office White Logo is 10 pt. Text is 6 pt Helvetica Med. 2.00 1.5 pt. Rule Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Product Marking Group
973-386-4058
634622 FCC Label Hydra RFU Comcode No.: 848634622 Issue No.: 1 1.25

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033(c) (13) PPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033 (c) (13) For equipment employing digital modulation techniques, a detailed description of the modulation system to be used, including the response characteristics (frequency, phase and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE : The PCBR employs Code Division Multiple Access (CDMA) modulation techniques. The modulation descriptions are specified by IS95 and IS97. The CDMA Radio Frequency Board (RFB) and digital board (BNJ18) circuits control the functions of PCBR. Descriptions of these circuits are included in the submittal of Schematics, for which confidential status has been requested.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 1 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 2 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) Tune-up procedure over the power range, or at specific operating power levels. RESPONSE : There are no specific user tune-up procedures for either power levels or frequency. During normal operation software controls the power level from –8 dBm to 14dBm.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 LISTING OF REQUIRED MEASUREMENTS SECTION 2.1033 (c) (14) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-41 MEASUREMENT PER SECTION 2.999 OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE : The following pages include the data required for the Certification of the FCC ID: AS5CMP-41 measured in accordance with the procedures set out in Section 2.999 of the Rules. Each required measurement and its corresponding exhibit number are: Measurement: 1Section 2.1046RF Power Output Measurement: 2Section 2.1047Modulation Characteristics Measurement: 3Section 2.1049Occupied Bandwidth Measurement: 4Section 2.1051Spurious Emissions at Antenna Terminals Measurement: 5Section 2.1053Field Strength of Spurious Radiation Measurement: 6Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated . . . . . . . . . . . . . . . . . Test Instrumentation List APPLICANT: Lucent Technologies FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF DC POWER SECTION 2.1033 (c) (8) APPLICANT: Lucent Technologies FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions Measurement of DC Power SECTION 2.1033 (c) (8) The DC voltages applied to and DC currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. RESPONSE : The PCBR outputs 14 dBm max. The PCBR has the following voltage and maximum current. Final Output Transistor: The final state output transistor draws 0.49A at 6V DC. APPLICANT: Lucent Technologies FCC ID:AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions Measurement: 1 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT Section 2.1046 APPLICANT: Lucent Technologies FCC ID:AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1046 Measurement: 1 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the Predistortion CDMA Baseband Radio (1900) (PCBR) FCC ID: AS5CMP-41, is on the following page. Required measurements were made respectively at each frequency where occupied Bandwidth measurements must be performed. The use of the PCBR is for a single CDMA carrier. This requires that the RF power output level be calibrated for the specific channel of use. The test configuration, Figure 1A, allowed the measurement of RF output power for each channel investigated for Occupied Bandwidth. These included the upper, and lower band edges and at the center channels for 15MHz wide frequency blocks and upper, and lower band edge channels for 5 MHz wide frequency blocks. The IS-97 channel allocations are listed below: IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channel s & Frequency Range BlockFrequency Bands Per FCC 24.229 MHz Channel No.MHz A (15 MHz )1930.000 – 1945.000 25 – 2751931.250 – 1943.750 D (5 MHz)1945.000 – 1950.000325 – 3751946.250 – 1948.750 B (15 MHz)1950.000 – 1965.000425 – 6751951.250 – 1963.750 E (5 MHz)1965.000 – 1970.000725 – 7751966.250 – 1968.750 F (5 MHz)1970.000 – 1975.000825 – 8751971.250 – 1973.750 C (15 MHz)1975.000 – 1990.000925 - 11751976.250 – 1988.750 The edge channels are 25 and 1175. The PCBR has a maximum RF power output of 0.025 Watts (14 dBm) +2/-4 dB, it also has a minimum power output at the antenna terminals of 0.00016 Watts (-8 dBm) +2/-4 dB, across the PCS band (1930-1990 MHz). The signal applied to the PCBR is defined in Table 1.1. The power was reset to 14 dBm at each measurement frequency to verify the spectral performance at that power level. The attenuation range was also verified. The specific Frequencies and channels and set power level was documented on each “Occupied Bandwidth” sheet. (see Measurement-3) APPLICANT: Lucent Technologies FCC ID:AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic6 0.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 1.1 BASE STATION TEST MODEL, NOMINAL TEST SETUP FOR MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT EQUIPMENT: BBU:Baseband Unit PCBR:Predistortion CDMA Baseband Radio (1900) (FCCID:AS5CMP-41) PAPower Amplifier (ICLA) (FCCID: AS5CMP-42) Transmit Filter:PCS Band Transmit Filter appropriate for the investigated Band Directional Coupler:HP 778D Dual Directional Coupler Power Meter:HP 437B with HP 8481A Power Head Plotter:HP Model 520 DeskJet Spectrum Analyzer:Rohde & Schwarz FSEK EMI Test Receiver RESULTS : The PCBR was configured in the test setup shown in Figure 1A. For each of the PCS channels tested the PCBR delivered a 14 dBm when measured at the RF output connection. This data is recorded on the Occupied Bandwidth Data Sheets (see Measurement : 3). APPLICANT: Lucent Technologies FCC ID: AS5CMP-41 Lucent Technologies – Proprietary Use pursuant to Company Instructions PCBR AS5CMP-41 PA AS5CMP-42 Transmit Filter Output Input Input Output Port J4 Output dBm H-P 437BPower Meter Figure 1A. TEST CONFIGURATION FOR RF POWER OUTPUT Rohde & Schwarz Model FSEKEMI Test Receiver / Spectrum Analyzer Reflected Incident Power Sensor CalibratedAttenuation CalibratedAttenuation HP-778D or 772D Directional Coupler Test Port Lucent Technologies Inc. - Proprietary Use pursuant to Company Instruictions APPLICANT: Lucent Technologies FCC ID: AS5CMP - 41 Unit Under Test Test Coupler All components are calibrated over the frequency range of interest Flexent CDMA PCS Radio Frequency Unit (RFU) APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-41 Lucent Te…
