AS5CMP-43Predistortion CDMA Baseband Radio (850)

APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 QUALIFICATIONS AND CERTIFICATIONS SECTION 2.911(d) APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 November 20, 2000 SECTION 2.911(d) QUALIFICATION OF ENGINEER (who performed or supervised the Tests). Dheena D. Moongilan is a Distinguished Member of Technical Staff, Lucent Technologies, Bell Laboratories. He received his BSEE, MSEE from Madras University, India and another MSEE from Illinois Institute of Technology, Chicago, Illinois. He was trained in FCC test procedures by his former Supervisor, Donald N. Heirman. He has 21 years of EMC testing experience. He is a NARTE certified EMC Engineer, certificate #EMC-00/1022-NE. SECTION 2.911 (d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Dheena D. Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory Lucent Technologies Bell Laboratories Holmdel, NJ 07733-3030 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 MANUFACTURERS ─ IDENTIFIER SECTION 2.1033 (c) (1,2) APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 SECTION 2.1033 (c) 1 The full name and mailing address of the manufacturer of the device and applicant for certification: RESPONSE: APPLICATION:Lucent Technologies Inc. 600 Mountain Avenue Murray Hill, NJ 07974 Attention: Jane Zakutansky SECTION 2.1033 (c) 2 FCC Identifier RESPONSE: Predistortion CDMA Baseband Radio (PCBR 850) designated as “Predistortion CDMA Baseband Radio (850)” to be operated under Part 22(H) of the FCC Rules. FCC ID: AS5CMP-43 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033 (c) (4), (5), (6) and (7) APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-43 SECTION 2.1033 (c) (4) Type or types of emission. RESPONSE: The AS5CMP-43 is capable of amplifying transmissions involving the following types of emissions: 1M23G9W SECTION 2.1033 (c) (5) Frequency range. RESPONSE:869 - 894 MHz SECTION 2.1033 (c) (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. RESPONSE: The AS5CMP-43 PCBR is capable of delivering output signal over 22 dB range from –11 dBm to 11 dBm (0.00008 to 0.0126 watts) at PCBR output. The output power that is delivered to the output connector is under software control. The output power level can be changed over the entire 22 dB range in 0.1 steps. SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part of the rules. RESPONSE: The maximum average power output of the AS5CMP-43 at the PCBR Output connector is 11 dBm.

APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions Lucent Technologies Inc. 101 Crawfords Corner Rd. P. O. Box 3030 Holmdel, NJ 07733-3030 November 20, 2000 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Examiner: In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Certification of the Lucent Technologies Predistortion CDMA Baseband Radio (850), henceforth PCBR, as FCC ID: AS5CMP-43. The PCBR shall be used in Lucent Technologies, Inc. FLEXENT ® Land Station Cellular system using Code Division Multiple Access (CDMA) technology, for use in Domestic Public Cellular Telecommunication Service. The PCBR is designed to provide .0126 watts (11 dBm) to amplifier port connection. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies Inc. Equipment IdentificationAS5CMP-43 Rules Part Number22 (H) Frequency Range869 – 894 MHz Output Power0.00008 to 0.0126Watts (-11 dBm to 11 dBm) Varied By Software Frequency Tolerance + ++ +/ // / - 1.5 ppm Emission Designator1M23G9W APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions The FLEXENT Cellular Radio Frequency Unit (RFU) Cabinet uses PCBR(850). It is designed to the limitations specified in Part 22 (H). Whenever possible, the test procedures defined in CFR 47 Parts 2 and 22 were followed. Because of the “state of the art” nature of this equipment, some of the characteristics cannot be tested using the requirements in CFR 47. For those characteristics, IS 95 and IS 97 were used as evaluation criteria in this application. The PCBR has a maximum RF power output of 11 dBm and the power level for this application is 11dBm. In FLEXENT Cellular Radio Frequency Unit (RFU) Cabinet the PCBR output signal is amplified by the Individual Carrier Linear Amplifier(ICLA) FCC ID: AS5CMP-44 and filtered by a transmit filter for specific cellular bands. The ICLA is being co-filed with the PCBR. The typical output level necessary for the PCBR for maximum output from the ICLA is 8.4 dBm. The actual power level delivered from the PCBR to ICLA is under software control. The software control allows not only for adjustment in power up to 11 dBm (maximum) but also provides a typical calibration of output level to within ± 0.1 dB across the cellular band. The operation of AS5CMP-43 (PCBR) is based on the time and frequency reference signals supplied to PCBR by Time and Frequency Unit (TFU). The FCC is required performance of the TFU over temperature and line voltage is contained in this application as well. Filed herewith is FCC Form 731 (Application for Equipment Certification – Radio Frequency Devices) and the required attachments. These exhibits contain the technical data, and the required statements and documents for equipment certification. The Global Product Compliance Laboratory, of Lucent Technologies Inc. will comply with request for additional information should the need arise. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory phone: (732) 332-6003 email: [email protected] FCC ID: AS5CMP-43 November 20, 2000 Lucent Technologies Inc. Use pursuant to Company Instructions TABLE OF CONTENTS COVER LETTER Cover Letter Table of Content Letter for Confidential Treatment of Exhibits ATTESTATION STATEMENT Section 2.911 (d)Qualifications and Certifications Section 2.1033 (c) (1,2)Manufacturers, Identification Section 2.1033 (c) (4-7)Emissions, Frequency Range, Power Level USERS MANUAL Section 2.1033 (c) (3)Users Manual Section 2.1033 (c) (9)PARTS LIST/TUNE-UP PROCEDURE Tune-Up Procedure Section 2.1033 (c) (13)OPERATIONAL DESCRIPTION Description of Modulation System Section 2.1033 (c) (10)SCHEMATICS Schematic Section 2.1043 (b) (2)Block Diagrams Section 2.1033 (c) (11) and 2.925 (a) (1) ID LABEL/LOCATION INFORMATION Drawing of FCC ID Section 2.1033 (c) (12)EXTERNAL PHOTOS External Photos INTERNAL PHOTOS Section 2.1033 (c) (12)Internal Photos Section 2.1033 (c) (8) TEST REPORT Measurement of DC Power Section 2.1033 (c) (14)Listing of Required Measurements Section 2.1046Measurement of Radio Frequency Power Output Section 2.1047Measurement of Modulation Characteristics Section 2.1049 and Section 22.901(d)(2) Measurement of Occupied Bandwidth Section 2.1051Measurement of Spurious Emissions at Antenna Section 2.1053Field Strength of Spurious Radiation Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated Test Instruments Used for Test APPLICANT: Lucent Technologies- 4 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions Global Product Compliance Laboratory 101 Crawfords Corner Road Holmdel, NJ 07733-3030 November 20, 2000 Subject:Confidential Treatment for User’s Manual, Internal Photos and Schematic - FCC ID: AS5CMP-43 Dear Examiner: The ‘Flexent Cellular Radio Frequency Unit (RFU) Cabinet containing FCC ID AS5CMP-43, and FCC ID AS5CMP-44 will not be sold to the general public, but restricted to network operators. The ‘User’s Manual’ is provided to the network operators under a non-disclosure agreement. The Lucent Technologies holds the proprietary rights of equipment construction. The general public does not have access to either User’s Manual, or Internal Construction of Flexent RFU. The schematics and block diagrams contain Lucent Technologies Proprietary information. Therefore I would like to request you to treat the following as confidential. (1) User’s Manual (2) Internal photos (3) Schematics, Circuit descriptions and Block Diagrams Than…

Text truncated - open the document above for the full version.

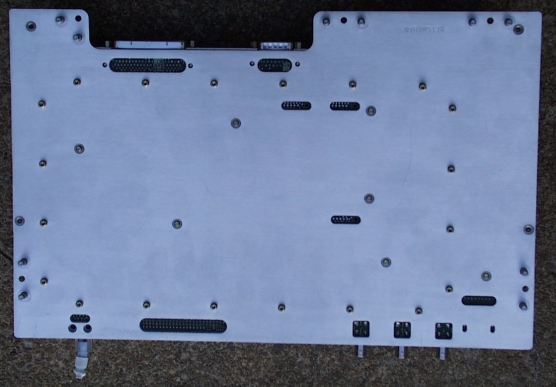

APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions PHOTOGRAPH OF CONSTRUCTION SECTION 2.1033 (c) (12) APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1033 (c) (12) Photographs (8” x 10”) of the equipment of sufficient clarity to reveal equipment construction, and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. RESPONSE : Equipment construction, layout, including meters, and labels for control are indicated in Installation and Operational Manual. Following additional photographs are included: 1. Photograph of PCBR Installed in RFU 2. Photographs of PCBR Outside (Front and Rear). PHO TOGRA PH 1 : PCBR Installed in RFU cabinet PHOTO GRAPH 2 A : PC BR Sh owing FCC ID: AS 5CMP-43 (Front) Photograph 2B. REAR SIDE OF PCBR

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE : 1. Computer drawing of the FCC ID: AS5CMP-43 is included. 2. External Photograph of Predistortion CDMA Baseband Radio (850) showing FCCID:AS5CMP-43 is included. 3. Due to the construction of the equipment FCCID label may not be visible as the equipment cabinet is opened, therefore additional lab el is provided inside cabinet as to where the FCCID can be located. SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 634010 Baseband Label Hydra MicroMinicell Comcode No.: 848634010 Issue No.:1 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: .06 Radius Typical Text is 8 pt Helvetica Med. Text is 7 pt Helvetica Med. Text is 9 pt Frutiger Roman ORIGINAL ART: USE FOR REPRODUCTION Hydra MicroMinicell/Gordon Roberts 848634010 1 2 9523 10-19-00 11-16-00 11-16-00 634010 Baseband Label Cho mm Cho Regular White smudgeproof Kimdura with permanent p.s. adhesive Graphics print Black Logo is 10 pt. 2.00 1.00 848634010 1.5 pt. Rule FCC ID : AS5CMP-43 PART NO : 44WR87 Predistortion CDMA Baseband Radio (850) 848634010 FCC ID : AS5CMP-43 PART NO : 44WR87 Predistortion CDMA Baseband Radio (850) Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Product Marking Group
973-386-7093

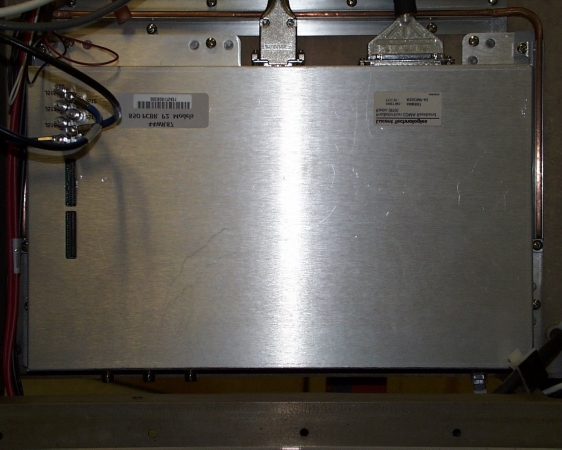

PHOTOGRAPH 2: PCBR Showing FCC ID: AS5CMP-43 848634614 FCC ID : AS5CMP-44 Label for Cellular Amplifier Affixed on Cellular Amplifier FCC ID : AS5CMP-43 Label for Cellular Radio Affixed on Cellular Radio 848634614 FCC ID : AS5CMP-44 Label for Cellular Amplifier Affixed on Cellular Amplifier FCC ID : AS5CMP-43 Label for Cellular Radio Affixed on Cellular Radio Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: Monti Dellapi 11-2-00 Hydra RFU-Monti Dellapi 848634614 1 2 910099031 10-19-00 11-2-00 11-2-00 634614 FCC Label Cho mm/sj Cho .010 Polycarbonate, matte over clear, with 3M 468 adhesive or equivalent Graphics rear print Black, on Lucent OS11148 Central Office White Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Product Marking Group
973-386-4058
SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 634614 FCC Label Hydra RFU Comcode No.: 848634614 Issue No.: 1 .06 Radius Typical Text is 8 pt Helvetica Med. ORIGINAL ART: USE FOR REPRODUCTION Logo is 10 pt. Text is 6 pt Helvetica Med. 1.5 pt. Rule 2.00 1.25

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033(c) (13) PPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033 (c) (13) For equipment employing digital modulation techniques, a detailed description of the modulation system to be used, including the response characteristics (frequency, phase and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE : The PCBR employs Code Division Multiple Access (CDMA) modulation techniques. The modulation descriptions are specified by IS95 and IS97. The CDMA Radio Frequency Board (RFB) and digital board (BNJ18) circuits control the functions of PCBR. Descriptions of these circuits are included in the submittal of Schematics, for which confidential status has been requested.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 1 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 2 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) Tune-up procedure over the power range, or at specific operating power levels. RESPONSE : There are no specific user tune-up procedures for either power levels or frequency. During normal operation software controls the power level from –11dBm to 11dBm.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 LISTING OF REQUIRED MEASUREMENTS SECTION 2.1033 (c) (14) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-43 MEASUREMENT PER SECTION 2.999 OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE : The following pages include the data required for the Certification of the FCC ID: AS5CMP-43 measured in accordance with the procedures set out in Section 2.999 of the Rules. Each required measurement and its corresponding exhibit number are: Measurement: 1Section 2.1046RF Power Output Measurement: 2Section 2.1047Modulation Characteristics Measurement: 3Section 2.1049Occupied Bandwidth Measurement: 4Section 2.1051Spurious Emissions at Antenna Terminals Measurement: 5Section 2.1053Field Strength of Spurious Radiation Measurement: 6Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated . . . . . . . . . . . . . . . . . Test Instrumentation List

APPLICANT: Lucent Technologies FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF DC POWER SECTION 2.1033 (c) (8) APPLICANT: Lucent Technologies FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions Measurement of DC Power SECTION 2.1033 (c) (8) The DC voltages applied to and DC currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. RESPONSE : The PCBR outputs 11dBm max. The PCBR has the following voltage and maximum current. Final Output Transistor: The final state output transistor draws 0.4A at 6V DC.

APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the Predistortion CDMA Baseband Radio (850) (PCBR) FCC ID: AS5CMP-43, is on the following page. Required measurements were made respectively at each frequency where occupied Bandwidth measurements must be performed. The use of the PCBR is for a single CDMA carrier. This requires that the RF power output level be calibrated for the specific channel of use. The test configuration, Figure 1A, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the upper, and lower band edges and at the center channels for 10MHz wide frequency blocks and upper, and lower band edge channels for frequency blocks have bandwidth lower than 10 MHz.. The IS-97 channel allocations are listed below: IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channel s & Frequency Range BlockFCC Cellular Frequency Bands Per FCC 22.905 MHz Channel No.MHz A” (1 MHz )869.000 - 870.0001013 -1023869.700 – 870.000 A (10 MHz)870.000 - 880.0000001- 0311870.030 – 879.330 B (10 MHz)880.000 - 890.0000356 - 0644880.680 – 889.320 A’ (1.5 MHz)890.000 - 891.5000689 - 0694890.670 – 890.820 B’ (2.5 MHz)891.500 - 894.0000739 - 0777892.170 – 893.310 The edge channels are 1013 and 0777. The PCBR has a maximum RF power output of 0.0126 Watts (11 dBm) +2/-4 dB, it also has a minimum power output at the antenna terminals of 0.00008 Watts (-11 dBm) +2/-4 dB, across the Cellular band (869 – 894 MHz). The signal applied to the PCBR is defined in Table 1.1. The power was reset to 11dBm at each measurement frequency to verify the spectral performance at that power level. The attenuation range was also verified. The specific Frequencies and channels and set power level was documented on each “Occupied Bandwidth” sheet. (see Measurement-3) APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic6 0.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 1.1 BASE STATION TEST MODEL, NOMINAL TEST SETUP FOR MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT EQUIPMENT: BBU:Baseband Unit PCBR:Predistortion CDMA Baseband Radio (850) (FCCID:AS5CMP- 43) ICLA:Individual Carrier Linear Amplifier (FCCID: AS5CMP-44) Transmit Filter:Cellular Band Transmit Filter appropriate for the investigated Band Directional Coupler:HP 778D Dual Directional Coupler Power Meter:HP 437B with HP 8481A Power Head Plotter:HP Model 520 DeskJet Spectrum Analyzer:Rohde & Schwarz FSEK EMI Test Receiver RESULTS : The PCBR was configured in the test setup shown in Figure 1A. For each of the cellular channels tested the PCBR delivered an 11 dBm when measured at the RF output connection. This data is recorded on the Occupied Bandwidth Data Sheets (see Measurement-3). APPLICANT: Lucent Technologies FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions PCBR AS5CMP-43 ICLA AS5CMP-44 Transmit Filter Output Input Input Output Port J4 Output dBm H-P 437BPower Meter Figure 1A. TEST CONFIGURATION FOR RF POWER OUTPUT Rohde & Schwarz Model FSEKEMI Test Receiver / Spectrum Analyzer Reflected Incident Power Sensor CalibratedAttenuation CalibratedAttenuation HP-778D or 772D Directional Coupler Test Port Lucent Technologies Inc. - Proprietary Use pursuant to Company Instruictions APPLICANT: Lucent Technologies FCC ID: AS5CMP - 43 Unit Under Test Test Coupler All components are calibrated over the frequency range of interest Flexent CDMA Cellular Radio Frequency Unit (RFU)

APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF MODULATION CHARACTERISTICS SECTION 2.1047 APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT 2 MEASUREMENT OF MODULATION CHARACTERISTICS SECTION 2.1047 The modulation methods used in CDMA are completely different from those used in FM analog System. The methods used in evaluating the PCBR are described in the EIA/TAIS document IS- 97 “recommended Minimum performance Standards for Base Stations Supporting Dual-Mode Wideband Spread Spectrum Cellular Mobile Stations”. The modulation quantify criteria are as follows: 1.0Modulation Requirements – Section 10.3 of IS-97 Waveform specifications are tested by measuring the waveform quality of ρ , as defined in IS-97 Section 12.4.2.1, and code domain power as defined in 12.4.2.2. Transmit waveform quality can be viewed as the output of a normalized matched filter. The range of values for the transmit waveform quality is from 1.0 for a perfect CDMA waveform to 0.0 for a non-CDMA signal. As an example, the base station with a 0.5 dB degradation in its transmit waveform would have a quality, ρ , of 0.89. 1.1Required Results Section 10.3.2.3 of IS-97 “The normal cross correlation coefficient, ρ , shall be greater than 0.912 (excess power < 0.4 dB)”. The test method and diagrams are taken from IS-97 Section 10. 1.2Waveform Quality 1.2.1Definition Waveform quality is measured by determining the normalized correlated power between the actual waveform and the identical waveform 1.2.2Method of Measurement – Refer to Figure 2A. of this exhibit for functional block diagram of the test set-up. APPLICANT: Lucent Technologies- 3 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions 1.Configure transmit channel as shown in Table 2.1. 2.Tune the PCBR to the test middle channel. 3.Apply a CDMA digital transmit signal from arbitrary waveform generator at the PCBR backplane that will product 15% modulation level (pilot only) of the appropriate level for full transmit power (TX_IQ_SIN_FULL) –8.24 dB. 4.Set the PCBR power level to 40 for Cellular. 5.Measure Rho. This measurement should be greater than TX_RHO limit. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3 Walsh 32, always 1/8 rate Paging10.1882-7.3 Walsh 1, full rate only Traffic6 0.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 2.1 Base Station Test Model, Nominal 1.3Minimum Standard The normalized cross correlation coefficient, ρ , shall be greater than 0.912 (excess power < 0.4 dB). 1.4Results The test verified that the waveform quality factor, the normalized cross correlation coefficient, ρ , is ≥ 0.98. It also verifies that the frequency assignment is less than (+0.05 PPM) of the frequency assignment. APPLICANT: Lucent Technologies- 4 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions Figure 2A. RHO TEST SETUP PCBR FIBER OPTIC TIMING DATA IN INTERNAL TRANSMIT DATA GENERATOR FOR PILOT AND FLOCA MODULATIO NSIGNALS PC PERIPHERAL BUS CONTROLLER SYSTEM RF AMPLIFIERTRANSMIT FILTER HP 437B POWER METER WITH 8482A POWER E4406A VSA SERIES TRANSMITTTER TESTER HP437B POWER METER WITH 8482A POWER SENSOR SET SYSTEM RF OUTPUT LEVEL RF OUTPUT CONNECT ONLY ONE INSTRUEMENT OR AMPLIFIER AT A TIME

APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 MEASUREMENT OF OCCUPIED BANDWIDTH SECTION 2.1049 and 22.901 (d) (2) APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 SECTION 2.1049 MEASUREMENT OF OCCUPIED BANDWIDTH The occupied bandwidth of the FCC ID: AS5CMP-43 PCBR was measured using a Rohde & Schwarz FSEK Spectrum Analyzer and a HP Model 520 DeskJet Printer. The RF power level was measured using RF power meter as shown in the test setup in Figure 3A. The RF output from the transmitter to spectrum analyzer was reduced (to an amplitude usable by the spectrum analyzer) by using a calibrated attenuator. This attenuation was offset on the display and the signal adjusted to the –16.1 dB level corresponding to the corrected RF power level for a 30 kHz resolution bandwidth. The reference-line on the spectrum analyzer display corresponds to level measured by the RF power meter. Occupied Bandwidth plots show measurements made at RF Power output terminals of PCBR for an output of 0.0126 watts (11 dBm) IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channel s & Frequency Range BlockFCC Cellular Frequency Bands Per FCC 22.905 MHz Channel No.MHz A” (1 MHz )869.000 - 870.0001013 -1023869.700 – 870.000 A (10 MHz)870.000 - 880.0000001- 0311870.030 – 879.330 B (10 MHz)880.000 - 890.0000356 - 0644880.680 – 889.320 A’ (1.5 MHz)890.000 - 891.5000689 - 0694890.670 – 890.820 B’ (2.5 MHz)891.500 - 894.0000739 - 0777892.170 – 893.310 The edge channels are 1013 and 0777. The frequencies and channels used for measurements are tabulated on the bottom of each plot. The PCBR output signals are plotted at each frequency blocks/bands. Plots are provided for Left Edge, and Right Edge of cellular bands A”, A’, and B’. Plots are also provided for Left Edge, Center and Right Edge of each cellular bands A and B (Blocks of 10 MHz wide). These frequencies were chosen to show the occupied bandwidth in the channels in each of the Cellular bands in which this radio can be operated, in compliance with Section 22.905 of the Commission code. There are no SAT or Wide band data signals associated with CDMA. The signal used to show the occupied bandwidth is defined in Table 3.1. This is the signal recommended in IS-97. The power output level was adjusted to provide the documented power levels at the bottom of each chart. APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic60.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 3.1 Base Station Test Model, Nominal The minimum standard presented in PN-3383 and IS-97. “Suppression Inside the Licensee’s Frequency Block(s)” For all frequencies within the base station transmit band of 869 to 894 MHz that are within the specific block(s) allocated to the operator’s system. The total conducted spurious emissions in any 30 kHz band greater than 750 kHz for the CDMA channel center frequency shall not exceed a level of –45 dBc.... The spectrum analyzer output plots show the CDMA channel signal is 16.1 dB below the reference line of the spectrum analyzer for the following reason: For the CDMA system there is no carrier without modulation. The CDMA transmit bandwidth is 1.23 MHz. Since spectrum analyzer does not have Resolution Bandwidth setting for 1.23 MHz, the following relationship was used to provide the correct level for an unmodulated carrier vs. modulated signal. 10*log (Resolution Bandwidth/Transmit Bandwidth) = Signal Offset For the peak of the CDMA signal measured with a resolution bandwidth of 30 kHz the signal offset is: Signal Offset = 10*log (30 kHz/1.23 MHz) = -16.1 dB APPLICANT: Lucent Technologies FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions PCBR AS5CMP-43 ICLA AS5CMP-44 Transmit Filter Output Input Input Output Port J4 Output dBm H-P 437BPower Meter Figure 3A. TEST CONFIGURATION FOR MEASUREMENT OF OCCUPIED BANDWIDTH Rohde & Schwarz Model FSEKEMI Test Receiver / Spectrum Analyzer Reflected Incident Power Sensor CalibratedAttenuation CalibratedAttenuation HP-778D or 772D Directional Coupler Test Port Lucent Technologies Inc. - Proprietary Use pursuant to Company Instruictions APPLICANT: Lucent Technologies FCC ID: AS5CMP - 43 Unit Under Test Test Coupler All components are calibrated over the frequency range of interest Flexent CDMA Cellular Radio Frequency Unit (RFU) APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT: 3 MEASUREMENT OF OCCUPIED BANDWIDTH BLOCK A” (869-870 MHz) Left Edge:869.7 MHz (Channel 1013) Right Edge:870.0 MHz (Channel 1023) APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT: 3 MEASUREMENT OF OCCUPIED BANDWIDTH BLOCK A (870-880 MHz) Left Edge:870.03 MHz (Channel 001) Center:874.65 MHz (Channel 155) Right Edge:879.33 MHz (Channel 311) APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT: 3 MEASUREMENT OF OCCUPIED BANDWIDTH BLOCK B (880-890 MHz) Left Edge:880.68 MHz (Channel 356) Center:885.00 MHz (Channel 500) Right Edg…

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies FCC ID:AS5CMP-43 SPURIOUS EMISSIONS AT ANTENNA TERMINALS SECTION 2.1051 APPLICANT: Lucent Technologies FCC …
