AS5CMP-44CDMA Cellular Transmit Unit

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions USERS MANUAL Section 2.1033 (c) (3) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions USERS MANUAL SECTION 2.1033(c) (3) A copy of the installation and operating instructions to be furnished the user. A draft copy of the instructions may be submitted if the actual document is not available. The actual document shall be furnished to FCC when it becomes available. RESPONSE: There is no specific user’s manual for ICLA (FCC ID: AS5CMP-44.). The Operation, Administration, and Maintenance Manual for Flexent CDMA MicroMini 5100 Base station system that uses both PCBR850 (FCC ID: AS5CMP-43) and ICLA is attached in the co-filed application of FCC ID: AS5CMP-43.

APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 QUALIFICATIONS AND CERTIFICATIONS SECTION 2.911(d) APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 February 9, 1999 SECTION 2.911(d) QUALIFICATION OF ENGINEER (who performed or supervised the Tests). Dheena D. Moongilan is a Distinguished Member of Technical Staff, Lucent Technologies, Bell Laboratories. He received his BSEE, MSEE from Madras University, India and another MSEE from Illinois Institute of Technology, Chicago, Illinois. He was trained in FCC testing procedures by his former Supervisor, Donald N. Heirman. He has 20 years of EMC testing experience. He is a NARTE certified EMC Engineer, certificate #EMC-00/1022-NE. SECTION 2.911 (d) CERTIFICATION OF TECHNICAL TEST DATA I hereby certify that the technical test data are the results of tests performed or supervised by me. Dheena D. Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory Lucent Technologies Bell Laboratories Holmdel, NJ 07733-3030 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 MANUFACTURERS ─ IDENTIFIER SECTION 2.1033 (c) 1 and 2 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 SECTION 2.1033 (c) 1 The full name and mailing address of the manufacturer of the device and applicant for certification: RESPONSE: APPLICATION:Lucent Technologies Inc. 600 Mountain Avenue Murray Hill, NJ 07974 Attention: Jane Zakutansky SECTION 2.1033 (c) 2 FCC Identifier RESPONSE: CDMA Individual Carrier Linear Amplifier designated as “CDMA Cellular Transmit Unit” to be operated under Part 22(H) of the FCC Rules. FCC ID: - FCC ID AS5CMP-44 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 EMISSIONS, FREQUENCY RANGE, POWER LEVEL SECTION 2.1033 (c) (4), (5), (6) and (7) APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 SECTION 2.1033 (c) (4) Type or types of emission. RESPONSE: The AS5CMP-44 is capable of amplifying transmissions involving the following types of emissions: 1M23G9W SECTION 2.1033 (c) (5) Frequency range. RESPONSE:870.48 – 878.49 MHz 881.52 – 888.51 MHz The valid channels available to user and the frequency range are indicated below. Other cellular channels are not available to user and they are inhibited using software control. BlockValid CDMA ChannelsFrequency Range A016-283870.48 – 878.49 MHz B384-617881.52 – 888.51 MHz SECTION 2.1033 (c) (6) Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. RESPONSE: The AS5CMP-44 ICLA is capable of delivering output signal from –11 dBm to 43.8 dBm (0.00008 to 24 watts) to antenna port J4 output connector of the cabinet. The output power that is delivered to the output connector is variable under software control. The long term operating power is 16 W (+2/-4 dB). The short term peak power due to channel activity fluctuation, is 24 W (+2/-4 dB). SECTION 2.1033(c) (7) Maximum power rating as defined in the applicable part of the rules. RESPONSE: The maximum average power output of the AS5CMP-44 at the J4 antenna port output connector is 24 W (43.8 dBm).

APPLICANT: Lucent Technologies- 1 -FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions Lucent Technologies Inc. 101 Crawfords Corner Rd. P. O. Box 3030 Holmdel, NJ 07733-3030 November 20, 2000 Federal Communications Commission Office of Engineering and Technology Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Dear Examiner: In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Certification of the Lucent Technologies Individual Carrier Linear Amplifier (ICLA) FCC ID: AS5CMP-44. The ICLA shall be used in Lucent Technologies, Inc. FLEXENT ® Land Station Cellular system using Code Division Multiple Access (CDMA) technology, for use in Domestic Public Cellular Telecommunication Service. The ICLA is designed to provide 24 watts (43.8 dBm) to antenna port connection (J4). The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies Inc. Equipment IdentificationAS5CMP-44 Rules Part Number22 (H) Frequency Range870.48 – 878.49 MHz and 881.52 – 888.51 MHz Output Power0.00008 to 24 Watts (-11 dBm to 43.8 dBm) Varied By Software Frequency Tolerance + ++ +/ // / - 1.5 ppm Emission Designator1M23G9W APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions The FLEXENT Cellular Radio Frequency Unit (RFU) Cabinet uses ICLA. It is designed to the limitations specified in Part 22 (H). Whenever possible, the test procedures defined in CFR 47 Parts 2 and 22 were followed. Because some of the characteristics cannot be tested using the requirements in CFR 47, for those characteristics, IS 95 and IS 97 were used as evaluation criteria in this application. The ICLA has a maximum RF power output of 43.8 dBm and the power level for this application is 43.8 dBm. The ICLA gets input RF signal from a Predistortion CDMA Baseband Radio (PCBR) (FCC ID: AS5CMP-43) and the ICLA RF output is filtered by a transmit filter for specific cellular bands. The PCBR (FCC ID: AS5CMP-43 ) is being co-filed with the ICLA. The typical output level necessary for the PCBR for maximum output from the ICLA is 8.4 dBm. The actual power level delivered from the PCBR to ICLA is under software control. Filed herewith is FCC Form 731 (Application for Equipment Certification – Radio Frequency Devices) and the required attachments. These exhibits contain the technical data, and the required statements and documents for equipment certification. The Global Product Compliance Laboratory, of Lucent Technologies Inc. will comply with request for additional information should the need arise. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Global Product Compliance Laboratory phone: (732) 332-6003 email: [email protected] FCC ID: AS5CMP-44 November 20, 2000 Lucent Technologies Inc. Use pursuant to Company Instructions TABLE OF CONTENTS COVER LETTER Cover Letter Table of Content Letter for Confidential Treatment of Exhibits ATTESTATION STATEMENT Section 2.911 (d)Qualifications and Certifications Section 2.1033 (c) (1,2)Manufacturers, Identification Section 2.1033 (c) (4-7)Emissions, Frequency Range, Power Level USERS MANUAL Section 2.1033 (c) (3)Users Manual Section 2.1033 (c) (9)PARTS LIST/TUNE-UP PROCEDURE Tune-Up Procedure Section 2.1033 (c) (13)OPERATIONAL DESCRIPTION Description of Modulation System Section 2.1033 (c) (10)SCHEMATICS Schematic Section 2.1043 (b) (2)Block Diagrams Section 2.1033 (c) (11) and 2.925 (a) (1) ID LABEL/LOCATION INFORMATION Drawing of FCC ID Section 2.1033 (c) (12)EXTERNAL PHOTOS External Photos INTERNAL PHOTOS Section 2.1033 (c) (12)Internal Photos Section 2.1033 (c) (8) TEST REPORT Measurement of DC Power Section 2.1033 (c) (14)Listing of Required Measurements Section 2.1046Measurement of Radio Frequency Power Output Section 2.1047Measurement of Modulation Characteristics Section 2.1049 and Section 22.900(d)(2) Measurement of Occupied Bandwidth Section 2.1051Measurement of Spurious Emissions at Antenna Section 2.1053Field Strength of Spurious Radiation Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated Test Instruments Used for Test APPLICANT: Lucent Technologies FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions Global Product Compliance Laboratory 101 Crawfords Corner Road Holmdel, NJ 07733-3030 November 20, 2000 Subject:Confidential Treatment for Internal Photos and Schematic - FCC ID: AS5CMP-44. Dear Examiner: The ‘Flexent Cellular Radio Frequency Unit (RFU) Cabinet containing FCC ID AS5CMP-43, and FCC ID AS5CMP-44 will not be sold to the general public, but restricted to network operators. The Lucent Technologies holds the proprietary rights of equipment construction. The general public does not have access to Internal Construction of Flexent RFU. The schematics and block diagrams contain Lucent Technologies Proprietary information. Therefore I would like to request you to treat the following as confidential. (1) Internal photos (2) Schematics, Circuit descriptions and Block Diagrams Thanks. Sincerely, Dheena Moongilan Distinguished Member of Technical Staff Bldg. 11B, Room 184 APPLICANT: Lucent Technologies- 2 -FCC ID: AS5CMP-43 Lucent Technologies – Proprietary Use pursuant to Company Instructions

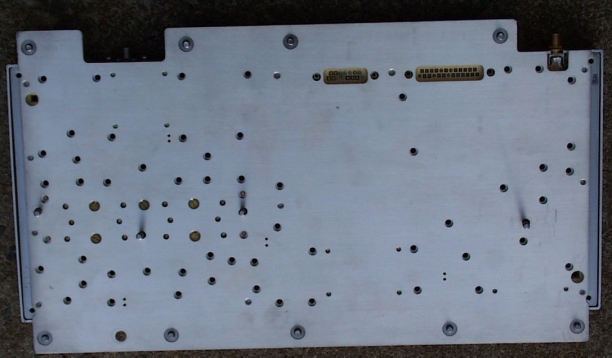

APPLICANT: Lucent Technologies - 1 - FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions PHOTOGRAPH OF CONSTRUCTION SECTION 2.1033 (c) (12) APPLICANT: Lucent Technologies - 2 - FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1033 (c) (12) Photographs (8” x 10”) of the equipment of sufficient clarity to reveal equipment construction, and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. RESPONSE : Equipment construction, layout, including meters, and labels for control are indicated in Installation and Operational Manual. Following additional photographs are included: 1. Photograph of ICLA Installed in RFU 2. Photographs of ICLA Outside (Front and Rear). Photograph 1. ICLA installed in RFU cabinet PHOTOGRAPH 2A : ICLA Sh owing FCC ID: AS5CM P-44 (Front) Photograph 2B. Rear side of ICLA

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions DRAWING OF FCC ID SECTION 2.1033 (c) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE : 1. Computer drawing of the FCC ID: AS5CMP-44 is included. 2. External Photograph of ICLA showing FCCID: AS5CMP-44 is included. 3. Due to the construction of the equipment FCCID label may not be visible as the equipment cabinet is opened, therefore addition label is provided inside cabinet as to where the FCCID can be located. ORIGINAL ART: USE FOR REPRODUCTION 615506 Transmit Unit Label Flexent Microcell/MicroMinicell Comcode #: 848615506 Issue #: 1 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Prodcut Marking Group
973-386-7093
G. Cho MM G. Cho 615506 Transmit Unit Label 11-13-00 11-13-00 8-30-00 910099031 848615506 Hydra/MicroMinicell-Mike Johnson .010 Polycarbonate, matte finish over clear with combination .0045 to .005 inch acrylic adhesive Graphics rear print black on OS11148 central office white 12 SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 66.55 25.4 1.52 Radius Typical Text is 10pt Helvetica Med. Text is 8pt Helvetica Med. Logo is 12 pt. in Height CDMA Cellular Transmit Unit Text is 10pt Frutiger Roman 848615506 PART NO : FCC ID : ECJ2B AS5CMP-44 1.5 pt. Rule All Dims shown are in Millimeters CDMA Cellular Transmit Unit 848615506 PART NO : FCC ID : ECJ2B AS5CMP-44 PHOTOGRAPH of ICLA Sh owing FCC ID: AS5CM P-44 848634614 FCC ID : AS5CMP-44 Label for Cellular Amplifier Affixed on Cellular Amplifier FCC ID : AS5CMP-43 Label for Cellular Radio Affixed on Cellular Radio 848634614 FCC ID : AS5CMP-44 Label for Cellular Amplifier Affixed on Cellular Amplifier FCC ID : AS5CMP-43 Label for Cellular Radio Affixed on Cellular Radio Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: Monti Dellapi 11-2-00 Hydra RFU-Monti Dellapi 848634614 1 2 910099031 10-19-00 11-2-00 11-2-00 634614 FCC Label Cho mm/sj Cho .010 Polycarbonate, matte over clear, with 3M 468 adhesive or equivalent Graphics rear print Black, on Lucent OS11148 Central Office White Lucent Technologies 67 Whippany Road Whippany, New Jersey 07981-0903

Lucent Art & Media, Product Marking Group
973-386-4058
SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 634614 FCC Label Hydra RFU Comcode No.: 848634614 Issue No.: 1 .06 Radius Typical Text is 8 pt Helvetica Med. ORIGINAL ART: USE FOR REPRODUCTION Logo is 10 pt. Text is 6 pt Helvetica Med. 1.5 pt. Rule 2.00 1.25

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033(c) (13) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 DESCRIPTION OF MODULATION SYSTEM SECTION 2.1033 (c) (13) For equipment employing digital modulation techniques, a detailed description of the modulation system to be used, including the response characteristics (frequency, phase and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. RESPONSE : These functions are controlled by the PCBR/AS5CMP-43 (co-filed with this equipment) which supplies the signals to be amplified. External to ICLA (AS5CMP-44), there are cavity type transmit filters which limit spurious and harmonic content. The performance characteristics of these filters are included in this filing. The performance characteristics of RF filter installed between ICLA RF output terminal and J4 antenna connector is included for Block A and B in the following pages.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 1 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 2 Lucent Technologies Inc. – Proprietary Use pursuant to Company Instructions TUNE-UP PROCEDURE SECTION 2.1033 (c) (9) Tune-up procedure over the power range, or at specific operating power levels. RESPONSE : There are no specific user tune-up procedures for either power levels or frequency. During normal operation software controls the power level from –11dBm to 43.8 dBm.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 LISTING OF REQUIRED MEASUREMENTS SECTION 2.1033 (c) (14) APPLICANT: Lucent Technologies Inc. FCC ID: AS5CMP-44 MEASUREMENT PER SECTION 2.999 OF THE RULES SECTION 2.1033 (c) (14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE : The following pages include the data required for the Certification of the FCC ID: AS5CMP-44 measured in accordance with the procedures set out in Section 2.999 of the Rules. Each required measurement and its corresponding exhibit number are: Measurement: 1Section 2.1046RF Power Output Measurement: 2Section 2.1047Modulation Characteristics Measurement: 3Section 2.1049Occupied Bandwidth Measurement: 4Section 2.1051Spurious Emissions at Antenna Terminals Measurement: 5Section 2.1053Field Strength of Spurious Radiation Measurement: 6Section 2.1055Measurement of Frequency Stability Section 2.1057Frequency Spectrum to be Investigated . . . . . . . . . . . . . . . . . Test Instrumentation List

APPLICANT: Lucent Technologies FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF DC POWER SECTION 2.1033 (c) (8) APPLICANT: Lucent Technologies FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions Measurement of DC Power SECTION 2.1033 (c) (8) The DC voltages applied to and DC currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. RESPONSE : The ICLA outputs 43.8 dBm max at J4 connector. It has the following voltage and maximum current. Overall [email protected] max. Final Output Transistor: It has two final stage Transistors in parallel. The final state output transistors each draw 2.8 A @ 28V.

APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT OF RADIO FREQUENCY POWER OUT SECTION 2.1046 APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the FCC ID: AS5CMP-44 Individual Carrier Linear Amplifier is on the following page. Measurements were made respectively at each frequency where occupied Bandwidth measurements are to be performed. The use of the ICLA is for a single CDMA carrier. This requires that the J4 connector power level be calibrated for the specific channel of use. The test configuration, Figure 1A, allowed the measurement of output power for each channel being investigated for Occupied Bandwidth. These included the upper and lower band edges and at the center channel for frequency blocks A and B shown in Table 1.2. Table 1.1. IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channel s & Frequency Range BlockFCC Cellular Frequency Bands Per FCC 22.905 MHz Channel No.MHz A” (1 MHz )869.000 - 870.0001013 -1023869.700 – 870.000 A (10 MHz)870.000 - 880.0000001- 0311870.030 – 879.330 B (10 MHz)880.000 - 890.0000356 - 0644880.680 – 889.320 A’ (1.5 MHz)890.000 - 891.5000689 - 0694890.670 – 890.820 B’ (2.5 MHz)891.500 - 894.0000739 - 0777892.170 – 893.310 The edge channels are 1013 and 0777. Table 1.2. The frequency range used by ICLA and for FCC filing. BlockValid CDMA ChannelsFrequency Range A016-283870.48 – 878.49 MHz B384-617881.52 – 888.51 MHz The ICLA does not seek certification for entire cellular Band (869-894 MHz) at present time. At present operation is restricted to frequency ranges shown in Table 1.2 Blocks A and B. The ICLA system has a maximum power output at the antenna terminals of 24 Watts (43.8 dBm) +2/-4 dB, it also has a minimum power output at the antenna terminals of 0.00008 Watts (+2/-4 APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions dB), in the Cellular Band A: 870.48 – 878.49 MHz and Band B: 881.52 – 888.51 MHz. The signal applied to the ICLA is defined in Table 1.3. The power was reset to 24 Watts at each measurement frequency to verify the spectral performance at that power level. The attenuation range was also verified. The specific Frequencies and channels and set power level was documented on each “Occupied Bandwidth” sheet. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic6 0.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 1.3 BASE STATION TEST MODEL, NOMINAL TEST SETUP FOR MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT EQUIPMENT: BBU:Basband Unit PCBR:Predistortion CDMA Baseband Radio (850) ICLA:Individual Carrier Linear Amplifier (FCCID: AS5CMP-44) Transmit Filter:Cellular Band Transmit Filter appropriate for the investigated Band Directional Coupler:HP 778D Dual Directional Coupler Power Meter:HP 437B with HP 8481A Power Head Plotter:HP Model 520 DeskJet Spectrum Analyzer:Rohde & Schwarz FSEK EMI Test Receiver RESULTS : The ICLA was configured in the test setup shown in Figure 1A. For each of the cellular channels tested the ICLA delivered a 24 Watts when measured at the J4 output connection. This data is recorded on the Occupied Bandwidth Data Sheets (see Measurement-3). APPLICANT: Lucent Technologies FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions PCBR AS5CMP-43 ICLA AS5CMP-44 Transmit Filter Output Input Input Output Port J4 Output dBm H-P 437BPower Meter Figure 1A. TEST CONFIGURATION FOR RF POWER OUTPUT Rohde & Schwarz Model FSEKEMI Test Receiver / Spectrum Analyzer Reflected Incident Power Sensor CalibratedAttenuation CalibratedAttenuation HP-778D or 772D Directional Coupler Test Port Lucent Technologies Inc. - Proprietary Use pursuant to Company Instruictions APPLICANT: Lucent Technologies FCC ID: AS5CMP - 44 Unit Under Test Test Coupler All components are calibrated over the frequency range of interest Flexent CDMA Cellular Radio Frequency Unit (RFU)

APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 MEASUREMENT OF MODULATION CHARACTERISTICS SECTION 2.1047 APPLICANT: Lucent Technologies Inc.FCC ID: AS5CMP-44 MEASUREMENT OF MODULATION CHARACTERISTICS SECTION 2.1047 RESPONSE: The modulation characteristics and accuracy of the ICLA are a function of the input signal which is provided by the Predistortion CDMA Baseband Radio (PCBR) FCC ID: AS5CMP-43 co-filed with this submittal.

APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 MEASUREMENT OF OCCUPIED BANDWIDTH SECTION 2.1049 Section 22.901 (d) (2) APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 SECTION 2.1049 MEASUREMENT OF OCCUPIED BANDWIDTH The occupied bandwidth of the FCC ID: AS5CMP-44 ICLA was measured using a Rohde & Schwarz FSEK Spectrum Analyzer and a HP Model 520 DeskJet Printer. The RF power level was measured using RF power meter as shown in the test setup in Figure 3A. The RF output from the transmitter to spectrum analyzer was reduced (to an amplitude usable by the spectrum analyzer) by using a calibrated attenuator. This attenuation was offset on the display and the signal adjusted to the –16.1 dBc level corresponding to the corrected RF power level for a 30 kHz resolution bandwidth. The reference-line on the spectrum analyzer display corresponds to level measured by the RF power meter. Occupied Bandwidth plots show measurements made at J4 connector antenna terminals for an output of 24 watts and at the terminals of ICLA input. The PCBR (FCC ID: AS5CMP-43) output level of 8.4 dBm approximately was required at the input terminals of ICLA to generate 24 watts power. Table 3.1. IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channel s & Frequency Range BlockFCC Cellular Frequency Bands Per FCC 22.905 MHz Channel No.MHz A” (1 MHz )869.000 - 870.0001013 -1023869.700 – 870.000 A (10 MHz)870.000 - 880.0000001- 0311870.030 – 879.330 B (10 MHz)880.000 - 890.0000356 - 0644880.680 – 889.320 A’ (1.5 MHz)890.000 - 891.5000689 - 0694890.670 – 890.820 B’ (2.5 MHz)891.500 - 894.0000739 - 0777892.170 – 893.310 The edge channels are 1013 and 0777. Table 3.2. The frequency range used by ICLA and for FCC filing. BlockValid CDMA ChannelsFrequency Range A016-283870.48 – 878.49 MHz B384-617881.52 – 888.51 MHz The frequencies and channels used for measurements are tabulated on the bottom of each plot. The ICLA Input and output signals are plotted at each frequency blocks/bands. The input signal plots are shown as Measurement – 3A and output signal as Measurement – 3B. Plots are provided for Left Edge, center and Right Edge of cellular bands A, and B for the channels covered in the frequency ranges used by ICLA as indicated in Table 3.2. These frequencies were chosen to show the occupied bandwidth in the channels in each of the Cellular bands in APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 which this ICLA can be operated, in compliance with Section 22.905 of the Commission code. There is no SAT or wide band data signals associated with CDMA. The signal used to show the occupied bandwidth is defined in Table 3.3. This is the signal recommended in IS-97. The power output level was adjusted to provide the documented power levels at the bottom of each chart. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic60.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 3.3 Base Station Test Model, Nominal The minimum standard presented in PN-3383 and IS-97. “Suppression inside the Licensee’s Frequency Block(s)” For all frequencies within the base station transmit band of 869 to 894 MHz that are within the specific block(s) allocated to the operator’s system. The total conducted spurious emissions in any 30 kHz band greater than 750 kHz for the CDMA channel center frequency shall not exceed a level of –45 dBc.... The spectrum analyzer output plots show the CDMA channel signal is 16.1 dB below the reference line of the spectrum analyzer for the following reason: For the CDMA system there is no carrier without modulation. The CDMA transmit bandwidth is 1.23 MHz. Since spectrum analyzer does not have Resolution Bandwidth setting for 1.23 MHz. This relationship was used to provide the correct level for an unmodulated carrier vs. modulated signal. 10*log (Resolution Bandwidth/Transmit Bandwidth) = Signal Offset For the peak of the CDMA signal measured with a resolution bandwidth of 30 kHz the signal offset is: Signal Offset = 10*log (30 kHz/1.23 MHz) = -16.1 dB APPLICANT: Lucent Technologies FCC ID: AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions PCBR AS5CMP-43 ICLA AS5CMP-44 Transmit Filter Output Input Input Output Port J4 Output dBm H-P 437BPower Meter Figure 3A. TEST CONFIGURATION FOR MEASUREMENT OF OCCUPIED BANDWIDTH Rohde & Schwarz Model FSEKEMI Test Receiver / Spectrum Analyzer Reflected Incident Power Sensor CalibratedAttenuation CalibratedAttenuation HP-778D or 772D Directional Coupler Test Port Lucent Technologies Inc. - Proprietary Use pursuant to Company Instruictions APPLICANT: Lucent Technologies FCC ID: AS5CMP - 44 Unit Under Test Test Coupler All components are calibrated over the frequency range of interest Flexent CDMA Cellular Radio Frequency Unit (RFU) APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT: 3A ICLA INPUT MEASUREMENT OF OCCUPIED BANDWIDTH BLOCK A (870-880 MHz) Left Edge:870.48 MHz (Channel 016) Center:873.99 MHz (Channel 133) Right Edge:878.49 MHz (Channel 283) APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Lucent Technologies – Proprietary Use pursuant to Company Instructions MEASUREMENT: 3A ICLA INPUT MEASUREMENT OF OCCUPIED BANDWIDTH BLOCK B (880-890 MHz) Left Edge:881.52 MHz (Channel 384) Center:885.00 MHz (Channel 500) Right Edge:888.51 MHz (Channel 617) APPLICANT: Lucent Technologies FCC ID:AS5CMP-…

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 SPURIOUS EMISSIONS AT ANTENNA TERMINALS SECTION 2.1051 APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 MEASUREMENT: 4 Section 2.1051 Spurious Emissions at the antenna terminals and input to ICLA were investigated over the frequency range of 0 MHz to the 10 th harmonic of the carrier frequency. The test setup was as described in Figure 4A. Measurements were made using a Rohde & Schwarz FSEK Spectrum Analyzer and an HP Model 520 DeskJet Printer. The RF output from the transmitter was reduced (to an amplitude usable by the spectrum analyzer) by using a calibrated attenuator. The RF power level was continuously monitored via RF Power Meter as shown in the test setup in Figure 4A. The required emission limitation specified in Section 22.917 of the Code was applied to these tests. The applied signal met the recommended characteristics per IS-97 as defined in Table 4.1. All measurements were made for 24W (43.8 dBm) output at antenna ter minals. The corresponding PCBR output was 8.4 dBm approximately. Based upon the criterion given in Section 22.917 of the Code the required emission limitation is equal to –56.8 dBc or – 13 dBm. The magnitude of spurious emissions that are attenuated more than 20 dB below the permissible value need not specified (Section 2.1051 and 2.1057 (a) and (c)). TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2000-7.0Walsh 0 Sync10.0471-13.3Walsh 32, always 1/8 rate Paging10.1882-7.3Walsh 1, full rate only Traffic6 0.09412 each -10.3 each Variable Walsh Assignments, full rate only TABLE 4.1. Base Station Test Model, Nominal APPLICANT: Lucent Technologies FCC ID:AS5CMP-44 Table 4.2. IS 97 channel allocation consists of following channel Blocks: Valid CDMA Channels & Frequency Range BlockFCC Cellular Frequency Band…
