67 Whippany Road Subject:REQUEST FOR CONFIDENTIALITYWhippany, NJ 07981 for FCC ID: AS5CMP-45. Rudolf J. Pillmeier Telephone: 973-386-3837 Facsimile: 973-386-8098 E-Mail: [email protected] Timco Engineering, Inc. August 29, 2001 849 N. W. State Road 45 P. O. Box 370 Newberry, Florida 32669 Dear Sid Sanders: On behalf of Lucent Technologies, I hereby request that the following exhibits, included in the Application for Certification for FCC ID: AS5CMP-45, be maintained as confidential information and not be made available for public inspection at any time. Exhibit 7: Operational Description (Theory of Operation, Functional Description) Exhibit 9: Schematic Diagrams Exhibit 11: Flexent oneBST base station for TDMA 1900 MHz Networks; Operations, Administration, and Maintenance Manual These exhibits contain Lucent Technologies proprietary information that is considered to be trade secrets, with possible patents pending, and the property of Lucent Technologies, pursuant to the provisions of Part 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly proprietary to Lucent’s contracted manufacturer/supplier. The Operational Description (Theory of Operation, Functional Description) and the Schematic Diagrams, included in Exhibits 7 and 9, respectively, are highly proprietary and contain critical design information that can not be made available for public inspection. This information is proprietary to both Lucent and Lucent’s contracted manufacturer/supplier. The Flexent oneBST base station for TDMA 1900 MHz Networks; Operations, Administration, and Maintenance Manual document, included in Exhibit 11, is not furnished to the user, except under very exceptional and very limited circumstances. This manual contains highly proprietary circuit, equipment and architecture descriptions that must not be made available for public inspection. The cover/title page is explicitly labeled “Unpublished and Not for Publication”. Thank you for your consideration in this matter. Sincerely, Rudolph J. Pillmeier Technical Manager EMC Conformance Test Group, Whippany 2

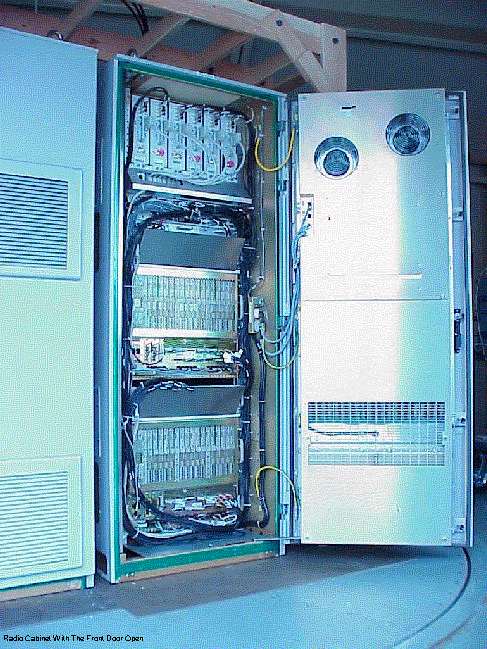

APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 4: External Photographs Amplifier Cabinet With the Door Open APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 4: External Photographs Radio Cabinet With the Door Open
1 APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 2: FCC ID LABEL SAMPLE AND LOCATION INFORMATION The FCC ID label that will be displayed on the PCS TDMA D-ICLA power amplifier shall be in accordance with the following drawing and displayed on the D-ICLA as shown: SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION ORIGINAL ART: USE FOR REPRODUCTION 408520245 FCC ID Label OneBTS Comcode: 408520245 Issue: 1 1 04-09-01 .010 mil Polycarbonate, matte finish over clear with 3M 468 Permanent Acrylic Adhesive MM Cho OneBTS/Dave Philips 408520245 04-09-01 Cho Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date:Comcode: Issue#: Client: Finish: Material: Date: Work#: 67 Whippany Road Whippany, New Jersey 07981-0903 Lucent Art & Media, Product Marking Group 973-386-7093 408520245 FCC ID Label 1 04-09-01 910098991 Text is 10 pt Helvetica Med Frutiger Roman 10pt Text is 10 pt Helvetica Med. Text is 10pt Frutiger Bold .06 Radius Typ. Graphics rear print Black on Lucent OS11148 Central Office White Lucent Technologies FLEXENT Power Amplifier 408520245 FCC ID : AS5CMP-45 2.62 1.00 Logo measures 12 pt in height FLEXENT Power Amplifier 408520245 FCC ID : AS5CMP-45
APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA Module Enclosure APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA Boards in The Enclosure APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA RF Board Top Side APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA RF Board Back Side APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA Power Supply Board Top Side APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs D-ICLA power Supply Board Back Side APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 5: Internal Photographs FCC Submission: Andrew Corporation, AYP KS-24595 Top Assembly drawing DLCronin, Tech Prog. Mgr. 05/16/01
APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 12: TUNING PROCEDURE The Lucent Technologies One BTS PCS D-ICLA Power Amplifier subject of this application under FCC ID: AS5CMP-45, is a power amplifier use in a PCS base station. There is no tuning procedure available to the to the end user.
1 APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 EXHIBIT 10: TEST REPORT This test report is to demonstrate the compliance of the D-ICLA manufactured by Andrew Corporation and sold by Lucent Technologies, filed under FCC ID: AS5CMP-45 is in full compliance with all requirements of the Rules of the Commission as specified in the Code of Federal Regulations (CFR), Title 47 – Telecommunication; Part 24, Subpart E – Broadband PCS; Section 24.238 - Emission Limits; effective October 1, 2000. All testing was performed in accordance with CFR 47, Part 2, Subpart J – Equipment Authorization Procedures; Revised January 31, 2001. All testing was performed in the Lucent Technologies, Whippany, NJ, compliance laboratory by F. E. Chetwynd and T. T. Aikin during the period July 2, and August xx, 2001. This test program was implemented in adherence to a test plan generated by M. P. Farina, in accordance with Lucent’s ISO-9001 Registration. All measurement instrumentation utilized were calibrated also in compliance with Lucent’s ISO-9001 Registration. The Whippany 3 & 10 Meter Open Area Test Site (OATS) is authorized by the Federal Communications Commission (FCC) under Registration Number: 90770, in compliance with the the requirements of Section 2.948 of the Rules of the Commission. The test set-up was a One BTS PCS cell base station, the signal source was a Lucent DRM TDMA transceiver FCC ID: AS5CMP-30. 2 APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 APPLICABLE FCC RULES AND INDUSTRY STANDARDS: The One BTS t1900 D_ICLA, subject of this application for certification under FCC ID: AS5CMP-45 demonstrated full compliance with CFR 47, Part 24, Subpart E – Broadband PCS, and Part 24.238 Emission Limits, effective October 1, 2000; following the test procedures and requirements specified in CFR 47, Part 2, Subpart J – Equipment Authorization Procedures; Revised January 31, 2001. The specific test procedures that are both required for and are applicable to the D-ICLA are: Part 2.1046 RF Power Output Part 2.1049 Occupied Bandwidth Part 2.1051 Spurious Emissions at the Antenna Terminals. Part 2.1053 Field Strength of Spurious Radiation Part 22.917 Emission Limitations for Cellular (d) Occupied Bandwidth emission mask for F1D: wideband data and TDMA (h) Measurement Procedure: required spectrum analyzer settings for resolution bandwidth Part 24 Personal Communications Services; Subpart E – Broadband PCS Part 24.238 Emission Limits ANSI C63.4-1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic in the Range of 9 kHz to 40 GHz; July 17, 1992. TIA/EIA/IS-138-A TDMA Cellular/PCS – Radio Interface- Minimum Performance Standards for Base Stations; July 1996. APPLICANT: LUCENT TECHNOLOGIESFCC ID: AS5CMP-45 PART 2.1046 MEASUREMENTS REQUIRED: RF POWER OUTPUT This is a measure of the transmit power linearity, and control, across the PCS frequency band from PCS Ch 2 (1930.08 MHz) to PCS CH 1998 (1989.96 MHz), at the One BTS t1900 PCS TDMA cabinet J4 transmit antenna terminal. The D-ICLA rated maximum output power is 60 Watts (47.8 dBm) average per single carrier, which corresponds to the rated output power level at the J4 transmit antenna terminal of 25 Watts (44.0 dBm) average. Note that all conducted emissions tests were performed at the J4 transmit antenna terminal with the single carrier power level adjusted to provide 60 Watts at the output terminal of the amplifier. The output power of the amplifier was adjusted to 60 Watts at the center channel of each frequency block. The signal source was the current production, cellular frequency, DRM Radio Unit, 3 previously authorized under FCC ID: AS5CMP-30. The TDMA carrier was modulated in all 3 time slots with a pseudo-random data stream. Current production PCS dual band transmit bandpass filters: A/D, B/E and F/C, were utilized in the tests covered by this report , plots of these filters are presented in Exhibit 3. Then, without making additional adjustments, the power level at each block edge frequency was measured and recorded. This was performed for each of the 6 PCS Frequency Blocks and for both amplifiers in the module. The FCC does not specify tolerance limits or values for the output power. However, IS-138-A, Section 3.2.1.2 recommends a range of +1dB to –3 dB of the nominal 47.78 dBm value. Similarly, the FCC does not specify what channels and how many channels are required for this procedure. Since Part 24.238 does require emissions to be measured at both the lower and upper frequency block edges for each PCS frequency block, the following table lists the channels/frequencies measured at the amplifier output and the antenna terminal, corresponding to PCS Frequency Blocks: A, D, B, E, F and C the high end channels for blocks B (1165), D (665), and E (1332) are not included because the radio can not meet the block edge requirements for occupied bandwidth if they are, our customers are told not to operate on these channels. The same frequencies are used for all conducted emission tests (i.e., Occupied Bandwidth) performed at the antenna terminal (J4) in this report. Single Carrier Power Measurement at the D-ICLA Output and at The Transmit Antrenna Terminal (J4) and the Corresponding Channel Frequency Assignment POWER CHART 60 WATT DICLA TX1 PCS BLOCKPCS CHANNEL PCS fPOWER IN POWER OUT ANTENNA POWER MHzdBmdBmdBm A21930.0810.4147.5944.47 A2501937.5210.4847.7844.84 A4981944.9610.3947.8644.66 D5021945.0810.0647.8844.59 D5831947.5110.0747.7844.71 D6641949.9410.0947.6744.74 D6651949.9710.1047.6744.75 B6681950.0610.1047.9544.64 B9171957.5310.0147.7844.4 B11641964.949.9647.6644.19 B11651964.979.9547.6544.16 E11681965.069.9447.8544.09 E12501967.529.9647.7843.85 E13311969.959.9447.6743.9 E13321969.989.9547.6443.89 F13351970.0710.0647.8443.99 F14171972.5310.0547.7844.13 4 F14981974.969.9947.7644.02 C15021975.089.9647.7344.04 C17501982.529.8047.7843.9 C19981989.969.6747.6243.61 RESULTS: The power levels me…
