AS5ONEBTS-01UMTS CDMA Radio (UCR-850)

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 subject: Request for Confidentiality for FCC ID: AS5ONEBTS-01 date: September 16, 2002 from: Rudolf J. Pillmeier 67 Whippany Road Telephone: 973 386 3837 E-Mail [email protected] Sid Sanders – President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders Re: Request for Confidentiality for FCC ID: AS5ONEBTS-01 Dear Mr. Sanders On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5ONEBTS-01 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4 Section 2.1033(c) (8) Active Circuit Devices Drive Levels 2. Exhibit 5 Section 2.1033(c) (10) Complete Circuit Diagrams 3. Exhibit 6 Section 2.1033(c) (3) Instruction Book 4. Exhibit 7 Section 2.1033(c) (9) Tune-Up procedure 5. Exhibit 8 Section 2.1033(c) (10) Circuitry for determining frequency 6. Exhibit 9 Section 2.1033(c) (11) Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly propriety to Lucents contracted manufacturer/supplier. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 Technical Manager EMC Conformance Test Group, Whippany

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Timco Engineering Inc. FCC Authorized Telecommunications Certification Body (TCB) Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 September 16, 2002 Sid Sanders - President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corporation Cellular Band UMTS CDMA transceiver, henceforth UCR-850, FCC ID: AS5ONEBTS-01. The UCR-850 is used in Lucent Technologies Corp FLEXENT  OneBTS Land Station Cellular systems using Code Division Multiple Access (CDMA) technology, for use in Domestic Cellular Communication Services. This application for the UCR-850 under FCC ID: AS5ONEBTS-01, is for operation in the domestic extended cellular band with a CDMA signal.The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies, Inc. Equipment Identification AS5ONEBTS-01 Rules Part Number22 (H) Frequency Range869 -894 MHz Extended Cellular Band Output Power-24.8 to +5.2 dBm/carrier; (1-3 carriers) Varied By Software Frequency Tolerance+/- 0.05 ppm Emission Designator1M23F9W The UCR-850 under FCC ID: AS5ONEBTS-01 is a transceiver designed to be operated and marketed with Lucent Technologies CDMA transmit equipment which was either Type Accepted or Product Certified in accordance with Parts 2 and 22 of the code. When utilized in normal cellular base station operation, the UCR-850 will be operated with a FCC Product Certified power amplifier. A post transmit suppression filter will be used when necessary to maintain performance within the parameters as previously filed with the FCC. The UCR-850 will undergo formal evaluation with every cellular amplifier with which it is marketed. The overall performance of the integrated equipment shall continue to be compliant with FCC requirements. FCC Class II changes as specified in “The Code” will be used for radio changes in the future. FCC Class I permissive change evaluations will be processed for all of the integrated products. As per prior agreement with the FCC, degradations in performance shall be reported. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. The UCR-850 is designed to transmit one, two, or three contiguous 1.23 MHz CDMA channels. The UCR-850, at its output, is typically operated over the power range of -30 dBm to 0.0 dBm for each of the 1.23 MHz CDMA carriers in a single, dual, or three channel configuration. The total power is limited to +5.2 dBm per channel (+10 dBm total integrated power for 3 carriers) for each of the 1.23 MHz CDMA carriers in a single, dual, or three channel configuration and is the level for this application. The actual power level delivered by the UCR-850 to the transmit amplifier is under the software control of the Mobile Switching Center of the local Cellular system. The output of this unit in normal base station use, is always subjected to additional signal amplification and post amplification filtering as required for spurious control prior to connection to the (J4) antenna connector. The software control only allows for adjustment in power necessary to provide the rated maximum of the co-configured transmitter The evaluation of the "Spurious emissions at antenna terminals" (Sec. 2.1051) were made with a mLAM/AS5ONEBTS-03 and its associated filters. The mLAM/AS5ONEBTS-03 was also used for the "Field strength of spurious radiated" (Sec. 2.1053) measurements. Wherever possible the test procedures defined in CFR 47 Part's 2(J) and 22(H) were followed. Because of the "state of the art" nature of this equipment some of the characteristics cannot be tested using the requirements in CFR 47, so for those characteristics ETSI/ANSI-IS97 was used to define the tests and evaluation criteria used in this application. This application for UCR-850/FCC ID:AS5ONEBTS-01, is for all of the extended Cellular 850 band. Since the application encompasses the single, dual and three carrier configurations it presents the required test data for each of those operational configurations. The UCR-850/ AS5ONEBTS-01 is produced by Lucent Technologies Incorporated solely for incorporation into Lucent Technologies Inc. products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] cc/FCC Coordinator APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. FCC Coordinator Primary contact for adminstrative and technical requests Theresa I. Deaver Compliance Manager Lucent Technologies Room:4C-638 101 Crawfords Corner Rd. Holmdel, NJ 07733-3030 Phone 732- 332-6072 Email: [email protected] Filing Engineer Daniel Donohue Phone 973-386-2504 email: [email protected] APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. TABLE OF CONTENTS Exhibit 1Section 2.911 (d)Qualifications and Certifications Exhibit 2Section 2.1033(c) (1,2)Manufactures, FCC Identifier Exhibit 3Section 2.1033(c) (4,5,6,7)Emission, Freq. Range, Power Range,…

Text truncated - open the document above for the full version.

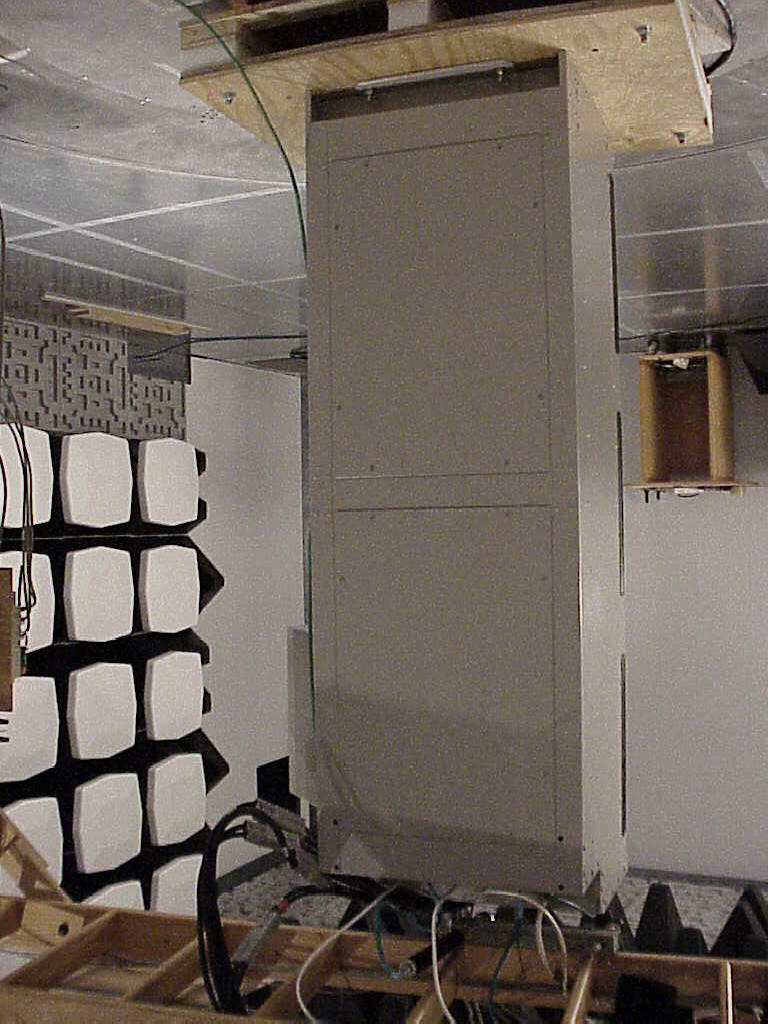

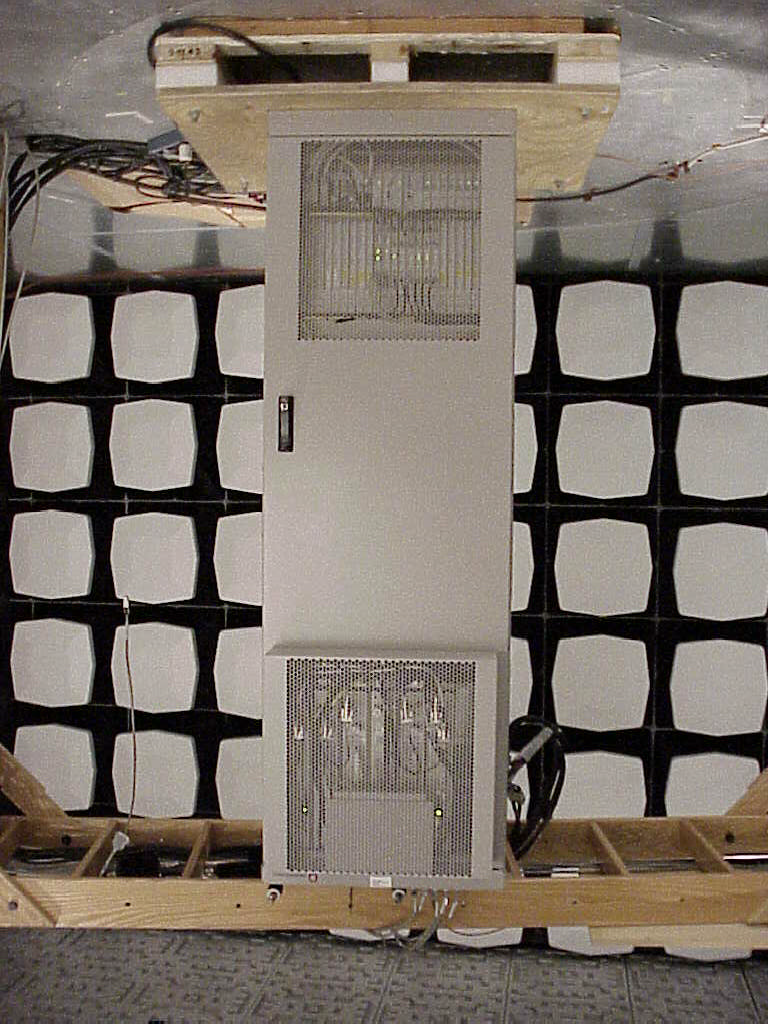

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19a: External Photographs SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital external photographs of the UCR-850 / FCC ID: AS5ONEBTS-01 showing the construction and layout are attached along with those showing the installation of the UCR-850 in the FLEXENT  OneBTS 4.0 Cellular 850 Indoor Modular Cell. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Front) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Back) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Top) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Bottom) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Left) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 (Right) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Front) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Rear) APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Open Door)

Applicant: Lucent Technologies FCC ID: AS5ONEBTS-01 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18 SECTION 2.1033(c)(11) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label information for the UCR-850 / FCC ID: AS5ONEBTS-01 is attached along with a JPEG photograph showing the location of the label. UMTS CDMA Radio (850) 848919346 PART NO : FCC ID : BNJ28 AS5ONEBTS-01 UMTS CDMA Radio (850) 848919346 PART NO : FCC ID : BNJ28 AS5ONEBTS-01 2 2 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date: Comcode: Issue#: Client: Finish: Material: Date: Work#: Graphics rear print Black on Lucent OS11150 Central Office White. Serigraph Inc. 3801 E. Decorah Road West Bend, Wisconsin 53095 ■ ■ Graphic Services, Product Marking Group ■ 973.702.2325 ■ 919346 FCC Label jr sj sj Jaime Reinoso PM-0802-160 9/3/02 9/13/02 9/13/02 9/10/02 848919346 Flexent CDMA Microcell - J.Reinoso 919346 FCC Label Flexent CDMA Microcell Comcode #: 848919346 Issue #: 2 SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 1.52 Radius Typical Text is 10pt Helvetica Med. Text is 8pt Helvetica Med. Logo is 12 pt. in Height Text is 10pt Frutiger Roman ORIGINAL ART: USE FOR REPRODUCTION All Dims shown are in Millimeters .010 Polycarbonate, matte finish over clear with combination .0045 to .005 inch acrylic adhesive 1.5 pt. Rule 66.55 25.4 UMTS CDMA Radio (850) 848919346 PART NO : FCC ID : BNJ28 AS50NEBTS-01 UMTS CDMA Radio (850) 848919346 PART NO : FCC ID : BNJ28 AS50NEBTS-01 1 1 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date: Comcode: Issue#: Client: Finish: Material: Date: Work#: Graphics rear print Black on Lucent OS11150 Central Office White. Serigraph Inc. 3801 E. Decorah Road West Bend, Wisconsin 53095 ■ ■ Graphic Services, Product Marking Group ■ 973.702.2325 ■ 919346 FCC Label jr sj sj PM-0802-160 9/3/02 9/3/02 9/4/02848919346 Flexent CDMA Microcell - J.Reinoso 919346 FCC Label Flexent CDMA Microcell Comcode #: 848919346 Issue #: 1 SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION 1.52 Radius Typical Text is 10pt Helvetica Med. Text is 8pt Helvetica Med. Logo is 12 pt. in Height Text is 10pt Frutiger Roman ORIGINAL ART: USE FOR REPRODUCTION All Dims shown are in Millimeters .010 Polycarbonate, matte finish over clear with combination .0045 to .005 inch acrylic adhesive 1.5 pt. Rule 66.55 25.4 APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 18: FCC Label Location FCC ID Label Location for UCR-850 (Cellular) under FCC ID: AS5ONEBTS-01

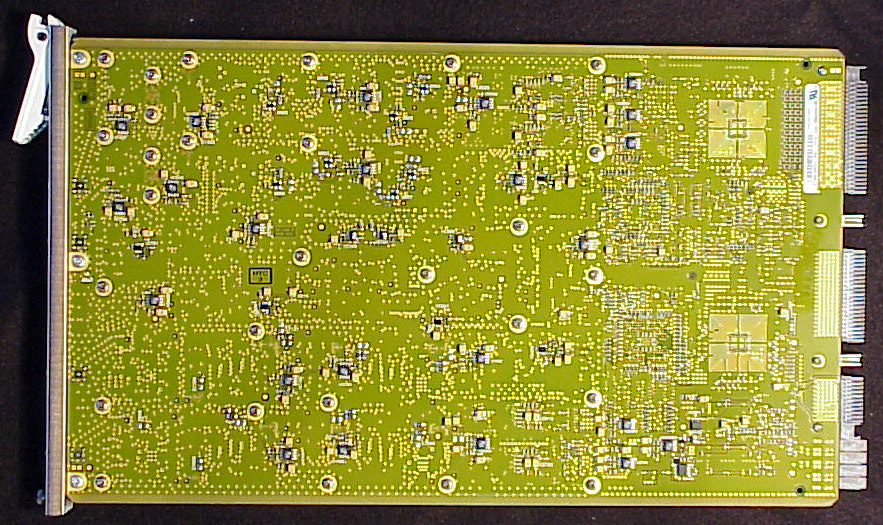

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19b: Internal Photograph SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital internal photograph of the UCR-850 / FCC ID: AS5ONEBTS-01 showing the construction and layout are attached. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photograph of UCR-850 Circuit Board

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 11:Listing of Required Measurements SECTION 2.1033(c)(14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The lowest clock frequency in the Flexent OneBTS Cellular Modular Cell 4.0 is the 10 MHz rubidium reference oscillator. Conducted spurious measurements were performed over the range of 10 MHz to 10GHz which is above the tenth harmonic of the transmit frequency range. The following pages include the data required for the Product Certification authorization of the UCR- 850 / FCC ID: AS5ONEBTS-01, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12Section 2.1046Measurement of Radio Frequency Power Output Exhibit 13Section 2.1047Measurement of Modulation Characteristics Exhibit 14Section 2.1049Measurement of Occupied Bandwidth Exhibit 15Section 2.1051Measurement of Spurious Emissions at Antenna Exhibit 16Section 2.1053Field Strength of Spurious Radiation Exhibit 17Section 2.1055Measurement of Frequency Stability APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 12:Measurement of Radio Frequency Power Output SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the UCR-850/ AS5ONEBTS-01 is on the following page. Measurements were made respectively at each frequency where Occupied Bandwidth measurements were performed. The use of the UCR-850 requires that the J4 power level be calibrated for the specific channel of use. The test configuration, Figure 12a, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the upper and lower Block edges and at the center channel for each Block. The UCR-850 has a maximum power output at its terminals of 0.0033 Watts (5.2 dBm) for a single carrier, 0.0066 Watts (8.2 dBm) for two carriers (5.2 dBm per carrier), and a maximum power output of 0.010 Watts (+10.0 dBm) for three carriers (5.2 dBm per carrier). The steady state range of power adjustment at the output is 30 dB. The minimum power is therefore 30 dB below the maximum (-24.8 dBm) for a single carrier across the Cellular down-link Band (869.00-894.00 MHz). The UCR-850 output signal parameters used for testing is defined in Table 12.1 below. For each measurement frequency the channel and power was set in the manner in which the equipment would be installed in actual use. The actual power level necessary for operation is dependant upon a number of factors including number of carriers, operating frequency amplifier gain and filter loss. The spectral performance at that power level for each specific frequency of interest was verified. The attenuation range was also verified. The maximum output power was verified over the Cellular down-link Band and is tabulated in Table 12.3. The specific Frequencies, channels and set power level was also documented on each "Occupied Bandwidth" data sheet for the typical integrated product. When operated with a Lucent Technologies transmit power amplifier, the overall integrated transmitter will maintain its rated output power with an accuracy of +2 / -4 dB. Applied Signal The applied signal met the recommended characteristics per ANSI/TIA/EIA-97-D section 6.5.2 as defined below. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2-7Code channel W 0 128 Sync10.0471-13.3Code channel W 32 64 ; always 1/8 rate Paging10.1882-7.3Code channel W 1 64 ; full rate only Traffic60.09412-10.3Variable code channel assignments; full rate only TABLE 12.1 Base Station Test Model, Nominal for Main Path APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 12 continued TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Transmit Diversity Pilot 10.2-7Code channel W 16 128 Traffic60.09412-10.3Variable code channel assignments; full rate only TABLE 12.2 Base Station Test Model, Nominal for Transmit Diversity Path RESULTS: The UCR-850 / AS5ONEBTS-01 was configured in the test setup shown in Figure 12A. When measured at each of the Cellular channels tested the UCR-850/ AS5ONEBTS-01 delivered a minimum of 0.0033 Watts per carrier (5.2 dBm/carrier) +2/-0 dB when measured at its output connection. This data is recorded on the Occupied Bandwidth Data Sheets for all of the Cellular Channels tested and these include the “Left edge”, and “Right Edge” channels for each frequency Band. The UCR-850 maximum transmit power compliance data verified over the Cellular down-link band is shown in table 12.3 below. The table shows the channel(s), number of carriers, measured power per carrier, and the total UCR-850 transmit power. The compliance status for Occupied Bandwidth and Conducted Spurious Emissions is also shown in table 12.3. Transmit Channel(s) Number of Carriers Measured Carrier Power Level Measured Total Power Level Occupied Bandwidth Conducted Spurious Emissions 10191+5.2 dBm+5.2 dBmCompliantCompliant 371+5.2 dBm+5.2 dBmCompliantCompliant 3841+5.2 dBm+5.2 dBmCompliantCompliant 384.4252+5.2 dBm+8.2 dBmCompliantCompliant 384. 425, 4663+5.2 dBm+10.0 dBmCompliantCompliant 7461+5.2 dBm+5.2 dBmCompliantCompliant 7701+5.2 dBm+5.2 dBmCompliantCompliant 7771+5.2 dBm+5.2 dBmCompliantCompliant TABLE 12.3 UCR-850 Maximum Transmit Power Compliance Data APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-01 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 12 continued Measurement Equipment used in Figure 12 For Measurement of RF Power EquipmentDescription P…
