AS5ONEBTS-03Linear Amplifier Module - mLAM

Nokia of America Corporation
Linear Amplifier Module - mLAM - FCC ID AS5ONEBTS-03 - Nokia of America Corporation
Click to zoom

Application Details

Equipment Class
AMP - Amplifier
Date of Grant
Jul 14, 2002
Application Purpose
Original Equipment
Date of Application
Jul 14, 2002
Equipment Note
Linear Amplifier Module - mLAM
Frequency Range
869.00000000 - 894.00000000
Company
Nokia of America Corporation
Country
United States

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 subject: Request for Confidentiality for FCC ID: AS5ONEBTS-02 date: July 10, 2002 from: Rudolf J. Pillmeier 67 Whippany Road Telephone: 973 386 3837 E-Mail [email protected] Sid Sanders – President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Request for Confidentiality for FCC ID: AS5ONEBTS-03 Dear Mr. Sanders On behalf of the Lucent Technologies Network Wireless System Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5ONEBTS-03 be maintained as confidential information and not be made available for public inspection at any time. Exhibit 4aSection 2.1033(c) (8) Active Devices Drive Levels and Circuit Description Exhibit 4bSection 2.1033(c) (8) Block Diagrams Exhibit 5Section 2.1033(c) (10) Complete Circuit Diagrams (Schematics) Exhibit 6Section 2.1033(c) (3) Instruction Book Exhibit 7Section 2.1033(c) (9) Tune-Up procedure Exhibit 8Section 2.1033(c) (10) Circuitry for determining frequency Exhibit 9Section 2.1033(c) (11) Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly propriety to Lucent Technologies contracted manufacturer /supplier. Exhibits 6,7,8 and 9 are virtually identical to the Exhibits granted as confidential by the FCC in filings for several Lucent Technologies filings including AS5CMP-35, 28 and 29. The information presented in Exhibit 7 and 8 details competitive advantage information. The material in Exhibits 4, 5, 6 and 7 is available only to Lucent employees and customers who have signed non-disclosure agreements. The document details the product design, methodologies and the system architecture. This information is not available to the general public and is sensitive proprietary information. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager EMC Conformance Test Group, Whippany

Cover Letter(s)

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1 Timco Engineering Inc. FCC Authorized Telecommunications Certification Body (TCB) Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 July 10, 2002 Sid Sanders - President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corp. Linear Amplifier Module, Model m/ Multi Carrier Amplifier, henceforth mLAM, FCC ID: AS5ONEBTS-03. This mLAM is used in Lucent Technologies Corp FLEXENT  Land Station Cellular system using Code Division Multiple Access (CDMA) technology, for use in Domestic Cellular Communication Services. This application for the mLAM under FCC ID: AS5ONEBTS-03, is for operation in the extended Cellular 850 bands with a CDMA signal. The mLAM is a nominally 40 Watt Class A CW amplifier designed to provide 20 watts of average long term power per carrier at the antenna connection port. The mLAM is configurable in a single, dual or three amplifier “Multi Carrier Amplifier” (MCA) with external passive signal combiners and splitters. The mLAM/MCA typically provides 20 watts per carrier in each of the MCA configurations (single, dual or three amplifier) with total RF Power of 20, 40 or 60 watts for each of the respective configurations. Under the dynamics conditions of CDMA service a maximum of 25 watts per carrier (75 watts/3 carriers) will be available at the antenna port and this value is used for this filing. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. ManufacturerLucent Technologies, Inc. Equipment Identification AS5ONEBTS-03 Rules Part Number22 (H) Frequency Range869–894 MHz Extended Cellular Band Output Power0.040 to 25.0 Watts/carrier - 75 Watts Total: Varied By Software Frequency Tolerance+/- 0.75 ppm Emission Designator1M25F9W The unit is called the Cellular 850 Linear Amplifier Module, model m. It is designed to the limitations specified in Part 22 subpart E. Whenever possible, the test procedures defined in CFR 47 Parts 2 and 22(H) were followed. Because of the “state of the art” nature of this equipment, some of the APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 2 characteristics cannot be tested using the requirements in CFR 47. For those characteristics ETSI/ANSI-IS97 were used to define the tests and evaluation criteria used in this application. The mLAM rating at the amplifier output has a listed power output of 0.040 to 40.0 watts. Losses internal to the cabinet and the Multi Carrier Amplifier hardware will limit the long-term average output power to 20.0 watts/ carrier when measured at the (J4) antenna connector. Under the dynamics conditions of CDMA service a maximum of 25 watts per carrier will be available at the antenna port and this is the value used for this filing. The total power is limited by the latter value is the level for this application. The actual power levels delivered by the mLAM are under the software control of the Mobile Switching Center of the local Cellular system. The software control only allows for adjustment in power up to the 20.0 watt maximum with the 25 watt value achieved during overload conditions. This filing to operate the mLAM/ AS5ONEBTS-03 is based upon signals supplied to the mLAM by a Lucent Technologies Inc. CDMA Baseband Radio 850 (CBR-850 henceforth CBR), FCC ID: AS5CMP-28, granted 19 April 1999 for the extended Cellular 850 band. This application for AS5ONEBTS-03, is for all of the extended Cellular 850 band. Since the application encompasses the single, dual and three carrier configurations it presents the required test data for each of those mLAM/ MCA operational configurations. The mLAM/ AS5ONEBTS-03 data presented in this filing represents a design produced by Andrew Corporation for Lucent Technologies Inc. solely for incorporation into Lucent Technologies Inc. products. The CBR/ AS5CMP-28 is a Lucent Technologies Inc. designed and manufactured products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, R.J.Pillmeier Technical Manager Wireless FCC Compliance Group Phone: 973-386-3837 email: [email protected] Att FCC Form 731 w/ Attachments Primary Contact Theresa I. Deaver Phone: (732) 332-6072 email: [email protected] APPLICANT: Lucent Technologies Inc. -3 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 3 TABLE OF CONTENTS Exhibit 1Section 2.911 (d)Qualifications and Certifications Exhibit 2Section 2.1033(c) (1,2)Manufactures, FCC Identifier Exhibit 3Section 2.1033(c) (4,5,6,7)Emission, Freq. Range, Power Range, Maximum Power Exhibit 4Section 2.1033(c) (8,10) Active Devices Drive Levels and Circuit Description Exhibit 5Section 2.1033(c) (10) Complete Circuit Diagrams Exhibit 6Section 2.1033(c) (3) Instruction Book Exhibit 7Section 2.1033(c) (9)Tune-Up procedure Exhibit 8Section 2.1033(c) (10) Circuitry for determining frequency Exhibit 9Section 2.1033(c) (10)Circuitry for Suppression of Spurious Exhibit 10Section 2.1033(c) (13)Description of Modulation System Exhibit 11Section 2.1033(c) (14)Listing of Required Measurements Exhibit 12Section 2.1046Measurement of Radio Frequency Power Output Exhibit…

Text truncated - open the document above for the full version.

External Photos

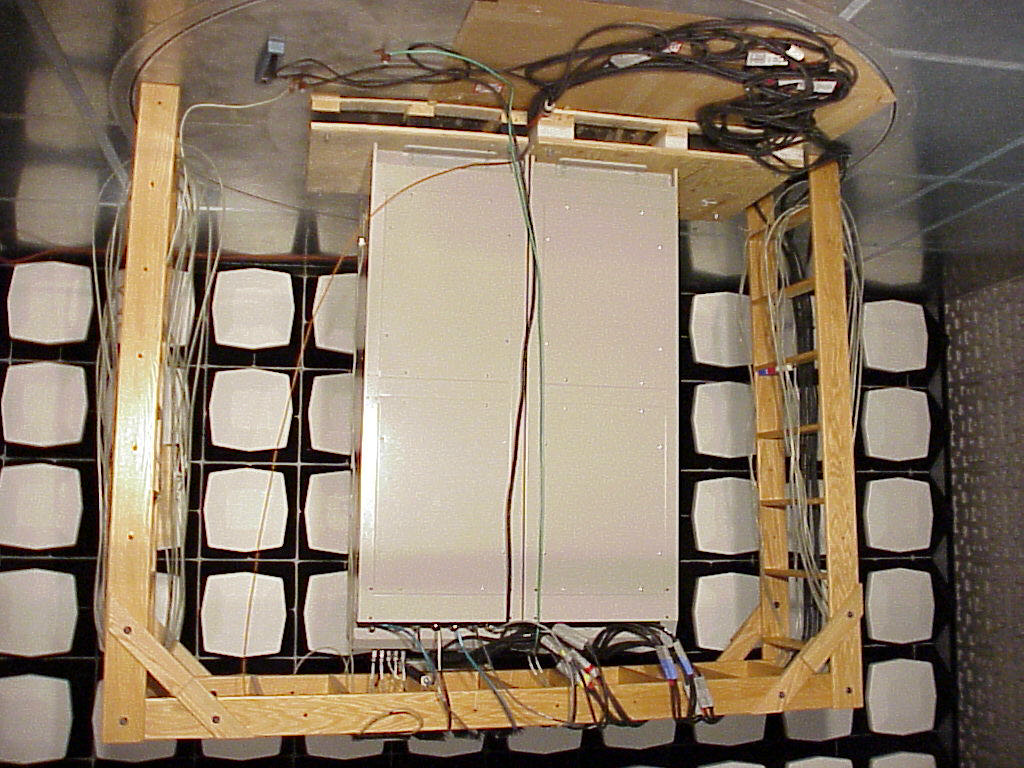

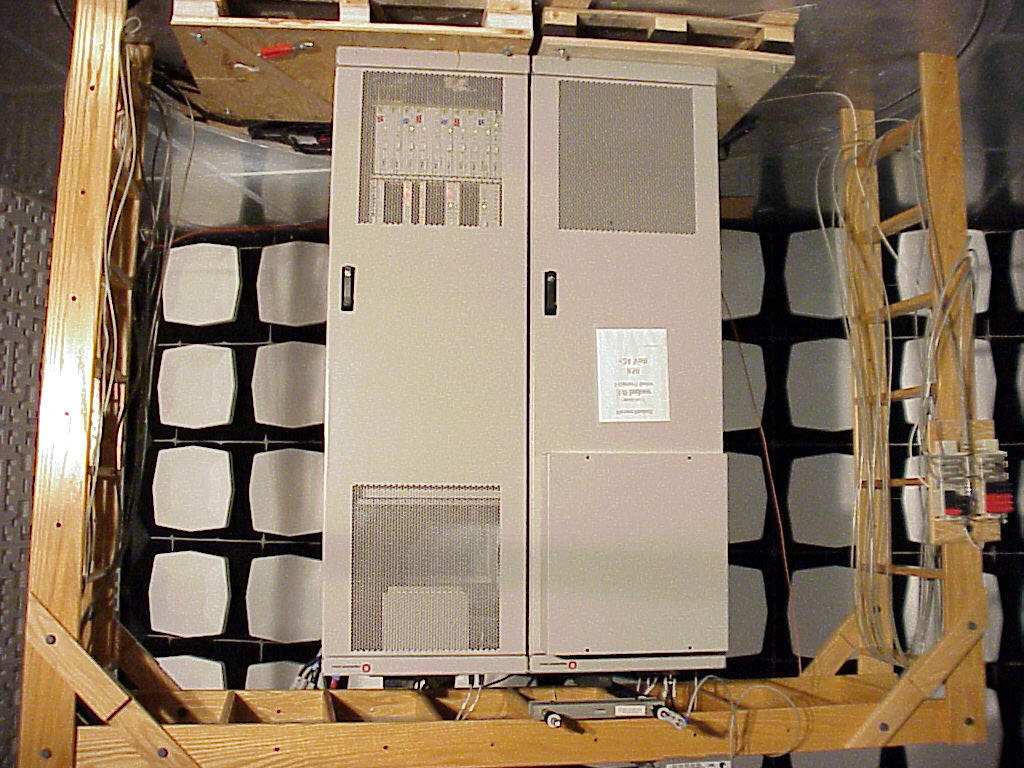

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-1 Exhibit 19a : External Photographs SECTION 2.1033 (c) (12) Photographs (8"x lO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital external photographs of the mLAM /FCC ID: AS5ONEBTS-03 showing the construction and layout are attached along with those showing the installation of the mLAM in the Flexent ONEBTS 3..0 Indoor Modular Cell. . APPLICANT: Lucent Technologies Inc. -2 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-2 Exhibit 19: Photograph mLAM (Front) APPLICANT: Lucent Technologies Inc. -3 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-3 Exhibit 19: Photograph mLAM (Back) APPLICANT: Lucent Technologies Inc. -37 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-37 Exhibit 19: Photograph of mLAM (Top) Exhibit 19: Photograph of mLAM (Bottom) APPLICANT: Lucent Technologies Inc. -38 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-38 Exhibit 19: Photograph of mLAM (Side A) APPLICANT: Lucent Technologies Inc. -39 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-39 Exhibit 19: Photograph of mLAM (Side B) APPLICANT: Lucent Technologies Inc. -44 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-44 Exhibit 19: Photograph of 3.0 Modular Cell and Growth Frame with mLAM (Front) APPLICANT: Lucent Technologies Inc. -45 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-45 Exhibit 19: Photograph of 3.0 Modular Cell and Growth Frame with mLAM (Rear) APPLICANT: Lucent Technologies Inc. -46 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions.19-46 Exhibit 19: Photograph of 3.0 Modular Cell and Growth Frame with mLAM (Open Door)

ID Label/Location Info

Applicant: Lucent Technologies FCC ID: AS5 ONEBTS-03 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18: Identification Label SECTION 2.1033(c)(11) Drawing of Identification Label A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label for the mLAM / FCC ID: AS5ONEBTS-0 3 is attached alond with a JPEG photograph showing the location of the label. Flexent Power Amplifier 848891412 FCC ID : AS5ONEBTS-03 PART NO : KS24646-L1 KS24646-L5 Flexent Power Amplifier 848891412 FCC ID : AS5ONEBTS-03 PART NO : KS24646-L1 KS24646-L5 1 1 Title: Designer: Drawn: Checked: Approved: Job No.: Date: Date: Date: Comcode: Issue#: Client: Finish: Material: Date: Work#: Logo is 10 pt. 1.00 1.5 pt. Rule Text is 9 pt Frutiger Roman .06 Radius Typical Text is 8 pt Helvetica Bold Text is 8 pt Helvetica Bold 2.00 SPEC DRAWING IS FOR REFERENCE ONLY: DO NOT USE FOR REPRODUCTION ORIGINAL ART: USE FOR REPRODUCTION Flexent Modcell/Dave Philips 5 /17/02 848891412 FCC Label dbp dbp DBP Regular White smudgeproof Kimdura with permanent p.s. adhesive Graphics print Black 5/17/02 848891412 FCC Label Flexent Modcell Comcode No.: 84891412 Issue No.: 1 APPLICANT: Lucent Technologies Inc. -18-3- FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 18 FCC Label Location Location of FCC ID Label mLAM FCC ID: AS5ONEBTS-03

Internal Photos

APPLICANT: Lucent Technologies Inc. -19b-1 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-1 Exhibit 19b : Internal Photographs SECTION 2.1033 (c) (12) Photographs (8"x lO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital internal photographs of the mLAM /FCC ID: AS5ONEBTS-03 showing internal construction and layout are attached. APPLICANT: Lucent Technologies Inc. -19b-2 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-2 Exhibit 19: Photograph of mLAM Circuit Board (Front) APPLICANT: Lucent Technologies Inc. -19b-3- FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-3 Exhibit 19: Photograph of mLAM Circuit Board (Rear) APPLICANT: Lucent Technologies Inc. -19b-4- FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-4 Exhibit 19: Photograph of mLAM Processor Circuit Board (Front) APPLICANT: Lucent Technologies Inc. -19b-5 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. – Proprietary ANDREW Corporation – Proprietary Use pursuant to Company Instructions. 19-5 Exhibit 19: Photograph of mLAM Processor Circuit Board (Front)

Test Report

APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 11:Listing of Required Measurements SECTION 2.1033(c)(14) Listing of Required Measurements The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The lowest clock frequency in the Flexent Cellular 850 OneBTS Modular Cell 3.0 is the 10 MHz rubidium reference oscillator. Conducted spurious measurements were performed over the range of 10 MHz to 10GHz which is above the tenth harmonic of the transmit frequency range. The following pages include the data required for the Product Certification authorization of the mLAM / FCC ID: AS5ONEBTS-03, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12Section 2.1046Measurement of Radio Frequency Power Output Exhibit 13Section 2.1047Measurement of Modulation Characteristics Exhibit 14Section 2.1049Measurement of Occupied Bandwidth Exhibit 15Section 2.1051Measurement of Spurious Emissions at Antenna Exhibit 16Section 2.1053Field Strength of Spurious Radiation Exhibit 17Section 2.1055Measurement of Frequency Stability APPLICANT: Lucent Technologies Inc. -19 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 19 Exhibit 12:Measurement of Radio Frequency Power Output SECTION 2.1046 Measurement of Radio Frequency Power Output The test arrangements used to measure the radio frequency power output of the mLAM/ AS5ONEBTS-03 Linear Amplifier Module, Model m/ Multi Carrier Amplifier is on the following page. Measurements were made respectively at each frequency where Occupied Bandwidth measurements were performed. The use of the mLAM is for one to three CDMA carriers. This requires that the J4 power level be calibrated for the specific channel of use. The test configuration, Figure 12a, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the upper and lower Block edges and at the center channel for each Block. The mLAM system has a maximum power output at the antenna terminals of 25.0 Watts (43.98 dBm) +2 / -4 dB, it also has a minimum power output at the antenna terminals of 0.010 Watts (10.01 dBm +2 / -4 dB, across the extended Cellular Band ( 869.00-894.00 MHz). The signal applied to the mLAM is defined in Table 12.1. The power was reset to a minimum of 25.0 Watts at each measurement frequency to verify the spectral performance at that power level at each specific frequency of interest. The attenuation range was also verified. The specific Frequencies and channels and set power level was documented on each "Occupied Bandwidth" sheet. Applied Signal The applied signal, from a CBR FCC ID: AS5CMP-28, met the recommended characteristics per ANSI/TIA/EIA-97-D section 6.5.2 as defined below. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot10.2-7Code channel W 0 128 Sync10.0471-13.3Code channel W 32 64 ; always 1/8 rate Paging10.1882-7.3Code channel W 1 64 ; full rate only Traffic60.09412-10.3Variable code channel assignments; full rate only TABLE 12.1 Base Station Test Model, Nominal for Main Path TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Transmit Diversity Pilot 10.2-7Code channel W 16 128 Traffic60.09412-10.3Variable code channel assignments; full rate only TABLE 12.2 Base Station Test Model, Nominal for Transmit Diversity Path APPLICANT: Lucent Technologies Inc. -20 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 20 Exhibit 12 continued RESULTS: The mLAM/ AS5ONEBTS-03 was configured in the test setup shown in Figure 12A. For each of the Cellular 850 channels tested the mLAM/ AS5ONEBTS-03 delivered a minimum of 25.0 Watts +2/-0 dB when measured at the J4 output connection. This data is recorded on the Occupied Bandwidth Data Sheets for “Left edge” and “Right Edge” of each frequency Band. Data is presented for the entire extended Cellular Band. Note: The mLAM/ AS5ONEBTS-03 is a multi channel linear amplifier and its maximum power level is verified at each cell site during setup of the Modular Cell and installation of the CBR/FCC ID: AS5CMP-28. Table 12.0 Measurement Equipment used in Figure 12 For Measurement of RF Power Equipment Description Product Frame: Cellular Indoor Flexent OneBTS Modular Cell 3.0 with 9 CBR’s and 9 mLAMs CBR: CDMA Baseband Radio (FCC ID: AS5CMP-28) mLAM: Linear Amplifier Module, Model m (FCC ID: AS5ONEBTS-03) Transmit Filter: Cellular Band Transmit Filter appropriate for the investigated Band Directional Coupler: HP 778D and 772D Dual Directional Coupler Power Meter: HP E4419A Power Meter with EPC-E18A Power Head Test Cables: Low loss test cables custom mfg. for Lucent FCC Laboratory Plotter: HP Model 7470A Plotter Printer: HP Model 4500DN Printer Attenuator, Variable HP 8494B and 8495B DC-18 GHz digital attenuators Attenuator, Fixed Weinschel Corp DC-18 GHz, various values Low & High Pass Filters: Trialithic, Various 10 MHz-20 GHz, Custom manufactured for Lucent FCC Laboratory Spectrum Analyzer: Rohde & Schwarz ESI EMI Test Receiver or Rohde & Schwarz FSEM Spectrum Analyzer Code Domain Analyzer H-P and Agilent E4406A VSA Series Transmitter Tester Computer Controller: EG Technology, Custom Mfg for FCC Laboratory Intel Pentium III & IV, 550 and 1600 MHz controllers with TILE  software APPLICANT: Lucent Technologies Inc. -18 - FCC ID: AS5ONEBTS-03 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 18 Exhibit 12 continuedFigure 12A RF Power Test Configuration Figure 12A/14A/15A Test Configuration For RF Power, Occupied Bandwidth and Conducted Spurious Rohde & Schwartz ESMI, FSEM or ESI Receiver/ Spectrum Analyzer Power Sensor All paths Calib…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Raymond J. Johnson(Technical Manager)
[email protected]732-881-6002Fax: NA

Test Firm

Lucent TechnologiesRudolf Pillmeier
[email protected]973-386-3837Fax: 973-386-4344

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
122.901(d)869 MHz - 894 MHz25 WF9WAmp
Confidentiality
Long Term
Grant Notes
Conducted output power is for a single carrier. For multi-carrier operation (1 to 3 carriers), the output power is combined to provide a maximum of 25 Watts per carrier at the antenna connector. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
