AS5ONEBTS-10UMTS-CDMA TRANSCEIVER SYSTEM (1900)

1 1 APPLICANT: Lucent Technologies, Inc. FCC ID: AS5ONEBTS-10 67 Whippany Road Subject: REQUEST FOR CONFIDENTIALITY Whippany, NJ 07981 for FCC ID: AS5ONEBTS-10, Covering a Broadband PCS UMTS/W-CDMA Transceiver Rudolf J. Pillmeier System. Telephone: 973-386-3837 Facsimile: 973-386-3116 E-Mail: [email protected] Timco Engineering, Inc. March 18, 2005 849 N. W. State Road 45 P. O. Box 370 Newberry, Florida 32669 Dear Sid Sanders: On behalf of Lucent Technologies, I hereby request that the following exhibits, included in this Application for Certification, under FCC ID: AS5ONEBTS-10, covering the Lucent UMTS Flexent® OneBTS™ W1900M wireless base station transceiver system be maintained as confidential information and not be made available for public inspection at any time. Exhibit 5: Internal Photographs Exhibit 7: Operational Description (Theory of Operation, Functional Description) Exhibit 8: Block Diagrams Exhibit 9: Schematic Diagrams Exhibit 11: UMTS Flexent® OneBTS™ Macrocell +24V Indoor Operation, Administration and Maintenance Exhibit 13: Parts List, if Applicable These exhibits contain Lucent Technologies proprietary information that is considered to be trade secrets, with possible patents pending, and the property of Lucent Technologies, pursuant to the provisions of Part 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly proprietary to Lucent’s contracted manufacturer/supplier. Exhibits 5,7, 8, 9, and 13 are highly proprietary and contain critical design information that can not be made available for public inspection. This information is proprietary both to Lucent Technologies and to Lucent’s contracted manufacturer/supplier. The UMTS Flexent® OneBTS™ Macrocell +24V Indoor Operation, Administration and Maintenance document, included in Exhibit 11, is not furnished to the user, except under very exceptional and very limited circumstances. This manual contains highly proprietary circuit, equipment and architecture descriptions that must not be made available for public inspection. The cover/title page is explicitly labeled “Unpublished and Not for Publication”. Thank you for your consideration in this matter. Sincerely, Rudolf J. Pillmeier Technical Manager FCC/EMC Compliance Test Group Whippany, NJ

1 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 4: EXTERNAL PHOTOGRAPHS Lucent UMTS Flexent® OneBTS™ W1900M Wireless Base Station, incorporating the PCS UMTS- CDMA Multi-Carrier CDMA Radio (MCR1900), BNJ64; the P2PAM power amplifier, and the 60 MHz wideband, low loss, Dual Duplex (DDpx) bandpass filters configured for 3S1C operation at 40 Watts/Carrier is shown in the following photographs. View: UMTS1900 Equipment Frame Front and Left Side View. 2 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 4: EXTERNAL PHOTOGRAPHS View: UMTS1900 Equipment Frame Front and Right Side View with Door Removed 3 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 4: EXTERNAL PHOTOGRAPHS View: UMTS1900 Equipment Frame Front View Closeup, Showing the Digital Shelves with Multi-Carrier CDMA Radio (MCR1900), BNJ64, and the Power Amplifier Shelf at the Bottom and Top of Photo, Respectively. 4 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 4: EXTERNAL PHOTOGRAPHS View: UMTS1900 Equipment Frame Front View Closeup, Showing the 60 MHz Dual Duplex Filter Shelf and the Power Amplifier Shelf at the Top and Bottom of Photo, Respectively.

1 1 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 2: FCC ID LABEL SAMPLE AND LOCATION INFORMATION SECTION 2.1033(c) (11) also SECTION 2.925 (a) (1) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. The FCC ID label representing the UMTS Flexent® OneBTS™ W1900M, wireless base station, UMTS- CDMA Transceiver System (1900) will be displayed on the Multi-Carrier CDMA Radio MCR1900, BNJ64, and shall be in accordance with the following drawing as shown: PCS Multi-Carrier CDMA Radio (MCR1900), BNJ64 Lucent Technologies UMTS-CDMA Transceiver System (1900) FCC ID: AS5ONEBTS-10

1 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 12: TUNING PROCEDURE Section 2.1033 (c)(9): Tune-up procedure over the power range, or at specific operating power levels. Response: The Lucent UMTS1900 Flexent® OneBTS™ W1900M Wireless Base Station incorporates the PCS UMTS-CDMA Multi-Carrier CDMA Radio (MCR1900), BNJ64; the P2PAM power amplifier; and the 60 MHz wideband, low loss, Dual Duplex (DDpx) bandpass filter, which comprise the UMTS1900 UMTS- CDMA Transceiver System (1900), that is the subject of this application for certification, does not have and does not require any tuning procedure outside of the standard manufacturing test, evaluation and adjustment processes. There is no user tune-up procedure

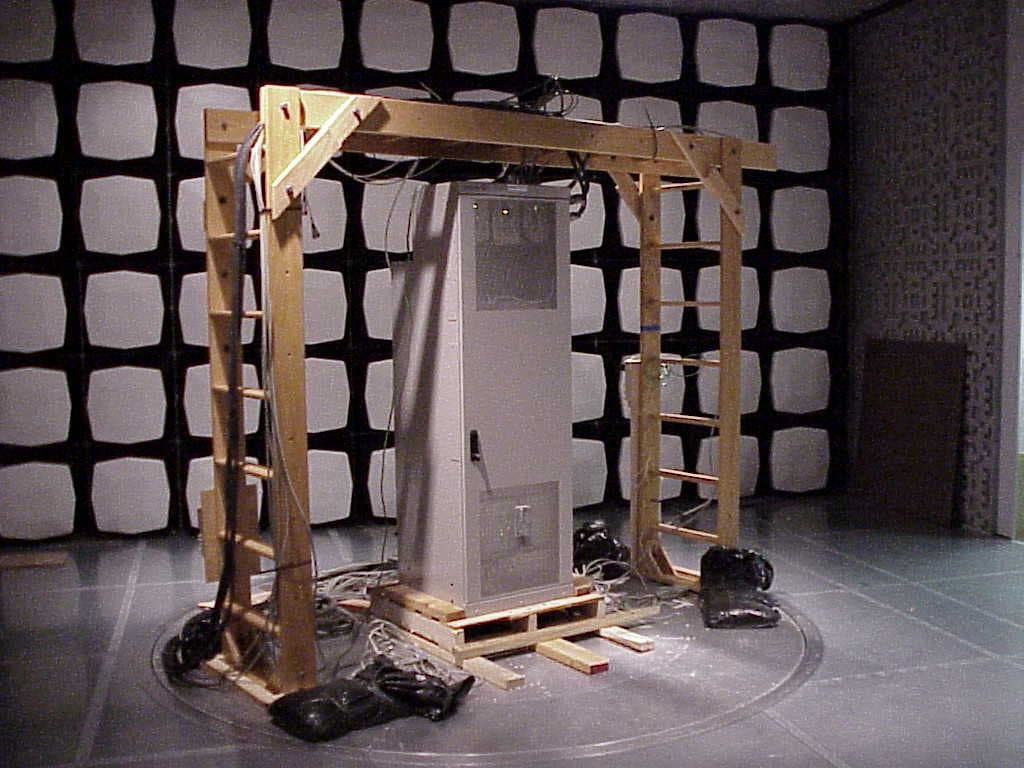

Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Page 1 of 64 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 10: TEST REPORT SYNOPSIS The test report attached to this exhibit demonstrates that the Lucent Technologies’ Broadband PCS UMTS- CDMA Transceiver System (1900), which is designed to operate in the Lucent UMTS Flexent® OneBTS™ W1900M Wireless Base Station, is in full compliance with all requirements of the Rules of the Commission as specified in the Code of Federal Regulations (CFR), Title 47 – Telecommunication; Part 24, Subpart E – Broadband PCS; Section 24.238 - Emission Limits; effective October 1, 2004. All testing was performed in accordance with CFR 47, Part 2, Subpart J – Equipment Authorization Procedures; effective October 1, 2004. It also demonstrates compliance with the spurious emissions limitations specified in ETSI TS 125 141 V5.9.0 (2004-09): Universal Mobile Telecommunications System (UMTS); Base Station Conformance Testing (FDD), (3GPP TS 25.141, Version 5.9.0, Release 5), which is the standard used as a guideline in the design of the MCR1900 transceiver. The objective of this application is to obtain FCC initial authorization, under FCC ID: AS5ONEBTS-10, for operation in the Universal Mobile Telecommunications System (UMTS) with a single 5 MHz emission bandwidth carrier (4M1F9W) set to a maximum power level at the antenna terminal of 40 Watts (3-second), over the entire Broadband PCS frequency spectrum 1930-1990 MHz. The UMTS1900 UMTS-CDMA Transceiver System (1900) consists of the principle RF components: (1) Crystal Reference Oscillator Module (OMA) at 15 MHz, (2) UMTS-CDMA Multi-Carrier CDMA Radio (MCR1900), Model BNJ64, which was previously authorized by the Federal Communications Commission under FCC ID: AS5ONEBTS-09, (3) single P2PAM power amplifiers per RF path, and (4) 60 MHz wide Dual Duplex (DDpx), low loss, transmit filters covering the PCS frequency spectrum: A thru C 1930-1990 MHz. These components are considered as a system due to (1) the DDpx filters providing RF feedback to the transceiver in the form of Closed Loop Gain Control (CLGC) to provide constant power over temperature, and (2) Lucent’s proprietary Enhanced Digital Pre-Distortion (EDPD-UL) technology which enables software to communicate between the transceiver, power amplifier and the transmit filter to achieve this goal. As a Transceiver System, all conducted RF characteristics and emissions measurements were performed at the transmit antenna terminal, using a production equipment frame. All testing was performed in the Lucent Technologies, Whippany, NJ, compliance laboratory by J. C. Fidler and M. P. Farina during the period February 28 to March 16, 2005; in adherence to a test plan generated by M. P. Farina, in accordance with Lucent’s ISO/TL9000 Registration. All measurement instrumentation utilized were also calibrated in compliance with Lucent’s ISO/TL9000 Registration. The Whippany 3 & 10 Meter Open Area Test Site (OATS) is authorized by the Federal Communications Commission (FCC) under Registration Number: 90770, in compliance with the requirements of Section 2.948 of the Rules of the Commission. Frequency stability measurements were performed by M. Coelho, Lucent Technologies, Swindon, United Kingdom, under the direction of M. P. Farina, and in adherence to the previously cited ISO/TL9000 test plan. This test program was conducted during the approximate interval February 3 to March 15, 2005. Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Page 2 of 64 APPLICANT: LUCENT TECHNOLOGIES FCC ID: AS5ONEBTS-10 EXHIBIT 10: TEST REPORT 67 Whippany Road Whippany, NJ 07981 Subject: Application for FCC Intial Authorization, under FCC ID: AS5ONEBTS-10, Covering a Broadband Michael P. Farina PCS UMTS-CDMA Transceiver System (1900), JW10D0000 Operating Over the Spectrum 1930-1990 MHz with Telephone: 973-386-4344 a 5 MHz Carrier Emission Bandwidth. [email protected] March 18, 2005 TEST REPORT INTRODUCTION: The exhibits presented in this test report demonstrate that the Lucent Technologies’ Broadband PCS UMTS-CDMA Transceiver System (1900), which is designed to operate in the Lucent UMTS Flexent® OneBTS™ W1900M Wireless Base Station, is in full compliance with all requirements of the Rules of the Commission as specified in the Code of Federal Regulations (CFR), Title 47 – Telecommunication; Part 24, Subpart E – Broadband PCS; Section 24.238 - Emission Limits; effective October 1, 2004. All testing was performed in accordance with CFR 47, Part 2, Subpart J – Equipment Authorization Procedures; effective October 1, 2004. It also demonstrates compliance with the spurious emissions limitations specified in ETSI TS 125 141 V5.9.0 (2004-09): Universal Mobile Telecommunications System (UMTS); Base Station Conformance Testing (FDD), (3GPP TS 25.141, Version 5.9.0, Release 5). This standard was the guideline used in the design of the MCR1900 transceiver. The objective of this application is to obtain initial FCC authorization, under FCC ID: AS5ONEBTS-10, for operation in the Universal Mobile Telecommunications System (UMTS) with a single 5 MHz emission bandwidth carrier (4M1F9W) set to a maximum power level at the antenna terminal of 40 Watts (3-second), over the Broadband PCS frequency spectrum 1930-1990 MHz. The UMTS1900 Transceiver System consists of the principle RF components: (1) Crystal Reference Oscillator Module (OMA) at 15 MHz, (2) UMTS-CDMA Multi-Carrier CDMARadio (MCR1900), Model BNJ64, which was previously authorized by the Federal Communications Commission under FCC ID: AS5ONEBTS-09, (3) single P2PAM power amplifier per RF path, and (4) 60 MHz wide Dual Duplex (DDpx), low loss, transmit filters covering the PCS frequency spectrum: 1930-1990 MHz. These components are considered as a system due to (1) the DDpx filters providing RF feedback to the transceiver in the form of Closed Loop Gain Control (CLGC) to provide constant…
