AS5ONEBTS-14PCS UMTS CDMA RADIO (UCR-1900)

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Timco Engineering Inc. FCC Authorized Telecommunications Certification Body (TCB) Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 June 21, 2005 Sid Sanders - President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders In accordance with Parts 2 and 24 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corporation Personal Communication Services UMTS CDMA transceiver, henceforth UCR-1900, FCC ID: AS5ONEBTS-14. The UCR-1900 is used in Lucent Technologies Corp FLEXENT ® OneBTS Land Station PCS systems using Code Division Multiple Access (CDMA) technology, for use in Domestic PCS Communication Services. This application for the UCR-1900 under FCC ID: AS5ONEBTS-14, is for operation in the domestic extended PCS band with a CDMA signal. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. Manufacturer Lucent Technologies, Inc. Equipment Identification AS5ONEBTS-14 Rules Part Number 24 (E) Frequency Range 1930-1990 MHz Complete PCS Band Output Power -24.8 to +5.2 dBm/carrier; (1-3 carriers) Varied By Software Frequency Tolerance +/- 0.05 ppm Emission Designator 1M25F9W The UCR-1900 is a redesign of the product previously certified under FCC ID: AS5ONEBTS-04. This redesign includes new signal sources and components for the frequency generating and stabilizing circuitry and per FCC rules must be refiled. The basic design of the new UCR-1900/FCC ID: AS5ONEBTS-14 is identical to the design certified under UCR-1900/FCC ID: AS5ONEBTS-04. The UCR-1900 under FCC ID: AS5ONEBTS-14 is a transceiver designed to be operated and marketed with Lucent Technologies CDMA transmit equipment which was either Type Accepted or Product Certified in accordance with Parts 2 and 24 of the code. When utilized in normal PCS base station operation, the UCR-1900 will be operated with a FCC Product Certified power amplifier. A post transmit suppression filter will be used when necessary to maintain performance within the parameters as previously filed with the FCC. The UCR-1900 will undergo formal evaluation with every PCS amplifier with which it is marketed. The overall performance of the integrated equipment shall continue to be Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 compliant with FCC requirements. FCC Class II changes as specified in “The Code” will be used for radio changes in the future. FCC Class I permissive change evaluations will be processed for all of the integrated products. As per prior agreement with the FCC, degradations in performance shall be reported. The UCR-1900 is designed to transmit one, two, or three contiguous 1.25 MHz CDMA channels. The UCR-1900, at its output, is typically operated over the power range of -30 dBm to 0.0 dBm for each of the 1.23 MHz CDMA carriers in a single, dual, or three channel configuration. The total power is limited to +5.2 dBm per channel (+10 dBm total integrated power for 3 carriers) for each of the 1.25 MHz CDMA carriers in a single, dual, or three channel configuration and is the level for this application. The actual power level delivered by the UCR-1900 to the transmit amplifier is under the software control of the Mobile Switching Center of the local PCS system. The output of this unit in normal base station use, is always subjected to additional signal amplification and post amplification filtering as required for spurious control prior to connection to the (J4) antenna connector. The software control only allows for adjustment in power necessary to provide the rated maximum of the co-configured transmitter The evaluation of the "Spurious emissions at antenna terminals" (Sec. 2.1051) were made with a kLAM/AS5ONEBTS-02 and a P2PAM/AS5ONEBTS-06 and their associated filters. The amplifiers were also used for the "Field strength of spurious radiated" (Sec. 2.1053) measurements. Wherever possible the test procedures defined in CFR 47 Part's 2(J) and 24(E) were followed. Because of the "state of the art" nature of this equipment some of the characteristics cannot be tested using the requirements in CFR 47, so for those characteristics the recommendations per "Table 6.5.2-1 Base Station Test Model, Nominal" from 3GPP2 C.S0010-0, December 1999, Recommended Minimum Performance Standards for cdma2000 Spread Spectrum Base Stations was used to define the tests and evaluation criteria used in this application. This application for UCR-1900/FCC ID:AS5ONEBTS-14, is for all Blocks of the PCS band. Since the application encompasses the single, dual and three carrier configurations it presents the required test data for each of those operational configurations. The UCR-1900/ AS5ONEBTS-14 is produced by Lucent Technologies Incorporated solely for incorporation into Lucent Technologies Inc. products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] cc/FCC Coordinator Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 FCC Coordinator Primary contact for adminstrative and technical requests. Primary Administrative Contact Lucent Technologies, Inc. Room 4C-621 101 Crawfords Corner Rd Holmdel, NJ 077…

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-14 subject: Request for Confidentiality for FCC ID: AS5ONEBTS-14 date: June 21, 2005 from: Rudolf J. Pillmeier 67 Whippany Road Telephone: 973 386 3837 E-Mail [email protected] Sid Sanders – President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders Re: Request for Confidentiality for FCC ID: AS5ONEBTS-14 Dear Mr. Sanders On behalf of the Lucent Technologies Mobility Systems Business Unit, I hereby request that the following exhibits included in the Product Certification application for FCC ID: AS5ONEBTS-14 be maintained as confidential information and not be made available for public inspection at any time. 1. Exhibit 4 Section 2.1033(c) (8) Active Circuit Devices Drive Levels 2. Exhibit 5 Section 2.1033(c) (10) Complete Circuit Diagrams 3. Exhibit 6 Section 2.1033(c) (3) Instruction Book 4. Exhibit 7 Section 2.1033(c) (9) Tune-Up procedure 5. Exhibit 8 Section 2.1033(c) (10) Circuitry for determining frequency 6. Exhibit 9 Section 2.1033(c) (11) Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information considered to be trade secrets and the property of Lucent Technologies, pursuant to the provisions of Section 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly propriety to Lucent’s contracted manufacturer/supplier. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager EMC Conformance Test Group, Whippany Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. 1

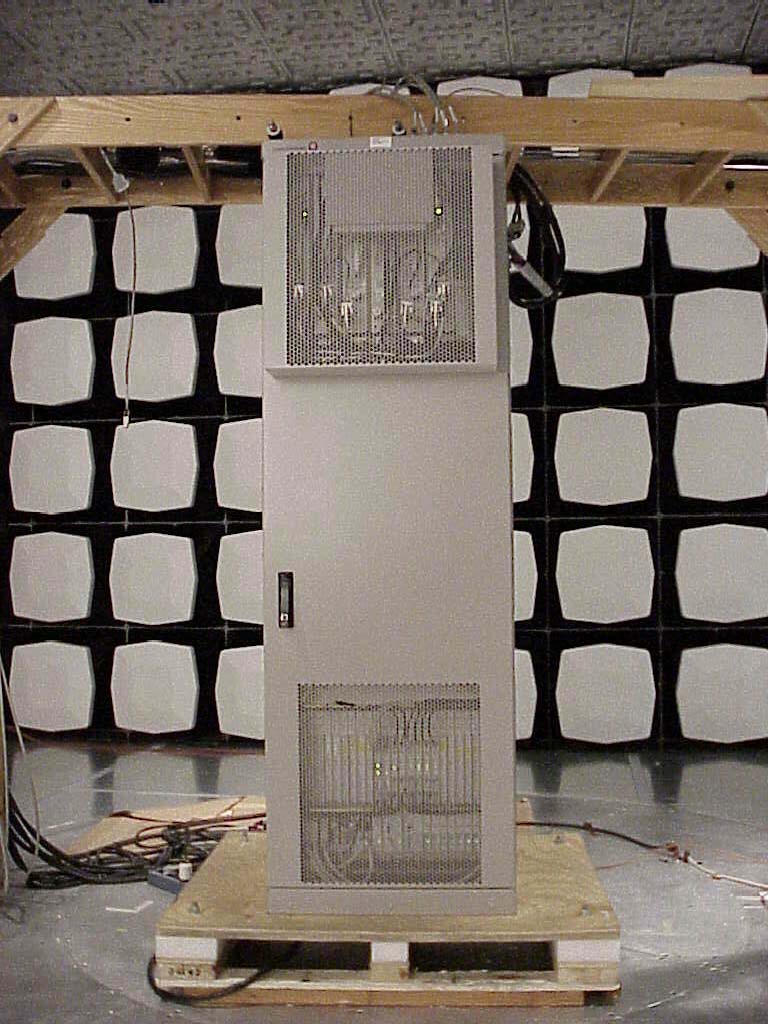

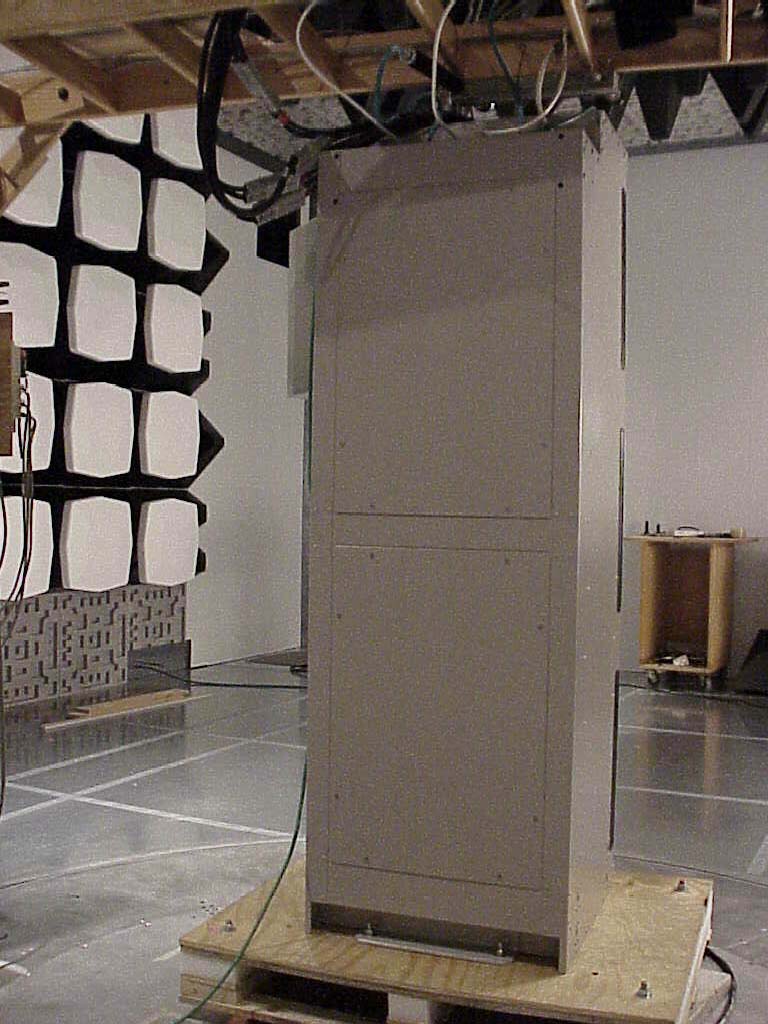

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photographs SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital external photographs of the UCR-1900 / FCC ID: AS5ONEBTS-14 showing the construction and layout are attached along with those showing the installation of the UCR-1900 in the FLEXENT ® OneBTS 4.0 PCS Indoor Modular Cell. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Back) Exhibit 19: Photograph of UCR-1900 (Top) Exhibit 19: Photograph of UCR-1900 (Bottom) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Left) Exhibit 19: Photograph of UCR-1900 (Right) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Internal Photograph of UCR-1900 (Left) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Rear) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Open Door) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions.

Applicant: Lucent Technologies FCC ID: AS5ONEBTS-14 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18 SECTION 2.1033(c)(11) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label information for the UCR-1900 / FCC ID: AS5ONEBTS-14 is attached along with a JPEG photograph showing the location of the label. Applica n t : Lucent Techno lo g i es FCC ID: AS5 O NEBTS- 1 4 Use pursuant to Com p any Instructions Exhibit 18: FCC Label Location Label Location Lucent Technologies Inc - Proprietary

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19: Photographs SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital external photographs of the UCR-1900 / FCC ID: AS5ONEBTS-14 showing the construction and layout are attached along with those showing the installation of the UCR-1900 in the FLEXENT ® OneBTS 4.0 PCS Indoor Modular Cell. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Back) Exhibit 19: Photograph of UCR-1900 (Top) Exhibit 19: Photograph of UCR-1900 (Bottom) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of UCR-1900 (Left) Exhibit 19: Photograph of UCR-1900 (Right) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Internal Photograph of UCR-1900 (Left) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Rear) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 19: Photograph of 4.0 PCS Modular Cell with UCR-1900 (Open Door) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 FCC Product Certification Test Report for Lucent Technologies Inc. PCS UMTS CDMA Radio UCR-1900 Exhibits 11 - 17 W. Steve Majkowski Lucent Technologies Inc. Whippany FCC Compliance Laboratory [email protected] Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 11: Listing of Required Measurements SECTION 2.1033(c)(14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The lowest clock frequency in the Flexent OneBTS PCS Modular Cell 4.0 is the 10 MHz rubidium reference oscillator. Conducted spurious measurements were performed over the range of 10 MHz to 20GHz which is above the tenth harmonic of the transmit frequency range. The following pages include the data required for the Product Certification authorization of the UCR-1900 / FCC ID: AS5ONEBTS-14, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12 Section 2.1046 Measurement of Radio Frequency Power Output Exhibit 13 Section 2.1047 Measurement of Modulation Characteristics Exhibit 14 Section 2.1049 Measurement of Occupied Bandwidth Exhibit 15 Section 2.1051 Measurement of Spurious Emissions at Antenna Exhibit 16 Section 2.1053 Field Strength of Spurious Radiation Exhibit 17 Section 2.1055 Measurement of Frequency Stability Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 12: Measurement of Radio Frequency Power Output SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT The test arrangements used to measure the radio frequency power output of the UCR-1900/ AS5ONEBTS-14 is on the following page. Measurements were made respectively at each frequency where Occupied Bandwidth measurements were performed. The use of the UCR-1900 requires that the J4 power level be calibrated for the specific channel of use. The test configuration, Figure 12a, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the upper and lower Block edges and at the center channel for each Block. The UCR-1900 has a maximum power output at at each of the two RF transmitter ports of 0.0033 Watts (5.2 dBm) for a single carrier, 0.0066 Watts (8.2 dBm) for two carriers (5.2 dBm per carrier), and a maximum power output of 0.010 Watts (+10.0 dBm) for three carriers (5.2 dBm per carrier). The steady state range of power adjustment at the output is 30 dB. The minimum power is therefore 30 dB below the maximum (-24.8 dBm) for a single carrier across the PCS down-link Band of 1930.00-1990. MHz. The UCR-1900 output signal parameters used for testing is defined in Table 12.1 below. For each measurement frequency the channel and power was set in the manner in which the equipment would be installed in actual use. The actual power level necessary for operation is dependant upon a number of factors including number of carriers, operating frequency amplifier gain and filter loss. The spectral performance at that power level for each specific frequency of interest was verified. The attenuation range was also verified. The maximum output power was verified over the PCS down-link Band and is tabulated in Table 12.3. The specific Frequencies, channels and set power level were also documented on each "Occupied Bandwidth" data sheet for the typical integrated product. When operated with a Lucent Technologies transmit power amplifier, the overall integrated transmitter will maintain its rated output power with an accuracy of +2 / -4 dB. Applied Signal The applied signal, from a UCR-1900 FCC ID: AS5ONEBTS-14, met the recommended characteristics per "Table 6.5.2-1 Base Station Test Model, Nominal" from 3GPP2 C.S0010-0, December 1999, Recommended Minimum Performance Standards for cdma2000 Spread Spectrum Base Stations, as defined below in table 12.1. TypeNumber of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot 1 0.1490-8.3Walsh 0 Sync 1 0.015/p-18.3 Walsh 32, always 1/8 rate Paging 1 0.054 -12.7 Walsh 1, full rate only Traffic 6 0.13 each -8.8 each Variable Walsh Assignments, full rate only TABLE 12.1 Base Station Test Model, Nominal Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-14 Exhibit 12 continued RESULTS: The UCR-1900 / AS5ONEBTS-14 was configured in the test setup shown in Figure 12A. When measured at each of the tested PCS channels the UCR-1900/ AS5ONEBTS-14 delivered a minimum of 0.0033 Watts (5.2 dBm) for a single carrier, 0.0066 Watts (8.2 dBm) for two carriers (5.2 dBm per carrier), and a maximum power output of 0.010 Watts (+10.0 dBm) for three carriers (5.2 dBm per carrier). This UCR-1900 transmit port output power and the antenna terminal RF transmit power data is recorded on the Occupied Bandwidth Data Sheets for all of the PCS Channels tested and these include the “Left edge”, and “Right Edge” channels for each frequency Block. The UCR-1900 maximum transmit power compliance data verified over the PCS down-link band is shown in table 12.3 below. The table shows the channel(s), number of carriers, measured power per carrier, and the total UCR-1900 transmit power. The compliance status for Occupied Bandwidth and Conducted Spurious Emissions is also shown in tables 12.3 through 12.8. Table 12.3 Maximum transmit power compliance data. PCS Block UCR Channel Carrier Frequency Measured Maximum Power Output from Radio 1 carrier Measured Maximum Power Output from Radio 2 carrier Measured Maximum Power Output from Radio 3 carrier Compliance Status #MHz dBm dBmdBm Pass/Fail A1251931.25 6.90 Compliant A1501932.50 Com pliant A1751933.75 Compliant A52251941.25 6.36 Compliant A5250194…

Text truncated - open the document above for the full version.
