AS5ONEBTS-15Cellular 850 UMTS CDMA Radio (UCR-850)

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Timco Engineering Inc. FCC Authorized Telecommunications Certification Body (TCB) Lucent Technologies Inc. 67 Whippany Road Whippany, NJ 07981 October 26, 2005 Sid Sanders - President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders In accordance with Parts 2 and 22 of the Commission’s Rules and Regulations, we are submitting herewith, statements and supporting data to show compliance with the requirements of the Commission for Product Certification of the Lucent Technologies Corporation Cellular Band UMTS CDMA transceiver, henceforth UCR-850, FCC ID: AS5ONEBTS-15. The UCR-850 is used in Lucent Technologies Corp FLEXENT ® OneBTS Land Station Cellular systems using Code Division Multiple Access (CDMA) technology, for use in Domestic Cellular Communication Services. This application for the UCR-850 under FCC ID: AS5ONEBTS-15, is for operation in the domestic extended cellular band with a CDMA signal. The data summarized below is in the form presently used by the Commission’s Radio Equipment List. Manufacturer Lucent Technologies, Inc. Equipment Identification AS5ONEBTS-15 Rules Part Number 22 (H) Frequency Range 869 -894 MHz Extended Cellular Band Output Power -24.8 to +5.2 dBm/carrier; (1-3 carriers) Varied By Software Frequency Tolerance +/- 0.05 ppm Emission Designator 1M23F9W The UCR-850, which is the subject of this application, is a redesign of the previous UCR-850 which was certified under FCC ID: AS5ONEBTS-01. This redesign includes new frequency signal sources which mandate refilling under FCC rule 47CFR-2.1043. The UCR-850 under FCC ID: AS5ONEBTS-15 is a transceiver designed to be operated and marketed with Lucent Technologies CDMA transmiter equipment which was either Type Accepted or Product Certified in accordance with Parts 2 and 22 of the code. When utilized in normal cellular base station operation, the UCR-850 will be operated with a FCC Product Certified power amplifier. A post transmit suppression filter will be used when necessary to maintain performance within the parameters as previously filed with the FCC. The UCR-850 will undergo formal evaluation with every cellular amplifier with which it is marketed. The overall performance of the integrated equipment shall continue to be compliant with FCC requirements. FCC Class II changes as specified in “The Code” will be used Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 for radio changes in the future. FCC Class I permissive change evaluations will be processed for all of the integrated products. As per prior agreement with the FCC, degradations in performance shall be reported. The UCR-850 is designed to transmit one, two, or three contiguous 1.23 MHz CDMA channels. The UCR-850, at its output, is typically operated over the power range of -30 dBm to 0.0 dBm for each of the 1.23 MHz CDMA carriers in a single, dual, or three channel configuration. The total power is limited to +5.2 dBm per channel (+10 dBm total integrated power for 3 carriers) for each of the 1.23 MHz CDMA carriers in a single, dual, or three channel configuration and is the level for this application. The actual power level delivered by the UCR-850 to the transmit amplifier is under the software control of the Mobile Switching Center of the local Cellular system. The output of this unit in normal base station use, is always subjected to additional signal amplification and post amplification filtering as required for spurious control prior to connection to the (J4) antenna connector. The software control only allows for adjustment in power necessary to provide the rated maximum of the co-configured transmitter The evaluation of the "Spurious emissions at antenna terminals" (Sec. 2.1051) were made with a mLAM/AS5ONEBTS-03 and its associated filters. The mLAM/AS5ONEBTS-03 was also used for the "Field strength of spurious radiated" (Sec. 2.1053) measurements. Wherever possible the test procedures defined in CFR 47 Part's 2(J) and 22(H) were followed. Because of the "state of the art" nature of this equipment some of the characteristics cannot be tested using the requirements in CFR 47, so for those characteristics 3GPP2 TSG-C.S0010-C-v1.00 (February 2005, Recommended Minimum Performance Standards for cdma2000 Spread Spectrum Base Stations) was used to define the tests and evaluation criteria used in this application. This application for UCR-850/FCC ID:AS5ONEBTS-15, is for all of the extended Cellular 850 band. Since the application encompasses the single, dual and three carrier configurations it presents the required test data for each of those operational configurations. The UCR-850/ AS5ONEBTS-15 is produced by Lucent Technologies Incorporated solely for incorporation into Lucent Technologies Inc. products. Enclosed in this electronically transmitted online package is a copy of FCC Form 731 (Application for Equipment Authorization - Radio Frequency Devices) and the required exhibits. These exhibits contain the technical data, and the required statements and documents for Product Certification. The technical contact at Lucent Technologies, Bell Laboratories, will comply with any request for additional information should the need arise. Sincerely, R.J.Pillmeier Technical Manager Certification Test Group Phone: 973-386-3837 email: [email protected] cc/FCC Coordinator Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 FCC Coordinator Primary contact for adminstrative and technical requests Theresa I. Deaver Compliance Manager Lucent Technologies Room:4C-638 101 Crawfords Corner Rd. Holmdel, NJ 07733-3030 Phone 732- 332-6072 Email: [email protected] Filing Engineer W.Steve Majkowski Phone 973-386-2135 email: [email protected] Lucent Technologies Inc. - Proprietary Use pursuant …

Text truncated - open the document above for the full version.

APPLICANT: Lucent Technologies Inc. -1 - FCC ID: AS5ONEBTS-15 subject: Request for Confidentiality for FCC Product Certification under FCC ID: AS5ONEBTS-15, of the Lucent Technologies Cellular 850 UMTS CDMA Radio, UCR-850 date: October 28, 2005 from: Rudolf J. Pillmeier 67 Whippany Road Whippany, NJ 07981 Telephone: 973 386 3837 [email protected] Mr. Sid Sanders – President Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders On behalf of the Lucent Technologies Mobility Systems Business Unit, I hereby request that the following exhibits included in the Product Certification application for Lucent Technologies Cellular 850 UMTS CDMA Radio, UCR-850 under FCC ID: AS5ONEBTS-15 be maintained as confidential information and not be made available for public inspection at any time. Exhibit # FCC Rule Section Exhibit Title Exhibit 4 Section 2.1033(c) (8) Active Circuit Devices Drive Levels Exhibit 5 Section 2.1033(c) (10) Complete Circuit Diagrams Exhibit 6 Section 2.1033(c) (3) Instruction Book Exhibit 7 Section 2.1033(c) (9) Tune-Up procedure Exhibit 8 Section 2.1033(c) (10) Circuitry for determining frequency Exhibit 9 Section 2.1033(c) (11) Circuitry for Suppression of Spurious These exhibits contain Lucent Technologies proprietary information that is considered to be trade secrets, with possible patents pending, and the property of Lucent Technologies, pursuant to the provisions of Part 0.457(d) of the Commission’s Rules. These exhibits also contain design information that is highly proprietary to Lucent’s contracted manufacturer/supplier. These exhibits are highly proprietary and contain critical design information that can not be made available for public inspection. This information is proprietary both to Lucent Technologies and to Lucent’s contracted manufacturer/supplier . The Instruction Manual, Flexent CDMA Modular Cell 4.0 Operations, Administration and Maintenance, included in Exhibit 6, is not furnished to the user, except under very exceptional and very limited circumstances. This manual contains highly proprietary circuit, equipment and architecture descriptions that must not be made available for public inspection. The cover/title page is explicitly labeled “Unpublished and Not for Publication”. Thank you for your consideration in this matter. Sincerely, R.J.Pillmeier Technical Manager FCC Compliance Test Group, Whippany Lucent Technologies Inc. - Proprietary 1 Use pursuant to Company Instructions.

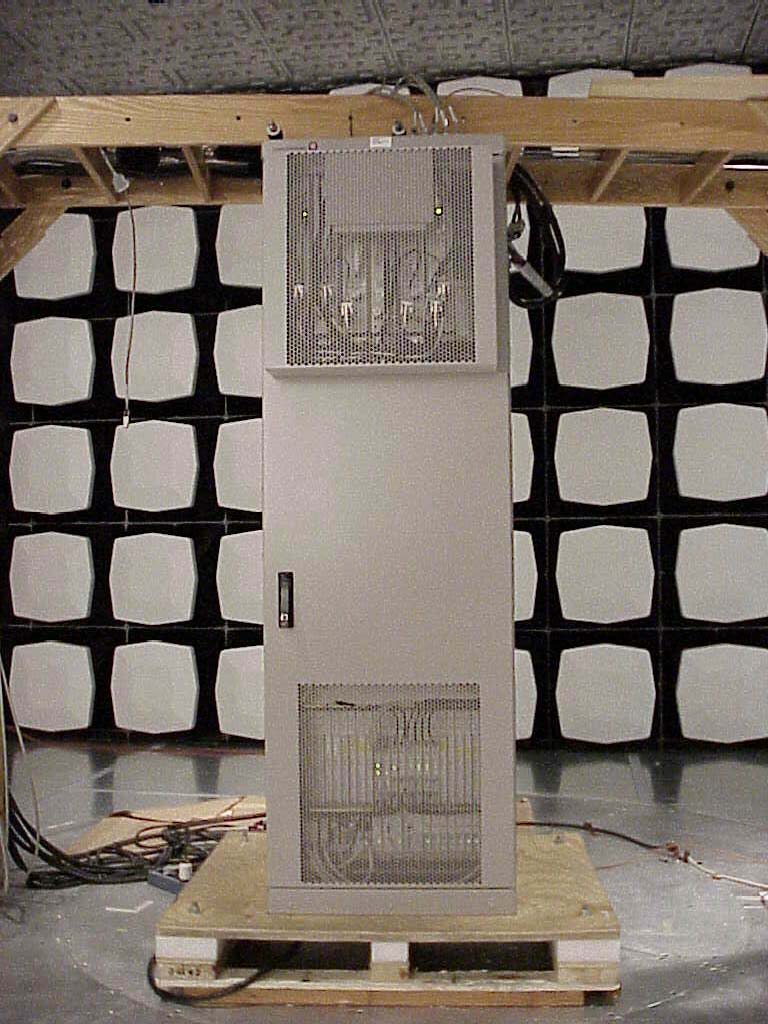

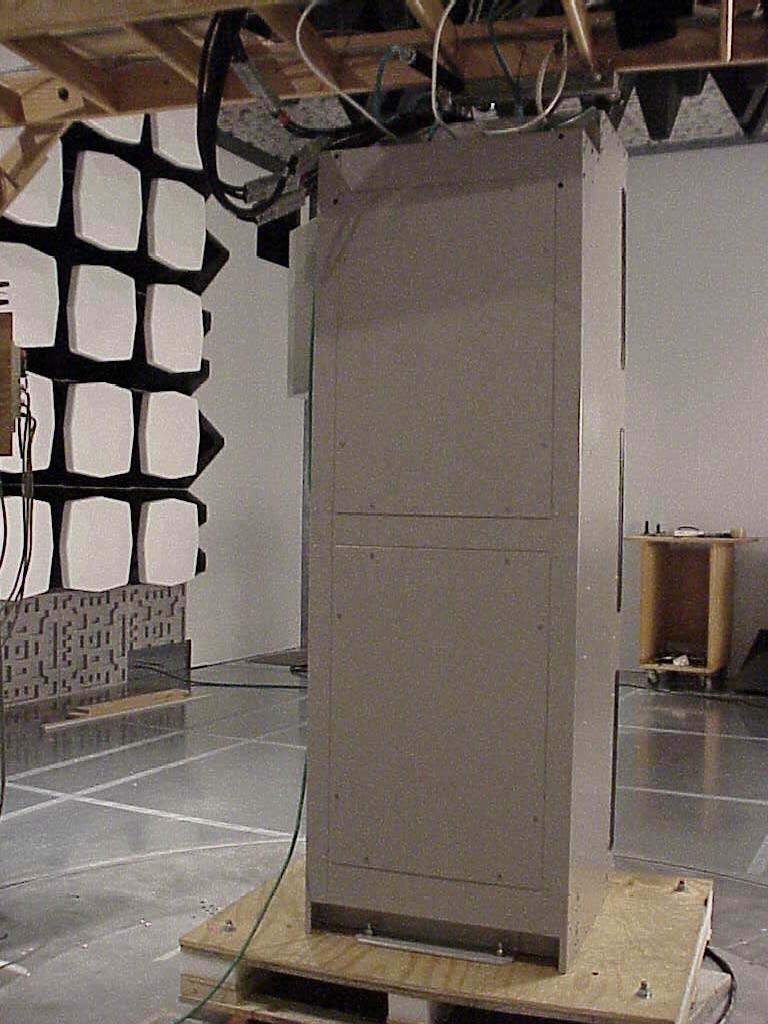

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19a: External Photographs SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: Digital external photographs of the UCR-850 / FCC ID: AS5ONEBTS-15 showing the construction and layout are attached along with those showing the installation of the UCR-850 in the FLEXENT ® OneBTS 4.0 Cellular 850 Indoor Modular Cell. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Back) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Top) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Bottom) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Left) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Right) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Front) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Rear) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of 4.0 Cellular Modular Cell with UCR-850 (Open Door) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions.

Applicant: Lucent Technologies FCC ID: AS5ONEBTS-15 Lucent Technologies Inc - Proprietary Use pursuant to Company Instructions Exhibit 18 SECTION 2.1033(c)(11) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. RESPONSE: The equipment identification label information for the UCR-850 / FCC ID: AS5ONEBTS-15 is attached along with a photograph showing the intended location of the label. Applica n t: Lucent Techno lo g i es FCC ID: AS5 O NEBTS-1 5 Lucent Technologies Inc - Proprietary Use pursuant to Com p any Instructions Exhibit 18: FCC Label Location L o cat ion o f F C C I d e n t ific a t io n L a b e l

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. Exhibit 19B: Internal Photographs SECTION 2.1033 (c) (12) Photographs (8"xlO") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in the instruction manuals supplied with the product certification request, additional photographs are necessary only to complete the required showing. RESPONSE: A digital internal photograph of the UCR-850 / FCC ID: AS5ONEBTS-15 showing the construction and layout is attached. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 19: Photograph of UCR-850 (Left) Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions.

APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 11: Listing of Required Measurements SECTION 2.1033(c)(14) The data required by Section 2.1046 through 2.1057, inclusive, measured in accordance with the procedures set out in Section 2.1041. RESPONSE: The lowest clock frequency in the Flexent OneBTS Cellular Modular Cell 4.0 is the 10 MHz rubidium reference oscillator. Conducted spurious measurements were performed over the range of 10 MHz to 10GHz which is above the tenth harmonic of the transmit frequency range. The following pages include the data required for the Product Certification authorization of the UCR- 850 / FCC ID: AS5ONEBTS-15, measured in accordance with the procedures set out in Section 2.1041 of the Rules. Each required measurement and its corresponding exhibit number are: Exhibit 12 Section 2.1046 Measurement of Radio Frequency Power Output Exhibit 13 Section 2.1047 Measurement of Modulation Characteristics Exhibit 14 Section 2.1049 Measurement of Occupied Bandwidth Exhibit 15 Section 2.1051 Measurement of Spurious Emissions at Antenna Exhibit 16 Section 2.1053 Field Strength of Spurious Radiation Exhibit 17 Section 2.1055 Measurement of Frequency Stability Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 12: Measurement of Radio Frequency Power Output SECTION 2.1046 MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT Measurements were performed to ascertain the RF output power level at the transmit output port of the UCR-850/ AS5ONEBTS-15 in accordance with Section 2.1047 of the Code. Six UCR-850/ AS5ONEBTS-15 radios were configured in the test arrangements depicted in Figure 12A. Each UCR-850 was configured with the Applied Signal as specified below. The use of the UCR-850 requires that the J4 power level be calibrated for the specific channel of use. The test configuration, Figure 12A, allowed the measurement of output power for each channel investigated for Occupied Bandwidth. These included the upper and lower Block edges and for multiple carriers for each applicable Block. Measurements were made respectively at every standard CDMA channel / frequency where occupied bandwidth measurements were performed. These include the left, center and right side of the individual bands. The attenuation range was also verified. And additional measurements of output power were recorded during Occupied Bandwidth measurements and are recorded on those plots in Exhibit 14. Applied Signal The applied signal, from a UCR-850 FCC ID: AS5ONEBTS-15, met the recommended characteristics per "Table 6.5.2-1 Base Station Test Model, Nominal" from 3GPP2 TSG-C.S0010-C-v1.00, February 2005, Recommended Minimum Performance Standards for cdma2000 Spread Spectrum Base Stations, as defined below in table 12.1. Type Number of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Pilot 1 0.2 -7 Code channel W 0 128 Sync 1 0.0471 -13.3 Code channel W 32 64 ;always 1/8 rate Paging 1 0.1882 -7.3 Code channel W 1 64 ;full rate only Traffic 6 0.09412 -10.3 Variable code channel assignments; full rate only TABLE 12.1 Base Station Test Model, Nominal for Main Path Type Number of Channels Fraction of Power (Linear) Fraction of Power (dB) Comments Transmit Diversity Pilot 1 0.2 -7 Code channel W 16 128 Traffic 6 0.09412 -10.3 Variable code channel assignments; full rate only TABLE 12.2 Base Station Test Model, Nominal for Transmit Diversity Path Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5ONEBTS-15 Exhibit 12 continued Specified Performance: The UCR-850 has a maximum specified power output at its RF output terminals of 0.0033 Watts (5.2 dBm) for a single carrier, 0.0066 Watts (8.2 dBm) for two carriers, and 0.010 Watts (+10.0 dBm) for three carriers which is also its a maximum specified output power. The steady state range of power adjustment at the output is 30 dB. The minimum power is therefore 30 dB below the maximum (-24.8 dBm) for a single carrier across the Cellular down-link Band (869.00-894.00 MHz). RESULTS: The UCR-850 / AS5ONEBTS-15 was configured in the test setup shown in Figure 12A. When measured at each of the Cellular channels tested the UCR-850/ AS5ONEBTS-15 delivered a minimum of 0.0033 Watts per carrier (5.22 dBm +2/-0 dB) when measured at its output connection. Table 12.3 documents that the required total power levels of 8.2 dBm and 10.0 dBm (+2/-0 dB) for two and three carriers respectively were also met. The specific Frequencies, channels and set power level was also documented on each "Occupied Bandwidth" data sheet for the typical integrated product. When operated with a Lucent Technologies transmit power amplifier, the overall integrated transmitter will maintain its rated output power with an accuracy of +2/-4 dB Lucent Technologies Inc. - Proprietary Use pursuant to Company Instructions. APPLICANT: Lucent Technologies Inc. FCC ID: AS5 O NEBTS-1 5 Exhibit 12 continued Block, Channel # and Frequency Parameters Maximum Pow e r Output from Radio Dual carrier Maximum Pow e r Output from Radio Three carrier Maximum Pow e r Output from Radio Single carrier 850 Block Designation UCR Channel Carrier Frequency S p e c i f i e d Measured Specified Measured Specified Measured # M H z d B m d B m d B m d B m d B m d B m A"A3 1 0 1 9 8 6 9 . 8 8 0 5.20 7.30 A"A3 3 7 8 7 1 . 1 1 0 8.20 10.20 A2 7 8 8 7 2 . 3 4 0 5.20 7.39 A2 1 1 9 8 7 3 . 5 7 0 8.20 10.35 A2 1 6 0 8 7 4 . 8 0 0 10.00 12.20 A1 2 0 1 8 7 6 . 0 3 0 5.20 7.75 A1 2 4 2 8 7 7 . 2 6 0 8.20 10.64 A1 2 8 3 8 7 8 . 4 9 0 10.00 12.40 B1 3 8 4 8 8 1 . 5 2 0 5.20 7.83 B1 4 2 5 8 8 2 . 7 5 0 8.20 10.70 B1 4 6 6 8 8 3 . 9 8 0 10.00 12.42 B2 5 0 7 8 8 5 . 2 1 0 5.20 7.50 B2 5 4 8 8 8 6 . 4 4 0 8.20 10.35 B2 5 8 9 8 8 7 . 6 7 0 10.00 12.13 B3 6 3 0 8 8 8 . 9 0 0 5.20 7.17 A' 6 9 1 8 9 0 . 7 3 0 5.20 7.10 B' 7 7 0 8 9 3 . 1 0 0 5.20 7.04 TABLE 12.3 UCR-850 Maxi…
