AS5ONEBTS-16AWS WIRELESS BASE STATION

Nokia of America Corporation

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Sep 13, 2007
Application Purpose: Original Equipment
Date of Application: Sep 12, 2007
Equipment Note: AWS WIRELESS BASE STATION
Frequency Range: 2110.00000000 - 2155.00000000
Company: Nokia of America Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

APPLICANT: Alcatel-Lucent EXHIBIT 2 FCC ID: AS5ONEBTS-16 Page 1 of 2 EXHIBIT 2 Section 2.1033 (c)(1, 2, 4-7) INFORMATION OF MANUFACTURER, APPLICANT, IDENTIFIER, EMISSION TYPES, FREQUENCY RANGE, OPERATING POWER RANGE AND MAXIMUM POWER RATING Section 2.1033 (c)(1) NAME AND ADDRESS OF MANUFACTURER AND APPLICANT The full name and mailing address of the manufacturer of the device and the applicant for certification Response Manufacturer: Alcatel-Lucent 6200 E. Broad Street Columbus, OH 43213 Applicant: Alcatel-Lucent Michael D Garson Corporate Counsel 8000 Towers Crescent Dr., Suite 400, Vienna, VA 22182 Email: [email protected] Phone: (703) 394-1450 Fax: (703) 394-1420 Section 2.1033 (c)(2) FCC IDENTIFIER Response FCC Identifier: AS5ONEBTS-16. Section 2.1033(c)(4) TYPE OR TYPES OF EMISSION Response 1M25F9W. Section 2.1033(c)(5) FREQUENCY RANGE Response Transmit: 2110-2155MHz. Receive: 1710–1755 MHz. Section 2.1033(c)(6) OPERATING POWER RANGE AND ADJUSTMENT Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power. Response The AS5ONEBTS-16 AWS wireless base station is capable of producing a RF carriers at a mean power level of from 0W up to 60W (+47.8dBm) maximum per 1.23MHz bandwidth carrier at the antenna transmit APPLICANT: Alcatel-Lucent EXHIBIT 2 FCC ID: AS5ONEBTS-16 Page 2 of 2 terminal, 0-120W per port and 0-240W per sector. The carrier output power level of the AWS base station is determined by three principle RF components: MCR-1721B (Multi-Carrier Radio), 2100MHz 60W- IPAM (IMT Band Power Linear Amplifier Module) and AWS RF transmitting filter. The carrier output power level is adjustable digitally by controlling the variable attenuators in the MCR-1721B transceiver with software in a minimum of 0.1 dB step over 35 dB range. The transmitting filter may provide a RF feedback to the transceiver in the form of CLGC (Closed Loop Gain Control) and EDPD (Enhanced Digital Pre-Distortion) to provide a constant output power desired over temperature. The On/Off of the CLGC and EDPD features is controlled by software. The non-EDPD feature is only available for low power application. In addition, the RF power amplifiers, 60W-IPAM, may be removed from the base station as needed to provide a very low power output for in-building application. Section 2.1033(c)(7) MAXIMUM POWER RATING Maximum power rating as defined in the applicable part(s) of the rules. Response The mean power rating of the AS5ONEBTS-16 AWS base station is +47.8dBm (60W) maximum per carrier at the antenna transmit terminal, 120W per port and 240W per sector. Each RF transceiver in the AS5ONEBTS-16 AWS base station can transmit multiple carriers.

External Photos

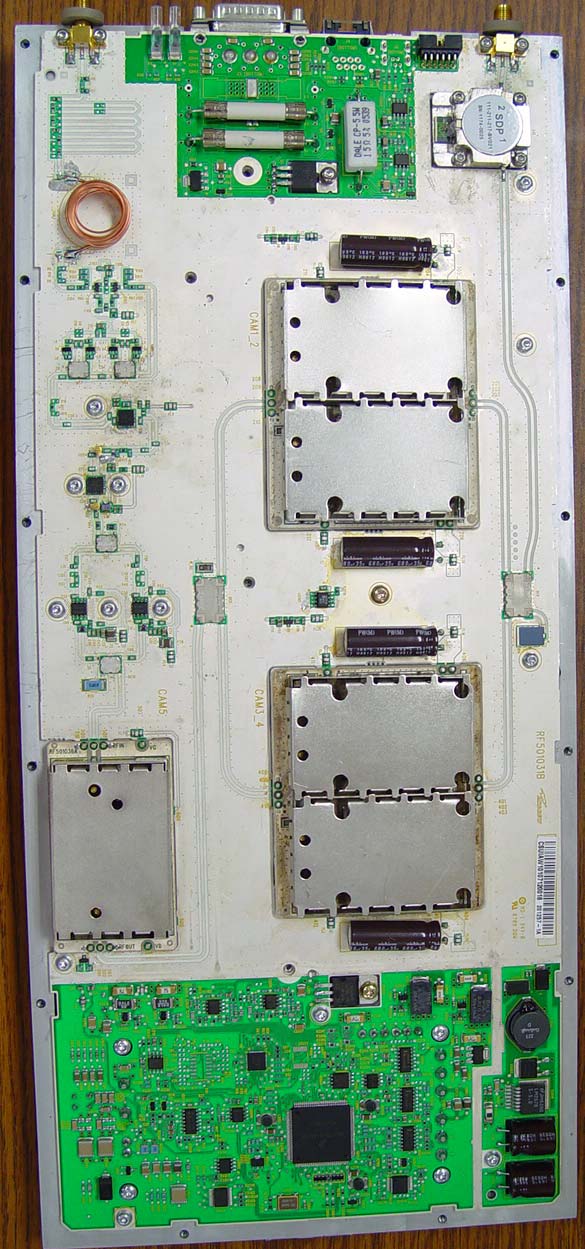

APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 1 of 13 EXHIBIT 9 Section 2.1033 (c)(12) PHOTOGRAPHS OF THE EQUIPMENT Photographs (8 x 10) of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. Response The RF path of the AWS base station consists of two critical RF active components: AWS MCR transceiver and 60W-IPAM power amplifier. The following pages contain the required photographs of the AS5ONEBTS-16 AWS base station, subject of this application, showing the circuit boards of the MCR-1721B transceiver and 60W-IPAMs power amplifiers. Twelve photos in total were submitted, which include: 1) Front and Rear Views of the MCR-1721B RF Transceiver, 2) Circuit Board Component Side View of the MCR-1721B RF Transceiver, 3) Circuit Board Wiring Side View of the MCR-1721B RF Transceiver, 4) Circuit Board Component Side View of the MCR-1721B RF Transceiver with Shielding Cover Removed, 5) Front and Rear Views of the RF Power Amplifier 60W-IPAM, 6) Left Side and Right Side Views of the RF Power Amplifier 60W-IPAM, 7) Circuit Board Component Side View of RF Power Amplifier 60W-IPAM from Vendor #1 with Cover Removed, 8) Circuit Board Component Side View of RF Power Amplifier 60W-IPAM from Vendor #1 with Shielding Cover Removed, 9) Back Side View of RF Power Amplifier 60W-IPAM from Vendor #1 with Cover Removed, 10) Circuit Board Component Side View of RF Power Amplifier 60W-IPAM from Vendor #2 with Shielding Cover Removed, 11) Back Side View of RF Power Amplifier 60W-IPAM from Vendor #2 with Cover Removed, 12) Front View of the AWS Modular Cell 4.0B Indoor. APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 2 of 13 AS5ONEBTS-16 MCR RF Transceiver Front and Rear View 23 cm 2 cm APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 3 of 13 Front: Faceplate Rear AS5ONEBTS-16 MCR Transceiver Circuit Board Component Side View APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 4 of 13 AS5ONEBTS-16 MCR Transceiver Circuit Board Wiring Side View Rear Front APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 5 of 13 AS5ONEBT S-16 MCR Transceiver Circuit Board Component Side View With Shielding Cover Removed APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 6 of 13 AS5ONEBTS-16 60W-IPAM Front and Back Views (two vendors) 4cm x 21.7cm APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 7 of 13 AS5ONEBTS -16 60W- IPAM Left View (two vendors) AS5ONEBTS- 16 60W-IPAM Right View (two vendors) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 8 of 13 AS5ONEBTS -16 60W- IPAM Component Side View with Cover Removed (Vendor 1) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 9 of 13 AS5ONEBTS-16 60W-IPAM Component Side View with Shielding Covers Removed (Vendor 1) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 10 of 13 AS5ONEBTS -16 60W- IPAM Back Side View with Cover Removed (Vendor 1) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 11 of 13 AS5ONEBTS- 16 60W-IPAM Component Side View with Shielding Cover Removed (Vendor 2) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 12 of 13 AS5ONEBTS- 16 60W-IPAM Back Side View with Cover Removed (Vendor 2) APPLICANT: Alcatel-Lucent EXHIBIT 9 FCC ID: AS5ONEBTS-16 Page 13 of 13 AS5ONEBTS-16 AWS Modular Cell 4.0B Indoor Front View with Door Open MCR-1721B Transceiver 60W-IPAM Power Am plifiers

ID Label/Location Info

APPLICANT: Alcatel-Lucent EXHIBIT 8 FCC ID: AS5ONEBTS-16 Page 1 of 3 EXHIBIT 8 Section 2.1033 (c)(11) EQUIPMENT IDENTIFICATION LABEL A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. Response The equipment label to be affixed to the AS5ONEBTS-16 will contain the following information. The engineering drawing of the label is attached to this exhibit. The photo showing the label placement is given in this exhibit as well. Alcatel-Lucent FCC ID: AS5ONEBTS-16 REAR FRONT LEFT SIDE APPLICANT: Alcatel-Lucent EXHIBIT 8 FCC ID: AS5ONEBTS-16 Page 3 of 3 Photograph of Label Placement The front and left side view of the AS5ONEBTS-16 Base Station is attached here. AS5ONEBTS-16 Label Placement

Internal Photos

Parts List/Tune Up Info

APPLICANT: Alcatel-Lucent EXHIBIT 4 FCC ID: AS5ONEBTS-16 Page 1 of 1 EXHIBIT 4 Section 2.1033 (c)(8) DC VOLTAGES AND CURRENTS The dc voltage applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Response The dc currents into and dc voltage applied to the final radio frequency amplifier in the MCR-1721B transceiver for normal operation are 450 mA and 5V which is generated from a 6.3V supply voltage through a voltage regulator. The dc currents into and dc voltage applied to the RF power amplifier in the AWS base station for normal operation are 5~21.5A per amplifier and +26V. Section 2.1033 (c)(9) TUNE-UP PROCEDURE Turn-up procedure over the power range, or at specific operating power levels. Response There are no user tune-up features for the AWS wireless base station, the subject of this application. The AWS base station equipped with the MCR-1721B transceiver is factory calibrated for operating at various output power levels. The AWS wireless base station is also re-calibrated at the customer site and continuously monitors and adjusts the transceiver output power in order to operate at the proper power level.

Test Report

APPLICANT: Alcatel-Lucent EXHIBIT 6 FCC ID: AS5ONEBTS-16 Page 1 of 1 EXHIBIT 6 Section 2.1033 (c)(10) CIRCUITRY AND DEVICES FOR SUPPRESSION OF SPURIOUS RADIATION A description of all circuitry and devices provided for suppression of spurious radiation. Response The Alcatel-Lucent AWS wireless base stations, subject of this application, were designed in adherence to the proper Electromagnetic Compatibility (EMC) guidelines extending from the circuit board level to the shelf and system levels to significantly suppress inter-modulation products, carrier induced harmonics and other spurious signals as well as the emissions radiated from them. The suppression of spurious radiation was achieved mainly by implementing the following two techniques: 1. Effective filtering in the RF path of the transceiver unit and band-pass transmit filters (external to the transceiver). 2. Proper grounding and RF shielding of the circuitry, circuit boards, cables, shelves and the frame.

Test Report

APPLICANT: Alcatel-Lucent EXHIBIT 11 AS5ONEBTS-16 Page 1 of 26 EXHIBIT 11 TEST REPORT This test report presents the measurement data required by the Commission for certifying the Alcatel- Lucent AWS base stations, subject of this application. The AWS base station is available in various versions for non-in-building application (macro, compact, indoor, outdoor, AC and DC) and in-building application (digital host). The RF path for the various versions of the AWS base station is identical except that the RF power amplifiers may be removed in the in-building application due to the low power application. Therefore, the testing data of one system configuration, representing the maximum configuration supported so far, were submitted in this exhibit. All testing results submitted in this report were performed on the +24VDC AWS Modular Cell 4.0B Indoor System during the period of July 11~September 7, 2007 for both CDMA2000 voice and 1xEVDO applications, except the frequency stability test which was performed on +24VDC AWS 4.0B Outdoor system. The above AWS Modular Cell 4.0B base station, subject of this application, passed FCC Part 15 Class A radiated emissions requirements. The performance of other versions of the AWS base stations will be evaluated and authorized through FCC Class I permissive change procedure. The measurement results have demonstrated that Alcatel-Lucent Modular Cell 4.0B AWS system is in full compliance with the Rules of the Commission. APPLICANT: Alcatel-Lucent EXHIBIT 11 AS5ONEBTS-16 Page 2 of 26 SUBEXHIBIT 11.1 Section 2.1033 (c)(14) REQUIRED MEASUREMENT DATA The required measurement data is presented in the following exhibits as follows: SUBEXHIBIT 11.2 Section 2.1046 Measurements Required: RF Power Output SUBEXHIBIT 11.3 Section 2.1047 Modulation Characteristics SUBEXHIBIT 11.4 Section 2.1049, 27.53(g) Measurements Required: Occupied Bandwidth and Out-of-Band Emissions SUBEXHIBIT 11.5 Sections 2.1051, 27.53(g) Measurements Required: Spurious Emissions at Antenna Terminals SUBEXHIBIT 11.6 Sections 2.1053, 27.53(g) Measurements Required: Field Strength of Spurious Radiation SUBEXHIBIT 11.7 Sections 2.1055, 27.54 Measurements Required: Frequency Stability SUBEXHIBIT 11.8 Section 2.947 List of Test Equipment Used APPLICANT: Alcatel-Lucent EXHIBIT 11 AS5ONEBTS-16 Page 3 of 26 SUBEXHIBIT 11.2 Section 2.1046 MEASUREMENT REQUIRED: RF POWER OUTPUT This test is a measurement of the total RF power level transmitted at the antenna-transmitting terminal (J4), as shown in the accompanying test set-up diagram. The radio was first tuned to a channel, which is transmitting in the 2110-2155MHz frequency band. The power level of the base station was calibrated to allow the base station to operate at the manufacturer’s maximum rated mean power level, i.e., +47.8dBm (60W) per carrier at the antenna-transmitting terminal. Then the carrier was tuned to other channels in the same frequency band without adjusting the power level and recalibrating, and the corresponding mean RF output power level was measured. All the carriers were configured with a combination of the Pilot, Sync, Paging and Traffic channels. The Pilot/Sync/Page channels were set up according to the recommended test model for base stations given in 3GPP2 C.S0010-C v 2.0 (Section 6), as shown in the following tables. Table 11.2.1. Base Station Test Model, Nominal Type Number of Channels Fraction of Power (linear) Fraction of Power (dB) Comments Pilot 1 0.2000 -7.0 Walsh 0 Sync 1 0.0471 -13.3 Walsh 32, always 1/8 rate Paging 1 0.1882 -7.3 Walsh 1, full rate only Traffic 6 0.09412 each -10.3 each Variable Walsh assignments, full rate only Table 11.2.2. Base Station Test Model for Transmit Diversity Path, Nominal Type Number of Channels Fraction of Power (linear) Fraction of Power (dB) Comments Transmit Diversity Pilot 1 0.2000 -7.0 Walsh 0 Traffic 6 0.09412 each -10.3 each Variable Walsh assignments, full rate only Power measurements were made with a Giga-tronics 8542C Universal Power Meter with 80621A Power Sensor (0.01 – 18 GHz) in the average mode. The test set-up for conducting the RF power output measurement is shown in the following figure. Before the testing was started, the Base Station was given a sufficient “warm-up” period as required. For a single carrier operation in the band 2110-2155 MHz, the maximum mean power at the antenna transmitting terminal measured is +47.8dBm (60W). The channels that were measured are tabulated in the Table 11.2.3. The power derivation across the AWS frequency band of 2110-2155 MHz is less than ±0.22 dB. For multiple carrier operation, each transceiver can support up to 11 carriers and each 60W-IPAM can support up to 2 carriers of the maximum power at each carrier. For the AWS 4.0B system equipped, the maximum rated mean power measured is 60W per carrier at each antenna transmitting terminal, 120W per port and 240W per sector. APPLICANT: Alcatel-Lucent EXHIBIT 11 AS5ONEBTS-16 Page 4 of 26 Table 11.2.3. Channels of RF Power Output Measurement AWS Channel Number AWS Frequency (MHz) AWS Frequency Block 25 2111.25 A (Low) 175 2118.75 A (High) 225 2121.25 B (Low) 375 2128.75 B (High) 425 2131.25 C (Low) 475 2133.75 C (High) 525 2136.25 D (Low) 575 2138.75 D (High) 625 2141.25 E (Low) 675 2143.75 E (High) 725 2146.25 F (Low) 875 2153.75 F (High) Results: The maximum RF power outputs of the Alcatel-Lucent Modular Cell 4.0B AWS base stations at the antenna transmitting terminal across the AWS frequency band 2110 – 2155 MHz is 60W per carrier and are in full compliance with the Rules of the Commission. APPLICANT: Alcatel-Lucent EXHIBIT 11 AS5ONEBTS-16 Page 5 of 26 FIGURE 11.2.1 TEST SET-UP FOR MEASUREMENT OF RADIO FREQUENCY POWER OUTPUT Giga-tronic 8542C Power Meter with 80621A Power Sensor and 30dB RF Attenuator MCR 1721B Transceiver CTU/OM Flexent Modular Cell AWS 4.0B Power Amplifier (60W-IPAM) Tx/Rx Filter 15MHz CTU: Common Timing Unit; OM: Oscillator Module. APPLICANT: Alcatel-Lucent EXHIBIT 11 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Raymond J. Johnson(Technical Manager)

[email protected]732-881-6002Fax: NA

Test Firm

Alcatel-Lucent USA IncQin Yu

[email protected]614-367-5194Fax: 614-367-5194

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	27	2.11 GHz - 2.15 GHz	60 W	1M23F9W	0.0500000000 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is maximum conducted per carrier. This device is capable of 0-120W per Tx port and 0-240W per sector. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
