AS5ONEBTS-26RRH2X60-850

Nokia of America Corporation
RRH2X60-850 - FCC ID AS5ONEBTS-26 - Nokia of America Corporation
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Mar 25, 2012
Application Purpose
Original Equipment
Date of Application
Mar 25, 2012
Equipment Note
RRH2X60-850
Frequency Range
869.00000000 - 894.00000000
Company
Nokia of America Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

APPLICANT: Alcatel-Lucent USA, Inc. Exhibit 10 FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Page 1 of 1 Us Pursuant To Company Instructions EXHIBIT 10: USERS MANUAL § 2.1033 Application for certification. (c) Applications for equipment other than that operating under parts 15 and 18 of the rules shall be accompanied by a technical report containing the following information: (3) A copy of the installation and operating instructions to be furnished the user. A draft copy of the instructions may be submitted if the actual document is not available. The actual document shall be furnished to the FCC when it becomes available. Alcatel-Lucent Remote Radio Head 2X60W - 850, 1900 MHz | UA08.1 Site Preparation NN-20500-305 Issue 0.7; November 2011 Alcatel-Lucent – Proprietary Use pursuant to applicable agreements Legal notice Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein. Copyright © 2011 Alcatel-Lucent. All rights reserved. Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside Alcatel-Lucent without its written authorization. Not to be used or disclosed except in accordance with applicable agreements. Use pursuant to applicable agreements Legal notice Titlepage Alcatel-Lucent RemoteRadioHead2X60W-850,1900MHz | UA08.1 SitePreparation NN-20500-305 Issue0.7 November2011 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements Usepursuanttoapplicableagreements P RELIMINARY P RELIMINARY Legalnotice Legalnotice Alcatel,Lucent,Alcatel-LucentandtheAlcatel-LucentlogoaretrademarksofAlcatel-Lucent.Allothertrademarksarethepropertyoftheirrespective owners. Theinformationpresentedissubjecttochangewithoutnotice.Alcatel-Lucentassumesnoresponsibilityforinaccuraciescontainedherein. Copyright©2011Alcatel-Lucent.Allrightsreserved. Containsproprietary/tradesecretinformationwhichisthepropertyofAlcatel-Lucentandmustnotbemadeavailableto,orcopiedorusedbyanyoneoutside Alcatel-Lucentwithoutitswrittenauthorization. Nottobeusedordisclosedexceptinaccordancewithapplicableagreements. Usepursuanttoapplicableagreements Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements P RELIMINARY P RELIMINARY 22Safetystatements Overview Purpose Thischaptercoverssafetyprecautions. Contents Structureofsafetystatements2-2 Safety2-4 Safety-specifichazards2-5 Productsafety2-8 ................................................................................................................................................................................................................................... Alcatel-LucentRRH2X60W NN-20500-305UA08.1 Issue0.7 November2011 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements 2-1 P RELIMINARY P RELIMINARY Structureofsafetystatements Overview Safetystatementsdescribethesafetyrisksrelevantwhileperformingtaskson Alcatel-Lucentproductsduringdeploymentand/oruse.Failuretoavoidthehazardsmay haveseriousconsequences. Generalstructure Safetystatementsincludethefollowingstructuralelements: Item StructureelementPurpose 1SafetyalertsymbolIndicatesthepotentialforpersonalinjury (optional) 2SafetysymbolIndicateshazardtype(optional) 3SignalwordIndicatestheseverityofthehazard 4HazardtypeDescribesthesourceoftheriskofdamageor injury 5SafetymessageConsequencesifprotectivemeasuresfail 6AvoidancemessageProtectivemeasurestotaketoavoidthehazard 7IdentifierThereferenceIDofthesafetystatement (optional) Signalwords Thesignalwordsidentifythehazardseveritylevelsasfollows: Signalword Meaning DANGERIndicatesanextremelyhazardoussituationwhich,ifnotavoided,will resultindeathorseriousinjury. SAMPLE BCD E F G H Lifting this equipment by yourself can result in injury due to the size and weight of the equipment. Always use three people or a lifting device to transport and position this equipment. [ABC123] CAUTION Lifting hazard SafetystatementsStructureofsafetystatements .................................................................................................................................................................................................................................... .................................................................................................................................................................................................................................... 2-2 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements Alcatel-LucentRRH2X60W NN-20500-305UA08.1 Issue0.7 November2011 P RELIMINARY P RELIMINARY Signalword Meaning WARNINGIndicatesahazardoussituationwhich,ifnotavoided,couldresultin deathorseriousinjury. CAUTIONIndicatesahazardoussituationwhich,ifnotavoided,couldresultin minorormoderateinjury. NOTICEIndicatesahazardoussituationnotrelatedtopersonalinjury. SafetystatementsStructureofsafetystatements .................................................................................................................................................................................................................................... .................................................................................................................................................................................................................................... Alcatel-LucentRRH2X60W NN-20500-305UA08.1 Issue0.7 November2011 Alcatel-Lucent–Proprietary Usepursuanttoapplicableagreements 2-3 P RELIMINARY P RELIMINARY Safety Generalprecautionsforinstallationprocedures WARNING Failuretoobservethesesafetyprecautionsmayresultinpersonal injuryordamagetoequipment. •Readandunderstandallinstructions. •Followallwarningsandinstructionsmarkedonthisproduct. •Installationandmaintenanceproceduresmustbefollowedandperformedby traine…

Text truncated - open the document above for the full version.

Cover Letter(s)

APPLICANT: Alcatel-Lucent USA, Inc. FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Page 1 of 3 Us Pursuant To Company Instructions 600-700 Mountain Avenue Subject: Application for an Intial Grant of Equipment Murray Hill, NJ 07974-0636 Authorization under FCC ID: AS5ONEBTS-26, Covering the New RRH2X60-850 Product. Rudolf J. Pillmeier Telephone: 908-582-2810 E-Mail: [email protected] March 23, 2012 Mr. Sid Sanders, President Timco Engineering, Inc. 849 N. W. State Road 45, P. O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders: Alcatel-Lucent’s new -48V WCDMA RRH2X60-850 twin Remote Radio Head product will be deployed in combination with the 9396 d2U Digital Baseband Unit (BBU). Deployment of this Universal Mobile Telecommunications System (UMTS) will be in the North America Region (NAR). This product consists of two independent 60W power amplifiers (PA) and two independently settable transceivers. The Frequency Spectrum subject of this application is Part 22—Public Mobile Services, Subpart H—Cellular Radiotelephone Service 869-894 MHz. The RF power at the downlink (DL) antenna terminal to be authorized is: 1) single carrier operation (1C) at 60 Watts (+47.8 dBm) for each of the two (2) transmit paths (Tx1 and Tx2) 2) two carrier operation (2C) at 30W/C (+44.8 dBm/C) for total composite power of 60W per transmit path Enhanced Digital Predistortion (EDPD) and Closed Loop Gain Control (CLGC) are also features that are enabled with each carrier setting. The footnote on the Grant should read: The RRH2X60-850 is rated for 60W single carrier RF power per transmit antenna terminal and 60W total composite power for multiple carriers. This system complies both with the Federal Communication Commission (FCC) Rules and Regulations (47 CFR Part 22H), and with the European Telecommunications Standards Institute (ETSI) 3 rd Generation Partnership Project (3GPP) Technical Specifications TS 25.104 and TS 25.141. UMTS functionality was developed in accordance to the guidelines of the standard : ETSI TS 125 141 V7.15.0 (2010-02) Universal Mobile Telecommunications System (UMTS); Base Station (BS) conformance testing (FDD); (3GPP TS 25.141 version 7.15.0 Release 7). The measurement exhibits attached to this application demonstrate full compliance with both FCC Part 22—Public Mobile Services, Subpart H— Cellular Radiotelephone Service and with ETSI TS 25.141, following the procedural requirements specified in FCC Part 2, Subpart J – Equipment Authorization Procedures. The data summarized below is in the form presently used by the Commission’s Radio Equipment List, Equipment Acceptable for Licensing. APPLICANT: Alcatel-Lucent USA, Inc. FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Page 2 of 3 Us Pursuant To Company Instructions Manufacturer Alcatel-Lucent USA, Inc. Equipment Identification AS5ONEBTS-26 Rules Part Number Part 22—Public Mobile Services, Subpart H—Cellular Radiotelephone Service Frequency Ranges Transmit 869–894 MHz Output Power 60 Watts (+47.8 dBm) at each of the 2 Tx antenna terminals (Tx1 & Tx2) Frequency Tolerance ± 0.05 ppm Emission Designator 4M20F9W Attached are the FCC Form 731 (Application for Equipment Authorization – Radio Frequency Devices) and the required measurement data and exhibits specific to this request for a Grant of Equipment Authorization. The technical contact at Alcatel-Lucent USA, Inc., will comply with any request for additional information should the need arise. The attached exhibits are assembled and presented in the sequence recommended by Timco Engineering, in accordance with the Table of Contents attachment. Permanent confidentiality is requested for the exhibits listed below, and will be formally requested in a separate written request for confidentiality. 09-OpDes_AS5ONEBTS-26_CONFIDENTIAL 10-BlkDia_AS5ONEBTS-26_CONFIDENTIAL 11-Schem_AS5ONEBTS-26_CONFIDENTIAL 15T-PartsLst_AS5ONEBTS-26_CONFIDENTIAL Sincerely, Rudolf J. Pillmeier GPCL Technical Manager FCC/EMC Compliance Test Group Att. Table of Contents APPLICANT: Alcatel-Lucent USA, Inc. FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Page 3 of 3 Us Pursuant To Company Instructions TABLE OF CONTENTS 01-Form731: TCB 731 Form 02-Cover Letter 03-Request for Confidentiality Letter 04-Exhibit 1: FCC ID Label Sample and Location Information 05-Exhibit 2: FCC Required Information (Part 2.1033) 06-Exhibit 3: External Photographs of the Equipment (Part 2.1033 (c)(12)) 07-Exhibit 4: Internal Photographs of the Equipment (Part 2.1033 (c)(12)) 08-Exhibit 5: Test Set Up Photographs 09-Exhibit 6: Operational Description (Theory of Operation, Functional Description) - CONFIDENTIAL 10-Exhibit 7: Block Diagrams - System - CONFIDENTIAL 11-Exhibit 8: Schematic Diagrams - CONFIDENTIAL 12-Exhibit 9: Test Report 13-Exhibit 10: User Manual or Comparable 14-Exhibit 11: Tuning Procedure, if Applicable 15-Exhibit 12: Parts List – CONFIDENTIAL

Cover Letter(s)

APPLICANT: Alcatel-Lucent USA, Inc. FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Us Pursuant To Company Instructions 600-700 Mountain Avenue Subject: Request for Continued Permanent Confidentiality Murray Hill, NJ 07974-0636 under FCC ID: AS5ONEBTS-26. Rudolf J. Pillmeier Telephone: 908-582-2810 E-Mail: [email protected] March 23, 2012 Mr. Sid Sanders, President Timco Engineering, Inc. 849 N. W. State Road 45, P. O. Box 370 Newberry, Florida 32669 Dear Mr. Sanders: The Exhibits listed below are requested to be Granted Permanent Confidentiality, pursuant to Sections 0.457 & 0.459 of the Commission’s Rules . They are considered highly proprietary to Alcatel-Lucent’s RRH2X60-850 Product, subject of this application for Equipment Authorization under FCC ID: AS5ONEBTS-26. 09-OpDes_AS5ONEBTS-26_CONFIDENTIAL 10-BlkDia_AS5ONEBTS-26_CONFIDENTIAL 11-Schem_AS5ONEBTS-26_CONFIDENTIAL 15-PartsLst_AS5ONEBTS-26_CONFIDENTIAL Sincerely, Rudolf J. Pillmeier GPCL Technical Manager FCC/EMC Compliance Test Group

External Photos

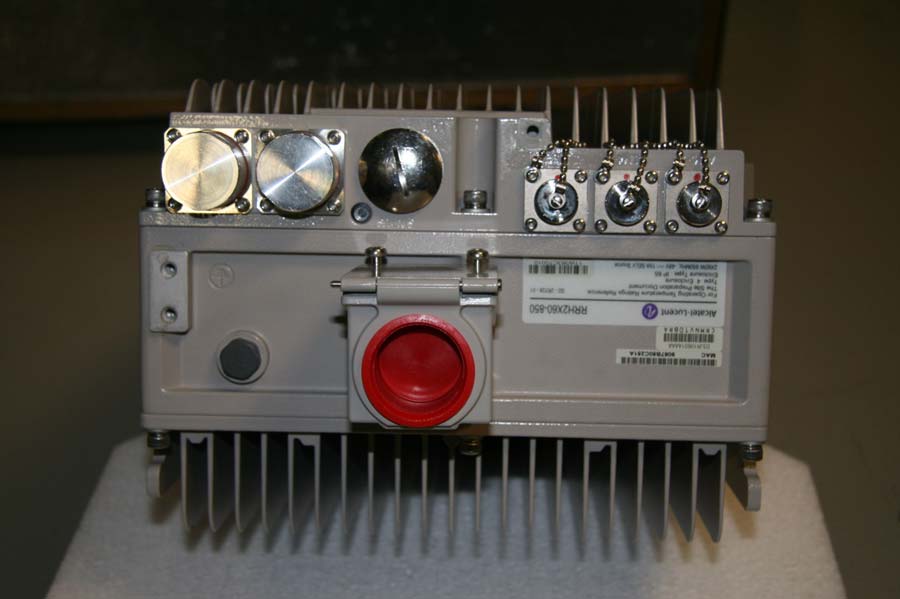

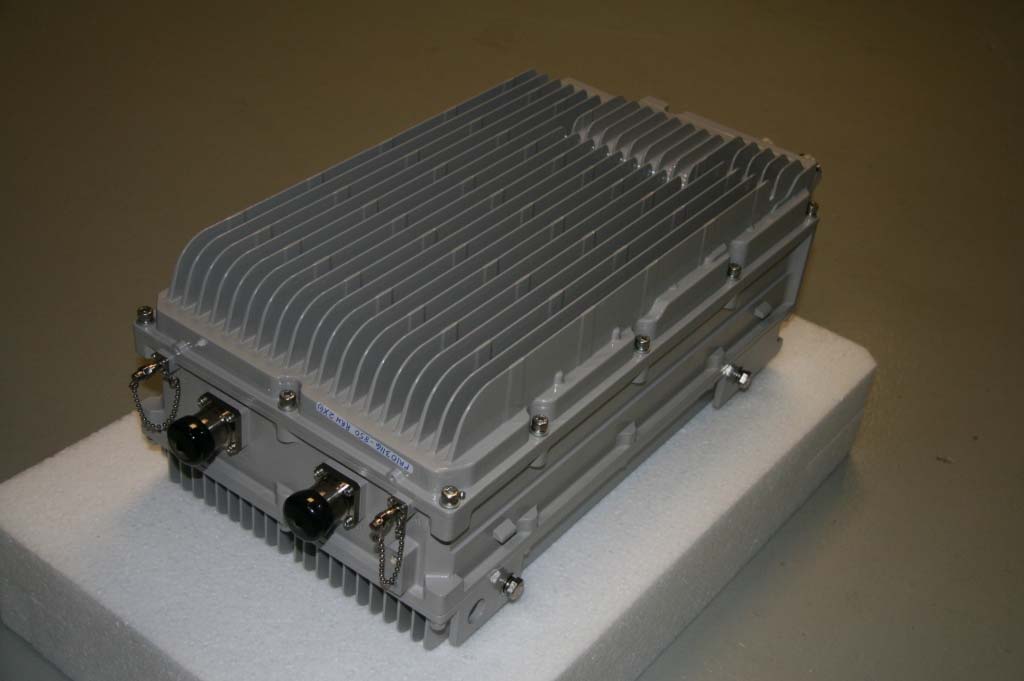

APPLICANT: Alcatel-Lucent USA, Inc. Exhibit 3 FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Us Pursuant To Company Instructions Page 1 of 3 EXHIBIT 3: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT Section 2.1033 (c)(12): Photographs of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. These external photographs show Alcatel-Lucent’s -48V WCDMA RRH2X60-850 twin Remote Radio Head product. View Number 1: Front, Bottom and Right Side APPLICANT: Alcatel-Lucent USA, Inc. Exhibit 3 FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Us Pursuant To Company Instructions Page 2 of 3 View Number 2: Top (Tx1/Rx1 + Tx2/Rx2), Front and Left Side APPLICANT: Alcatel-Lucent USA, Inc. Exhibit 3 FCC ID: AS5ONEBTS-26 Alcatel-Lucent – Proprietary Us Pursuant To Company Instructions Page 3 of 3 View Number 3: Bottom
