ASU-CRU0200Savant Blaster

BLASTER QUICK START GUIDE Search for Savant in your app store and look for this icon. THANKS FOR PURCHASING A SAVANT BLASTER. HERE’S HOW TO GET STARTED: 1 DOWNLOAD THE SAVANT APP ™ The Savant App is available for Apple and Android devices. Upon download, the app will walk you through the rest of your setup. If you need additional help, visit savant.com / support. ENSURE YOUR HOST IS ALREADY SET UP A Savant Host ™ is required to connect to the Blaster. A solid green light indicates that the Host is connected to your Wi - Fi ® network. If you need help setting up your Host, please refer to the Host Quick Start Guide. 2 POWER ON YOUR BLASTER Insert the two AAA batteries into the bottom of the Blaster to power it on. Your app should recognize the Blaster and will prompt you to connect it to the system. If you do not receive a prompt, you can complete the Blaster setup through the Devices section of the Savant App. 3 PLACE YOUR BLASTER Blasters are for use with devices that are out of the line of sight of your Remote Base. When devices are on multiple shelves, you will need to place a Blaster in front of the devices on each shelf. 4 Part # HDH6B005010 Savant Systems, LLC. 45 Perseverance Way, Hyannis, MA 02601 © 2015 Savant Systems, LLC. All rights reserved. Savant, Savant App, Savant Host, and the Savant logo are trademarks of Savant Systems, LLC. Android, Google, Google Play, and other Google marks are trademarks of Google Inc. Wi - Fi is a registered trademark of Wi - Fi Alliance ® . All other brand names, product names, and trademarks are the property of their respective owners. Product images are simulated and for instructional purposes only. They may differ from the actual products and are subject to change without notice. Savant Systems, LLC reserves the right to change product specifications without notice. Printed in China. Version # 1.0.B Follow us: FOR MORE INFORMATION, TUTORIAL VIDEOS, AND FAQ’S, VISIT SAVANT.COM / SUPPORT OR CALL US TOLL - FREE AT 1 - 855 - 5 S AVA N T

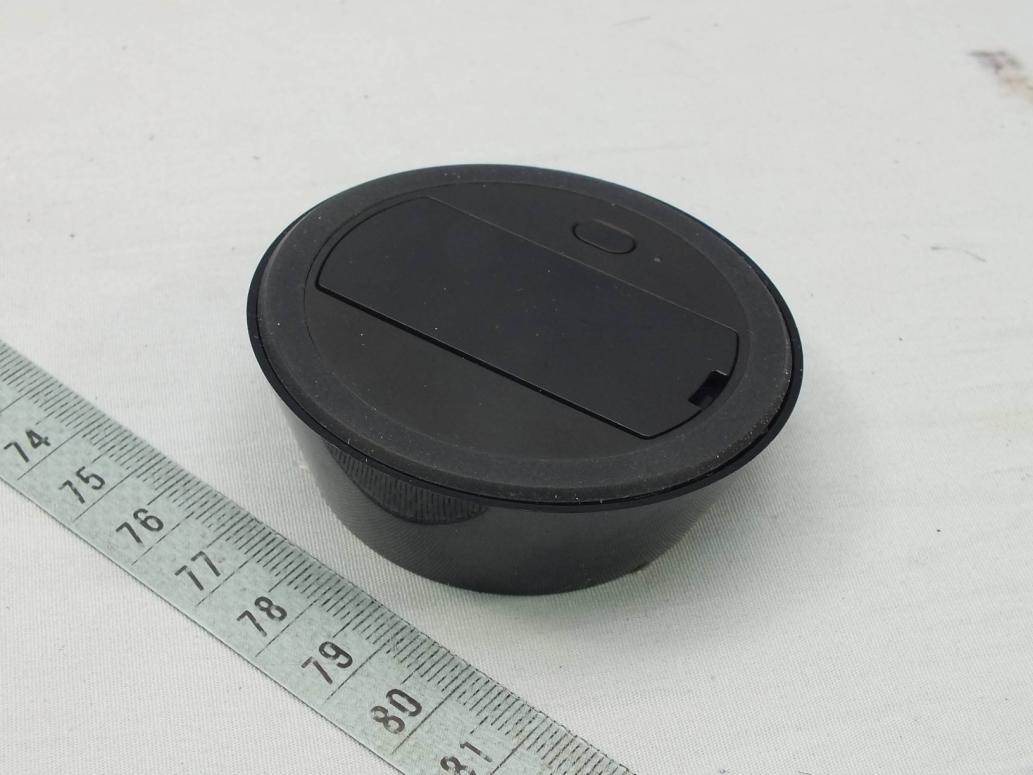

Report No.: 150923C26 1 of 6 CONSTRUCTION PHOTOS OF EUT Report No.: 150923C26 2 of 6

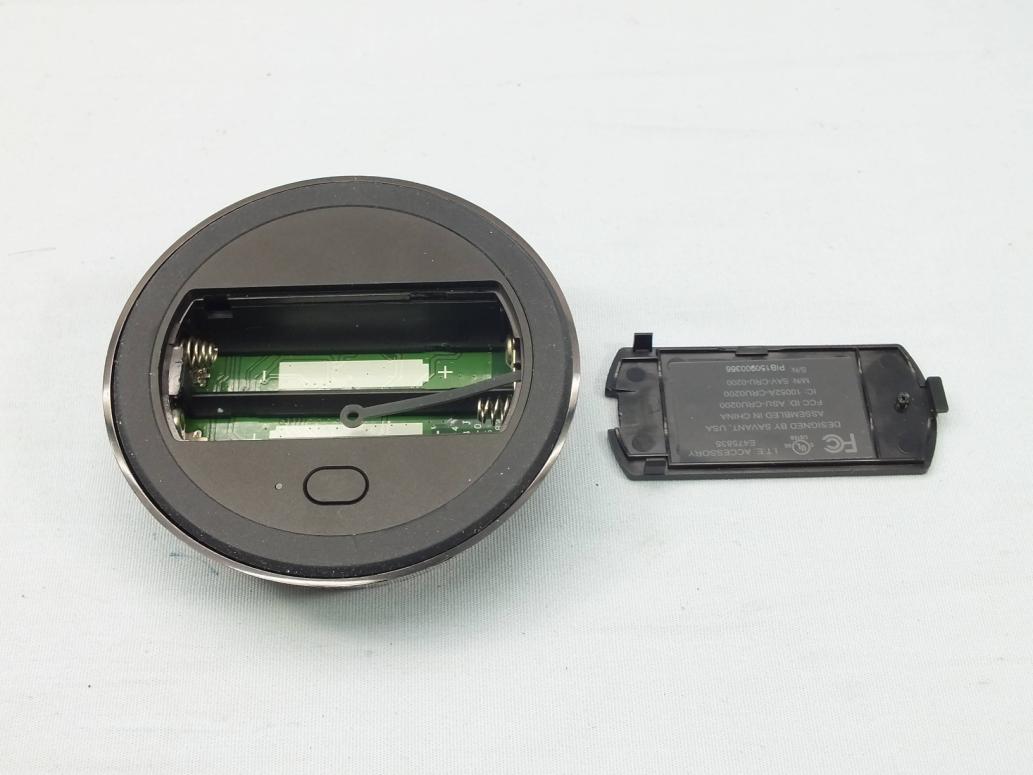

IR Blaster Label inside the Label Location nside the battery cover

Report No.: 150923C26 3 of 6 Report No.: 150923C26 4 of 6 Report No.: 150923C26 5 of 6 Report No.: 150923C26 6 of 6

FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA150923C26 Issued Date : Oct. 22, 2015 FCC MPE Evaluation Report Report No. : SA150923C26 Applicant : Savant Systems LLC Address : 45 Perseverance Way Hyannis, MA 02601 USA Product : Savant Blaster FCC ID : ASU-CRU0200 Brand : Savant Model No. : SAV-CRU-0200 Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 Sample Received Date : Sep. 23, 2015 Date of Evaluation : Oct. 06, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA150923C26 Issued Date : Oct. 22, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Description of Equipment Under Test ................................................................................................................................. 4 2. MPE (Maximum Permissible Exposure) Assessment ......................................................................................................... 5 2.1 Introduction .................................................................................................................................................................. 5 2.2 RF Radiation Exposure Limits ...................................................................................................................................... 5 2.3 MPE Assessment Method ............................................................................................................................................ 6 2.4 MPE Calculation for Standalone Operations ................................................................................................................ 6 3. Information on the Testing Laboratories ............................................................................................................................. 7 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA150923C26 Issued Date : Oct. 22, 2015 Release Control Record Report No. Reason for Change Date Issued SA150923C26 Initial release Oct. 22, 2015 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA150923C26 Issued Date : Oct. 22, 2015 1. Description of Equipment Under Test EUT Type Savant Blaster FCC ID ASU-CRU0200 Brand Name Savant Model Name SAV-CRU-0200 Tx Frequency Bands (Unit: MHz) Bluetooth : 2402 ~ 2480 Uplink Modulations Bluetooth : GFSK, π/4-DQPSK, 8-DPSK Antenna Type Chip Antenna EUT Stage Identical Prototype Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. List of Accessory: BT Chip Brand Name Texas Instruments Model Name CC2541F256RHAR FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA150923C26 Issued Date : Oct. 22, 2015 2. MPE (Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general popu…

Text truncated - open the document above for the full version.

Report No.: RF150923C26 Page No. 1 / 33 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150923C26 FCC ID: ASU-CRU0200 Test Model: SAV-CRU-0200 Received Date: Sep. 23, 2015 Test Date: Oct. 06, 2015 ~ Oct. 15, 2015 Issued Date: Oct. 23, 2015 Applicant: Savant Systems LLC Address: 45 Perseverance Way Hyannis, MA 02601 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) Test Location: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RF150923C26 Page No. 2 / 33 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Modification Record .............................................................................................................................. 6 3 General Information ................................................................................................................................... 7 3.1 General Description of EUT .................................................................................................................. 7 3.2 Description of Test Modes ..................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail .................................................................... 9 3.3 Description of Support Units ................................................................................................................ 11 3.3.1 Configuration of System under Test .......................................................................................... 11 3.4 General Description of Applied Standards ........................................................................................... 11 4 Test Types and Results ............................................................................................................................ 12 4.1 Radiated Emission and Bandedge Measurement .............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement ..................................................... 12 4.1.2 Test Instruments ....................................................................................................................... 13 4.1.3 Test Procedures ........................................................................................................................ 14 4.1.4 Deviation from Test Standard ................................................................................................... 14 4.1.5 Test Set Up ............................................................................................................................... 15 4.1.6 EUT Operating Conditions ........................................................................................................ 15 4.1.7 Test Results .............................................................................................................................. 16 4.2 Conducted Emission Measurement .................................................................................................... 20 4.2.1 Limits of Conducted Emission Measurement ........................................................................... 20 4.2.2 Test Instruments ....................................................................................................................... 20 4.2.3 Test Procedures ........................................................................................................................ 20 4.2.4 Deviation from Test Standard ................................................................................................... 20 4.2.5 TEST SETUP ............................................................................................................................ 21 4.2.6 EUT Operating Conditions ........................................................................................................ 21 4.2.7 Test Results…

Text truncated - open the document above for the full version.
