ASU-ZP8J4MN1CRVSavant Panel Bridge Controller

Savant Product Regulatory Statement | 009-1950-03 250424 | © 2025 Savant Systems, Inc. 45 Perseverance Way, Hyannis, MA 02601 Savant.com | 508.683.2500 1 of 2 Important Safety Information - Read First! Before installing, configuring, or operating any equipment, all relevant technical documentation must be read, understood, and followed. Savant technical documentation may contain important product-specific installation, mounting, and safety instructions, and can be accessed through the Savant Store. Scan the QR code or visit the URL below, enter the relevant product name or SKU in the Search Savant prompt, and select the product purchased to find documents, specifications and more. https://store.savant.com/DefaultStore/ccrz__HomePage Product Information and Regulatory Statement Safety Statements All safety instructions below must be read, understood, and carefully followed under all applicable circumstances when working with any Savant equipment. 1. Follow all input power ratings marked on product near power input! 2. If fuse replacement is required, replacement fuse should match fuse rating marked on the product. 3. Do not use equipment near water. 4. Clean only with dry cloth. 5. Do not block any ventilation openings or install near any heat sources such as heat registers, stoves, radiators, amplifiers, etc. 6. Refer all servicing to qualified service personnel. Servicing is required when any part of the apparatus has been damaged in any way, or fails to operate normally for any reason. 7. Use only attachments/accessories specified by the manufacturer, following all relevant safety precautions for any such attachments/accessories. 8. For applicable equipment, use the included power cord with the grounding prong intact to insure proper grounding of the device. 9. If the provided plug does not fit the desired outlet, contact a licensed electrician to replace the obsolete outlet. 10. Protect any power cord from being walked on, pinched, strained, or otherwise potentially damaged, especially at the outlet or device connections. 11. Disconnect any outlet powered apparatus from its power source during lightning storms or when unused for long periods of time. 12. To completely disconnect equipment from AC mains power, disconnect the power supply cord plug from the AC receptacle on the device. 13. For any hardwired or fixed in-wall apparatus, carefully follow all wiring diagrams and instructions. All electrical wiring and servicing should be performed by a properly licensed electrician. Déclarations de Sécurité Toutes les instructions de sécurité ci-dessous doivent être lues, comprises et soigneusement suivies dans toutes les circonstances applicables lorsque vous travaillez avec un équipement Savant. 1. Suivez toutes les puissances nominales indiquées sur le produit près de la puissance absorbée! 2. Si le remplacement du fusible est nécessaire, le fusible de remplacement doit correspondre à la valeur nominale du fusible indiquée sur le produit. 3. N’utilisez pas d’équipement près de l’eau. 4. Nettoyer uniquement avec un chiffon sec. 5. Ne bloquez pas les ouvertures de ventilation et n’installez pas à proximité de sources de chaleur telles que les registres de chaleur, les cuisinières, les radiateurs, les amplificateurs, etc. 6. Confiez toutes les réparations à un technicien qualifié. Un entretien est requis lorsqu’une partie de l’appareil a été endommagée de quelque manière que ce soit ou ne fonctionne pas normalement pour une raison quelconque. 7. Utilisez uniquement les attachements / accessoires spécifiés par le fabricant, en suivant toutes les précautions de sécurité applicables à ces attachements / accessoires. 8. Pour l’équipement applicable, utilisez le cordon d’alimentation inclus avec la broche de mise à la terre intacte pour assurer une mise à la terre correcte de l’appareil. 9. Si la fiche fournie ne correspond pas à la prise souhaitée, contactez un électricien agréé pour remplacer la prise obsolète. 10. Protégez tout cordon d’alimentation contre les piétinements, les pincements, les tensions ou autres dommages potentiels, en particulier au niveau de la prise ou des connexions de l’appareil. 11. Débranchez tout appareil alimenté par une prise de courant de sa source d’alimentation pendant les orages ou lorsqu’il n’est pas utilisé pendant de longues périodes. 12. Pour déconnecter complètement l’équipement du secteur, débranchez la fiche du cordon d’alimentation de la prise secteur de l’appareil. 13. Pour tout appareil encastré ou câblé, suivez attentivement tous les schémas de câblage et les instructions. Tout le câblage électrique et l’entretien doivent être effectués par un électricien dûment agréé. IMPORTANT NOTES: • For product mounting, installation, safety instructions, technical specifications, and more, refer to the product Quick Reference Guide, available via the link or QR code noted above. • For regulatory and compliance information, see reverse of this sheet and/or product packaging. Savant Product Regulatory Statement | 009-1950-03 250424 | © 2025 Savant Systems, Inc. 45 Perseverance Way, Hyannis, MA 02601 Savant.com | 508.683.2500 2 of 2 FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for CLASS B digital devices, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, …

Text truncated - open the document above for the full version.

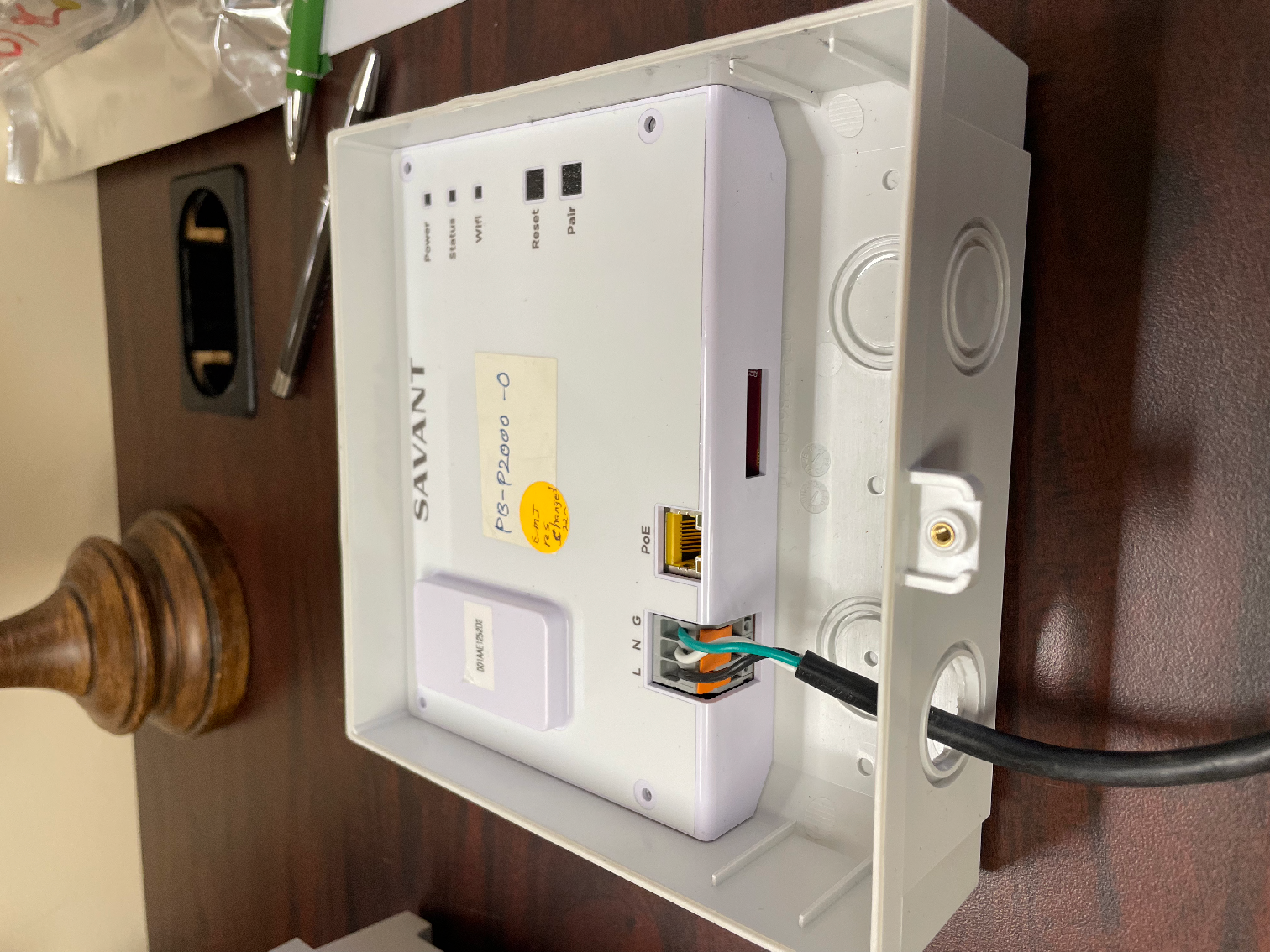

PB-P2000 - Quick Reference Guide | 009-2456-0145 Perseverance Way, Hyannis, MA 02601 Copyright © 2026 Savant Systems, Inc | 2601221 of 3Savant.com | 508.683.2500 Minimum Supported Release Software ReleaseSavantOS 11.1 Regulatory Safety and Emissions FCC Part 15ICTUV RoHsCompliant FCC ID:ASU-ZP8J4MN1CRV IC:10052A-ZP8J4MN1CRV Contains FCC ID:VPYLB1ZM Contains IC:772C-LB1ZM Standards BluetoothBluetooth Low Energy 5.1 (BLE) Wi-Fi2.4/5.0 GHz IEEE 802.11 a/b/g/n/ac Power Power Supply 120V AC power cord or hard wired (hot, neutral, and ground direct wire) Maximum Power25 Watts Power over Ethernet (PoE) 802.3af A Status LEDs - See Status LEDs and Buttons for descriptions. B Buttons - See Status LEDs and Buttons for descriptions. C L/N/G Terminal Provides 120V power to the PB-P2000 using an AC cord, wired as follows: –L - Brown - Line –N - Blue - Neutral –G - Green/Yellow Stripe - Ground D Power over Ethernet (PoE) –8-Pin RJ-45 Port –10/100/1000 Base-T auto negotiating port with link/ activity LEDs Front Panel Box Contents (1) Savant Panel Bridge (PB-P2000-00) (1) AC power cord (064-0914) (3) #6 x 3/4 SS pan head screws (039-0329) (1) Product Regulatory Statement (009-1950) Environmental Temperature-22° to 122° F (-30° to 50° C) HumidityUp to 100% Humidity (condensing) LocationIndoor and Outdoor. (Designed to meet NEMA 3R) Dimensions and Weights HeightWidthDepthWeight Panel Bridge 7.48 inch (190 mm) 7.08 inch (180 mm) 2.52 inch (64 mm) 1.5 lbs (.68 kg) Shipping 9.0 inch (229 mm) 9.0 inch (229 mm) 3.0 inch (76.2 mm) 3.1 lbs (1.41 kg) Additional Information –During installation, limit the distance between the Panel Bridge and the power/lighting modules to 6 1/2 feet (2 meters) or less. –Wi-Fi is available when a wired Ethernet connection is not accessible. –The Panel Bridge can communicate with up to 40 power or lighting modules Specifications Savant Panel Bridge (PB-P2000-00) Quick Reference Guide Power Status Wi-Fi Reset Pair L N G PoE C D A B PB-P2000 - Quick Reference Guide | 009-2456-0145 Perseverance Way, Hyannis, MA 02601 Copyright © 2026 Savant Systems, Inc | 2601222 of 3Savant.com | 508.683.2500 Status LEDs and Buttons IMPORTANT! In the descriptions below, Home Network refers to the local Wi-Fi or wired network. Wall Mount Rack Mount Installation The Panel Bridge can be positioned on a solid, flat surface—such as a table, cabinet, rack, or shelf—or mounted on a wall (or similar structure) using the supplied bracket. Install the chassis in a dry, well-ventilated area, out of direct sunlight. The instructions below cover both rack- and wall-mount options. When installing, place the Panel Bridge within 6.5 feet (2 m) and in direct line of sight of the power and lighting modules. The optional RCK-3000 provides a ventilated shelf for mounting. This rack is compatible with all standard 19-inch National Electronic Manufacturers Association (NEMA) rack mounts. Power (LED) Solid Green - Power is applied. Off - No power. Verify the power source is supplying the proper voltage. Status (LED) Amber - The Panel Bridge is booting/rebooting and loading software. The Panel Bridge is not ready. Amber Blinking - The Panel Bridge is installing firmware updates. Blue - The Panel Bridge completed startup but does not have an IP address. Blue Blinking - The Panel Bridge is in pairing mode and scanning for Power Modules. Discovered modules will be paired to the Panel Bridge. NOTE: This state will trigger if pairing is activated from pressing the Pair Button or initiating Pairing using SP&L or Blueprint. Green - Normal operation mode. The Panel Bridge has an IP and all module connections are stable. Red Blinking - The Panel Bridge is unable to communicate with paired Power Modules. Red Blinking (fast blink) - Reset button was held for 5/10 seconds. Wi-Fi Status (LED) Green - The Panel Bridge is provisioned, and communicating with Wi-Fi. NOTE: The Savant Power & Light App configures the wireless interface. Red - The Panel Bridge is provisioned to Wi-Fi but unable to communicate with that network. Red Blinking (fast blink) - The Reset button was pressed and held for 10 seconds. See the description in the Reset (Button) fields below. Off - The Panel Bridge is not provisioned to Wi-Fi. Reset (Button) Press and Release - Reboots the Panel Bridge, and all settings are left intact. Press and hold (5 secs) - Network Reset. Press and hold for 5 seconds until the Status LED blinks red (fast blinking), then release. The Panel Bridge reboots, all the network settings are cleared, and the PB returns to provisioning mode. Modules will not be cleared and remained paired to the PB. Press and hold (10 secs) - Factory Reset. Press and hold for 10 seconds until the Status and Wi-Fi LEDs blink red (fast blink), then release. After the reboot, the network settings, paired Modules, logs, and passwords are cleared. Pair (Button) Press and Release - Launches On-Device Pairing. In this mode, the Panel Bridge locates any power or lighting modules that are also in pairing mode, and connects with them. Press and Hold (5 secs) - Press and hold for 5 seconds until the Status LED blinks red (fast blink), then release. All Power Modules will become unpaired. Network and password settings are preserved. NOTE: A gear icon displayed on a power or lighting module’s LCD screen indicates the module is in pairing mode. 1. Remove cover by loosening the thumb screw and set aside. Determine wire entry location from bottom or rear knockout. 2. Drill the selected location to fit chosen UL knockout entry fitting (not included). If outdoors, use a UL approved cable gland fitting of desired size. 3. Install desired fitting and provided AC cord. 4. If using provided AC cord: terminate cable, brown to L[ine], blue to N[eutral], green/yellow stripe to G[round]. OR If using permanent Romex home wiring: terminate black to L[ine], white to N[eutral], bare copper earth wire to G[round]. 5. Locate the desired mounting location, install provided #6 SS pan head screw an…

Text truncated - open the document above for the full version.

Date: 08-12-2025 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID: ASU-ZP8J4MN1CRV Dear Sir or Madam, Savant Systems Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. We further attest that the equipment for which authorization is sought does not contain, nor will it ever contain, integrated Kaspersky cybersecurity and/or anti-virus software produced by Kaspersky Lab Inc. or any of its successors and assignees. If you have any questions, please contact us. Sincerely, Contact name: Company name: Address: E-mail: Tel: Peter H. Corsini Savant Inc. 45 Perserverance Way , Hyannis, MA 02601 [email protected] 5086832500

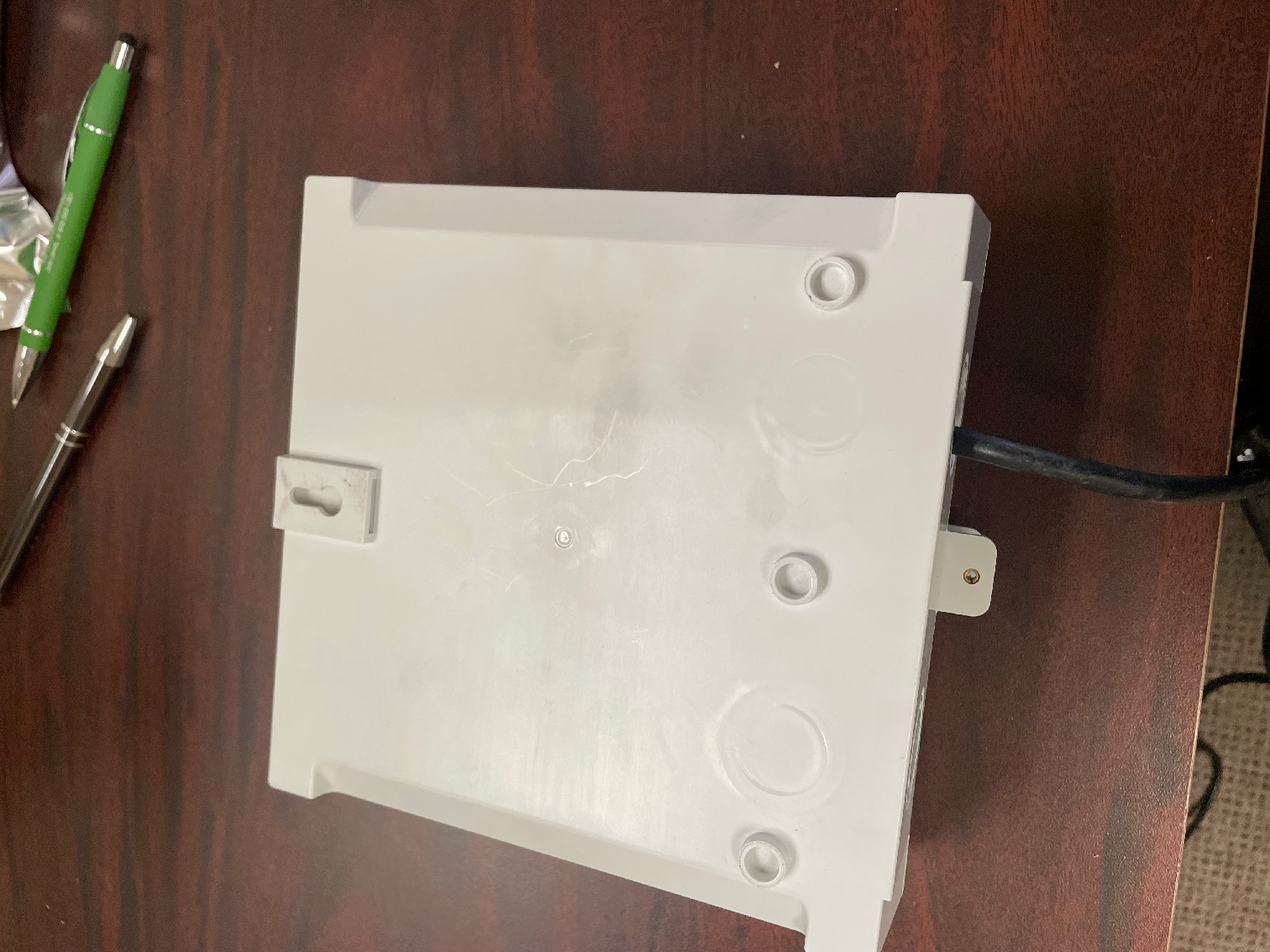

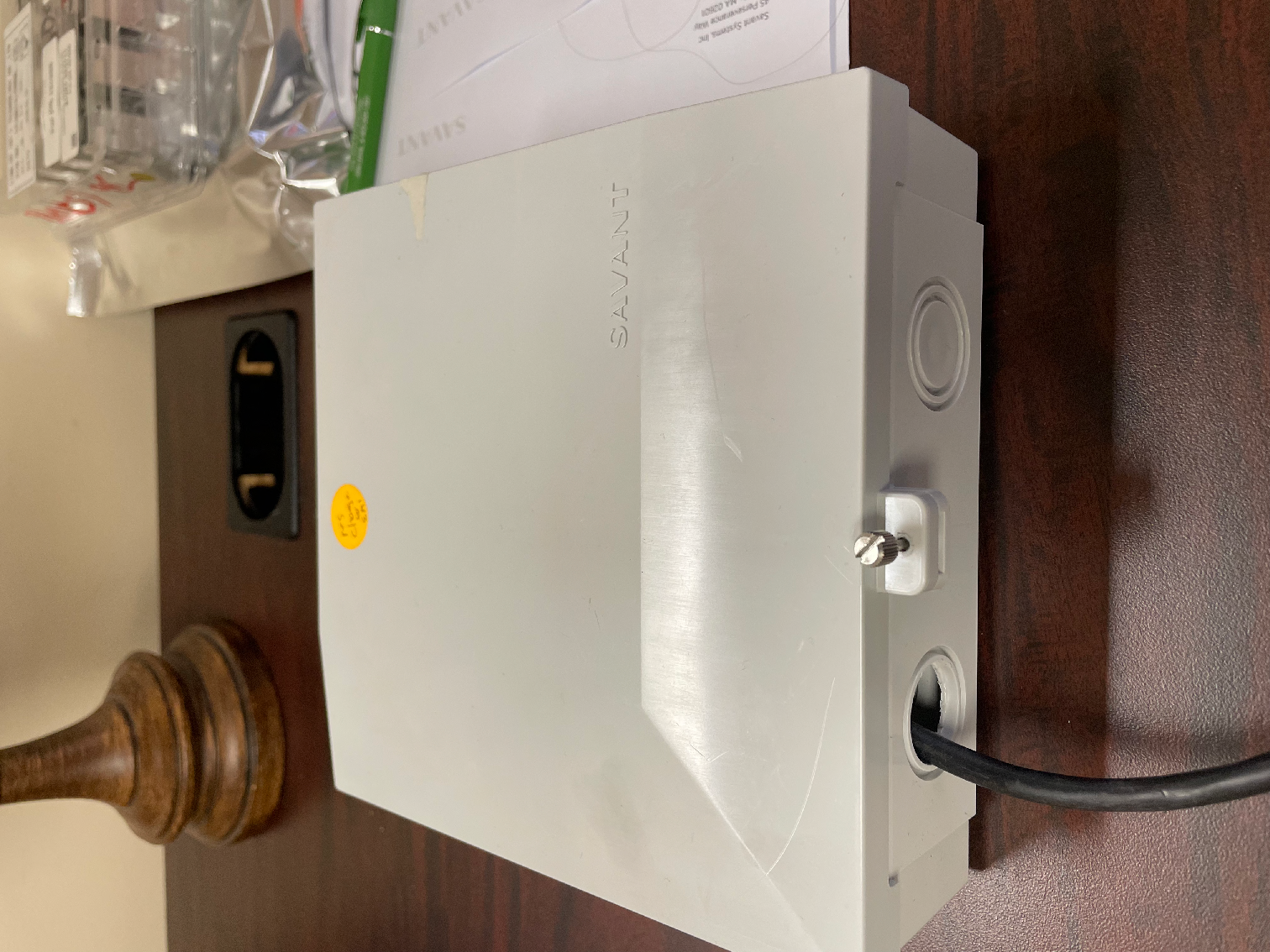

Figure 1: Sample Label Figure 2: Sample HVIN Label Figure 3: Label Location

Figure 1: PCB Front Figure 2: PCB Back

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: ASU- ZP8J4MN1CRV FCC Rule Part: 47 CFR Part 2.1091 Project Number: 721007920 Manufacturer: Savant Systems Inc Model Name / Number: PB-P2000-00 RF Exposure Model Name / Number: PB-P2000-00 FCC ID: ASU-ZP8J4MN1CRV Report: AT721007920.2C0 Page 2 General Information: Applicant: Savant Systems Inc Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information (BLE) – “Radio 1”: Frequency Range (MHz): 2402 - 2480 Antenna Type: Flexible Printed Circuit (FPC) Antenna Gains: 2 dBi Maximum Transmitter Conducted Power: 2.1dBm, 1.62mW Maximum System EIRP: 4.1dBm, 2.57mW Exposure Conditions: 20 centimeters Technical Information (BLE) – “Radio 2”: Frequency Range (MHz): 2402 - 2480 Antenna Type: Flexible Printed Circuit (FPC) Antenna Gains: 2 dBi Maximum Transmitter Conducted Power: 2.4dBm, 1.74mW Maximum System EIRP: 4.4dBm, 2.75mW Exposure Conditions: 20 centimeters RF Exposure Calculation Table 1: Device Characteristics (BLE) Technical Parameters Radio 1 Radio 2 Frequency (GHz) 2.402 2.402 Frequency (MHz) 2402 2402 Separation Distance (cm) 20.00 20.0 Separation Distance (m) 0.2000 0.200 Antenna Gain (dBi) 2.00 2.00 ERP Easily Determined YES YES 1-g body or 10-g extremity Body Body Conducted Power (dBm) 2.10 2.40 Conducted Power (mW) 1.62 1.74 Duty Factor (Source-Based) % 100.0 100.0 Maximum (Source-Based) Time-Averaged Conducted Power (mW) 1.62 1.74 Maximum (Source-Based) Time-Averaged ERP (mW) 1.57 1.68 Maximum (Source-Based) Time-Averaged EIRP (mW) 2.57 2.75 Maximum Output (mW) 1.62 1.74 Model Name / Number: PB-P2000-00 FCC ID: ASU-ZP8J4MN1CRV Report: AT721007920.2C0 Page 3 Table 2: 47 CFR 1.1307(b)(3)(i)(c) MPE-Based Exemption ERP (W) – (BLE) Technical Parameters Radio 1 Radio 2 λ / 2π (m) 0.020 0.020 R≥ λ / 2π YES YES Maximum (Source-Based) Time-Averaged ERP (W) 0.0016 0.0017 ERP Threshold (W) 0.7680 0.7680 Exemption YES YES Contribution Ratio (ERP / ERP th ) 0.002 0.002

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM FCC Rule Part: 47 CFR Part 2.1091 Project Number: 721007920 Manufacturer: Savant Systems Inc Host Model Name/Number: PB-P2000-00 RF Exposure Model Name/Number: PB-P2000-00 Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM Report: AT721007920.5V1 Page 2 General Information: Applicant: Savant Systems Inc Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information (Nordic BLE Radio 1): Frequency Range (MHz): 2402 - 2480 *Antenna Type: Flexible Printed Circuit (FPC) *Antenna Gains: 2 dBi Maximum Transmitter Conducted Power: 2.1dBm, 1.62mW Maximum System EIRP: 4.1dBm, 2.57mW Exposure Conditions: 20 centimeters *Declared by the customer Technical Information (BLE) – (Nordic BLE Radio 2): Frequency Range (MHz): 2402 - 2480 *Antenna Type: Flexible Printed Circuit (FPC) *Antenna Gains: 2 dBi Maximum Transmitter Conducted Power: 2.4dBm, 1.74mW Maximum System EIRP: 4.4dBm, 2.75mW Exposure Conditions: 20 centimeters *Declared by the customer Technical Information (Murata BLE radio): Frequency Range (MHz): 2402 - 2480 Antenna Type: Monopole antenna (PCB) Antenna Gains: 3.6 dBi *Maximum Transmitter Conducted Power: 5.78dBm, 3.78mW Maximum System EIRP: 9.38dBm, 8.67mW Exposure Conditions: 20 centimeters *Worst Case from original filing report Technical Information – (Murata BT Classic radio): Frequency Range (MHz): 2402 - 2480 Antenna Type: Monopole antenna (PCB) Antenna Gains: 3.6 dBi *Maximum Transmitter Conducted Power: 5.79dBm, 3.79mW Maximum System EIRP: 9.39dBm, 8.69mW Exposure Conditions: 20 centimeters *Worst Case from original filing report Technical Information – (Murata Wi-Fi 2.4 GHz radio): Frequency Range (MHz): 2412 - 2462 Antenna Type: Monopole antenna (PCB) Antenna Gains: 3.6 dBi *Maximum Transmitter Conducted Power: 25.41dBm, 347.54mW Maximum System EIRP: 29.01dBm, 796.16mW Exposure Conditions: 20 centimeters *Worst Case from original filing report Technical Information – (Murata Wi-Fi 5 GHz radio): Frequency Range (MHz): 5180 - 5825 Antenna Type: Dipole antenna Antenna Gains: 4.75 dBi Model Name/Number: PB-P2000-00 Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM Report: AT721007920.5V1 Page 3 *Maximum Transmitter Conducted Power: 16.96dBm, 49.66mW Maximum System EIRP: 21.71dBm, 148.25mW Exposure Conditions: 20 centimeters *Worst Case from original filing report Test Exemption Criteria Test exemption is determined by 47 CFR 1.1307(b)(3)(i)(B) where single RF source is exempt if: The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. Pth is given by: Model Name/Number: PB-P2000-00 Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM Report: AT721007920.5V1 Page 4 Test exemption is determined by 47 CFR 1.1307(b)(3)(i)(C) where at the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency according to the following table. For the exemption in Table 1 of 47 CFR 1.1307(b)(3)(i)(C) (table 2 below) to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1: 47 CFR 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation Model Name/Number: PB-P2000-00 Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM Report: AT721007920.5V1 Page 5 RF Exposure Calculation Configuration 1: Nordic BLE Radio 1 + Nordic BLE Radio 2 + Murata BLE Configuration 2: Nordic BLE Radio 1 + Nordic BLE Radio 2 + Murata BT Classic Configuration 3: Nordic BLE Radio 1 + Nordic BLE Radio 2 + Murata Wi-Fi 2.4 GHz Configuration 4: Nordic BLE Radio 1 + Nordic BLE Radio 2 + Murata Wi-Fi 5 GHz Table 1: Configuration 1 Technical Parameters Nordic BLE Radio 1 Nordic BLE Radio 2 Murata BLE Radio Frequency (MHz) 2402 2402 2440 Separation Distance (cm) 20.00 20.0 20.0 Separation Distance (m) 0.2000 0.200 0.200 Antenna Gain (dBi) 2.00 2.00 3.60 ERP Easily Determined YES YES YES 1-g body or 10-g extremity Body Body Body Conducted Power (dBm) 2.10 2.40 5.78 Conducted Power (mW) 1.62 1.74 3.78 Duty Factor (Source-Based) % 100.0 100.0 100.0 Maximum (Source-Based) Time-Averaged Conducted Power (mW) 1.62 1.74 3.78 Maximum (Source-Based) Time-Averaged ERP (mW) 1.57 1.68 5.29 Maximum (Source-Based) Time-Averaged EIRP (mW) 2.57 2.75 8.67 Maximum Output (mW) 1.62 1.74 5.29 47 CFR 1.1307(b)(3)(i)(c) MPE-Based Exemption ERP(W) λ / 2π (m) 0.020 0.020 0.020 R≥ λ / 2π YES YES YES Maximum (Source-Based) Time-Averaged ERP (W) 0.0016 0.0017 0.0053 ERP Threshold (W) 0.7680 0.7680 0.7680 Exemption YES YES YES Contribution Ratio (ERP / ERP th ) 0.002 0.002 0.007 Summation of Contribution From MPE-Based Exemption Contribution Ratio (ERP / ERP th ) 0.002 0.002 0.007 Summation of Contribution Ratio (ERP / ERP th ) 0.011 Model Name/Number: PB-P2000-00 Nordic radio FCC ID: ASU-ZP8J4MN1CRV Murata radio Module FCC ID: VPYLB1ZM Report: AT721007920.5V1 Page 6 Table 2: Configuration 2 Technical Parameters Nordic BLE Radio 1 Nordic BLE Radio 2 Murata BT Classic Radio Frequency (MHz) 2402 2402 2480 Separation Distance (cm) 20.00 20.0 20.0 Separation Distance (m) 0.2000 0.200 0.200 Antenna Gain (dBi) 2.00 2.00 3.60 ERP Easily Determined YES YES YES 1-g body or 10-g extremity Body Body Body Conducted Power (dBm) 2.10 2.40 5.79 Conduct…

Text truncated - open the document above for the full version.

TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 30005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Bhagyashree Chaudhary Senior Wireless Engineer TUV SUD America Inc. Authorized Signatory 4/22/2026 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD America, Inc. document control rules. FCC Accreditation Designation Number US1233 FCC Test Site Registration Number 967699 Innovation, Science, and Economic Development Canada Lab Code 23932 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with the standards listed above. A2LA Cert. No. 2955.09 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. © TÜV SÜD. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. Report on the Testing of the Savant Systems Inc PB-P2000-00 In accordance with: FCC 47 CFR part 15.247 ISED RSS-247 Issue 4, July 2025 Prepared for: Savant Systems, Inc 45 Perseverance Way Hyannis, MA 02601-1812 COMMERCIAL-IN-CONFIDENCE Document Number: AT721007920.1C1 Document Number: AT721007920.1C1 COMMERCIAL-IN-CONFIDENCE Page 2 of 84 Contents Report Summary .........................................................................................................................3 Report Modification Record ...........................................................................................................3 Introduction ....................................................................................................................................3 Brief Summary of Results .............................................................................................................5 Product Information .......................................................................................................................6 Deviations from the Standard ........................................................................................................8 EUT Modification Record ..............................................................................................................8 Test Location .................................................................................................................................9 Test Details ............................................................................................................................... 10 Antenna Requirement ................................................................................................................ 10 Power Line Conducted Emissions ............................................................................................. 11 Fundamental Emission Output Power ........................................................................................ 16 6dB / 99% Bandwidth ................................................................................................................. 25 Maximum Power Spectral Density in the Fundamental Emission ............................................. 40 Band-Edge Compliance of RF Conducted Emissions ............................................................... 49 RF Conducted Spurious Emissions ........................................................................................... 55 Radiated Spurious Emissions into Restricted Frequency Bands ............................................... 60 Test Equipment Used ................................................................................................................. 80 Diagram of Test Set-ups .......................................................................................................... 81 Accreditation, Disclaimers and Copyright............................................................................. 84 Document Number: AT721007920.1C1 COMMERCIAL-IN-CONFIDENCE Page 3 of 84 Report Summary Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Table 1.1-1 – Modification Record Issue Description of Change Date of Issue 0 First Issue 4/21/2026 1 Second Issue – Added Duty Cycle plot under section 2.8 4/22/2026 Introduction The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations Section 15.247 and Innovation Science and Economic Development Canada’s Radio Standards Specification RSS-247 for the tests documented herein. Applicant Lori Pass Manufacturer Savant Systems Inc Applicant’s Email Address [email protected] Host Model Name Savant Panel Bridge Controller Host Model Number PB-P2000-00 Serial Number NA FCC ID ASU-ZP8J4MN1CRV ISED Certification Number 10052A-ZP8J4MN1CRV Hardware Version(s) 068-0968-21 Software Version(s) N/A Number of Samples Tested 1 Test Specification/Issue/Date US Code of Federal Regulation (CFR): Title 47, Part 15, Subpart C: Radio Frequency Devices, Intentional Radiators, 2026 ISED Canada Radio Standards Specification: RSS-247 – Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices, Issue 4, July 2025. Order Number 721007920 Date of Receipt of EUT 2/25/2025 Start of Test 2/25/2025 Finish of Test 3/19/2025 Document Number: AT721007920.1C1 COMMERCIAL-IN-CONFIDENCE Page 4 of 84 Related Document(s) ANSI C63.10-2020: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device. FCC OET KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devi…

Text truncated - open the document above for the full version.

Rev: 2.0 December 4, 2018 Page | 1 WPANT10118 Dual-band Wi-Fi MIMO Antenna WPANT10118-S1A 125 mm long, 1.13 mm micro co-ax cable with IPX MHF connector Note: Different cable and connector style requests can be accommodated. Application Flexible plug and play antenna for wireless devices operating at 2.4 GHz and 5 GHz Wi-Fi / WLAN frequencies. This antenna works very well on any non-metallic surface. We can assist your engineers to optimize mounting positions for these antennas in your specific application and can further assist to troubleshoot system integration issues such as TRP/TIS and FCC requirements. We specialize in developing customized Antenna solutions. Please contact [email protected] with your specific application requirements. Electrical Properties Operating Frequency 2.4 – 2.5 GHz 4.9 – 5.9 GHz Approximate Antenna Impedance [] 50Ω 50Ω VSWR (Typical)* < 2:1 < 2:1 Peak Gain [dBi] (Typical)* 1-2 dBi 2-3 dBi Efficiency [%] (Typical)* 70 % 70 % Polarization Linear Linear Pattern Omni-directional Omni-directional *Note: These performance metrics will vary depending on the position of the antenna within a given wireless device, and the antenna integration optimization. Mechanical / Environmental Properties Antenna Dimensions 3.228’’ x 0.638’’ x 0.041’’ (82mm x 16.5mm x 1.05mm) Antenna Color Black Operating / Storage Temperature -40 o C to +90 o C Environmental Meets standards for UL 94V-0 Hazardous Materials RoHS Compliant Rev: 2.0 December 4, 2018 Page | 2 Pictures (Front and Back view) Rev: 2.0 December 4, 2018 Page | 3 Total Radiation Efficiency (%)

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: ASU- ZP8J4MN1CRV IC: 10052A- ZP8J4MN1CRV FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Project Number: 721007920 Manufacturer: SAVANT Systems, Inc. Model: PB-P2000-00 Test Setup Photos 5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Figure:1 – Test Set up – Front View of the EUT - Radiated Emissions <30 MHz Figure:2 – Test Set up – Rear View of the EUT- Radiated Emissions <30 MHz 5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Figure:3 – Test Set up – Front View of the EUT- Radiated Emissions <1 GHz Figure:4 – Test Set up – Rear View of the EUT - Radiated Emissions <1 GHz 5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Figure:5– Test Set up – Front View of the EUT - Radiated Emissions <10 GHz Figure:6– Test Set up – Rear View of the EUT - Radiated Emissions <10 GHz 5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Figure:7– Test Set up – Front View of the EUT - Radiated Emissions <18 GHz Figure:8– Test Set up – Front View of the EUT - Radiated Emissions <18 GHz 5945 Cabot Parkway Suite 100 Alphar…
