ASU-SSR2000WIRELESS REMOTE

Savant Select Remote (SSR-2000) Quick Reference Guide 009-xxxx-00 SSR-2000-00 Copyright © 2011 Savant Systems LLC, SAVANT® and RacePoint Blueprint™ are trademarks of Savant Systems LLC. All brand names, product names and trademarks are the property of their respective owners. Savant Systems LLC reserves the right to change product specifications without notice. 75 Perseverance Way, Hyannis, MA 02601 Phone 508.683.2500 Fax 508.683.2600 SavantSystems.com Savant Confidential and Proprietary The Savant Select Remote (SSR-2000) Quick Reference Guide provides the information necessary to setup and operate the Savant Select Remote. Box Contents (1) Savant Select Remote (SSR-2000-xx) (1) Lithium-Ion Battery Pack (070-0016-xx) (1) USB Type A to Mini Custom B for remote (24”) (064-0235-xx) (1) 5V DC 2.5 AMP Universal Wall Unit (025-0098-xx) (1) SSR Remote Base (068-0179-xx) (1) Quick Reference Guide (this document) Specifications Savant Select (SSR-2000) Environmental Operating Temperature 32º to 95º F (0º to 35º C) Non-operating Temperature 32º to 113º F (0º to 45º C) Operating Humidity 5% to 95% Non-condensing Physical Dimensions (L x. W x D) 9 x 2.6 x 0.65 inches (228.6 x 66 x 16.5 mm) Weight 6 oz (170 g) with Battery Pack Enclosure High-impact molded ABS plastic Power Power 3.7V/1150mAh, 4.25 Watt-hours Integrated Motion Detector for power management Battery Lithium-Ion battery pack Battery Charge Time 3-4 hours (nominal) Communication Wireless -WiFi 802.11 b/g/n (802.11 n 2.4 GHz only) or -RF Transceiver, Frequency (Spectrum) - ISM Band (2.4 GHz to 2.483 GHz)* Display and Backlights Touch Screen Display Multi-Touch® high resolution Retina display: 960 x 640 pixels 3.5-inch (diagonal) multi-touch display Backlights White LED for all navigation buttons Battery Charging Status Orange/Green/Red LED USB Connector and Cable Connector Mini-USB Cable Mini-USB Sync Cable Regulatory Safety and Emissions CSA NRTL/C and FCC Part 15 Class B/C-Tick** RoHS Compliant Charging Base (SSB-2000) Power Input Power 5V DC, 2.5 A Adaptor with one meter cord Physical Dimensions (L x. W x D) 9 x 2.6 x 0.55 inches (228.6 x 66 x 14 mm) Weight 3 oz (85 g) *RF communications requires an RFG-2000, sold separately iPod touch Area Front 1 Camera Front facing camera 2 Category Dock Provides quick access to subsets of system functions, such as watch, listen, environment and settings. 3 Navigation Bar Allows quick navigation between rooms, services and subsystems. Also provides simple navigation back to the active service. 4 Touch Screen Display Indicates the controls and content for the active service, or the service being currently controlled 5 Home button Press to return to home screen Remote Area VOL + Press for volume up VOL - Press for volume down MUTE Press to mute sound Up, Down, Left, Right Navigation Press up, down, left, and right to navigate selected service screen OK button Press to select CH + Press to channel up CH - Press to channel down 6 LAST Press to return to last channel MENU Press to view menu GUIDE Press to view guide Backlights White LED for all navigation buttons TrueCommand launch Power Off Press to launch True Command II App on display. Press and hold to power off remote DVR Press to enable the DVR EXIT Press to exit page INFO Press to view information 7 PG +/PG- Press to page up/page down 8 Numerical Keypad Use to directly tune channels 9 Status LED Status LED indicates the following: Green indicates the remote is fully charged and docked. Orange indicates remote is charging. Red indicates the remote is not docked and battery is low and needs charging. Off indicates the remote is not docked and charged. Flashing Red indicates that one of the remote buttons was pressed, but ignored because the iPod touch® was in the sleep mode or not in the TrueControl II app mode. (See ** below for details.) Rear 1 Power On/Off button Press and release to power on iPod touch when powered off Press and hold to power off iPod touch 2 Volume Up/Down buttons Press buttons for volume up/down for the iPod touch® 3 Battery Rechargeable Battery 4 Charging ports Plug into Charging Base (SSB-1000) 5 Connector Mini-USB 6 Camera/mic Rear Facing camera and microphone Setup Battery Installation To install the battery, refer to the figure below. 1. Locate the battery cover (1) on the rear of the remote. 2. Push the latch (2) down and pull the cover out to remove. 3. Install the battery (3). Ensure the battery contacts (4) are positioned as shown. Ensure the battery pull-tab (5) is accessible in the event you must remove the battery. 4. Position the two tabs (6) on the cover into the lower section and press cover in until latch clicks to secure the cover. Savant Select Remote (SSR-2000) Quick Reference Guide 009-xxxx-00 SSR-2000-00 Copyright © 2011 Savant Systems LLC, SAVANT® and RacePoint Blueprint™ are trademarks of Savant Systems LLC. All brand names, product names and trademarks are the property of their respective owners. Savant Systems LLC reserves the right to change product specifications without notice. 75 Perseverance Way, Hyannis, MA 02601 Phone 508.683.2500 Fax 508.683.2600 SavantSystems.com Savant Confidential and Proprietary Battery Removal and Replacement To remove and replace the battery, refer to the figure below. 1. Locate the battery cover (1) on the rear of the remote. 2. Push the latch (2) down and pull the cover out to remove. 3. Using a small Phillips screwdriver, remove the two screws (3) on each side of the battery that secure both sections. 4. Place your thumb on the iPod touch while holding the top section (4) so that they remain together; pull the bottom section (5) to separate the two sections. 5. Install the battery (7). Ensure the following: • Battery contacts (8) are positioned as shown. • Battery pull-tab (6) is accessible in the event you must remove the battery. 6. Push the top section (4) together with the bottom section (5). Ensure the antenna is not pinched and that the iPod connector seats pro…

Text truncated - open the document above for the full version.

Page Document No: 1/24/2012 1 ASU-SSR2000_DoC Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: January 24, 2012 SUBJECT: FCC Application for ASU-SSR2000 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Derek Hill Compliance Engineer 1/24/2012

Page Document No: 1/24/2012 1 ASU-SSR2000-FCC CONF. Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ASU-SSR2000 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics ASU- SSR2000_Schem.pdf Parts List ASU - SSR 2000_PartsLst.pdf Block diagrams ASU - SSR2000_BlockDia.Pdf Internal Photos ASU - SSR2000_IntPho.Pdf Users Manual ASU - SSR2000_UserMan.Pdf Note that for the internal photos this device is permanently mounted and will be sealed with an opaque epoxy/potting compound and is generally not publicly accessible. User’s Manual is highly technical and not serviceable by consumer; not provided to consumer; provided to consumer based on non-disclosure agreement. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Derek Hill Compliance Engineer 1/24/2011

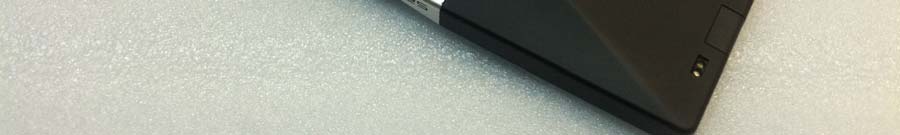

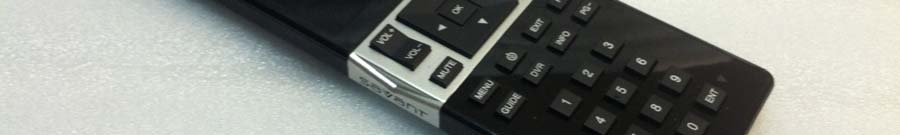

Page Document No: 3/22/2012 1 ASU-SSR2000_EXT PHO Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601 Page Document No: 3/22/2012 2 ASU-SSR2000_EXT PHO Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601 Page Document No: 3/22/2012 3 ASU-SSR2000_EXT PHO Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601

Page Document No: 1/31/2012 1 ASU-SSR2000-LABEL Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601

Page Document No: 1/30/2012 1 ASU-SSR2000-LABEL PLACEMENT Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601

Page Document No: 3/22/2012 1 ASU-SSR2000_INT PHO Confidential Savant Systems 75 Perseverance Way Hyannis, MA 02601

Global EMCScott Dry Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radi a R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:-6.00(dBm) Maximum peak output power at antenna input terminal:0.251188643(mW) Antenna gain(typical):2.4(dBi) Maximum antenna gain:1.737800829(numeric) Time Averaging:100(%) Prediction distance:0.2(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.868421(mW/cm^2) Margin of compliance:-0.6(dB) This e quates to8.684206555W/m^2PASS 2 4R PG S π = This equates to8.684206555W/m 2PASS For informationThis equates to57.218405 V/m Note: This device does not exceed the 60 / f (GHz) in mW limit as per FCC KDB 447498 2(a)(i), so it is allowable to be used in portable exposure conditions with no restrictions on host platforms 2 4R PG S π = ysdale ator

LAB REGISTRATION #6844A-2 FCC REGISTRATION #612361 Testing Laboratory Certificate #2555.01 Page 1 of 58 Report issue date: 4/23/2012 GEMC File #:GEMC-FCC-20557BR2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2010 Unlicensed Intentional Radiators on the Savant Remote ( SSR-2000) Scott Drysdale, Narte Certified Technician EMC Lab Manager Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details . Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 2 of 58 Report issue date: 4/23/2012 GEMC File #: GEMC-FCC-20557BR2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Power Line Conducted Emissions ................................................................................... 13 Radiated Emissions .......................................................................................................... 19 6dB Bandwidth of Digitally Modulated Systems ............................................................ 33 Maximum Peak Envelope Conducted Power - DM ......................................................... 36 Spurious Conducted Emissions........................................................................................ 42 Power Spectral Density - DM .......................................................................................... 48 Appendix A – EUT Summary.............................................................................................. 51 Appendix B – EUT and Test Setup Photographs................................................................. 52 Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 3 of 58 Report issue date: 4/23/2012 GEMC File #: GEMC-FCC-20557BR2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Savant Remote, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 4 of 58 Report issue date: 4/23/2012 GEMC File #: GEMC-FCC-20557BR2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: ASU- SSR2000 EUT Industry Canada Certification #, IC: 10052A- SSR2000 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 5 of 58 Report issue date: 4/23/2012 GEMC File #: GEMC-FCC-20557BR2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average Pa…

Text truncated - open the document above for the full version.

Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 1 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Power Line Conducted Emissions - 1 Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 2 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Power Line Conducted Emissions - 2 Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 3 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions - 9 kHz to 30 MHz Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 4 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions – 30 MHz to 2 GHz Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 5 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions – Close up Client Savant Technologies Product Savant Remote ( SSR-2000) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 6 of 6 Report issue date: 4/20/2012 GEMC File #: GEMC-FCC-20557BR1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Antenna Conducted Measurements.
