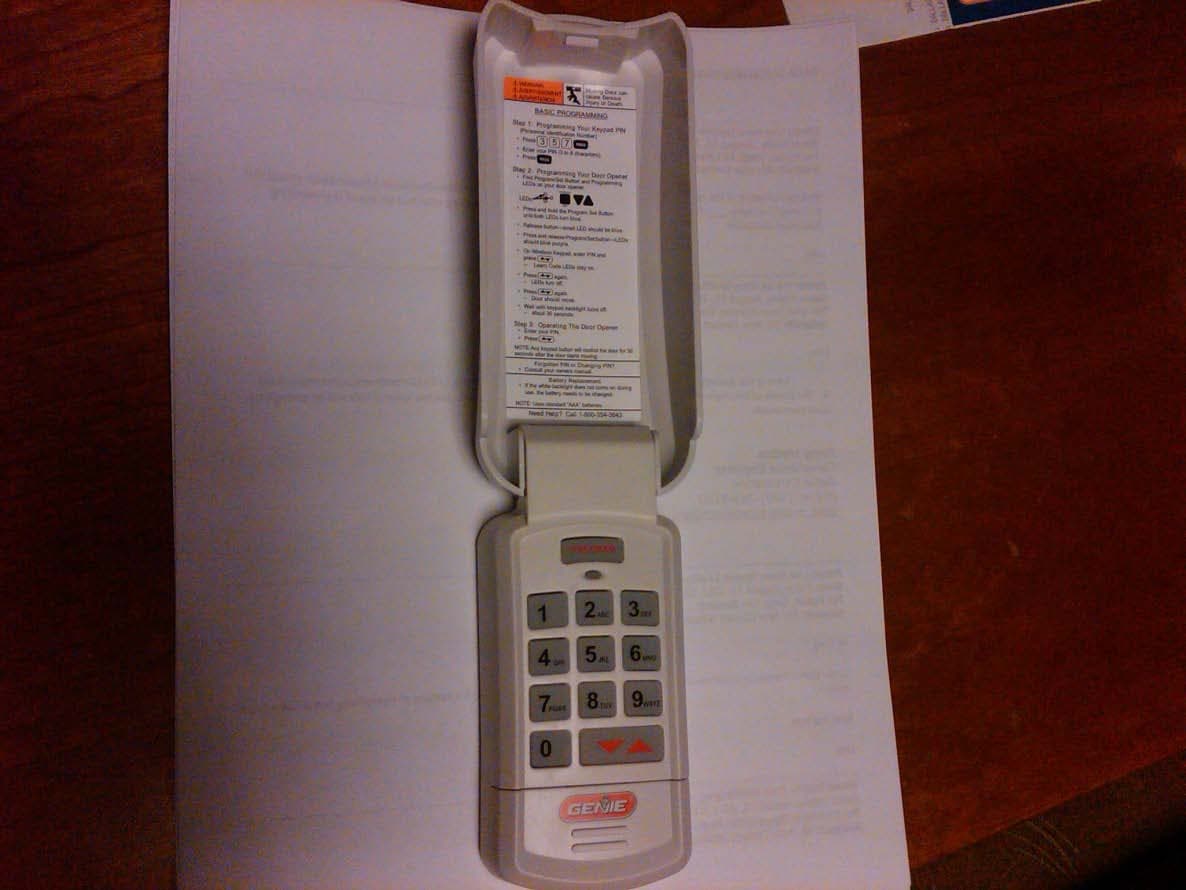

B8Q315390KPWall mounted wireless remote control transmitter for operation of garage door opener

1 Keypad Up/Down Key (enter) Program Key LED LED Off LED On LED Flashing Keypad Off Keypad OnKeypad Flashing WARNIN G A moving door can cause serious injury or death. DO NOT . WARNIN G If Safety Reverse does not work properly: DO NOT Door and Door Opener Owner’s Manuals Wireless Keypad Instructions FOR YOUR CONVENIENCE —IT'S EASIER TO PERFORM PROGRAMMING BEFORE MOUNTING KEYPAD. Keypad LED's Keypad Overview 38320501866 SAVE THESE INSTRUCTIONS FOR FUTURE USE 2 Setting Up a PIN Program key Program key For multiple doors only Program key Program key Up/Down Key Program key Programming the Opener Locate Your Opener’s Programming Buttons and LED New Genie ® Openers Other New Model Genie ® Openers: Synchronizing Keypad to Opener Synchronizing Keypad to Opener Program Set key NOTE: The Learn Code button and LED may be located under the light lens or you may have to remove your unit's cover. or roro RADIO SIGNAL LEARN CODE CODE LEARN SET SET OPEN FORCE CLOSECODE LEARNLIMITMANUAL or PROGRAM SET – + PROGRAM SET – + PROGRAM SET – + HOLD 2 seconds RADIO SIGNAL LEARN CODE RADIO SIGNAL LEARN CODE Programming the Opener FOR MULTIPLE DOORS ONLY–CONTINUE BELOW. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 3. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. A. B. Proceed to Step 2 on the next page. Proceed to Step 2 on the next page. GO DIRECTLY TO THE “For multiple doors only” SECTION ON PAGE 3. ® 3 Up/Down key Up/Down key Up/Down key NOTE: Pressing any key will stop or start the opener while the door is in motion. The door will automatically stop fully open or closed. When the door has stopped moving, pressing on any single button will activate door until backlight goes off (30 seconds). NOTE: Rapid blinking of the red LED on the Powerhead indicates an error. When the blinking stops, you must start programming steps over. Up/Down key Up/Down key Up/Down key MUSTMUST NOTE: Pressing any key will stop or start the opener while the door is in motion. The door will automatically stop fully open or closed. When the door has stopped moving, pressing on any single button will activate door until backlight goes off (30 seconds). NOTE: Rapid blinking of the red LED on the Powerhead indicates an error. When the blinking stops, you must start programming steps over. Programming the Opener (Continued other side) renepOrenepO Opener Opener oror Opener YOU MUST BEGIN AGAIN AT “PROGRAMMING THE OPENER” — FOR EACH DOOR. For multiple doors only (continued) (continued) THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 2. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. Using The Keypad Up/Down key For multiple doors only Up/Down key Mounting Keypad The keypad MUST be mounted within sight of the garage door(s) at least 5 feet above the floor and clear of any moving door part. Wall 1/8" Screw head gap THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. oror THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. 4 Mounting Keypad DO NOT Resetting PIN If you have forgotten your PIN or you fear it may have fallen into unauthorized hands, you must erase the old programming. Pr ogram keyUp/Down key "Setting Up a Pin" "Programming" Changing Your PIN Program key Program key Temporary PIN Program key Program key NOTE: The temporary PIN is automatically cancelled whenever you enter your normal PIN after the temporary PIN is set. NOTE: Unlike “ Restting PIN,” You DO NOT need to reprogram your opener after changing your PIN. Replacing Batteries HOLDHOLD THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 3. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN PIN IN STEP 1. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN TEMPORARY PIN IN STEP 1. THIS IS AN EXAMPLE ONLY. ENTER YOUR OWN NEW PIN IN STEP 2. Additional Genie ® products can be ordered through your local GENIE ® Professional Dealer . To locate a dealer near you–call 800-OK-GENIE. If the first five digits of your serial number fall between 10289 and 11188 contact Genie for assistance 800-354-3643. 38320501866 FCC and IC CERTIFIED This device complies with FCC Part 15 and Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular situation. If this equipment does cause harmful interference to radio or television reception, which may be determined by turning the equipment OFF and ON, the user is encouraged to try and correct the interference by one or more of the following measures: (a) Re-orient or relocate the receiver antenna, (b) Increase the separation between the opener and receiver, (c) Connect the opener into an outlet on a circuit dierent from that to which the receiver is connected, and (d) Consult your local dealer. Any modications or changes to this equipment which are not expressly approved by the manufacturer could void the users authority to operate the equipment. 4 Installation du pavé Reprogrammation du code NIP Si vous avez oublié votre code NIP ou que vous craigniez un usage abusif, vous devez effacer l'ancienne programmation. Changer votre code NIP Code NIP temporaire Remplacer les piles Des produits Genie ® supplémentaires peuvent être commandés auprès de votre revendeur local Genie ® . Pour localiser un revendeur près de chez vous, appelez le +1 (800) OK-GENIE. Si les cinq premiers chiffres de votre numéro de série se trouvent entre 10289 et 11188, contactez Genie ® pour toute assistance +1 (800) 354-3643. REMARQUE: Le code NIP temporaire est automatiquement annulé lorsqu…

Text truncated - open the document above for the full version.

Date: 05/08/2013 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Nemko USA, Inc. 802 N. Kealy Avenue, Lewisville, TX 75057, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marked, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 301 of the Ant- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. For instance where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with The Genie Company, P.O. Box 67 Mt. Hope, OH 44660. Dated this: 8 th Day of May 2013 Agency agreement expiration date: May 31, 2014 By: ____ ____Greg Matias__________ Signature Printed Title: ____Compliance Engineer____ On behalf of: ____The Genie Company a Division of Overhead Door Corporation Telephone: __330-763-8150____ Genie Company P. O. Box 67 Mt. Hope, OH 44660 Phone: 800-827-3667 (DOOR) Fax: 330-763-8042 www.geniecompany.com

Date: 05/08/2013 Federal Communications Commission 445 12th Street, SW Washington, DC 20554 FCC: B8Q315390KP To whom it may concern, The following products are electronically and physically identical. The only difference is the branding of the devices. The Genie Company Model: GK Overhead Door Corporation Model: OKP Sincerely, ____ ____Greg Matias__________ Signature Printed Title: ____Compliance Engineer____ On behalf of: ____The Genie Company a Division of Overhead Door Corporation Telephone: __330-763-8150____ Genie Company P. O. Box 67 Mt. Hope, OH 44660 Phone: 800-827-3667 (DOOR) Fax: 330-763-8042 www.geniecompany.com

Date: 05/08/2013 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC: B8Q315390KP Models: GK, OKP Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: • Mechanical Construction Drawings • Electrical Schematics and Bills of Material • Theory of Operation Documentation • Design Analysis Documentation These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this: 8 th Day of May 2013 By: ____ ____Greg Matias__________ Signature Printed Title: ____Compliance Engineer____ On behalf of: ____The Genie Company a Division of Overhead Door Corporation Telephone: __330-763-8150____ Genie Company P. O. Box 67 Mt. Hope, OH 44660 Phone: 800-827-3667 (DOOR) Fax: 330-763-8042 www.geniecompany.com

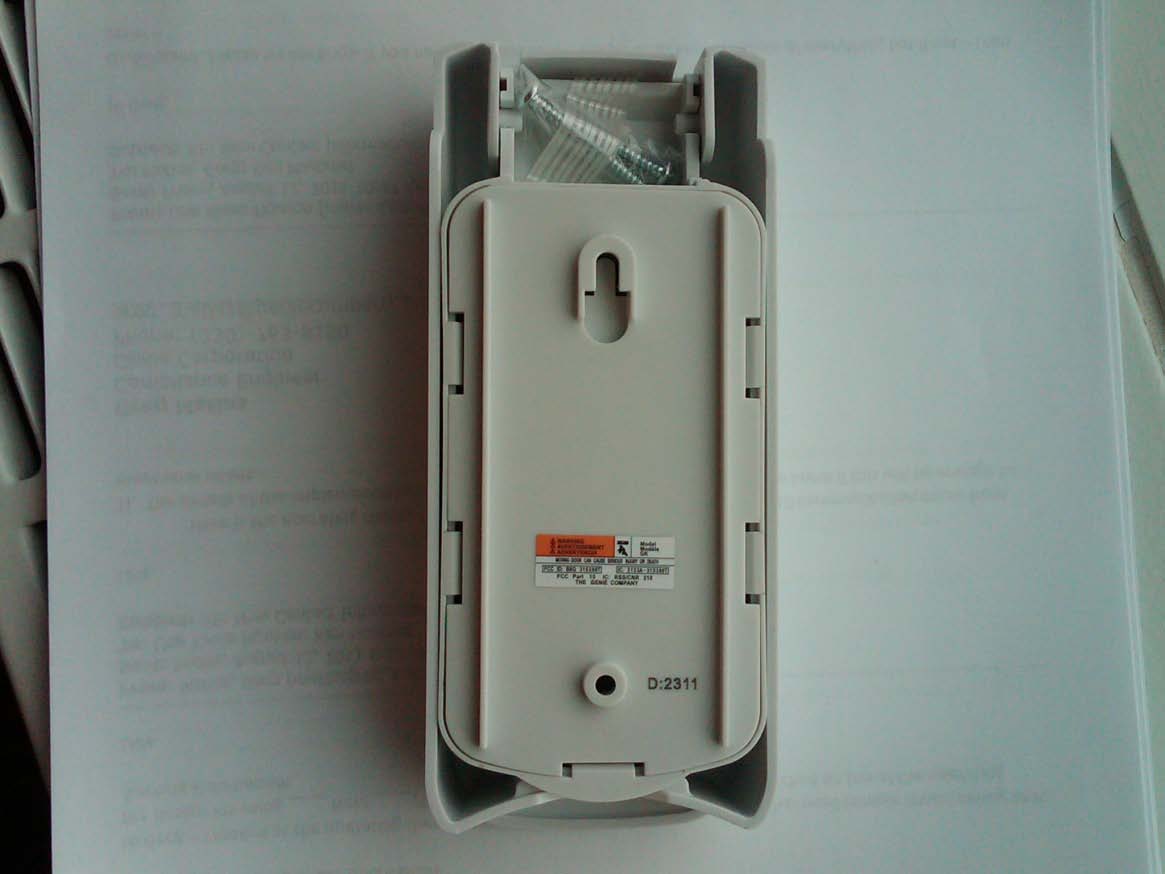

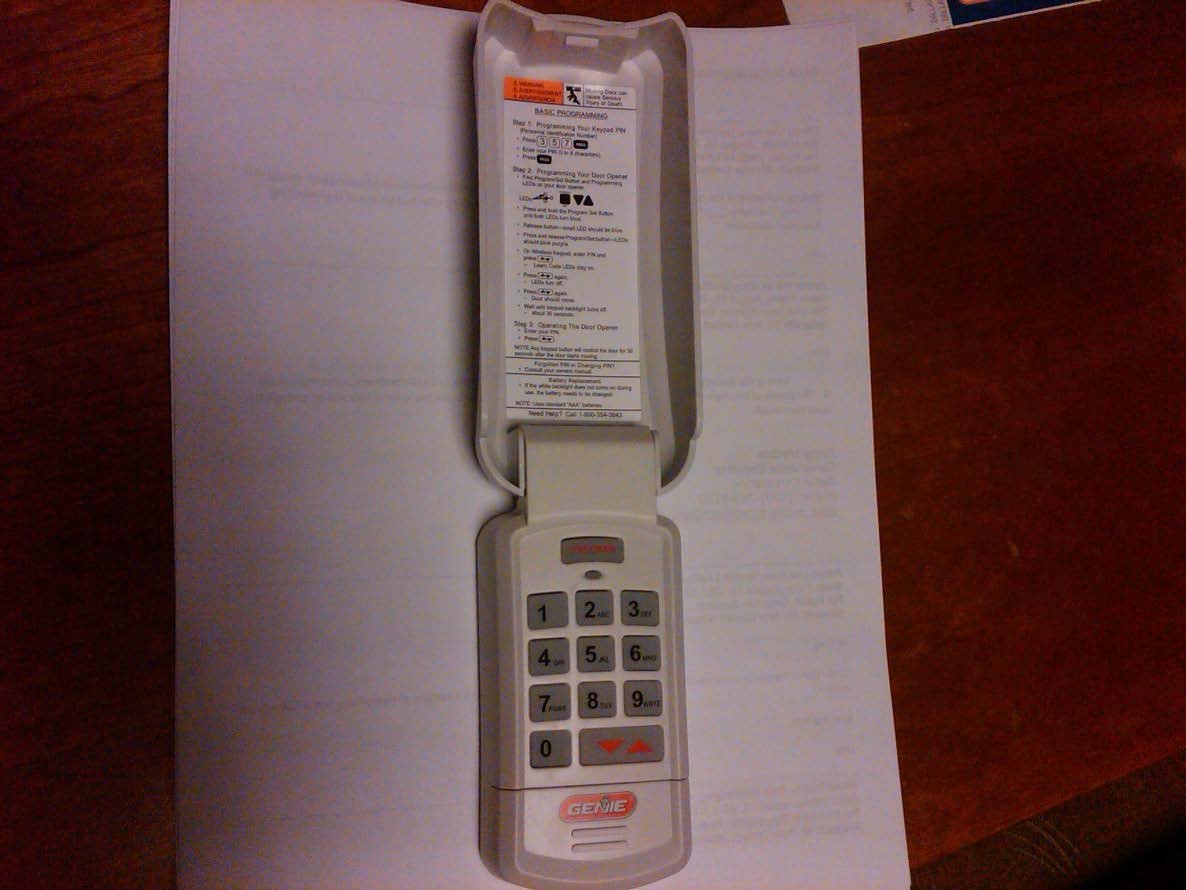

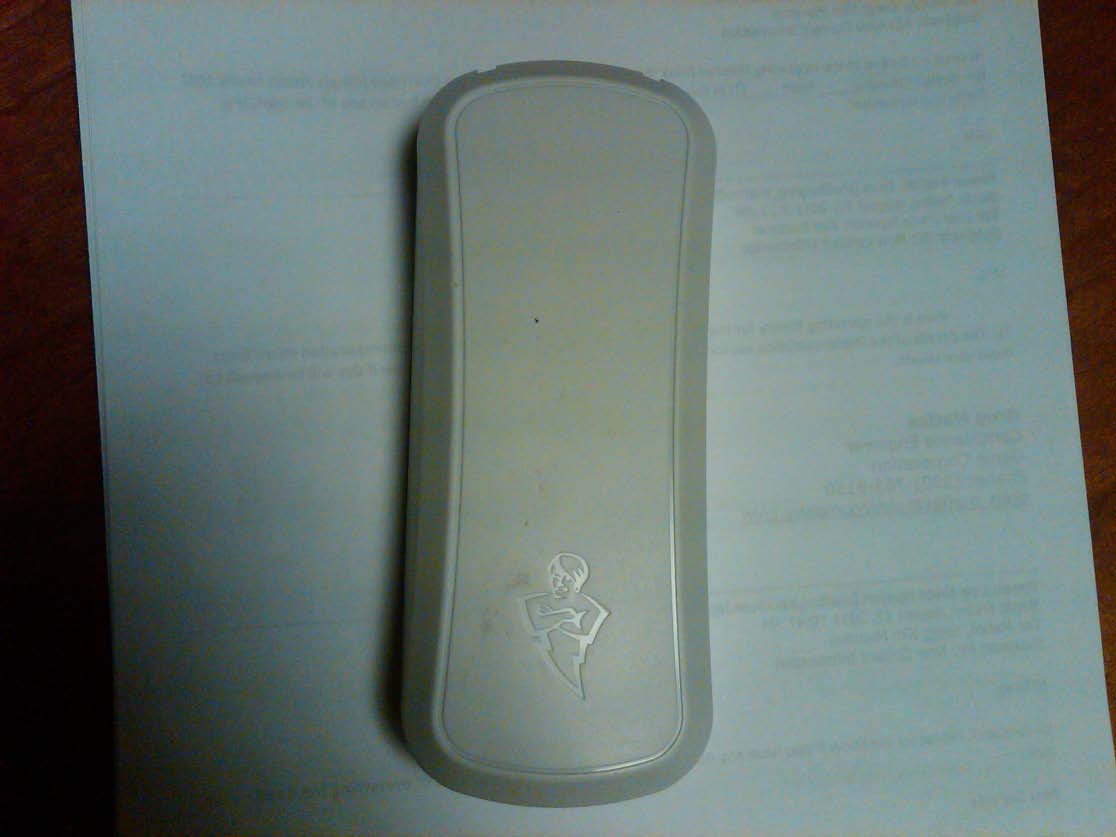

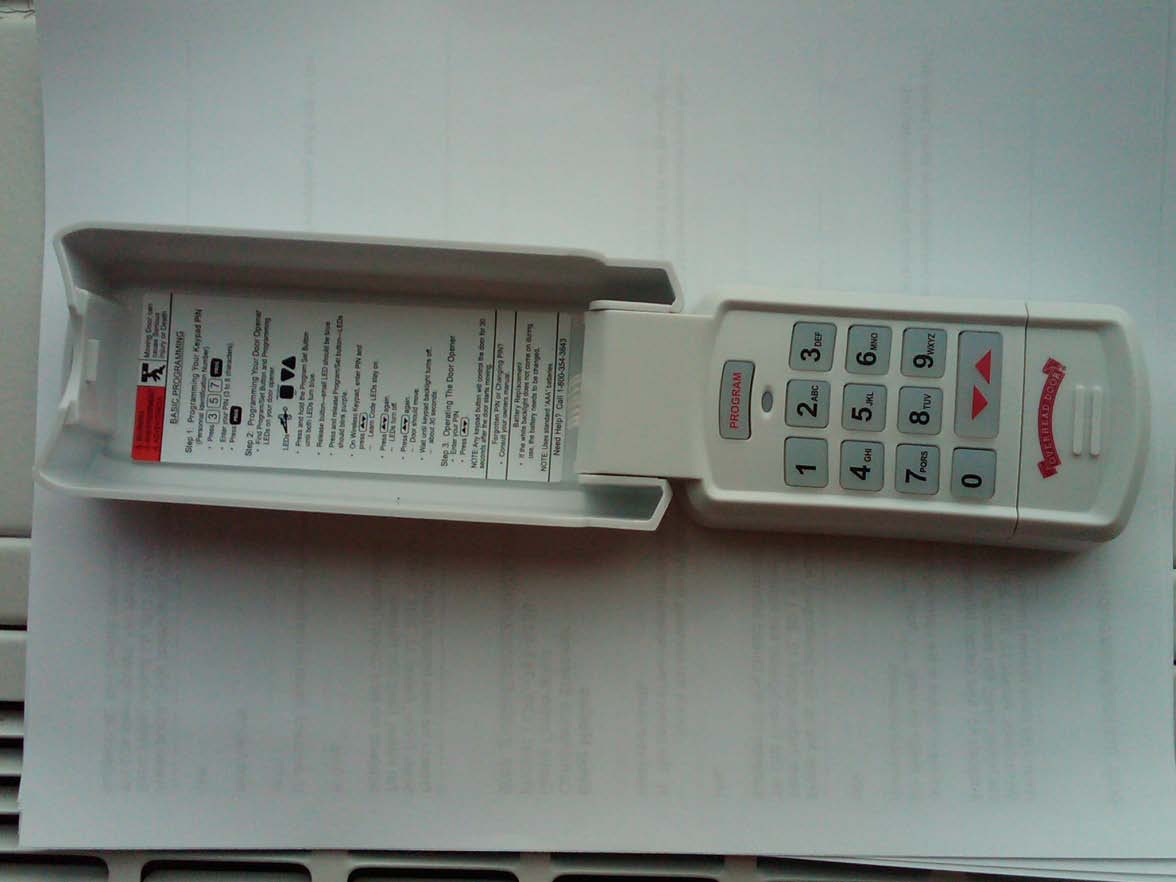

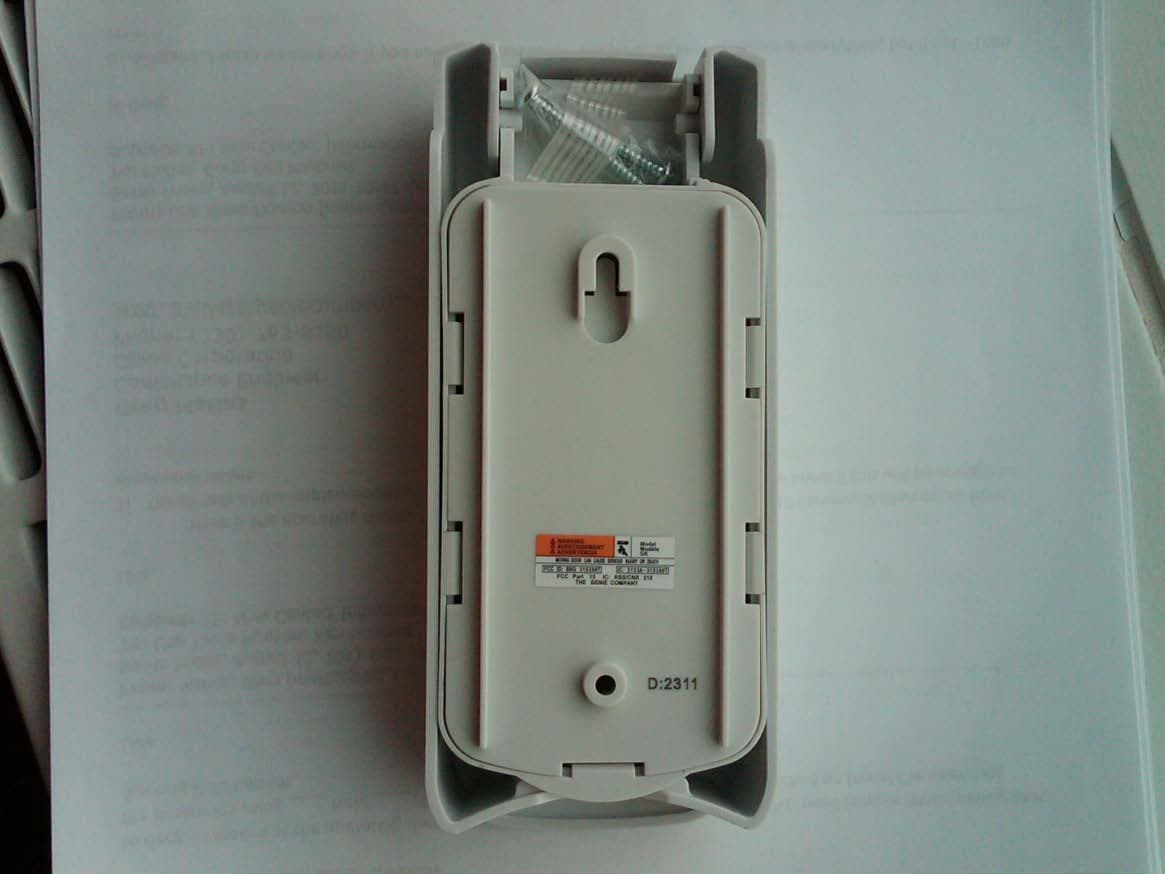

Genie Model WKEP Construction Pictures GK Cover OK Cover GK Front OK Front GK Back OK Back

G Overhea d enie Label d Door Label

Front andd back views oof the circuit bboard.

Nemko Test Report: 10210195RUS1 Applicant: Genie Company P. O. Box 67 Mt. Hope, OH 44660 USA Equipment Under Test: The Genie Company Model: GK (E.U.T.) Overhead Door Corporation Model: OKP In Accordance With: FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: May 27, 2011 Brian Boyea, EMC Engineer APPROVED BY: DATE: December 19, 2012 David Light, Senior Wireless Engineer Total Number of Pages: 23 Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 2 of 22 TABLE OF CONTENTS SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 5 SECTION 3. TRANSMISSION REQUIREMENTS 7 SECTION 4. RADIATED EMISSIONS 9 SECTION 5. OCCUPIED BANDWIDTH 16 SECTION 6. BLOCK DIAGRAMS 19 ANNEX A - RESTRICTED BANDS 22 Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 3 of 22 Section 1. Summary of Test Results Manufacturer: Genie Company Model No.: The Genie Company Model: GK Overhead Door Corporation Model: OKP General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 4 of 22 Summary Of Test Data Name of Test Paragraph No. Results Transmission Requirements 15.231(a) Complies Radiated Emissions 15.231(b) Complies Occupied Bandwidth 15.231(c) Complies Frequency Tolerance 15.231(d) NA Alternate Field Strength Requirements 15.231(e) NA Powerline Conducted Emissions 15.207 NA Footnotes: 1) The device does not operate between 40.66 to 40.70 MHz 2) The device does not operate at a periodic rate. 3) The device is battery powered. Models GK and OKP are identical. The only difference being the brand marketed. Model GK is marketed under the Genie brand while OKP is marketed under Overhead Door brand. Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 5 of 22 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 315 and 390 MHz Operating Frequency(ies) of Sample: 315 and 390 MHz Type of Emission: OOK Supply Power Requirement: 3 Vdc (2 AAA batteries) Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 6 of 22 Description of E.U.T. Wall Mounted Wireless Remote Control Transmitter for Operation of Garage Door Openers System Diagram Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 7 of 22 Section 3. Transmission Requirements NAME OF TEST: Transmission Requirements PARA. NO.: 15.231(a) TESTED BY: Brian Boyea DATE: 31 May 2011 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre- determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies. Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko USA, Inc. FCC PART 15, SUBPART C PERIODICALLY OPERATED LOW POWER TRANSMITTERS EQUIPMENT: GK / OKP PROJECT NO.: 10210195RUS1 Page 8 of 22 Rationale for Compliance with Transmission Requirements 15.231(a)(1) 15.231(a)(2) : Manual activation TX deactivation time: Automatic activation 15.231(a)(3) : Regular, predetermined transmissions TX rate and duration: Polling or supervisory transmissions 15.231(a)(4) : Alarm device operating during the pendancy of alarm condition Non-alarm device Test Data – Transmission Requirements – Transmitter Shut Off Time Nemko USA, Inc. …
