B8QUWWCUniversal Wireless Wall Console

41557.00356 Universal Wireless Wall Console Instructions 10/2020 WARNING ! AVERTISSEMENT UNE PORTE EN MOUVEMENT PEUT CAUSER DE GRAVES BLESSURES, VOIRE LA MORT. • N’installez PAS le transmetteur à moins que l’appareil de sécurité du dispositif de fermeture de porte ne fonctionne conformément au manuel du dispositif de fermeture de porte. • La console murale doit être montée à la vue de la porte, à au moins 5 pieds au-dessus du sol et il ne doit y avoir aucune pièce de porte en mouvement à proximité. • Éloignez les gens de l’ouverture lorsque la porte est en mouvement. • NE permettez PAS aux enfants de jouer avec le transmetteur ou le dispositif de fermeture de porte. Si l’inversion de sécurité ne fonctionne pas correctement : • Fermez la porte, puis déconnectez le dispositif d’ouverture à l’aide de la poignée de dégagement manuel. • N’utilisez PAS le transmetteur ni le dispositif de fermeture de porte. • Référez-vous aux manuels du propriétaire de la porte et de l’ouvre-porte avant de tenter toute réparation. ! FIG. A For questions or troubleshooting, contact Overhead Door by phone at 1-800-929-3667 for assistance. Scan the QR code for instructions, video, or additional information and links. Open battery cover and remove battery tab before programming. LED Signals: - LED Blue blink indicates NORMAL status - LED Red blink indicates LOW BATTERY - LEDs will vary during programming It is recommended to complete programming before mounting wall console. NOTE: During programming, the garage door opener will operate. Ensure that the garage door opening is clear of personnel or any obstructions. Chart A Overhead Door is a trademark and CodeDodger is a registered trademark of Overhead Door Corporation. All other listed names and trademarks are the property of their respective owners. *For instructions on these Dip Switch specifications, visit: www.overheaddoor.com/alt-programming-UWWC.pdf THINGS TO KNOW BEFORE STARTING: • For use only with garage door operators complying with UL 325, manufactured after 1993 with working photo eyes installed. • During programming, the garage door opener may operate. Ensure that the garage door opening is clear of personnel or any obstructions. • Do not to press the LEARN button for longer than the noted 2-3 seconds as it could cause the existing, operational remotes and keypads to no longer work. • All DOOR buttons are factory set to Overhead Door® CodeDodger® 1. DIP switch models are noted with an asterisk* - please visit our website for instructions on these models and for additional alternate programming instructions: www.overheaddoor.com/alt-programming-UWWC.pdf Below are the brands and specifications that this console is compatible with. Find the ID# in Chart A below that references your specific opener specification. You will need this number during programming. Refer to STEP 1 to find the type and/or LEARN/PROGRAM button. STEP 1 - FIND SPECIFICATIONS & LEARN BUTTON 1. Locate the brand and opener/receiver specifications for your device by consulting the label on the opener/receiver, the instruction manual, the current remote controls for the opener, or the original manufacturer of the opener/receiver. 2. Find the LEARN/PROG button on your device - shape, color or name of this button could vary by brand. For garage door openers, be sure to check under the light covers. For commercial or gate openers, this button may be on the circuit board of the opener. In some cases, this button could also be on an external receiver that is mounted on or nearby the product. Consult the devices manual if needed. PRGM SET RADIO SIGNAL LEARN CODE CODE LEARN Gate Receivers EXAMPLES: *For Marantec® openers, reference operator manual to program remotes to the operator head. STEP 2 - PROGRAMMING THE UNIVERSAL WIRELESS WALL CONSOLE IMPORTANT: For ID#4 Chamberlain®/LiftMaster®/Craftsman® Yellow Learn Button - move immediately to the proper section below. For all other ID#s, proceed to LEARN METHOD section. IMPORTANT: Please visit www.overheaddoor.com/alt-programming-UWWC.pdf to find additional instructions and programming methods such as how to program dip switch technology, how to use the TEACH & PAIR method and how to change blink rate patterns. LEARN METHOD (RECOMMENDED PROGRAMMING) Review Chart A to find your specifications and available programming options. Each button can be programmed individually to operate up to 3 different brands of garage door openers and gate receivers. 1. Remove activation tab from inside battery compartment. 2. Find and remember the required number of button presses (ID#) in the LEARN METHOD column next to your brands/specification in Chart A. REMEMBER: For ID#4 Chamberlain®/LiftMaster®/Craftsman® Yellow Learn Button ONLY - move immediately to instructions below. For all other ID#s, proceed to step 3. 3. Press and hold down the DELAY button @ 5 seconds until ALL 3 BLUE LEDs start blinking and then release. 4. Press the DOOR button of your choice the required number of times from Step 1 (Chart A). TIP: You may program all 3 DOOR buttons at one time if preferred. The DELAY button press will signal completion for all buttons. 5. Press the DELAY button one time to signal the entry is complete. 6. On the opener, press the LEARN/PROGRAM button for 2-3 seconds then release. 7. Press the DOOR button you just programmed once every two seconds until the opener operates. 8. When the door stops moving, press the DOOR button again to test. Programming is complete. ONLY for ID#4 Chamberlain®/LiftMaster®/Craftsman® Yellow Learn: 1. Remove activation tab from inside battery compartment 2. Press and hold down the DELAY button @ 5 seconds until ALL 3 BLUE LEDs start blinking and then release. 3. Press the DOOR button of your choice four times. TIP: You may program all 3 DOOR buttons at one time if preferred. The DELAY button press will signal completion for all buttons. 4. Press the DELAY button one time to sign the entry is complete. 5. Press and hold down the DOOR but…

Text truncated - open the document above for the full version.

Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515 Attn: Director of Certification FCC ID: B8QUWWC Authority to Act as Agent FCC On our behalf, I appoint Richard King, of Elite Electronic Engineering, Inc. at 1516 Centre Circle, Downers Grove, Illinois 60515 to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Elite Electronic Engineering, Inc., still resides with The Genie Company, P.O. Box 67 Mt. Hope, OH 44660. Dated this 27 th Day of July 2020 Agency agreement expiration date: November 27, 2020 By: David Hui wa Signature Printed Name Title: Sr. RF Engineer On behalf of : The Genie Company a Division of Overhead Door Corporation Telephone: 214-579-6325 Genie Company P. O. Box 67 Mt. Hope, OH 44660 Phone: 800-827-3667 (DOOR) Fax: 330-763-8042 www.geniecompany.com

Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515-1082 FCC ID: B8QUWWC Product Name: Universal Wireless Wall Console Transmitter Model: GUWWC, OUWWC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions’ rules, we hereby request that the following documents be held confidential: • Electrical Schematics, Layout Drawings, and Bills of Materials • Theory of Operation Documentation / Technical Description • PCB Assembly and Block Diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 27 th Day of July 2020 By: David Hui Signature Printed Title: Sr. RF Engineer On behalf of : The Genie Company a Division of Overhead Door Corporation Telephone: 214-579-6325 Genie Company P. O. Box 67 Mt. Hope, OH 44660 Phone: 800-827-3667 (DOOR) Fax: 330-763-8042 www.geniecompany.com

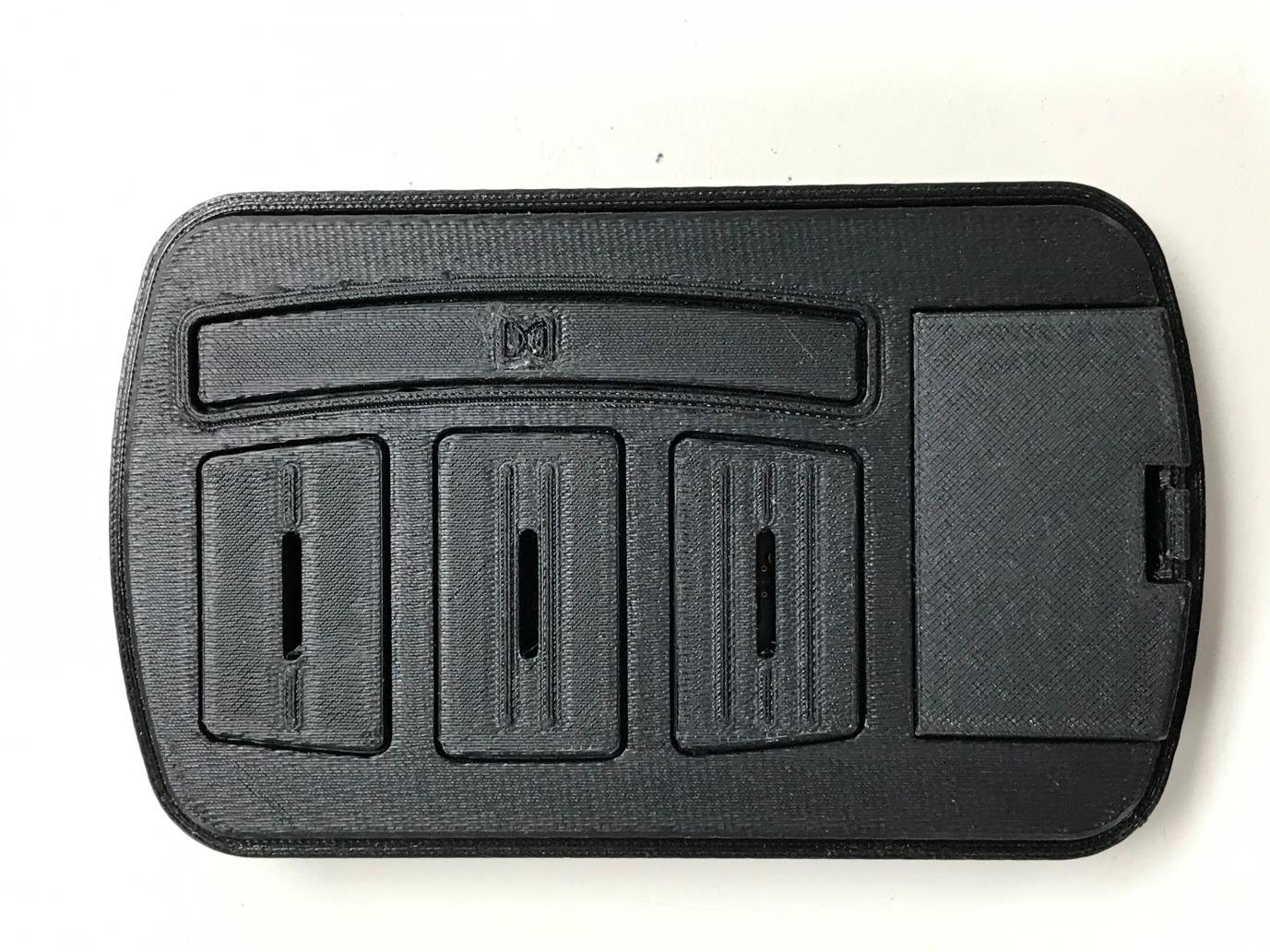

Back OutsideFront Outside

A SUBSIDIARY OF OVERHEAD DRAWN DIMS AND SPECIFICATIONS D C B A AB C D 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 THIRD ANGLE PROJECTION ENG F.20.041B-(FORM REV A) B 41405 - PLOTTED: - MATERIAL SCALE 8:1 .X = ±.1 ' ARE CRITICAL TO MT. HOPE, OHIO  CORPORATION. .XX = ±.01 SHEET 1 OF 1 WRITTEN CONSENT OF OVERHEAD DOOR ALL DIMS ARE IN LABEL, FCC, UWWC - DO NOT SCALE UNLESS OTHERWISE SPECIFIED WRITTEN CONSENT OF OVERHEAD DOOR DOOR CORPORATION .XXX = ±.005 P/N 41405-A NOTES: (UNLESS OTHERWISE SPECIFIED) DISCLOSED TO ANYONE WITHOUT PRIOR > Ø.500 = INCHES DANP .003 IN-PROCESS INSPECTION 41405 APPROVED SIZE TOLERANCES: CIRCLED WITH SYMBOL NOT TO AND SHALL NOT OPERATE AS A CORPORATION. DIS CLOSURE OF ANY & MUST MEET APPLICABLE DRAWING OR INFORMATION IS INTENDED ALL GEOMETRY GOVERNED BY 3D CAD DATABASE: DESCRIPTION DATE QUALITY DESIGN FEATURES LICENSE OR AUTHORI ZATION TO USE IT ANGULAR = ±1 12/1/2017 DWG NO. HOLES: PER ASME Y14.5M INTERPRET DIMS & TOLS CHECKED - FINISH ' FOR ANY PURPOSE WITHOUT SPECIFIC - STANDARDS. APPROVALS THE DRAWINGS AND ALL OTHER INFORMATION CONTA INED HEREIN ARE THE CONFIDENTIAL PROPRIETARY PROPERTY OF OVERHEAD DOOR CORPORATION, INCLUDING ITS AFFILIATED SUBSIDIARIES AND AFFILIATES. THIS DRAWING INFORMATION, IN WHOLE OR IN PART, MAY NOT BE COPIED IN ANY MANNER OR < Ø.251 = .003 Ø.251-Ø.500 = .003 P/N 41405-B 1.00 WHITE BACKGROUND .375 ORANGE BACKGROUND .15 R.030 REVISIONS GCO REV DESCRIPTION DATE APPROVAL -01 ISSUED FOR REVIEW 3/3/20 02 UPDATED FCC ID AND IC NUMBERS 5/19/20 BLACK GRAPHICS AND TYPE ON 2 MIL MYLAR WITH PRESSURE 1. SENSITIVE PERMANENT ADHESIVE FOR USE ON ABS PLASTIC, 1 MIL CLEAR MYLAR OVERLAY.2. COLOR PER ANSI Z535.1. SCALE 1:1 SCALE 1:1

PCB FrontPCBBack

Engineering Test Report No. 2002696-01 Report Date September 21, 2020 Manufacturer Name Genie Company Manufacturer Address One Door Drive Mount Hope, OH 44660 Model No. UWWC, Universal Wireless Wall Console Date Received August 31, 2020 Test Dates August 31, 2020 through September 8, 2020 Specifications FCC "Code of Federal Regulations" Title 47 Part 15, Subpart C, Section 15.231(b) Innovation, Science, and Economic Development Canada, RSS-210 Innovation, Science, and Economic Development Canada, RSS-GEN Test Facility Elite Electronic Engineering, Inc. 1516 Centre Circle, Downers Grove, IL 60515 FCC Reg. Number: 269750 IC Reg. Number: 2987A Signature Tested by Mark E. Longinotti Signature Approved by Raymond J. Klouda, Registered Professional Engineer of Illinois – 44894 PO Number 936132 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. This report shall not be reproduced, except in full, without the written approval of Elite Electronic Engineering Inc. Elite Electronic Engineering Incorporated certifies that the information contained in this report was obtained under conditions which meet or exceed those specified in the FCC "Code of Federal Regulations" Title 47 Part 15, Subpart C, Section 15.231 and Innovation, Science, and Economic Development Canada, RSS-210 and RSS-Gen test specification(s). The data presented in this test report pertains to the EUT on the test date(s) specified. Any electrical or mechanical modifications made to the EUT subsequent to the specified test date will serve to invalidate the data and void this certification. This report must not be used to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the Federal Government. Engineering Test Report No. 2002696-01 This report shall not be reproduced, except in full, without the written approval of Elite Electronic Engineering Inc. Page 2 of 318 Table of Contents 1. Report Revision History ............................................................................................................................ 3 2. Introduction ............................................................................................................................................... 4 2.1. Scope of Tests .......................................................................................................................................... 4 2.2. Purpose ..................................................................................................................................................... 4 2.3. Identification of the EUT ............................................................................................................................ 4 3. Power Input ............................................................................................................................................... 5 4. Grounding ................................................................................................................................................. 5 5. Support Equipment ................................................................................................................................... 5 6. Interconnect Leads .................................................................................................................................... 5 7. Modifications Made to the EUT ................................................................................................................. 5 8. Modes of Operation ................................................................................................................................... 5 9. Test Specifications .................................................................................................................................... 6 10. Test Plan ................................................................................................................................................... 6 11. Deviation, Additions to, or Exclusions from Test Specifications ............................................................... 7 12. Laboratory Conditions ............................................................................................................................... 7 13. Summary ................................................................................................................................................... 7 14. Sample Calculations ................................................................................................................................. 7 15. Statement of Conformity ........................................................................................................................... 7 16. Certification ............................................................................................................................................... 8 17. Photographs of EUT .................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 2002696-01 Page 109 of 318 Engineering Test Report No. 2002696-01 Page 110 of 318 Engineering Test Report No. 2002696-01 Page 111 of 318 Engineering Test Report No. 2002696-01 Page 112 of 318 Engineering Test Report No. 2002696-01 Page 113 of 318 Test Details Manufacturer Genie Company Model UWWC S/N AVL2 Mode Transmit at 303MHz Protocol Unknown Protocol Notes Meter CBL Ant Pre Duty Freq. Ant Reading Fac Fac Amp Cycle Total Total Limit Margin (MHz) Pol (dBuV) Ambient (dB) (dB/m) (dB) (dB) (dBuV/m) (uV/m) (uV/m) (dB) 303.000 H 44.7 0.9 19.5 0.0 0.0 65.1 1794.4 5541.7 -9.8 303.000 V 48.5 0.919.50.00.068.92779.3 5541.7-6.0 606.000 H 6.8 1.3 24.8 0.0 0.0 32.9 44.3 554.2 -22.0 606.000 V 11.1 1.3 24.8 0.0 0.0 37.2 72.6 554.2 -17.7 909.000 H 24.2 1.6 26.7 0.0 0.052.4419.1 554.2-2.4 909.000 V 24.9 1.6 26.7 0.0 0.0 53.1 454.3 554.2 -1.7 1212.000 H 14.9 Ambient 1.8 29.6 0.0 0.0 46.3 207.0 500.0 -7.7 1212.000 V 15.7 Ambient 1.829.60.00.047.1227.0 500.0-6.9 1515.000 H 16.0 2.0 29.2 0.0 0.0 47.2 229.4 500.0 -6.8 1515.000 V 20.4 2.0 29.2 0.0 0.0 51.6 380.7 500.0 -2.4 Engineering Test Report No. 2002696-01 Page 114 of 318 Engineering Test Report No. 2002696-01 Page 115 of 318 Engineering Test Report No. 2002696-01 Page 116 of 318 Engineering Test Report No. 2002696-01 Page 117 of 318 Engineering Test Report No. 2002696-01 Page 118 of 318 Test Details Manufacturer Genie Company Model UWWC S/N Label 1 Mode Transmit at 310MHz Protocol Sommer Protocol Notes Meter CBL Ant Pre Duty Freq. Ant Reading Fac Fac Amp Cycle Total Total Limit Margin (MHz) Pol (dBuV) Ambient (dB) (dB/m) (dB) (dB) (dBuV/m) (uV/m) (uV/m) (dB) 310.000 H 52.9 0.9 19.7 0.0 -12.9 60.6 1070.3 5833.3 -14.7 310.000 V 56.7 0.919.70.0-12.964.41657.7 5833.3-10.9 620.000 H 6.8 1.3 25.0 0.0 -12.9 20.2 10.2 583.3 -35.1 620.000 V 13.1 1.3 25.0 0.0 -12.9 26.5 21.1 583.3 -28.8 930.000 H 26.7 1.6 26.7 0.0-12.942.1127.2 583.3 -13.2 930.000 V 26.7 1.6 26.7 0.0 -12.9 42.1 127.2 583.3 -13.2 1240.000 H 14.8 1.8 29.8 0.0 -12.9 33.5 47.4 500.0 -20.5 1240.000 V 15.8 1.829.80.0-12.934.553.2 500.0-19.5 1550.000 H 16.6 2.1 29.0 0.0 -12.9 34.7 54.6 500.0 -19.2 1550.000 V 20.8 2.1 29.0 0.0 -12.9 38.9 88.6 500.0 -15.0 1860.000 H 16.4 2.3 32.0 0.0 -12.937.877.3 583.3 -17.6 1860.000 V 16.7 2.3 32.0 0.0 -12.9 38.1 80.0 583.3 -17.3 2170.000 H 16.8 Ambient 2.5 32.6 0.0 -12.9 38.9 88.2 583.3 -16.4 2170.000 V 17.7 Ambient2.532.60.0-12.939.897.8 583.3-15.5 2480.000 H 16.7 Ambient 2.7 33.1 0.0 -12.9 39.5 94.8 583.3 -15.8 2480.000 V 16.6 Ambient 2.7 33.1 0.0 -12.9 39.4 93.7 583.3 -15.9 2790.000 H 17.1 Ambient 2.8 32.9 0.0 -12.939.998.9 500.0 -14.1 2790.000 V 16.6 Ambient 2.8 32.9 0.0 -12.9 39.4 93.4 500.0 -14.6 3100.000 H 17.4 Ambient 3.0 33.5 0.0 -12.9 41.0 112.1 583.3 -14.3 3100.000 V 17.5 Ambient 3.0 33.5 0.0 -12.9 41.1 113.4 583.3 -14.2 Engineering Test Report No. 2002696-01 Page 119 of 318 Test Details Manufacturer Genie Company Model UWWC S/N Label 1 Mode Transmit at 310MHz Protocol StanleyProtocol Notes Meter CBL Ant Pre Duty Freq. Ant Reading Fac Fac Amp Cycle Total Total Limit Margin (MHz) Pol (dBuV) Ambient (dB) (dB/m) (dB) (dB) (dBuV/m) (uV/m) (uV/m) (dB) 310.000 H 52.9 0.9 19.7 0.0 -6.9 66.6 2135.6 5833.3 -8.7 310.000 V 56.7 0.919.70.0-6.970.43307.6 5833.3-4.9 620.000 H 6.8 1.3 25.0 0.0 -6.9 26.2 20.4 583.3 -29.1 620.000 V 13.1 1.3 25.0 0.0 -6.9 32.5 42.0 583.3 -22.8 930.000 H 26.7 1.6 26.7 0.0 -6.948.1253.7 583.3 -7.2 930.000 V 26.7 1.6 26.7 0.0 -6.9 48.1 253.7 583.3 -7.2 1240.000 H 14.8 1.8 29.8 0.0 -6.9 39.5 94.5 500.0 -14.5 1240.000 V 15.8 1.829.80.0-6.940.5106.1 500.0-13.5 1550.000 H 16.6 2.1 29.0 0.0 -6.9 40.7 109.0 500.0 -13.2 1550.000 V 20.8 2.1 29.0 0.0 -6.9 44.9 176.7 500.0 -9.0 1860.000 H 16.4 2.3 32.0 0.0 -6.943.8154.3 583.3 -11.6 1860.000 V 16.7 2.3 32.0 0.0 -6.9 44.1 159.7 583.3 -11.3 2170.000 H 16.8 Ambient 2.5 32.6 0.0 -6.9 44.9 176.0 583.3 -10.4 2170.000 V 17.7 Ambient2.532.60.0-6.945.8195.2 583.3-9.5 2480.000 H 16.7 Ambient 2.7 33.1 0.0 -6.9 45.5 189.2 583.3 -9.8 2480.000 V 16.6 Ambient 2.7 33.1 0.0 -6.9 45.4 187.0 583.3 -9.9 2790.000 H 17.1 Ambient 2.8 32.9 0.0 -6.945.9197.4 500.0 -8.1 2790.000 V 16.6 Ambient 2.8 32.9 0.0 -6.9 45.4 186.4 500.0 -8.6 310.000 H 52.9 0.9 19.7 0.0 -6.9 66.6 2135.6 5833.3 -8.7 310.000 V 56.7 0.9 19.7 0.0 -6.9 70.4 3307.6 5833.3 -4.9 Engineering Test Report No. 2002696-01 Page 120 of 318 Engineering Test Report No. 2002696-01 Page 121 of 318 Engineering Test Report No. 2002696-01 Page 122 of 318 Engineering Test Report No. 2002696-01 Page 123 of 318 Engineering Test Report No. 2002696-01 Page 124 of 318 Test Details Manufacturer Genie Company Model UWWC S/N AVL2 Mode Transmit at 310MHz Protocol Sommer Protocol Notes Meter CBL Ant Pre Duty Freq. Ant Reading Fac Fac Amp Cycle Total Total Limit Margin (MHz) Pol (dBuV) Ambient (dB) (dB/m) (dB) (dB) (dBuV/m) (uV/m) (uV/m) (dB) 310.000 H 51.8 0.9 19.7 0.0-12.959.5943.0 5833.3 -15.8 310.000 V 55.8 0.9 19.7 0.0 -12.9 63.5 1494.6 5833.3 -11.8 930.000 H 26.3 1.6 26.7 0.0 -12.9 41.7 121.4 583.3 -13.6 930.000 V 26.4 1.626.70.0-12.941.8122.8 583.3-13.5 1240.000 H 14.0 1.8 29.8 0.0 -12.9 32.7 43.2 500.0 -21.3 1240.000 V 16.4 1.8 29.8 0.0 -12.9 35.1 57.0 500.0 -18.9 1550.000 H 14.6 2.1 29.0 0.0 -12.932.743.4 500.0 -21.2 1550.000 V 20.3 2.1 29.0 0.0 -12.9 38.4 83.6 500.0 -15.5 1860.000 H 15.5 2.3 32.0 0.0 -12.9 36.9 69.7 583.3 -18.5 1860.000 V 14.6 2.332.00.0-12.936.062.8 583.3-19.4 Engineering Test Report No. 2002696-01 Page 125 of 318 Test Details Manufacturer Genie Company Model UWWC S/N AVL2 Mode Transmit at 310MHz Protocol Stanley Protocol Notes Meter CBL Ant Pre Duty Freq. Ant Reading Fac Fac Amp Cycle Total Total Limit Margin (MHz) Pol (dBuV) Ambient (dB) (dB/m) (dB) (dB) (dBuV/m) (uV/m) (uV/m) (dB) 310.000 H 51.8 0.9 19.7 0.0 -6.9 65.5 1881.5 5833.3 -9.8 310.000 V 55.8 0.919.70.0-6.969.52982.0 5833.3-5.8 930.000 H 26.3 1.6 26.7 0.0 -6.9 47.7 242.3 583.3 -7.6 930.000 V 26.4 1.6 26.7 0.0 -6.9 47.8 245.1 583.3 -7.5 1240.000 H 14.0 1.8 29.8 0.0 -6.938.7…

Text truncated - open the document above for the full version.

Engineering Test Report No. 2002696-01 Page 281 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 315MHz Protocol Genie IC2 Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 282 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 315MHz Protocol Marantec Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 283 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 315MHz Protocol Marantec Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 284 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 318MHz Protocol Linear Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 285 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 318MHz Protocol Linear Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 286 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 372.5MHz Protocol Wayne Dalton Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 287 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 372.5MHz Protocol Wayne Dalton Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 288 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 372.5MHz Protocol Ryobi Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 289 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 372.5MHz Protocol Ryobi Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 290 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Green Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 291 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Green Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 292 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Orange/Red Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 293 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Orange/Red Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 294 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Yellow Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 295 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Yellow Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 296 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain LegacyProtocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 297 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Chamberlain Legacy Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 298 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie IC1 Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 299 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie IC1 Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 300 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie IC2 Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 301 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie IC2 Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 302 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie 9 DIP switch Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 303 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie 9 DIP switch Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 304 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie 12 DIP switch Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 305 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Genie 12 DIP switch Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 306 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Overhead Door Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 307 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 390MHz Protocol Overhead Door Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 308 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 433.92MHz Protocol FAAC Protocol Notes 20dB bandwidth Engineering Test Report No. 2002696-01 Page 309 of 318 Test Details Manufacturer Genie Company Model UWWC Mode Transmit at 433.92MHz Protocol FAAC Protocol Notes 99% bandwidth Engineering Test Report No. 2002696-01 Page 310 of 318 24. Scope of Accreditation Engineering Test Report No. 2002696-01 Page 311 of 318 Engineering Test Report No. 2002696-01 Page 312 of 318 Engineering Test Report No. 2002696-01 Page 313 of 318 Engineering Test Report No. 2002696-01 Page 314 of 318 Engineering Test Report No. 2002696-01 Page 315 of 318 Engineering Test Report No. 2002696-01 Page 316 of 318 Engineering Test Report No. 2002696-01 Page 317 of 318 Engineering Test Report No. 2002696-01 Page 318 of 318

Engineering Test Report No. 2002696-01 Page 92 of 318 Test Setup for Spurious Radiated Emissions, 30-1000MHz – Antenna Polarization Horizontal Test Setup for Spurious Radiated Emissions, 30-1000MHz – Antenna Polarization Vertical Engineering Test Report No. 2002696-01 Page 93 of 318 Test Setup for Spurious Radiated Emissions, Above 1GHz – Antenna Polarization Horizontal Test Setup for Spurious Radiated Emissions, Above 1GHz – Antenna Polarization Vertical
