PUBLICATION TSM 20-311 TECHNICAL MANUAL 20 WATT UHF AMPLIFIER FOR MX20U SERIES TV TRANSMITTER/TRANSLATOR LARCAN INC. 228 AMBASSADOR DRIVE MISSISSAUGA, ONTARIO CANADA L5T 2J2 PHONE:(905) 564-9222 FAX:(905) 564-9244 Rev 0: December 1, 1999 MX Series - 20 Watt UHF AMPLIFIER TSM 20-311 rev 0: December 1, 1999120 W UHF Amplifier SectionTitlePage NOTICES, ETC. ..................................................................................................................3 SAFETY AND HEALTH WARNINGS ............................................................................. 4&5 GENERAL SERVICE INFORMATION 1) Parts Lists Explained..........................................................................................5 2) Interpreting LARCAN Drawing Numbers............................................................5 3) The LARCAN Assembly Prefix Numbering System ...........................................6 4) List of Prefix Numbers for the 20W Amplifier .....................................................7 5) Production Changes ...........................................................................................7 INTRODUCTION .................................................................................................................8 GENERAL DESCRIPTION..................................................................................................8 SPECIFICATIONS.............................................................................................................10 ABOUT THIS MANUAL .....................................................................................................11 PUBLICATIONS LIST for MX series 20W UHF Amplifier: PUB99-36 20W UHF Amplifier Installation: 1.General Information..............................................................................36-1 2.Grounding and Ground Loops ..............................................................36-2 3.Lightning and other Transient Protection .............................................36-4 4.Power Wiring ........................................................................................36-9 5.Ventilation and Air Conditioning .........................................................36-10 6.Fire Protection ....................................................................................36-11 7.Unpacking ..........................................................................................36-12 8.Transmitter External Interlock Connections .......................................36-12 9.On Site: First Time Start-up................................................................36-13 PUB99-37 20W UHF Amplifier (Prefix 1): 1.Amplifier Chassis Description...............................................................37-1 MX Series - 20 Watt UHF AMPLIFIER TSM 20-311 rev 0: December 1, 1999220 W UHF Amplifier SectionTitlePage PUB99-38 Heatsink Assembly (Prefix 2): 1.Heatsink Assembly Description............................................................38-1 2.Front End Module .................................................................................38-2 3.IPA1 Module.........................................................................................38-2 4.PA Module............................................................................................38-4 5.Directional Coupler ...............................................................................38-5 6.RF Metering Board Description (Prefix 5) ............................................38-6 7.RF Metering Board Test and Calibration ..............................................38-6 PUB99-39 20W Control Panel & Metering: 1.Control Panel Description.....................................................................39-1 2.Control Board Assembly Description....................................................39-2 PUB99-91 Basic Transmitter Maintenance: 1.General.................................................................................................91-1 2.Daily .....................................................................................................91-1 3.Weekly..................................................................................................91-2 4.Monthly .................................................................................................91-2 5.Semi-annually and Annually .................................................................91-2 6.Transmitter Cooling System .................................................................91-2 7.Static 1, Equipment 0: A brief Static Tutorial........................................91-3 8.FET and Surface Mount Replacement .................................................91-4 9.Replacement Parts ...............................................................................91-7 10.Spare Parts Recommendations ...........................................................91-9 MX Series - 20 Watt UHF AMPLIFIER TSM 20-311 rev 0: December 1, 1999320 W UHF Amplifier NOTICES, ETC.: THIS EQUIPMENT USES STATIC-SENSITIVE CMOS INTEGRATED CIRCUITS. Observe proper handling precautions (indicated in Maintenance Sections) at all times when working with this equipment. TOXIC MATERIALS NOTICE... IMPORTANT... Effective thermal management in certain semiconductor devices in this equipment is possible only through the use of Beryllium Oxide ceramic materials. This equipment contains devices made with Beryllium Oxide! Beryllium and its compounds is a POISON if taken into the body in any manner. To reduce your risk, remember: In case of accidental breakage of any kind of semiconductor device, DO NOT INHALE THE DUST, and AVOID GETTING DUST IN YOUR MOUTH; it could contain Beryllium. DO NOT LET BERYLLIUM DUST INTO YOUR BLOODSTREAM THROUGH CUTS OR OPEN WOUNDS! Seek and obtain IMMEDIATE medical attention if the dust enters your body in any manner. Avoid cuts by wearing gloves while picking up the pieces. Wash your hands thoroughly after replacing devices. Dispose…

Text truncated - open the document above for the full version.

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 13 ENGINEER’S STATEMENT I, John Tremblay, do hereby certify that the attached information was prepared by me or under my direction. __________________________ John E. Tremblay, P. Eng. Vice-President Engineering 27 Feb. 2002 __________________________ Date

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT NO.TITLENO. OF PAGES 1 Supporting Statement, Application4 for FCC Certification of BZ5MX20UX 2 Instruction Manuals 2a20W UHF Amplifier Manual 2bCadco P379 Operating Manual 3 Test Measurement Set-up 4 Frequency Drift vs. Temperature2 4aHeterodyne Processor Tabulated Data 4bTemperature Test Set-up 5 Output Stability AGC Data Tabulated 6 Frequency Response2 6aInput 1000uV +15dB 6bInput 1000uV 6cInput 1000uV – 15dB 7 Active Devices and Function List 8 FCC Identification Label for BZ5MX20UX 9 Power Measurement Statement 10 Video Waveforms3 10aInput Modulated Stair Step 10bOutput Unmodulated Stair Step 10cDifferential Gain 10dDifferential Phase 11 Group Delay2 11aOverall Group Delay Tabulated Data 11bOverall Group Delay Graph 12BZ5MX20U Translator Photos4 12aPhoto, Front Overall View of BZ5MX20UX 12bPhoto, Front View 12cPhoto, Interior View 12dPhoto, Rear View with FCC Label 13 Engineer’s Statement APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 1PAGE 1 This application requests authorization for video/audio input to our 20 Watt UHF Translator, BZ5MX20UX (Certification applied for). The amplifier will be driven directly by a color television heterodyne processor. The intended use of the BZ5MX20UX is to rebroadcast a television translator relay station or other legal source of video and audio. A paragraph by paragraph reference is given herein, presenting the required additional data to that called for on FCC Form 731 for FCC Certification of BZ5MX20UX 20 Watt UHF Translator. Exhibits are attached to authenticate this application. If further data is required, it will be furnished on request. The unit tested specifically for this application was operated on Channel 50. This channel was chosen to provide protection to and from existing radio services, and to facilitate the measurement of possible spurious products conducted or radiated from the 20 Watt UHF Translator. The results noted here are “worse case” unless otherwise noted. The input signals used in the tests were generated by a color bar generator driving a Cadco Heterodyne Processor which is typically the processor used. However, due to varying customer requirements, other heterodyne processors are available on customer request. The published specification on any heterodyne processor used in this equipment will meet or exceed FCC specifications. The output of the 20 Watt UHF Translator was properly terminated with a resistive type RF load. 2.1033(b)(1): Applicant is the manufacturer of the equipment. See FCC Form 731 2.1033(b)(2): See FCC Form 731 2.1033(b)(3): Exhibit 2 (20W UHF Instruction Manual, Cadco P379 Operating Manual) 2.1033(b)(4): Exhibit 7 (Active Devices and Function List) 2.1033(b)(5,6,7): See also, the paragraph by paragraph summary of compliance with Part 74, Sub-part G of the FCC Commission Rules that follow. PART 74.750(c)(1): The frequency stability of this equipment as measured per Part 2.1055 of the rules is much better than required over the specified range of the input voltage and temperature. The test equipment was set as shown in Exhibit 3. The translator was swept with a CW signal equivalent to 20 watts peak sync. The AGC circuit was defeated to facilitate the measurement. Three different input signal levels, (1000uV +15dB, 1000uV, 1000uV –15db), were introduced. The gain of the AGC amplifier was adjusted to 20 watts to demonstrate the output bandpass under different input signal conditions. Exhibits 6a, 6b, and 6c, are photos of the frequency response displayed on the oscilloscope. They show the bandpass to be flat +1.5dB with no substantial change due to the input signal levels. PART 74.761(a): The frequency stability of the visual carrier is totally dependent upon the heterodyne processor. Exhibits 4a and 4b document the measurements made, including method and equipment. Processor output frequency can be, and is normally set to zero deviation at the output channel. APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 1PAGE 2 As shown in Exhibit 4a, the typical characteristic variation due to temperature is less than +.02%. This is true for all heterodyne processor channels. PART 74.750(c)(2): With the translator set up as in Exhibit 3 with a normal Channel 13 TV input signal, the following products, more that 2MHz from the channel edges, were measured at the output terminal relative to 20 watts peak sync. FREQUENCY(MHz)SOURCELEVEL MEASURED(dB) 1374.502 ND HARMONIC -68 700.75Aural +9.0MHz >-70 696.25Aural +4.5MHz >-70 682.75Visual –4.5MHz -68 678.25Visual –9.0MHz >-70 Observations were made on a properly operating translator Channel 13 to Channel 60 using a Hewlett-Packard 8591E Spectrum Analyzer with a cut to frequency dipole antenna at 10 meters from the translator and rotated to detect maximum radiation. The following signals were present: SPECIFICATION FREQUENCY(MHz)SOURCE LIMIT uVMEASURED uV 1374.50 2 nd Harmonic 700 50 733.00 LO 238133 10 Radiation from the heterodyne processor was nil. No spurious products could be detected at 10 meters that were less than 90dB down. Antenna terminal measurements with the 8591E Spectrum Analyzer showed no change due to the heterodyne processor since the power amplifier stages are not affected by this modulation. The above tests were performed using the same equipment hook up and methods described in Exhibit 3a. The translator test data compiled for this application was Channel 13 to Channel 60. Translator operating with a standard video test signal input (modulated stair step and color burst) and a modulated audio carrier at –10dB of peak visual. Results are typical of performance on all channels. PART 74.750(c)(3)(ii): Variations of input voltage +15% (reference +28VDC or 120VAC) during the temperature tests resulted in no discernible frequency variation traceable to …

Text truncated - open the document above for the full version.

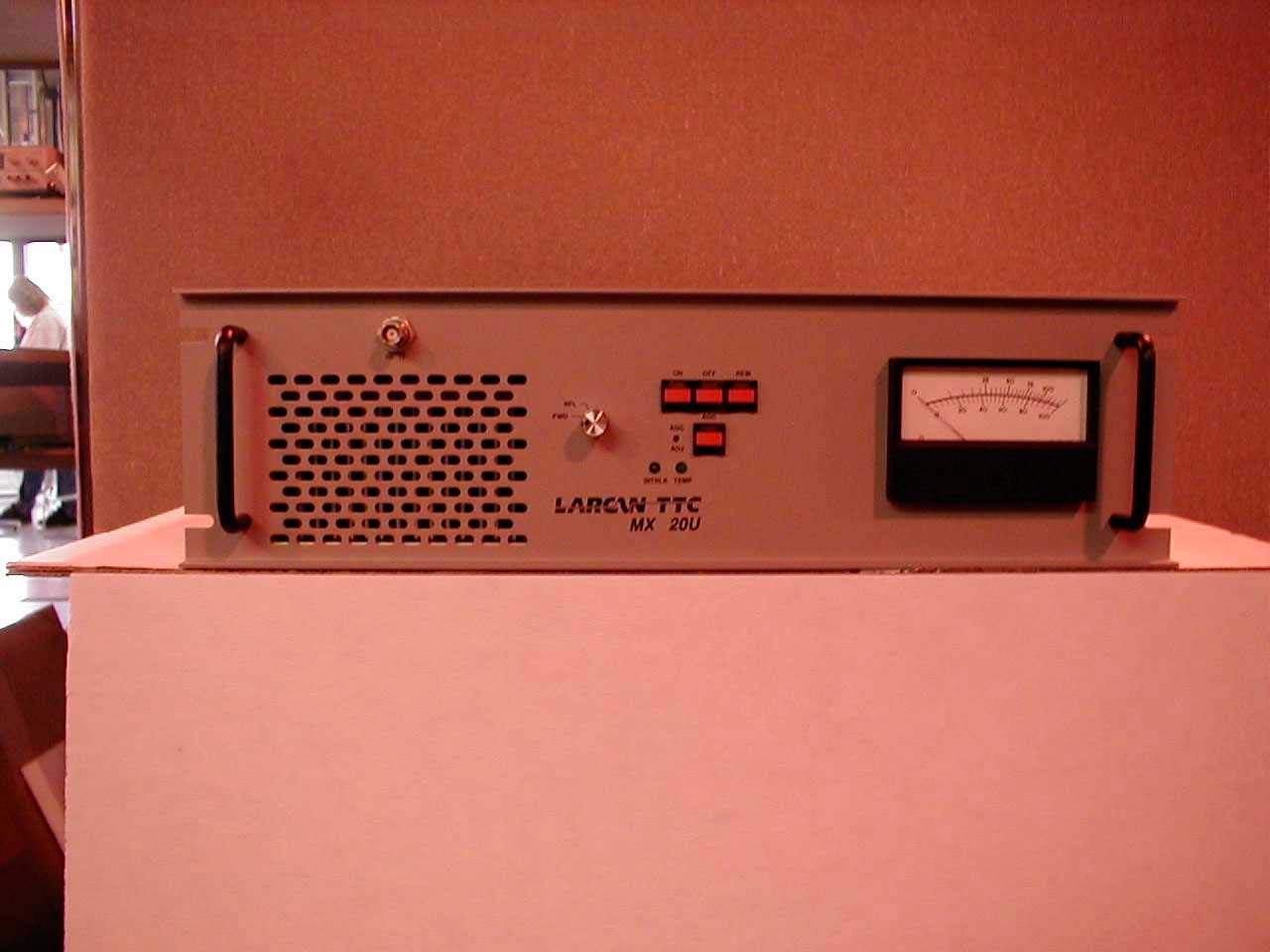

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 12a PHOTO, FRONT OVERALL VIEW OF BZ5MX20UX APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 12b PHOTO, FRONT VIEW

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 12c PHOTO, INTERIOR VIEW

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT NO.TITLENO. OF PAGES 1 Supporting Statement, Application4 for FCC Certification of BZ5MX20UX 2 Instruction Manuals 2a20W UHF Amplifier Manual 2bCadco P379 Operating Manual 3 Test Measurement Set-up 4 Frequency Drift vs. Temperature2 4aHeterodyne Processor Tabulated Data 4bTemperature Test Set-up 5 Output Stability AGC Data Tabulated 6 Frequency Response2 6aInput 1000uV +15dB 6bInput 1000uV 6cInput 1000uV – 15dB 7 Active Devices and Function List 8 FCC Identification Label for BZ5MX20UX 9 Power Measurement Statement 10 Video Waveforms3 10aInput Modulated Stair Step 10bOutput Unmodulated Stair Step 10cDifferential Gain 10dDifferential Phase 11 Group Delay2 11aOverall Group Delay Tabulated Data 11bOverall Group Delay Graph 12BZ5MX20U Translator Photos4 12aPhoto, Front Overall View of BZ5MX20UX 12bPhoto, Front View 12cPhoto, Interior View 12dPhoto, Rear View with FCC Label 13 Engineer’s Statement APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 1PAGE 1 This application requests authorization for video/audio input to our 20 Watt UHF Translator, BZ5MX20UX (Certification applied for). The amplifier will be driven directly by a color television heterodyne processor. The intended use of the BZ5MX20UX is to rebroadcast a television translator relay station or other legal source of video and audio. A paragraph by paragraph reference is given herein, presenting the required additional data to that called for on FCC Form 731 for FCC Certification of BZ5MX20UX 20 Watt UHF Translator. Exhibits are attached to authenticate this application. If further data is required, it will be furnished on request. The unit tested specifically for this application was operated on Channel 50. This channel was chosen to provide protection to and from existing radio services, and to facilitate the measurement of possible spurious products conducted or radiated from the 20 Watt UHF Translator. The results noted here are “worse case” unless otherwise noted. The input signals used in the tests were generated by a color bar generator driving a Cadco Heterodyne Processor which is typically the processor used. However, due to varying customer requirements, other heterodyne processors are available on customer request. The published specification on any heterodyne processor used in this equipment will meet or exceed FCC specifications. The output of the 20 Watt UHF Translator was properly terminated with a resistive type RF load. 2.1033(b)(1): Applicant is the manufacturer of the equipment. See FCC Form 731 2.1033(b)(2): See FCC Form 731 2.1033(b)(3): Exhibit 2 (20W UHF Instruction Manual, Cadco P379 Operating Manual) 2.1033(b)(4): Exhibit 7 (Active Devices and Function List) 2.1033(b)(5,6,7): See also, the paragraph by paragraph summary of compliance with Part 74, Sub-part G of the FCC Commission Rules that follow. PART 74.750(c)(1): The frequency stability of this equipment as measured per Part 2.1055 of the rules is much better than required over the specified range of the input voltage and temperature. The test equipment was set as shown in Exhibit 3. The translator was swept with a CW signal equivalent to 20 watts peak sync. The AGC circuit was defeated to facilitate the measurement. Three different input signal levels, (1000uV +15dB, 1000uV, 1000uV –15db), were introduced. The gain of the AGC amplifier was adjusted to 20 watts to demonstrate the output bandpass under different input signal conditions. Exhibits 6a, 6b, and 6c, are photos of the frequency response displayed on the oscilloscope. They show the bandpass to be flat +1.5dB with no substantial change due to the input signal levels. PART 74.761(a): The frequency stability of the visual carrier is totally dependent upon the heterodyne processor. Exhibits 4a and 4b document the measurements made, including method and equipment. Processor output frequency can be, and is normally set to zero deviation at the output channel. APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 1PAGE 2 As shown in Exhibit 4a, the typical characteristic variation due to temperature is less than +.02%. This is true for all heterodyne processor channels. PART 74.750(c)(2): With the translator set up as in Exhibit 3 with a normal Channel 13 TV input signal, the following products, more that 2MHz from the channel edges, were measured at the output terminal relative to 20 watts peak sync. FREQUENCY(MHz)SOURCELEVEL MEASURED(dB) 1374.502 ND HARMONIC -68 700.75Aural +9.0MHz >-70 696.25Aural +4.5MHz >-70 682.75Visual –4.5MHz -68 678.25Visual –9.0MHz >-70 Observations were made on a properly operating translator Channel 13 to Channel 60 using a Hewlett-Packard 8591E Spectrum Analyzer with a cut to frequency dipole antenna at 10 meters from the translator and rotated to detect maximum radiation. The following signals were present: SPECIFICATION FREQUENCY(MHz)SOURCE LIMIT uVMEASURED uV 1374.50 2 nd Harmonic 700 50 733.00 LO 238133 10 Radiation from the heterodyne processor was nil. No spurious products could be detected at 10 meters that were less than 90dB down. Antenna terminal measurements with the 8591E Spectrum Analyzer showed no change due to the heterodyne processor since the power amplifier stages are not affected by this modulation. The above tests were performed using the same equipment hook up and methods described in Exhibit 3a. The translator test data compiled for this application was Channel 13 to Channel 60. Translator operating with a standard video test signal input (modulated stair step and color burst) and a modulated audio carrier at –10dB of peak visual. Results are typical of performance on all channels. PART 74.750(c)(3)(ii): Variations of input voltage +15% (reference +28VDC or 120VAC) during the temperature tests resulted in no discernible frequency variation traceable to …

Text truncated - open the document above for the full version.

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 4a FREQUENCY DRIFT VS. TEMPERATURE P379 HETERODYNE PROCESSOR MEASURED DEGREES CLO FREQUENCY(Hz)DEVIATION(Hz)DEVIATION(%) +50 747,251,102 1802 0.000241 +40 747,250,350 1050 0.000141 +30 747,249,830 530 0.000071 +25 747,249,300 0 0.000000 +20 747,249,277 -23 -0.000003 +10 747,249,165 -135 -0.000018 0 747,249,135 -165 -0.000022 -10 747,248,220 -1080 -0.000145 -20 747,247,500 -1800 -0.000241 -30 747,243,800 -5500 -0.000736 APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 5 TABULATED AGC DATA INPUT LEVEL(dB)RELATIVE OUTPUT dB=100% OUTPUT POWER -15-0.1 -10-0.1 -5 0 500uV=0dB 0.0 +5 0 +10 0 +15 0 +20-0.1 -15 0 -10 0 -5 0 1000uV=0dB 0.0 +5 0 +10 0 +15 0 +20-0.1 +25-0.1 -15 0 -10 0 -5 0 5000uV=0dB 0.0 +5 0 +10 0 +15-0.1 +20-0.1 APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 9 Power requirements for the 20 Watt UHF Translator were determined as follows: 1. The translator’s visual power meter measures the peak visual power by reading the average levels of a detected sample of the output. The meter is calibrated by multiplying the above visual power reading by 168%. The visual metering circuitry has a negligible response to the aural power due to the large (>10MHz) detector bandwidth. When the detector bandwidth is this large, the detector does not peak detect the intercarrier beat product. 2. The aural power is measured by reading the peak level of the detected 4.5MHz intercarrier product. The level of this product has a direct correspondence to the aural power and is independent of the visual power as long as the peak visual power exceeds the aural power. This is always true for normal operation. BZ5MX20UX POWER MEASUREMENTS SUPPLY CURRENT SUPPLY CURRENT MEASURED MEASURED TO OUTPUT DEVICESTO OUTPUT DEVICES VISUAL POWER AURAL POWERVISUAL ONLY VISUAL & AURAL NOTE 1 NOTE 2 NOTE 3 NOTE 3 12.5 WATTS 2.0 WATTS 2.9 AMPS 2.9 AMPS NOTE 1: Measured on the Model 43 Bird Wattmeter with the visual carrier modulated by the standard synchronizing signal at 75% of peak amplitude and the aural carrier disabled. NOTE 2: Measured on the Model 43 Bird Wattmeter with the visual carrier disabled. NOTE 3: The voltage across the output devices on all models is +28 volts. The output devices are operated Class A. APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 11a OVERALL GROUP DELAY FREQUENCY(MHz)OVERALL DELAY (nS) 0.20 0 (Reference) 0.40 -40 0.60 -30 0.80 -20 1.00-10 1.20 -30 1.40 +20 1.60 0 1.80-10 2.00 0 2.20 +10 2.40 -10 2.60 +10 2.80 0 3.00-40 3.20 -60 3.40 -100 3.58 -165 3.80 -250 4.00-280 4.18 -300

APPLICATION FOR FCC CERTIFICATION BZ5MX20UX HETERODYNE PROCESSOR INPUT 20 WATT UHF TRANSLATOR EXHIBIT 1PAGE 2 As shown in Exhibit 4a, the typical characteristic variation due to temperature is less than +.02%. This is true for all heterodyne processor channels. PART 74.750(c)(2): With the translator set up as in Exhibit 3 with a normal Channel 13 TV input signal, the following products, more that 2MHz from the channel edges, were measured at the output terminal relative to 20 watts peak sync. FREQUENCY(MHz)SOURCELEVEL MEASURED(dB) 1374.502 ND HARMONIC -68 700.75Aural +9.0MHz >-70 696.25Aural +4.5MHz >-70 682.75Visual –4.5MHz -68 678.25Visual –9.0MHz >-70 Observations were made on a properly operating translator Channel 13 to Channel 60 using a Hewlett-Packard 8591E Spectrum Analyzer with a cut to frequency dipole antenna at 10 meters from the translator and rotated to detect maximum radiation. The following signals were present: SPECIFICATION FREQUENCY(MHz)SOURCE LIMIT uVMEASURED uV 1374.50 2 nd Harmonic 700 50 733.00 LO 238133 10 Radiation from the heterodyne processor was nil. No spurious products could be detected at 10 meters that were less than 90dB down. Antenna terminal measurements with the 8591E Spectrum Analyzer showed no change due to the heterodyne processor since the power amplifier stages are not affected by this modulation. The above tests were performed using the same equipment hook up and methods described in Exhibit 3a. The translator test data compiled for this application was Channel 13 to Channel 60. Translator operating with a standard video test signal input (modulated stair step and color burst) and a modulated audio carrier at –10dB of peak visual. Results are typical of performance on all channels. PART 74.750(c)(3)(ii): Variations of input voltage +15% (reference +28VDC or 120VAC) during the temperature tests resulted in no discernible frequency variation traceable to the power supply. This is reasonable due to the heterodyne processor’s internal regulation. PART 74.750(c)(4): With the equipment set as described in Exhibit 3, a CW signal at the visual carrier frequency was substituted for the normal input signal. After setting the translator output to 20 watts, the input signal was varied. Refer to Exhibits 6a, 6b, 6c. The output power may be set at 100% for any
