LARCAN U.S. Tel: 1-303-665-8000 Fax: 1-303-673-9900 Canada Tel: 1-905-564-9222 Fax: 1-905-564-9244 www.larcan.com Email: [email protected] 228 Ambassador Drive Mississauga ON Canada L5T 2J2 January 3, 2006 Andrew Leimer Office of Engineering and Technology Re: FCC ID BZ5MXD30U Correspondence Reference number 30182 Dear Sir: With regards to our request for confidentiality, we formally request confidentiality for the service manuals and schematics documents submitted as part of this application. While these documents do not contain design-specific information, they are typically purchased as part of the product and are not available in the public domain. Sincerely, John Tremblay V. P. Engineering
LARCAN U.S. Tel: 1-303-665-8000 Fax: 1-303-673-9900 Canada Tel: 1-905-564-9222 Fax: 1-905-564-9244 www.larcan.com Email: [email protected] 228 Ambassador Drive Mississauga ON Canada L5T 2J2 January 3, 2006 Andrew Leimer Office of Engineering and Technology Re: FCC ID BZ5MXD30U Correspondence Reference number 30182 Dear Sir: With regards to our request for confidentiality, we formally request confidentiality for the service manuals and schematics documents submitted as part of this application. While these documents do not contain design-specific information, they are typically purchased as part of the product and are not available in the public domain. Sincerely, John Tremblay V. P. Engineering

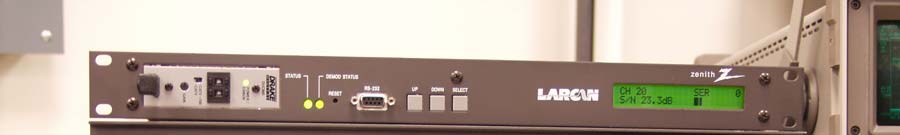

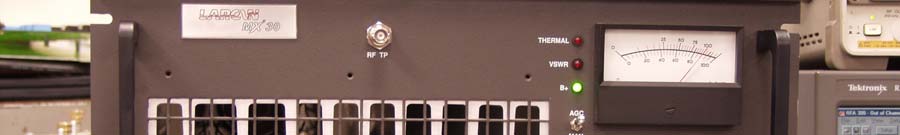

BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Exterior Photo
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator FCC Label/Label Location
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Interior Photo
BZ5MXD30U Application for FCC Certification 30 Watt Digital Television Translator Operational Description: This application requests certification for a 30 Watt Digital Television Translator. The intended use of this digital translator is to rebroadcast a television relay station or other legal source of ATSC digital television signal. The MXD30U is a solid state digital regenerative translator designed to receive over-the- air ATSC signals, converting the RF signal to baseband digital format, processing the signal to eliminate noise, and then re-modulating, converting to the new broadcast channel, amplifying and filtering the signal before it is applied to the transmit antenna. The receive section of the translator and the output modulation format conform with FCC Part 73.682(d), ATSC Digital Television Standards. The MXD30U consists of four components: a 1RU RegenT Transcoder unit which receives processes and remodulates the signal, a 5 RU 30W RF amplifier,a 5RU Power supply for said amplifer and an output filter. The power supply and amplifier employ integral cooling fans. Depending on the specific application of the translator, the filter is either a simple mask type filter of a stringent mask type filter. With the exception of the output emission mask response, all other performance parameters as detailed in this report are identical for either type of filter. The filter along with additional filtering within the amplifier provide more than 85dB of attenuation within the GPS Frequency bands (1164-1240 MHz and 1559-1610 MHz). Note that since these products are frequency agile in that they can be field tuned for different channels within the UHF television band, each unit has this filtering included, regardless of the channel. Wiring, shielding and construction are in accordance with accepted principles of good engineering practice. The translator’s construction is such that all hazardous components are enclosed or protected against accidental contact by operating personnel.
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Parts List and Tune-up Procedure: The following is the procedure for changing the channel of the MXD30U translator. Since the amplifier is broadband, channel change involves retuning of the output filter and recalibration of the output meter. The amplifier meter was calibrated to read 100% (top scale) at full power and at the channel specified when the transmitter was tested at the factory. If the amplifier is to operate at a channel other than that of the factory test channel, the metering is going to require re-calibration. The power meter setting is a channel dependent calibration. 1. Connect the transmitter output to a 50 ohm dummy load or the antenna. The transmitter uses a 50Ω type N connector for its output. An inline wattmeter with a selection of detector elements should be used for measurements. 2. Connect the 115VAC mains input. This AC circuit should be rated for 15 amperes, and should be supplied through a slow-tripping breaker or time delay fuse. Generally, a breaker that is rated for across-the-line motor starting will be found to be satisfactory. Also, connect the power cable that connects the power supply to the amplifier. This is the nine-wire cable supplied with the amplifier. 3. Switch `ON’ the power supply circuit breaker. Depress the power supply `ON’ push button switch. The two LEDs marked INTRLK and TEMP should be lighted, and the amplifier should be operating and the cooling fans on both the power supply and the amplifier should be running. 4. The amplifier is equipped with AGC and VSWR protections which have been factory set. To set the correct level out of the channel processor or exciter, switch OFF the amplifier AGC (switch down) then adjust the Transcoder level control so that the output of the amplifier is 110%. Switch ON the AGC and front panel meter should read 100%. If not, adjust the front panel pot labeled AGC LEVEL for 100% indication. The output filter must be retuned as per the frequency response sweeps attached (note: two different tunings depending on the type of filter used): BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Parts List and Tune-up Procedure Simple Mask Filter: Bandpass Response BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Parts List and Tune-up Procedure Simple Mask Filter: Return loss BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Parts List and Tune-up Procedure Stringent Mask Filter: In band Response BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Parts List and Tune-up Procedure Stringent Mask Filter: Return loss LineTpComponentDescriptionIDQtyUMTotal 11940D2206A1ASSEMBLY DRAWING R-30EA0 110541D1452P1FRONT PANEL R-41EA1 112541D1483P1FRAME (CHASSIS) R-41EA1 114541D1444P1REAR PANEL R-21EA1 115541D1504P1TOP COVER R-01EA1 120140D2208G1 HEATSINK ASSY 100W AMP UHF R - 71EA1 21940D2208ASSEMBLY DRAWING R-40EA0 210541D1475P1HEATSINK R-21EA1 211121B2230G2AMP RF UHF NO CONN. R-22EA2 31921B1389SSCHEMATIC 0.10EA0 32921B2230A1Assembly Drawing R-20EA0 33521B1411P1SPACER PLATE R-10EA0 34521B2230P1PCB AMP RF R-21EA2 37512062R104K9BCAP 100nF 10% 50VC11EA 2 38512062R102K9BCAP 1n 50V PHILIPSC21EA 2 39512062R103K9BCAP 10nF CERAMIC CHIPC31EA 2 310512062R103K9BCAP 10nF CERAMIC CHIPC41EA 2 311512062R104K9BCAP 100nF 10% 50VC51EA 2 312512062R103K9BCAP 10nF CERAMIC CHIPC61EA 2 3135NACZ151M35V8x10.8CAP 150U 35V 20%C71EA2 3145100B-8R2-JP500XCAP 8p2 500V CHIPC1011EA 2 31552320-2CAP BLUE JOHANSON TRIM 5.18pf C1021EA2 3165100B-180-JP500XCAP 18p 500V CHIPC1031EA 2 317512062R103K9BCAP 10nF CERAMIC CHIPC1041EA 2 318512062R103K9BCAP 10nF CERAMIC CHIPC1051EA 2 319512062R104K9BCAP 100nF 10% 50VC1061EA 2 32052320-2CAP BLUE JOHANSON TRIM 5.18pf C1071EA2 3215100B-8R2-JP500XCAP 8p2 500V CHIPC1111EA 2 32252320-2CAP BLUE JOHANSON TRIM 5.18pf C1121EA2 3235100B-180-JP500XCAP 18p 500V CHIPC1131EA 2 324512062R103K9BCAP 10nF CERAMIC CHIPC1141EA 2 325512062R103K9BCAP 10nF CERAMIC CHIPC1151EA 2 326512062R104K9BCAP 100nF 10% 50VC1161EA 2 32752320-2CAP BLUE JOHANSON TRIM 5.18pf C1171EA2 3285MMBD7000LT1DIODE DUAL GENERAL PURPOSE CR1001EA 2 3295MMBD7000LT1DIODE DUAL GENERAL PURPOSE CR1101EA 2 33051F1304-3S/M COUPLERHY11EA2 33151F1304-3S/M COUPLERHY21EA2 3345MRF 184TRANSISTOR MOTOROLAQ11EA2 3355MRF 184TRANSISTOR MOTOROLAQ21EA2 33659C12063A2200JLRESISTOR 220R 1/4W 5% CHIPR11EA 2 33759C12063A1000JLRESISTOR 100 OHMS 1/4W 5%R21EA 2 33859C12063A3301JLRESISTOR: 3K3 1/4W 5%R1011EA 2 33959C12063A0000JLRES JUMPERR1021EA2 34059C12063A3301JLRESISTOR: 3K3 1/4W 5%R1101EA 2 34159C12063A0000JLRES JUMPERR1121EA2 3425RFP-10-50TVRES 10W 5% 50R2011EA2 3435RFP-10-50TVRES 10W 5% 50R2021EA2 Level LineTpComponentDescriptionIDQtyUMTotal Level 3445ST-4B102RES 1KW POT 1/4W 5% CHIPRV11EA 2 3455ST-4B102RES 1KW POT 1/4W 5% CHIPRV1001EA 2 3465ST-4B102RES 1KW POT 1/4W 5% CHIPRV1101EA 2 34751280ATURRET PINTP11EA2 3485LM317TIC VOLT REGU11EA 2 34954672MICA INSULATOR-KEYSTONE1EA 2 3505FMPI125W50220Insulator for Screw1EA2 213121B1895G32 WAY SPLITTER UHF 1 CONN R-32EA2 310521B1895P1PCB 2 WAY SPLITTER R-01EA2 312921B1959A3ASSEMBLY DRAWING R-00EA0 3135RFP-50-50TCGRF TERMINATIONR11EA2 3155JCB2-2.72 COUPLER, SAGE WIRELINE COMBINEHY11EA 2 3175142-0701-235CONNECTOR1EA2 319521B1902P1SPACER PLATE R-21EA2 214121B2230G1AMP RF UHF SMA CONN'R R-21EA1 31921B1389SSCHEMATIC 0.10EA0 32921B2230A1Assembly Drawing R-20EA0 33521B1411P1SPACER PLATE R-10EA0 34521B2230P1PCB AMP RF R-21EA1 37512062R104K9BCAP 100nF 10% 50VC11EA 1 38512062R102K9BCAP 1n 50V PHILIPSC21EA 1 39512062R103K9BCAP 10nF CERAMIC CHIPC31EA 1 310512062R103K9BCAP 10nF CERAMIC CHIPC41EA 1 311512062R104K9BCAP 100nF 10% 50VC51EA 1 312512062R103K9BCAP 10nF CERAMIC CHIPC61EA 1 3135NACZ151M35V8x10.8CAP 150U 35V 20%C71EA1 3145100B-8R2-JP500XCAP 8p2 500V CHIPC1011EA 1 31552320-2CAP BLUE JOHANSON TRIM 5.18pf C1021EA1 3165100B-180-JP500XCAP 1…
Text truncated - open the document above for the full version.
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Spurious Emissions (Simple Mask) BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Spurious Emissions (Simple Mask) BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Spurious Emissions (Stringent Mask) BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Spurious Emissions (Stringent Mask)
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Cabinet Radiation BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Cabinet Radiation
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Frequency Drift versus Temperature Readings Calculation Pilot Frequency Deviation% from ref. Temp (°C) VAC= 102120138(Hz) -30 65030735565030740065030731857040.00087712 -20 65031066265031066265031066223600.00036290 -10 6503125896503125896503125894330.00006658 0 6503133596503133596503133593370.00005182 10 65031407265031407265031407010500.00016146 20 65031302265031302265031302200.00000000 30 65031175765031176765031175012720.00019560 40 65031071165031075065031072123110.00035537 50 65031003765031003765031003729850.00045901 60 65031077565031077565031077522470.00034553 Test Setup for Frequency Stability measurements. Test Equipment List: Thermostatically controlled Temperature Chamber – Cincinnati Sub-Zero HP 8594E Spectrum Analyzer S/N: 3303A00399
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Power Measurements The translator’s power meter circuit uses a detected sample from a coupler on the output. An averaging detector circuit provides the DC level to drive the translator’s output level meter. The translator was connected to a test load through a calibrated directional coupler. The spectrum analyzer’s “Channel Power” function was used to measure the average power level of the signal as sampled through the directional coupler. (see Fig.) Measured power: 1.3dBm Coupling loss: 43.5dB Power: 44.8dBm Power = 30.2 Watts
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Attenuation Characteristics
BZ5MXD30U Application for FCC Certification Regenerative Digital Television Translator Test Setup Photo: Block Diagram of Test Setup: Test Equipment: Instrument Make/Model Serial # Last Cal. Date. Spectrum Analyzer HP8594E 3303A00399 Dec. 3, 2003 Signal Analyzer Tektronix RFA300 B010126 Feb. 6, 2003 RF Network Analyzer Agilent 8712ET US40371604 Mar. 6, 2000
228 Ambassador Drive · Mississauga, Ontario · Canada
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 74 | 470 MHz - 806 MHz | 30 W | 6M00K1D | 10000.0000000000 Hz |
