BZB10BTWIRELESS MICROPHONE TRANSMITTER

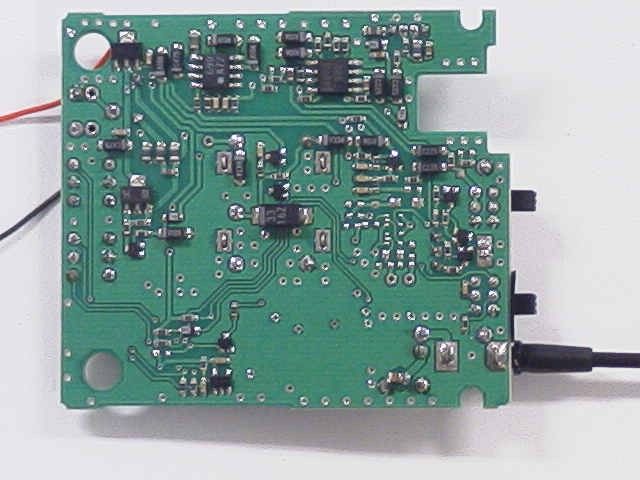

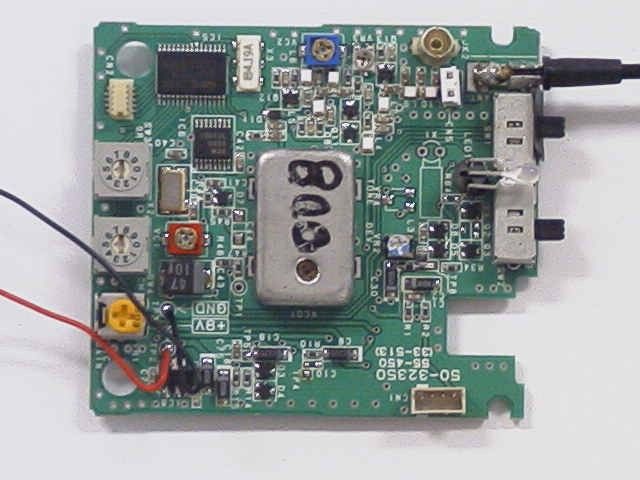

APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc TABLE OF CONTENTS LIST APPLICANT: AZDEN CORPORATION FCC ID: BZB10BT TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1..........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2..........TECHNICAL DESCRIPTION CONTINUED RF POWER TEST PROCEDURE PAGE 3..........AUDIO FREQUENCY RESPONSE GRAPH PAGE 4..........MODULATION LIMITING PLOT PAGE 5..........OCCUPIED BANDWIDTH PAGE 6..........OCCUPIED BANDWIDTH PLOT PAGE 7-8........RADIATED EMISSIONS TEST DATA PAGE 9..........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 10.........FREQUENCY STABILITY TEST DATA PAGE 11-14......TEST EQUIPMENT LIST EXHIBITS CONTAINING: EXHIBIT 1.......BLOCK DIAGRAM EXHIBIT 2.......SCHEMATIC EXHIBIT 3.......USERS MANUAL EXHIBIT 4.......LABEL SAMPLE EXHIBIT 5.......LABEL LOCATION EXHIBIT 6.......EXTERNAL PHOTOGRAPHS EXHIBIT 7.......INTERNAL PHOTOGRAPHS EXHIBIT 8.......PART LIST EXHIBIT 9.......ALIGNMENT PROCDURE EXHIBIT 10......OPERATIONAL DESCRIPTION EXHIBIT 11......TEST SET UP PHOTOGRAPH APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 1 of 14 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1) AZDEN CORPORATION will manufacture the BZB10BT in 2.1033(c)(2) quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. AZDEN CORPORATION 1-12-17 KAMI-RENJAKU MITAKA, TOKYO, 181, JAPAN 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is in- cluded as Exhibit 3. (c)(4) Type of Emission: 80K0F3E Bn = 2M + 2DK M = 10000 D = 30 kHz(Peak Deviation) K = 1 Bn = 2(10k) + 2(30k)(1) = 80k ALLOWED AUTHORIZED BANDWIDTH = 200 kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 793.750 – 805.875 MHz TEST FREQ = 793.75, 800.000, 805.75 MHz (c)(6) Power Range and Controls: UNIT has no controls. (c)(7) Maximum Output Power Rating: .030 Watts ERP (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 9.0V BATTERY Vce = 9.0 Volts Ice = 28 mA. (c)(9) Tune-up procedure. The tune-up procedure is given in page 9. (c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT # 2. The block diagram is included as EXHIBIT #1. 2.1033(c)11) Photo or Drawing of Label and sketch of location: See EXHIBIT # 4-5. APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 2 of 14 2.1033(c)12) Photos of Equipment: See EXHIBIT #'S 6-7. (c)(13) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is described on page 10. Limiting Modulation: The transmitter audio circuitry is contained in IC101, IC102 and IC103. Limiting Power: There is no provision for limiting power. (13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is sub- mitted below. 2.1046 RF power output. RF power is measured by the substitution ERP METHOD. With a nominal battery voltage of 9.0V, and the transmitter properly adjusted the RF output measures: MAXIMUM OUTPUT POWER: .030 WATTS ERP R.F. POWER OUTPUT TEST PROCEDURE APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 3 of 14 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. Audio Frequency Response -2 +4 -0 +2 d B 100 20k 200 500 1k 2k 5k 10k Hz APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 4 of 14 Modulation Limiting: 15KHz, 2.5KHz, 1.0KHz, 300Hz Magenta 15KHz Modulation Green 2.5KHz Modulation Blue 1.0KHz Modulation Red 300Hz Modulation 0 30 k H z -60 -30-55 -50-45-40-35 dBu APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 5 of 14 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorized band- width they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequen- cy), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the un-modulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plots follow. Wireless Microphone transmitter: Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Transmitter Coupler 50 ohm under test Resistive Load Audio Spectrum Oscillator Analyzer REQUIREMENT: PART 74: 200 kHz EMISSION BANDWIDTH. APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 6 of 14 OCCUPIED BANDWIDTH APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 7 of 14 2.1051 Spurious emissions at antenna terminals (conducted): Not Applicable no antenna connector. 2.1053(a)(b) Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS REQUIREMENTS: Emissions must be 43 +10log(Po) dB below the mean power output of the transmitter. TEST DATA: Ch 20: 793.75 MHz: 43 + 10 log(0.025) = 26.98 dB Emission Frequency MHz Ant. Polarity Corrected EUT Signal Reading Coax Loss (dB) Substitution Antenna (dBd) dB Below Carrier (dBc) 793.75 V 14.00 0 0 0.00 1587.50 V -16.10 1.1 -5.04 34.04 2381.25 V -14.20 1.3 -6.44 33.34 3175.00 V -13.70 1.35 -7.32 33.67 3968.75 H -21.50 1.45 -7.45 41.50 4762.50 H -22.00 1.6 -8.1 42.50 5556.25 H -36.90 1.7 -8.72 57.92 6350.00 V -33.80 1.95 -8.95 54.80 7143.75 H -42.10 2 -8.32 62.42 7937.50 H -41.40 2.1 -7.24 60.54 APPLICANT: AZDEN CORPORATION FCCID: BZB10BT REPORT #: A\AZDEN\1166AUT3\1166AUT3TestReport.doc Page 8 of…

Text truncated - open the document above for the full version.
