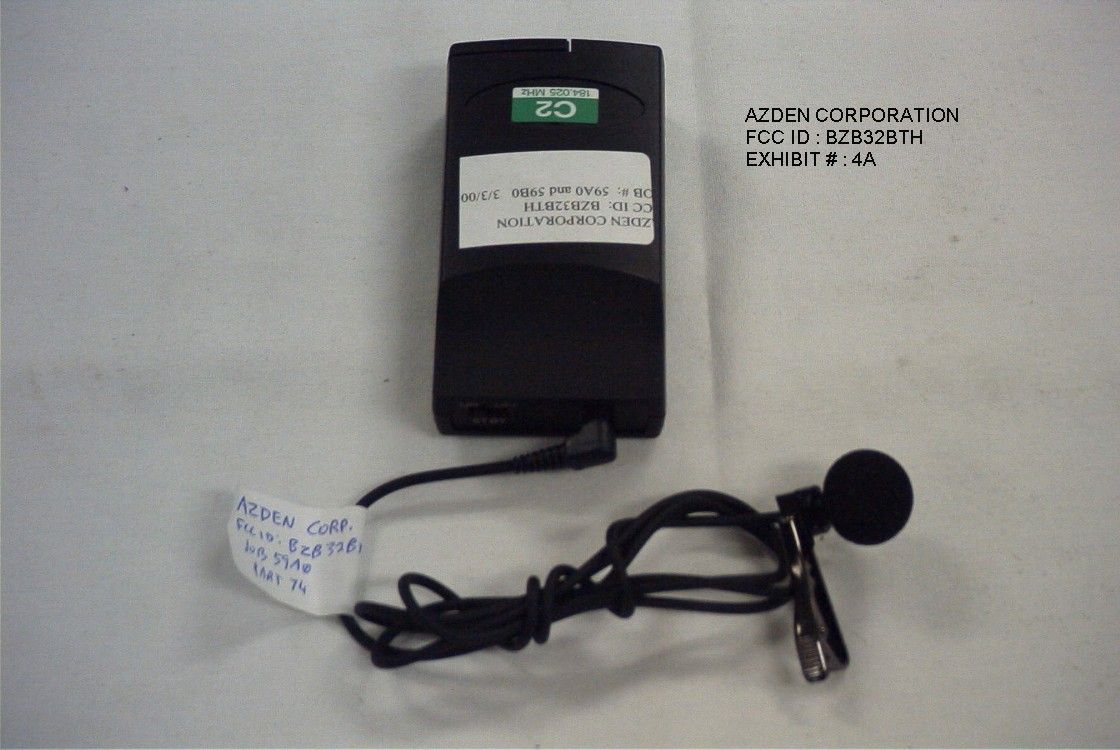

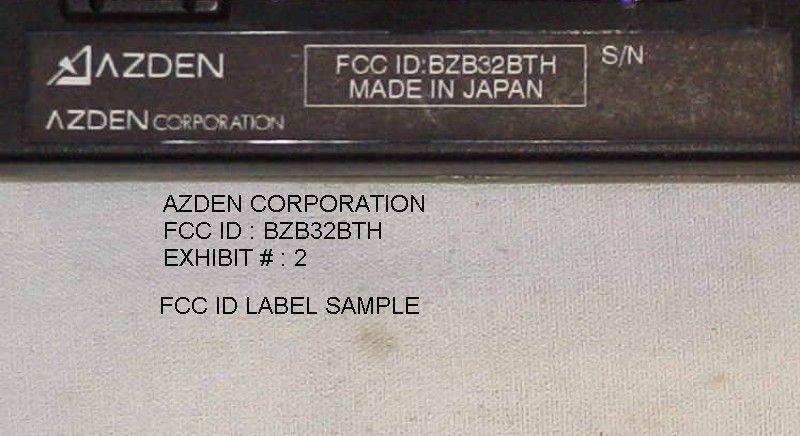

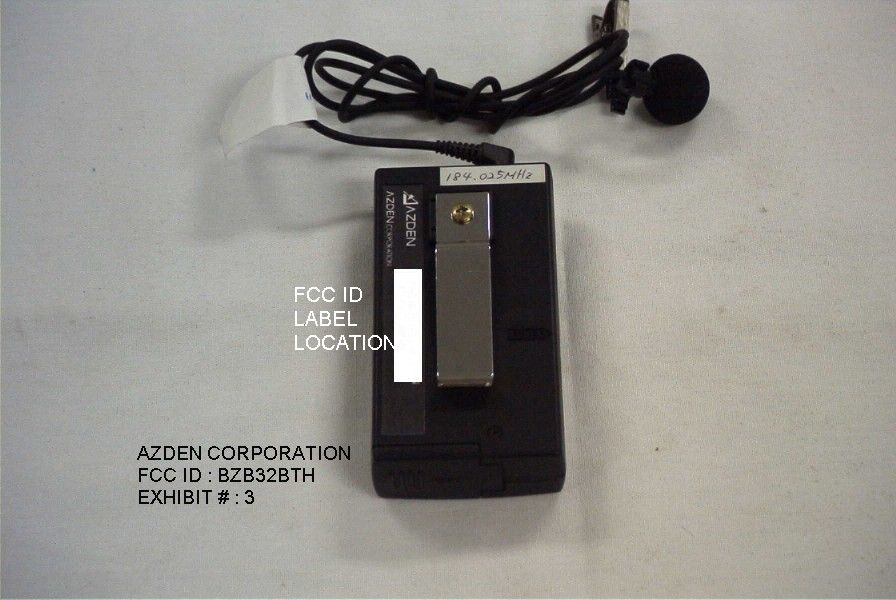

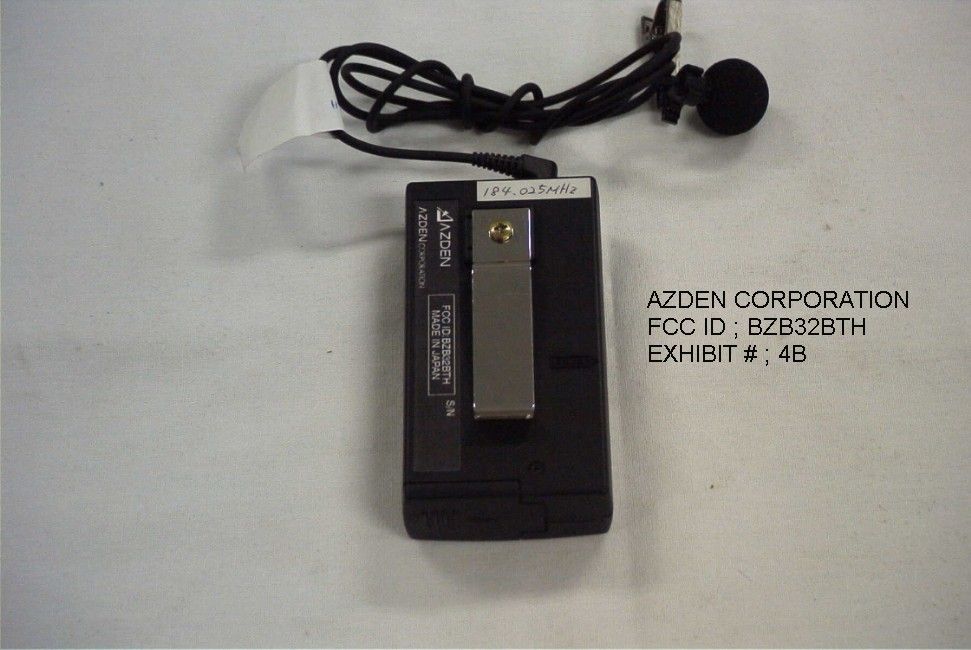

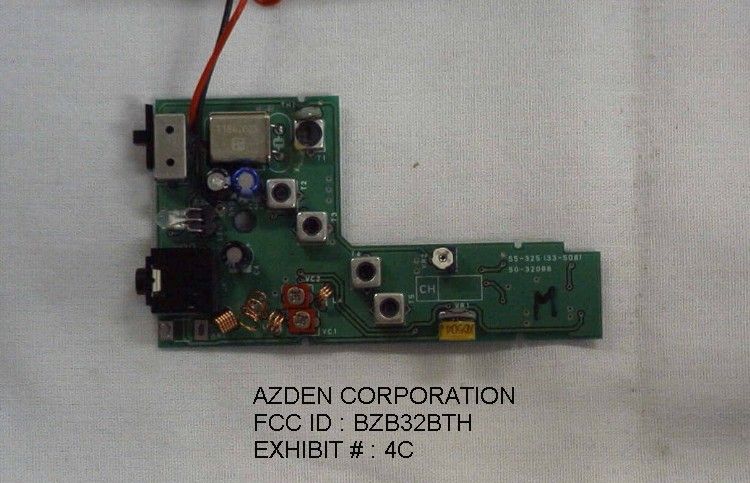

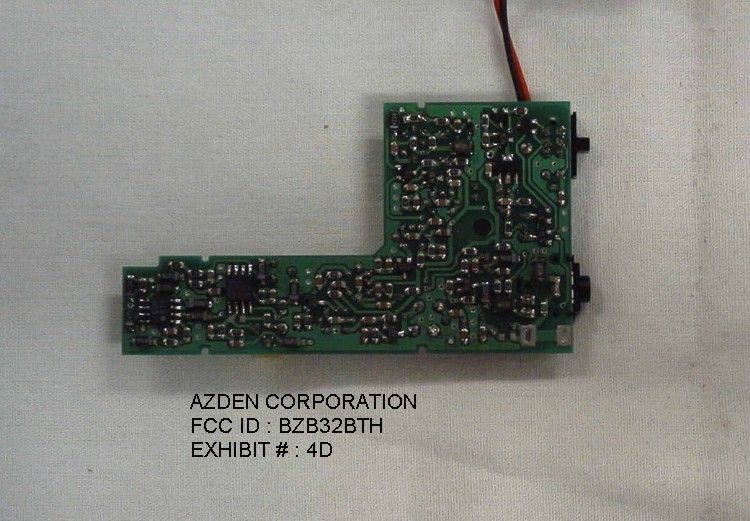

TABLE OF CONTENTS LIST APPLICANT: AZDEN CORPORATION FCC ID: BZB32BTH TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS & OCCUPIED BANDWIDTH PAGE 4......OCCUPIED BANDWIDTH CONTINUED PAGE 5-6....FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBITS: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE EXHIBIT 3.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 4B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 4C........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 4E........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATIC EXHIBIT 7.........LIST OF ACTIVE DEVICES EXHIBIT 7A........CRYSTAL SPECIFICATION EXHIBIT 8A-8D.....USER'S MANUAL EXHIBIT 9A-9B.....TUNING PROCEDURE EXHIBIT 10A-10C...AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 11A.......MODULATION LIMITING - 300 Hz EXHIBIT 11B.......MODULATION LIMITING - 1000 Hz EXHIBIT 11C.......MODULATION LIMITING - 15000 Hz EXHIBIT 12A.......OCCUPIED BANDWIDTH CW PLOT EXHIBIT 12B.......OCCUPIED BANDWIDTH 2.5 kHz DEVIATION PLOT EXHIBIT 12C.......OCCUPIED BANDWIDTH 15 kHz DEVIATION PLOT APPLICANT: AZDEN CORPORATION FCC ID: BZB32BTH DATE: APRIL 7, 2000 REPORT #: T:\CUS\A\AZDEN\AZD59A0\59A0.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033 (C)(1)(2) AZDEN CORPORATION will manufacture the BZB32BTH in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. 2.1033 (C)(1) TECHNICAL_DESCRIPTION (4) Type of Emission: 50K0F3E Bn = 2M + 2DK M = 1000 D = 10.0KHz (Peak Deviation) K = 1 Bn = 2(1K) + 2(10.0K)(1) = 2K +20.0K = 22.0KHz M = 15,000 D = 10KHz K = 1 Bn = 2(15K) + 2(10K) = 30 +20 = 50KHz 74.861(e)(5) ALLOWED AUTHORIZED BANDWIDTH = 200KHz. (5) Frequency Range: Part 74: 161.625-161.775MHz & 174-216MHz TEST FREQ = 184.020MHz. (6) Power Range and Controls:UNIT has no power controls. (7) Maximum Output Power Rating: 1.0 MilliWatts ERP. (8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 9.0V BATTERY Vce = 8.9 Volts Ice = 5.9mA. Pce = 53.14mW (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #: 8. 2.1033(C) (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6. The block diagram is included as EXHIBIT 5. (11) The equipment label is included at exhibit 2 and the sketch of the label location is Exhibit #3. (12) Photographs of the equipment are included as exhibit #4. (13) Digital modulation. This unit does not use digital modulation. FCC ID: BZB32BTH DATE: APRIL 7, 2000 REPORT #: T:\CUS\A\AZDEN\AZD59A0\59A0.RPT PAGE: 1 2.1033(C)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF_power_output. ERP was measured by the method described later in this report. The input power to the final stage was measured with a 9.0V supply connected in place of the 1.5V battery. INPUT POWER: FOR 9.0 V OPERATION (8.9V)(0.0059A) = 53.14MilliWatts OUTPUT POWER: FOR 9.0 V OPERATION 15.0 mWATTS ERP R.F. POWER OUTPUT /-------\ /-----------------\ | | | | TRANSMITTER | | | |HP | UNDER TEST WITH | \--| |SPECTRUM | INTERNAL ANTENNA| | | |ANALYZER \-----------------/ | | | | | \-------/ |?- 3.0 meters---?| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. The center of the Dipole antenna at the center of the platform and the output of the signal generator adjusted to produce the same meter reading as measured for the fundamental in the radiated emissions test. APPLICANT: AZDEN CORPORATION FCC ID: BZB32BTH DATE: APRIL 7, 2000 REPORT #: T:\CUS\A\AZDEN\AZD59A0\59A0.RPT PAGE: 2 2.1047 Modulation_characteristics: (a) AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603 S2.2.6.2.1. with the following exceptions; Constant Deviation Test /---------------\ /----------\ /----------\ | Dummy | | Audio | | RMS | /-| Microphone |--| Generator| /-| VOLTMETER| | | | \----------/ | \----------/ | \---------------/ | |----------------------------------/ | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ 1. The test receiver audio bandwidth was <50Hz to >20,000Hz. 2. Apply a 1000Hz tone and adjust the audio generator to produce 10% of the rated system deviation. 3. Measure frequency responce over the frequency range from 100Hz to 20,000Hz. The audio frequency response curve is shown in EXHIBIT # 10. (b) MODULATION LIMITING 2.1049 (c) Occupied_bandwidth: Using TIA/EIA 2.2.10 Accoustic Microphone Sensitivity test procedure to determine if the UUT could be put into modulation limiting and limiting could not be reached, the maximum deviation was only +40KHz. Using this test procedure the frequency of maximum sensitivity was determined to be 500Hz. a. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT /---------------\ /----------\ |Acoustic | | Audio | /-| Mic Spkr |-| Generator| | |Chamber | \----------/ | \---------------/ | | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ DATE: APRIL 7, 2000 REPORT #: T:\CUS\A\AZDEN\AZD59A0\59A0.RPT PAGE: 3 2.1049 Occupied Bandwidth (cont) b. Since the UUT could not be put into modulation limiting with an acoustic coupling a dummy microphone was used to connect to the UUT and a test procedure similar to TIA/EIA-603 S2.2.11 was used to meas- ure the occupied bandwidth. Plots were made of the frequency of maxi- mum sensitivity, at 10KHz and …

Text truncated - open the document above for the full version.

Modulation Limiting Azden Corp. BZB32BTH 0 2000 4000 6000 8000 10000 12000 020406080100120 rms mVolts Deviation 300 Hz AZDEN CORPORATION FCC ID BZB32BTH EXHIBIT # : 11A

Modulation Limiting Azden Corp. BZB32BTH 0 2000 4000 6000 8000 10000 12000 0 20406080 rms mVolts Deviation 1000 Hz AXDEN CORPORATION FCC ID : BZB32BTH EXHIBIT # : 11B

Modulation Limiting Azden Corp. BZB32BTH 0 2000 4000 6000 8000 10000 12000 0 10203040 rms mVolts Deviation 15000 Hz AZDEN CORPORATION FCC ID : BZB32BTH EXHIBIT # : 11C
