CCKPC0117LOW POWER TRANSCEIVER

InstallatIon GuIde Xt lIte™ Panel MODEL XTL INSTALLATION GUIDE FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is • connected. Consult the dealer or an experienced radio/TV technician for help.• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device has been designed to operate with the integrated PCB antenna having a maximum gain of 1.8 dB. Antennas having a gain greater than 1.8 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. If necessary, the installer should consult the dealer or an experienced radio/television technician for additional suggestions. The installer may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402 Stock No. 004-000-00345-4 © 2010 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice. XTL Installation Guide Digital Monitoring Products i table of Contents Panel Specifications 1.1 Power Supply .........................................1 1.2 Communication .......................................1 1.3 Keypads .................................................1 1.4 Number of Zones ....................................1 1.5 Enclosure Specifications ..........................1 Introduction 2.1 System Configurations .............................2 2.2 Caution Notes .........................................2 2.3 Compliance Instructions ..........................2 System Components 3.1 Accessory Devices ...................................3 Installation 4.1 Mounting the Enclosure ...........................4 Primary Power Supply 5.1 DC Input ................................................4 Secondary Power Supply 6.1 Standby Battery ......................................5 6.2 Replacement ..........................................5 6.3 Battery Supervision .................................5 LED Operation 7.1 Backlit Logo ............................................6 Reset Button 8.1 Description .............................................6 Programming Connection 9.1 Programming Connection ........................6 On-Board 1100 Series Wireless 10.1 Wireless Antenna ...................................6 10.2 LED Operation ........................................6 Wireless Keypads 11.1 Mounting Keypads ..................................7 11.2 Wireless Keypad Association ....................7 11.3 Existing Keypad Confirmation ...................7 Wireless Zones 12.1 Description .............................................7 Flash Load Button 13.1 Description ............................................8 Listed Compliance Specifications 14.1 Introduction ...........................................9 14.2 Use Marking ...........................................9 14.3 NFPA 72 .................................................9 14.4 Types Of Service .....................................9 14.5 Bypass Reports .......................................9 14.6 Battery Standby ......................................9 Digital Monitoring Products XTL Installation Guide ii table of Contents Household Burglar-Alarm System Units ANSI/UL 1023 15.1 Bell Cutoff ..............................................9 15.2 Entry Delay ............................................9 15.3 Exit Delay ...............................................9 15.4 Wireless External Contact ........................9 15.5 Wireless Supervision Time .......................9 15.6 Wireless Audible Annunciation .................9 15.7 Panel location .........................................9 15.8 Test Frequency .......................................9 Central Station Burglar Alarm Units ANSI/UL 1610 16.1 Standard Line Security ..........................10 16.2 Remote Disarm .....................................10 16.3 Central Station ......................................10 Household Fire Warning System ANSI/UL 985 NFPA 72 Specifications 17.1 Bell Output Definition ............................10 17.2 Household System ................................10 17.3 Wireless External Contact ......................10 17.4 Wireless Supervision Time .....................10 17.5 Wireless Fire Verification ........................10 17.6 Battery Standby ....................................10 17.7 Test Frequency .....................................10 False Alarm Reduction Programmable Options ANSI/SIA CP-01-2007 18.1 Shipping Defaults and Recommended Programming 11 18.2 Entry Delay ..........................................12 18.3 Local Bell .............................................12 18.4 Minimum Installation Requirements ........12 Revisions to This Document Listings and Approvals XTL Installation Guide Digital Monitoring Products 1 Panel sPeCIfICatIons Panel Specifications 1.1 Power Sup…

Text truncated - open the document above for the full version.

March 9, 2010 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802 Re: Confidentiality for submittal information regarding FCC ID number CCKPC0117 PRODUCT: Low Power Transmitters operated under part 15.249 Dear Sirs: Digital Monitoring Products, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Digital Monitoring Products, Inc. submits the following: CONFIDENTIAL FILES Conf BlkDia PC0117.pdf Conf OpDes PC0117.pdf Conf Schem PC0117.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: CCKPC0117 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Digital Monitoring Products, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Digital Monitoring Products, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Digital Monitoring Products, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for residential, commercial, industrial, and governmental applications. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

January 3, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Digital Monitoring Products, Inc. has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Scot Rogers of Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Best regards, Terry Shelton Product Quality Assurance Manager Digital Monitoring Products, Inc. Lb

March 9, 2010 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Digital Monitoring Products, Inc.Equipment: FCC ID: CCKPC0117 2500 North Partnership Boulevard CORES number: 0009 86 9348 Springfield, MO 65802 FCC Rules: Parts 2 and 15.249 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining grant of certification. Confidentiality is requested as outlined below. Permanent Digital Monitoring Products, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem PC0117.pdf Block diagram Conf BlkDia PC0117.pdf Operational Description Conf OpDes PC0117.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

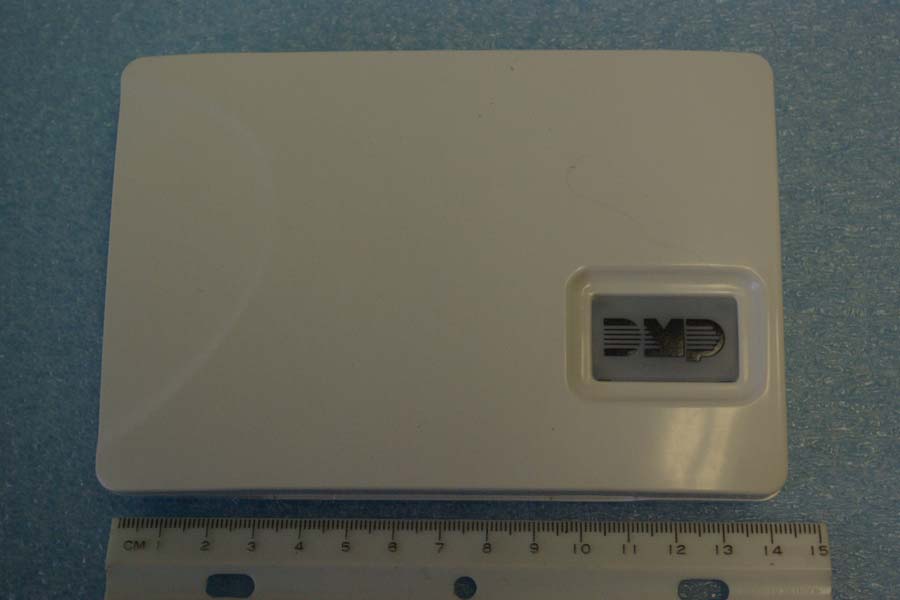

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: ExtPho PC01117 Page 1 of 1 External Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 24, 2010 Revision 2 File: LabelSmpl PC0117 r2 Page 1 of 1 FCC/IC ID label and locations Labeling

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: IntPho PC0117 Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TunPro PC0117 Page 1 of 1 Each transmitter functionality is tested and judged using a pass or fail criteria during production. Units in compliance with the criteria continue through production and others are returned for diagnostics or disposal.

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: RFExp PC0117 Page 1 of 1 MPE CalculatorDMPTest Number100301 MPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2Antenna Gain (dBi)1 Output Power dBd + 2.17 = dBidBi to dBd2.17 Tx Frequency (MHz)915(Watts)0.000314-1.17 Antenna minus cable (dBi)1.00 Cable Loss (dB)0.0(dBm)-5.03 Calculated ERP (mw) 0.240Radiated (EIRP) dBm-4.029 Calculated EIRP (mw) 0.395 Radiated (ERP) dBm-6.199 Occupational Limit 3.05000mW/cm 2 Ge ne ral Public Limit 0.61000mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f/300f/1500 1,500-10,00051 Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5003.050.61 1,500-10,00051 EIRPDistanceDistanceS milliwa ttsc minc he smW /c m 2 0.39570.0027.560.00001 0.39560.0023.620.00001 0.39550.0019.690.00001 0.39540.0015.750.00002 0.39530.0011.810.00003 0.39520.007.870.00008 0.39510.003.940.00031 0.3959.003.540.00039 0.3958.003.150.00049 0.3957.002.760.00064 0.3956.002.360.00087 0.3955.001.970.00126 0.3954.001.570.00197 0.3953.001.180.00350 0.3951.000.390.03147 Frequency (MHz) Occupational Limit minimum Dis ta nc e (c m) P ub lic Limit minimum distance (cm) 300-1,5001 cm1 cm 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) = EIRP -------= mW/cm^2 4 p r^2 [ r (cm), EIRP (mW)]

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 W. 259th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #: 100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.249), IC RSS-210 Date: March 9, 2010 Revision 1 File: DMP XTL PC0117 TstRpt Page 1 of 32 SUBMITTAL APPLICATION REPORT FOR FCC And INDUSTRY CANADA GRANT OF CERTIFICATION FOR Model: XTL 903 – 927.1 MHz Low Power Transmitter FCC ID: CCKPC0117 IC: 5251A-PC0117 FOR DIGITAL MONITORING PRODUCTS, INC. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Test Report Number: 100301 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 W. 259th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #: 100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.249), IC RSS-210 Date: March 9, 2010 Revision 1 File: DMP XTL PC0117 TstRpt Page 2 of 32 Engineering Test Report Application for Grant of Certification FOR CFR 47, PART 15C - Intentional Radiators Paragraph 15.249 and Industry Canada, RSS-210 Low Power Transmitter For DIGITAL MONITORING PRODUCTS, INC. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Terry Shelton, Model: XTL Frequency 903 – 927.1 MHz FCC ID#: CCKPC0117, IC: 5251A-PC0117 Test Date: March 1, 2010 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 W. 259th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #: 100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.249), IC RSS-210 Date: March 9, 2010 Revision 1 File: DMP XTL PC0117 TstRpt Page 3 of 32 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 SUMMARY OF RESULTS .............................................................................................. 6 ENVIRONMENTAL CONDITIONS .................................................................................. 6 UNITS OF MEASUREMENTS ........................................................................................ 6 TEST SITE LOCATIONS ................................................................................................ 6 LIST OF TEST EQUIPMENT .......................................................................................... 7 APPLICATION FOR CERTIFICATION ........................................................................... 8 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................... 9 EQUIPMENT TESTED .................................................................................................... 9 Equipment Function and Testing Setup Configuration ................................................................................... 9 EMISSIONS TEST PROCEDURES .............................................................................. 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 SUBPART C - INTENTIONAL RADIATORS ................................................................ 11 ANTENNA REQUIREMENTS ....................................................................................... 11 RESTRICTED BANDS OF OPERATION ..................................................................... 11 Radiated Emissions Data in Restricted Bands ................................................................................................ 12 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 12 AC LINE CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS ............. 13 AC Line Conducted Emissions Testing ............................................................................................................ 13 Figure One AC Line Conducted emissions of EUT line 1 ................................................................................ 14 Figure Two AC Line Conducted emissions of EUT line 2 ............................................................................... 14 Data, AC Line Conducted Emissions ............................................................................................................... 15 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 W. 259th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #: 100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.249), IC RSS-210 Date: March 9, 2010 Revision 1 File: DMP XTL PC0117 TstRpt Page 4 of 32 Summary of Results for AC Line Conducted Emissions ................................................................................ 15 Radiated Emissions Testing Procedure ............................................................................................................ 16 Figure Three General Radiated Emissions taken at 1 meter in screen room ..................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TSup PC0117 Page 1 of 2 Test setup photographs Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: 311 4405 West 259 th Terrace Model: XTL FCC ID#: CCKPC0117 Louisburg, KS 66053 Test #:100301 IC: 5251A-PC0117 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TSup PC0117 Page 2 of 2
