CCKPC02451101 Receiver

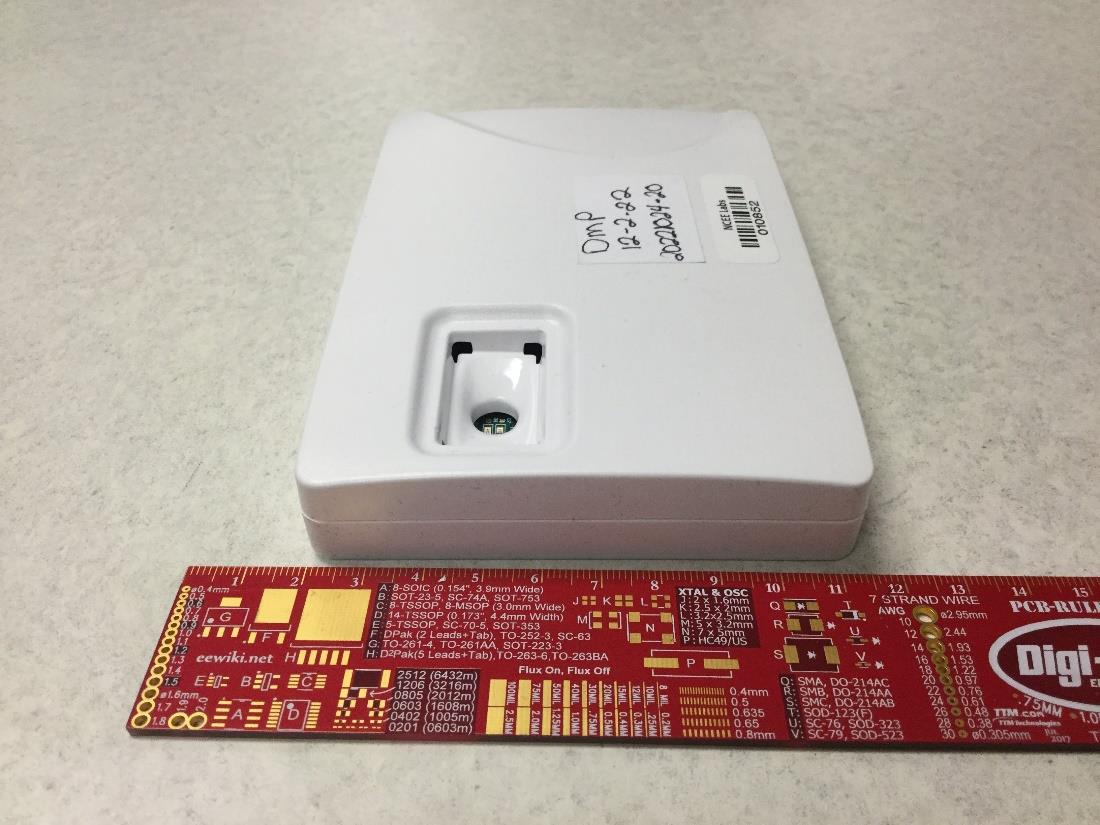

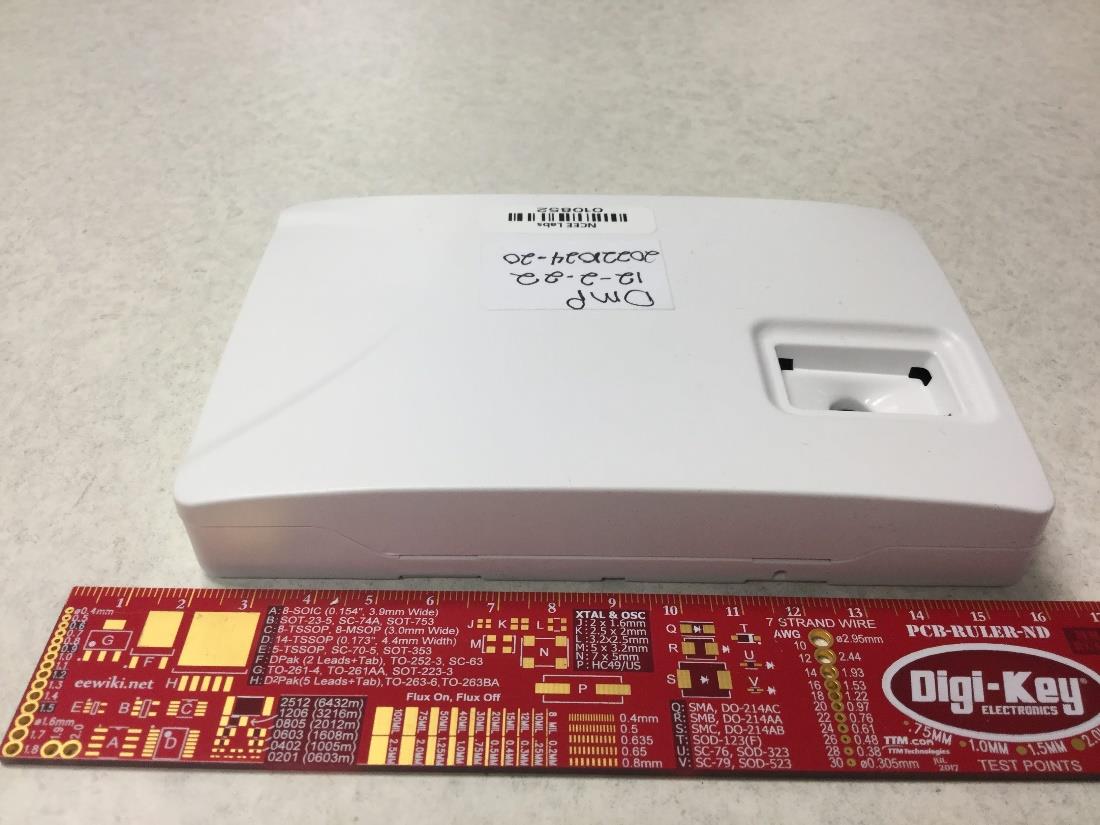

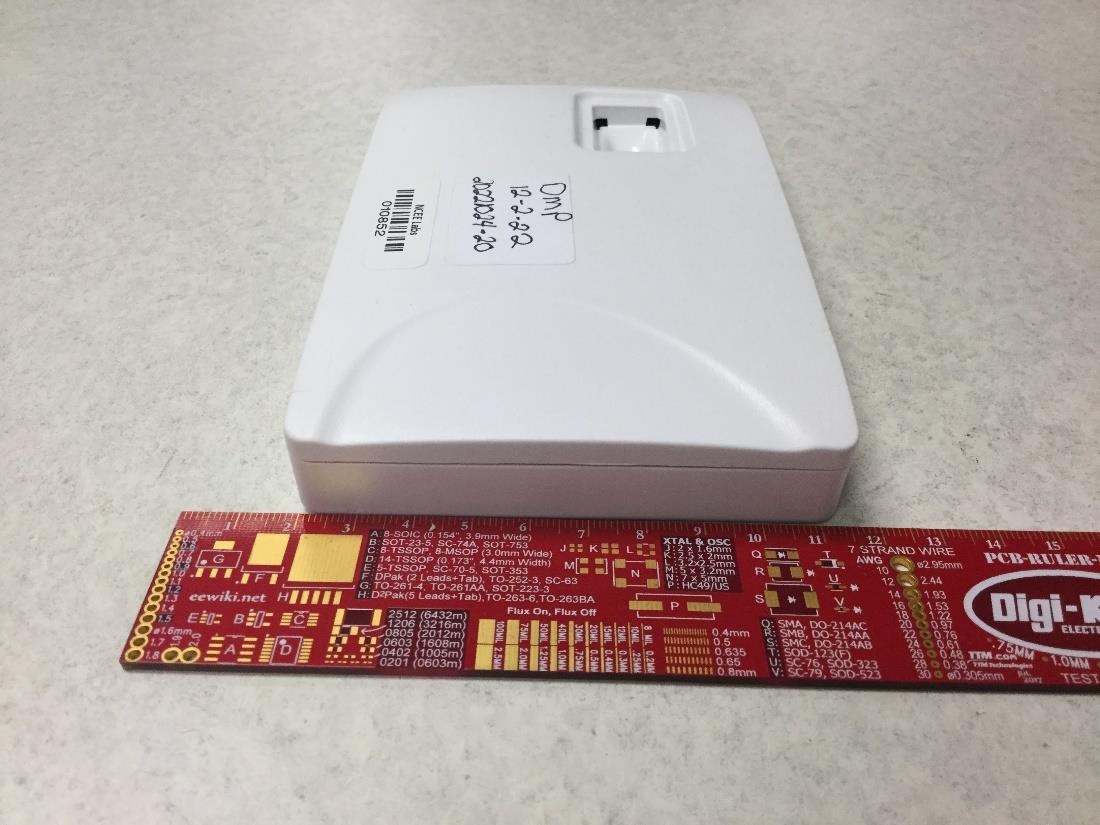

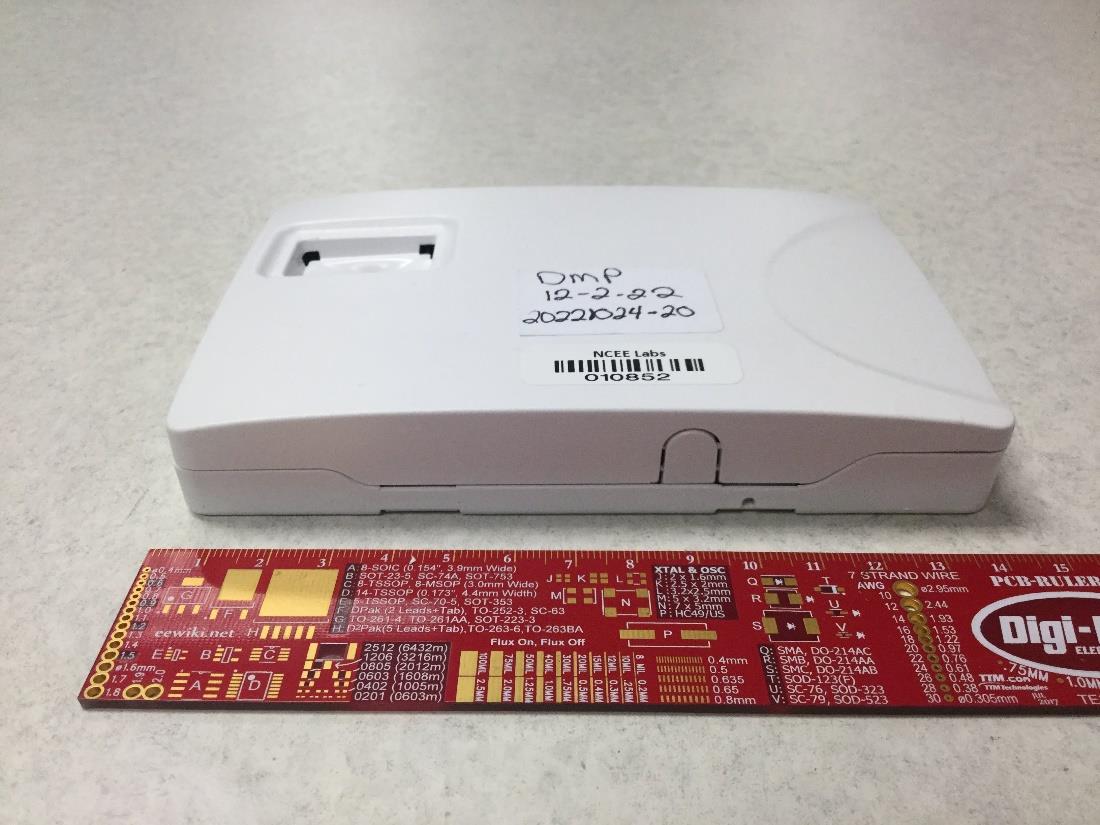

INSTALLATION AND PROGRAMMING GUIDE 1100XH Series High Power Wireless Receiver 1100XH Installation and Programming Guide | Digital Monitoring Products 1 GET STARTED The 1100XH Series High Power Wireless Receiver provides up to 100 wireless zones for XR150 Series panels and up to 500 wireless zones for XR550 Series panels. The 1100XHE features 128-bit AES encryption. The 1100XH provides two-way, supervised communication using 900 MHz frequency hopping-spread-spectrum technology. The 1100XH contains additional transmit and receive amplifiers to enable 1100 Series operation at greater distances or harsh building environments. The 1100XH is equipped with a case and wall tamper. Compatibility ▶XR150/XR550 Series panels ▶Encryption requires panel Version 183 or higher ▶1100T Translator requires receiver firmware Version 207/301 or higher What’s Included ▶One 1100XH High Power Wireless Receiver ▶Model 300 Harness ▶Hardware pack Procedure To install a 1100XH, this guide walks you through these required steps: 1. Program the panel. 2. Select a location. 3. Mount the receiver. 4. Wire the receiver. 1100XH Installation and Programming Guide | Digital Monitoring Products 2 INSTALLATION 1 Program the Panel Refer to the panel programming guide as needed. 1. Reset the panel. 2. At a keypad, enter 6653 (PROG) to access the PROGRAMMER menu. 3. In SYSTEM OPTIONS, program a HOUSE CODE between 1 and 50. See House Code Explained for more information. 4. (1100XHE only) At the 1100 ENCRYPTION prompt, select ALL to only add encrypted wireless devices to the system. Select BOTH to allow both encrypted and non-encrypted wireless devices to be programmed. 5. (1100XHE only) The default passphrase appears at ENTER PASSPHRASE. Press CMD to keep the default. Press any select key or area to change the passphrase and enter an 8-character hexadecimal string (0-9, A-F). 6. Press CMD until STOP displays. Press a top row select key or area to save programming. 2 Select a Location The receiver should be centrally located between the DMP panel and the 1100 Series transmitters used in the installation based on the wiring specifications below. Use an 1106 Series Universal Wireless Transmitter to perform an LED survey. 1. With the cover removed, hold the transmitter in the desired location. 2. Press the tamper switch to send data to the panel and determine if communication is confirmed or faulty. Confirmed: If communication is confirmed, for each press or release of the tamper switch, the LED blinks immediately on and immediately off. Repeat this test to confirm five separate consecutive LED blinks. Any indication otherwise means proper communication has not been established. Faulty: If communication is faulty, the LED remains on for about 8 seconds or flashes multiple times in quick succession. Relocate the 1106 or wireless receiver until the LED confirms clear communication. Mount the Receiver 1. Remove the cover from the plastic housing. 2. Use the included #6 screws to secure the 1100XH to the wall. See Figure 1 for mounting hole instructions. 3. Use one of the provided screws to secure the wall tamper. See Figure 1 for tamper location. 3 Tamper Puck Figure 1: Inside of the 1100XH Housing Mounting Hole 1100XH Installation and Programming Guide | Digital Monitoring Products 3 Wire the Receiver The panel immediately recognizes the 1100XH if the panel is programmed with a house code. Do not use shielded wire between the panel and receiver. 1. Connect the red, yellow, green, and black wires to the PANEL terminal on the 1100XH. 2. Connect the other end of the wires to the XBUS on the panel. See Figure 2. 3. Snap the cover back onto the base. Note: The receiver can’t operate if it’s connected to the keypad bus. 4 Figure 2: Wiring The 1100XH to the Panel Can be extended up to 500 ft from the panel using 22 AWG or 1,000 ft using 18 AWG XR150/XR550 Series Panel Battery Start Power LED 1100XH Receiver REC - Receive LED XMT - Transmit LED RF RX RF TX PANEL RX PANEL TX WALL TAMPER ENABLE DISABLE STATUS PWR PANEL TAMPER 1100XH Installation and Programming Guide | Digital Monitoring Products 4 ADDITIONAL INFORMATION Wiring Specifications for X-Bus 1. DMP recommends using 18 or 22-gauge unshielded wire for all keypad and LX-Bus circuits. Do Not use twisted pair or shielded wire for LX-Bus and Keypad Bus data circuits. To maintain auxiliary power integrity when using 22-gauge wire do not exceed 500 feet. When using 18-gauge wire do not exceed 1,000 feet. Install an additional power supply to increase the wire length or add devices. 2. Maximum distance for any one circuit (length of wire) is 2,500 feet regardless of the wire gauge. This distance can be in the form of one long wire run or multiple branches with all wiring totaling no more than 2,500 feet. As wire distance from the panel increases, DC voltage on the wire decreases. 3. Maximum number of devices per 2,500 feet circuit is 40. 4. Maximum voltage drop between the panel (or auxiliary power supply) and any device is 2.0 VDC. If the voltage at any device is less than the required level, add an auxiliary power supply at the end of the circuit. When voltage is too low, the devices cannot operate properly. Refer to the panel installation guide and LX-Bus/ Keypad Bus Wiring Application Note (LT-2031). Programming Zones Refer to the panel XR150/XR550 Series Programming Guide (LT-1232) for complete wireless programming information. When any wireless input zone for a particular address is programmed, the 1100XH responds to the panel for this address. Other devices, such as keypads or hardwired zone expanders, cannot use this address. Zones connected directly to the panel cannot be wireless. See Table 1 for designated zone numbers. 1100XH LED Operation The six labeled LEDs on the 1100XH PCB display wireless receiver operation and activity. See Table 2 for LED locations and Table 1 for LED indications. Note: The status LED light will remain solid red when wireless jamming is enabled or if there…

Text truncated - open the document above for the full version.
