CCKPC0126PLOW POWER RFID TRANSCEIVER

InstallatIon GuIde 9000 Series Wireless Keypads Description The DMP 9060 and 9063 are fully functioning supervised wireless keypads. They provide installation flexibility while also offering optional codeless arming and disarming capabilities. Each keypad provides: • Custom 16-character home or business name • Four 2-button Panic keys • 32-character display • Backlit keyboard with easy-to-read lettering • Internal speaker. • Wall tamper protection • Keyboard and logo backlighting turns Red in alarm conditions The Model 9063 keypad also provides a built-in proximity card reader designed to read DMP/HID proximity credentials for codeless arming and disarming. Compatibility XTL Panels What is Included The 9000 Series Keypad includes the following items: • One wireless keypad mounted in a Thinline two-part housing (base and cover) • One 3.7V lithium battery • One 12 VDC DC Plug-in Power Supply • Serial number label Keypad Serial Number For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record the serial number or place the pre-printed serial number label on the panel programming sheet. This number is required during programming. As needed, use the zone name and number label to identify a specific transmitter. Programming the Transmitter in the Panel The 9000 Series Wireless Keypads can be programmed into the XTL through panel programming or using the wireless keypad association mode. Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset. If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for transmitters. A missing message may display on the keypad until the transmitter sends a supervision message. Device Setup Programming Refer to the XTL Programming Guide (LT-1107) as needed. Program the keypad as a device in Device Setup during panel programming. At the Serial Number: prompt, enter the eight-digit serial number. Continue to program the device as directed in the panel programming guide. Wireless Keypad Association Pressing the XTL RESET button 3 times within 5 seconds enables the keypad association mode. For one minute the panel listens for wireless keypads. Any keypads not already associated with another panel are assigned to the first open keypad address. Keypads are automatically assigned addresses based upon the order in which they are detected. A maximum of 4 keypads may be associated with a panel. Selecting the Proper Location (LED Survey Operation) The 9000 Series keypad provides a built-in survey capability in the Installer menu to allow one person to confirm keypad communication with the panel. Refer to Accessing Keypad Wireless Survey later in this document. 32-Character Display Data Entry Digit keys COMMAND Key Back Arrow Ke y Select Keys Backlit Logo and Proximity Antenna Figure 1: 9000 Series Keypad Digital Monitoring Products 9000 Series Installation Guide 2 Installing the Keypad All DMP keypad housings are designed to easily install on any desk stand, 4” square box, 3-gang switch box, or a flat surface. Remove the Cover The keypad housing is made up of two parts: the front, which contains the circuit board and keyboard components and the base. Use the following steps and figures to separate the keypad front and base. 1. Insert a flat screwdriver into one of the slots on the bottom of the keypad and gently lift the screwdriver handle toward you while pulling the halves apart. Repeat with the other slot. 2. Using your hands, gently separate the front from the base and set the front and components aside. DC Power Supply Locate the keypad near a wall outlet for the Model 371-500 plug-in DC power supply. In addition to powering the keypad, the power supply also charges the back-up battery. The plug-in power supply should be located within 100 feet of the keypad using 22 AWG wire or 250 feet using 18 AWG wire. Use the following steps to connect the plug-in power supply: 1. Connect the plug-in power supply Black wire with White stripe (positive) to the White wire of the included 4-wire harness. 2. Connect the plug-in power supply solid Black wire (negative) to the Black wire of the wire harness. 3. Plug the 2-wire harness on to the header on the back of the keypad. 4. Plug the power supply into a 110 Volt AC outlet not controlled by a switch. Standby Battery The keypad rechargeable battery is used to provide 24 hours of backup battery power when DC power is not available. The battery is intended for backup power only and not to operate the keypad on a daily basis. If the battery is low, or not plugged into the J1 battery connector, a low battery condition is indicated by the XTL panel. Use the following steps to replace the standby battery. DMP recommends replacing the battery every 3 years under normal use. Note: If removing the keypad from service, disconnect the 4-wire harness from the back of the keypad. Removing the Keypad PCB 1. Disconnect the 2-wire harness from the back of the keypad. 2. Remove the base. 3. Loosen the top keypad PCB snaps. 4. Lean the keypad PCB backwards and lift out from the bottom PCB snaps. Lift screwdriver handle up toward you to separate keypad cover from base. Thinline or Aqualite Keypad Building Wall Surface and Backbox Mounting Holes Combined 4-square and 3-gang switch box Mounting Holes Keypad Back Surface and Backbox Mounting Holes Black (-) Black/White stripe (+) Top PCB Snaps Bottom PCB Snaps PCB Alignment post 4 Position header Black (-) 371-500 Plug-in Po wer Supply Ke ypad 4-Wire Harness Black/White stripe (+) Black (-) Black/White stripe (+) Figure 2: DC Power Supply Connection Figure 3: Mounting Holes Figure 4: PCB Snaps 9000 Series Installation Guide Digital Monitoring Products 3 Battery Replacement 1. Disconnect the battery lead connector from…

Text truncated - open the document above for the full version.

March 9, 2010 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802 Re: Confidentiality for submittal information regarding FCC ID number CCKPC0126P PRODUCT: Low Power Transmitters operated under part 15.209 Dear Sirs: Digital Monitoring Products, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Digital Monitoring Products, Inc. submits the following: CONFIDENTIAL FILES Conf BlkDia RFID PC0126P.pdf Conf OpDes RFID PC0126P.pdf Conf Schem RFID PC0126P.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: CCKPC0126P 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Digital Monitoring Products, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Digital Monitoring Products, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Digital Monitoring Products, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for residential, commercial, industrial, and governmental applications. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

January 3, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Digital Monitoring Products, Inc. has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Scot Rogers of Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Best regards, Terry Shelton Product Quality Assurance Manager Digital Monitoring Products, Inc. Lb

March 9, 2010 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Digital Monitoring Products, Inc.Equipment: FCC ID: CCKPC0126P 2500 North Partnership Boulevard CORES number: 0009 86 9348 Springfield, MO 65802 FCC Rules: Parts 2 and 15.209 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining grant of certification. Confidentiality is requested as outlined below. Permanent Digital Monitoring Products, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem RFID PC0126P.pdf Block diagram Conf BlkDia RFID PC0126P.pdf Operational Description Conf OpDes RFID PC0126P.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

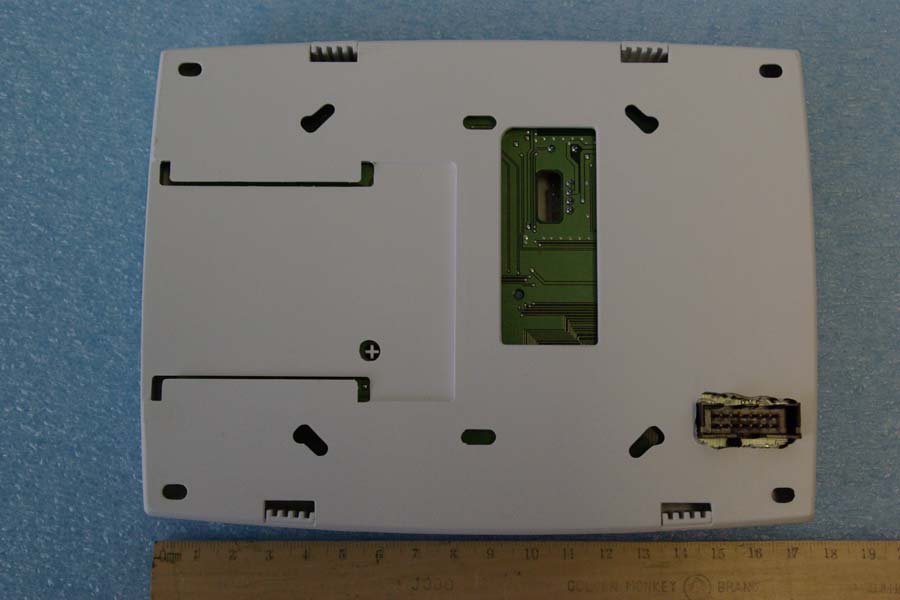

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: ExtPho PC0126P Page 1 of 1 External Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: LabelSmpl PC0126P Page 1 of 1 FCC/IC ID label and locations Label

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: IntPho PC0126P Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TunPro PC0126P Page 1 of 1 Each transmitter functionality is tested and judged using a pass or fail criteria during production. Units in compliance with the criteria continue through production and others are returned for diagnostics or disposal.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 W. 259th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #: 100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.209), IC RSS-310 Date: March 9, 2010 Revision 1 File: DMP 9063 PC0126P RFID TstRpt Page 1 of 29 SUBMITTAL APPLICATION REPORT FOR FCC And INDUSTRY CANADA GRANT OF CERTIFICATION FOR Model: 9063 Wireless Keypad 0.125 MHz RFID Low Power Transmitter FCC ID: CCKPC0126P IC: 5251A-PC0126P FOR DIGITAL MONITORING PRODUCTS, INC. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Test Report Number: 100223A Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 W. 259th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #: 100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.209), IC RSS-310 Date: March 9, 2010 Revision 1 File: DMP 9063 PC0126P RFID TstRpt Page 2 of 29 Engineering Test Report Application for Grant of Certification FOR CFR 47, PART 15C - Intentional Radiators Paragraph 15.209 and Industry Canada, RSS-310 Low Power Transmitter For DIGITAL MONITORING PRODUCTS, INC. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Terry Shelton, Model: 9063 Wireless Keypad Frequency 0.125 MHz RFID FCC ID#: CCKPC0126P, IC: 5251A-PC0126P Test Date: February 23, 2010 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 W. 259th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #: 100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.209), IC RSS-310 Date: March 9, 2010 Revision 1 File: DMP 9063 PC0126P RFID TstRpt Page 3 of 29 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 SUMMARY OF RESULTS .............................................................................................. 6 ENVIRONMENTAL CONDITIONS .................................................................................. 6 UNITS OF MEASUREMENTS ........................................................................................ 6 TEST SITE LOCATIONS ................................................................................................ 6 LIST OF TEST EQUIPMENT .......................................................................................... 7 APPLICATION FOR CERTIFICATION ........................................................................... 8 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................... 9 EQUIPMENT TESTED .................................................................................................... 9 Equipment Function and Testing Setup Configuration ................................................................................... 9 EMISSIONS TEST PROCEDURES .............................................................................. 10 AC Line Conducted Emission Test Procedure ................................................................................................ 10 Radiated Emission Test Procedure ................................................................................................................... 10 SUBPART C - INTENTIONAL RADIATORS ................................................................ 11 ANTENNA REQUIREMENTS ....................................................................................... 11 RESTRICTED BANDS OF OPERATION ..................................................................... 11 Radiated Emissions Data in Restricted Bands ................................................................................................ 11 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 12 AC LINE CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS ............. 12 AC Line Conducted Emissions Testing ............................................................................................................ 12 Figure One AC Line Conducted emissions of EUT line 1 ................................................................................ 13 Figure Two AC Line Conducted emissions of EUT line 2 ............................................................................... 13 Data, AC Line Conducted Emissions ............................................................................................................... 14 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 W. 259th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #: 100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC 15C (15.209), IC RSS-310 Date: March 9, 2010 Revision 1 File: DMP 9063 PC0126P RFID TstRpt Page 4 of 29 Summary of Results for AC Line Conducted Emissions ................................................................................ 14 Radiated Emissions Testing Procedure .................................................................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TSup PC0126P Page 1 of 2 Test setup photographs Rogers Labs, Inc. Digital Monitoring Products, Inc. SN: ENG1 4405 West 259 th Terrace Model: 9063 Wireless Keypad FCC ID#: CCKPC0126P Louisburg, KS 66053 Test #:100223A IC: 5251A-PC0126P Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249, RSS-210 Date: March 9, 2010 Revision 1 File: TSup PC0126P Page 2 of 2
