CCKPC0131LOW POWER TRANSCEIVER

InstallatIon GuIde Models 7860, 7863, 7870, 7873 Touch Screen LCD Keypads SLEEP HOME AWAY © 2011 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice. 7800 Series Keypad Installation Guide 1 PRELIMINAR Y DMP Keypad Features The DMP Graphic Keypads offer flexible features and functionality in a stylish design choice. Each keypad provides: • Custom home screen image • Panic icons • AC Power/Armed LED • Full color touchscreen display • Internal speaker • Simple harness connection to 4-wire keypad bus • Micro SD for scrolling picture display The Models 7870 and 7873 keypads provide four fully programmable Class B, Style A, supervised, power limited protection zones you can program for a variety of burglary and access control applications. The Model 7863 and 7873 keypads provide a built-in proximity card reader designed to read DMP/HID proximity credentials. The Model 7873 keypad provides a door strike relay and allow Wiegand input from external card readers. Armed/Power LED Proximity Antenna Home Screen Display area with Touch Select Areas Menu Help Panic Menu System Status Speaker SLEEP HOME AWAY RESETCHIME Shortcut icons 2 7800 Series Keypad Installation Guide PRELIMINAR Y Touchscreen Display The 7800 Series have an integrated LCD with a touchscreen user interface. The display can be set up two different ways. The 7800 Series can be set up to display a custom image for the home screen. See Home Screen section below. Or alternatively, the display can be programmed to turn off (blank screen) during periods when the keypad is not in use. See Backlighting Brightness under End-User Options. Home Screen To display a custom image on the home screen, format a bitmap image to the specification outlined below. Once formatted, load the image onto a micro SD card and insert into the keypad before applying power. Image Specifications: The 7800 Series keypad accepts bitmap images only for display. The image must be formatted as 272 pixels tall by 360 pixels wide or less. The name of the image must be set to custom.bmp for the keypad to recognize. Cleaning the Touchscreen Display Clean the touchscreen using a water dampened soft lint-free cloth. Apply the water onto the cloth, do NOT apply directly onto the touchscreen. After cleaning, wipe the touchscreen dry with a dry soft lint-free cloth. Micro SD Card The 7800 Series keypads have a Micro SD card slot on the right edge of the keypad housing. This is used to load custom home screen image and for the end-user to have a scrolling picture display when the keypad is not in use. Select Areas There are four Select Areas in the display. These Select Areas are one of the features that make the system so easy to operate. They allow you to make selections by touching the area over each key, icon, or other selection to operate the keypad. Warning: DO NOT use any sharp objects to operate the touchscreen such as a pen or pencil. SLEEP HOME AWAY Micro SD Card slot 32-Character Display Select Area 1 Select Area 2 Select Area 3 Select Area 4 7800 Series Keypad Installation Guide 3 PRELIMINAR Y Installing the Keypad All DMP keypad housings are designed to easily install on any single-gang switch box, or a flat surface. Figure 1 shows the keypad housing base mounting hole locations. Remove the Cover The keypad housing is made up of two parts: the cover, which contains the circuit board and components, and the base. Use the following steps and figures to separate the keypad cover and base. 1. Insert a flat screwdriver into one of the slots on the bottom of the keypad and gently lift the screwdriver handle toward you while pulling the halves apart. Repeat with the other slot. 2. Using your hands, gently separate the front from the base and set the cover and components aside. Harness Wiring Figure 1 shows wiring harness assignments. Observe wire colors when connecting the red, yellow, green, and black wires to the keypad bus. Connect red to panel terminal 7, yellow to terminal 8, green to terminal 9, and black to panel terminal 10. Use 1k Ohm EOL resistors, DMP Model 311, on keypad zones 1 through 4. The 7860, and 7863 keypads are supplied with a 4-wire harness for panel keypad bus connection. The 7870, and 7873 keypads are supplied with a 12-wire data bus/zone harness. Four wires connect to the keypad bus. The remaining eight wires are for the four zone inputs: two wires for each zone. The 7873 keypad comes with one 5-wire output/reader harness. Additional Power Supply If the current draw for all keypads exceeds the panel output, provide additional current by adding a Model 505-12 auxiliary power supply. Connect all keypad black ground wires to the power supply negative terminal. Run a jumper wire from the power supply negative terminal to the panel common ground terminal. Connect all keypad power (+12 VDC) wires to the power supply positive terminal. Do NOT connect the power supply positive terminal to any panel terminal. Refer to the 505-12 Power Supply Installation Guide (LT-0453). Graphic Keypad Building Wall Insert small screwdriver and lift to remove cover. Do not twist. 4 7800 Series Keypad Installation Guide PRELIMINAR Y Card Readers When a proximity credential is presented to an internal or external reader, a beep tone is heard and the Power/Armed LED blinks. This provides both an audible and visual acknowledgement of the credential read. Internal Access Control Reader The 7863, and 7873 keypads provide a built-in proximity card reader designed to read DMP/HID 1300 Series proximity credentials. Note: For listed access control applications, the keypad must be installed within the protected area. External Access Control Reader To accept Wiegand data input from other external card readers, connect a 12 VDC external reader to the 7873 keypad. Connect the Red and Black power wires from the reader to the power wires from the panel. These connect in parallel with the…

Text truncated - open the document above for the full version.

October 9, 2011 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802 Re: Confidentiality for submittal information regarding FCC ID: CCKPC0131 PRODUCT: Low Power Transmitters operated under part 15.209 Dear Sirs: Digital Monitoring Products, Inc. requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Digital Monitoring Products, Inc. submits the following: CONFIDENTIAL FILES Conf BlkDia PC0131.pdf Conf OpDes PC0131.pdf Conf Schem PC0131.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: CCKPC0131 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Digital Monitoring Products, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Digital Monitoring Products, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Digital Monitoring Products, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for residential, commercial, industrial, and governmental applications. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

January 3, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Digital Monitoring Products, Inc. has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Scot Rogers of Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Best regards, Terry Shelton Product Quality Assurance Manager Digital Monitoring Products, Inc. Lb

October 9, 2011 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Digital Monitoring Products, Inc.Equipment: FCC ID: CCKPC0131 2500 North Partnership Boulevard CORES number: 0009 86 9348 Springfield, MO 65802 FCC Rules: Parts 2 and 15.209 Gentlemen The form 731 and application information have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining grant of certification. Confidentiality is requested as outlined below. Permanent Digital Monitoring Products, Inc. requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem PC0131.pdf Block diagram Conf BlkDia PC0131.pdf Operational Description Conf OpDes PC0131.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

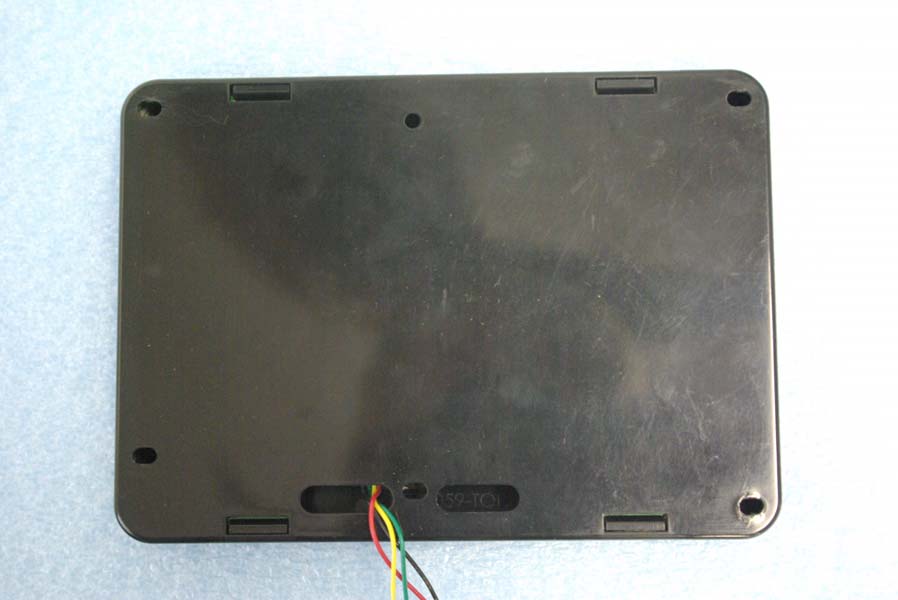

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 West 259 th Terrace Models: 7863, 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.209, RSS-210 Date: September 28, 2011 Revision 1 File: ExtPho CCKPC0131 Page 1 of 1 External photographs of equipment under test

Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 and 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: October 6, 2011 Revision 1 File: LabelSmpl CCKPC0131 Page 1 of 1 FCC ID label and location Label and Label Placement

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 West 259 th Terrace Models: 7863, 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.209, RSS-210 Date: September 28, 2011 Revision 1 File: IntPho CCKPC0131 Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 and 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: September 28, 2011 Revision 1 File: TunPro CCKPC0131 Page 1 of 1 Each transmitter functionality is tested and judged using a pass or fail criteria during production. Units in compliance with the criteria continue through production and others are returned for diagnostics or disposal.

Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 and 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: September 28, 2011 Revision 1 File: RFExp CCKPC0131 Page 1 of 1 Radio Frequency Exposure calculation is not applicable to this frequency of operation. No exhibit is offered.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 LCD Keypad and 7873 LCD Keypad FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: October 6, 2011 Revision 1 File: DMP 7863 7873 TstRpt 110914 Page 1 of 25 Application Submittal Report For FCC And Industry Canada Grant Of Certification FOR Models: 7863 LCD Keypad and 7873 LCD Keypad 0.125 MHz Transmitter FCC ID: CCKPC0131 IC: 5251A-PC0131 FOR Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Test Report Number: 110914 Certification Date: September 14, 2011 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 LCD Keypad and 7873 LCD Keypad FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: October 6, 2011 Revision 1 File: DMP 7863 7873 TstRpt 110914 Page 2 of 25 Engineering Test Report For Grant Of Certification Application Submittal CFR47, Part 15C - Intentional Radiators Paragraphs15.209 Industry Canada, RSS-210 Low Power Transmitter For Digital Monitoring Products, Inc 2500 North Partnership Boulevard Springfield, MO 65802-6310 Phone: (913) 397-8200 Mr. Terry Shelton Director of Product Quality Assurance Models: 7863 LCD Keypad and 7873 LCD Keypad Frequency 0.125 MHz FCC ID#: CCKPC0131 IC: 5251A-PC0131 Test Date: September 14, 2011 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 LCD Keypad and 7873 LCD Keypad FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15C, 15.209, RSS-210 Date: October 6, 2011 Revision 1 File: DMP 7863 7873 TstRpt 110914 Page 3 of 25 Table of Contents TABLE OF CONTENTS .................................................................................................. 3 FORWARD ..................................................................................................................... 5 APPLICABLE STANDARDS & PROCEDURES ............................................................ 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 APPLICATION FOR CERTIFICATION ........................................................................... 6 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................... 6 EQUIPMENT TESTED .................................................................................................... 7 EQUIPMENT FUNCTION AND TESTING PROCEDURES ............................................ 7 EQUIPMENT AND CABLE CONFIGURATIONS ........................................................... 7 AC Line Conducted Emission Test Procedure .................................................................................................. 7 Radiated Emission Test Procedure ..................................................................................................................... 8 ENVIRONMENTAL CONDITIONS.................................................................................. 8 UNITS OF MEASUREMENTS ........................................................................................ 8 TEST SITE LOCATIONS ................................................................................................ 8 LIST OF TEST EQUIPMENT .......................................................................................... 9 INTENTIONAL RADIATORS EMISSIONS ................................................................... 10 Antenna Requirements ...................................................................................................................................... 10 Restricted Bands of Operation .......................................................................................................................... 10 Radiated Emissions Data in Restricted Bands ................................................................................................... 11 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 11 AC Line Conducted EMI Procedure ................................................................................................................ 11 Radiated EMI ..................................................................................................................................................... 12 Figure One Plot of General Radiated Emissions ............................................................................................... 13 Figure Two Plot of General Radiated Emissions ............................................................................................... 13 Figure Three Plot of General Radiated Emissions ............................................................................................. 14 Figure Four Plot of General Radiated Emissions .............................................................................................. 14 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc 4405 West 259 th Terrace Models: 7863 LCD Keypad and 7873 LCD Keypad FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC P…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 West 259 th Terrace Models: 7863, 7873 FCC ID#: CCKPC0131 Louisburg, KS 66053 Test #:110914 SN: ENG1 IC: 5251A-PC0131 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.209, RSS-210 Date: September 28, 2011 Revision 1 File: TSup CCKPC0131 Page 1 of 1 Test setup photographs
