CCKPC0162Low Power Wireless Transceiver

INSTALLATION GUIDE 1148 Emergency Pendant Description The 1148 Emergency Pendant is a one-button, wireless emergency transmitter designed to be worn as a bracelet or on a break-away lanyard. The 1148 may be used to activate an Emergency alarm at the panel. The 1148 features a water-resistant design with a Status LED to provide visual indication that a message has been transmitted and received by the panel. The 1148 operates using the pre-installed lithium battery. Compatibility All DMP 1100 Series Wireless Receivers and Panels What is Included The 1148 Emergency Pendant includes the following: ‡2QHEmergency Pendant ‡%UDFHOHW ‡%UHDNDZD\/DQ\DUG Use as Bracelet or Lanyard 7KH(PHUJHQF\3HQGDQWSURYLGHVWKHRSWLRQVWREHXVHGDVDEUDFHOHWRURQWKHODQ\DUG7KH%UDFHOHWRU /DQ\DUGFOLSVFDQRQO\EHLQVHUWHGLQRQHGLUHFWLRQDVVKRZQLQ)LJXUHVDQG2QFHLQVHUWHGWKHFOLSVFDQQRWEH removed. %UDFHOHW 1. 6OLGHWKH%UDFHOHWFOLSLQWRWKHVORWVXQWLOIXOO\VHDWHG6HH)LJXUH $GMXVWWKH%UDFHOHWWRFRPIRUWDEO\ÀW\RXUZULVWDQGWULPDQ\H[FHVV Lanyard: 1. Slide the Pendant mount into the slots until fully seated. See Figure 2. 2. Place the Lanyard around your neck and snap together the break-away clasp. $GMXVWWKHOHQJWKRIWKH/DQ\DUGWRÀWXVLQJWKHVOLGH Figure 3: 1148 Emergency Pendant with Bracelet Figure 4: 1148 Emergency Pendant with Lanyard Figure 2: Lanyard mounting Lanyard Clip Lanyard Clip Figure 1: Bracelet mounting Bracelet Clip Bracelet Clip Digital Monitoring Products 1148 Installation Guide 2 Programming the Transmitter in the Panel Program the device as an Emergency Zone in Zone Information during panel programming. At the Serial Number: option, enter the eight-digit serial number. Refer to the panel programming guide as necessary. LED Status Operation Programming :KHQWKHEXWWRQLVSUHVVHGWKH6WDWXV/('RSHUDWHVDFFRUGLQJWRWKH/('23(5$7,2112<(6RSWLRQLQ =21(,1)250$7,21 YES7KH6WDWXV/('EOLQNVRQFHZKHQWKHEXWWRQLVSUHVVHGDQGWKHQRQFHHYHU\VHFRQGIRUÀYHPLQXWHVWR FRQÀUPDPHVVDJHZDVVHQW NO7KH6WDWXV/('EOLQNVRQFHZKHQWKHEXWWRQLVSUHVVHGWRFRQÀUPDPHVVDJH was sent. When Supervision time is set to 0, the 1148 Status LED blinks once every minute to FRQÀUPFRPPXQLFDWLRQIURPWKHSDQHO:KHQ6XSHUYLVLRQWLPHVHWWRRUWKH Status LED only blinks when the button is pressed. See Figure 5. :KHQXVLQJ6XSHUYLVRU\WLPHRIRUUHPRYLQJWKHSHQGDQWIURPWKHSDQHO location for greater than the Supervisory time will result in a Zone missing display at the keypad. Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset. If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional hour to send a supervision message unless tripped, tampered, or powered up. This RSHUDWLRQH[WHQGVEDWWHU\OLIHIRUWUDQVPLWWHUV$PLVVLQJPHVVDJHPD\GLVSOD\RQWKHNH\SDGXQWLOWKHWUDQVPLWWHU sends a supervision message. LED Survey 7KH(PHUJHQF\3HQGDQWSURYLGHVDVXUYH\FDSDELOLW\ZKHQ/('2SHUDWLRQRSWLRQLVVHWWR12WRDOORZRQH SHUVRQWRFRQÀUPWUDQVPLWWHUFRPPXQLFDWLRQZLWKWKHUHFHLYHU7KH6WDWXV/('WXUQVRQZKHQHYHUGDWDLVVHQW to the receiver then immediately turns off when the receiver acknowledgement is received. 3UHVVLQJWKHEXWWRQVHQGVGDWDWRWKHUHFHLYHUWRFRQÀUPRSHUDWLRQ:KHQWKHWUDQVPLWWHUGRHVQRWUHFHLYH DQDFNQRZOHGJHPHQWIURPWKHUHFHLYHUWKH/('UHPDLQVRQIRUDSSUR[LPDWHO\HLJKWVHFRQGVWRLQGLFDWHWKDW FRPPXQLFDWLRQLVQRWHVWDEOLVKHG&RPPXQLFDWLRQLVDOVRIDXOW\ZKHQWKH/('ÁDVKHVPXOWLSOHWLPHVLQTXLFN succession. Relocate the Pendant or receiver until the LED immediately turns off indicating the transmitter and UHFHLYHUDUHFRPPXQLFDWLQJSURSHUO\3URSHUFRPPXQLFDWLRQEHWZHHQWKHWUDQVPLWWHUDQGUHFHLYHULVYHULÀHGZKHQ IRUHDFKSUHVVRIWKHEXWWRQWKH/('EOLQNVLPPHGLDWHO\RQDQGLPPHGLDWHO\RII5HSHDWWKLVWHVWWRFRQÀUPÀYH separate consecutive LED blinks. Any indication otherwise means proper communication has not been established. Figure 5: Status LED LED 1148 Installation Guide Digital Monitoring Products 3 FCC Information 7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQV (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. &KDQJHVRUPRGLÀFDWLRQVPDGHE\WKHXVHUDQGQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOG YRLGWKHXVHU·VDXWKRULW\WRRSHUDWHWKHHTXLSPHQW Note:7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD&ODVV%GLJLWDOGHYLFHSXUVXDQWWR part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference LQDUHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQUDGLDWHUDGLRIUHTXHQF\HQHUJ\DQGLIQRW installed and used in accordance with the instructions, may cause harmful interference to radio communications. +RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQWGRHV FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRII and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. ,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU &RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULVFRQQHFWHG &RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS Industry Canada Information 7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGD/LFHQFHH[HPSW566VWDQGDUG V 2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJ two conditions: (1) this device may not cause interference, and (2) this device must acce…

Text truncated - open the document above for the full version.

January 3, 2008 Federal Communications Commission Equipment Approval Services Post Office Box 358315 Pittsburgh, Pennsylvania 15215-5315 To Whom It May Concern: Please be advised that Digital Monitoring Products, Inc. has authorized Scot Rogers of Rogers Labs, Inc. to act on behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters and submittals. All acts carried out by Scot Rogers of Rogers Labs, Inc. on our behalf shall have the same effects as our own. Rogers Labs, Inc. authorized to receive and exchange data between our company and the Commission. This Authorization is made pursuant to Paragraph 2.911 of FCC Rules CFR 47. This Authorization is in effect until otherwise notified in writing. Best regards, Terry Shelton Product Quality Assurance Manager Digital Monitoring Products, Inc. Lb

February 6, 2015 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Digital Monitoring Products, Inc. Equipment: FCC ID: CCKPC0162 2500 North Partnership Boulevard CORES number: 0009 86 9348 Springfield, MO 65802 FCC Rules: Parts 2 and 15.249 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent Digital Monitoring Products, Inc. requests that the material in the Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem 1148.pdf Block diagram Conf BlkDia 1148.pdf Operational Description Conf OpDes 1148.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

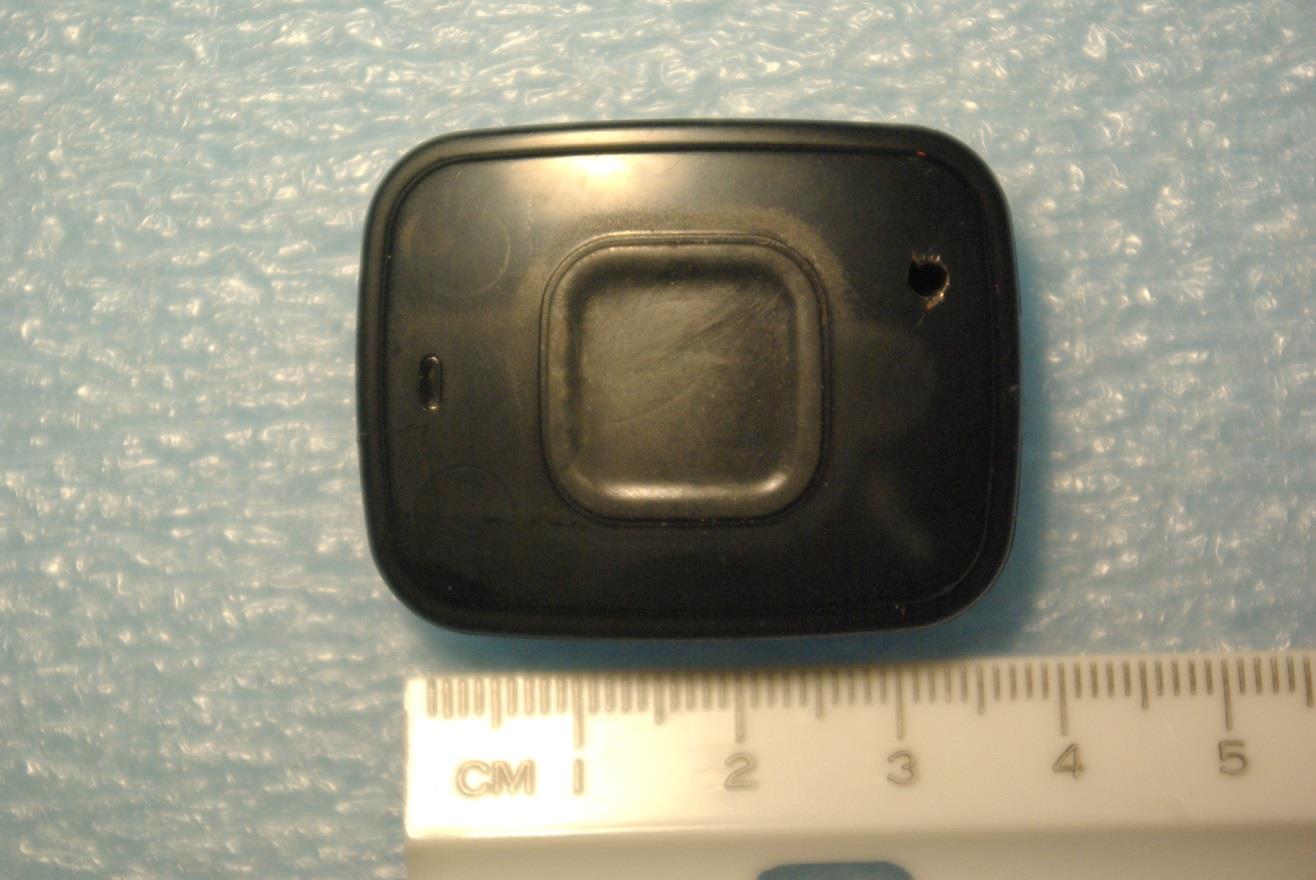

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: ExtPho 1148 Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: ExtPho 1148 Page 2 of 2

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: LabelSmpl 1148 Page 1 of 1 ID label and location Label placement about outer edge

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: IntPho 1148 Page 1 of 1 Internal Photographs

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: TunPro 1148 Page 1 of 1 Tune-up Procedure Each unit is evaluated during production and then given pass/fail status based on the measured parameters. The pass/fail threshold is determined by engineering during product development. Compliant samples continue through production and non-compliant units are removed.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: FCC (15.249), RSS-210 Date: February 6, 2015 Revision 1 File: DMP 1148 TstRpt 150121 Page 1 of 25 Application Submittal Report FOR FCC And Industry Canada Grant Of Certification FOR Model: 1148 903-927 MHz Low Power Transmitter FCC ID: CCKPC0162 IC: 5251A-PC0162 FOR Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Test Report Number: 150121 IC Test Site Registration: 3041A-1 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: FCC (15.249), RSS-210 Date: February 6, 2015 Revision 1 File: DMP 1148 TstRpt 150121 Page 2 of 25 Engineering Test Report For Application Submittal for Grant of Certification FOR CFR 47, PART 15C - Intentional Radiators Paragraph 15.249 and Industry Canada, RSS-210 License Exempt Intentional Radiator For Digital Monitoring Products, Inc. 2500 North Partnership Boulevard Springfield, MO 65802-6310 Model: 1148 Low Power Transmitter Frequency Range 903-927 MHz FCC ID#: CCKPC0162 IC: 5251A-PC0162 Test Date: January 21, 2015 Certifying Engineer: Scot D. Rogers Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: FCC (15.249), RSS-210 Date: February 6, 2015 Revision 1 File: DMP 1148 TstRpt 150121 Page 3 of 25 Table Of Contents TABLE OF CONTENTS .................................................................................................. 3 REVISIONS ..................................................................................................................... 4 FORWARD ..................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS ............................................................... 5 STATEMENT OF MODIFICATIONS AND DEVIATIONS ............................................... 5 EQUIPMENT TESTED .................................................................................................... 6 EQUIPMENT FUNCTION AND CONFIGURATION........................................................ 6 Equipment Configuration.................................................................................................................................... 6 APPLICATION FOR CERTIFICATION ........................................................................... 7 APPLICABLE STANDARDS & TEST PROCEDURES .................................................. 8 EQUIPMENT TESTING PROCEDURES ........................................................................ 8 AC Line Conducted Emission Test Procedure .................................................................................................. 8 Radiated Emission Test Procedure ..................................................................................................................... 8 Diagram 1 Test arrangement for radiated emissions of tabletop equipment ........................................................ 9 Diagram 2 Test arrangement for radiated emissions tested on Open Area Test Site (OATS) Error! Bookmark not defined. TEST SITE LOCATIONS .............................................................................................. 10 LIST OF TEST EQUIPMENT ........................................................................................ 11 UNITS OF MEASUREMENTS ...................................................................................... 12 ENVIRONMENTAL CONDITIONS................................................................................ 12 INTENTIONAL RADIATORS ........................................................................................ 12 Antenna Requirements ...................................................................................................................................... 12 Restricted Bands of Operation .......................................................................................................................... 12 Table One Radiated Emissions in Restricted Bands Data ................................................................................. 13 NVLAP Lab Code 200087-0 Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: FCC (15.249), RSS-210 Date: February 6, 2015 Revision 1 File: DMP 1148 TstRpt 150121 Page 4 of 25 Summary of Results for Radiated Emissions in Restricted Bands ................................................................ 13 AC Line Conducted Emissions Procedure ....................................................................................................... 13 General Radiated EMI Testing Procedure ...................................................................................................... 14 Table Two General Radiated Emissions Data (worst-case) ............................................................................... 14 Summary of Results for General Radiated Emission…

Text truncated - open the document above for the full version.

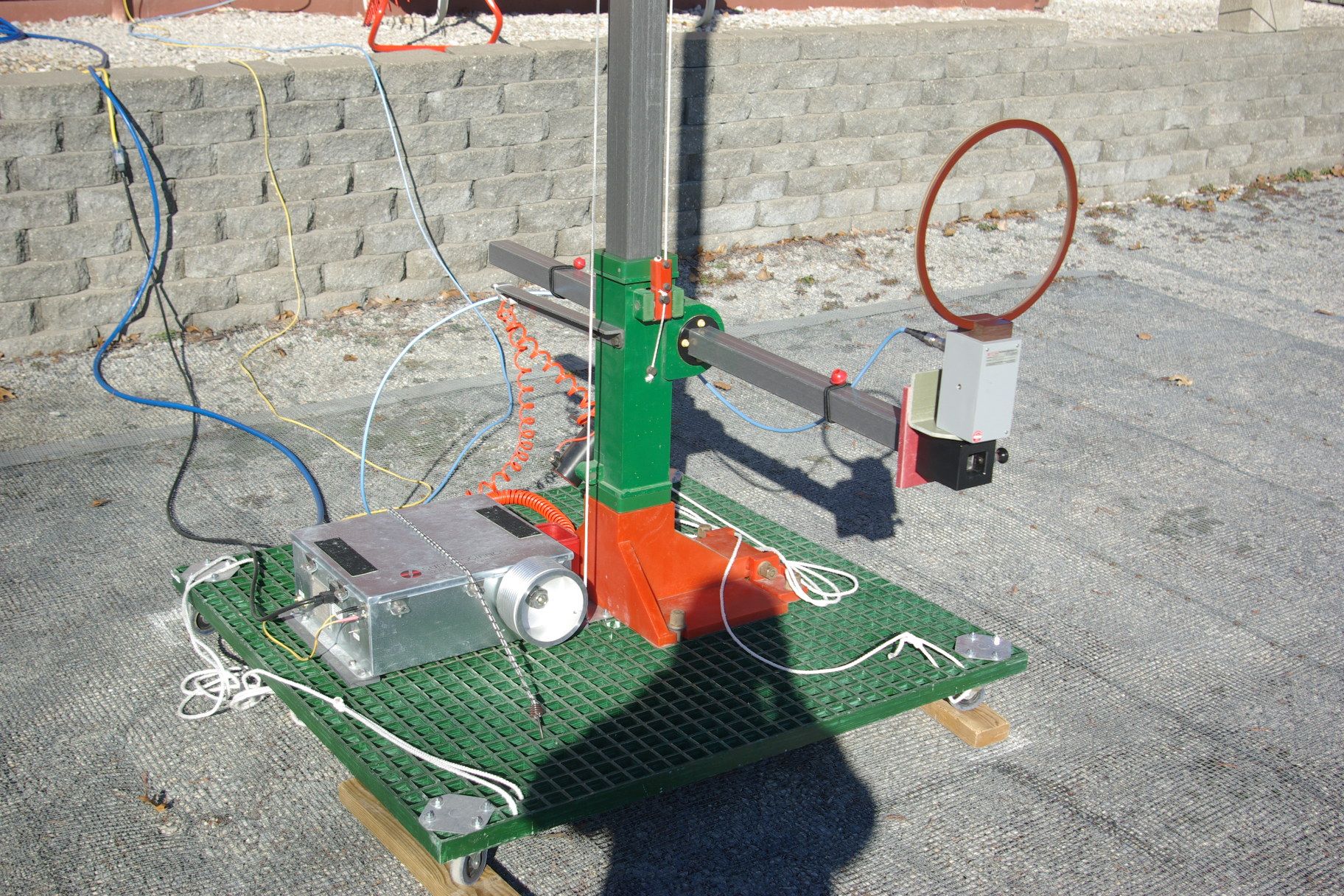

Rogers Labs, Inc. Digital Monitoring Products, Inc. 4405 W. 259th Terrace Model: 1148 SN: ENG 1 FCC ID: CCKPC0162 Louisburg, KS 66053 Test #: 150121 IC: 5251A-PC0162 Phone/Fax: (913) 837-3214 Test to: CFR47 (15.249), RSS-210 Date: February 4, 2015 Revision 1 File: TSup 1148 Page 1 of 1 Test setup photographs
