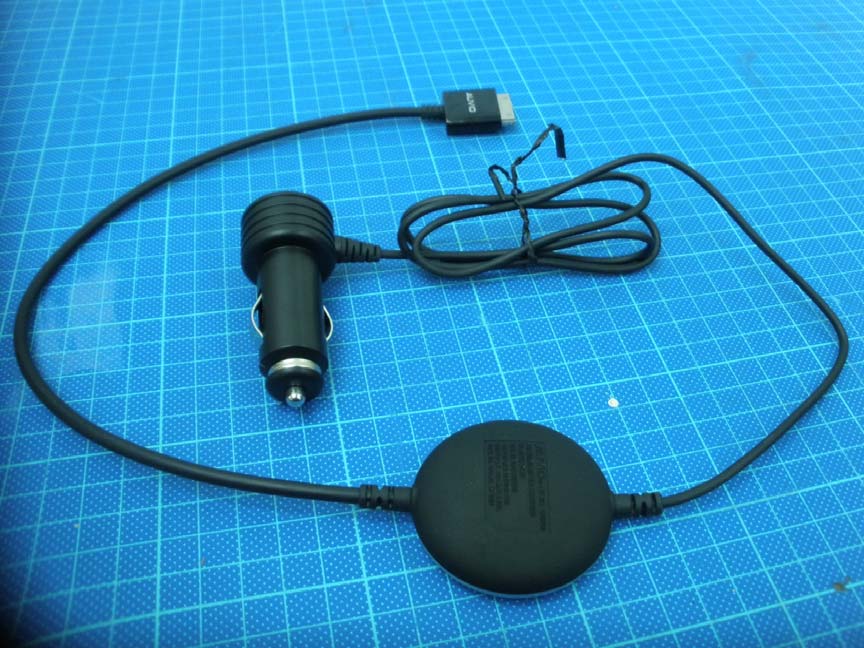

External photo of EUT
Label Location
Black line is antenna End Before
Internal photo of EUT Internal photo of EUT Internal photo of EUT
FCC ID. : DT91200769 Report No.: TS14020009-EME Page 1 of 17 0597 EMC TEST REPORT Report No. : TS14020009-EME Model No. : 1200769 Issued Date : Feb. 13, 2014 Remark : C version Applicant: Jebsee Electronics Co., Ltd. 24-3, Sin Le Road Tainan, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.239 & ANSI C63.4 2009 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sunny Liu/ Senior Officer These measurements were taken by: Corn Shang/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID. : DT91200769 Report No.: TS14020009-EME Page 2 of 17 Table of Contents Summary of Tests ....................................................................................................................... 3 1. General information ............................................................................................................... 4 1.1 Identification of the EUT ................................................................................................. 4 1.2 Antenna description.......................................................................................................... 5 1.3 Peripherals equipment ......................................................................................................5 2. Test specifications .................................................................................................................. 6 2.1 Test standard..................................................................................................................... 6 2.2 Operation mode ................................................................................................................ 6 2.3 Test equipment ................................................................................................................. 7 3. Radiated emission test FCC 15.239 (b)&(c) .......................................................................... 8 3.1 Operating environment..................................................................................................... 8 3.2 Test setup & procedure .....................................................................................................8 3.3 Emission limit .................................................................................................................. 9 3.3.1 Fundamental emission limit .......................................................................................... 9 3.3.2 General radiated emission limits ................................................................................... 9 3.4 Radiated emission test data ............................................................................................ 10 4. Bandwidth of fundamental frequency FCC 15.239(a) ......................................................... 16 FCC ID. : DT91200769 Report No.: TS14020009-EME Page 3 of 17 Summary of Tests Te s t Reference Results Bandwidth of fundamental frequency 15.239(a) Complies Field strength of fundamental frequency 15.239(b) Complies Radiated emission 15.239(b)&(c), 15.209 Complies FCC ID. : DT91200769 Report No.: TS14020009-EME Page 4 of 17 1. General information 1.1 Identification of the EUT Product: FM transmitter Model No.: 1200769 FCC ID.: DT91200769 Frequency Range: 88.1MHz to 107.9MHz Channel Number: 3 channels Frequency of Each Channel: 88.1MHz, 98.1MHz, 107.9MHz Access scheme: FM Power Supply: DC 13.8 V from battery Power Cord: N/A Sample Received: Feb. 05, 2014 Sample condition: Workable Test Date(s): Feb. 10, 2014 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : DT91200769 Report No.: TS14020009-EME Page 5 of 17 1.2 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0 dBi Antenna Type: Dipole antenna Connector Type: N/A 1.3 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID iPad mini APPLE MT531TA/A F85LG24QF196 FCC DoC Approved FCC ID. : DT91200769 Report No.: TS14020009-EME Page 6 of 17 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.239. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode EUT transmits continuously as power on and press button to change different channel. FCC ID. : DT91200769 Report No.: TS14020009-EME Page 7 of 17 2.3 Test equipment Equipment Brand Model No. Serial No. Calibration Date Next Calibration Date ESCI EMI Test Receiver Rohde & Schwarz ESCI 100018 2013/1…
Text truncated - open the document above for the full version.
Radiated Emission Test set-up photo Radiated Emission Test set-up photo Radiated Emission Test set-up photo
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 88.1 MHz - 107.9 MHz | - |

Universal FM Transmitter
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
2.4GHz Wireless Audio Sender
Equipment Class
DTS - Digital Transmission System
2.4G Wireless Audio Sender
Equipment Class
DTS - Digital Transmission System
PC Remote Controller
Equipment Class
DSR - Part 15 Remote Control/Security Device Transceiver
2.4GHz Video/Audio/IR Rem. Control Wireless Sender
Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
