DT91200962Universal FM Transmitter

System Block Diagram： MCU (HT68F40) LCD Button FM Transmitter IC (QN8007B) Antenna LED I2C Crystal (26MHz) FM TX (88.1 MHz～ 107.9 MHz )

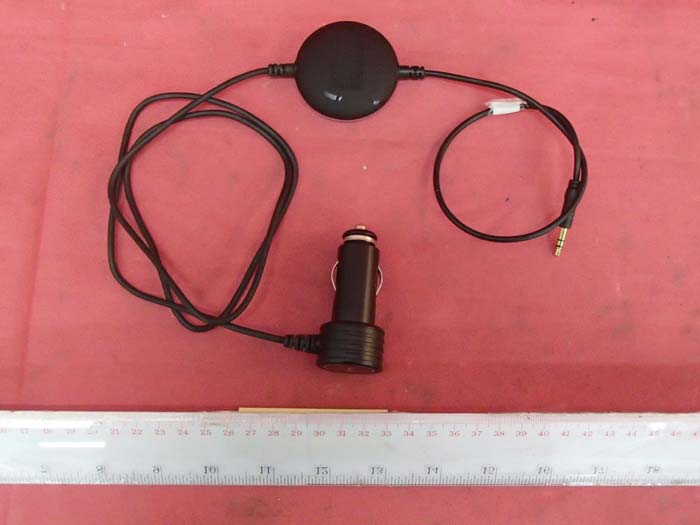

INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (External) FCC ID: DT91200962

INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962 INTERTEK TESTING SERVICE Report No.: 13090353HKG-003 Equipment Photographs Model : 1200962 (Internal) FCC ID: DT91200962

FCC ID: DT91200962 Model: 1200962 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 88.1MHz to 107.9MHz. The transmitter is used to transmit the music stored in the audio device and can be receiving the audio music by the radio. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, S3, S4, IC2 (HT68F40) 2. A RF Oscillator (26MHz) Consisting: X1 3. A Filter Network Consisting: C7, C9, C10, L2, L3 4. A RF Modulator and Amplifier Consisting: IC1 QN8007B 5. A Power Supply Consisting: 12VDC 6. Regulator Consisting: U101 (7BL05), U100 (7BL05), U1 CE6219P33M 7. Display Consisting : LCD1 Antenna Gain: 0dBi Nominal rated field strength: 47.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses a internal and integral antenna.

Analysis Report Report No.: 13090353HKG-003 The Equipment Under Test (EUT) is a FM Transmitter with scanning function connects to any portable audio device that has a headphone-type connection such as a MP3 or CD player. The main function is used to transmit the music stored in yours audio device that can be receiving it by yours radio. It is powered by a cigarette adaptor. The backlight will be lighted and the transmitter displays the frequency last used while plug into the the car's power outlet. Press and hold the scan button that below the LED panel, it can search for the clear channel to eliminate interference from broadcast radio channels that are used. The transmitting frequency covers the complete FM band from 88.1 to 107.9MHz in 0.2MHz step (i.e. 88.1MHz, 88.3MHz, 88.5MHz and so on). The transmitting frequency is shown on the LED panel. There is three buttons below the scan button, hold down 2M unit M1, M2 and M3 all flash on the display, press 1/up or 3/down to find the desired frequency and wait until the display stops flashing. Hold down 1/up, 2M or 3/down for two seconds to svae the display frequency to M1, M2 or M3 respectively. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 47dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 50dBμV/m at 3m in frequency 88.1MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00003mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00003mW. The SAR Exclusion Threshold Level for 88.1MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 250.04mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

11 22 33 44 55 66 77 88 D D C C B B A A DC- DC+ ANT GND B20 B10 ANT1 R15 43 R18 43 C20 100uF/10V GND GND C19 NC GND C21 100Kp Vin GND Vout U1 CE6219P33M GND C2322uF/10V C22100Kp GND GND 3.3V N/C 1 N/C 2 AUGND 3 ALI 4 ARI 5 AGND 6 RFI 7 RFGND 8 RFO 9 VIO 10 CEN 11 MOD 12 MCK 13 INT 14 WS 15 XCLK 16 XTAL1 17 XTAL2 18 AGND 19 DIN 20 SEB 21 SCL 22 SDA 23 VCC 24 PAD G1 IC1QN8007B SCL SDA R6 100 R7 100 GND 3.3V GND C5 100p C6 4.7uF GND GND GND GND C17 100p C18 100p GND GND C13 100Kp C16 100Kp R16 6.8K R176.8K R14 4.7K R13 4.7K GND GND L4 4.7uH L6 4.7uH L50 C14100pC15100p GND ROUTAGNDALOUT X1 26MHz C28pC18p GNDGND GND 3.3V C3 1Kp GND GND L1 150nH GND R8220 R9220 C8220p C927p C1027p L3 82nH GND GND C7 330p L20 56--470 ANT3 SEG1 1 SEG2 2 SEG3 3 SEG4 4 SEG5 5 SEG6 6 SEG7 7 COM1 8 COM2 9 COM3 10 COM4 11 LCD1 PA0 1 Vss 2 PB4 3 PB3 4 PB2 5 PB1 6 VDD 7 RES 8 PC1 9 PC0 10 PC7 11 PC6 12 PC5 13 PC4 14 PC3 15 PC2 16 PB5 17 PA7 18 PA6 19 PA5 20 PA4 21 PA3 22 PA2 23 PA1 24 IC2HT68F40 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 COM1 COM2 COM3 COM4 R4NAR3NAR2NAR1NA GNDGNDGNDGND SEG1SEG2SEG3SEG4SEG5 SEG6 SEG7 COM1COM2COM3COM4 PA2 PA0 GND S2SCANS4CH_UpS1CH_DownS3MENU GNDGNDGNDGND 3.3V R12 100K C11100Kp C12100Kp GND GND SCL SDA R114.7K Q1 MMBT3904 GND D1LED R5100 47--200 R10220 GND C44.7uF GND 5V 5V RES GND 3.3V ANT1 ANTENNA CHR- CHR+ B3NA B4NA FM TX frequency 88.1MHz - 107.9MHz         S212!381!261..2/6l 9AV12962-1 P6.2 CMN32Q332TO2E CMN32Q332TO2E 3 U.2358.56!312208024অׯႝη႟ҹ NJZB 8025(22 MIYA 7/14'11 7/14'11 7/14'11 7/14'11
