DT9LF-30SRX2.4GHz Video/Audio/IR Rem. Control Wireless Sender

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

LF-30 POA-1 (1640x2328x256 jpeg)

LF-30 LETTER-1 (1640x2328x256 jpeg)

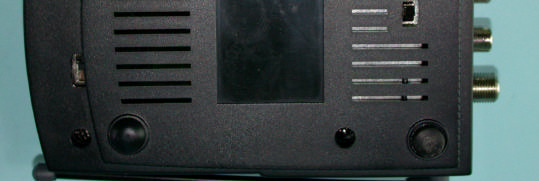

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 3 FCC Label Location

LF-30S(RX) (1641x2325x256 jpeg)下下下下下

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20

FCC ID: DT9LF-30SRX ADT No.920808R01 Operational Description The EUT (2.4GHz VIDEO/AUDIO/IR REMOTE CONTROL WIRELESS SENDER) include 433MHz Transmitter part and 2.4GHz receiver part. 433MHz transmitter part was used for non-periodic control code transmission and can not be used transmit data/video/audio signals. The main function of 433MHz transmitter is transforming IR signal into 433.92MHz RF signal, the interior circuit of 433 MHz transmitter part will be triggered to cause oscillation when IR sensor receives the signal then transmit RF signal. This 433 MHz transmitter device is operated by manual, and activate time is less than 5 second after being released. 2.4 GHz receiver part was used for the receiver part of video/audio sender. The EUT is powered by AC power adapter. The transmitter uses detachable antenna. There are 4 channels in this product and channel selection is controlled by switch in 2.4GHz receiver.

FCC ID: DT9LF-30SRX Report No.: RF920808R011Issued :September 25, 2003 FCC TEST REPORT REPORT NO.: RF920808R01 MODEL NO.: LF-30S RX RECEIVED: Aug. 08, 2003 TESTED: Aug. 20 ~ Sep. 24, 2003 APPLICANT:Jebsee Electronics Co., Ltd. ADDRESS:24-3, Sin-Lo Road, P.O.Box 57, Tainan, Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: DT9LF-30SRX Report No.: RF920808R012Issued :September 25, 2003 Table of Contents 1CERTIFICATION......................................................................................3 2SUMMARY OF TEST RESULTS.............................................................4 3.GENERAL INFORMATION......................................................................5 3.1GENERAL DESCRIPTION OF EUT........................................................5 3.2DESCRIPTION OF TEST MODES..........................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..........................6 3.4DESCRIPTION OF SUPPORT UNITS....................................................7 4.TEST TYPES AND RESULTS.................................................................8 4.1CONDUCTED EMISSION MEASUREMENT...........................................8 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................8 4.1.2TEST INSTRUMENTS.............................................................................8 4.1.3TEST PROCEDURES.............................................................................9 4.1.4DEVIATION FROM TEST STANDARD....................................................9 4.1.5TEST SETUP.........................................................................................10 4.1.6 EUT OPERATING CONDITIONS..........................................................10 4.1.7 TEST RESULTS....................................................................................11 4.2RADIATED EMISSION MEASUREMENT..............................................13 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................13 4.2.2TEST INSTRUMENTS...........................................................................14 4.2.3TEST PROCEDURES...........................................................................15 4.2.4DEVIATION FROM TEST STANDARD..................................................15 4.2.5TEST SETUP.........................................................................................16 4.2.6EUT OPERATING CONDITIONS..........................................................16 4.2.7TEST RESULTS....................................................................................17 4.3BAND EDGES MEASUREMENT..........................................................20 4.3.1LIMITS OF BAND EDGES MEASUREMENT........................................20 4.3.2TEST INSTRUMENTS...........................................................................20 4.3.3TEST PROCEDURES...........................................................................20 4.3.4DEVIATION FROM TEST STANDARD..................................................21 4.3.5TEST SETUP.........................................................................................21 4.3.6TEST RESULTS....................................................................................21 5.PHOTOGRAPHS OF THE TEST CONFIGURATION............................23 6.INFORMATION ON THE TESTING LABORATORIES...........................25 FCC ID: DT9LF-30SRX Report No.: RF920808R013Issued :September 25, 2003 1 CERTIFICATION PRODUCT : 2.4GHz VIDEO/AUDIO/IR REMOTE CONTROL WIRELESS SENDER MODEL NO.:LF-30S RX BRAND:TERK APPLICANT :Jebsee Electronics Co., Ltd. TEST ITEM:ENGINEERING SAMPLE STANDARDS :47 CFR Part 15, Subpart C (Section 15.231), ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Aug. 20 ~ Sep. 24, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: DT9LF-30SRX Report No.: RF920808R014Issued :September 25, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –14.16dB at 0.213MHz 15.209Radiated Emission TestPASS Minimum passing margin is –4.3dB at 33.89MHz 15.231 20dB Occupied Bandwidth Measurement PASS Meet the requirement of limit NOTE: 1. The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. 2. The information of measurement uncertainty is available upon the customer’s request. FCC ID: DT9LF-30SRX Report No.: RF920808R015Issued :September 25, 2003 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4GHz VIDEO/AUDIO/IR REMOTE CONTROL WIRELESS SENDER MODEL NO.LF-30S RX BRANDTERK POWER SUPPLY15VDC from power adapter MODULATION TYPEFM CARRIER FREQUENCY OF EACH CHANNEL 433.92MHz NUMBER OF CHANNEL1 ANTENNA TYPEDetachable antenna DATA CABLE1.9m (Nonshielded) I/O PORTSAV NOTE: 1. The EUT include Transmitter part and Receiver part. The model no.: LF-30S RX includes Tx of 433MHz application used for control signal transmitting and Rx of 2.4GHz application used for receive part of video sender and model no.: LF-30S TX is for transm…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2
