DT9TR-60002.4G Wireless Audio Sender

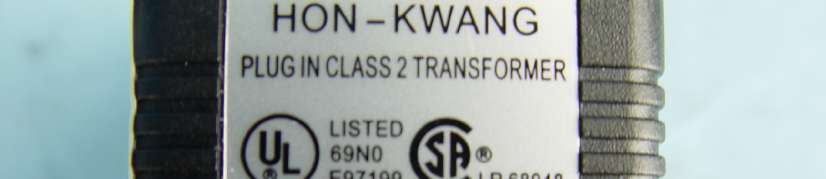

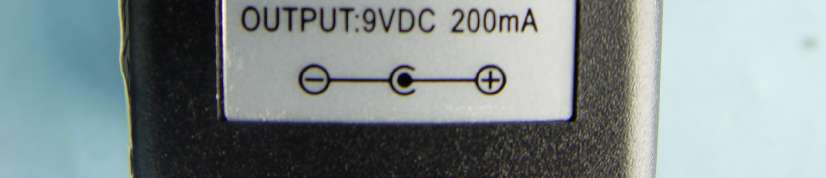

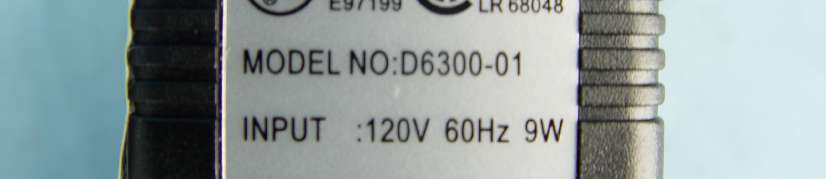

4 LIST OF PACKAGED CONTENTS PRODUCT FEATURES FEATURES 2. One receiver 1. One transmitter 3. One power adapter (output : 9V 200mA) Transmitter 1. Channel selection button 1. Right audio input (white) 2. Left audio input (red) 3. Earphone output 4Channel selection button . Power input (9V 200mA) . 5 Receiver 1 WIRELES S AUDIO S ENDER RECEIVE R USB STEREO AUDIO SENDER 1. Super high frequency for wireless stereo digital audio sender. 2. Transmitter is USB connector, it can be plugged into an USB port of MP3 player using Windows 2000 or above system. 3. High frequency can prevent interference and provides best audio quality. 4. Receiver converts the received digital signal into analog and outputs the signal to speakers or broadcast speakers. 5. Can be installed easily. music analog USB STEREO AUDIO SENDER 2. Transmitter is USB connector, it can be plugged into an USB port of MP3 music player using Windows 2000 and above systems. 3. There is no sound from horn or earphone of receiver, try to check if the LED on USB connector is flashing, if not, please re-plug USB connector to play songs. 4. The AC adapter, which comes with this system, should not be plugged into the same outlet with other appliances to reduce interference probability. Federal Communication Commission Interference Statement 1 WIRELESS AUDIO SENDER RECEIVER 4 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth fo r an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter IMPORTANT NOTE: 1 2 3 5 CONNECTING THE TRANSMITTER 1. Connect transmitter to PC's USB port. When MP3 Broadcast Software broadcasts music, the transmitter's LED will be flashing. This indicates that MP3 audio has sent out normally. 2. If during MP3 broadcasting, USB connector is pulled out, then re-plug in again. The LED at the USB connector will not be flashing the music must be re-chosen again in the MP3 Broadcast Software. The LED at the USB connector will start flashing again. Connect transmitter to PC 2 CONNECTING THE RECEIVER Connect receiver to speaker 1. Connect speaker's 3.5 mm stereo connector to the receiver's earphone. 2. If the user's speaker is RCA cable based, then connect to the receiver's R/L output jacks. 3. If the speaker cable connecting to the receiver's R/L output jacks is not RCA cable, one can consider using a 3.5 mm stereo to RCA cable converter. Then it can connect to the receiver's R/L output jacks. 4. Plug the power source into receiver's power input jack. PC Earphone R L Speaker Audio Speaker USB STEREO AUDIO SENDER Connect earphone's 3.5 mm stereo connector to the receiver's output earphone. Connect receiver to earphone SPECIFICATIONS TRANSMITTER : Frequency range ........................................... 2400MHz~2483.5MHz Modulation .................................................... FSK Channel number ........................................... 8 Channel spacing .......................................... 9MHz Channel frequency ....................................... 2 410MHz,2 419MHz~2473MHz Frequency stability ....................................... ± 100KHz RF output ..................................................... 9.14 dBm Audio Input .................................................... USB MAIL - Jack (V1.1) Frequency range .......................................... 2400MHz~2483.5MHz Channel number ........................................... 8 Channel spacing ........................................... 9MHz Channel frequency ....................................... 2410MHz, 2419MHz~2473MHz Frequency stability ....................................... ±100KHz Audio Output level ....................................... 3.4 Vp-p (Max at 4Vp-p IN) Audio Output impedance ............................. RCA Jack (L&R), <1KW Response (I/L) .............................................. 20Hz~20KHz, -3dB SNR (Signal Noise Ratio) ............................. 87dB (Typical) Power Requirement ..................................... 9V 200mA ACadapter RECEIVER : 3 Earphone 1. This system is a wireless communication product. The installation location should have no blockage to avoid interfering with transmission and reception. The distance between sender and receiver should be greater than 30 metres to have every sender transmi…

Text truncated - open the document above for the full version.

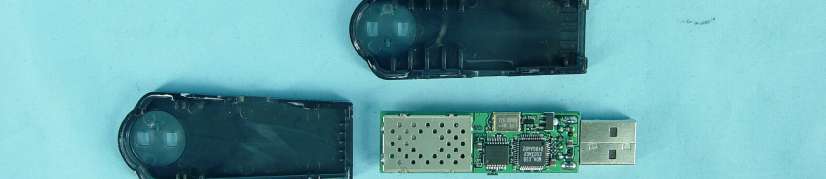

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

A B 152025105 C 1. Do not scale print 2. Must submit samples for approval before proceeding with production. RANGE JEBSEE ELECTRONICS CO., LTD. STANDARD TOLERANCE LIMITS UNLESS OTHER SPECIFIED. BA TOLERANCE NAMEDATE TITLE MATERIAL FINISH UNIT:m / m REV DRAWING NO. CAVITY 0~6 6~30 30~120 120~300 300~600 600~1200 + -- + -- + -- + -- + -- + -- 0.08 0.1 0.2 0.3 0.4 0.5 + -- + -- + -- + -- + -- + -- 0.14 0.2 0.3 0.4 0.5 0.6 DRN BY DSN BY CHK BY APPD BY SCALE DATE AUTH DESCRIPTION REFREV PART NO: 1.Marked " " must be recorded SPC. & MSA. and CPK. 1.67 is required. 2.Marked " " must be recorded DR. (Dimension Result) 3.Without any marked is not required records.

A B 152025105 C 1. Do not scale print 2. Must submit samples for approval before proceeding with production. RANGE JEBSEE ELECTRONICS CO., LTD. STANDARD TOLERANCE LIMITS UNLESS OTHER SPECIFIED. BA TOLERANCE NAMEDATE TITLE MATERIAL FINISH UNIT:m / m REV DRAWING NO. CAVITY 0~6 6~30 30~120 120~300 300~600 600~1200 + -- + -- + -- + -- + -- + -- 0.08 0.1 0.2 0.3 0.4 0.5 + -- + -- + -- + -- + -- + -- 0.14 0.2 0.3 0.4 0.5 0.6 DRN BY DSN BY CHK BY APPD BY SCALE DATE AUTH DESCRIPTION REFREV PART NO: 1.Marked " " must be recorded SPC. & MSA. and CPK. 1.67 is required. 2.Marked " " must be recorded DR. (Dimension Result) 3.Without any marked is not required records.

Page 3 Page 4

FCC ID: DT9TR-6000 Report No.: RF941115L09 Operational Description The EUT (2.4GHz Wireless AUDIO SENDER) is powered by 5Vdc from host equipment. The transmitter uses Inverted-F antenna. There are eight channels in this product and channel selection is controlled by switch in 2.4GHz transmitter. The other instruction, please have a look at the users manual.

FCC ID: DT9TR-6000 Report No: SA941115L09 1 RF EXPOSURE REPORT REPORT NO.: SA941115L09 MODEL NO.: TR-6000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: DT9TR-6000 Report No: SA941115L09 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: DT9TR-6000 Report No: SA941115L09 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: DT9TR-6000 Report No: SA941115L09 4 5 Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.402 High2.480 24.585 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power9.148.204 EIRP Power9.148.204 *Note: The antenna is Inverted-F antenna with 0dBi gain Threshold for no SAR evaluation is 24.585mW Transmitter power is 8.204mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF941115L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941115L09 MODEL NO.: TR-6000 RECEIVED: Nov. 15, 2005 TESTED: Nov. 23, 2005 ~ Feb. 13, 2006 ISSUED: Feb. 15, 2006 APPLICANT: JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF941115L092Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ..........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................28 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................28 4.3.2 TEST INSTRUMENTS................................................................................................28 4.3.3 TEST PROCEDURE...................................................................................................29 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................29 4.3.5 TEST SETUP .............................................................................................................29 4.3.6 EUT OPERATING CONDITIONS ...............................................................................29 4.3.7 TEST RESULTS .........................................................................................................30 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................33 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................33 Report No.: RF941115L093Report Format Version 2.0.4 4.4.2 TEST INSTRUMENTS................................................................................................33 4.4.3 TEST PROCEDURES ................................................................................................34 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................34 4.4.5 TEST SETUP .............................................................................................................34 4.4.6 EUT OPERATING CONDITIONS ...............................................................................34 4.4.7 TEST RESULTS .........................................................................................................35 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................36 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................…

Text truncated - open the document above for the full version.

Report No.: RF941115L0947Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATIONP CONDUCTED EMISSION TEST Report No.: RF941115L0948Report Format Version 2.0.4 RADIATED EMISSION TEST
