DT9TR-70002.4GHz Wireless Audio Sender

GHz LIST OF PACKAGED CONTENTS PRODUCT FEATURES 2. One receiver 1. One transmitter 3. Two power adapter (output : 9V 200mA) 1 1. Transmitter / receiver as one set, it has stereo function. 2. Transmitter is RCA Jack, it can be connected to DVD, VCD, game, Hi-Fi, etc, audio output. 3. It is transmitted at 2.4GHz (converts the original analog signal into digital, and transmits via RF). 4. Receiver is RCA Jack; it outputs the received signal to speakers or broadcast speakers. 5. Can be installed easily. 6. Low fidelity loss, good anti-interferece and transmission distance is greater than 30 meters. 7. Eight channels; the receiver switches channel automatically if there is interference. Line-In 4 FEATURES Transmitter 1. Right audio input (red) 2. Left audio input (white) 3. Earphone output 4Channel selection button . Power input (9V 200mA) . 5 Receiver 1 2 3 5 WIRELESS AUDIO SENDER RECEIVER WIRELESS AUDIO SENDER TRANSMITTER 1. Right audio input (red) 2. Left audio input (white) 3. Line-in input 4Channel selection button . Power input (9V 200mA) . 5 1 2 3 5 4 Line-In CONNECTING THE TRANSMITTER 1. Insert RCA Jacks or line-in connector of transmitter into the sound card audio output of supportive PC. 2. Plug the power source into transmitter power jack . 3. Play MP3 songs through MP3 software, which delivers MP3 sound out by transmitter module. Connect transmitter to PC PC WIRELESS AUDIO SENDER TRANSMITTER Connect transmitter to other audio output equipment 1. Insert RCA Jacks or line-in connector of transmitter module to supportive audio output devices, deliver the sounds from devices with transmitter module. 2. Plug the power source into transmitter power jack . MP3 Line-In R L Audio VCR/VCD/DVD P L A Y O N O F F S P L P D V D P l a y e r s CONNECTING THE RECEIVER Connect receiver to speaker 1. Connect speaker's 3.5 mm stereo connector to the receiver's earphone. 2. If the user's speaker is RCA cable based, then connect to the receiver's R/L output jacks. 3. If the speaker cable connecting to the receiver's R/L output jacks is not RCA cable, one can consider using a 3.5 mm stereo to RCA cable converter. Then it can connect to the receiver's R/L output jacks. 4. Plug the power source into receiver's power input jack . Earphone R L Speaker Audio Speaker Connect earphone's 3.5 mm stereo connector to the receiver's output earphone. Connect receiver to earphone Earphone Line-In 3 2 SPECIFICATIONS TRANSMITTER : Frequency range ........................................... 2400MHz~2483.5MHz Modulation .................................................... FSK Channel number ........................................... 8 Channel spacing .......................................... 9MHz Channel frequency ....................................... 2 410MHz,2 419MHz~2473MHz Frequency stability ....................................... ± 100KHz RF output level ............................................. 10.6dBm Audio Input level ........................................... 4 Vp-p (Max.) Audio Input .................................................... RCA Jack (L&R), >10KW Frequency range .......................................... 2400MHz~2483.5MHz Channel number ........................................... 8 Channel spacing ........................................... 9MHz Channel frequency ....................................... 2410MHz, 2419MHz~2473MHz Frequency stability ....................................... ±100KHz Ant. Type ...................................................... Inverted-F Audio Output level ....................................... 3.4 Vp-p (Max at 4Vp-p IN) Audio Output impedance ............................. RCA Jack (L&R), <1KW Response (I/L) .............................................. 20Hz~20KHz, -1dB SNR (Signal Noise Ratio) ............................. 87dB (Typical) Power Requirement ..................................... 9V 200mA ACadapter RECEIVER : 5 4 1. This system is a wireless communication product. The installation location should have no blockage to avoid interfering with transmission and reception. The distance between sender and receiver should be greater than 30 metres to have every sender transmit its best signal strength. 2. Check if the LED of transmitter & receiver module are lightening, if DC-plug is inserted well and if there is power supply from adapter, as the MP3 sounds are not to be received through horns or earphones. 3. The AC adapter, which comes with this system, should not be plugged into the same outlet with other appliances to reduce interference probability. 4. Please send back to service dept, if problems are not able to be solved. NOTES FOR INSTALLING THIS SYSTEM Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part…

Text truncated - open the document above for the full version.

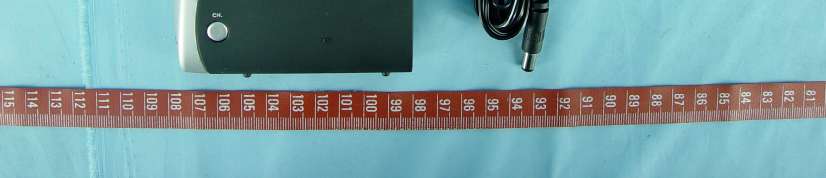

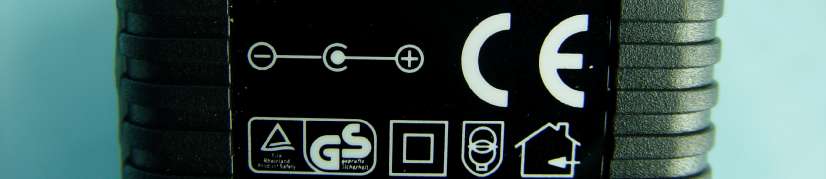

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: DT9TR-7000 Label Location

A B 152025105 C 1. Do not scale print 2. Must submit samples for approval before proceeding with production. RANGE JEBSEE ELECTRONICS CO., LTD. STANDARD TOLERANCE LIMITS UNLESS OTHER SPECIFIED. BA TOLERANCE NAMEDATE TITLE MATERIAL FINISH UNIT:m / m REV DRAWING NO. CAVITY 0~6 6~30 30~120 120~300 300~600 600~1200 + -- + -- + -- + -- + -- + -- 0.08 0.1 0.2 0.3 0.4 0.5 + -- + -- + -- + -- + -- + -- 0.14 0.2 0.3 0.4 0.5 0.6 DRN BY DSN BY CHK BY APPD BY SCALE DATE AUTH DESCRIPTION REFREV PART NO: 1.Marked " " must be recorded SPC. & MSA. and CPK. 1.67 is required. 2.Marked " " must be recorded DR. (Dimension Result) 3.Without any marked is not required records.

FCC ID: DT9TR-7000 Report No: SA950102L01 1 RF EXPOSURE REPORT REPORT NO.: SA950102L01 MODEL NO.: TR-7000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: DT9TR-7000 Report No: SA950102L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: DT9TR-7000 Report No: SA950102L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: DT9TR-7000 Report No: SA950102L01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241011.4820.0021.0 5244610.5440.0021.0 8247310.3990.0021.0

Report No.: RF950102L011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950102L01 MODEL NO.: TR-7000 RECEIVED: Jan. 17, 2006 TESTED: Feb. 07 ~ Feb. 10, 2006 ISSUED: Feb. 13, 2006 APPLICANT: JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950102L012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ..........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................28 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................28 4.3.2 TEST INSTRUMENTS................................................................................................28 4.3.3 TEST PROCEDURE...................................................................................................29 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................29 4.3.5 TEST SETUP .............................................................................................................29 4.3.6 EUT OPERATING CONDITIONS ...............................................................................29 4.3.7 TEST RESULTS .........................................................................................................30 Report No.: RF950102L013Report Format Version 2.0.4 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................33 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................33 4.4.2 TEST INSTRUMENTS................................................................................................33 4.4.3 TEST PROCEDURES ................................................................................................34 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................34 4.4.5 TEST SETUP .............................................................................................................34 4.4.6 EUT OPERATING CONDITIONS ...............................................................................34 4.4.7 TEST RESULTS .........................................................................................................35 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................36 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .........................…

Text truncated - open the document above for the full version.

Report No.: RF950102L0147Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATIONP CONDUCTED EMISSION TEST Report No.: RF950102L0148Report Format Version 2.0.4 RADIATED EMISSION TEST
