DT9TX-8200PC Remote Controller

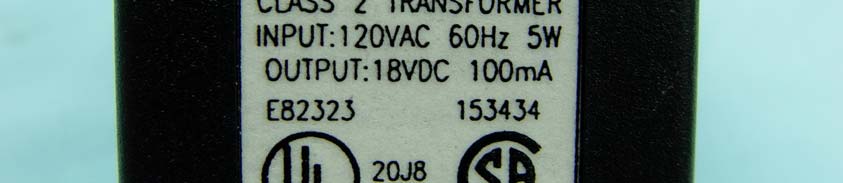

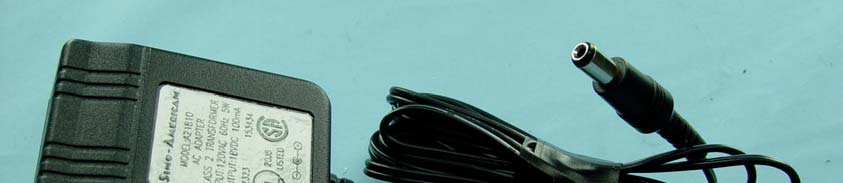

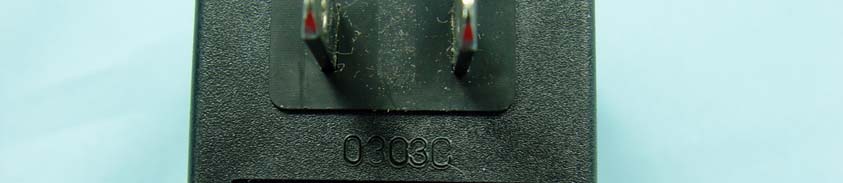

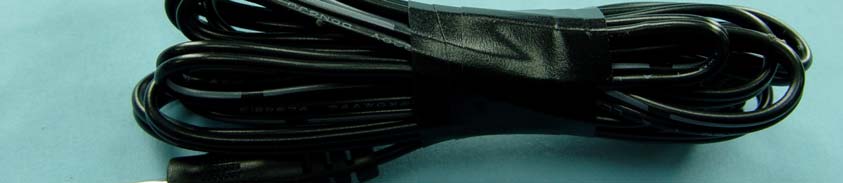

Page 1 CONSTRUCTION PHOTOS OF EUT TR-8200 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 23 T8200 Page 24

Label Location

Page 9 TR-8200 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 25 T8200 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31

FCC ID: DT9TX-8200 Report No.RF930507L12 Operational Description The transmitter of the EUT (PC REMOTE CONTROLLER) is powered by a 18Vdc adapter. The transmitter uses Rods antenna and designed to operate on a fixed frequency at 433.92MHz. This 433.92MHz transmitter device is operated by manual and activate time is less than 5 second after being released.

FCC ID: DT9TX-8200 Report No.: RF930507L121Issued.: July 14, 2004 FCC TEST REPORT REPORT NO.: RF930507L12 MODEL NO.: TR-8200 (refer to page 5 for other models) RECEIVED: June 10, 2004 TESTED: July 01 ~ July 14, 2004 APPLICANT: JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O.Box 57, Tainan, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 32 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: DT9TX-8200 Report No.: RF930507L122Issued.: July 14, 2004 Table of Contents 1CERTIFICATION .................................................................................... 3 2SUMMARY OF TEST RESULTS ............................................................ 4 3.GENERAL INFORMATION ..................................................................... 5 3.1GENERAL DESCRIPTION OF EUT ....................................................... 5 3.2DESCRIPTION OF TEST MODES ......................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS......................... 6 3.4DESCRIPTION OF SUPPORT UNITS ................................................... 7 3.5 CONFIGURATION OF SYSTEM UNDER TEST .................................... 8 4.TEST TYPES AND RESULTS ................................................................ 9 4.1 CONDUCTED EMISSION MEASUREMENT ......................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ....................... 9 4.1.2TEST INSTRUMENTS............................................................................ 9 4.1.3TEST PROCEDURES .......................................................................... 10 4.1.4DEVIATION FROM TEST STANDARD................................................. 10 4.1.5TEST SETUP........................................................................................ 11 4.1.6 EUT OPERATING CONDITIONS ......................................................... 11 4.1.7 TEST RESULTS ................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT............................................. 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................... 14 4.2.2TEST INSTRUMENTS.......................................................................... 16 4.2.3TEST PROCEDURES .......................................................................... 17 4.2.4DEVIATION FROM TEST STANDARD................................................. 17 4.2.5TEST SETUP........................................................................................ 18 4.2.6EUT OPERATING CONDITIONS ......................................................... 18 4.2.7TEST RESULTS ................................................................................... 19 4.3OCCUPIED BANDWIDTH MEASUREMENT ....................................... 26 4.3.1LIMITS OF BAND EDGES MEASUREMENT ....................................... 26 4.3.2TEST INSTRUMENTS.......................................................................... 26 4.3.3TEST PROCEDURES .......................................................................... 26 4.3.4DEVIATION FROM TEST STANDARD................................................. 27 4.3.5TEST SETUP........................................................................................ 27 4.3.6TEST RESULTS ................................................................................... 27 5.PHOTOGRAPHS OF THE TEST CONFIGURATION ........................... 30 6.INFORMATION ON THE TESTING LABORATORIES.......................... 32 FCC ID: DT9TX-8200 Report No.: RF930507L123Issued.: July 14, 2004 1 CERTIFICATION PRODUCT : PC REMOTE CONTROLLER MODEL NO.: TR-8200 (refer to page 5 for other models) BRAND: JEBSEE APPLICANT : JEBSEE ELECTRONICS CO., LTD. TESTED: July 01 ~ July 14, 2004 TEST ITEM: ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.231), ANSI C63.4-2001 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. FCC ID: DT9TX-8200 Report No.: RF930507L124Issued.: July 14, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –27.44dB at 0.201MHz 15.209Radiated Emission TestPASS Minimum passing margin is –2.46dB at 384.10MHz 15.231 20dB Occupied Bandwidth Measurement PASS Meet the requirement of limit NOTE: The information of measurement uncertainty is available upon the customer’s request. FCC ID: DT9TX-8200 Report No.: RF930507L125Issued.: July 14, 2004 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT PC REMOTE CONTROLLER MODEL NO. TR-8200 (refer to following table for other models) POWER SUPPLY 18Vdc from power adapter MODULATION TYPE ASK CARRIER FREQUENCY OF EACH CHANNEL 433.92MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Rods antenna DATA CABLE 1.76m nonshielded cable I/O PORTS IrDA ASSOCIATED DEVICES NA NOTE: 1. The EUT include Transmitter part and Receiver part. The model no.: TR-8200 includes Tx of 433MHz application used for control signal transmitting. 2. The following model was provided to this EUT, due to marketing requirement. BRANDMODEL NO.REMARK JEBSEETR-8200Wireless function…

Text truncated - open the document above for the full version.

FCC ID: DT9TX-8200 Report No.: RF930507L1230Issued.: July 14, 2004 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: DT9TX-8200 Report No.: RF930507L1231Issued.: July 14, 2004 RADIATED EMISSION TEST
