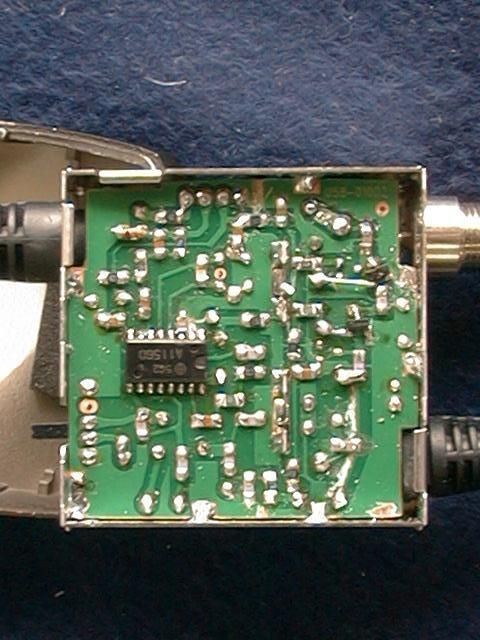

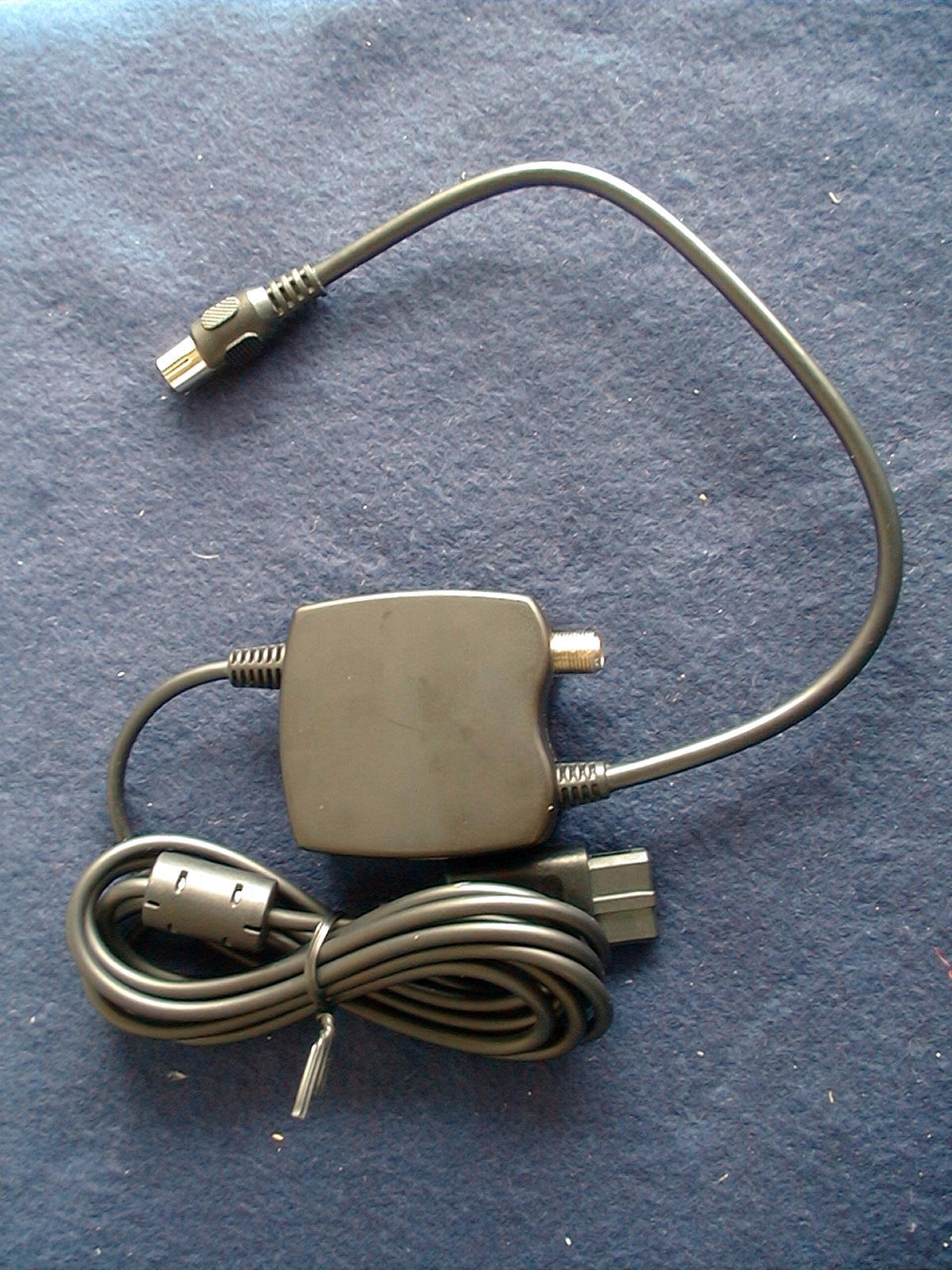

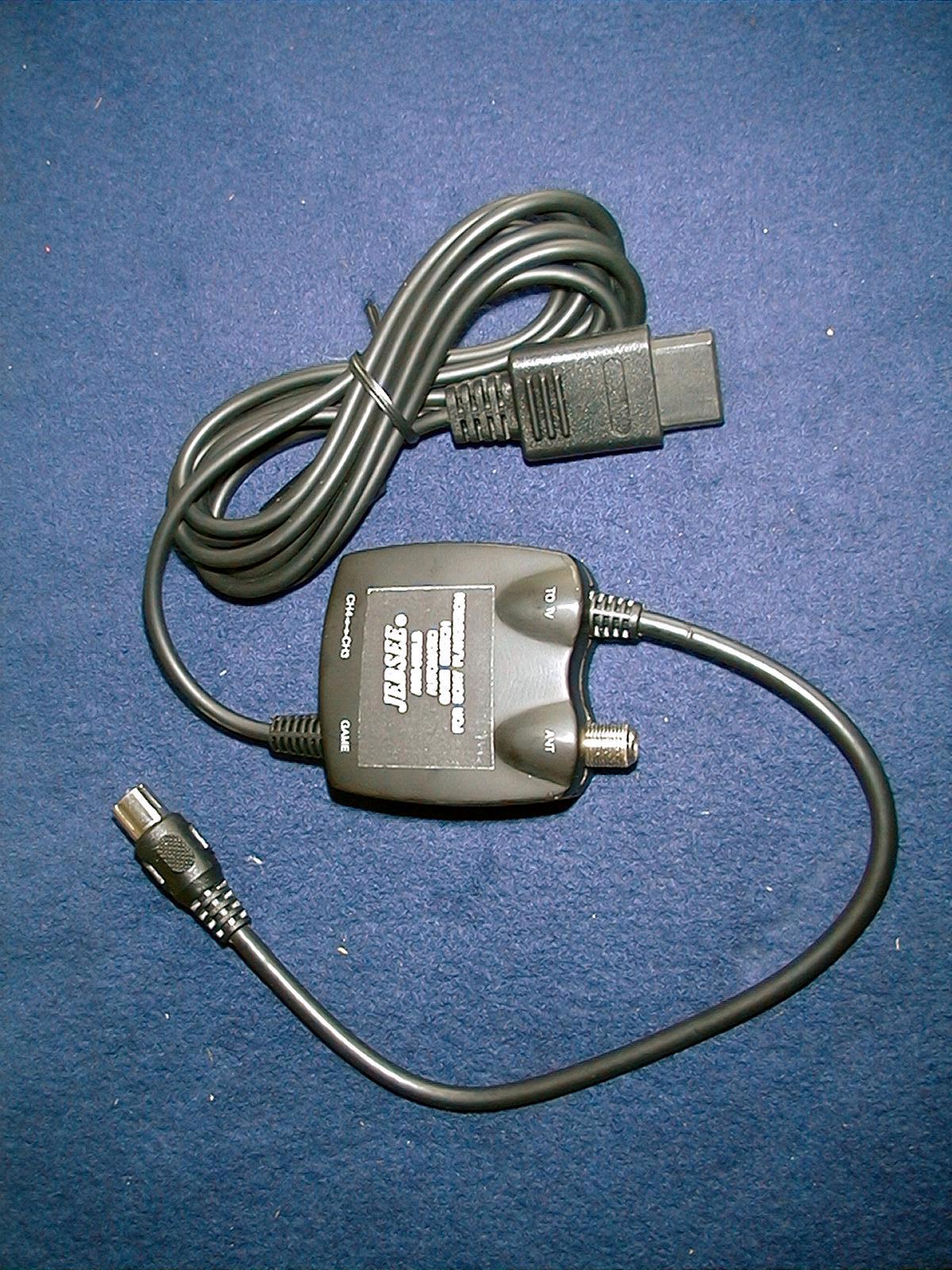

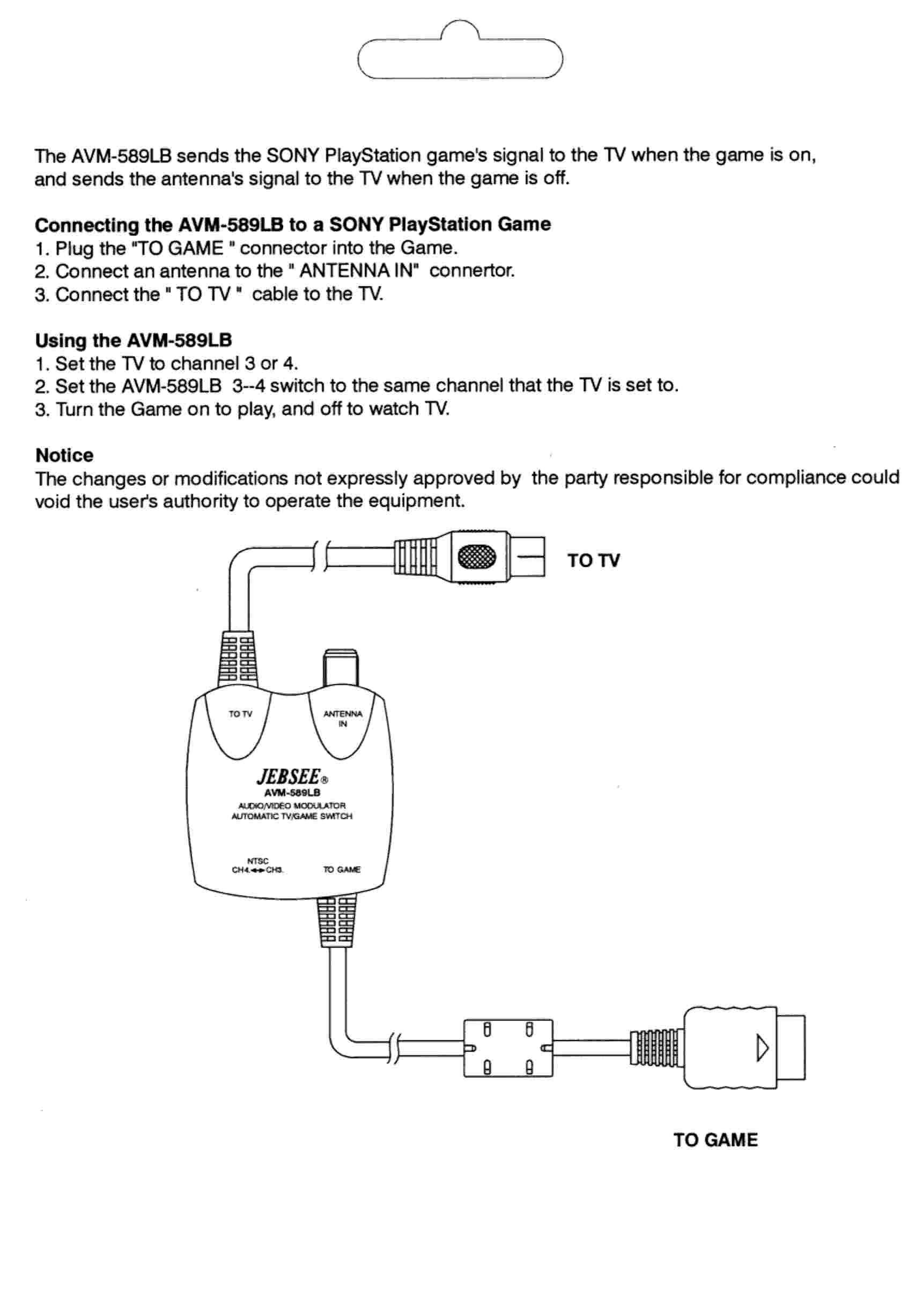

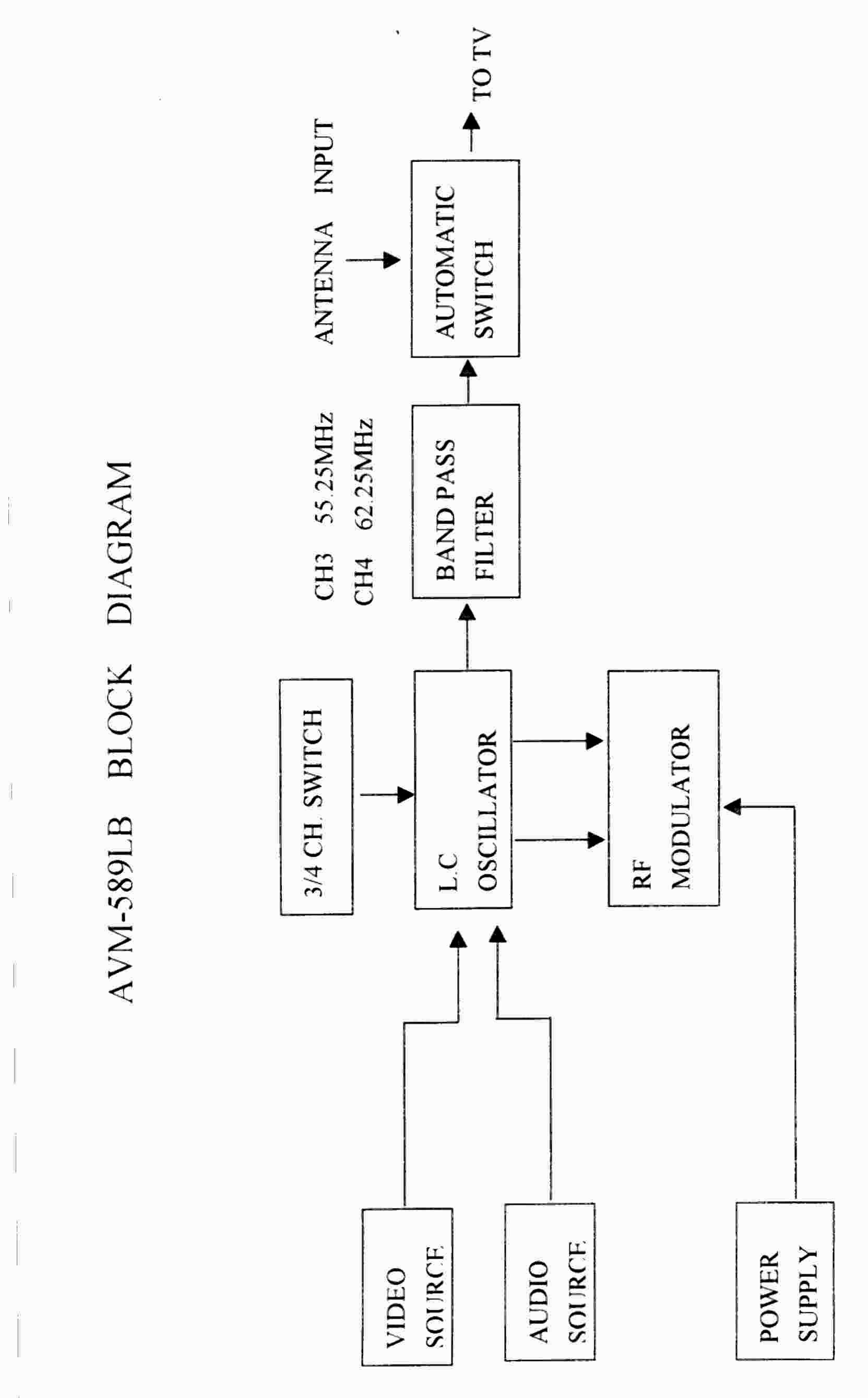

The A/V MODULATOR WITH ANTENNA SWITCH, is intended for reception of video transmission. It modulates video signal to the standard out chanel 3 or 4. And it can auto switch the input signals to TV, that is, when there is a AV signal coming into the AV terminal, it will auto switch to this erminal, otherwise, it will e at “antenna in” position. The AVM-589LB sends the Sony Playstation Game’s signal to the TV, when the game is on. And sends the antenna’s signal to the TV when the game is off.

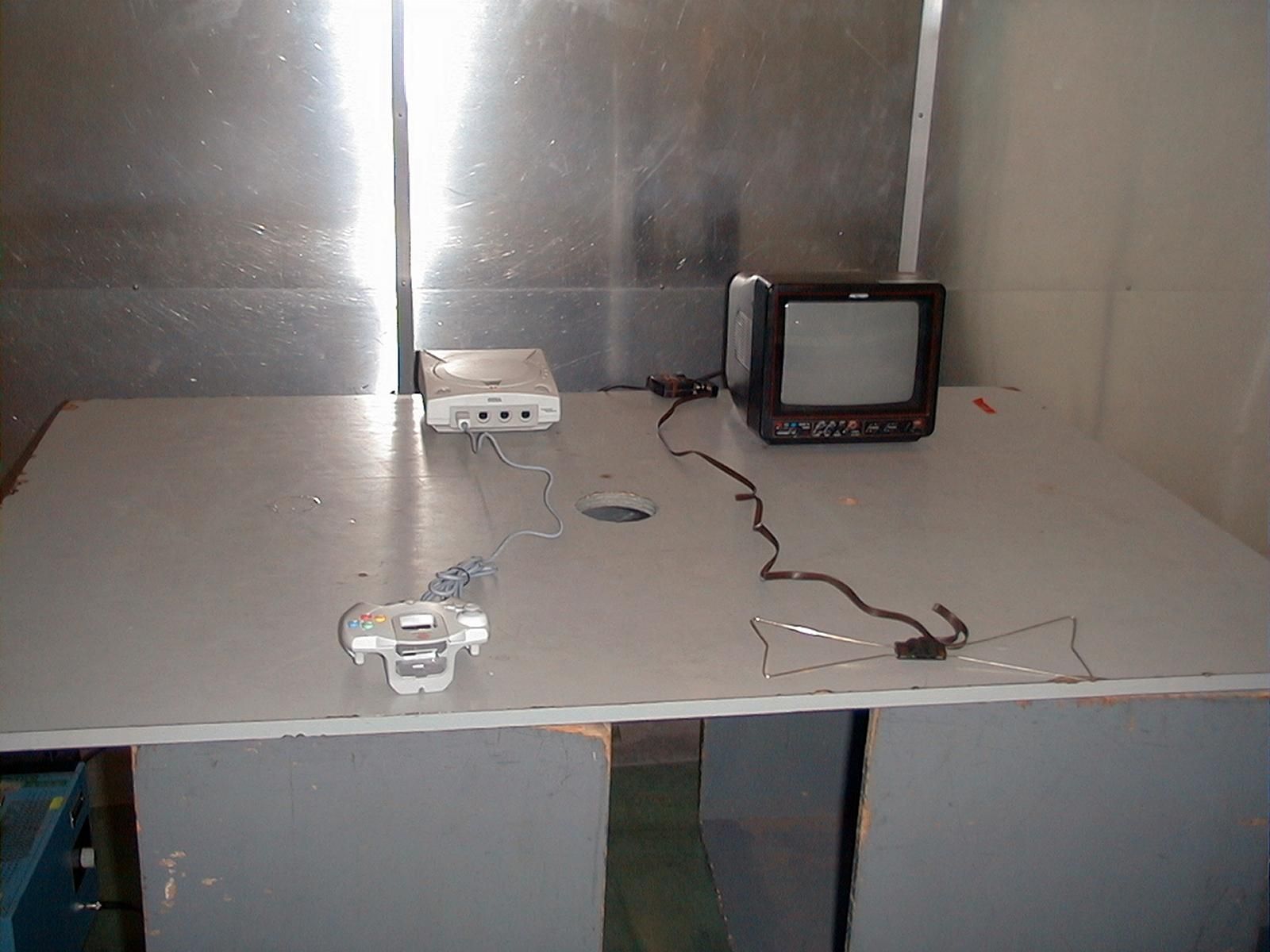

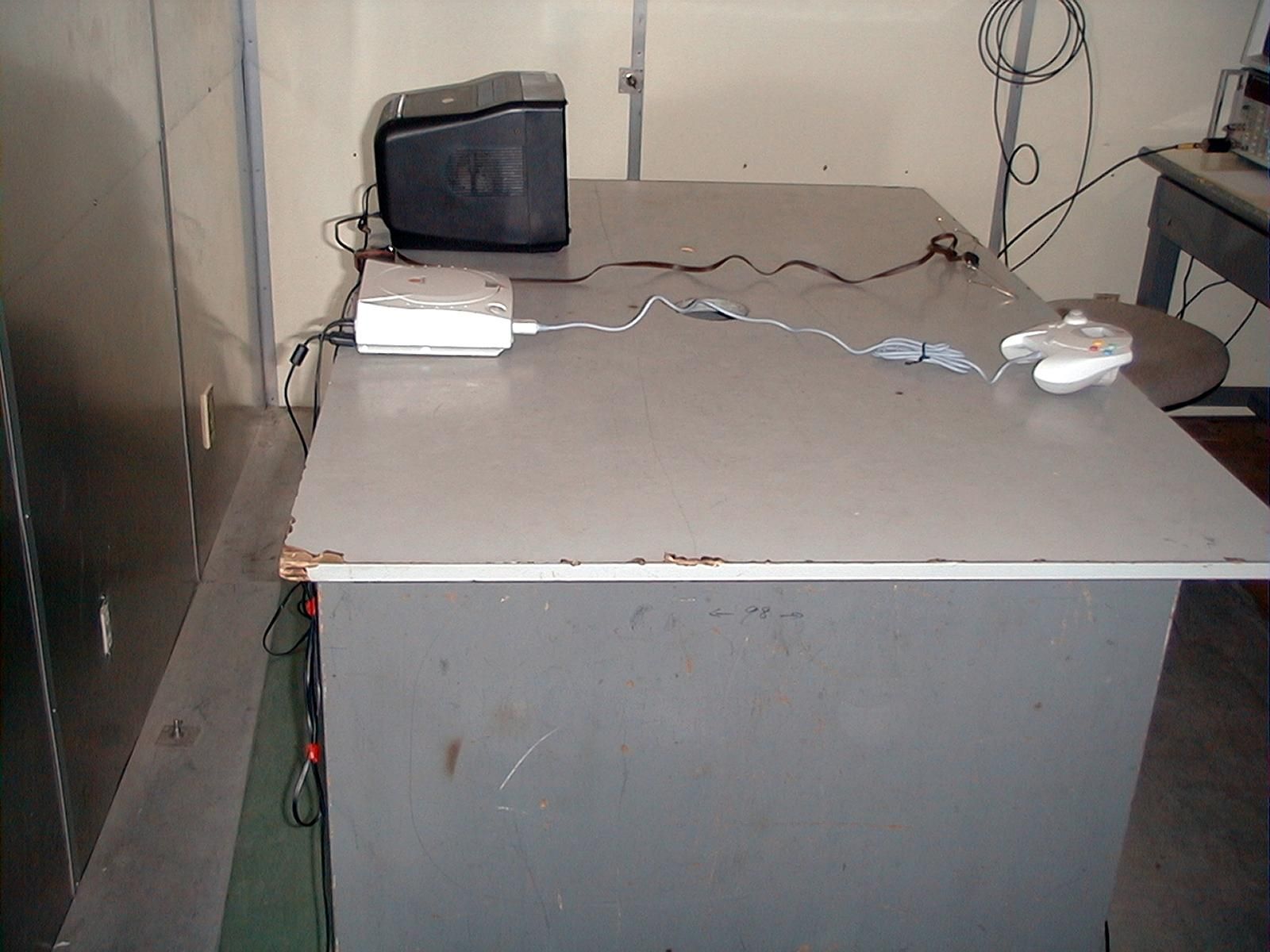

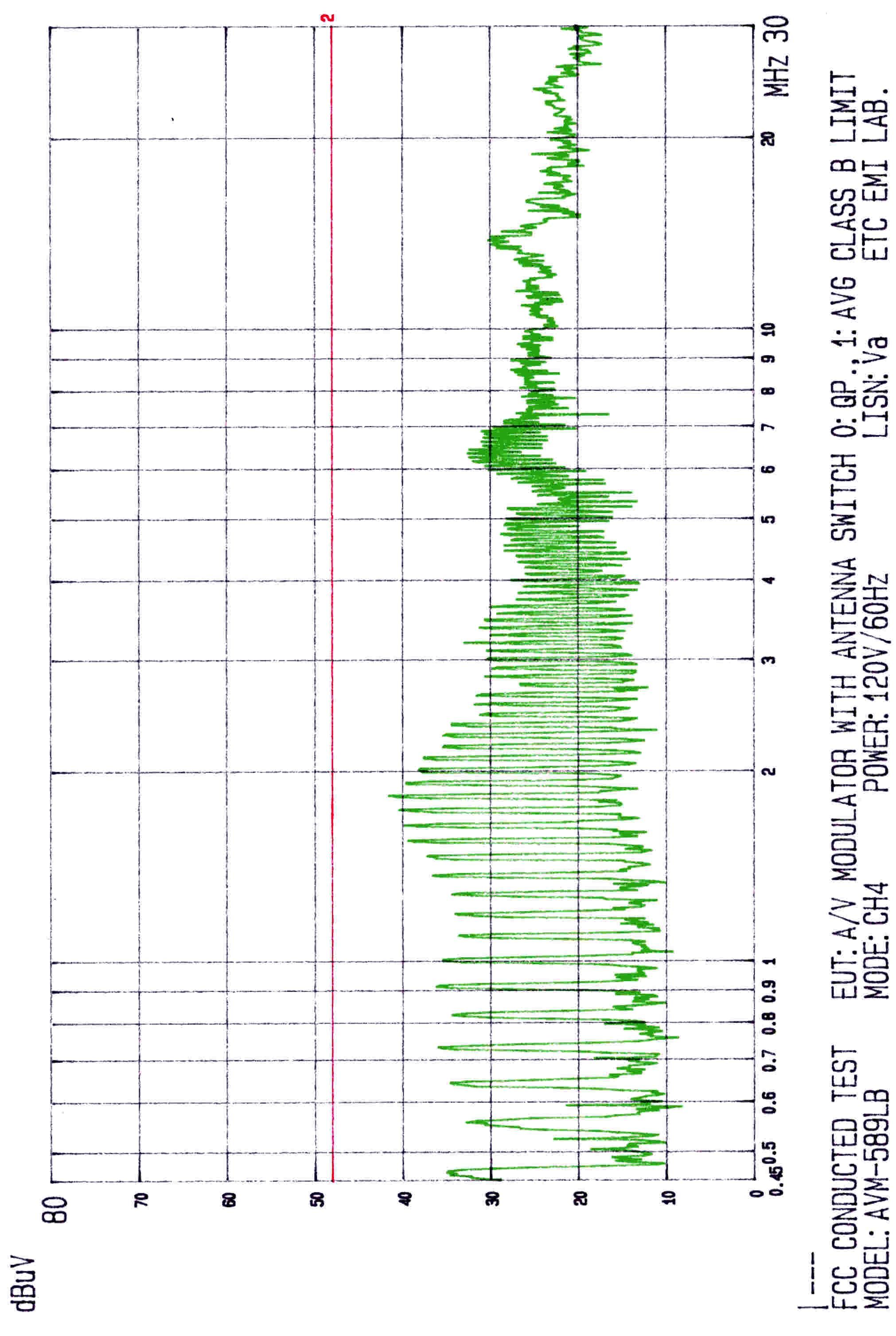

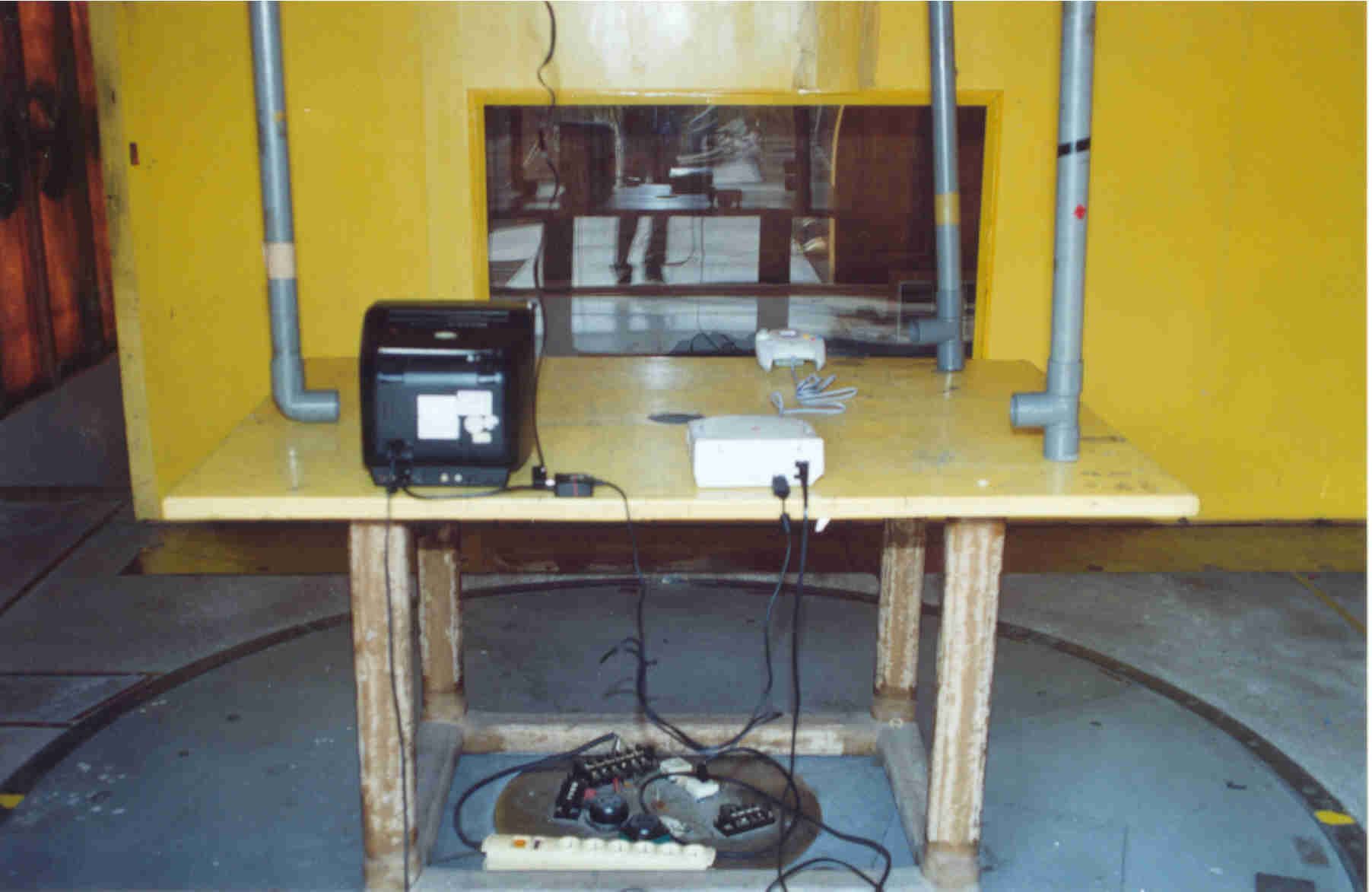

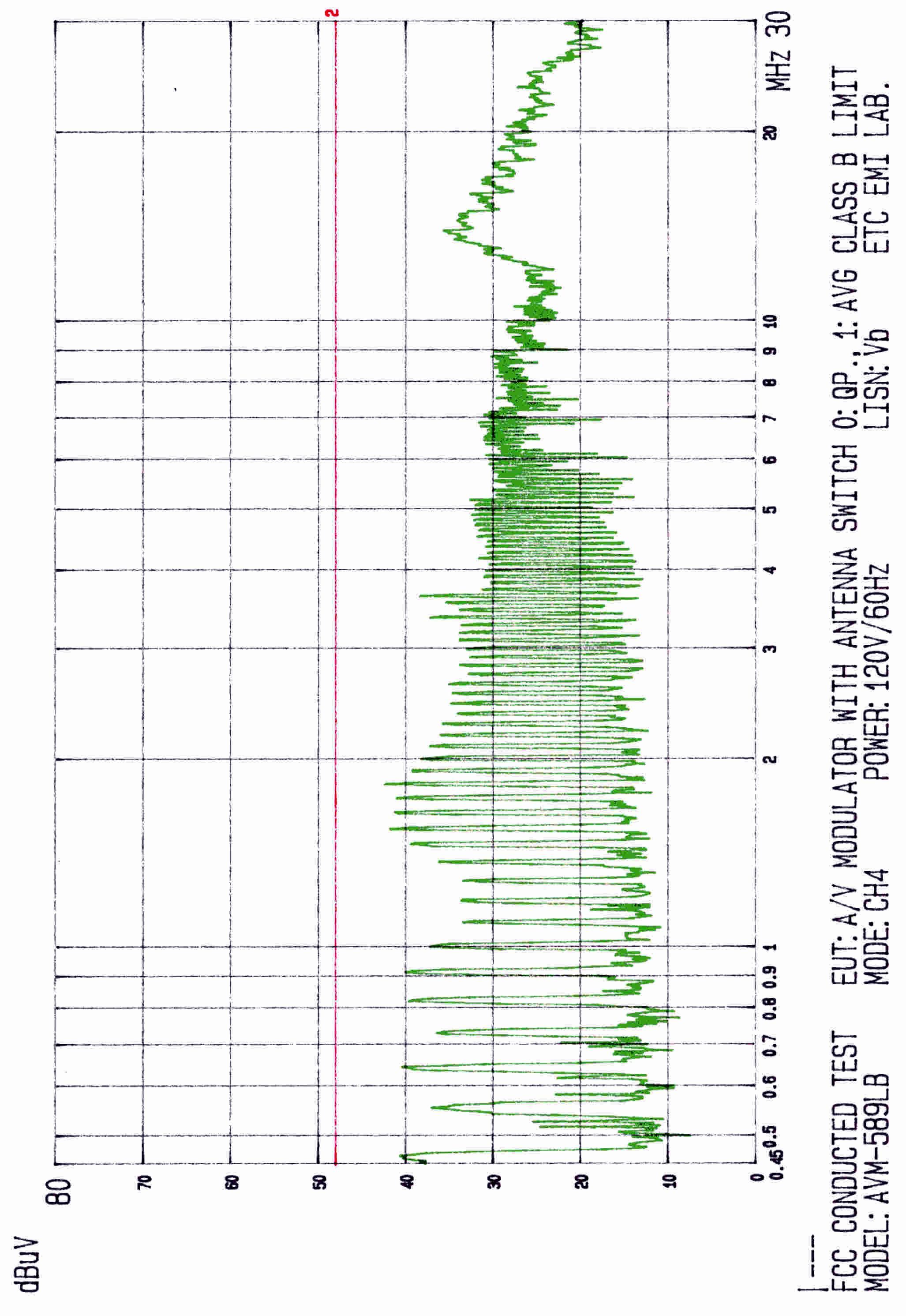

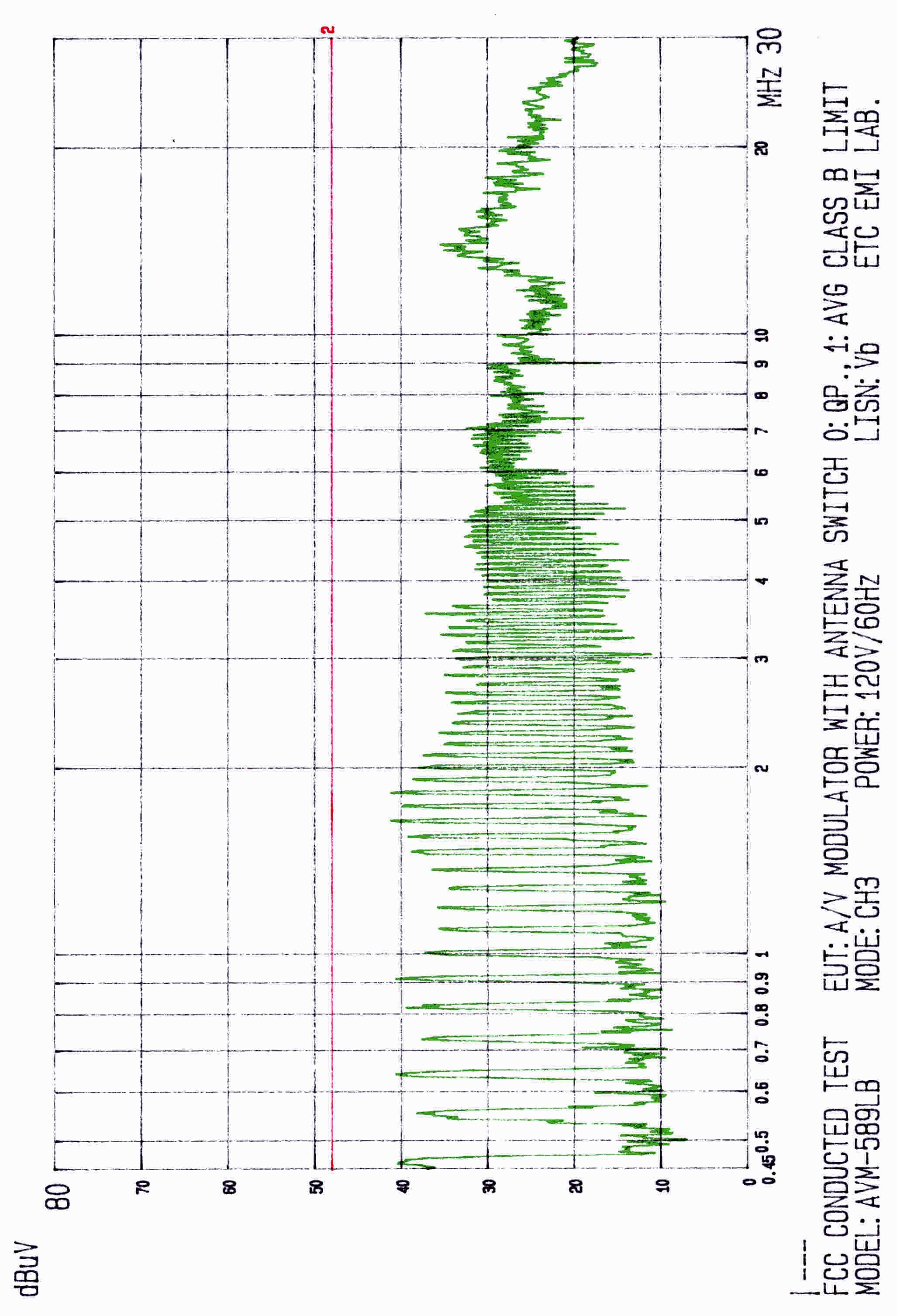

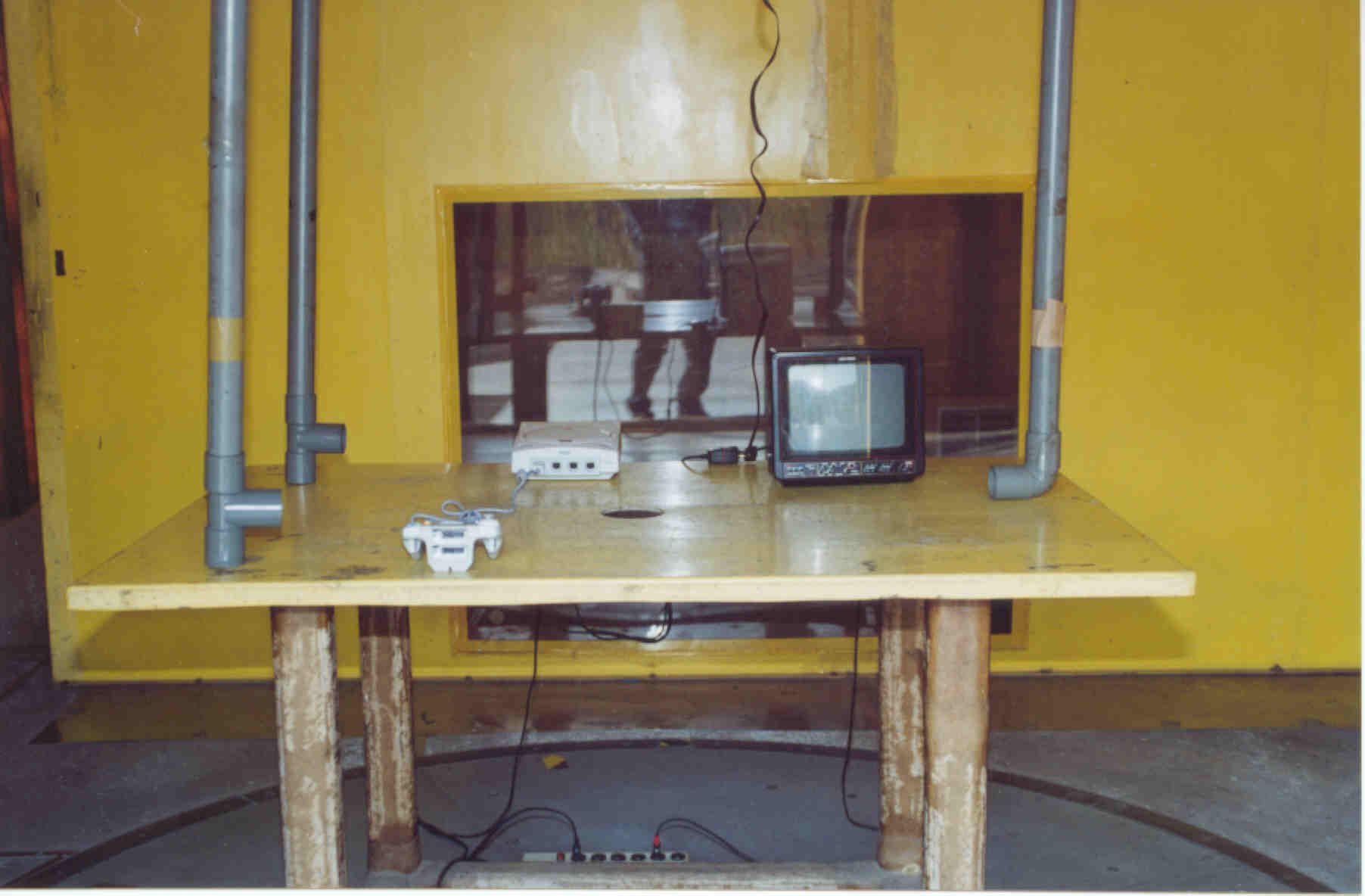

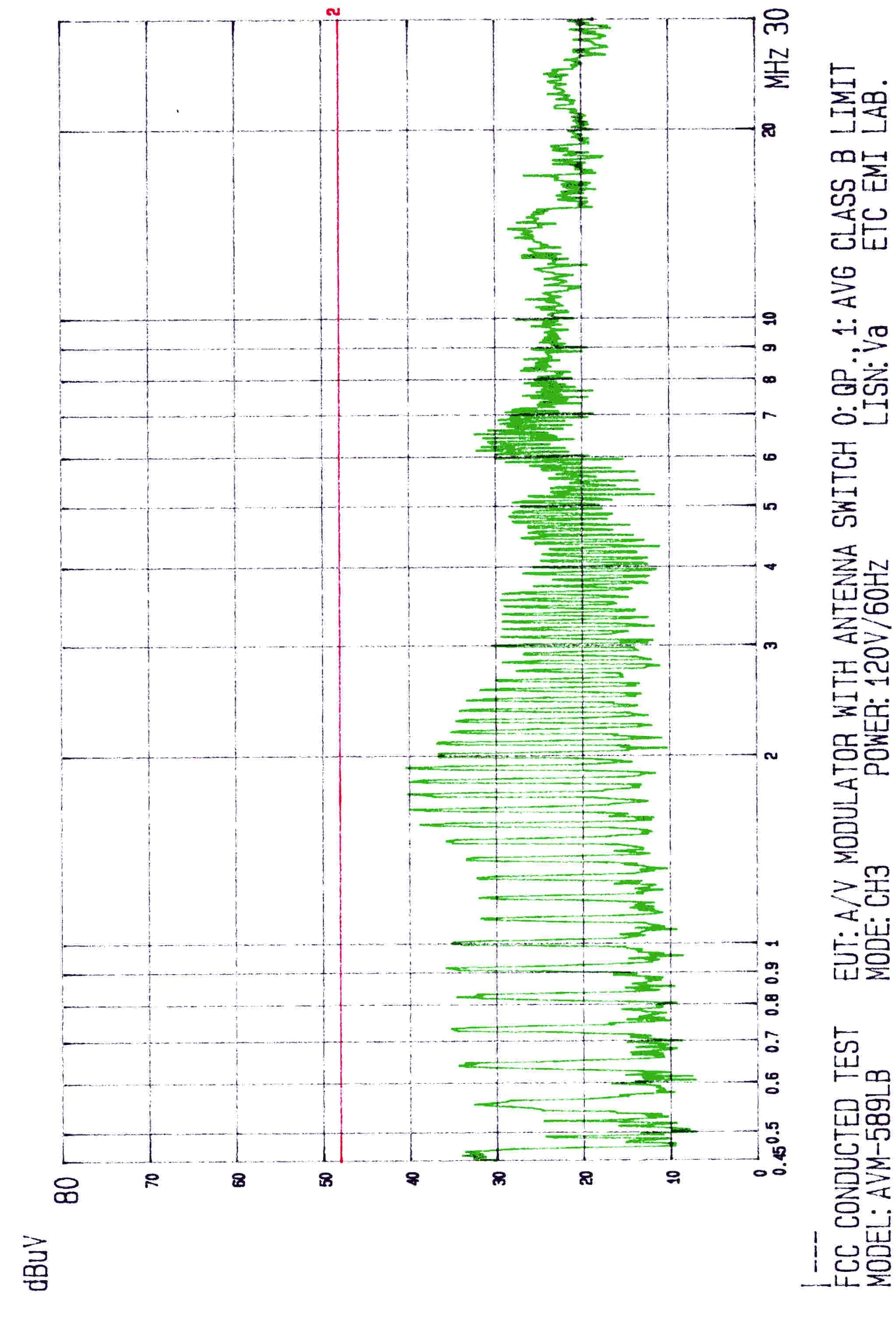

FCC ID. : DT9AVM-589LB Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : A/V MODULATOR WITH ANTENNA SWITCH MODEL : AVM-589LB FCC ID. : DT9AVM-589LB for APPLICANT : JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, SIN LO ROAD, P.O. BOX 57, TAINAN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-12-030 ETC Report No. : ET88R-12-030FCC ID. : DT9AVM-589LB Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: JEBSEE ELECTRONICS CO., LTD. 24-3, SIN LO ROAD, P.O. BOX 57, TAINAN, TAIWAN, R.O.C. Manufacturer: JEBSEE ELECTRONICS CO., LTD. (S.Z) 60 NANCHANG ROAD, NANC HANG VILLAGE GU SHG XIXIANG TOWN BAOAN ZONE, SHEN ZHEN CHINA Description of EUT: a) Type of EUT: A/V MODULATOR WITH ANTENNA SWITCH b) Trade Name: JEBSEE c) Model No.: AVM-589LB d) The data also apply to model : AVM-590, AVM-590A, AVM-591, AVM-589A, AVM-594, 26-609, 26-610 e) Power Supply: DC 5V Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :JAN. 14, 2000 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-12-030FCC ID. : DT9AVM-589LB Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology.............................................................................................................................. 1 1.4 Test Facility ....................................................................................................................................... 1 2 LIMITATIONS AND LABELING REQUIREMENT ................................................................... 2 2.1 Definition........................................................................................................................................... 2 2.2 Limitation Requirement..................................................................................................................... 2 2.3 Labeling Requirement ....................................................................................................................... 4 2.4 User Information................................................................................................................................ 5 3 SYSTEM TEST CONFIGURATION............................................................................................... 6 3.1 Justification........................................................................................................................................ 6 3.2 Devices for Tested System ................................................................................................................ 6 4 RADIATED EMISSION MEASUREMENT................................................................................... 7 4.1 Applicable Standard .......................................................................................................................... 7 4.2 Measurement Procedure .................................................................................................................... 7 4.3 Measuring Instrument ........................................................................................................................ 9 4.4 Radiated Emission Data .................................................................................................................. 10 4.5 Field Strength Calculation ............................................................................................................... 11 4.6 Photos of Radiation Measuring Setup ............................................................................................. 12 5 CONDUCTED EMISSION MEASUREMENT ............................................................................ 13 5.1 Standard Applicable ........................................................................................................................ 13 5.2 Measurement Procedure .................................................................................................................. 13 5.3 Conducted Emission Data ............................................................................................................... 14 5.4 Result Data Calculation ................................................................................................................... 15 5.5 Conducted Measurement Equipment............................................................................................... 15 5.6 Photos of Conduction Measuring Setup .......................................................................................... 16 6 RF OUTPUT LEVEL MEASUREMENT...................................................................................... 17 6.1 Measurement Description................................................................................................................ 17 6.2 Data of Measurement..................................................................................................................…
