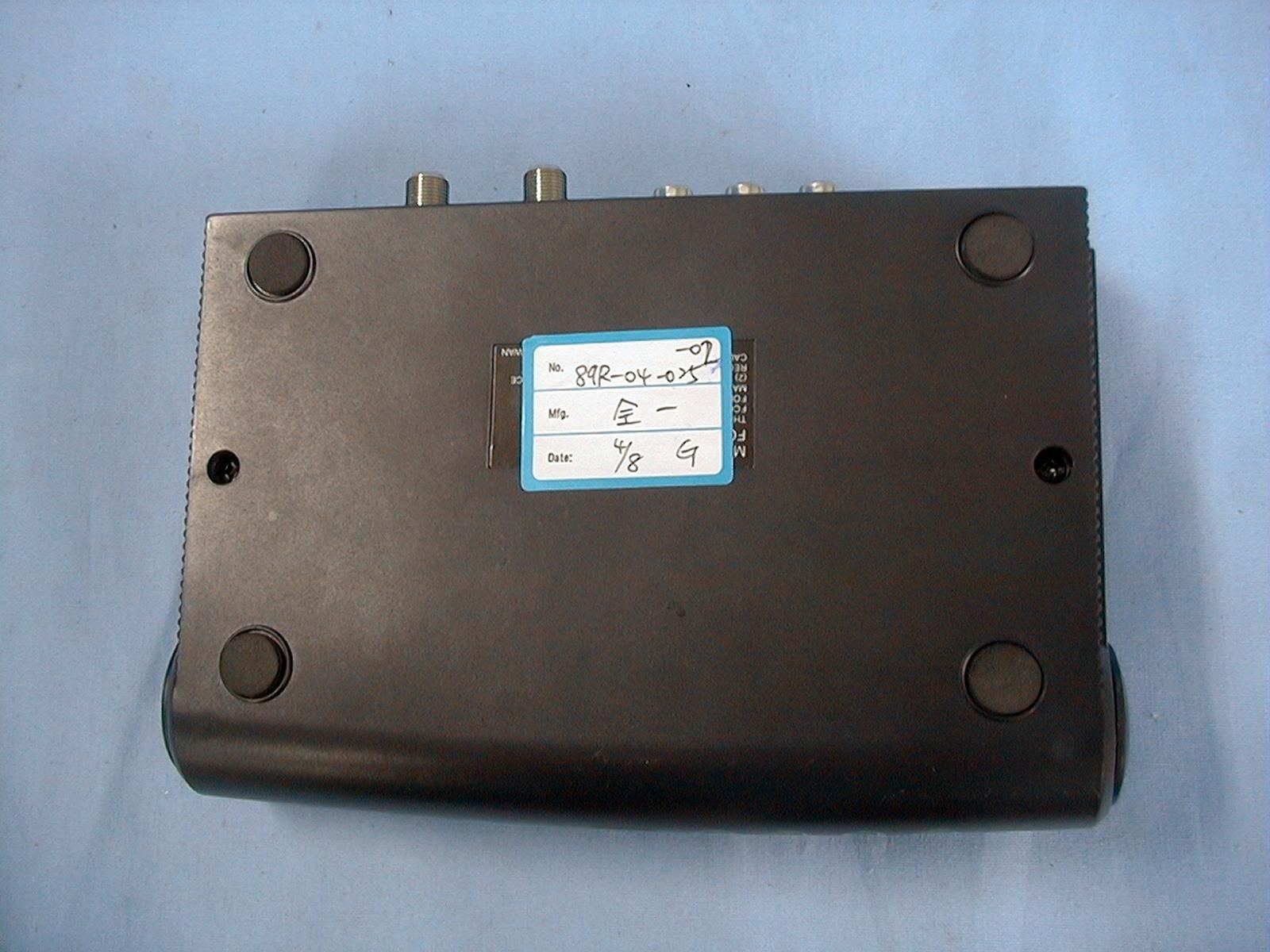

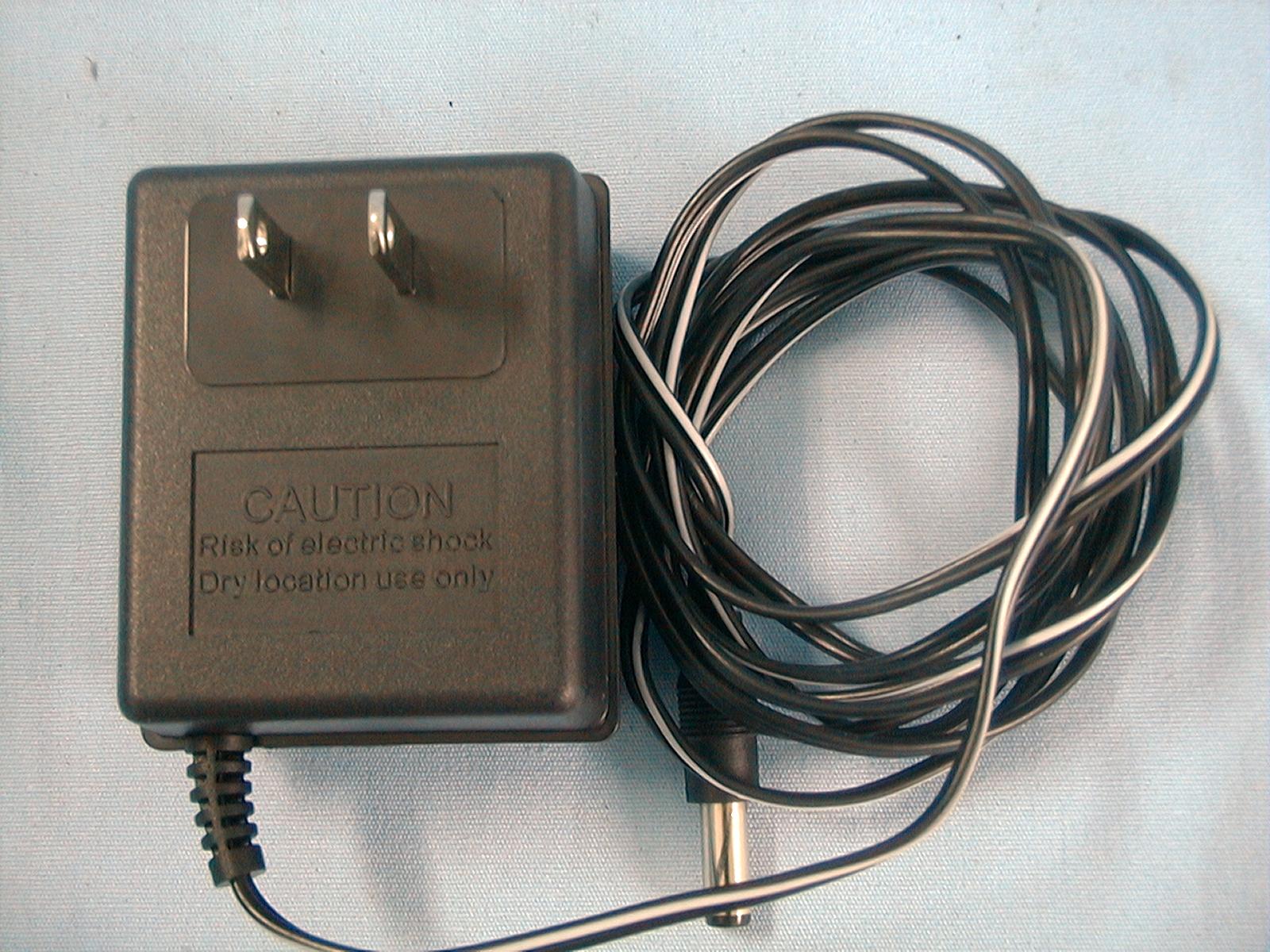

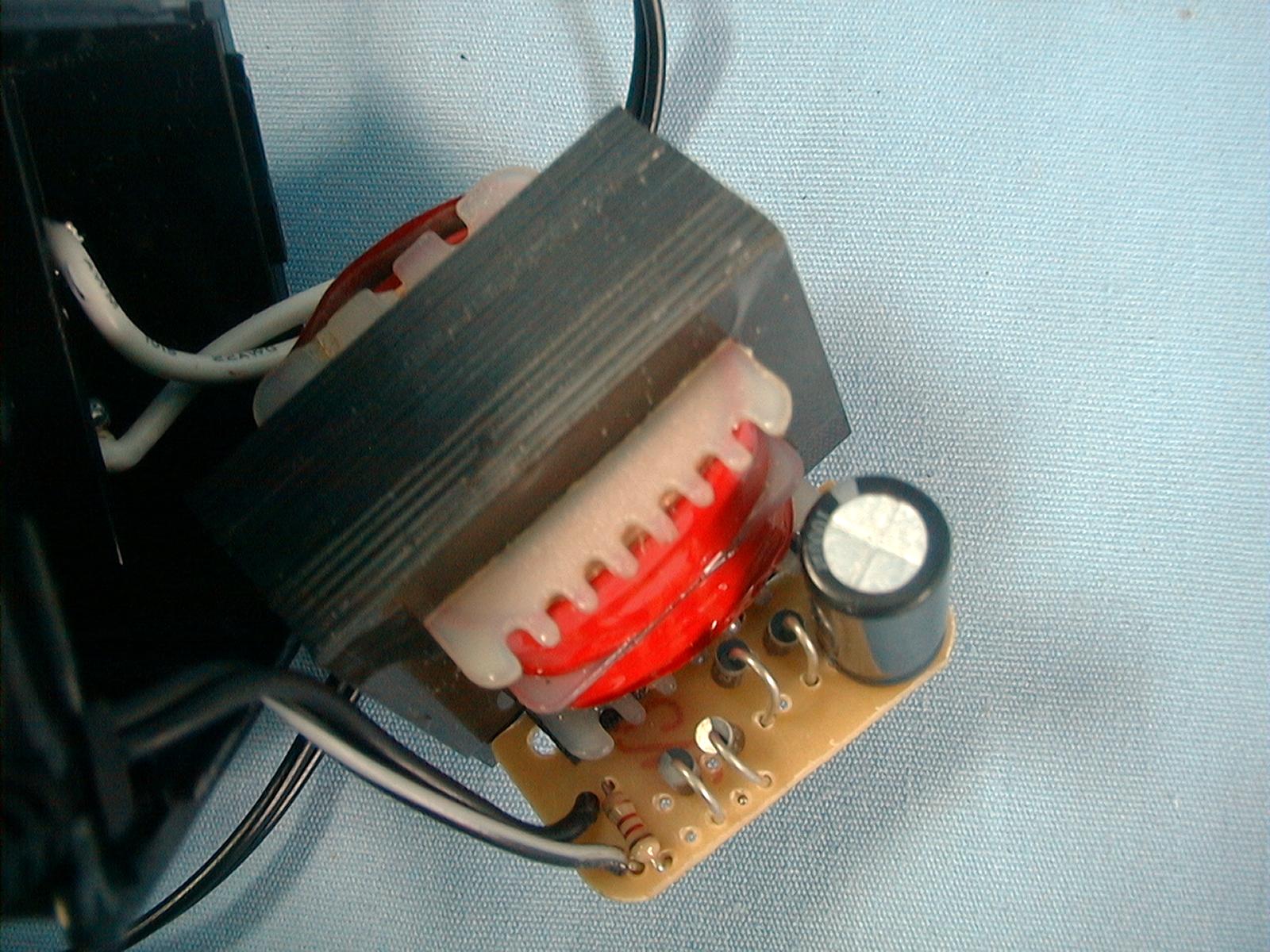

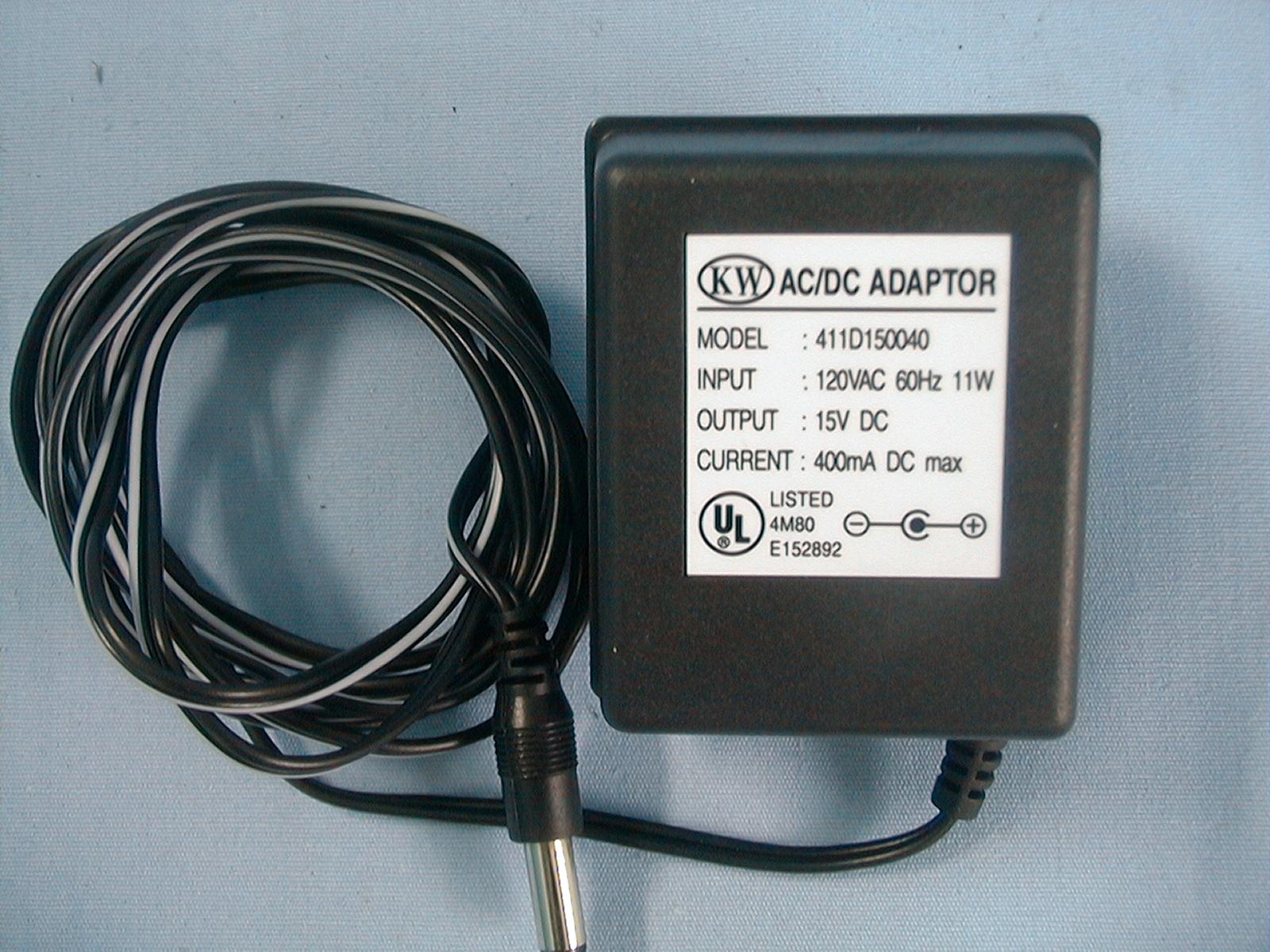

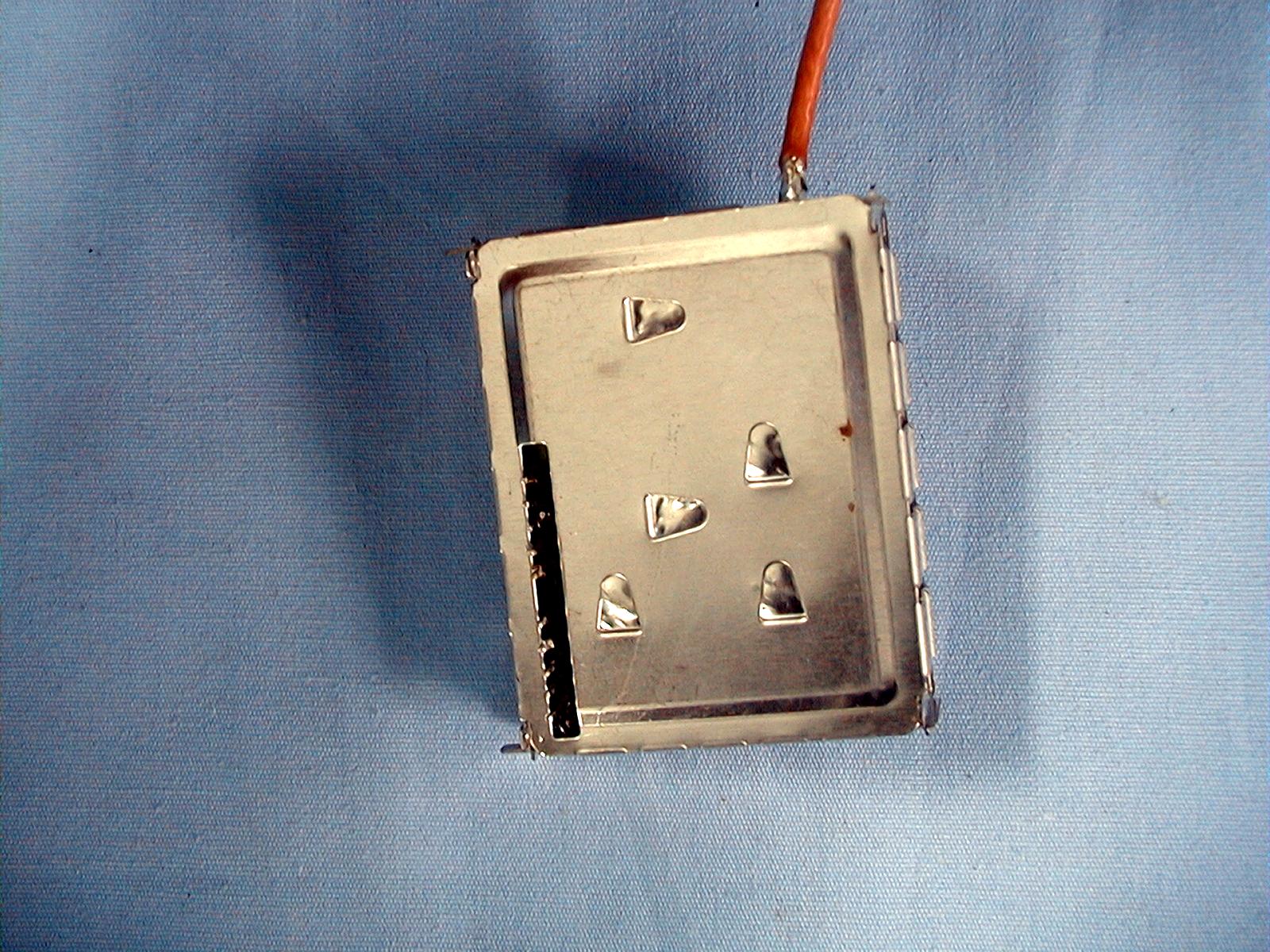

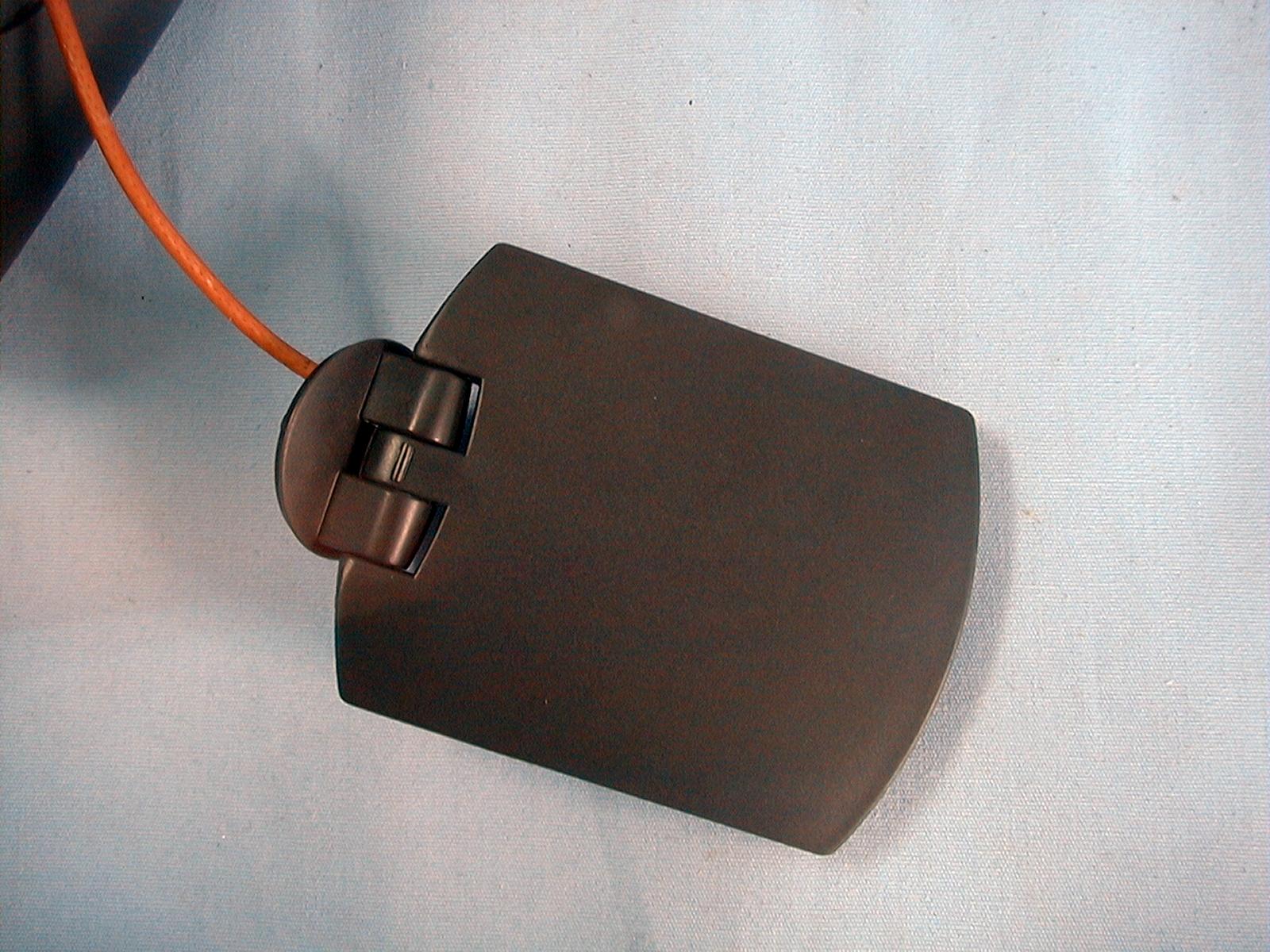

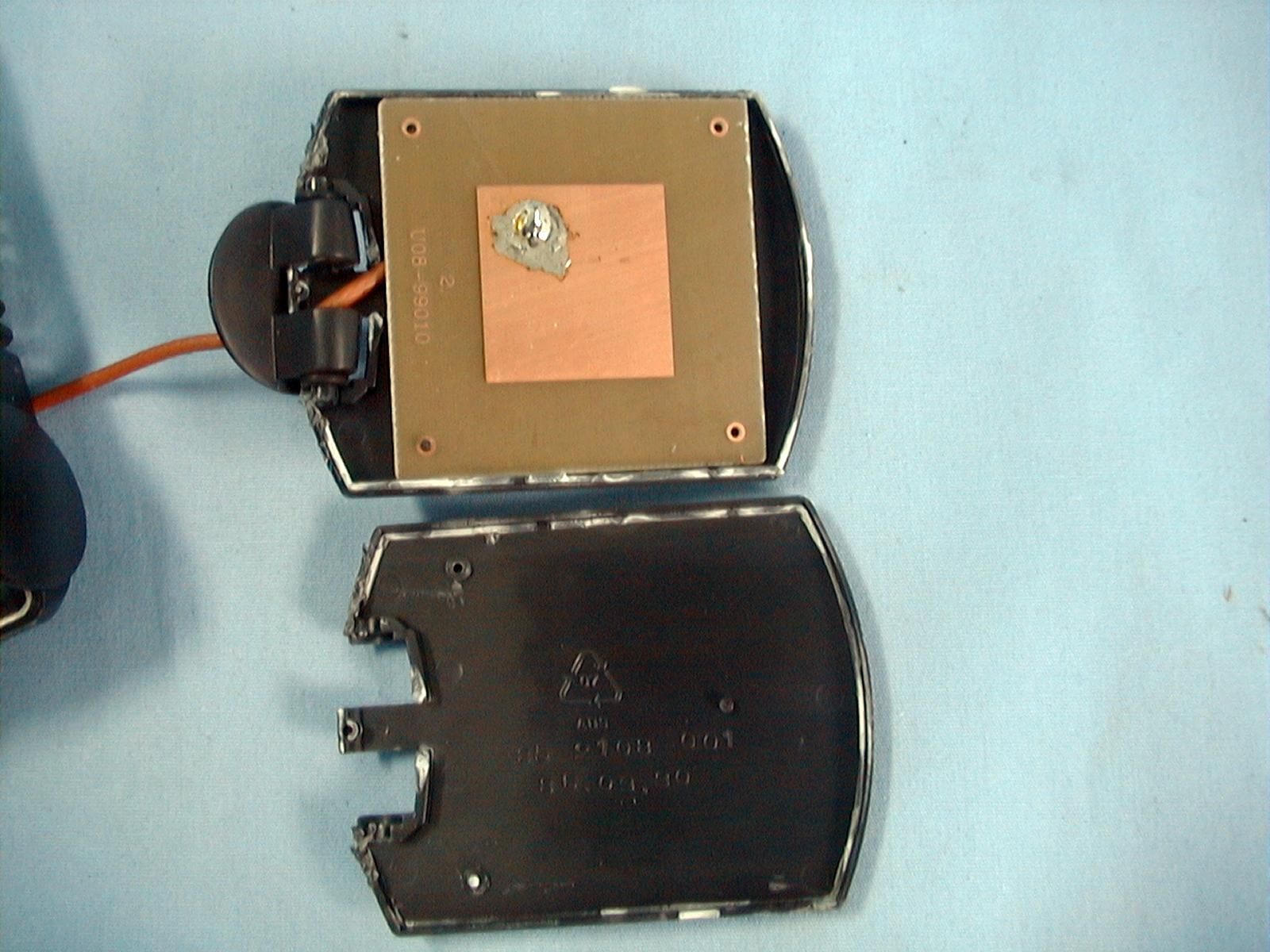

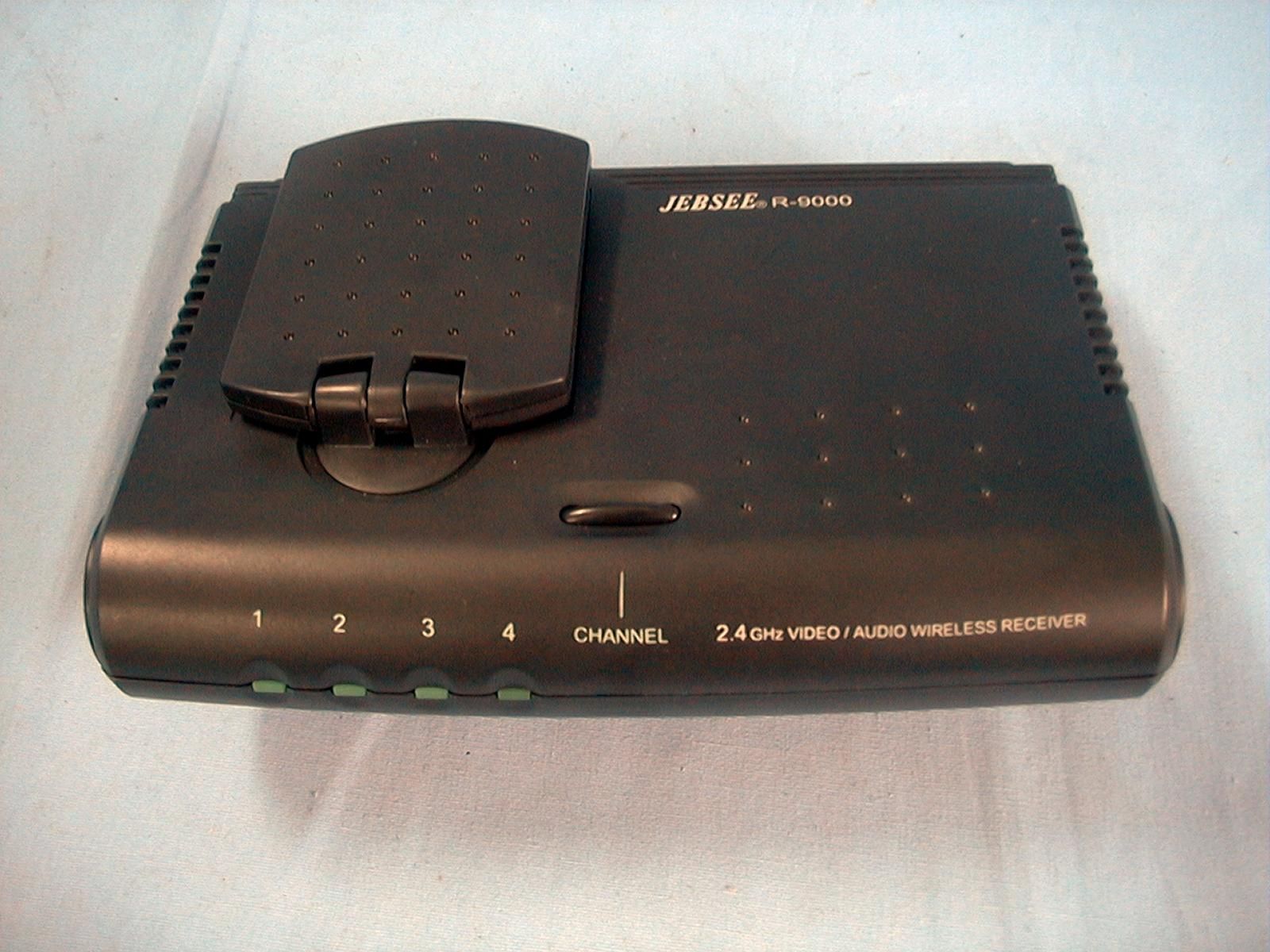

DT9R-9000AA/V Receiver

Jebsee Electronics Company Ltd

Click to zoom

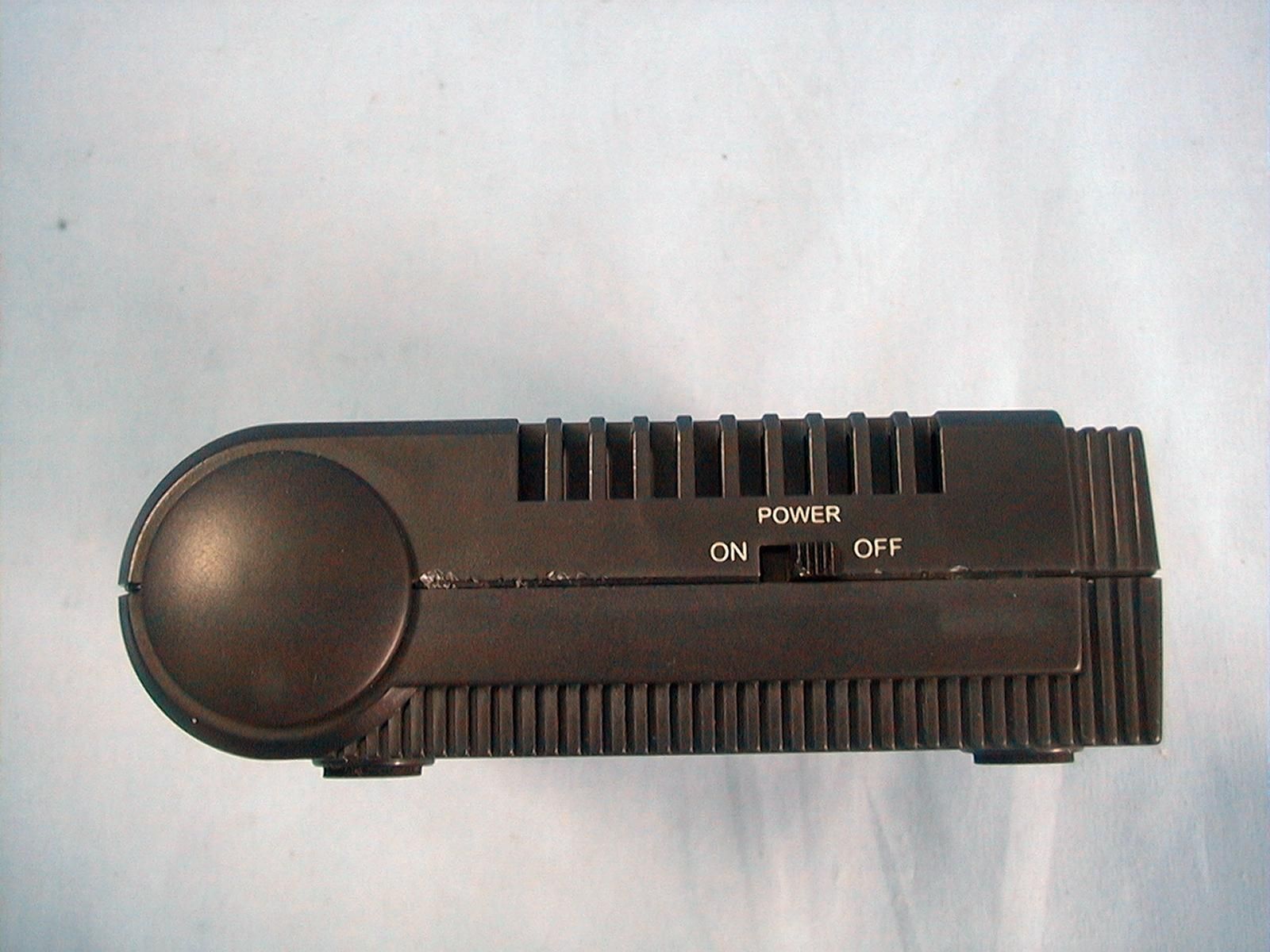

Application Details

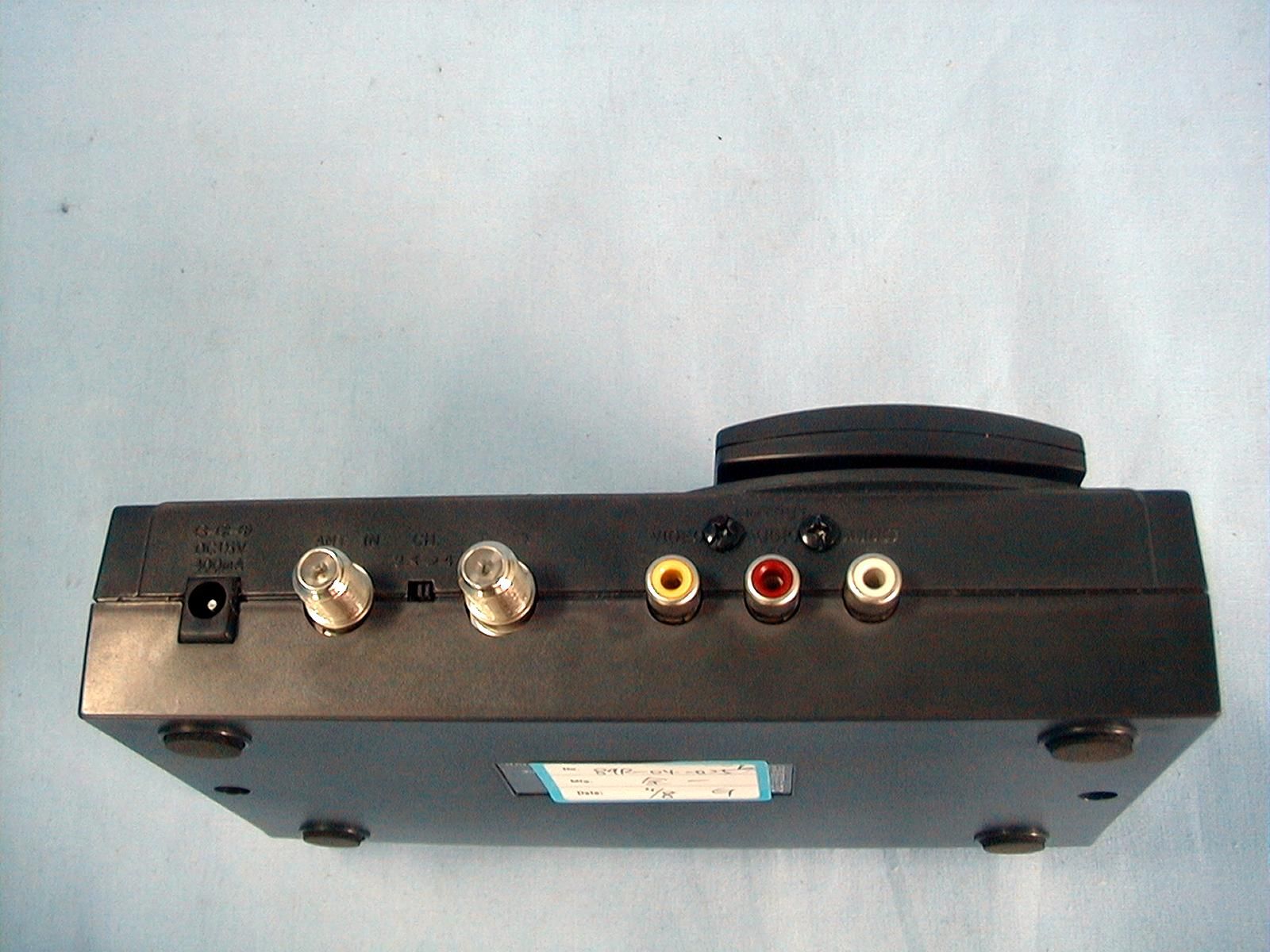

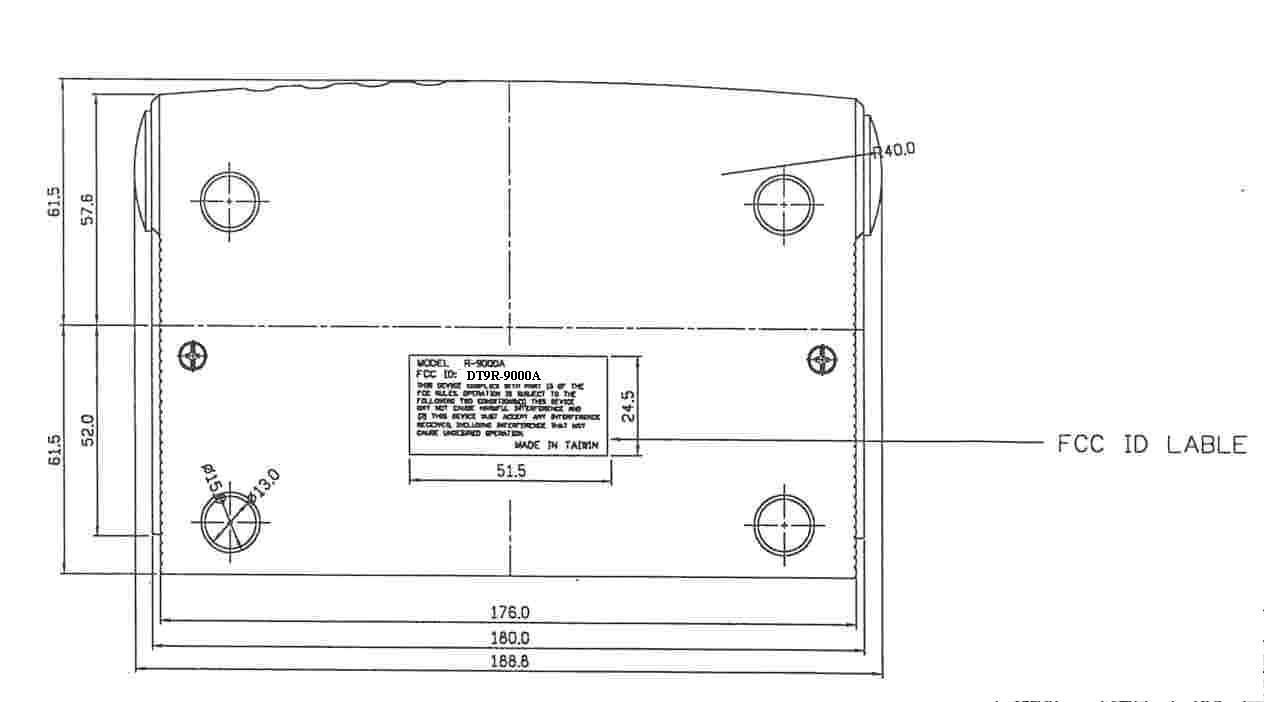

Equipment Class: HID - Part 15 TV Interface Device
Date of Grant: Jul 10, 2000
Application Purpose: Original Equipment
Date of Application: Jun 17, 2000
Equipment Note: A/V Receiver
Frequency Range: 67.25000000 - 71.75000000
Company: Jebsee Electronics Company Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

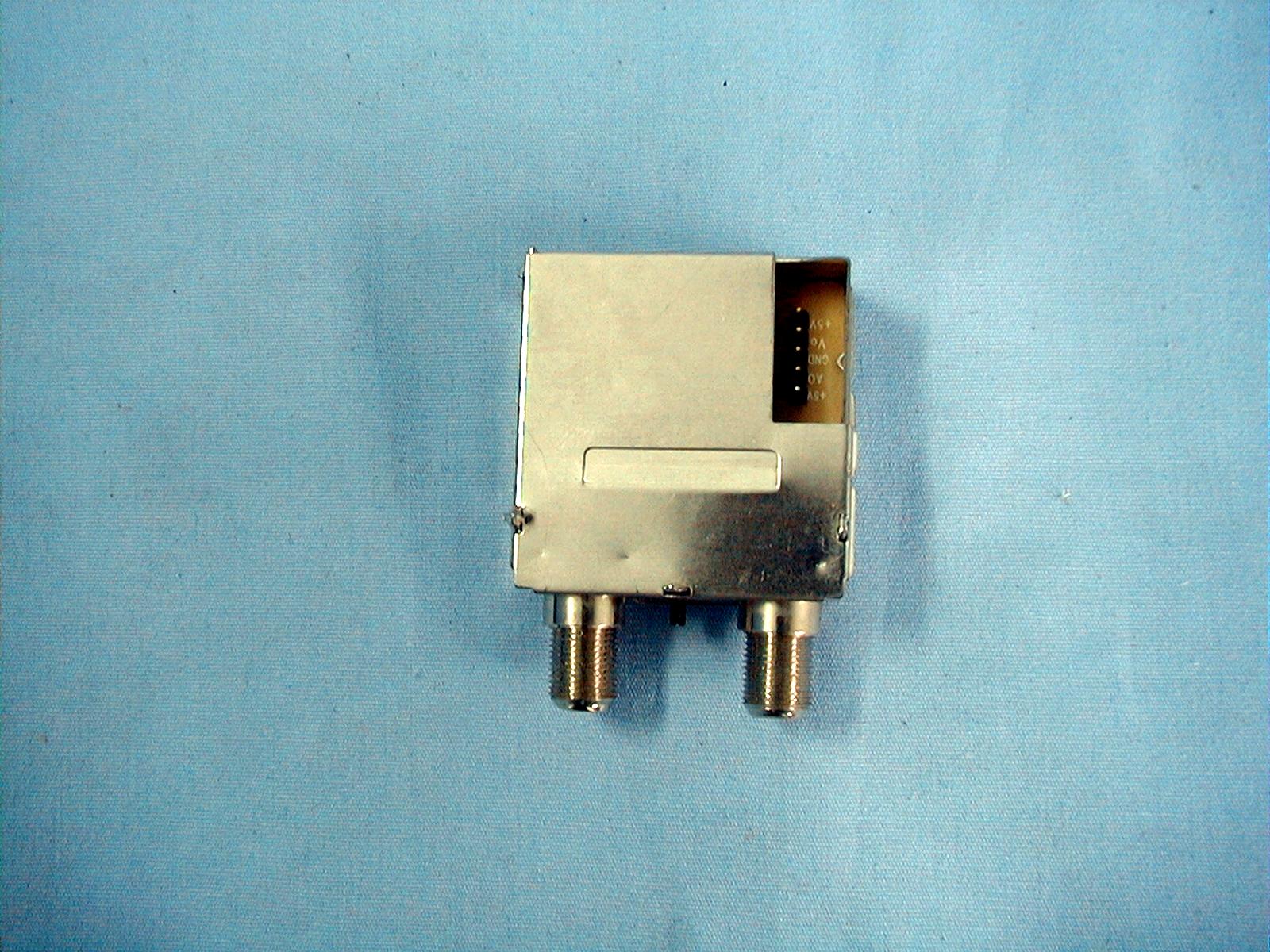

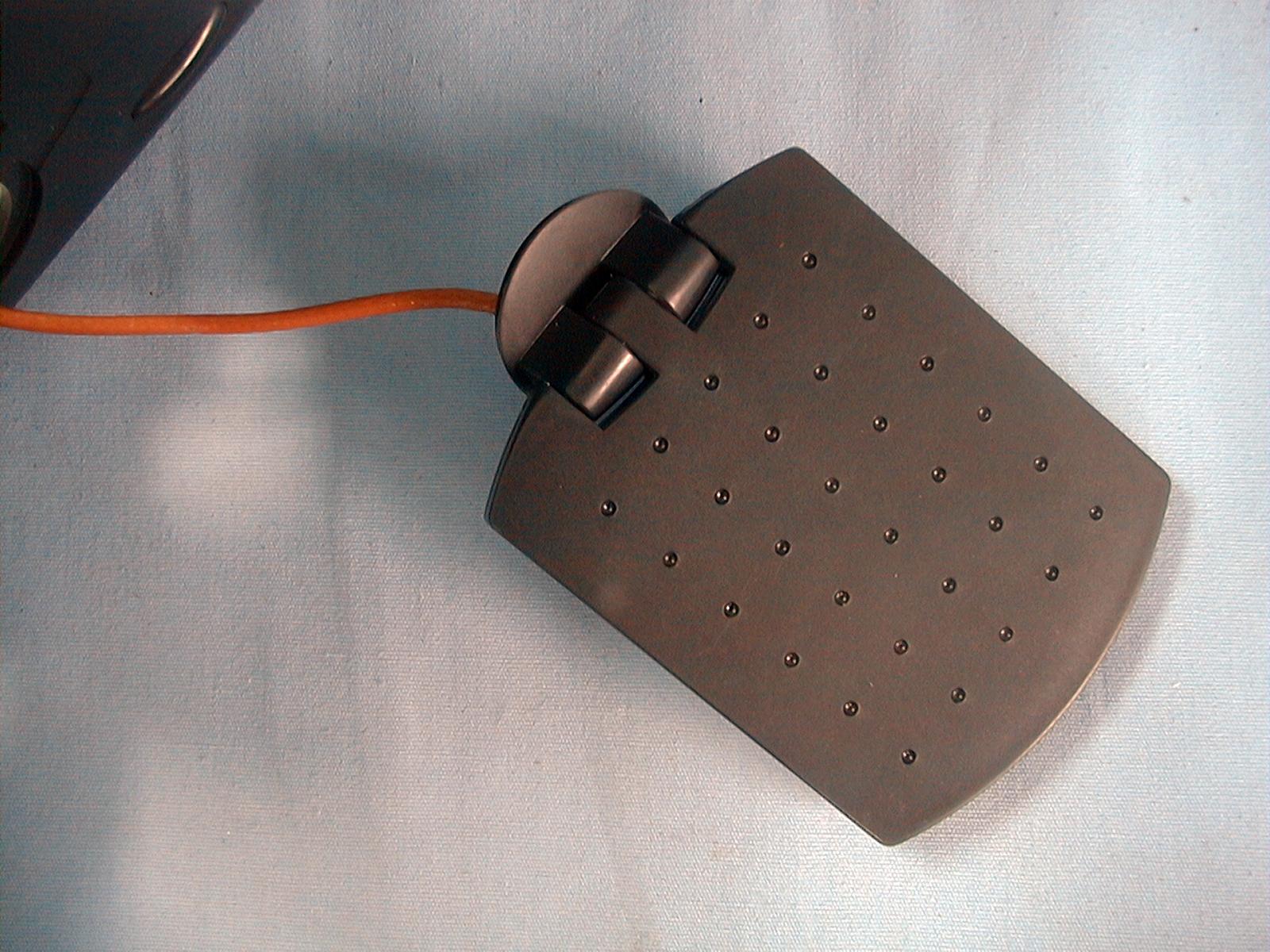

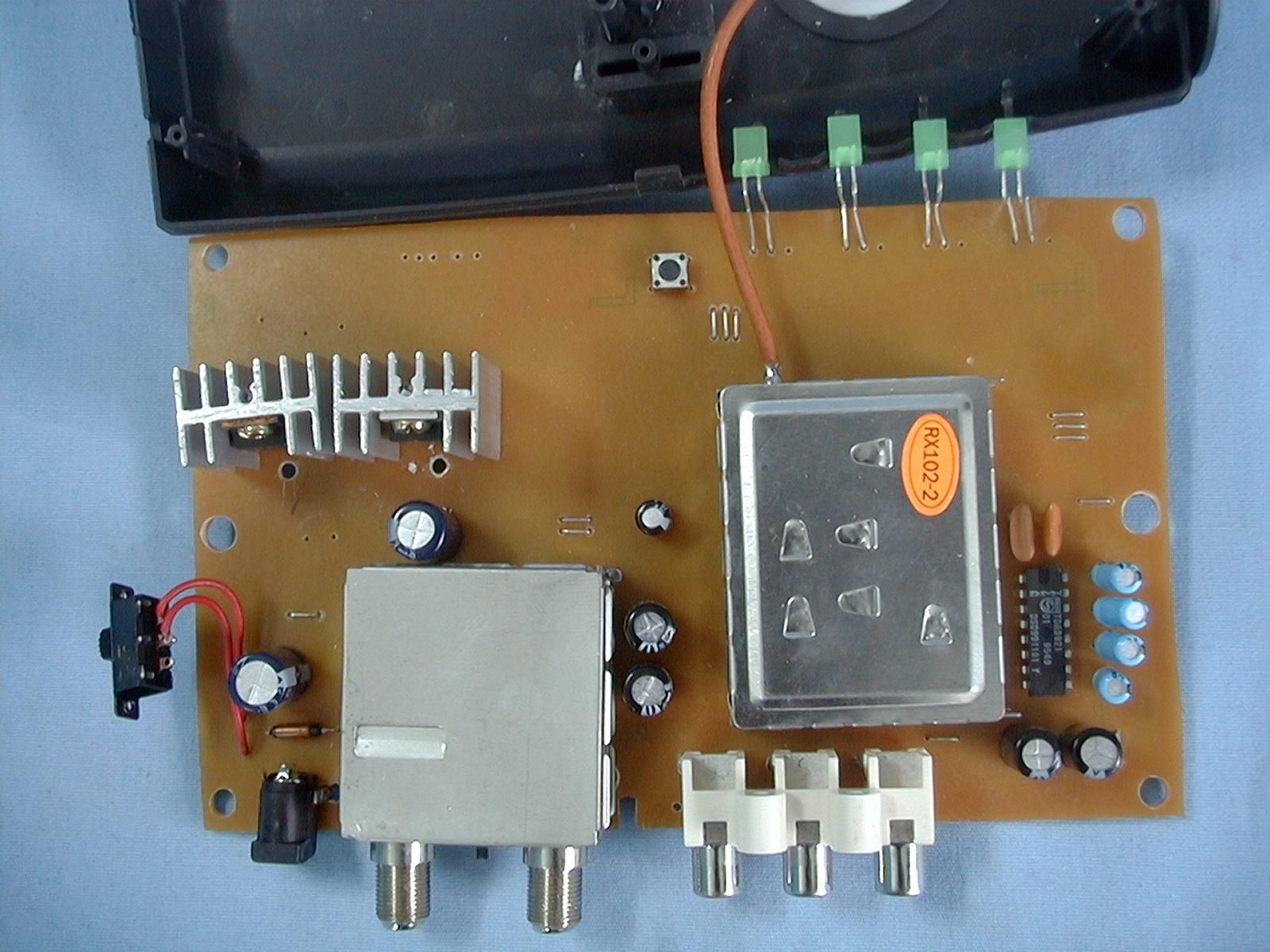

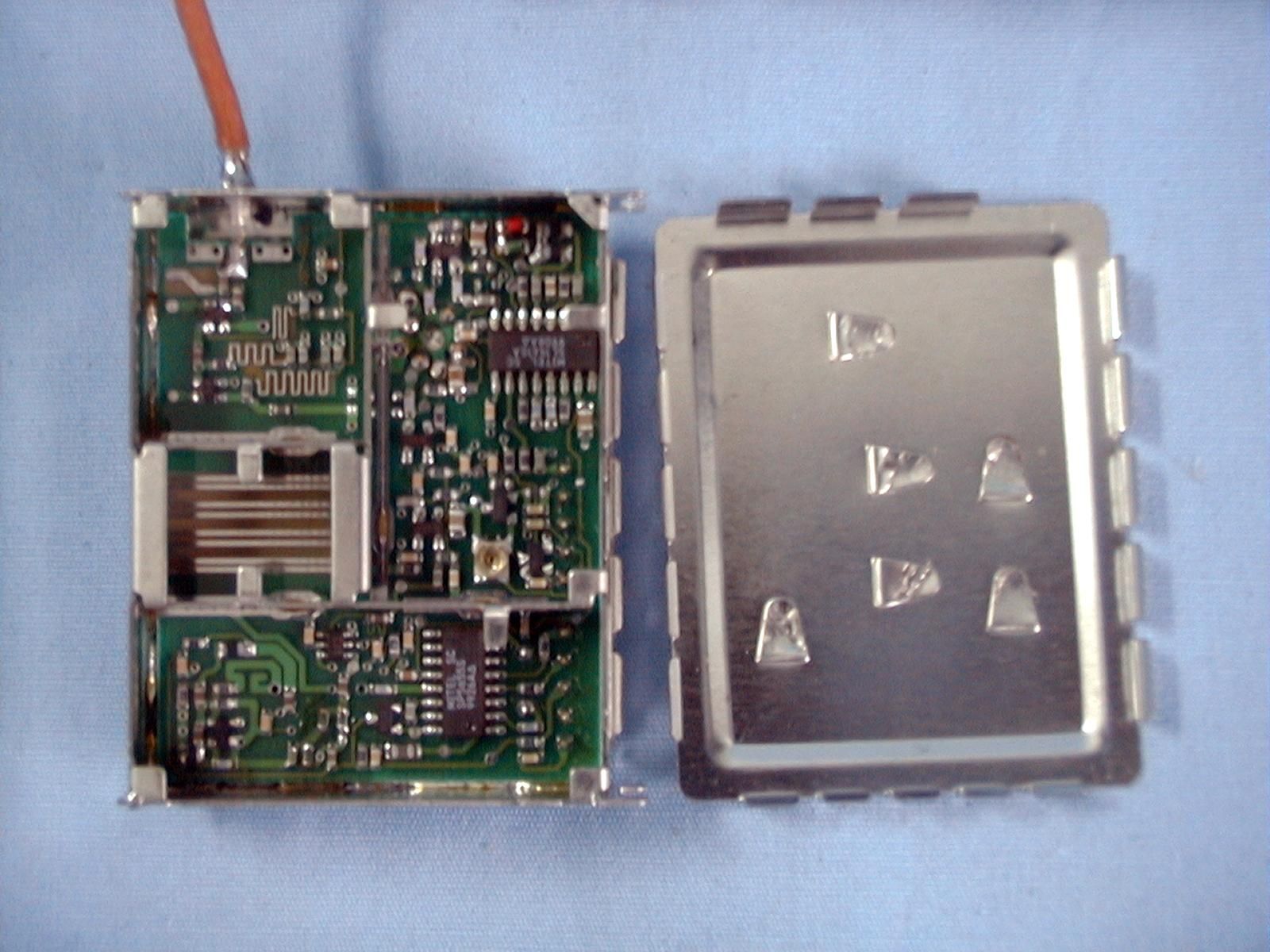

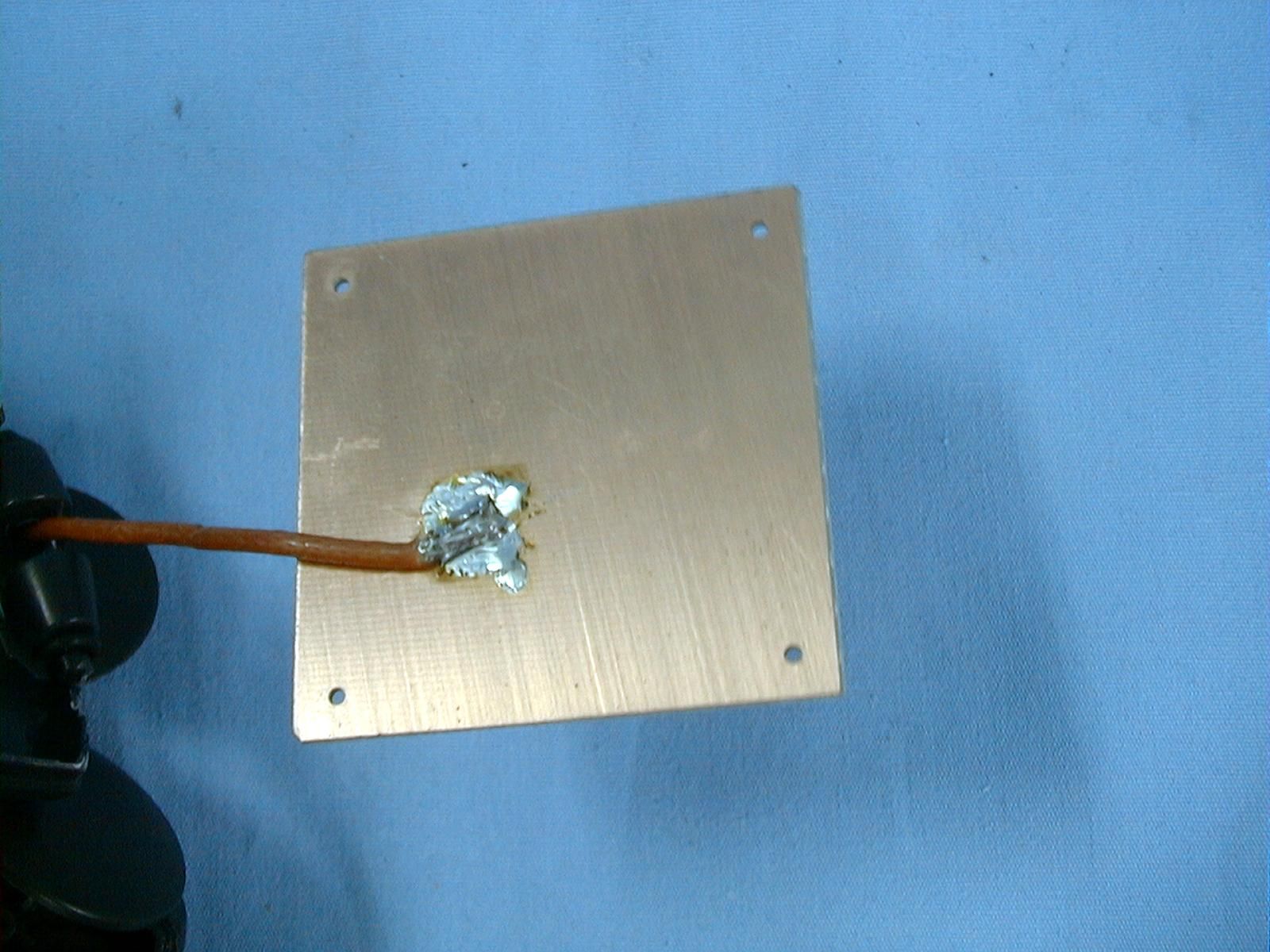

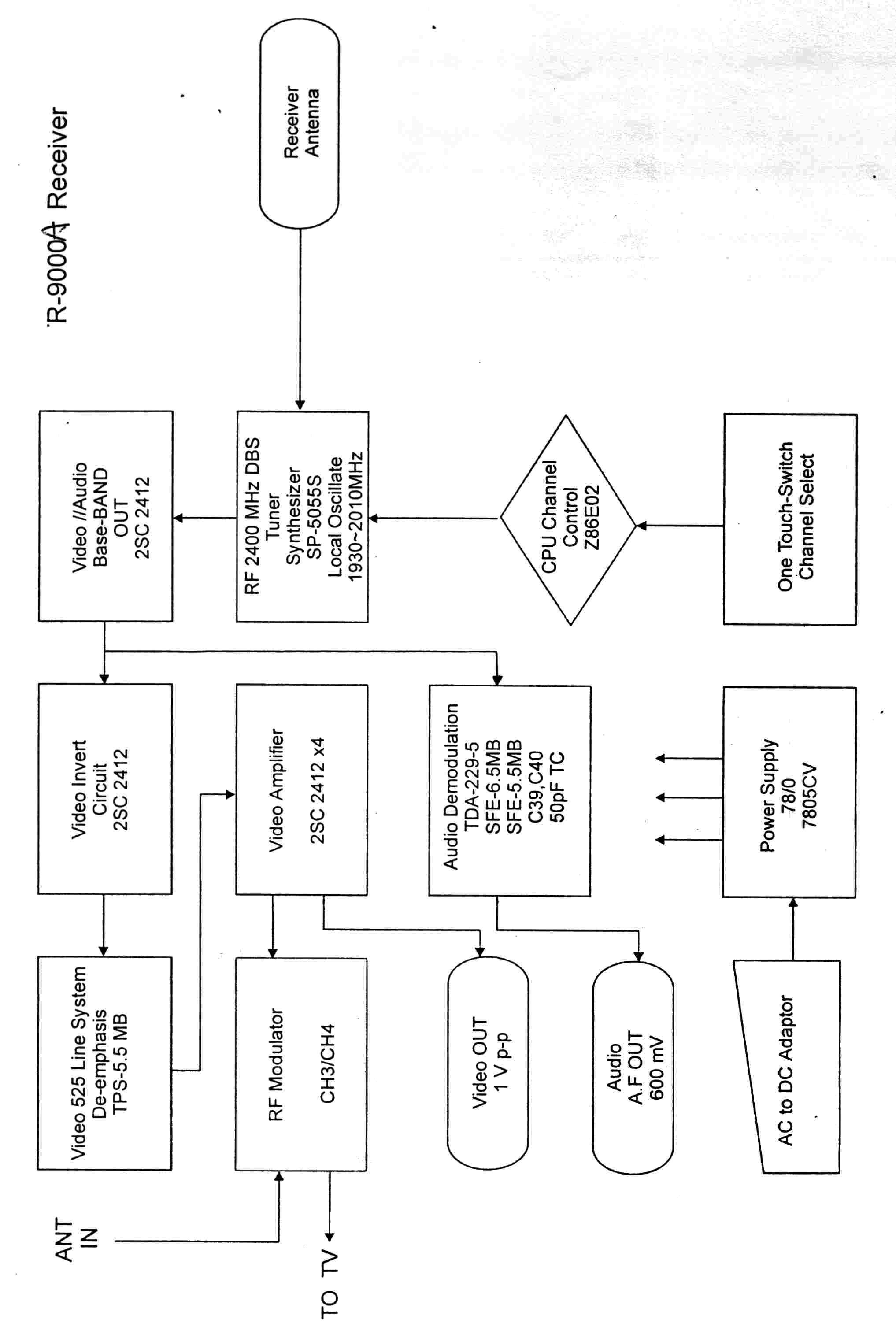

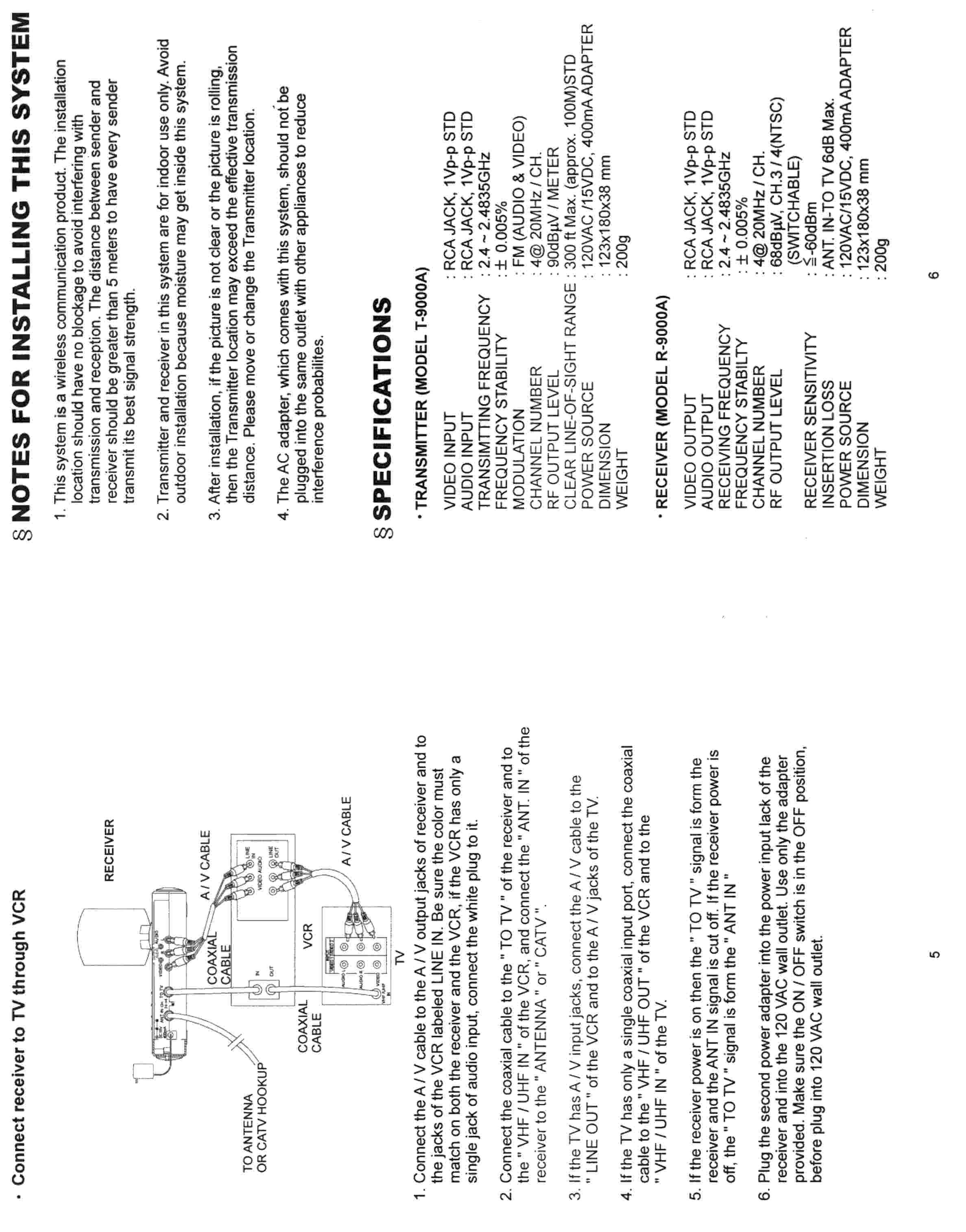

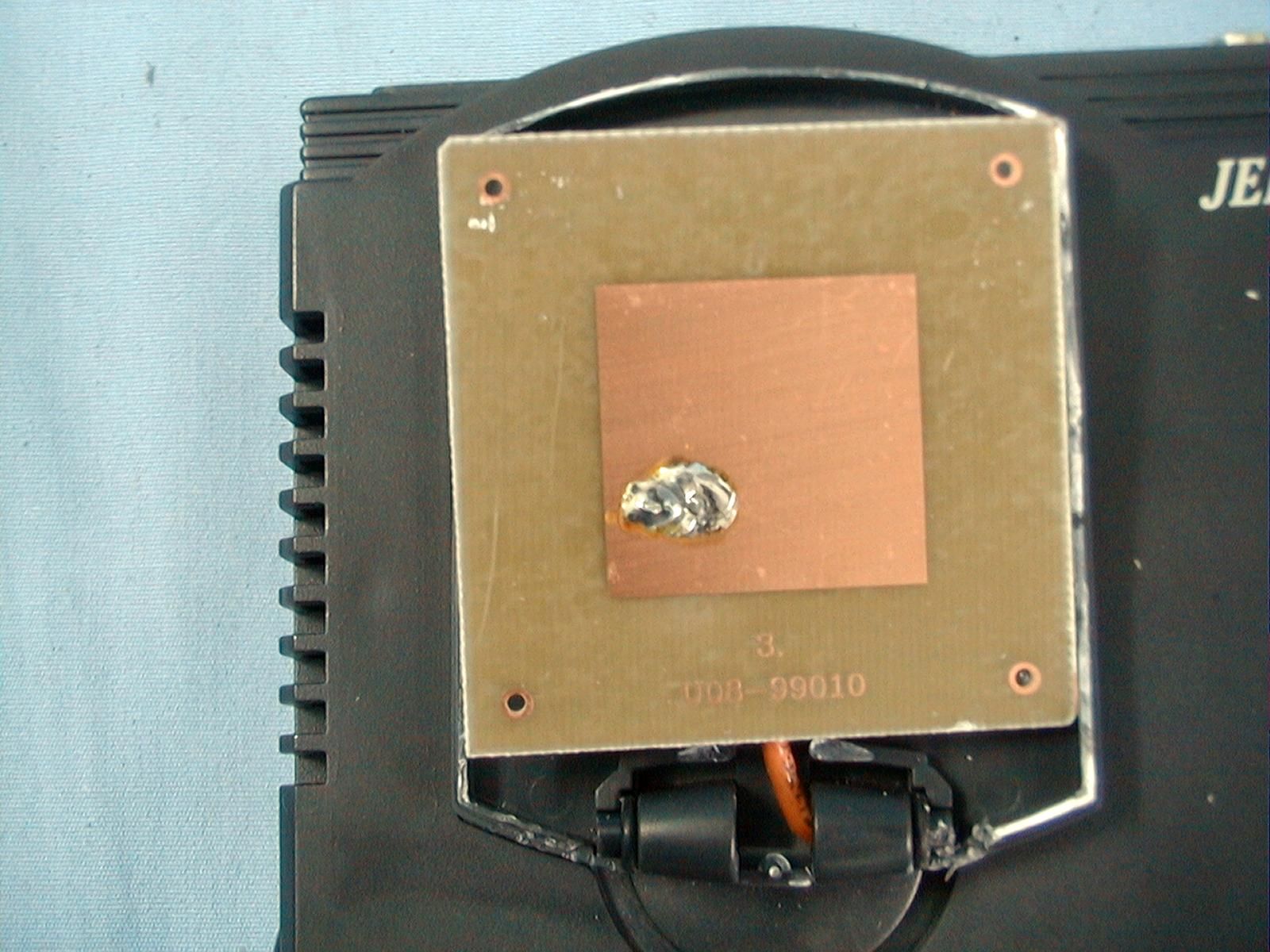

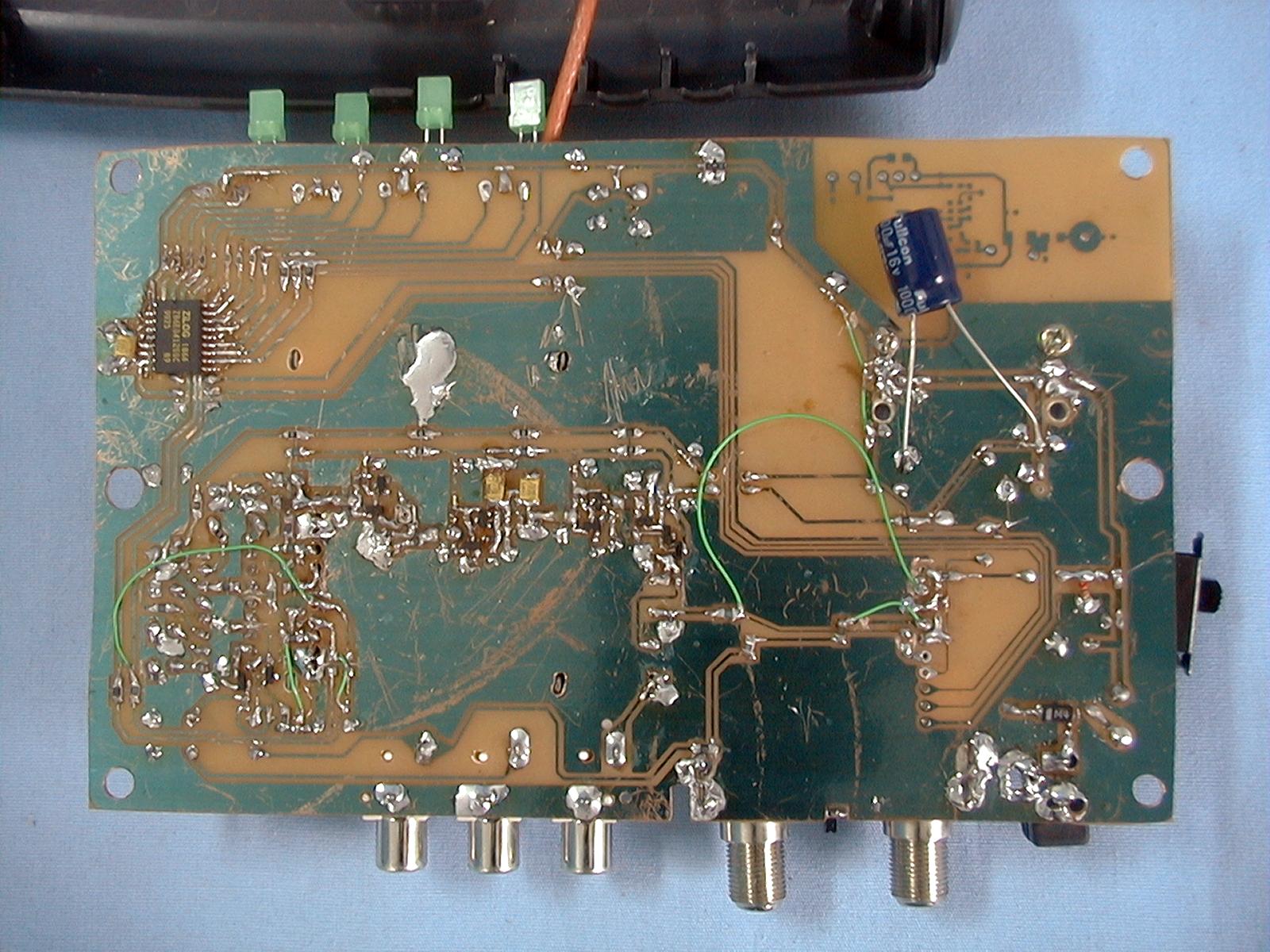

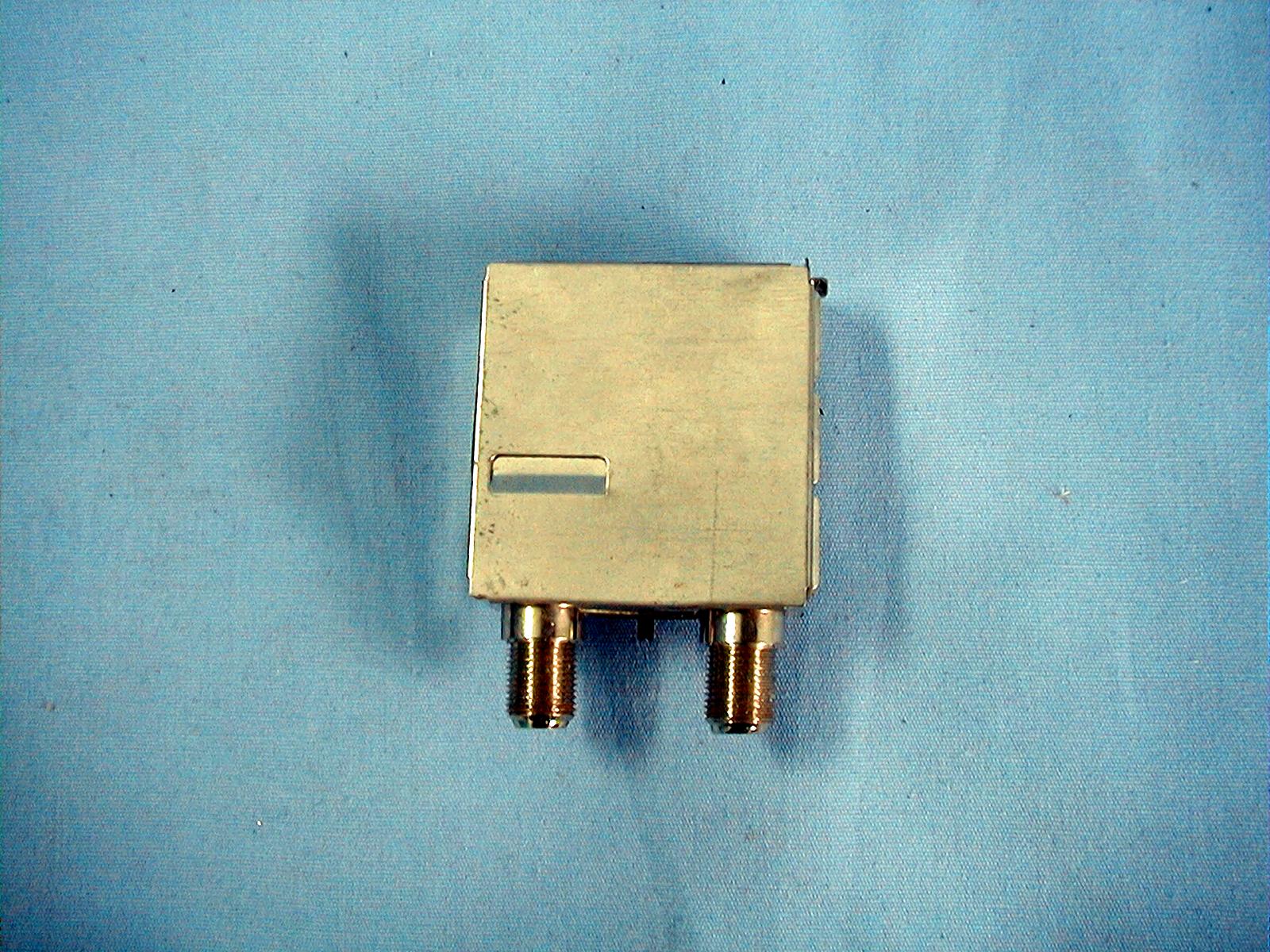

Operational Description

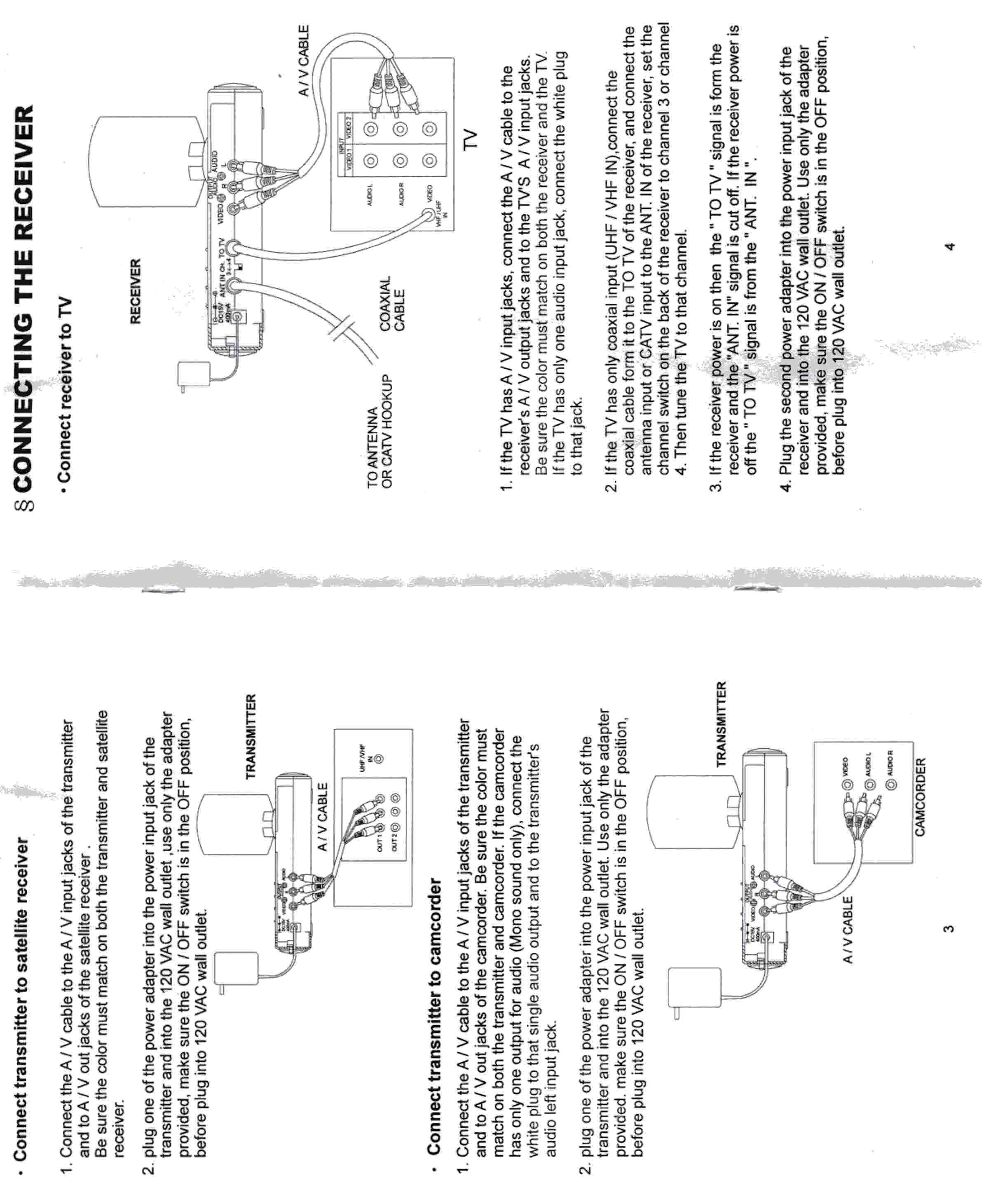

The A/V WIRELESS RECEIVER, is intended for reception of video transmission. It modulates video signal to the standard out chanel 3 or 4. And it can auto switch the input signals to TV, that is, when there is a AV signal coming into the AV terminal, it will auto switch to this ermina l, otherwise, it will e at “antenna in” position. The R-9000A sends the Sony Playstation Game’s signal to the TV, when the game is on. And sends the antenna’s signal to the TV when the game is off.

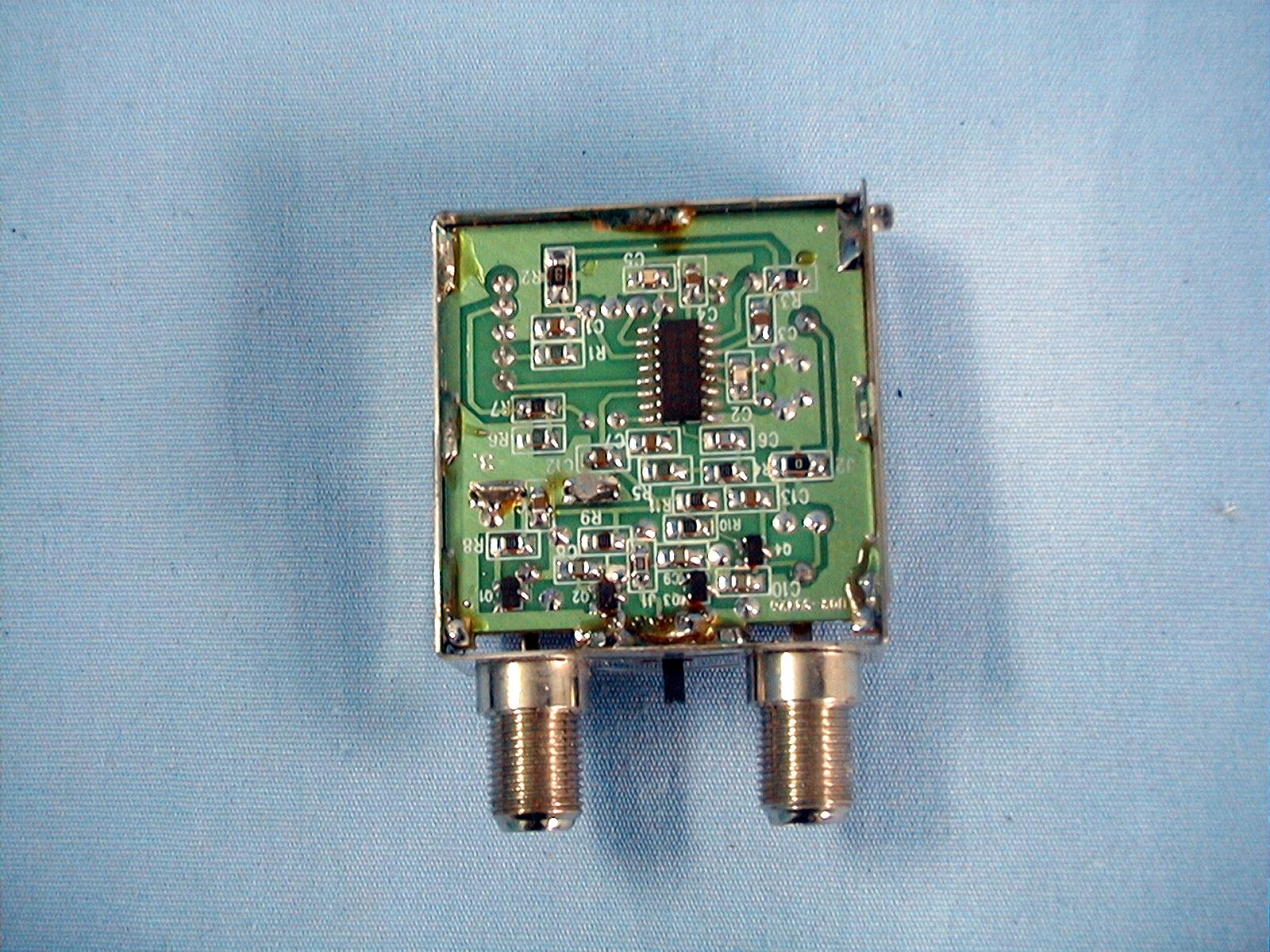

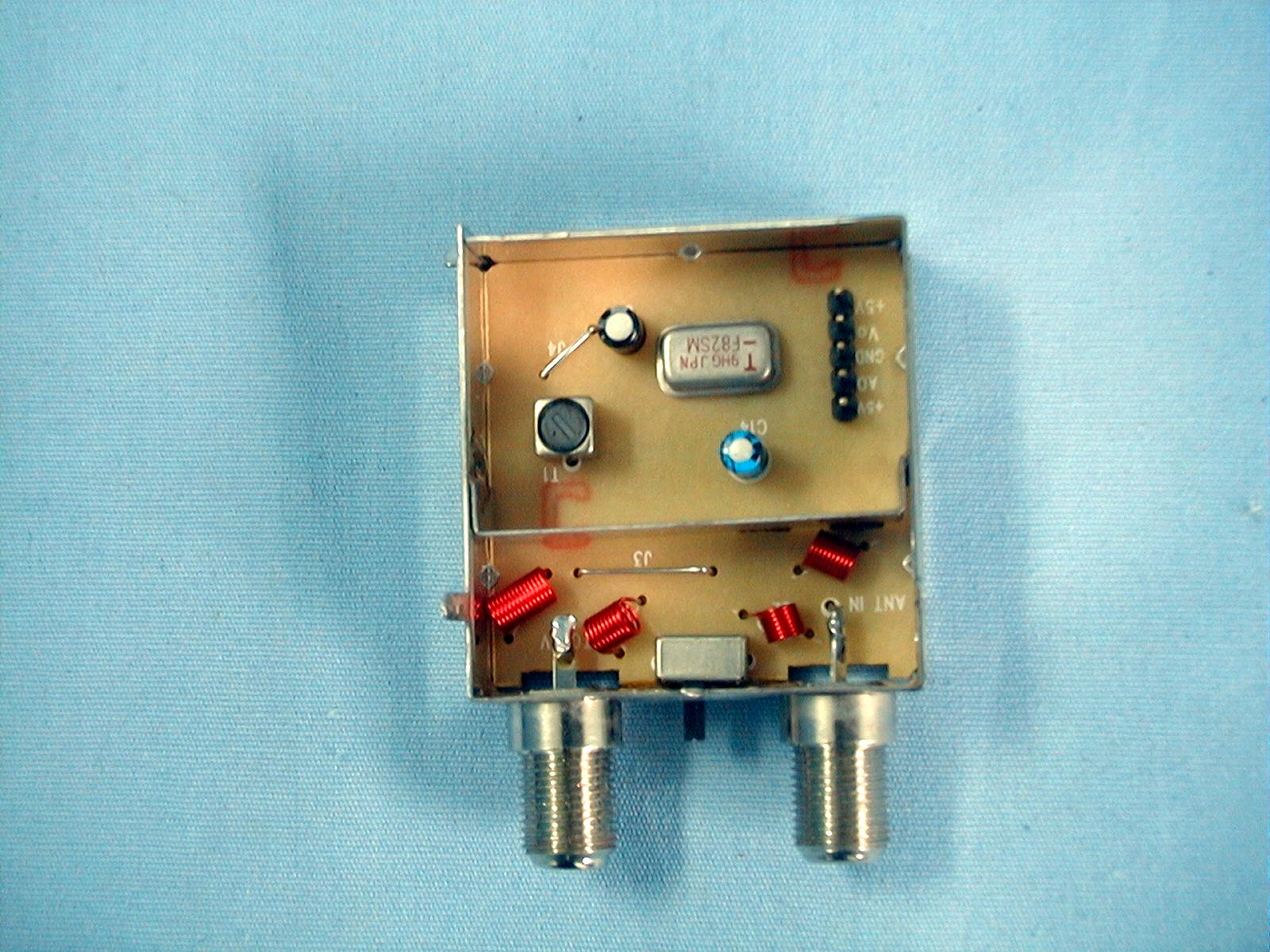

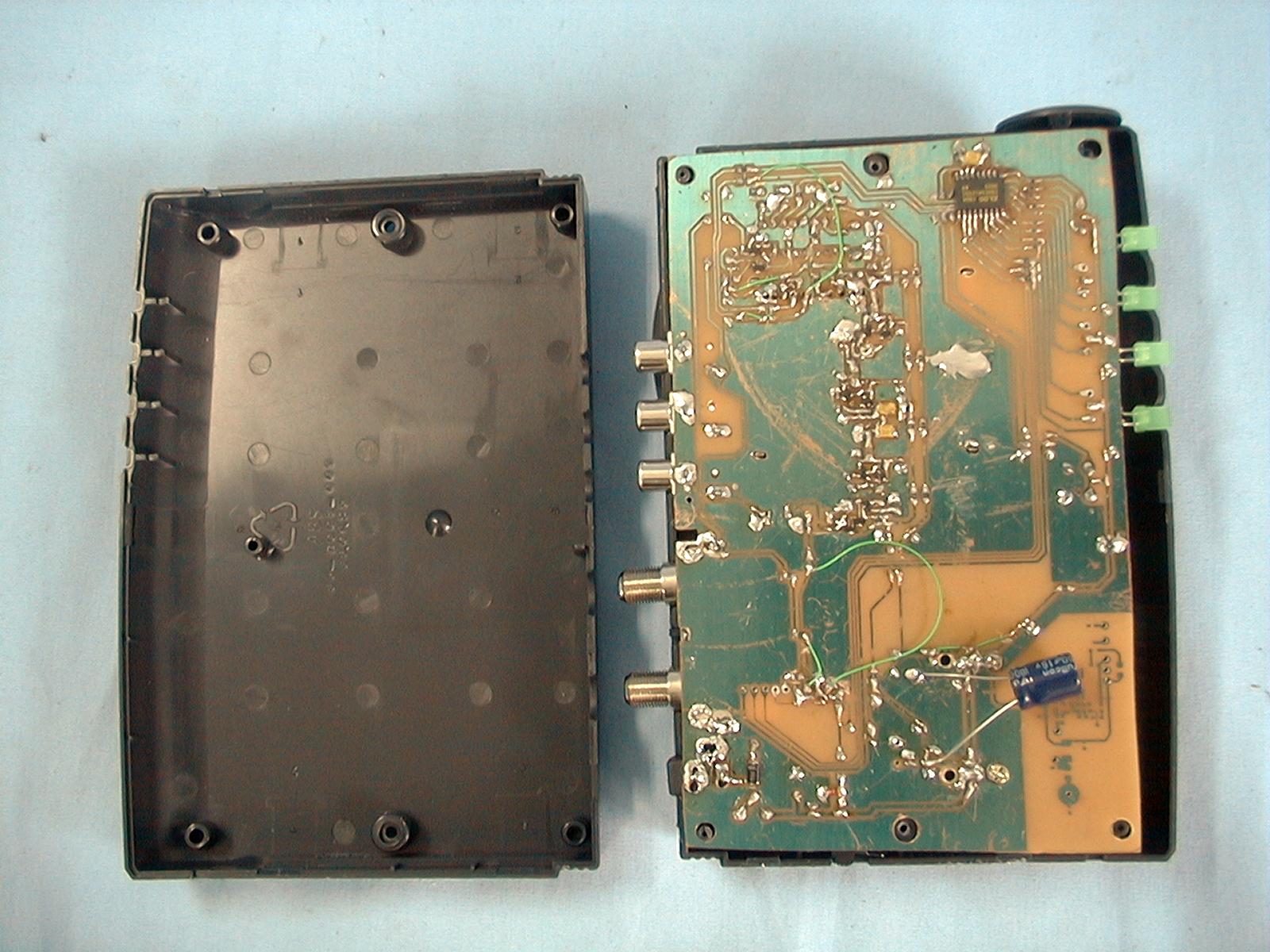

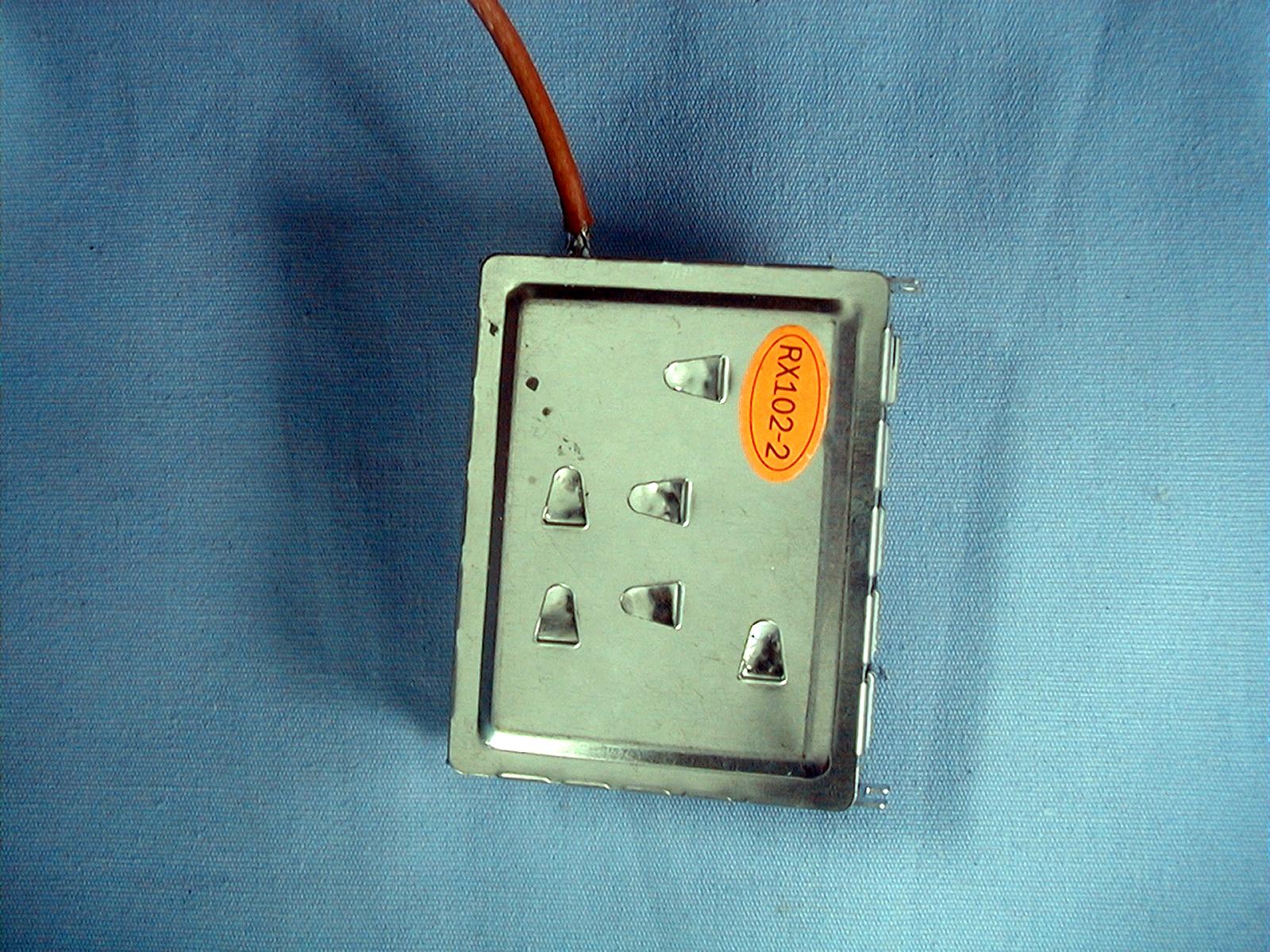

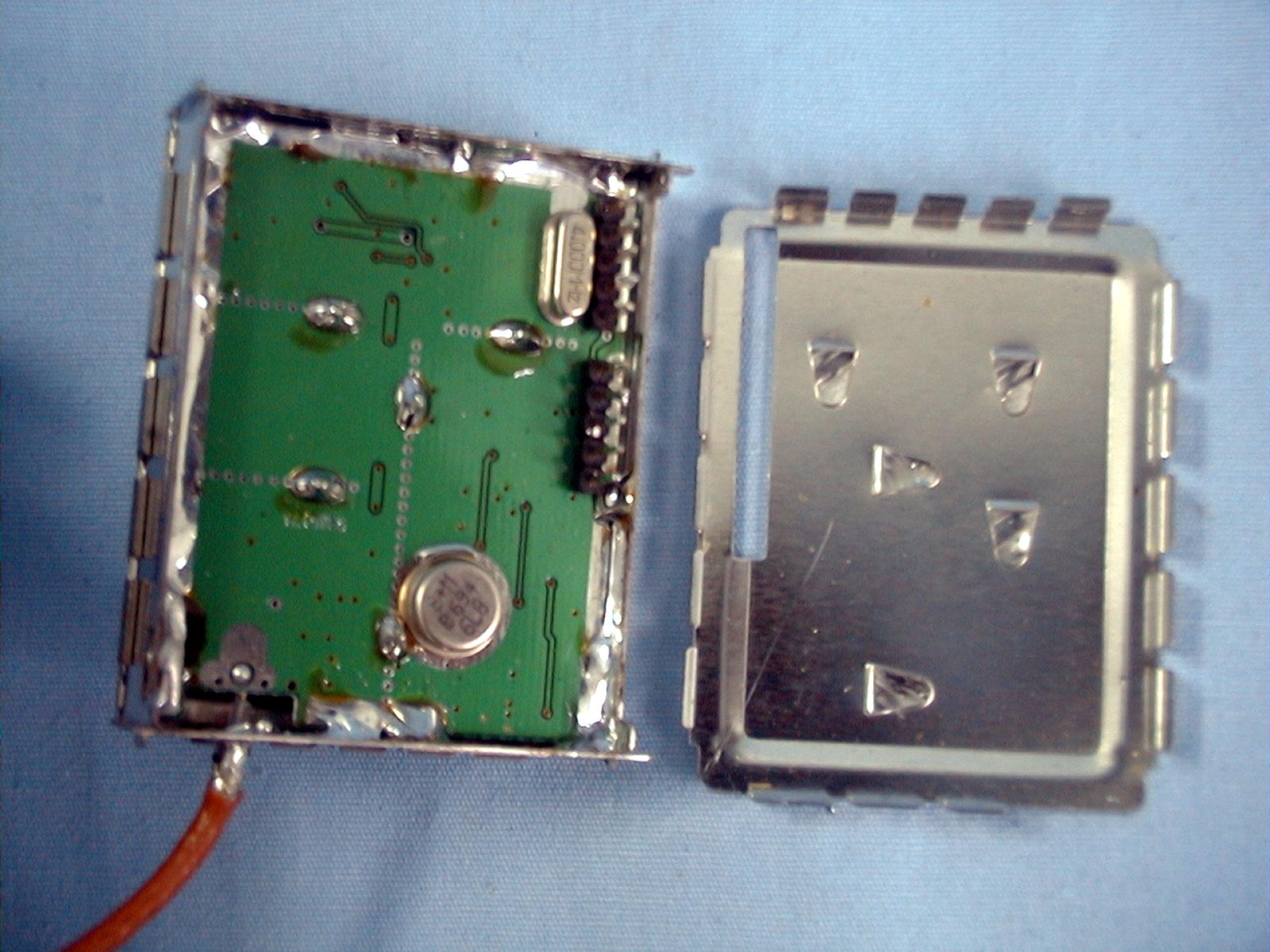

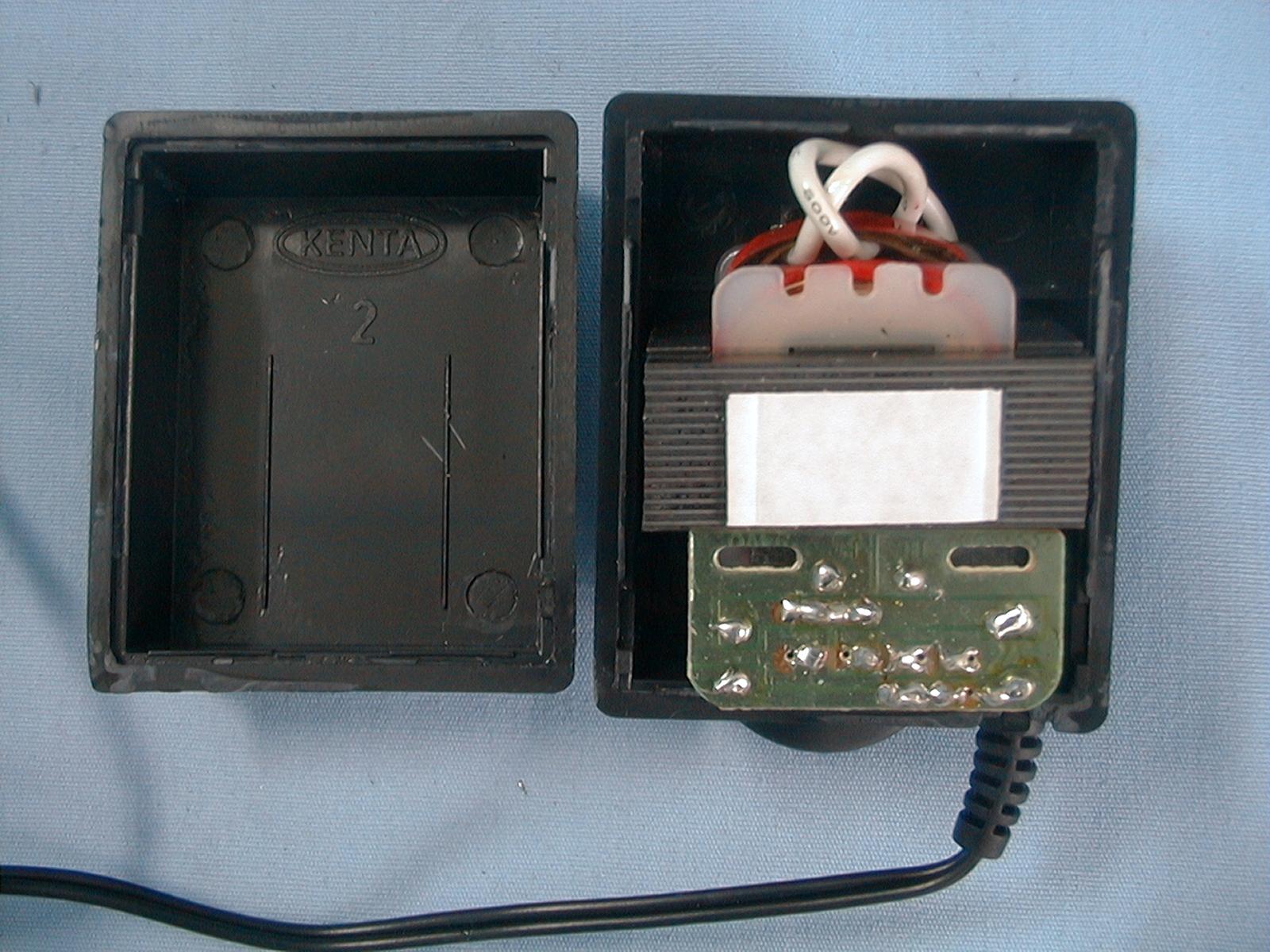

Schematics

C1 2.2pF(214229) RF_IN GND B.B OUT GND +8V NC/+5V M1 W=40/L=270 SCL SDA +8V GND GND 1 2 3 4 5 6 7 8 9 10 JP1 CON1(341010) +8V C8 5.6pF (214569) Q1 BFG425W(232015) R8 30K(201303) R9 240R(201241) C5 1000pF(214102) C12 100pF(214101) C6 1000pF(214102) C13 10pF(214100) C9 4.7pF(214479) C16 NONE 12 3 BPF1 BPF C10 2.7pF(214279) LO IN 3 GND 2 RF in 1 IF out 6 VCC 5 PS 4 U2 UPC2758T(251005) R10 150R(201151) R4 33R(201330) R11 150R(201151) C11 10pF(214100) Q2 BFG540/X(232013) C17 0.82pF(214089) C18 1.2pF(214129) C19 3.9pF(214399) D2 BB833(224005) R12 1KR(201102) R13 2.7K(201272) R14 2.7K(201272) R15 22K(201223) R17 10K(201103) C14 0.01uF(214103) R16 22K(201223) C15 0.01uF(214103) +8V C29 0.01uF(214103) R26 180R(201181) C30 0.01uF(214103) C20 0.01uF(214103) C22 0.01uF(214103) +5V C35 0.1uF(214104) L1 Microstrip C40 1.2pF(214129) C41 10pF(214100) Q3 BFG520/XR(232014) R27 3K(201302) C23 0.01uF(214103) C42 0.01uF(214103) R21 390R(201391) Q5 BFG520/XR(232014) C43 9pF(214090) C44 0.01uF(214103) R29 470R(201471) R30 100R(201101) R28 3K(201302) C24 0.01uF(214103) Q6 2N3904(231004) R22 390R(201391) R31 330R(201331) C25 0.01uF(214103) Q7 2N3904(231004) R32 1K(203001) C26 0.01uF(214103) +8V C36 1uF(210105) C27 0.01uF(214103) R33 51K(201513) R23 390R(201391) C45 0.01uF(214103) C37 1uF(210105) C31 100pF(214101) 1 4 3 2 FIL1 B694(262006) AFC/P 1 AFC/ADJ 2 VEE 3 OSC+ 4 OSC- 5 AGC/Bais 6 AGC/Out 7 RF IN 8 RF IN 9 VIDEO/Out 10 VIDEO/F.B 11 VIDEO+ 12 VIDEO- 13 VIDEO/F.B+ 14 VCC 15 AFC/Out 16 U3 SL1461S(258006) R18 51R(201510) C48 8.2pF(214829) C21 0.01uF(214103) C32 120pF(214121) R34 1.2K(201122) R35 1.2K(201122) C33 120pF(214121) C38 1uF(210105) C46 6.8pF(214689) C47 6.8pF(214689) L215nH(240002) L312nH(240002)*** D3 BB833(224005) D4 BB833(224005) R36 5.1K(201512) C39 1uF(210105) R37 100R(201101) Q4 BFG520/XR(232014) R38 43K(201433) L4 27nH(240270) C49 12pF(214120) C50 120pF(214121) C51 150pF(214151) C52 8.2pF(214829) L5 27nH(240270) AGC AGC R24 6.8K(201682) C28 4700pF(214472) CP 1 X1 2 X2 3 SDA 4 SCL 5 P7 6 P6 7 P5 8 P4 9 P3 10 P0 11 VCC 12 RF/IN1 13 RF/IN2 14 VEE 15 D/O 16 U4 SP5655SA(254002) +5V C53 100pF(214101) C34 10pF(214100) Q8 2N3904(231004) C54 18pF(214180) X1 4.0M(271024) R19 100R(201101) R20 100R(201101) C55 0.22uF(210224) C56 0.039uF(214393) R25 22K(201223) +5V VIDEO OUT SDA SCL C14A 0.22uF(214224) C15A 1.5pF(214159) C15B 0.01uF(214103) C57 0.01uF(214103) +5V +8V RF in 2 GND 1 Vs+RF out 4 GND 3 G1 U1 BGA2001(251006) C2 2.2pF(214229) R5 620R(201621) C7 330pF(214331) C4 0.1uF(214104) C59 0.1uF(214104) R39 1.5K(201152) C58 NONE NOTE: 1999-09-06 modified DEFAULT MODIFY L2 12nH 15nH C46,C47 22pF 6.8pF C16 0.5pF NONE L4,L5 PAD 0805 0603 1999/10/08 modified R4 100R 51R R12 120R 1KR R-9000A

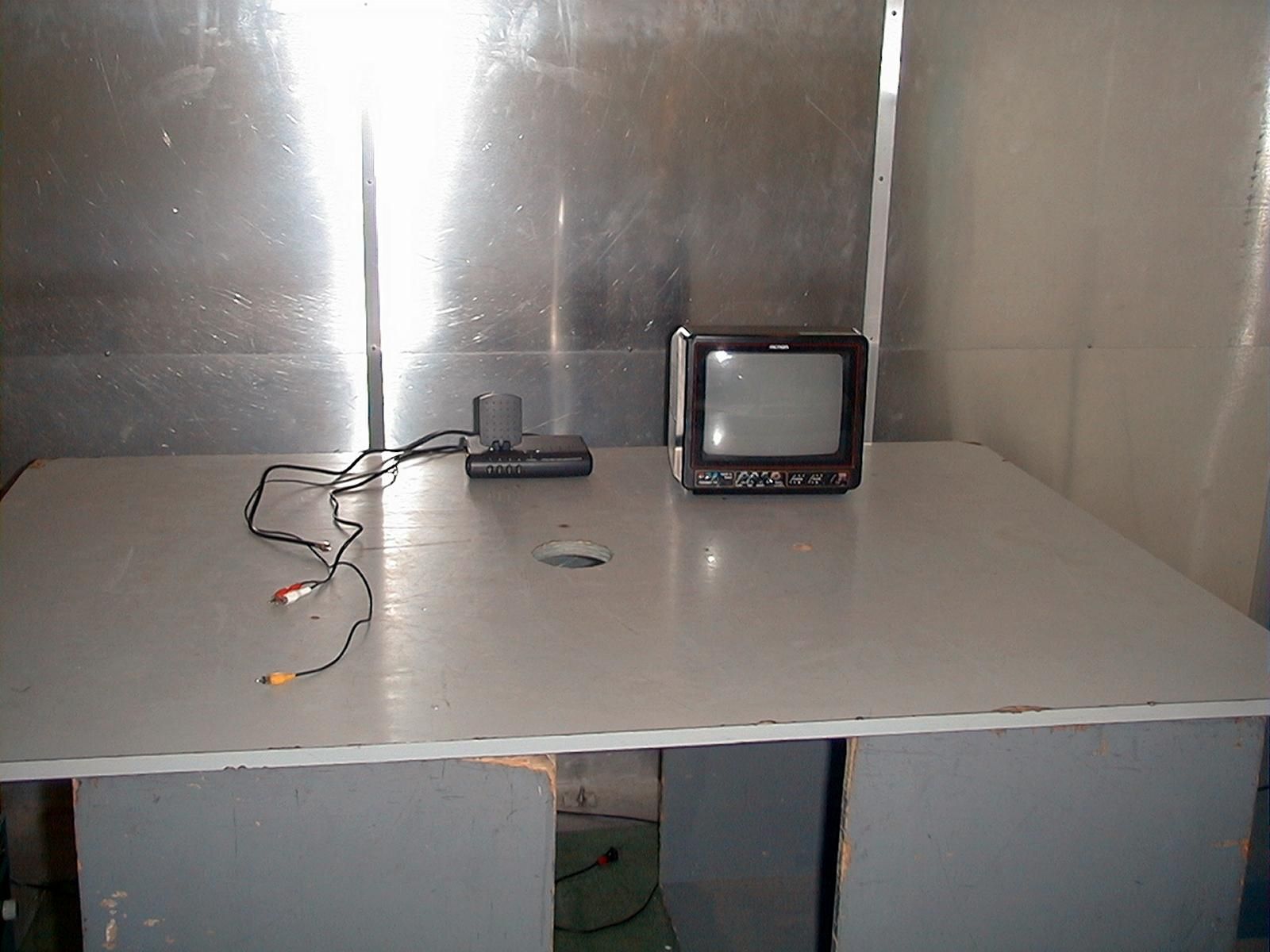

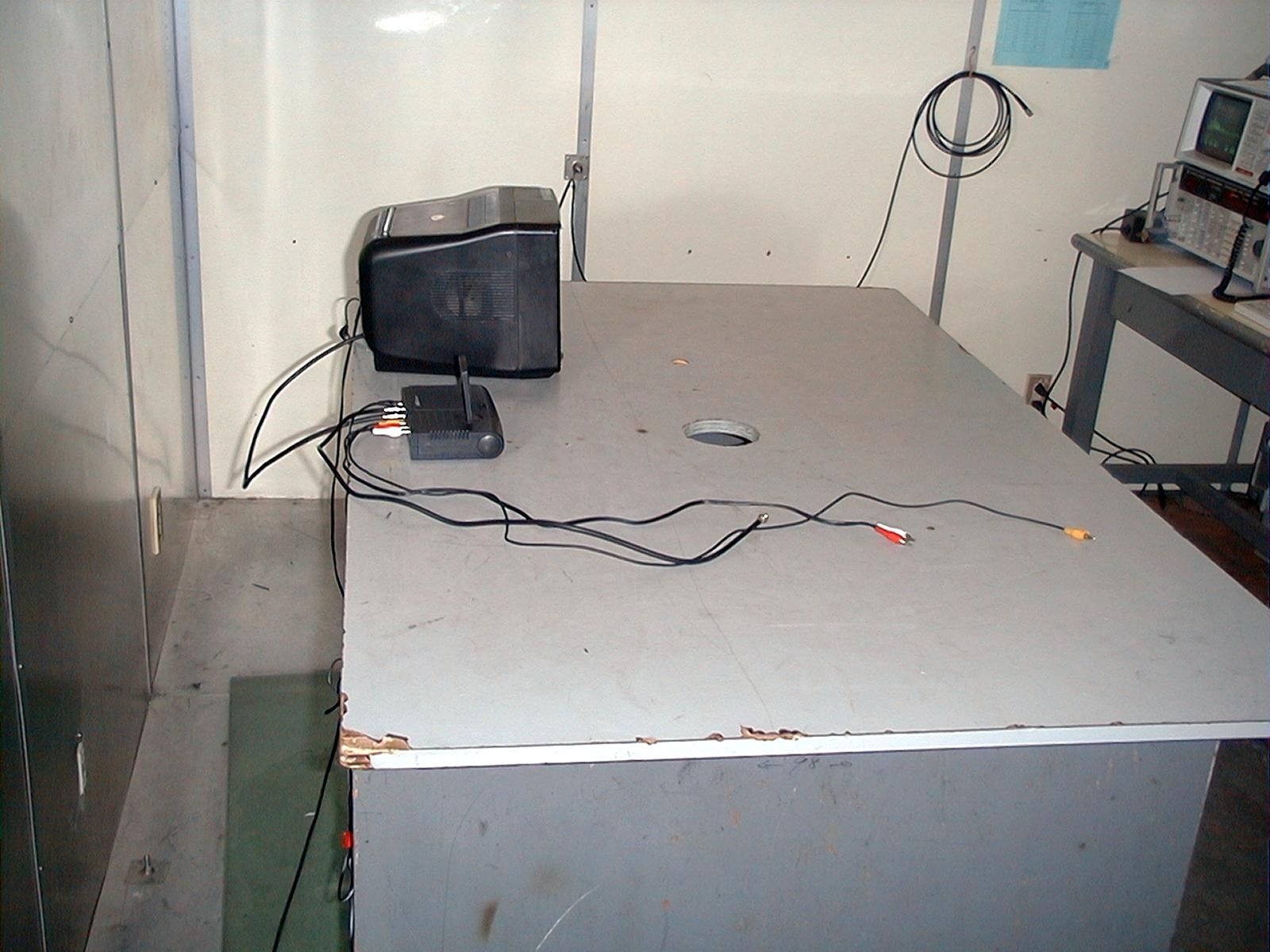

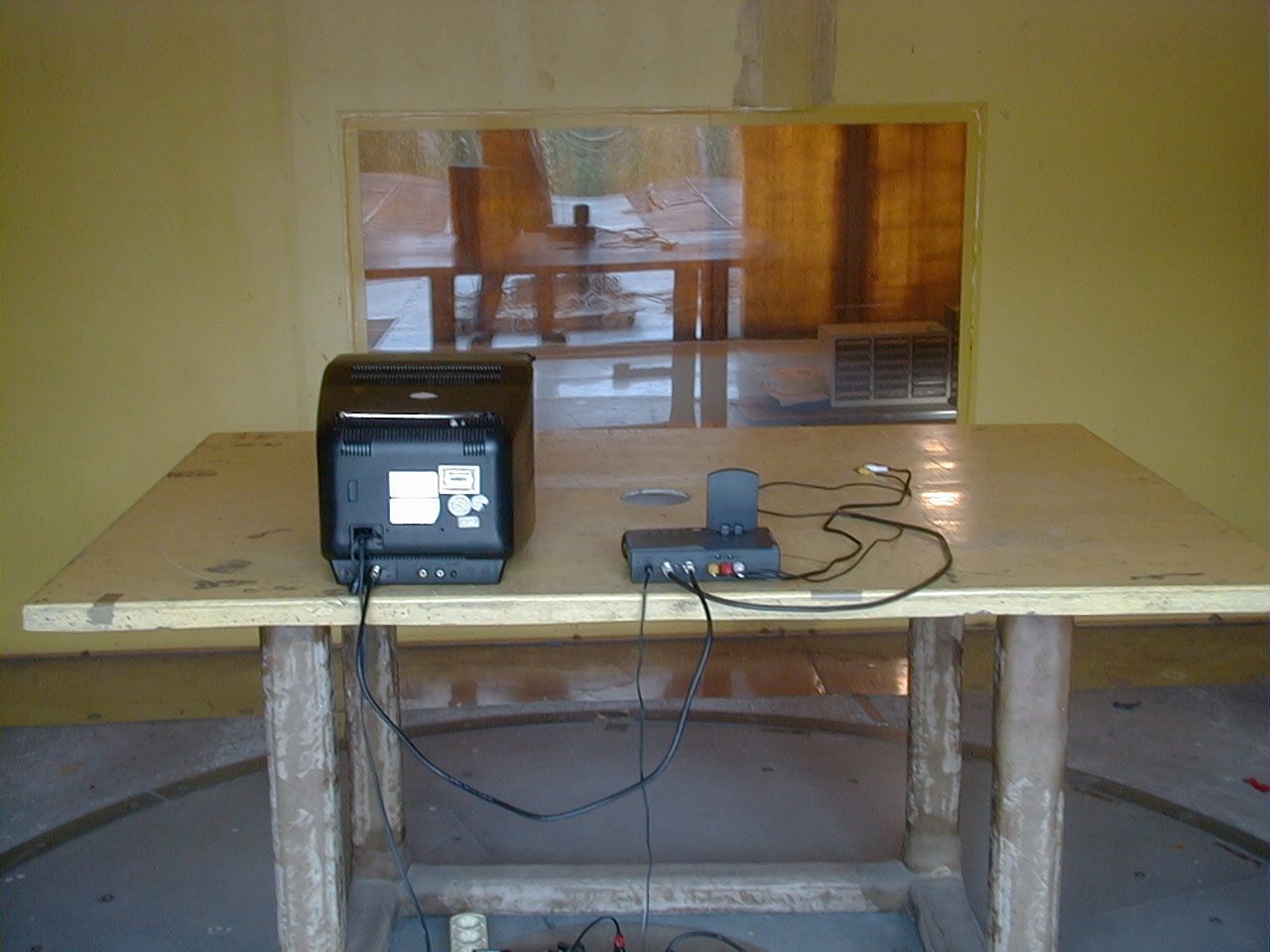

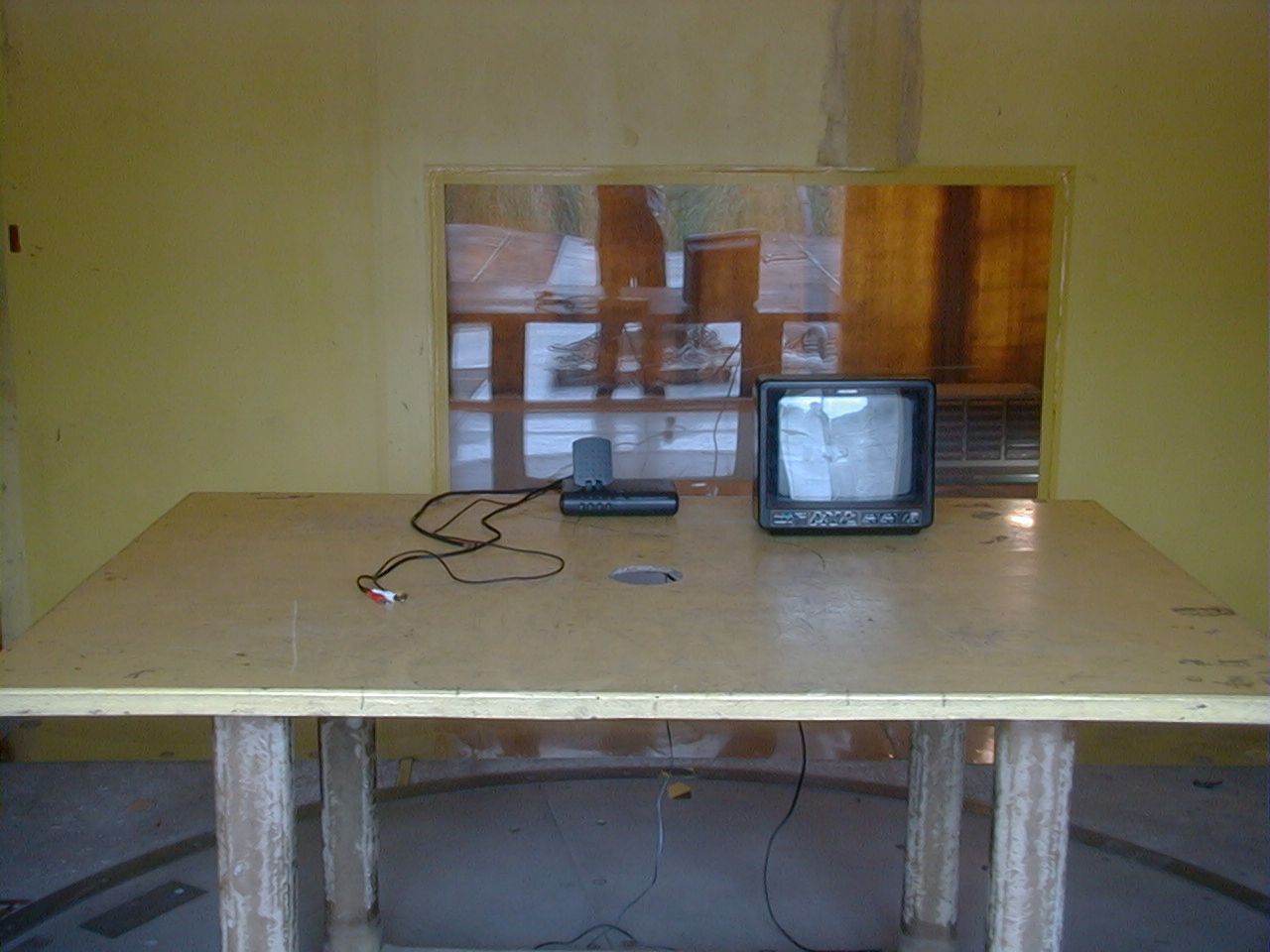

Test Report

FCC ID. : DT9R-9000A Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : A/V WIRELESS RECEIVER MODEL : R-9000A FCC ID. : DT9R-9000A for APPLICANT : JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, SIN LO ROAD, P.O. BOX 57, TAINAN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET89R-04-025-02 ETC Report No. : ET89R-04-025-02FCC ID. : DT9R-9000A Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: JEBSEE ELECTRONICS CO., LTD. 24-3, SIN LO ROAD, P.O. BOX 57, TAINAN, TAIWAN, R.O.C. Manufacturer: JEBSEE ELECTRONICS CO., LTD. 24-3, SIN LO ROAD, P.O. BOX 57, TAINAN, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: A/V WIRELESS RECEIVER b) Trade Name: JEBSEE c) Model No.: R-9000A d) Power Supply: DC 15V, 400mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :MAY 20, 2000 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET89R-04-025-02FCC ID. : DT9R-9000A Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION ............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology .............................................................................................................................. 1 1.4 Test Facility....................................................................................................................................... 1 2 LIMITATIONS AND LABELING REQUIREMENT..................................................................... 2 2.1 Definition ........................................................................................................................................... 2 2.2 Limitation Requirement..................................................................................................................... 2 2.3 Labeling Requirement........................................................................................................................ 4 2.4 User Information ................................................................................................................................ 5 3 SYSTEM TEST CONFIGURATION................................................................................................ 6 3.1 Justification ........................................................................................................................................ 6 3.2 Devices for Tested System................................................................................................................. 6 4 RADIATED EMISSION MEASUREMENT.................................................................................... 7 4.1 Applicable Standard........................................................................................................................... 7 4.2 Measurement Procedure .................................................................................................................... 7 4.3 Measuring Instrument ........................................................................................................................ 9 4.4 Radiated Emission Data................................................................................................................... 10 4.5 Field Strength Calculation................................................................................................................ 14 4.6 Photos of Radiation Measuring Setup.............................................................................................. 15 5 CONDUCTED EMISSION MEASUREMENT............................................................................. 16 5.1 Standard Applicable......................................................................................................................... 16 5.2 Measurement Procedure .................................................................................................................. 16 5.3 Conducted Emission Data................................................................................................................ 17 5.4 Result Data Calculation ................................................................................................................... 18 5.5 Conducted Measurement Equipment .............................................................................................. 18 5.6 Photos of Conduction Measuring Setup .......................................................................................... 20 6 RF OUTPUT LEVEL MEASUREMENT ...................................................................................... 21 6.1 Measurement Description ................................................................................................................ 21 6.2 Data of Measurement ...................................................................................................................... 21 6.3 Calculation of Data Measured ....................................................................................................…
