DT9T-11AVWireless A/V Sender

JEBSEE ® JEBSEE ELECTRONICS CO., LTD. 全一電子股份有限公司 24-3, SIN LO Rd., P.O. BOX 57 TAINAN, TAIWAN, R.O.C. TEL: (06) 2647622 FAX: (06) 2638466 台南市新樂路24之3號 Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF901211R04. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

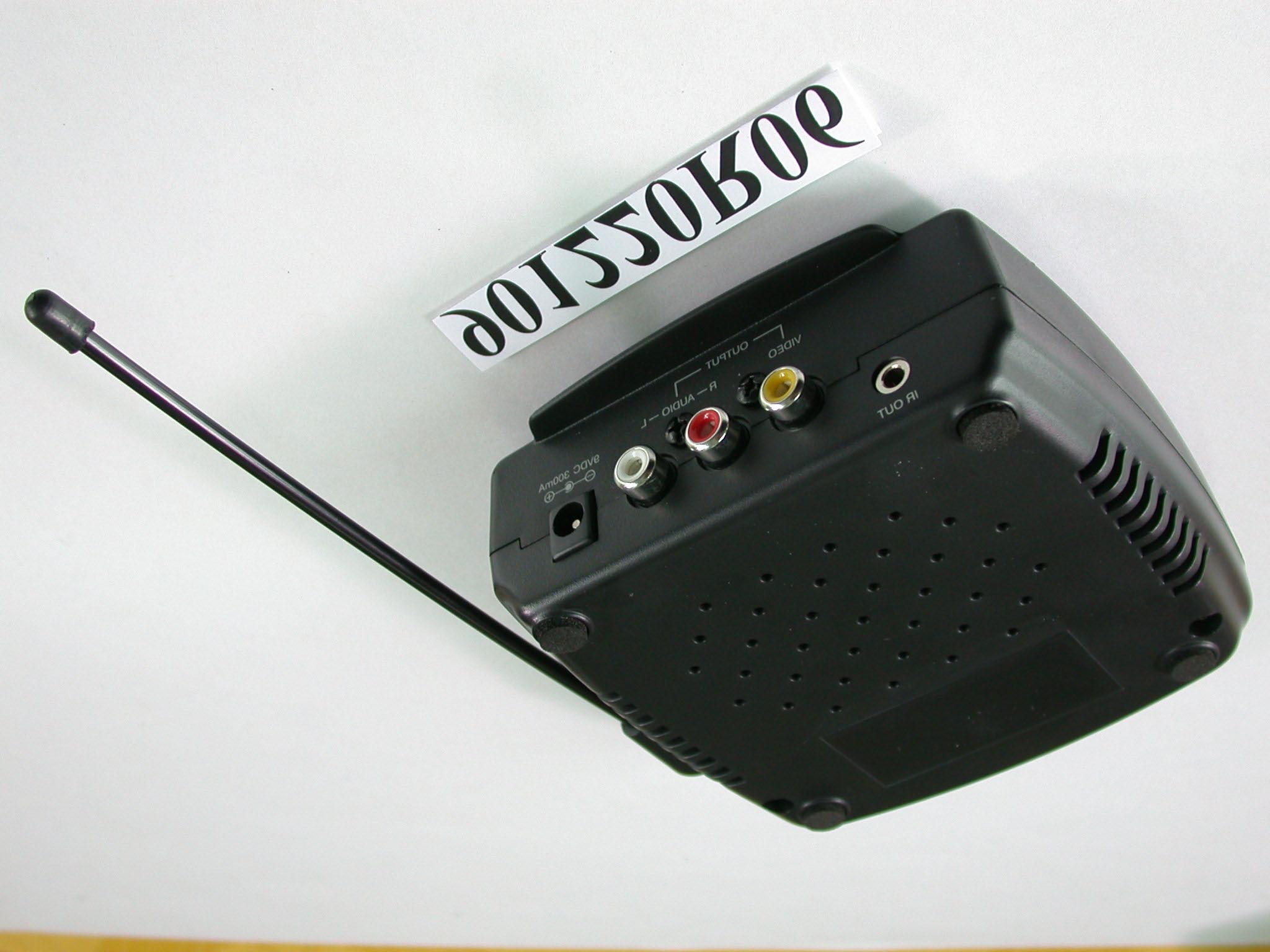

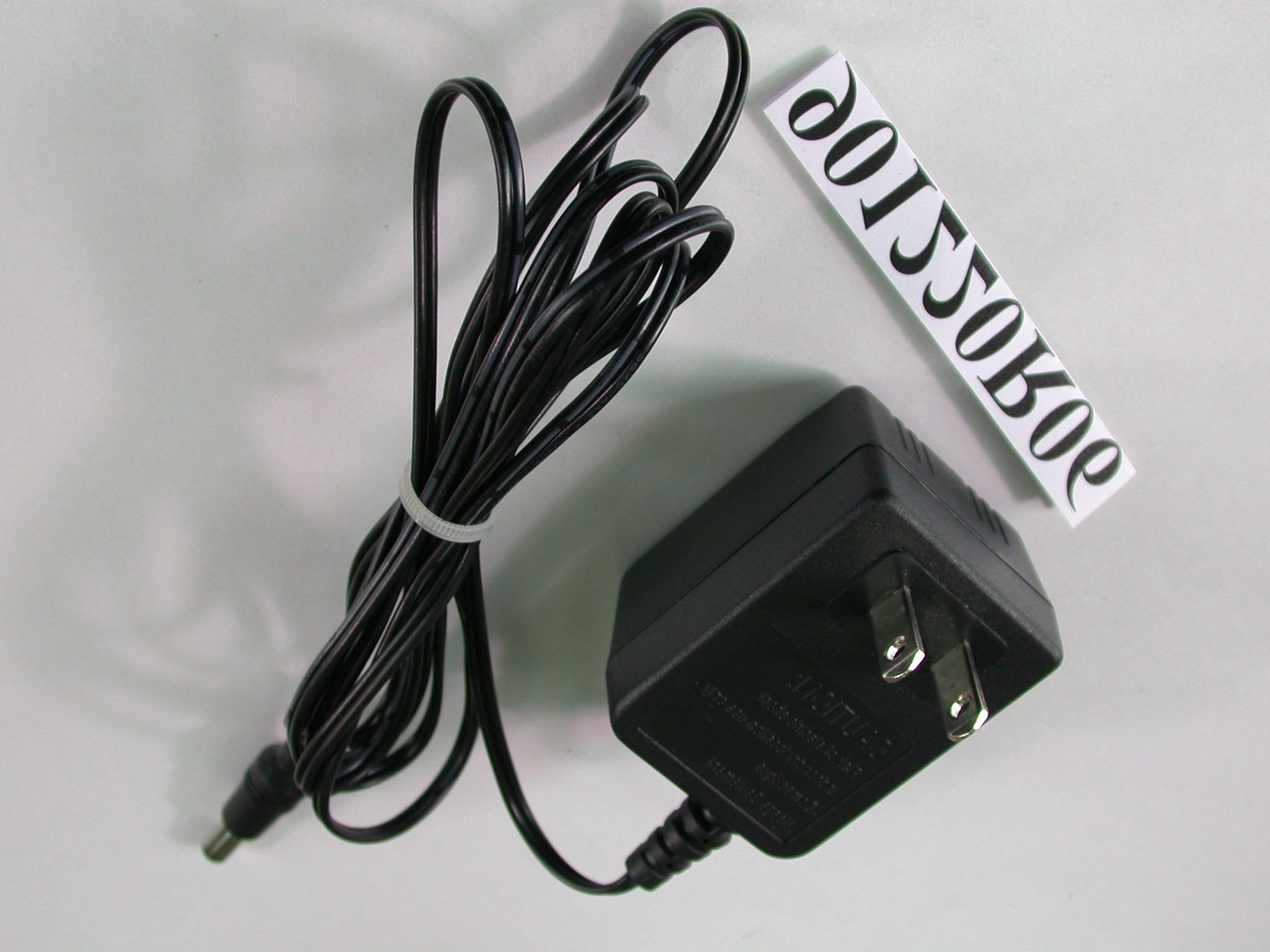

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

FCC ID LABEL LOCATION

Page 4 Page 5 Page 6

Page 7 Page 8 Page 9

Page 10 Page 11

FCC ID: DT9T-11AV ADT No.901211R04 Operational Description The transmitter of the EUT is powered by adapter. The transmitter uses Inverted-F antenna. The control signal is transmitting by 433MHz which is co-operated with infrared control signal. There are 4 channels for 2.4GHz application, and 1 channel for 433MHz application. This project is for the end with 2.4GHz Tx and 433MHz Rx.

FCC ID: DT9T-11AV Report No.: RF901211R04 1 Issued: Jan. 8, 2002 FCC TEST REPORT REPORT NO.: RF901211R04 MODEL NO.: TR-11AV T-11AV R-11AV RECEIVED: Dec. 11, 2001 TESTED: Dec. 28, 2001 ~ Jan. 4, 2002 APPLICANT:JEBSEE ELECTRONICS CO., LTD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: DT9T-11AV Report No.: RF901211R04 2 Issued: Jan. 8, 2002 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................ 4 3GENERAL INFORMATION ....................................................................................... 5 3.1GENERAL DESCRIPTION OF EUT .......................................................................... 5 3.2DESCRIPTION OF TEST MODES ............................................................................. 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS......................................... 6 3.4DESCRIPTION OF SUPPORT UNITS ....................................................................... 6 4TEST PROCEDURE AND RESULT ........................................................................... 7 4.1CONDUCTED EMISSION MEASUREMENT........................................................... 7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURES .....................................................................................7 4.1.4 TEST SETUP...................................................................................................8 4.1.5 EUT OPERATING CONDITIONS ....................................................................9 4.1.6 TEST RESULTS ............................................................................................10 4.2RADIATED EMISSION MEASUREMENT ............................................................. 16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................16 4.2.2 TEST INSTRUMENT .....................................................................................17 4.2.3 TEST PROCEDURE......................................................................................18 4.2.4 TEST SETUP.................................................................................................19 4.2.5 EUT OPERATING CONDITION.....................................................................19 4.2.6 TEST RESULT...............................................................................................20 5.1BAND EDGES MEASUREMENT ............................................................................ 24 5.1.1 LIMITS OF BAND EDGES MEASUREMENT ................................................24 5.1.2 TEST INSTRUMENTS...................................................................................24 5.1.3 TEST PROCEDURE......................................................................................24 5.1.4 EUT OPERATING CONDITION.....................................................................25 5.1.5 TEST RESULTS ............................................................................................25 5PHOTOGRAPHS OF THE TEST CONFIGURATION............................................. 28 6INFORMATION ON THE TESTING LABORATORIES ......................................... 30 FCC ID: DT9T-11AV Report No.: RF901211R04 3 Issued: Jan. 8, 2002 1 CERTIFICATION PRODUCT : 2.4 GHz Wireless A/V Sender BRAND NAME : JEBSEE MODEL NO : TR-11AV T-11AV R-11AV APPLICANT : JEBSEE ELECTRONICS CO., LTD. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Dec. 28, 2001 to Jan. 4,2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: DT9T-11AV Report No.: RF901211R04 4 Issued: Jan. 8, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –17.32 dBuV at 25.361 MHz 15.209Radiated Emission TestPASS Minimum passing margin is –3.40 dBuV at 7296.00 MHz 15.247(c) Band Edge Measurement Limit: 20 dB less than the peak value of fundamental frequency PASS Meet the requirement of limit NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: DT9T-11AV Report No.: RF901211R04 5 Issued: Jan. 8, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT2.4 GHz Wireless A/V Sender MODEL NO. TR-11AV (for system model no.) T-11AV (for the set with 2.4GHz Tx and 433MHz Rx) R-11AV (for the set with 2.4GHz Rx and 433MHz Tx) TESTING MODET-11AV POWER SUPPLY9VDC from power adapter MODULATION TYPEASK CARRIER FREQUENCY OF EACH CHANNEL 2414, 2432, 2450, 2468MHz BANDWIDTH OF EACH CHANNEL 18MHz NUMBER OF CHANNEL4 ANTENNA TYPEInverted-F antenna DATA CABLE1.8m (Nonshielded) I/O PORTSAV port NOTE: 1. The EUT (2.4GHz Wi…

Text truncated - open the document above for the full version.

FCC ID: DT9T-11AV Report No.: RF901211R04 28 Issued: Jan. 8, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: DT9T-11AV Report No.: RF901211R04 29 Issued: Jan. 8, 2002 RADIATED EMISSION TEST
