DT9TR-01AVWireless Audio Video Sender

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

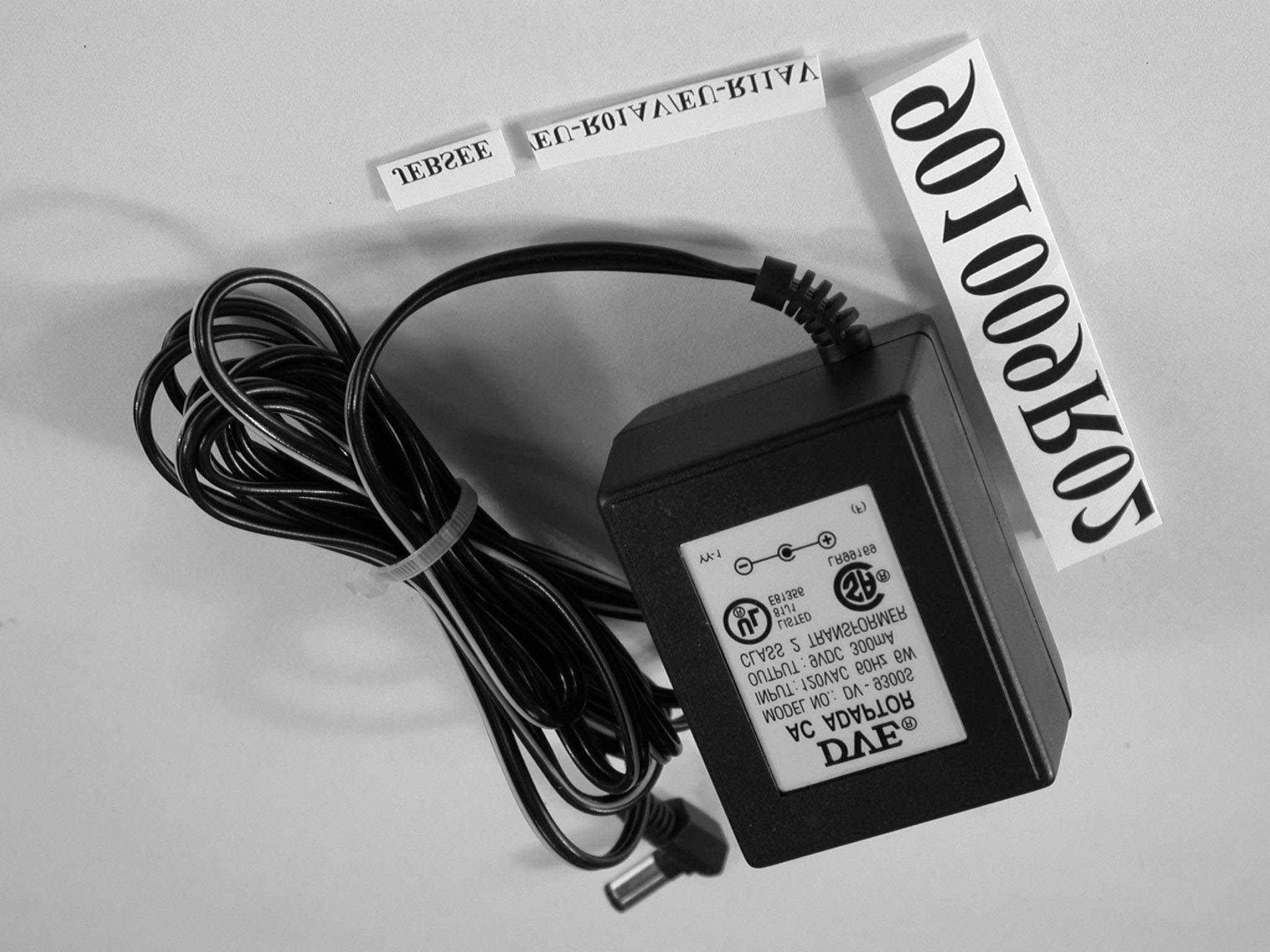

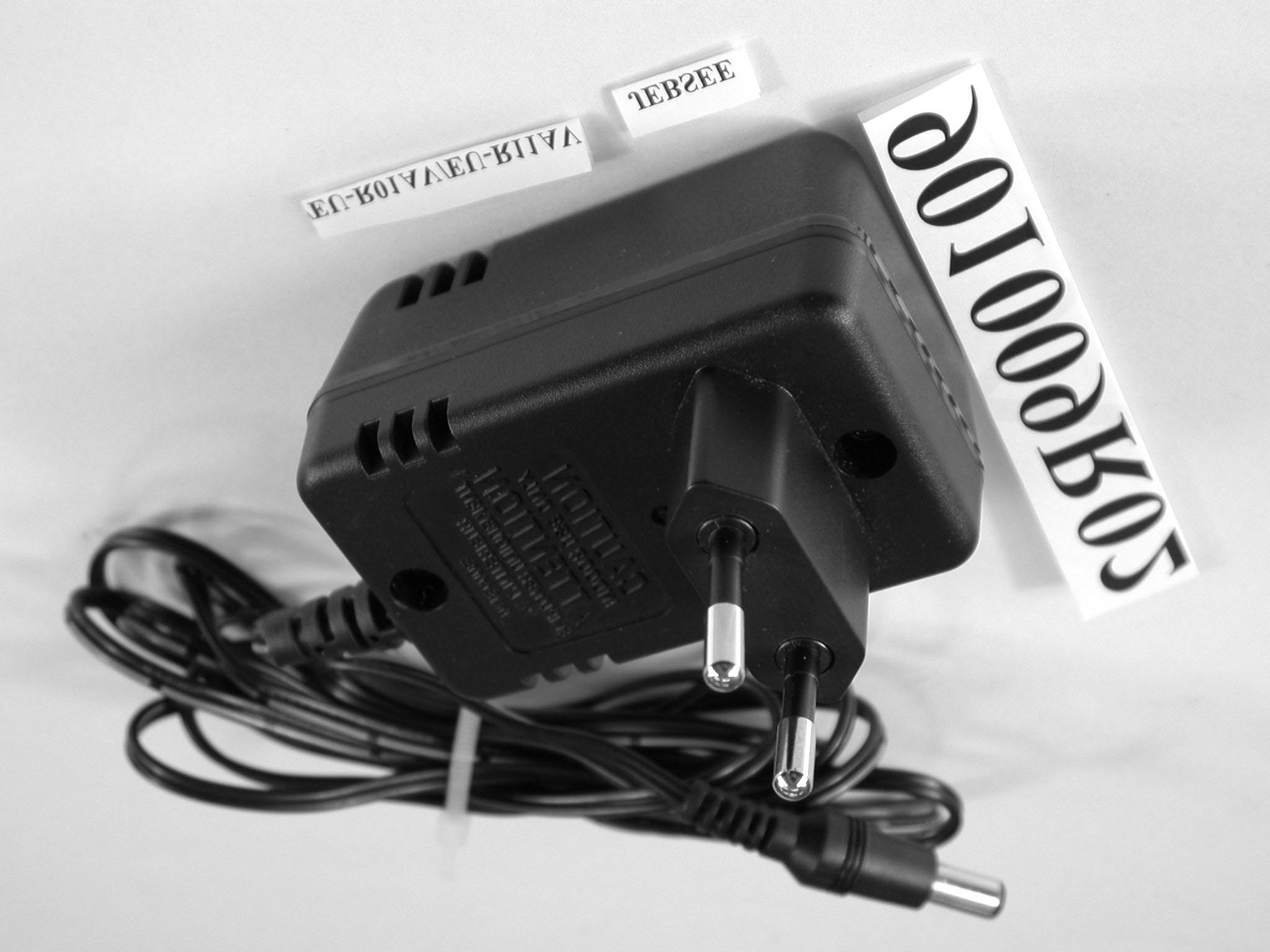

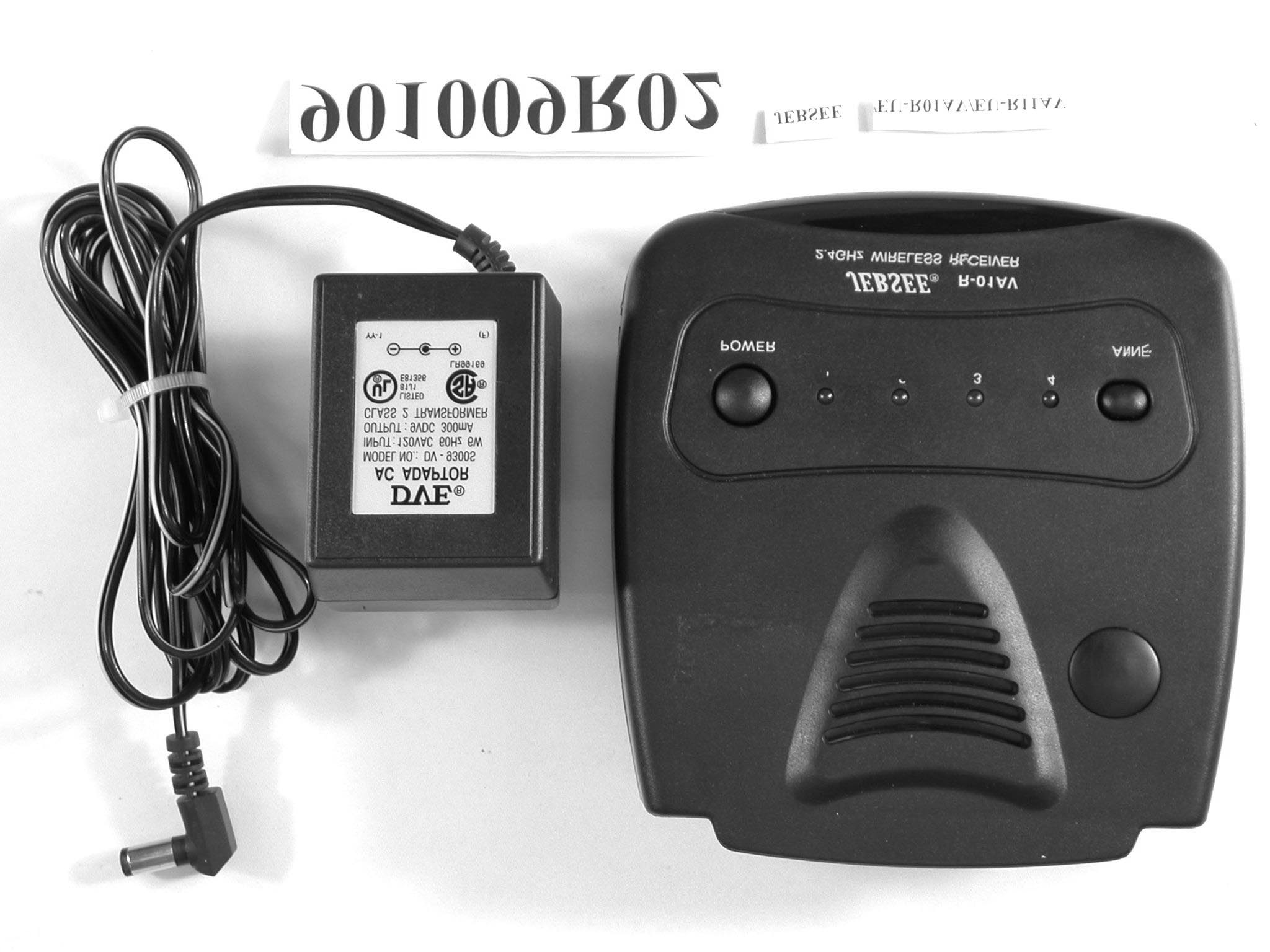

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4

Page 1 Label Location

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: DT9TR-01AV ADT No.901009R02 Operational Description The transmitter of the EUT (2.4 GHz Wireless A/V Sender) is powered by adapter. The transmitter uses Inverted-F antenna. There are 4 channels in this product. Channel selection is controlled by dip switch in both transmitter and receiver.

FCC ID: DT9TR-01AV Report No.: RF901009R02 1 Issued: Dec. 11, 2001 FCC TEST REPORT REPORT NO.: RF901009R02 MODEL NO.: TR-01AV RECEIVED: Oct. 9, 2001 TESTED: Oct. 29 ~ Nov. 19, 2001 APPLICANT: JEBSEE ELECTRONICS CO., L TD. ADDRESS: 24-3, Sin-Lo Road, P.O. Box 57, Tainan Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 34 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: DT9TR-01AV Report No.: RF901009R02 2 Issued: Dec. 11, 2001 Table of Contents 1CERTIFICATION...................................................................................................... 3 2SUMMARY OF TEST RESULTS ............................................................................. 4 3GENERAL INFORMATION..................................................................................... 5 3.1GENERAL DESCRIPTION OF EUT........................................................................ 5 3.2DESCRIPTION OF TEST MODES .......................................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................................ 6 3.4DESCRIPTION OF SUPPORT UNITS ..................................................................... 6 4TEST PROCEDURE AND RESULT ........................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT......................................................... 7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................ 7 4.1.2 TEST INSTRUMENTS .................................................................................... 7 4.1.3 TEST PROCEDURES..................................................................................... 8 4.1.4 TEST SETUP .................................................................................................. 8 4.1.5 EUT OPERATING CONDITIONS.................................................................... 9 4.1.6 TEST RESULTS............................................................................................ 10 4.2RADIATED EMISSION MEASUREMENT ........................................................... 16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................... 16 4.2.2 TEST INSTRUMENT..................................................................................... 17 4.2.3 TEST PROCEDURE ..................................................................................... 18 4.2.4 TEST SETUP ................................................................................................ 19 4.2.5 EUT OPERATING CONDITION .................................................................... 19 4.2.6 TEST RESULT .............................................................................................. 20 5.1BAND EDGES MEASUREMENT......................................................................... 28 5.1.1 LIMITS OF BAND EDGES MEASUREMENT ............................................... 28 5.1.2 TEST INSTRUMENTS .................................................................................. 28 5.1.3 TEST PROCEDURE ..................................................................................... 28 5.1.4 EUT OPERATING CONDITION .................................................................... 29 5.1.5 TEST RESULTS............................................................................................ 29 5PHOTOGRAPHS OF THE TEST CONFIGURATION ........................................... 32 6INFORMATION ON THE TESTING LABORATORIES........................................ 34 FCC ID: DT9TR-01AV Report No.: RF901009R02 3 Issued: Dec. 11, 2001 1 CERTIFICATION PRODUCT : 2.4 GHz Wireless A/V Sender BRAND NAME : JEBSEE MODEL NO : TR-01AV APPLICANT : JEBSEE ELECTRONICS CO., L TD. STANDARDS : 47 CFR Part 15, Subpart C(15.249) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Oct. 29, 2001 to Nov. 19,2001. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: DT9TR-01AV Report No.: RF901009R02 4 Issued: Dec. 11, 2001 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PAR AGR APH TEST TYPERESULTREMARK 15.107Conducted Emission TestPASS Minimum passing margin is –14.98 dBuV at 0.542 MHz 15.227Radiated Emission TestPASS Minimum passing margin is –2.30 dBuV at 7242.30 MHz 15.247(c) Band Edge Measurement Limit: 20 dB less than the peak value of fundamental frequency PAS S Meet the requirement of limit NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: DT9TR-01AV Report No.: RF901009R02 5 Issued: Dec. 11, 2001 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4 GHz Wireless A/V Sender MODEL NO. TR-01AV POWER SUPPLY 9VDC from adapter MODULATION TYPE ASK CARRIER FREQUENCY OF EACH CHANNEL 2414, 2432, 2450, 2468MHz BANDWIDTH OF EACH CHANNEL 18MHz NUMBER OF CHANNEL 4 ANTENNA TYPE Inverted-F antenna DATA CABLE 1.8m (Nonshielded) I/O PORTS AV port ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a 2.4 GHz Wireless A/V Sender. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Ma…

Text truncated - open the document above for the full version.

FCC ID: DT9TR-01AV Report No.: RF901009R02 32 Issued: Dec. 11, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: DT9TR-01AV Report No.: RF901009R02 33 Issued: Dec. 11, 2001 RADIATED EMISSION TEST
