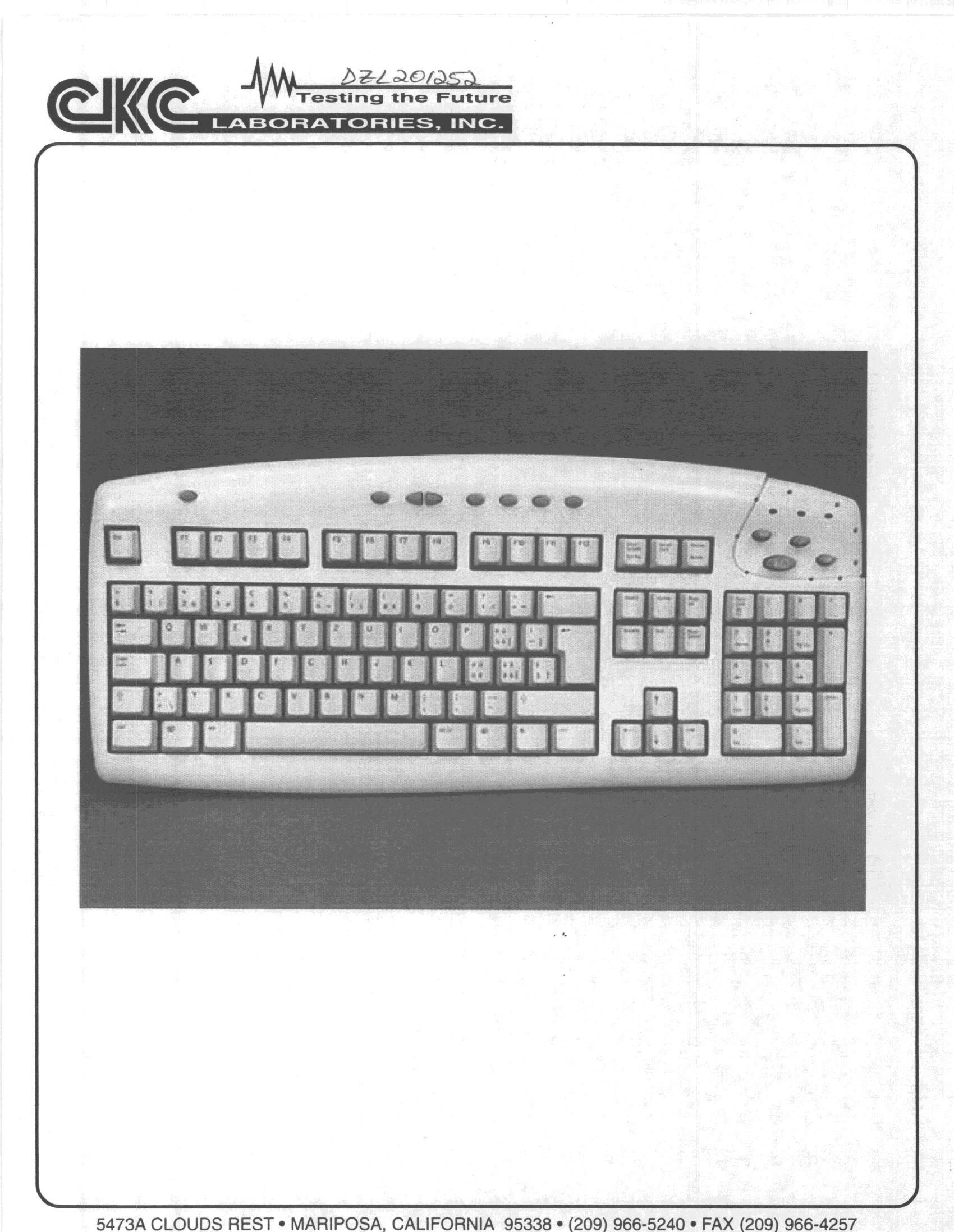

DZL201252Wireless Keyboard

PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Cordless Desktop Transceiver Manuf: Logitech Model: C-RC3-KBD Serial: DVT 103 FCC ID: DoC PC Manuf: HP Model: 8180 Serial: US73553464 FCC ID: DoC Printer Manuf: HP Model: DeskJet 340 Serial: SG69K11KR FCC ID: DoC AC Adaptor Manuf: HP Model: 0950-2435 Serial: N/A FCC ID: N/A Modem Manuf: Cardinal Model: 020-0470 Serial: 9166576A FCC ID: GDE0196 AC Adaptor Manuf: AMIGO Model: AM-9300 Serial: N/A FCC ID: N/A Monitor Manuf: HP Model: D5258A Serial: DK73795774 FCC ID: DoC Test Location:CKC Laboratories, Inc. • 1653 Los Viboras Rd., Site A • Hollister, Ca 95023 • (831) 637-0485 Customer: Logitech, Inc. Specification: FCC 15.227 & 15.209 Work Order #: 71742 Date: September 1, 1999 Test Type: Maximized Emissions Time: 16:35:29 Equipment: Keyboard, Wireless Sequence#: 5 Manufacturer:Logitech, Inc.Tested By: Steve Behm Model:Y-RB6 S/N:SLA-3 Equipment Under Test (* = EUT): FunctionManufacturerModel #S/N Keyboard, Wireless*Logitech, Inc.Y-RB6SLA-3 Support Devices: FunctionManufacturerModel #S/N Cordless Desktop Transceiver LogitechC-RC3-KBDDVT 103 PCHP8180US73553464 PrinterHPDeskJet 340 AC AdaptorHP0950-2435 ModemCardinal020-0470 AC AdaptorAMIGOAM-9300 MonitorHPD5258ADK73795774 Test Conditions / Notes: This test is to FCC C, Paragraph 15.227, and 15.209, IAW ANSI C63.4. The EUT is a cordless Keyboard and communicates with the PC by means of a transmitted RF signal. The fundamental frequency of this signal is 27.145MHz. The PC is fitted with a Cordless Desktop Receiver to detect and decode the signal. The PC is running a special 'Test Software' which causes the EUT to transmit a continuous stream of the letter i, in lower-case. A monitor is connected to the PC and displays status information. A modem, printer, and mouse are connected to the PC, but are not operating in this 'Keyboard Test' Mode. Measurement Data: Reading listed by margin.Test Distance: 3 Meters Ant.cab3Maglp #FreqRdngDistCorrSpecMarginPolar MHzdBμVdBdBdBDBTable dBμV/m dBμV/mdBAnt 1 27.143M 67.3 +0.0 +0.0 +0.0 +7.5 +0.0 74.8 80.0 -5.2Vert +0.0Fundamental 2 299.219M 41.0 -26.0 +0.0 +2.5 +0.0 +0.0 37.8 46.0 -8.2Horiz +20.3 3 54.353M 47.3 -26.6 +0.0 +1.1 +0.0 +0.0 31.3 40.0 -8.7Horiz +9.5 4 299.219M 39.8 -26.0 +0.0 +2.5 +0.0 +0.0 36.6 46.0 -9.4Vert +20.3 5 81.504M 42.4 -26.6 +0.0 +1.8 +0.0 +0.0 24.3 40.0 -15.7Horiz +6.7 6 108.646M 40.8 -26.6 +0.0 +1.5 +0.0 +0.0 27.7 43.5 -15.8Horiz +12.0 7 271.954M 34.0 -25.9 +0.0 +2.5 +0.0 +0.0 30.0 46.0 -16.0Vert +19.4 8 29.186M 26.5 +0.0 +0.0 +0.0 +7.1 +0.0 33.6 50.0 -16.4Vert +0.0 9 29.812M 25.7 +0.0 +0.0 +0.0 +7.0 +0.0 32.7 50.0 -17.3Vert +0.0 10 81.519M 40.2 -26.6 +0.0 +1.8 +0.0 +0.0 22.1 40.0 -17.9Vert +6.7 11 135.781M 35.7 -26.4 +0.0 +1.6 +0.0 +0.0 25.4 43.5 -18.1Horiz +14.5
