M-RN68 Block diagram Batt. Power OPTO uP OSC Ant. Match Antenna SW Connect Button

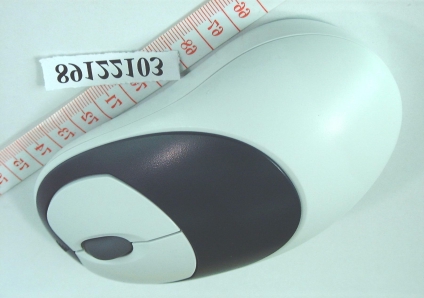

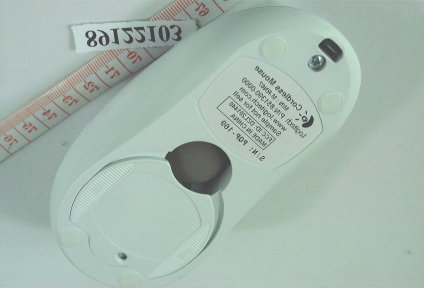

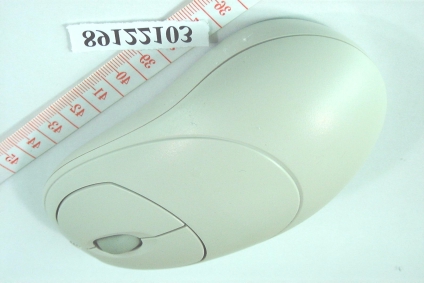

FCC ID: DZL201440 Report No.: RF891221031Issued: Jan. 2, 2001 ANNEX EUT PHOTOS FCC ID: DZL201440 Report No.: RF891221035Issued: Jan. 2, 2001 FCC ID: DZL201440 Report No.: RF891221036Issued: Jan. 2, 2001

FCC ID: DZL201440 Report No.: RF891221032Issued: Jan. 2, 2001 FCC ID: DZL201440 Report No.: RF891221033Issued: Jan. 2, 2001 FCC ID: DZL201440 Report No.: RF891221034Issued: Jan. 2, 2001 FCC ID: DZL201440 Report No.: RF891221035Issued: Jan. 2, 2001

DZL201440 89122103 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3 V Battery. The receiver is powered by host computer. Both transmitter and receiver use loop antenna. Because the room inside the housing is very limited, so the size of the antenna is far smaller than one wavelength (27MHz), which means the radiation efficiency is very low. But under normal use condition, the transmitter and the receiver is quite close, so high EIRP power is not needed and neither not allowed because of interference.

FCC ID: DZL201440 Report No.: RF89122103 1 Issued: Jan. 2, 2001 FCC TEST REPORT REPORT NO.: RF89122103 MODEL NO.:M-RN67 M-RN68 RECEIVED: December 21, 2000 TESTED: December 30, 2000 APPLICANT: LOGITECH INC. ADDRESS: 6505 Kaiser Drive, Fremont, CA94555-3615 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 13-1, Lane 19, Wen Shan 3 rd St., Kweishan, Taoyuan Hsien, Taiwan, R.O.C. This test report consists of 18 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Accredited Laboratory FCC ID: DZL201440 Report No.: RF89122103 2 Issued: Jan. 2, 2001 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................5 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURES AND RESULTS ...........................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURES .....................................................................................8 4.1.4 TEST SETUP...................................................................................................9 4.1.5 TEST RESULTS ............................................................................................10 4.2RADIATED EMISSION MEASUREMENT...................................................... 11 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 11 4.2.2 TEST INSTRUMENTS................................................................................... 11 4.2.3 TEST PROCEDURES ...................................................................................12 4.2.4 TEST SETUP.................................................................................................13 4.2.5 TEST RESULTS ............................................................................................14 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................16 6APPENDIX - INFORMATION ON THE TESTING LABORATORIES .............18 ANNEX EUT PHOTOS FCC ID: DZL201440 Report No.: RF89122103 3 Issued: Jan. 2, 2001 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Logitech MODEL NO : M-RN67, M-RN68 APPLICANT : Logitech Inc. STANDARDS : 47 CFR Part 15, Subpart C (Section 15.227) & Subpart B, ANSI C63.4-1992 SITE REGISTERATION NO : 90422 (FCC) IC 3789-5 (Canada IC) We, Advance Data Technology Corporation, hereby certify that one sample (M- RN67) of the designation has been tested in our facility on December 30, 2000. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: DZL201440 Report No.: RF89122103 4 Issued: Jan. 2, 2001 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST REQUIREMENTSRESULTREMARK 15.107 AC Power Conducted Emissions Spec.: 48 dBuV N/AN/A 15.227 Transmitter Radiated Emissions Spec.: Table 15.209 PASS Minimum passing margin is –6.2 dBuV at 432.01 MHz NOTE: The receiver portion of the EUT has been tested in ADT. The test result has been verified to comply with FCC Part 15, Subpart B, Class B – Computing Devices (FCC DoC). The engineering test report can be provided upon FCC requests. FCC ID: DZL201440 Report No.: RF89122103 5 Issued: Jan. 2, 2001 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO.M-RN67, M-RN68 POWER SUPPLY3VDC (1.5V x 2 batteries) DATA CABLENA I/O PORTSNA MODULATION TYPEFSK TRANSFER RATE OPERATING FREQUENCY 27MHz NUMBER OF CHANNEL1 ANTENNA TYPE ASSOCIATED DEVICESNA DESCRIPTION BETWEEN MODELS The difference between M-RN67 and M-RN68 is the housing only. Please have a look at EUT PHOTS page 1 for M-RN67 and page 5 and 6 for M-RN68. 3.2 DESCRIPTION OF TEST MODES One channel is provided in this EUT. ChannelFrequencyChannelFrequency 127 MHz7 28 39 410 511 6 FCC ID: DZL201440 Report No.: RF89122103 6 Issued: Jan. 2, 2001 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is a Wireless Mouse, according to the specifications of the manufacturers, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C. (15.227) & Subpart B. All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. No ProductBrandModel No.Serial No.I/O Cable 1. PCNTIPiii-500P2-01-168Nonshielded Power (1.8m) 2. MONITORHPD2842AKR93473118 Nonshielded Power (1.5m) Shielded Signal(1.8m) 3. PRINTERHP2225C+2936S56294 Nonshielded Power (1.8m) Shielded Signal(1.2m) 4. KEYBOARDFORWARD FDA-104GA FDKB8110127Shielded Signal (1.5m) 5. MODEMACEEX14…

Text truncated - open the document above for the full version.

FCC ID: DZL201440 Report No.: RF89122103 16 Issued: Jan. 2, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: DZL201440 Report No.: RF89122103 17 Issued: Jan. 2, 2001 RADIATED EMISSION TEST
