DZL201513BT Mouse/Pointer - cordless presentation device

Logitech Inc
BT Mouse/Pointer - cordless presentation device - FCC ID DZL201513 - Logitech Inc
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 04, 2002
Application Purpose
Original Equipment
Date of Application
Mar 04, 2002
Equipment Note
BT Mouse/Pointer - cordless presentation device
Frequency Range
2402.00000000 - 2480.00000000
Company
Logitech Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Cordless Presenter ™ Setup Cordless Presenter ™ Setup ii © 2002 Logitech. All Rights Reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and my be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. Part Number: 622978-0403 Limited Warranty. Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of five (5) years from the date of purchase. Logitech's limited warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. Remedies. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair or replace the hardware, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with a copy of the sales receipt, or (b) refund the price paid. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, or misapplication. DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LOGITECH PRODUCT OR SERVICE, EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITECH'S AND ITS SUPPLIERS’ TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability. FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. Canadian DOC Statement. This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus specified in the interference- causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications. Cet appareil numérique respecte les limites bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le Ministère des Communications. This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. iii © 2002 Logitech. Tous droits réservés. Logitech, le logo Logitech et les autres marques Logitech sont la propriété exclusive de Logitech et sont susceptibles d’être des marques déposées. Toutes les autres marques sont la propriété exclusive de leurs détenteurs respectifs. Logitech décline toute responsabilité en cas d'erreurs dans ce manuel. Les informations énoncées dans le présent document peuvent faire l’objet de modifications sans avis préalable. Garantie limitée. Logitech certifie…

Text truncated - open the document above for the full version.

Attestation Statements

RF Exposure compliance issues: The max. RF EIRP power output from the device is less than 1 mW. If the entire RF Power were absorbed by 1 gram of tissue (not possible considering typical RF circuits) the SAR limit of 1.6mW/g would still not be exceed. Therefore no warning labels, no RF exposure warnings in the manual or other protection measures are required for the transceiver.

Cover Letter(s)

March 05, 2002 CONFIDENTIALITY REQUEST Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Logitech Inc., FCC ID:DZL201513 Gentlemen: LogitechInc., herein submits a request for Confidentiality for the specified attachments that are filed forFCCID:DZL201513. Certification is sought under the TCB certification program pursuant to the requirements of the Federal Communications Commission for a spread spectrum transmitter under FCC Rules Part 15.LogitechInc., requests, pursuant to 47CF R0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection by the Commission following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: 1.Circuit diagrams, BOM, and PCB submitted as Equipment Authorization Electronic Filing attachment:"schematics”. 2. Block diagram and operational description submitted as Equipment Authorization Electronic Filing attachment:“blockdiagram ”. If you have any questions, please feel free to contact me at the address shown below. Regards, (signed) Gerald Schmidt, Cetecom ICT GmbH, Untertürkheimer Strasse 6-10 D-66117 Saarbrücken Germany Email:[email protected] Phone: +49 681 598 8723

External Photos

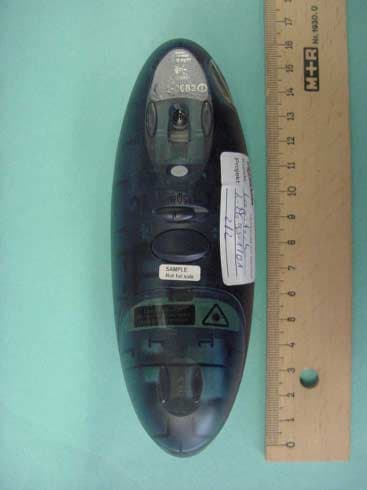

CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 47 (55) Photographs of the equipment Photo 1: M-RU77 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 48 (55) Photographs of the equipment Photo 2: M-RU77

Internal Photos

CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 51 (55) Photographs of the equipment Photo 5: M-RU77 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 52 (55) Photographs of the equipment Photo 6: M-RU77 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 53 (55) Photographs of the equipment Photo 7: M-RU77 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 54 (55) Photographs of the equipment Photo 8: M-RU77 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 55 (55) Photographs of the equipment Photo 9: M-RU77

Operational Description

M-RU77andC-UF15:ProductDescription Purpose:M-RU77 and C-UF15 is a Cordless presentation device for personal computer. The system uses the 2.4 GHz ISM band and the Bluetooth technology. The transmitter implement a low power mode for batteries saving. System:This wireless presentation device (M-RU77) works with the C-UF15. Radio transmission:Bi-directional, Bluetooth technology. Number of channels:79 Carrier frequencies:2402 MHz to 2480 MHz Modulation:Spread Sprectrum, Frequency Hoping Data Rate:721 kbit/s. Transmission range:10 m typical, free space. Effective radiated power: 0 dBm (Bluetooth class 2). Power Consumption:500 mW typical when in movement. Antenna:Ceramic Monopole Antenna, integrated in the case. LOGITECH CONFIDENTIAL Francesco Spina / 21 January 2002.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 55 PagesPage 1 (55) TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-2695-01-02/01 FCC Part 15.247 / CANADA RSS-210 M-RU77 FCC-ID: DZL201513 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2-2695-01-02/01Issue date: 11.01.02Page 2 (55) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G 166/98-30 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2-2695-01-02/01Issue date: 01.03.02Page 3 (55) 1.3Details of applicant Name : LOGITECH Europe SA Street : ZI Moulin du Choc City : 1122 Romanel / Morges Country : Switzerland Telephone : +41 21 863 51 11 Telefax : +41 21 863 53 11 Contact : Mr. Francesco Spina Telephone : +41 21 863 52 23 1.4Application details Date of receipt of application : 21.12.01 Date of receipt of test item : 21.12.01 Date of test : 10.01.02 1.5Test item Type of equipment : Cordless BT Presentation device Type designation: M-RU77 Manufacturer: applicant Street: City: Country: Serial number: See photographs Additional informations: : Frequency: 2402 – 2480 MHz Type of modulation: 1M00FXD / 79M8FXD (FHSS) Number of channels : 79 Antenna: integral antenna Power supply: 3,0 V DC powered by battery Output power: EIRP: 0.91 mW / -0.41 dBm FCC ID: DZL201513 Type of equipment: cordless Bluetooth TM presentation device Temperature range: -20°C - +55°C 1.6Test standards: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test report nr.:2-2695-01-02/01Issue date: 01.03.02Page 4 (55) 2 Technical test 2.1Summary of test results The radiated measurements were performed vertical and horizontal over the whole frequency range.We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual remeasurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horns The antenna gain is given by the applicant with –2 dBi. All measurements were made radiated, as there is no coax adapter at the sample. The correction factor for the standard gain horn at 0.5 m distance is 24.5 dB. All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for FHSS systems“, especially regarding the radiated measurements. The product fullfills also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests. Final verdict : PASS Technical responsibility for area of testing : 16.01.02RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 16.01.02RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2-2695-01-02/01Issue date: 01.03.02Page 5 (55) 2.2Testreport TEST REPORT Testreport no. : 2-2695-01-02/01 CETECOM ICT Services GmbH Test report nr.:2-2695-01-02/01Issue date: 01.03.02Page 6 (55) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.204Antenna gain 7 § 15.247 (a) Carrier frequency separation8 § 15.247 (a)Number of hopping channels9 § 15.247 (a)Time of occupancy (dwell time)10 § 15.247 (d) Power spectral density (Inquiry/Page mode)15 § 15.247 (a)(1) Spectrum bandwidth of a FHSS System16 § 15.247 (b)(2) Maximum peak output power20 §15.247Band edge compliance24 § 15.247 (c)(1) Emission limitations 26 Receiver parameters § 15.209Spurious radiations - Radiated40 Test equipment listing43 Photographs of the equipment45 CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 01.03.02Page 7 (55) Equipment under test : M-RU77 Ambient temperature : 22° °° °C Relative humidity : 34% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) - Antenna GainSUBCLAUSE § 15.204 The gain is -2.0 dBi - declared by the applicant - CETECOM ICT Services GmbH Test report…

Text truncated - open the document above for the full version.

Test Report

EXHIBIT BB – Processing Gain FCC ID O2Z-BT2 Page 1 of 11 Properties/Title v2 15 February 2001 MEMORANDUM – PROCESSING GAIN REPORT FOR INTEL(R) PERSONAL WIRELESS MODULE Subject: Results of Processing Gain Tests for FCC Qualification 1 INTRODUCTION This memo presents the results of the Processing Gain (PG) tests carried out for FCC qualification of the Intel(R) Personal Wireless Module chip. The FCC states that the PG from a hybrid Bluetooth receiver must be greater than 17 dB when measured in accordance with the Continuous Wave (CW) jamming margin method. Testing of the Intel(R) Personal Wireless Module “B” Bluetooth chip has found the PG due to the DS section to be approximately 5 dB and the PG due to the FH part to be approximately 15 dB. It is therefore concluded that the Intel(R) Personal Wireless Module Bluetooth Chip complies with the FCC PG requirements for radio communication systems. The rest of this paper outlines the PG measurement technique and discusses the test results. Appendix A contains a list of test equipment and Appendix B contains a printout of the measurement results. 2 METHOD 2.1 PG Definition The Processing Gain from a frequency hopping communication system is derived from two parts, the FH section and the DS section. The PG due to FH is given by a simple equation and is constant. However measurement of the PG due to DS is a little more complex. One technique is to use the CW jamming margin method. This method measures PG due to DS using the following algorithm: A CW signal generator is stepped in 50kHz increments across the passband of the system, recording at each point the generator level required to produce the 0.1% Packet Error Rate (PER). This is the jammer level. This level is then referenced to the output power of the intended Bluetooth signal and the Jammer to Signal Ratio JSR is thus calculated. The worst 4 JSR measurements are discarded and the worst remaining JSR is used to calculate the PG due to DS as follows: sysp LJSRSNRG++= min Page 2 of 11 Properties/Title v2 15 February 2001 where G p = the processing gain of the system, SNR = the signal to noise ratio required for 0.1% BER, JSR min = minimum J/S ratio and L sys = system losses. 2.2 PG Measurement Technique Figure 1 provides an overview of the PG measurement technique. The measurement is performed in two parts, measurement of the system SNR and measurement of JSR min . Figure 1: PG Measurement Technique The system SNR is calculated using the following algorithm. Generate Bluetooth PRBS-9 packets using a Bluetooth chip emulator (1) and a Vector Signal Generator (2). Combine this signal with white noise of a constant level, which is generated using a noise source (4) and a CW Signal Generator (3). Then vary the level of the Bluetooth signal until the BER measured by the Bluetooth chip (7) is 0.1%. The resulting SNR is the signal level divided by the Noise level. Page 3 of 11 Properties/Title v2 15 February 2001 The JSR for a given jamming frequency is calculated using the following algorithm. Generate Bluetooth PRBS-9 packets using the Bluetooth chip emulator (1) and the Vector Signal Generator (2). Combine this signal with a constant CW tone at the jamming frequency using a CW Signal Generator (5) and a combiner (6). Then vary the level of the Bluetooth signal until the PER measured by the Casira Bluetooth Module (7) is 0.1%. The resulting JSR is the signal level divided by the jamming level. 3 RESULTS 3.1 Overview The measurements found that the PG due to DS caused by the access code in page and inquiry mode is found to be approximately 5dB when the access code is a relatively random mixture of 1's and 0's. A random access code causes the most Inter Symbol Interference (ISI) and hence the worst PG for a hybrid system. Therefore only the results for this access code are used in the PG calculation. The PG due to FH is given as PG FH = 10 log 10 (number of frequency hops) The number of hops in a Bluetooth system is 32, therefore the PG due to FH is approximately 15 dB. When this is added to the PG due to DS, the total PG for the Bluetooth chip is approximately 20 dB, above the minimum PG requirement for FCC qualification. 3.2 Detailed Results Test Date: 17/11/00 Sample Time: 30 seconds Access Code: c6967e Signal Frequency: 2.432GHz Receiver Sensitivity: -88.7 dBm Jammer Signal Level: -85.7 dBm Measured SNR: 18.8dB System Losses: 2dB To calculate processing gain, ignore the worst 20% of data points and then apply the following formula: Page 4 of 11 Properties/Title v2 15 February 2001 sysp LJSRSNRG++= min Where G p = Processing Gain of the module SNR = signal to noise ratio of the module JS min = minimum J/S ratio after the worst 20% of J/S samples have been discarded L sys = System losses A total of 20 samples were taken by stepping the jamming signal frequency offsets in 50kHz increments over the bandwidth of the receiver. The worst 4 samples were found at –500kHz, -450kHz, -400kHz and 500kHz and were discarded. The remaining minimum J/S ratio was found to be -15.4dB at an offset of +350kHz Thus, the processing gain due to direct sequence spreading in page and inquiry mode is dBG p 4.524.158.18=+−= -500-400-300-200-1000100200300400500 -30 -25 -20 -15 -10 -5 0 5 Jamming Frequency Offset (kHz) J/S (dBs) J/S ratio performance for Processing Gain FCC Testing Page 5 of 11 Properties/Title v2 15 February 2001 APPENDIX A - TEST EQUIPMENT LIST Reference: Instrument Type Name 1 Bluetooth IC Emulator Board N/A 2 Vector Signal Generator IFR2052 3 CW Signal Generator IFR2025 4 White Noise Generator HP33120A 5 RF Mixer M8HC-7 6 RF Combiner 6 dB loss combiner 7 Bluetooth Motherboard and Bluetooth chip Module Bluetooth Development Kit 8 5V, 4A DC Power Supply N/A 9 Spectrum Analyser HP E4405B Page 6 of 11 Properties/Title v2 15 February 2001 APPENDIX B - TEST RESULTS Timestamp: 14:42.43, 16/11/2000 Signal Freq = 2.432 GHz Jammer Level = -85.7 dBm Jammer Offset = -500 kHz Level = -68.7 dBm BER = 0.03% PER = 0.01% …

Text truncated - open the document above for the full version.

Test Setup Photos

CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 45 (55) Test site CETECOM ICT Services GmbH Test report nr..: 2-2695-01-02/01Issue Date: 22.01.02 Page 46 (55) Testsite

Contact Information

Applicant

Paul Zahra(Regulatory Compliance Manager)
[email protected]5107135436Fax: 5107135436

Test Firm

Cetecom ICT Services GmbHRalf Hoehn
[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz910.00 µW
Confidentiality
Long Term
Grant Notes
Output is EIRP This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
