DZL201926Logitech Cordless Attack Controller

LOGITECH ® CORDLESS ATTACK ™ ENGLISH INSTALL BATTERIES IN CONTROLLER. 1) Remove battery compartment cover, insert batteries into controller, and then replace the cover. One set of batteries provides about 300 hours of gameplay. 2) Insert receiver connector into controller port of Xbox ® . 3) Turn on Xbox, and then load a game. Receiver Status light blinks slowly. 4) To establish a connection with receiver, press any action button on controller. Receiver Status light turns solid green for 2 seconds (then off) when connection has been made. If controller does not connect, press the Connect button on receiver, and then press any action button on controller. 5) The controller enters sleep mode after the batteries are inserted, when the controller has not connected with the receiver, and after 5 minutes of inactivity. Press any action button to activate the controller. CONTROLLER MODE/STATUS LIGHT. 1) Normal mode (light off): Triggers and action buttons provide analog pressure input (i.e., increased pressure on these controls increases action in supported games). 2) Scanning mode (light blinks for up to 10 seconds). Controller searches for connection with receiver. 3) Low Battery status (light blinks briefly every few seconds). All controller functions continue to operate for at least 100 hours more. 4) Sleep mode (light off). Controller power consumption is minimized to prolong battery life. There is no connection with receiver. RECEIVER STATUS LIGHT. Light blinks slowly when there is no connection between controller and receiver. Light turns solid green for 2 seconds (then off) when controller and receiver have established a connection. Light blinks each time a control is used on a "connected controller." (Rapid usage of a controller gives the appearance that the light is on constantly.) Light blinks quickly when the receiver searches for a new controller. IMPORTANT ERGONOMIC INFORMATION: Long periods of repetitive motion using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in your hands, wrists, arms, shoulders, neck, or back, see a qualified health professional. For more information, please read the Comfort Guidelines located on the Logitech ® web site at http://www.logitech.com/comfort, or on the Logitech ® Software CD (products with software only). WARNING! CHOKING HAZARD: Small parts, not for children under 3 years. UL SAFETY: Your product has been UL tested. It is safe to use with UL listed PCs or UL listed devices for use with TVs. POWER SUPPLY WARNING: If your product has a power supply, follow these safety guidelines: 1) The power supply is for indoor use only. 2) Use the power supply that comes with your product; do not use any other power supply. 3) Do not use a damaged power supply or attempt to repair one that is damaged. 4) Do not immerse the power supply in water or subject it to physical abuse. 5) Inspect the power supply regularly for damage to its cable, plug, and body. BATTERY WARNING: If your product uses batteries, follow the battery manufacturer’s instructions as well as these important safety tips. Exercise care when handling batteries. Do not open or mutilate them. When batteries are misused, they may leak or explode causing burns and personal injury. Conducting materials can also short out a battery causing it to overheat and leak. Do not put batteries in a fire, expose them to heat above 130 F (54 C), or immerse them in water. If your batteries leak, use caution and discard the batteries immediately according to the battery manufacturer’s instructions and your local laws. When replacing batteries, remove all used batteries. Mixing old and new batteries may cause battery leakage or rupture. When possible use alkaline battery replacements. You may use other battery types, but do not mix them with alkalines. Make sure that you insert the batteries correctly. When not using your product for long periods of time, remove the batteries and store them in a cool, dry place at normal room temperature. TROUBLESHOOTING: Visit Logitech Customer Support online at www.logitech.com. LIMITED WARRANTY. Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of one (1) year from the date of purchase. Logitech's limited warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. REMEDIES. Logitech’s entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech’s option, to: (a) repair or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with a copy of the sales receipt. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, misapplication, or any unauthorized repair, modification or disassembly. Further, for cordless devices, these remedies are void if you use battery types other than those recommended by Logitech. Upon request from Logitech, you must prove the date of the original purchase of the hardware by a dated bill of sale or dated itemized receipt. DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MOD…

Text truncated - open the document above for the full version.

, - LOGITECH INC. 6505 Kaiser Drive Fremont, CA 94555-3615 " Loitech AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, LOGITECH INC. , hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Note: Product name: Logitech Cordless Attack Controller Model name: G-X3C12A Sincerely yours, rr~J f£J Signature: Bharat_Shah I Compliance Manager US Region LOGITECH INC. TEL: 1-510-713-4777(0) FAX: 419-828-4405 E-mail: Bharat_Shahcælogtiech.com

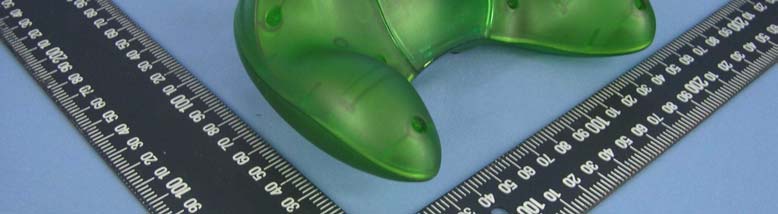

Page 1 CONSTRUCTION PHOTOS OF EUT

LABEL LOCATION Label FCC ID：DZL201926

Page 2 Page 3 Page 4

FCC ID: DZL201926 Report No.: RF940319H05 Operational Description The device is a Logitech Cordless Attack Controller, and employing FHSS (Frequency Hopping Spread Spectrum) modulation with 79 hopping channels in 2.4 GHz Band. The antenna type is PCB strip antenna and there is no antenna connector used. The other instruction, please have a look at the users manual.

FCC ID: DZL201926 Report No.: RF940319H051Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.: RF940319H05 MODEL NO.: G-X3C12A RECEIVED: Mar. 17, 2005 TESTED: Mar. 23 to 24, 2005 ISSUED:Mar. 28, 2005 APPLICANT:LOGITECH INC. ADDRESS:6505 Kaiser Drive Fremont, CA 94555- 3615 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: DZL201926 Report No.: RF940319H052Report Format Version 2.0.1 TABLE OF CONTENTS 1CERTIFICATION...............................................................................................3 2SUMMARY OF TEST RESULTS ......................................................................4 3GENERAL INFORMATION ...............................................................................5 3.1GENERAL DESCRIPTION OF EUT .................................................................5 3.2DESCRIPTION OF TEST MODES ...................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS .............................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST...............................................8 4TEST PROCEDURES AND RESULTS .............................................................9 4.1CONDUCTED EMISSION MEASUREMENT....................................................9 4.2RADIATED EMISSION MEASUREMENT.........................................................9 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................9 4.2.2 TEST INSTRUMENTS....................................................................................10 4.2.3 TEST PROCEDURES .................................................................................... 11 4.2.4 DEVIATION FROM TEST STANDARD........................................................... 11 4.2.5 TEST SETUP..................................................................................................12 4.2.6 EUT OPERATING CONDITIONS ...................................................................12 4.2.7 TEST RESULTS .............................................................................................13 4.3BAND EDGES MEASUREMENT ...................................................................17 4.3.1 LIMITS OF BAND EDGES MEASUREMENT .................................................17 4.3.2 TEST INSTRUMENTS....................................................................................17 4.3.3 TEST PROCEDURE.......................................................................................17 4.3.4 DEVIATION FROM TEST STANDARD...........................................................17 4.3.5 EUT OPERATING CONDITION......................................................................17 4.3.6 TEST RESULTS .............................................................................................18 5PHOTOGRAPHS OF THE TEST CONFIGURATION .....................................20 6INFORMATION ON THE TESTING LABORATORIES....................................21 FCC ID: DZL201926 Report No.: RF940319H053Report Format Version 2.0.1 1 CERTIFICATION PRODUCT : Logitech Cordless Attack Controller BRAND NAME : Logitech MODEL NO : G-X3C12A TESTED: Mar. 23 to 24, 2005 APPLICANT : LOGITECH INC. TEST ITEM: ENGINEERING SAMPLE STANDARDS : 47 CFR Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment (Model: G-X3C12A) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Mar. 28, 2005 ( Midoli Peng ) TECHNICAL ACCEPTANCE :, DATE:Mar. 28, 2005 Responsible for RF ( Hank Chung ) APPROVED BY : , DATE: Mar. 28, 2005 ( Eric Lin, Manager ) FCC ID: DZL201926 Report No.: RF940319H054Report Format Version 2.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Paragraph Test TypeResultRemark 15.207Conducted Emission TestNA Power supply is 3VDC from batteries 15.249Radiated Emission TestPASS Minimum passing margin is –4.4dB at 2496.5MHz 15.249Band Edge MeasurementPASS Meet the requirement of limit FCC ID: DZL201926 Report No.: RF940319H055Report Format Version 2.0.1 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTLogitech Cordless Attack Controller MODEL NO.G-X3C12A POWER SUPPLY3.0VDC from batteries MODULATION TYPEFSK MODULATION TECHNOLOGY FHSS CARRIER FREQUENCY OF EACH CHANNEL 2402MHz ~ 2480MHz BANDWIDTH OF EACH CHANNEL 1 MHz NUMBER OF CHANNEL79 ANTENNA TYPEPCB strip antenna. DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The above EUT information was declared by the manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: DZL201926 Report No.: RF940319H056Report Format Version 2.0.1 3.2 DESCRIPTION OF TEST MODES Seventy-nine channels are provided to this EUT. Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) Channel Freq. (MHz) 02402202422402442602462 12403212423412443612463 22404222424422444622464 32405232425432445632465 424062424264424466…

Text truncated - open the document above for the full version.

FCC ID: DZL201926 Report No.: RF940319H0520Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
