DZL202311Cordless Mouse

www.logitech.com/support WWW Czech Republic+420 239 000 335 English: +41-(0)21 863 54 01 +36-177-74 853 Poland+48-22-854 11 51 Russia +7(095)-641 3460 South Africa Dutch: n.a.; English: n.a. Japan +81-(3)3543 21 22 Asia Pacific Headquarters Hsinchu, Taiwan +886-(2)746-6601; x2206 Australia +61-(02)9804-69 68; BBS +61(02)9972 35 61 Corp. Hq. Fremont, USA and Canada +1-510-795 81 00 Euopean., Mid. East., & African Hq. Romanels/ Morges, Switzerland English: +41-(0)21-863 5401 Fax: +41-(0)21-863 5402 Help/Dépannage English Español Français Português English Important Ergonomic Information. Long periods of repetitive motion using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in your hands, wrists, arms, shoulders, neck, or back, see a qualified health professional. For more information, please read the Comfort Guidelines located on the Logitech® web site at http://www.logitech.com/comfort, or on the Logitech ® Software. International Standards and Safety. This optical device complies with International Standard IEC 60825-1: 2001-08, Class 1 Laser Product, and also complies with 21 CFR 1040.10 and 1040.1, except for deviations pursuant to Laser Notice Nr. 50, dated July 26, 2001: 1) Emission of a parallel beam of infrared user-invisible light; 2) Maximum power of 716 microwatts CW, wavelength range 832 — 865 nanometers; 3) Operating temperature between 0°C (32°F) to 40°C (104° F). CAUTION: This optical device has no serviceable parts. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Safety and Usage Guidelines. 1) Do not point infrared beam at eye. 2) In the absence of proper operation and if customer-initiated troubleshooting is unsuccessful, switch off device and call Logitech“ technical support. 3) Do not disassemble your product or expose it to liquid, humidity, moisture, or temperatures outside the specified operating range of 0°C (32°F) to 40°C (104° F). 4) If your product is exposed to out-of-range temperatures, switch it off and allow the temperature to return to the normal operating range. End-of-life Battery Disposal Instructions. This device contains an internal, lithium-ion rechargeable battery that is non-replaceable. In general, the life expectancy of such batteries is dependent upon usage. Heavy daily use will result in shorter battery life. Casual use will extend battery life. If you suspect that the lithium-ion rechargeable battery inside your device may be drained (has a low charge), try charging it. If the battery does not recharge after several attempts, it may be non-operational. Should this be the case, you will need to dispose of your device in accordance with the laws and regulations in your area that specify the proper disposal of non-functioning electronic devices. If there are no such laws or regulations, please dispose of your device in a waste bin for spent electronic gear. CAUTION: The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, expose to heat above 70° C (158° F), incinerate, or immerse in water or liquid of any kind. Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods of time. When the battery is misused, it may explode or leak, causing burns and personal injury. If the battery leaks, use normal precaution and discard it immediately following the laws and regulations governing battery disposal in your area. Remember that a leaking battery can cause skin burns or other personal injury. Keep this and all batteries out of the reach of children. Power Supply Warning. The power supply for this product is for indoor use only. Use the power supply that comes with your product; do not use any other power supply. Do not use a damaged power supply or attempt to repair one that is damaged. Do not immerse the power supply in water or subject it to physical abuse. Inspect the power supply regularly for damage to its cable, plug, and body. Compliance and UL Testing. Your product is UL tested and should only be used with other UL listed devices. Your product is FCC and CE compliant. For compliance information, go to http://www.logitech.com/compliance. Warranty. Your product comes with a limited warranty. Refer to the software help system for more information. Español Información sanitaria importante: Realizar tareas repetidas durante largos periodos de tiempo, una disposición inadecuada del lugar de trabajo, una posición incorrecta del cuerpo y hábitos de trabajo deficientes pueden ocasionar cansancio y lesiones físicas en nervios, tendones y músculos. Ante cualquier síntoma de dolor, rigidez, debilidad, inflamación, quemazón, calambre o agarrotamiento de manos, muñecas, brazos, hombros, cuello o espalda, consulte a un profesional sanitario titulado. Para más información, consulte las Recomendaciones para evitar el cansancio en la página Web de Logitech ® : http://www.logitech.com/comfort, o en el CD del software Logitech ® . Normativa internacional y seguridad. Este dispositivo óptico cumple con la normativa internacional IEC 60825-1: 2001-08, Producto láser de clase 1, y con 21 CFR 1040.10 y 1040.1, excepto en lo relacionado con el aviso de láser número 50, del 26 de julio de 2001: 1) Emisión de un haz paralelo de luz infrarroja invisible para el usuario; 2) Potencia máxima de 716 microvatios en funcionamiento continuo; intervalo de longitud de onda entre 832 y 865 nanómetros; 3) Temperatura de funcionamiento entre 0º C y 40º C. PRECAUCIÓN: Este dispositivo óptico no incluye piezas que puedan repararse o sustituirse. La utilización de controles, ajustes o procedimientos no especificados en este documento pued…

Text truncated - open the document above for the full version.

Logitech Europe S.A. Z.I Moulin du Choc D 1122 Romanel sur Morges Switzerland To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for permanent FCC confidentiality (FCC ID: DZL202311) Reference number: M-RBQ124 Date: 6 June 2006 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), Logitech Europe S.A. hereby requests permanent FCC confidentiality of the following materials submitted in support of FCC certification application for FCC ID: DZL202311 a. Block diagram b. Schematic diagrams c. Operational description d. Bill of Material Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Logitech Europe S.A. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Pascal Bornel Sr. Compliance engineer

Logitech Europe S.A. Z.I Moulin du Choc D 1122 Romanel sur Morges Switzerland To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Temporary FCC confidentiality request regarding the application for certification of FCC ID: DZL202311 Reference number: M-RBQ124 Date: 6 June 2006 Dear FCC TCB, Pursuant to 47 CFR Section 0.459(a) & (b), Logitech Europe S.A. hereby requests a temporary confidential treatment for the following materials submitted in support of FCC certification application for FCC ID: DZL202311 during 45 days after the grant date of Equipment Authorization: a. Photographs of overall appearance b. Test set-up photographs c. User’s manual d. Internal photographs Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Logitech Europe S.A. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Pascal Bornel Sr. Compliance engineer

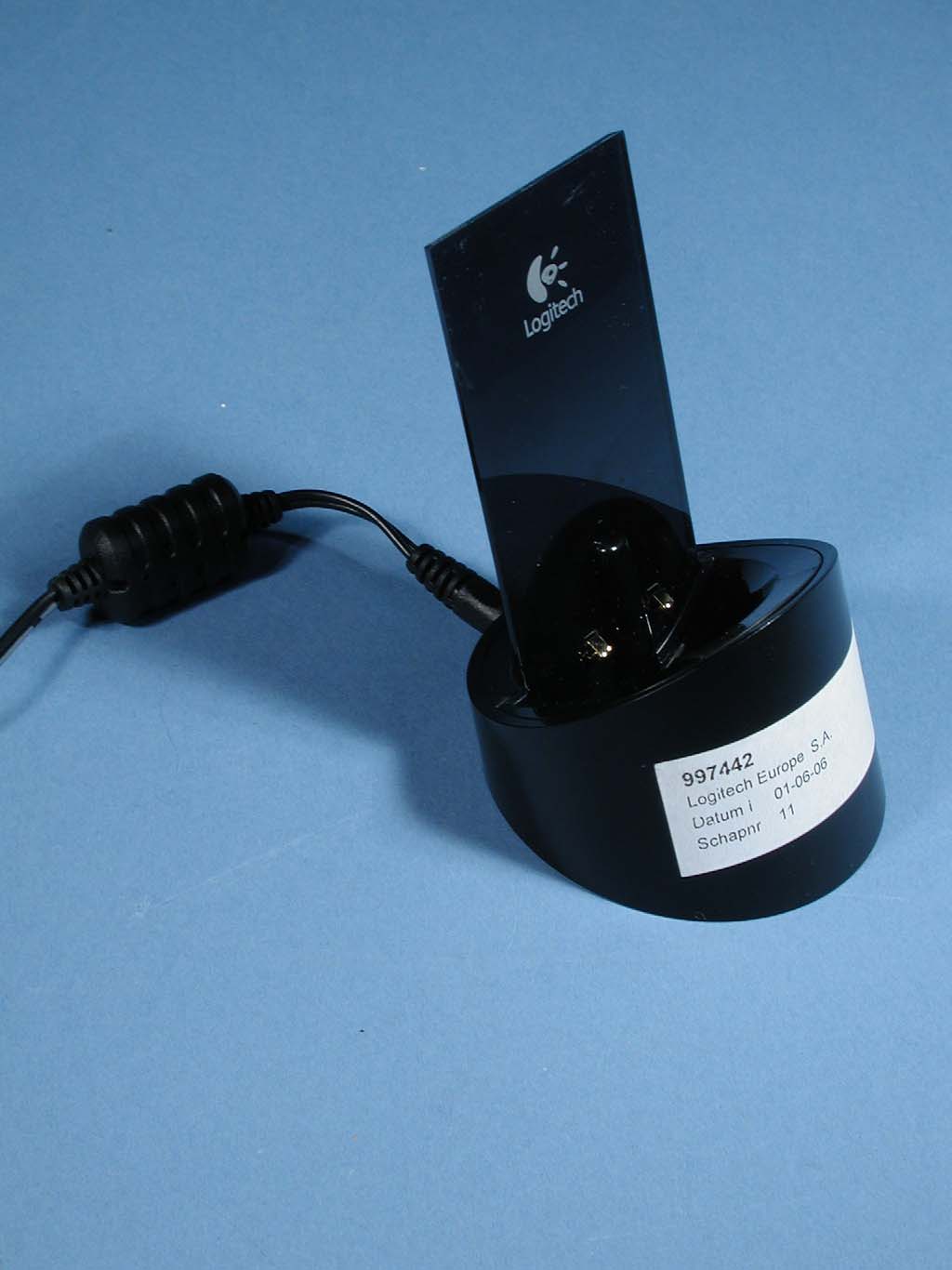

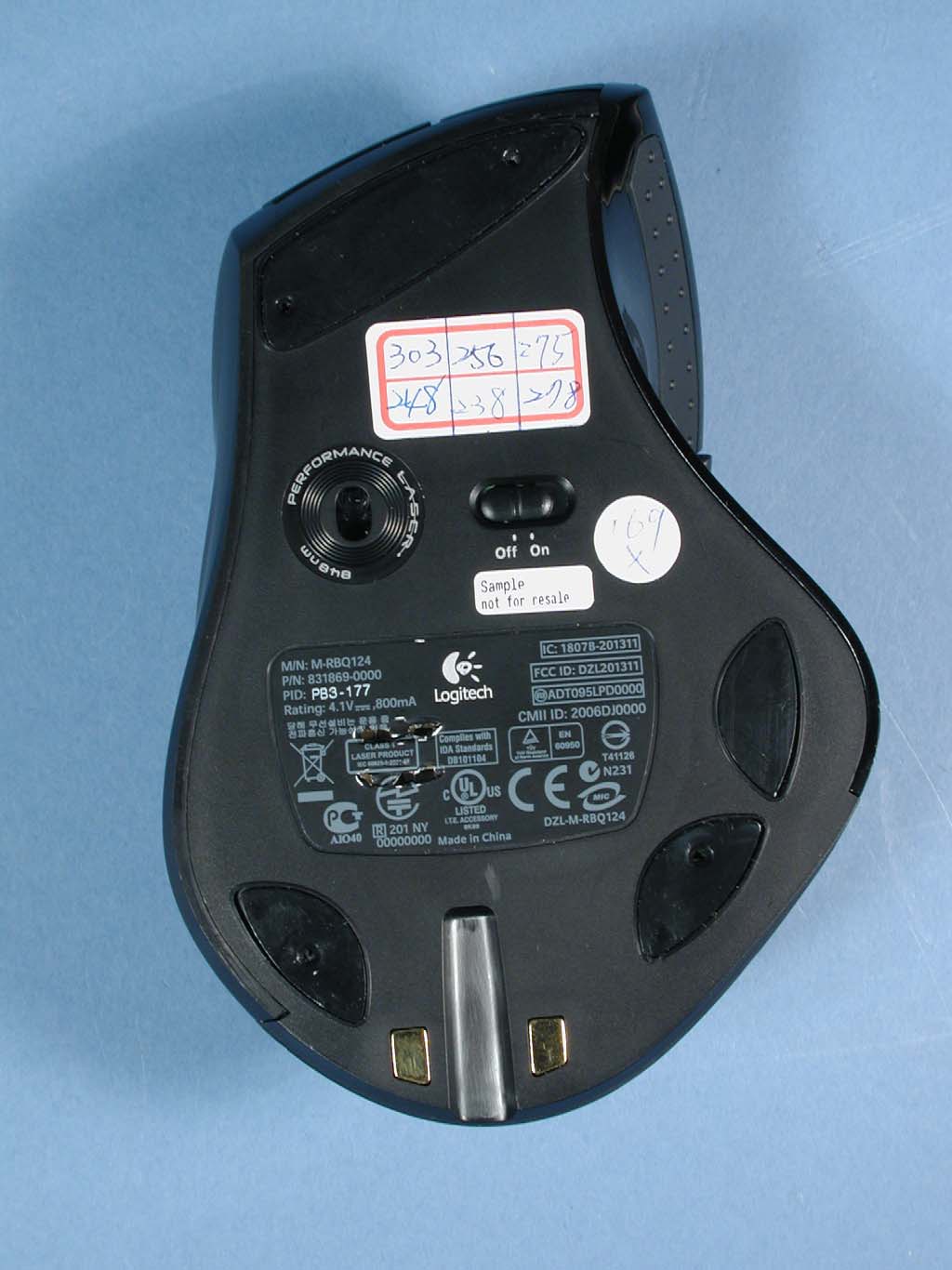

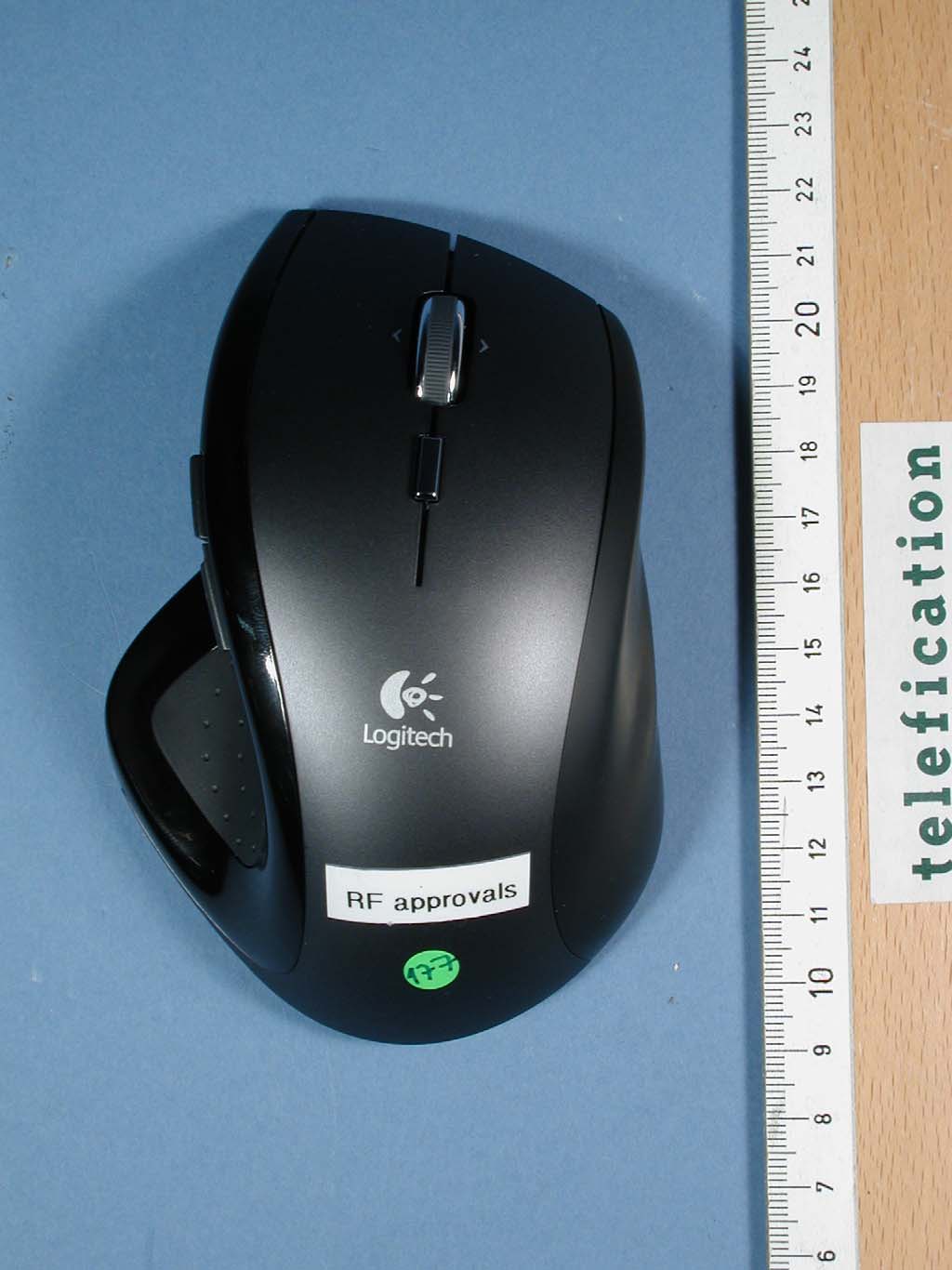

Photographs module 99744231 External PHOTOGRAPH 1: M-RBQ124 TOP VIEW........................................................................................................... 2 PHOTOGRAPH 2: M-RBQ124 BOTTOM VIEW.................................................................................................... 3 PHOTOGRAPH 2: L-LN13 CRADLE, OVERVIEW.................................................................................................. 4 PHOTOGRAPH 2: L-LN13 CRADLE, BOTTOM VIEW............................................................................................ 5 Page: 2 of 5 Report number: 99744231 Photograph 1: M-RBQ124 top view Page: 3 of 5 Report number: 99744231 Photograph 2: M-RBQ124 bottom view Page: 4 of 5 Report number: 99744231 Photograph 3: L-LN13 cradle, overview Page: 5 of 5 Report number: 99744231 Photograph 4: L-LN13 cradle, bottom view

Background: To Match Midnight Black Graphics: Pantone 7544C Logitech Logo: Pantone 877C Label for Corbusier Rev03 M/N: M-RBQ124 P/N: 831869-0000 PID: Rating: 4.1V ,800mA CMII ID: 2006DJ0000 R 201 NY 00000000 PDM-645844-0000 ADT095LPD0000

Photographs module 99744231 Internal PHOTOGRAPH 1: M-RBQ124 EXPLODED VIEW................................................................................................. 2 PHOTOGRAPH 2: M-RBQ124 INTERNAL VIEW OF BOTTOM PART....................................................................... 3 PHOTOGRAPH 2: M-RBQ124 INTERNAL VIEW OF TOP PART.............................................................................. 4 PHOTOGRAPH 2: M-RBQ124 PCB TOP VIEW.................................................................................................. 5 PHOTOGRAPH 2: M-RBQ124 PCB REAR VIEW................................................................................................. 6 PHOTOGRAPH 2: L-LN13 CRADLE, INSIDE VIEW............................................................................................... 7 Page: 2 of 7 Report number: 99744231 Photograph 1: M-RBQ124 exploded view Page: 3 of 7 Report number: 99744231 Photograph 2: M-RBQ124 internal view of bottom part Page: 4 of 7 Report number: 99744231 Photograph 3: M-RBQ124 internal view of top part Page: 5 of 7 Report number: 99744231 Photograph 4: M-RBQ124 PCB top view Page: 6 of 7 Report number: 99744231 Photograph 5: M-RBQ124 PCB rear view Page: 7 of 7 Report number: 99744231 Photograph 6: L-LN13 cradle, inside view

Radio test report 99744231 based on: - FCC Part 15 Subpart C, sections 15.209 and 15.249 (10-1-05 Edition) - FCC Part 15 Subpart B sections 15.107 and 15.109 (10-1-05 Edition) - RSS-Gen, Issue 1 (Sept. 2005 edition) - RSS-210, Issue 6 (Sept. 2005 edition) Cordless Mouse; Cradle Logitech M-RBQ124; L-LN13 Logitech AGY 737569-0000.A0 Report number: 99744231 Logitech AGY 737569-0000.A0 Contents MAIN MODULE............................................................................................................................................3 1 I NTRODUCTION ....................................................................................................................................3 2 P RODUCT .............................................................................................................................................4 3 T EST SCHEDULE ...................................................................................................................................4 4 P RODUCT DOCUMENTATION .................................................................................................................5 5 O BSERVATIONS AND COMMENTS .........................................................................................................5 6 M ODIFICATIONS TO THE SAMPLE ..........................................................................................................6 7 S UMMARY ............................................................................................................................................6 8 C ONCLUSIONS ......................................................................................................................................7 TEST RESULTS MODULE .........................................................................................................................8 1 G ENERAL INFORMATION ......................................................................................................................8 1.1 Equipment information ...................................................................................................................8 2 E MISSION TESTS ...................................................................................................................................9 2.1 Field strength of intentional signal .................................................................................................9 2.2 Conducted emissions ....................................................................................................................10 2.3 Field strength of unwanted emissions 30 - 1000 MHz .................................................................12 2.4 Field strength of unwanted emissions > 1000 MHz .....................................................................13 2.5 Occupied bandwidth .....................................................................................................................19 USED TEST EQUIPMENT MODULE .....................................................................................................20 CROSS REFERENCE TABLE ..................................................................................................................22 This report comprises of four modules. The total number of pages is: 22 Main module Page: 3 of 22 Report number: 99744231 Logitech AGY 737569-0000.A0 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The contents of this test report, if reproduced, shall be copied in full, unless special consent in writing for reproduction in part is granted by Telefication. Copyright of this test report is reserved to Telefication. Ordering party: Company name : Logitech Europe S.A. Address : Z.I. Moulin du Choc D Zipcode : 1122 City/town : Romanel sur Morges Country : Switzerland Date of order : 1 May 2006 Main module Page: 4 of 22 Report number: 99744231 Logitech AGY 737569-0000.A0 2 Product A sample of the following product was submitted for testing: Product description : Cordless Mouse; Cradle Manufacturer : Logitech Technology Co., Ltd Trade mark : Logitech Type designation : M-RBQ124 FCC ID : DZL202311 Hardware version : -- Serial number : -- Software release : -- Product description : Cradle Manufacturer : Logitech Technology Co., Ltd Trade mark : Logitech Type designation : L-LN13 FCC ID : DZL202311 Hardware version : -- Serial number : -- Software release : -- 3 Test schedule Tests were carried out in accordance with the specification detailed in chapter 7 “Summary” of this report. Tests were carried out at the following location: • Telefication, Zevenaar The samples of the product were received on: • 1 June 2006 Tests were carried out between: • 7 June 2006 and 9 June 2006 Main module Page: 5 of 22 Report number: 99744231 Logitech AGY 737569-0000.A0 4 Product documentation For production of this report the following product documentation was used: Description: Date: Identification: Testing indications 30 May 2006 M-RBQ124, 6 pages Product description June 2006 M-RBQ124, 1 page Block diagram -- M-RBQ124, 1 page Circuit diagram 10 May 2006 M-RBQ124 le Corbusien Main PCB (4 sheets) PCB lay out 05/10/06 M-RBQ124, main PCB PCB lay out 05/10/06 M-RBQ124, secondary PCB Circuit diagram April 12, 2006 222457-000, a0, Vesuvio PCB lay out 04/12/06 Vesuvio-A0 L-LN13 Bill of materials April 12, 2006 Vesuvio, revision a0 The above-mentioned documentation will be filed at Telefication for a period of 10 years following the issue of this test report.…

Text truncated - open the document above for the full version.

Photographs module 99744231 Test setup PHOTOGRAPH 1: TEST SETUP EXPLORATORY RADIATED EMISSIONS UP TO 1000 MHZ.................................... 2 PHOTOGRAPH 2: TEST SETUP RADIATED EMISSIONS > 1000 MHZ................................................................... 3 PHOTOGRAPH 2: TEST SETUP CONDUCTED EMISSIONS..................................................................................... 4 Page: 2 of 4 Report number: 99744231 Photograph 1: Test setup exploratory radiated emissions up to 1000 MHz Page: 3 of 4 Report number: 99744231 Photograph 2: Test setup radiated emissions > 1000 MHz Page: 4 of 4 Report number: 99744231 Photograph 3: Test setup conducted emissions
