DZLA00025Wireless Headset

DIE LINES SPOT COLORS PROCESS COLORS COLOR SPECIFICATIONS BRAND / LAUNCH: Logitech 2010 PROJECT TITLE: Bluto DETAILS: AMR-front/ GSW Guide K 5 25 50 75 95 SPECIFICATIONS / NOTES: Final Files to Print Job is grey scale MODIFICATION DATE: March 15, 2010 THIS PRINT SIZE / SCALE: 100% of original Designer: Emma Ghiselli Location: Fremont, CA, USA DIE LINE COLOR (NO PRINT) DIELINE NAME: n/a DIELINE RECEIVED: n/a Getting started withLogitech® Wireless Headset H760 EnglishHeadset elements1. Noise-canceling microphone2. Flexible, rotating microphone boom 3. Adjustable headband4. Sculpted ear pads5. Charging port6. Wireless connection status light (on the headset) 7. Battery status lightHeadset controls8. Volume up9. Volume down10. Pause/play11. Next track12. Previous track13. Power switchOther elements14. USB receiver15. Wireless connection status light (on the receiver) 16. USB receiver extension17. USB charging cable 1. 2. 3. 4. 5. 6. ( ) 7. 8. 9. 10. / 11. 12. 13. 14. USB 15. ( ) 16. USB 17. USB 한국어헤드셋 구성요소 1. 소음 제거 마이크 2. 유연한 회전식 마이크 붐 3. 조절 가능 헤드밴드 4. 편안한 이어 패드 5. 충전 포트 6. 무선 연결 상태 표시등 ( 헤드셋에 장착 ) 7. 배터리 상태 표시등 헤드셋 컨트롤 8. 볼륨 높이기 9. 볼륨 줄이기 10. 일시 정지 / 재생 11. 다음 트랙 12. 이전 트랙 13. 전원 스위치 기타 구성요소 14. USB 수신기 15. 무선 연결 상태 표시등 ( 수신기에 장착 ) 16. USB 수신기 연장 케이블 17. USB 충전 케이블 EnglishAn audible notification confirms when mute is enabled and disabled.한국어음소거 기능이 선택 또는 해제되면 이를 알리는 경고음이 들립니다 . EnglishMusic controls are compatible with Windows Media® Player and iTunes®. Additional software may be necessary to get full functionality from all features. Visit www.logitech.com/support for more information. Windows Media® Player iTunes® www.logitech.com/support 한국어음악 컨트롤은 Windows Media® Player 와 iTunes® 에서 사용할 수 있습니다 . 모든 기능이 완벽하게 작동하려면 소프트웨어가 추가로 필요할 수 있습니다 . 자세한 내용은 www.logitech.com/support 에서 찾아보실 수 있습니다 . EnglishThank you for purchasing Logitech Wireless Headset H760, which is designed to give you clear Internet calls and music—without cords or hassles. H760 — 한국어케이블이 없어 편안하고 깨끗한 음질로 인터넷 전화와 음악을 즐길 수 있는 로지텍 무선 헤드셋 H760 을 구매해주셔서 감사합니다 . Thank you! 감사합니다 ! Important information Safety, compliance, and warranty ortant infor matio n Safe ty, c ompliance , an d warranty Getting started with Logitech ® Wireless Headset H760 1 10 2 4 3 1 2 44 5 6 9 8 11 12 137 © 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. Microsoft, Windows Vista, Windows, and the Windows logo are trademarks of the Microsoft group of companies. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.620-002948.002 www.logitech.com/support 16 14 15 17 1 23 4 5 3 DIE LINES SPOT COLORS PROCESS COLORS COLOR SPECIFICATIONS BRAND / LAUNCH: Logitech 2010 PROJECT TITLE: Bluto DETAILS: AMR back/GSW Guide K 5 25 50 75 95 SPECIFICATIONS / NOTES: Final File to Print Job is grey scaleMODIFICATION DATE: March 15, 2010 THIS PRINT SIZE / SCALE: 100% of original Designer: Emma Ghiselli Location: Fremont, CA, USA DIE LINE COLOR (NO PRINT) DIELINE NAME: n/a DIELINE RECEIVED: n/a EnglishHelp with SetupSomething not sound right? No sound at all?• Move the headset into range of the USB receiver. The wireless connection status lights will be solid green when the two are within range. See the wireless performance section below for receiver placement tips. • Set the headset as the active audio device in the application and Windows Control Panel/Sound or Mac OS X System Preferences. • Adjust the volume and microphone settings to an audible level in the Operating System and application. • Quit and restart the media application.• If using a non-powered hub, try plugging the USB receiver (or the receiver extension) directly into the computer. Headset not charging?• If the battery status light on the headset is not orange (solid or flashing) when connected to the computer using the included USB charging cable, the headset is not receiving power from the computer USB port. Try another USB port, then turn on or wake up the computer to charge the headset. Music controls not working?• Music controls for applications other than iTunes and Windows Media Player are not supported. • Windows users can download an optional software enhancement from www.logitech.com/support to improve music control. Visit www.logitech.com for more troubleshooting tips.• USB • Windows / Mac OS X • • • USB ( ) • USB ( ) USB USB • iTunes Windows Media Player • Windows www.logitech.com/support www.logitech.com 한국어설치 도움말 소리에 문제가 있습니까 ? 전혀 소리가 나지 않습니까 ? • 헤드셋을 USB 수신기 범위 안으로 이동합니다 . 두 장치가 범위 내에 있으면 무선 연결 상태 표시등이 녹색으로 계속 켜져 있습니다 . 아래의 무선 성능 부분을 참조하여 수신기 위치에 대한 설명을 확인하십시오 . • 응용 프로그램과 Windows 제어판 / 사운드 또는 Mac OS X 시스템 환경 설정에서 헤드셋을 활성 오디오 장치로 설정합니다 . • 운영 체제와 응용 프로그램에서 볼륨 및 마이크 설정을 소리가 잘 들리는 수준으로 조정합니다 . • 미디어 응용 프로그램을 종료하고 다시 시작합니다 . • 전원이 연결되지 않은 허브를 사용하는 경우 USB 수신기 ( 또는 수신기 연장 케이블 ) 를 컴퓨터에 직접 연결합니다 . 헤드셋이 충전되지 않습니까 ? • 포함된 USB 충전 케이블로 컴퓨터에 연결했을 때 헤드셋의 배터리 상태 표시등이 주황색 ( 계속 켜져 있거나 깜박이는 상태 ) 으로 표시되지 않으면 헤드셋이 컴퓨터 USB 포트에서 전력을 받고 있지 못하는 것입니다 . 다른 USB 포트에 연결한 다음 컴퓨터를 켜거나 수면 모드를 해제하여 헤드셋을 충전하십시오 . 음악 컨트롤이 작동되지 않습니까 ? • iTunes 와 Windows Media Player 가 아닌 응용 프로그램의 음악 컨트롤은 지원되지 않습니다 . • Windows 사용자는 www.logitech.com/support 에서 음악 컨트롤 향상을 위한 선택형 소프트웨어 향상 프로그램을 다운로드할 수 있습니다 . 자세한 문제 해결 정보를 보려면 www.logitech.com 을 방문하십시오 . < 경고 > 발열 , 화재 , 폭발 등의 위험을 수반할 수 있으니 다음 사항을 지켜주시기 바랍니다 . a) 육안으로 식별이 가능할 정도의 부풀음이 발생된 전지는 위험할 수 있으므로 제조자 또는 판매자로 즉시 문의 할 것 b) 지정된 정품 충전기만을 사용할 것 c) 화기에 가까이 하지 말 것 ( 전자레인지에 넣지 말 것 ) d) 여름철 자동차 내부에 방치하지 말 것 e) 찜질방 등 고온 다습한 곳에서 보관 , 사용하지 말 것 f) 전원을 켠 상태로 밀폐된 공간에 장시간 보관하지 말 것 g) 휴대 기기 , 제조 업체가 보증한 리튬 2 차 전지 사용할 것 h) 분해 , 압착 , 관통 등의 행위를 하지 말 것 i) 높은 곳에서 떨어뜨리는 등 비 정상적 충격을 주지 말 것 J) 60 o C 이상의 고온에 노출하지 말 것 k) 습기에 접촉 하지 않도록 할 것 English Light Battery Level DescriptionGreen >10% …

Text truncated - open the document above for the full version.

DIE LINES SPO T C OL ORS PR OCESS COL ORS COL OR SPECIFIC ATIONS BR AND / L AUNCH: Logitech 2009 PR OJECT TITLE: OboeDET AILS: AMR / GSW Guide K525507595 SPECIFICATIONS / NOTES: F inal f iles Job is grey scale MODIFICATION DATE: December 9, 2009 THIS PRINT SIZE / SCALE: 100% of original Designer: Emma Ghiselli Location: Fremont, CA, USA DIE LINE COL OR (NO PRINT) DIELINE NAME: n/a DIELINE RECEIVED: n/a www.logitech.com © 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. © 2010 Logitech. Tous droits réservés. Logitech, le logo Logitech et les autres marques Logitech sont la propriété de Logitech et sont susceptibles d'être déposés. Logitech décline toute responsabilité en cas d'erreurs dans ce manuel. Les informations énoncées dans ce document peuvent faire l'objet de modifications sans avis préalable. 620-002602.004 Logitech Important Information Safety, Compliance, and Warranty English Safety information WARNING! ELECTRIC SHOCK HAZARD: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER. Read and follow these instructions, heed all warnings, and keep this document for future reference. • Your product is suitable for use in semi-tropical and moderate climates only. Set up your product in accordance with Logitech’s product documentation, and place your product in a stable location so it will not fall and cause product damage or bodily harm. Operate your product only from the low-level, audio line output jack of your computer or audio component. • Do not use your product near water, including dripping or splashing sources (e.g., indoor fountains), or near objects filled with liquids, such as flower vases or fish tanks. • Do not use your product near heat sources (e.g., radiators, heat registers, stoves, open flames, such as lighted candles, or other heat-producing devices, such as audio amplifiers or TVs). • Do not block ventilation openings or push objects into product vents, ports, or slots. Doing so may create an electric shock or fire hazard. Maintain a minimum distance of at least 15 cm (6 inches) around your product for sufficient ventilation. Covering ventilation openings with such items as newspapers, tablecloths, or curtains may impede ventilation and cause a fire. • Do not, under any circumstance, modify your product’s power cord and plug, including the power cord and plug to your product’s power supply, if one has been included. If the plug does not fit into your AC outlet, have a certified electrician replace your obsolete AC outlet. Protect the power cord from being stepped on or pinched, especially where the cord exits the product or plugs into an AC outlet or power strip. • Unplug your product during lightning storms or when it’s not being used for long periods of time. Disconnect your product from the AC outlet by first turning off the product or by placing it in standby mode (see product documentation for more information) before unplugging the product’s power cord from the AC outlet. Your product’s power cord and plug must remain operational at all times, and the AC outlet (receptacle) should be near the product and easily accessible. • Only use approved attachments and accessories specified by Logitech. • Refer all servicing and repair to qualified service personnel. Servicing is required when your product does not operate normally, the power cord/plug has been damaged, the product has been exposed to water, rain, liquid, or moisture, the product has been dropped, or an object has been inserted into a product port or vent. • For portable products or products weighing less than 7 kg (15 lbs), the product label may be found on the product stand, under a lid, or on the bottom of the product itself. • Clean your product using only a dry cloth and no water or liquid. Warning Symbols Explained This symbol is placed on the product to tell you to proceed with CAUTION. Refer to your product documentation before continuing. Find the section in the manual that pertains to the product feature or function referenced by this symbol. This symbol is placed on the product as a WARNING. Access to this area of the product is restricted. Failure to comply could result in an electrical shock hazard. Protect your hearing Listening advice to avoid hearing damage Listening via headphones, earbuds, or headsets at a high volume may cause permanent hearing loss to occur. The louder the volume, the less time is required before your hearing could be affected. To establish a safe volume level: • Start your equipment with the volume control at its lowest setting. • Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. • Avoid setting the volume at a level that prevents you from hearing conversations and other similar noises around you. Once you have established a comfortable sound level, leave it there. If you experience a ringing in your ears, discomfort or muffled speech, reduce the volume or stop listening and have your hearing checked. See the product support page on the Logitech website www.logitech.com for additional information.Disposal guidelines at product end of life Some Logitech products use non-serviceable, nickel-metal h ydride (NiMH) batteries, which should last the duration of a product’s warranty period under normal use. Please do NOT attempt to change the battery yourself. If the battery has died and you do not want Logitech t o r eplace the battery, y ou should follo w t he disposal instructions in the documentation that accompanies your product. Also consult local laws and regulations for the proper disposal of batteries and electronic devices in your r egion. If ther e a re no local regulations concerning electronic waste disposal, place your product (and its battery) in a w ast e…

Text truncated - open the document above for the full version.

Logitech, Inc. 4700 NW Camas Meadows Drive Camas, WA 98607 Tel:510 713-4777;Fax:510 713-5090 Date:June 2, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID:DZLA00025 To Whom It May Concern: We,Logitech,Inc., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Aaron Cohen

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 June 15, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. June 15, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Wireless Headset Model name: A-00025 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

1/1 Logitech, Inc. 4700 NW Camas Meadows Drive Camas, WA 98607 Tel:510 713-4777;Fax:510 713-5090 Date:June 2, 2010 Federal Communications Commission Authorization and Evaluation Division RE: Certification Application FCC ID:DZLA00025 To Whom It May Concern, Pursuant to sections 0.457 and 0.459of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application betemporarilywithheld from public disclosure for an initial period of180days: External Photos (file:A-00025_ExtPho.pdf) InternalPhotos (file:A-00025_IntPho.pdf) Test Setup Photos (file:A-00025_Tsup.pdf) User Manual (file:A-00025_UserMan.pdf) Theapplication contains technical information, whichLogitech,Inc.deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understandsthat pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Aaron Cohen

Rev. 1/1/03 Logitech, Inc. 4700 NW Camas Meadows Drive Camas, WA 98607 Tel:510 713-4777;Fax:510 713-5090 Date:June 2, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:DZLA00025 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying thisapplication as outlined below: Schematics(file:A-00025_Schem_Confidential.pdf) Block Diagram(file:A-00025_BlkDia_Confidential.pdf) Parts List(file:A-00025_PartsLst_Confidential.pdf) Operation Description(file:A-00025_OpDes_Confidential.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Aaron Cohen

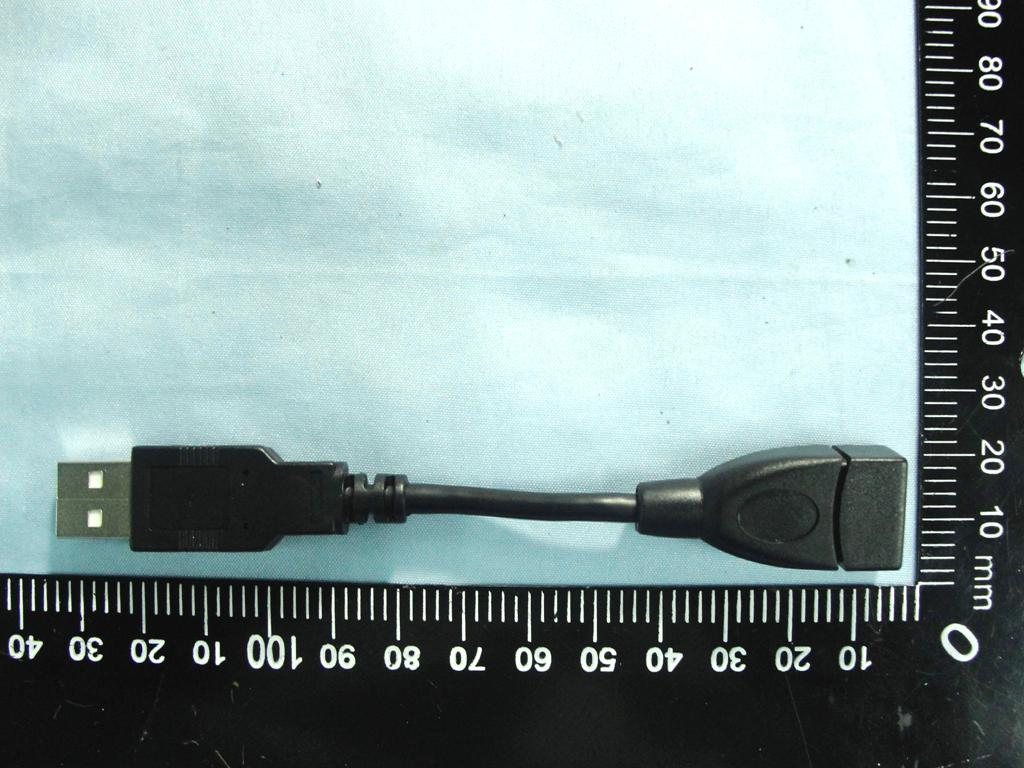

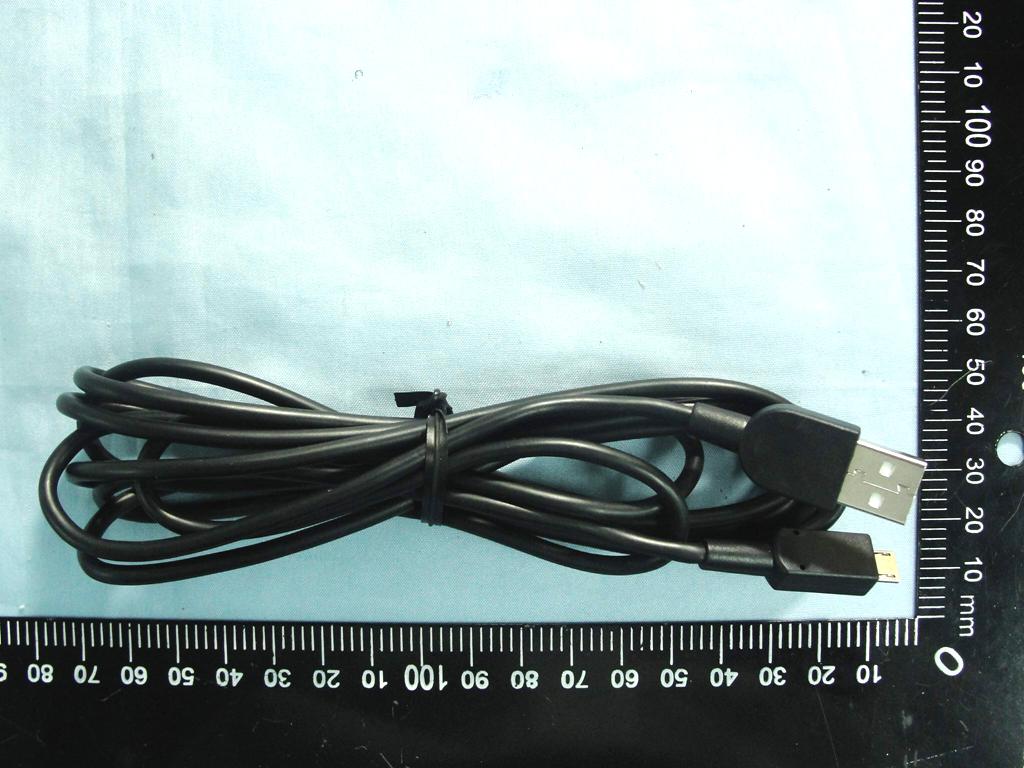

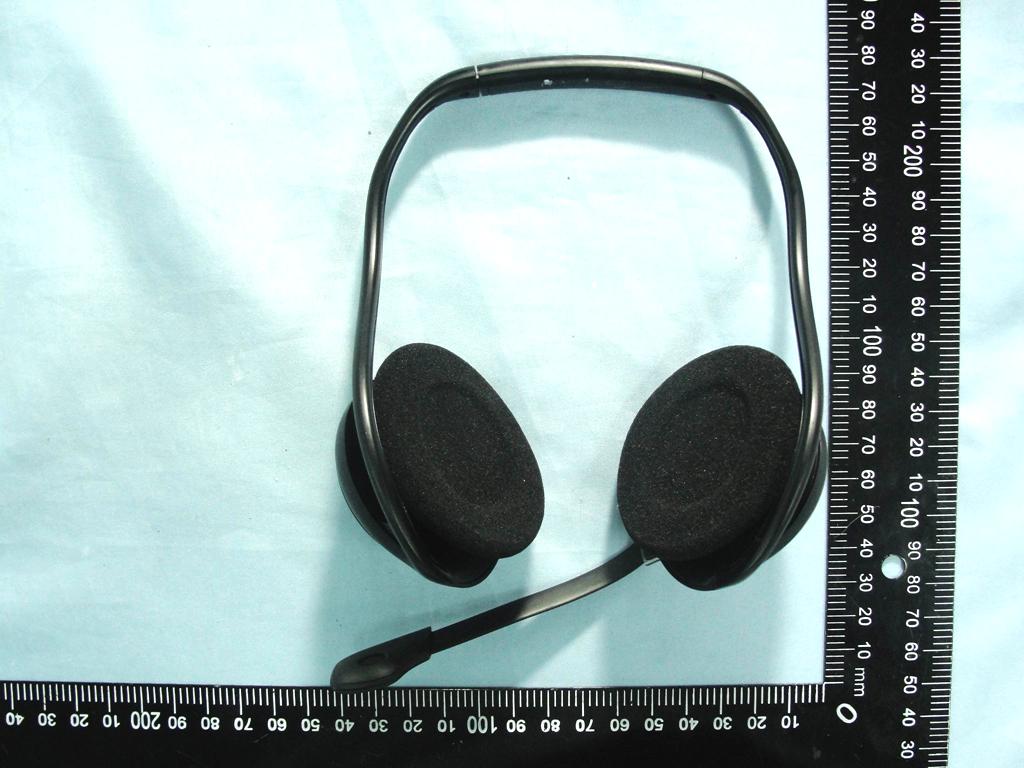

Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 1 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 1. External Photograph of EUT Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 2 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 3 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 4 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 720510 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 5 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 6 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 7 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 List of Accessory: Specification of Accessory Battery Brand Name SYNERGY Power Rating 3.7Vdc, 265mAh Type Li-ion USB Dongle Brand Name Logitech, Inc. Model Name A-00026 USB Cable 1 Signal Line Type 0.03 meter shielded cable without ferrite core USB Cable 2 Signal Line Type 2.1 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 8 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 9 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 10 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 11 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 12 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 USB Cable 1 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 13 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 720510 USB Cable 2

E D E D C B A C B A BHC507(Bluto) 1 LABEL for headset (AMR/EMEA/AP) freeson 1 BOB 8 mm 55 mm AMR/EMEA/AP for headset JP for headset 8 mm 55 mm FCC ID: DZLA00025 IC: 1807D-A00025 CMIIT: 2010YYXXXX P/N: 881-000084 M/N: A-00025 Complies with IDA Standards DB101104 P/N: 881-000084 M/N: A-00025 Made in China DZL-A-00025

Label Location Label here

Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 14 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 3. Internal Photograph of EUT Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 15 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 16 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 17 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 18 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 19 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 20 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 21 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 22 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 23 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 720510 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 24 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 25 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Photographs of EUT Report No.: EP040901 Brand Name: Logitech / Model Name: A-00025 SPORTON INTERNATIONAL INC. Page Number : 26 of 26 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 IC : 1807D-A00025 Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 RF Exposure Evaluation Report Report No. : FA040901 RF Exposure Evaluation Report APPLICANT : Logitech, Inc. EQUIPMENT : Wireless Headset BRAND NAME : Logitech MODEL NAME : A-00025 FCC ID : DZLA00025 FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 RF Exposure Evaluation Report Report No. : FA040901 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. INTRODUCTION .......................................................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 RF Exposure Evaluation Report Report No. : FA040901 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA040901 Rev. 01 Initial issue of report Jun. 15, 2010 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 RF Exposure Evaluation Report Report No. : FA040901 1. Introduction The report has been prepared on behalf of Logitech, Inc. Wireless Headset to show compliance with the RF Exposure.  Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Logitech A-00025 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Jun. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : DZLA00025 RF Exposure Evaluation Report Report No. : FA040901 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be use…
